Wega

GRUPPE EMA EPU EVD

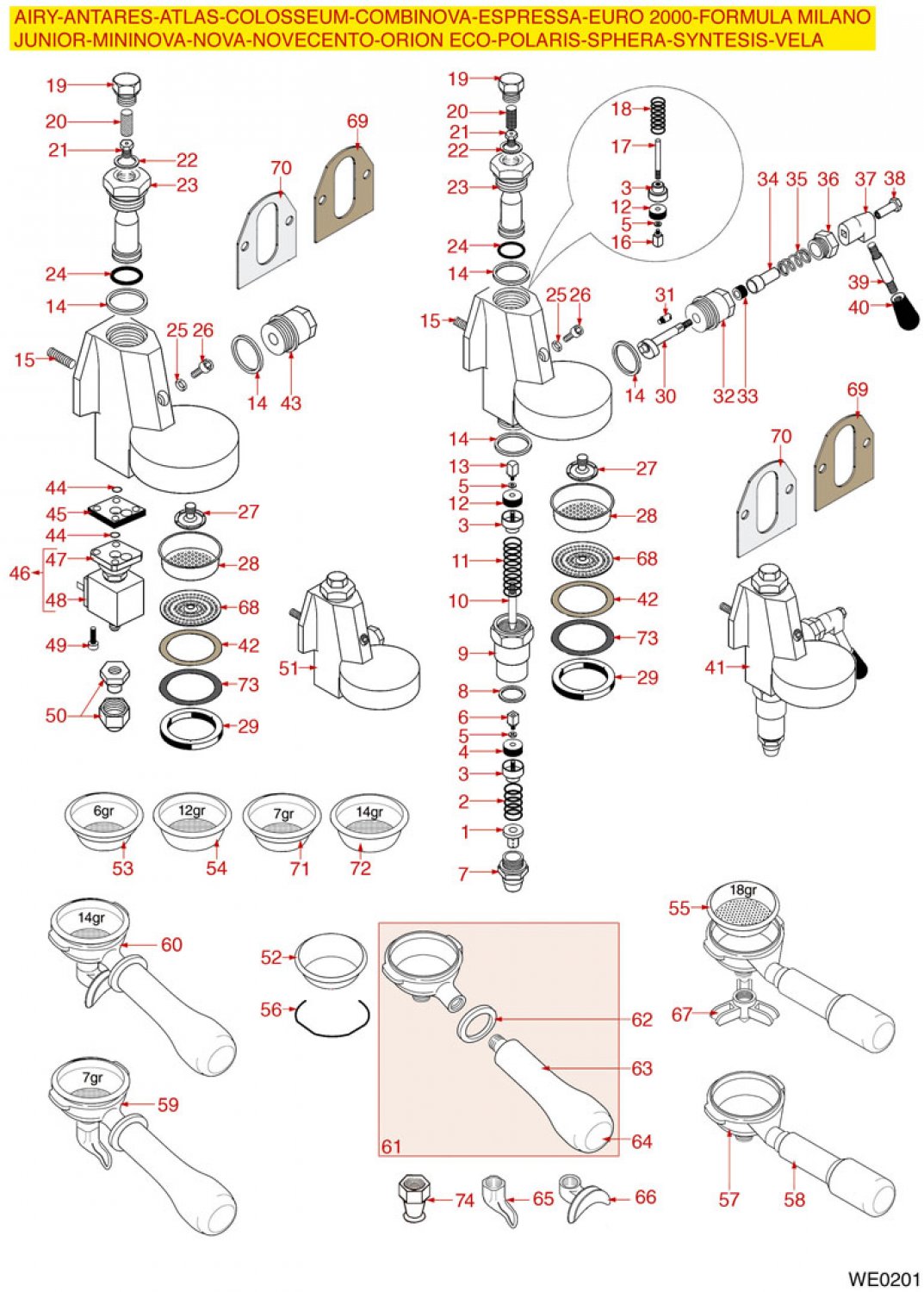

Drawing number 8057513

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

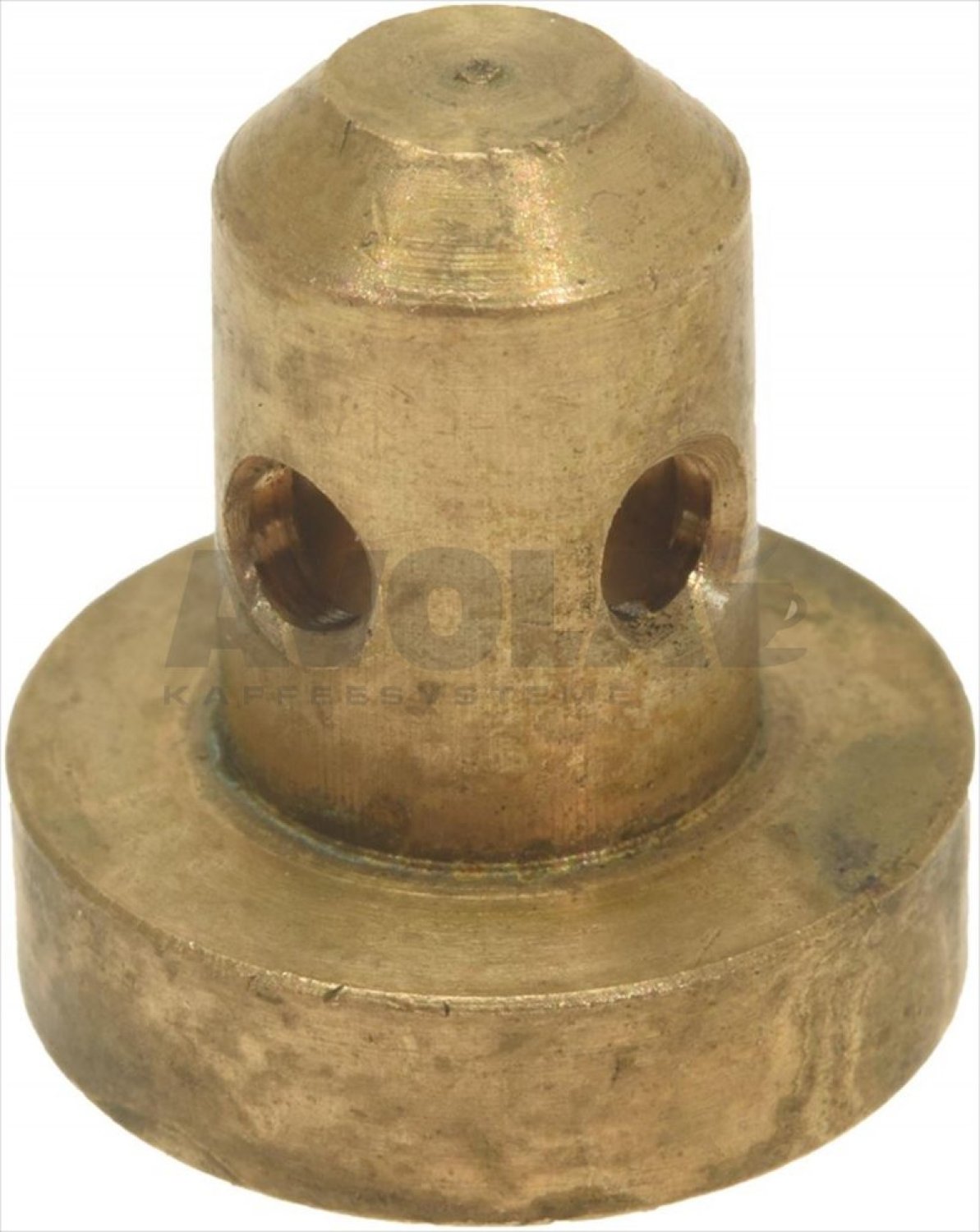

1drain jet swirl8006318
DRAIN JET SWIRL
8,14 €

excl. Shipping costs
immediately available, 6 available
2feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available

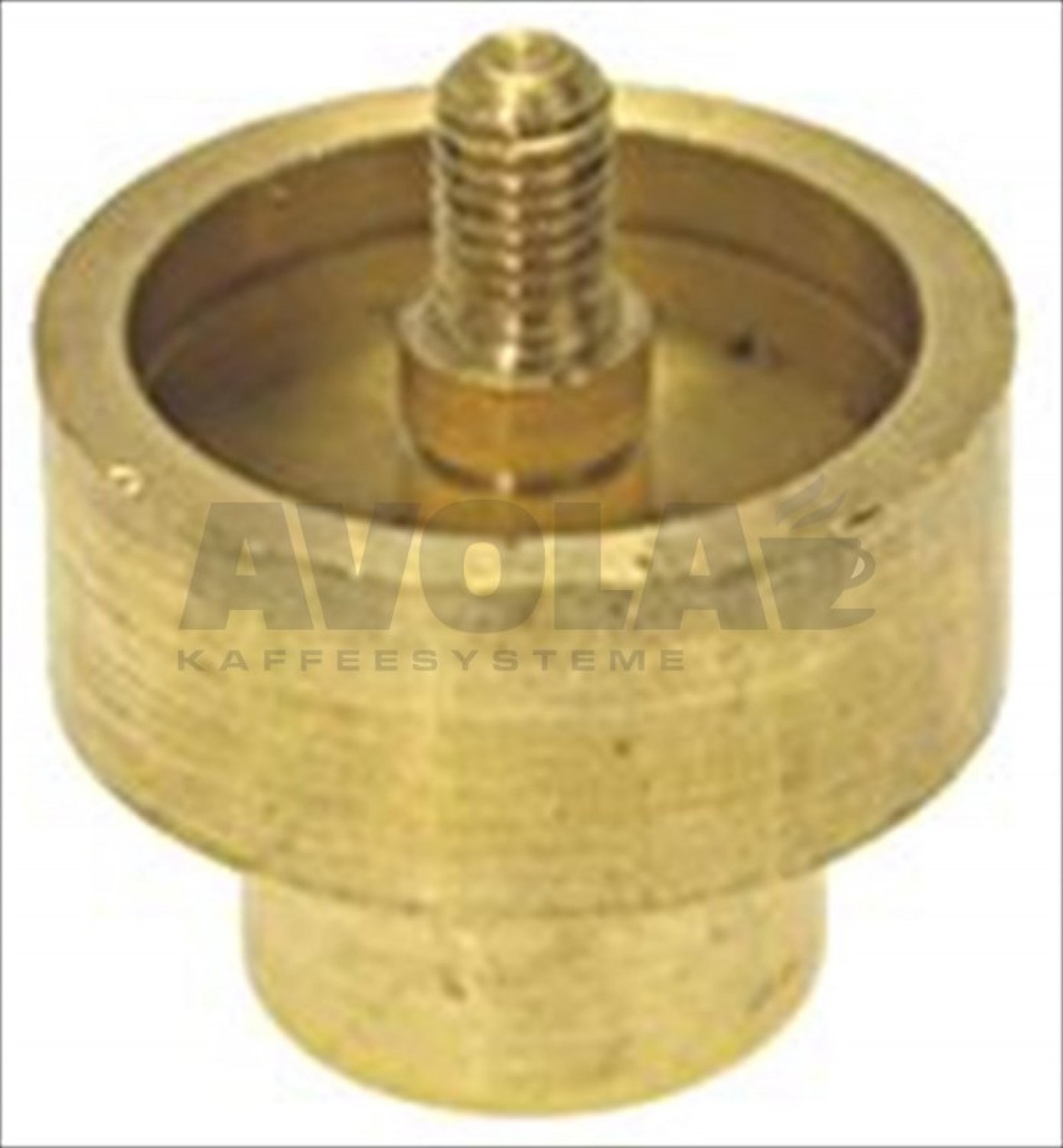

3gasket holder bushing8001568
GASKET HOLDER BUSHING
3,26 €

excl. Shipping costs
immediately available, 11 available
4nbr flat gasket o 13x4x4 mm8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs
immediately available

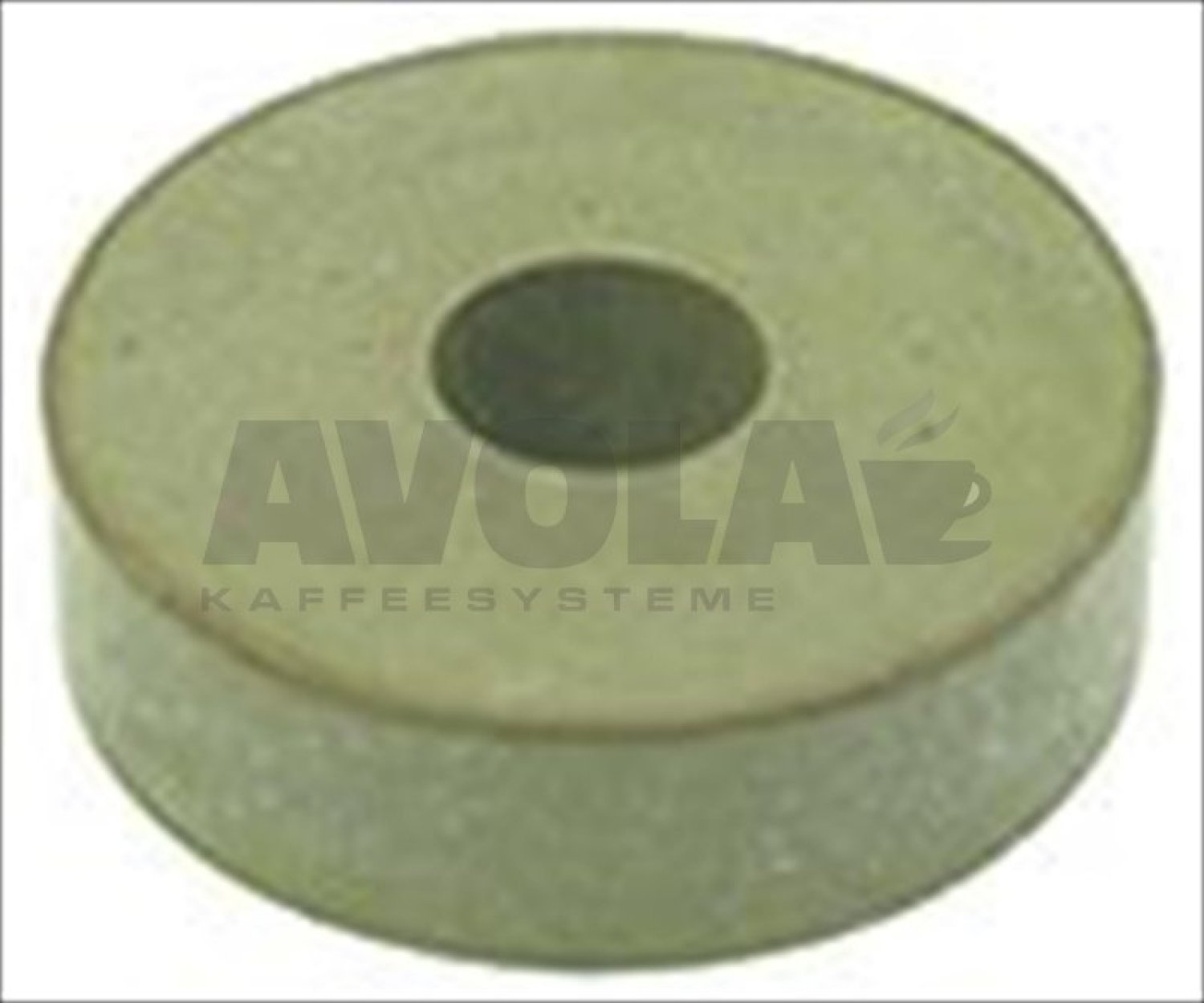

4viton flat gasket 13x4x4 mm8001990
VITON FLAT GASKET 13x4x4 mm
1,62 €

excl. Shipping costs
immediately available

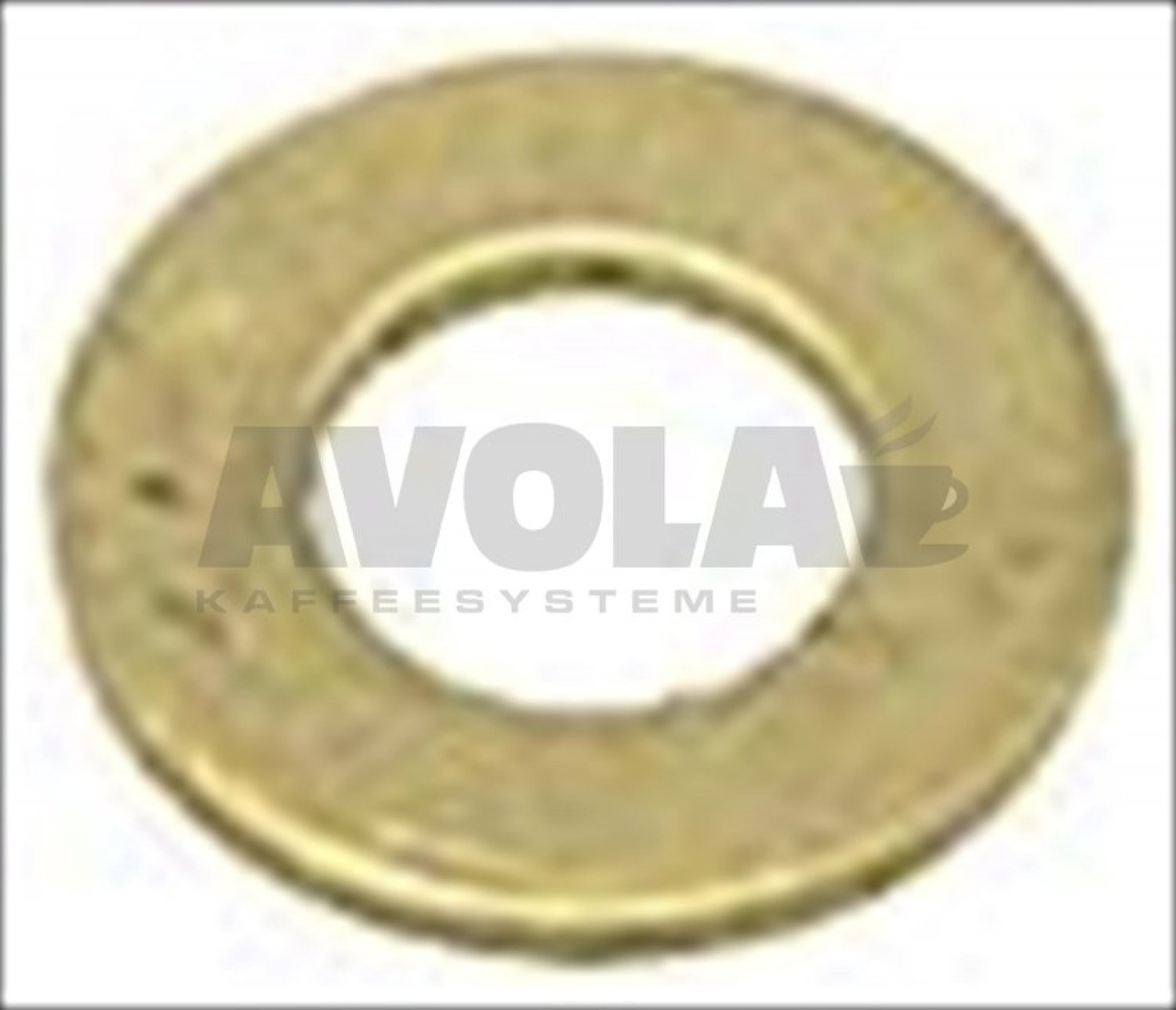

5brass washer 6x3x0 5 mm8001584
BRASS WASHER 6x3x0,5 mm
0,68 €

excl. Shipping costs
immediately available

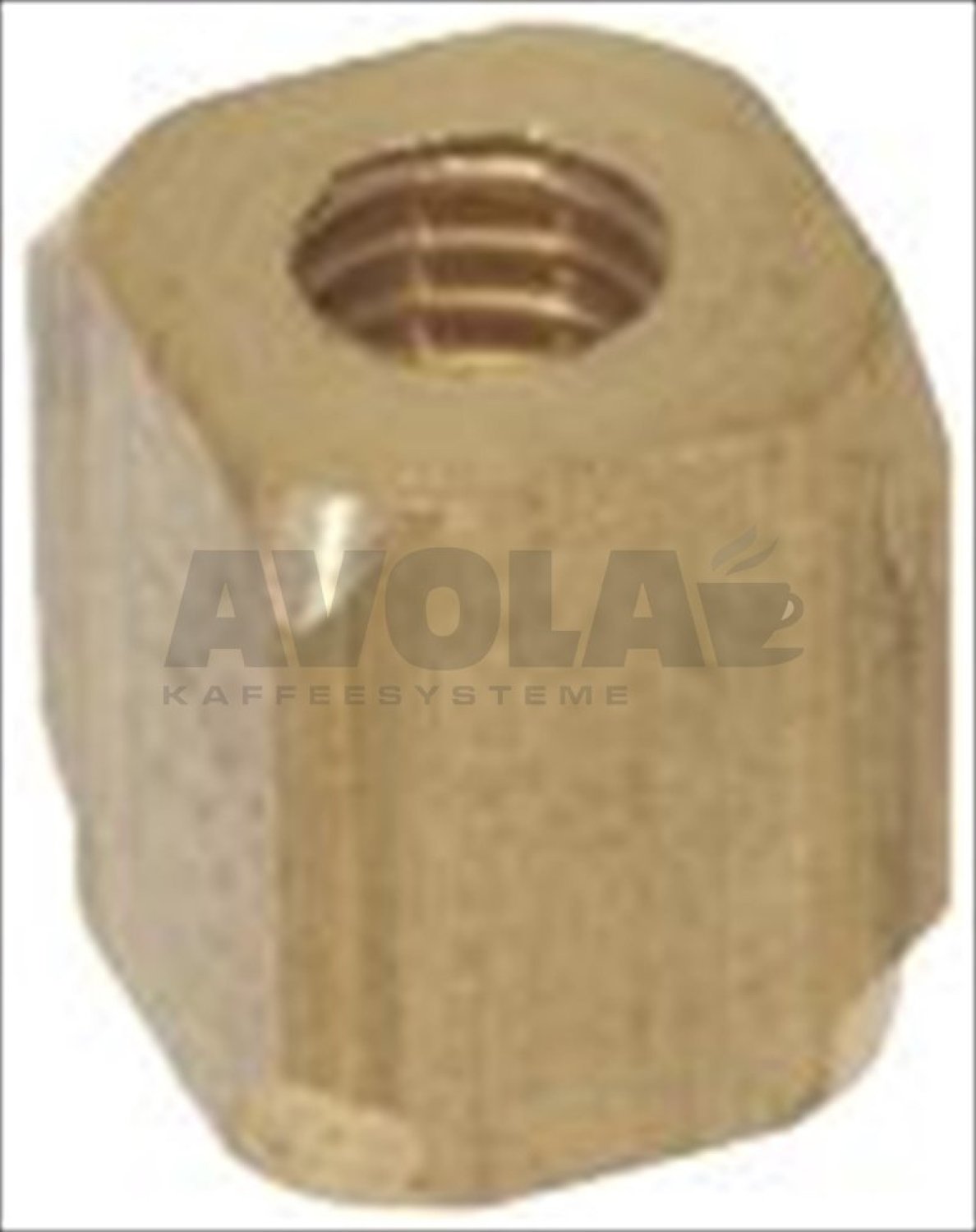

6square pin 5 mm height 6 mm m68005175
SQUARE PIN 5 mm HEIGHT 6 mm M6
3,89 €

excl. Shipping costs
Delivery time
is determined
7drain chromium plated fitting8105825
DRAIN CHROMIUM-PLATED FITTING
7,20 €

excl. Shipping costs
Delivery time
is determined
8flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available, 20 available

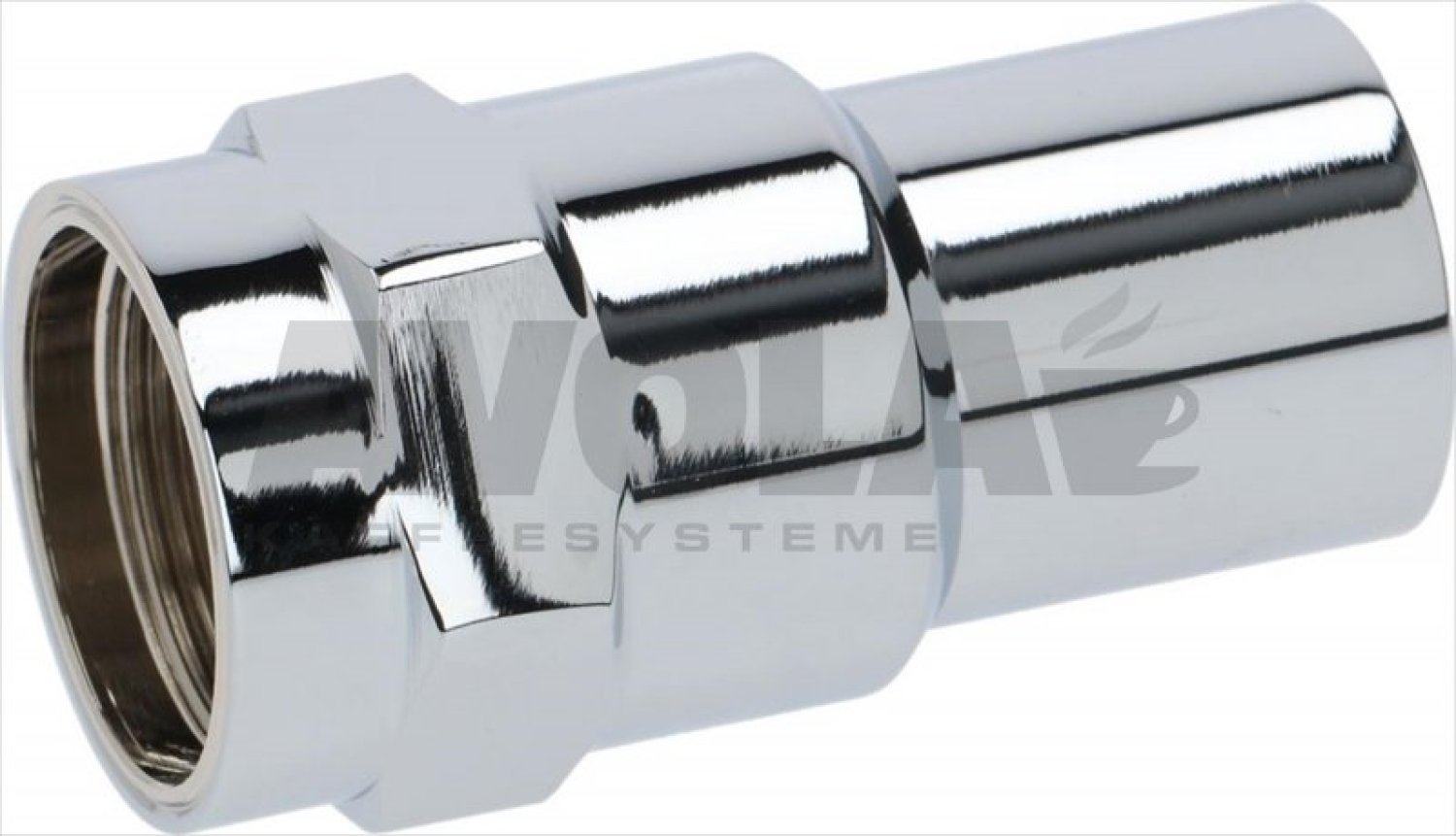

9outlet chromium plated sleeve8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs
immediately available, 1 available
10triangular infusion pin8005159
TRIANGULAR INFUSION PIN
8,53 €

excl. Shipping costs
Delivery time
is determined
11spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
12nbr flat gasket o 13x4x4 mm8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs
immediately available
12viton flat gasket 13x4x4 mm8001990
VITON FLAT GASKET 13x4x4 mm
1,62 €

excl. Shipping costs
immediately available
13square pin 11 1 mm 6x6 mm m38005092
SQUARE PIN 11.1 mm 6x6 mm M3
1,43 €

excl. Shipping costs
immediately available, 12 available
14ptfe flat gasket 36x30x2 mm8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs
immediately available
15stainless steel m8x25 mm stud8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs
immediately available, 9 available

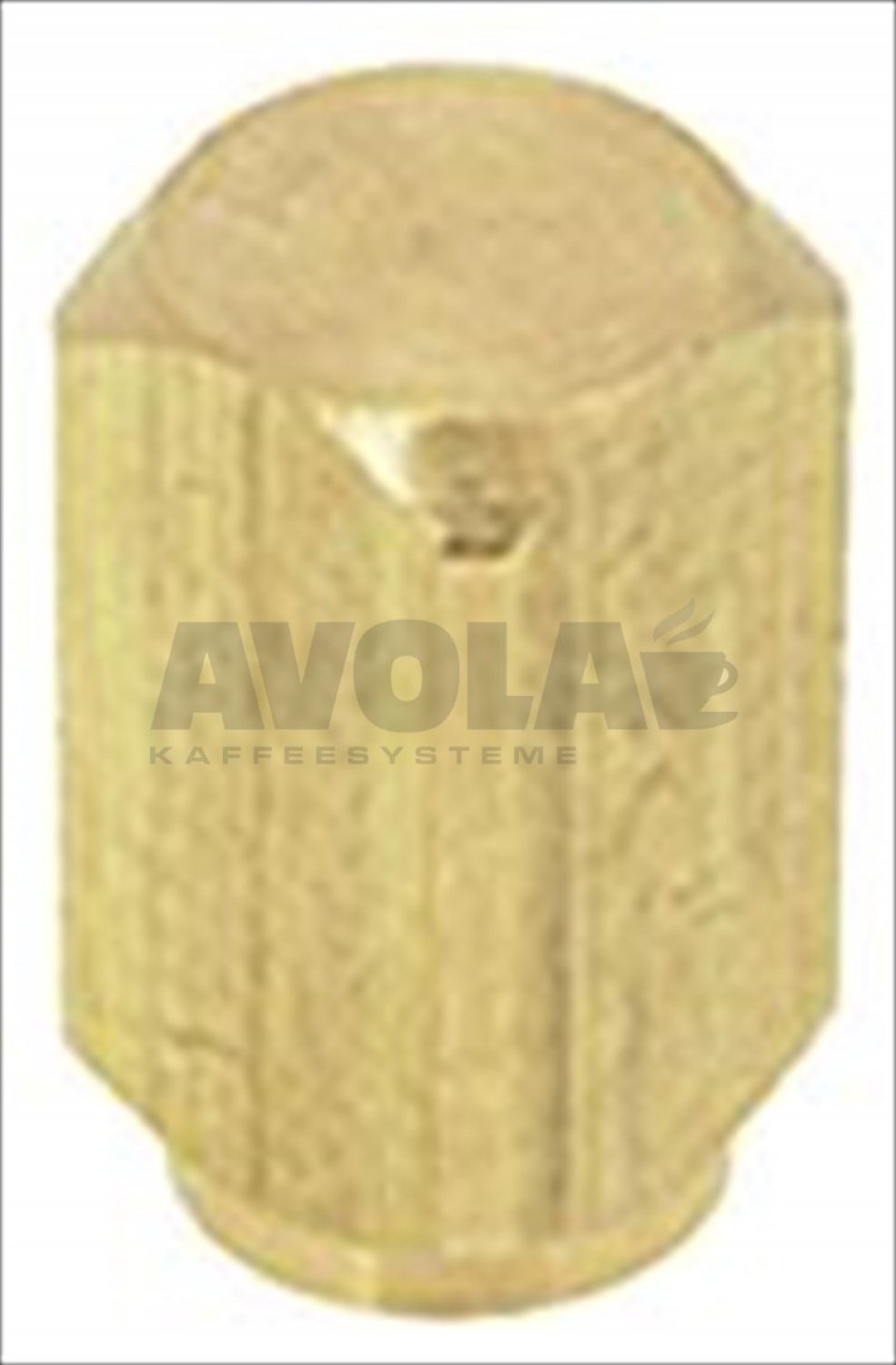

16square pin 12 1 mm 6x6 mm m38005113
SQUARE PIN 12.1 mm 6x6 mm M3
2,96 €

excl. Shipping costs
immediately available, 8 available

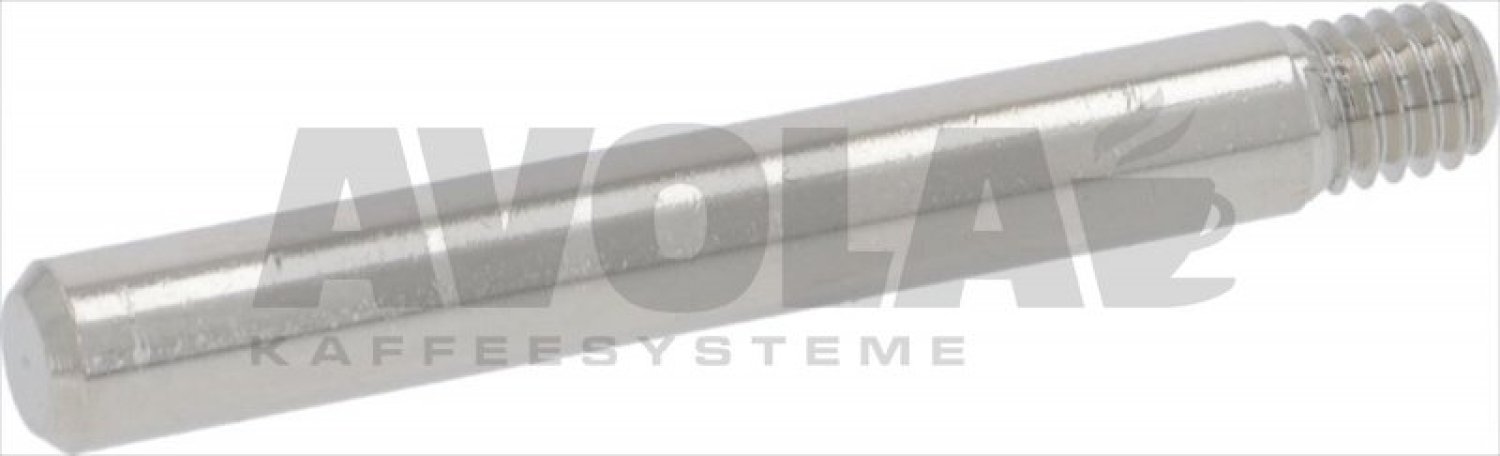

17delivery valve pin8005098
DELIVERY VALVE PIN
2,71 €

excl. Shipping costs
immediately available, 11 available
18spring o 13x42 mm8003819
SPRING ø 13x42 mm
3,50 €

excl. Shipping costs
immediately available, 13 available
19deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 10 available
20water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
21nozzle m6x1 hole8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs
immediately available
22ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available

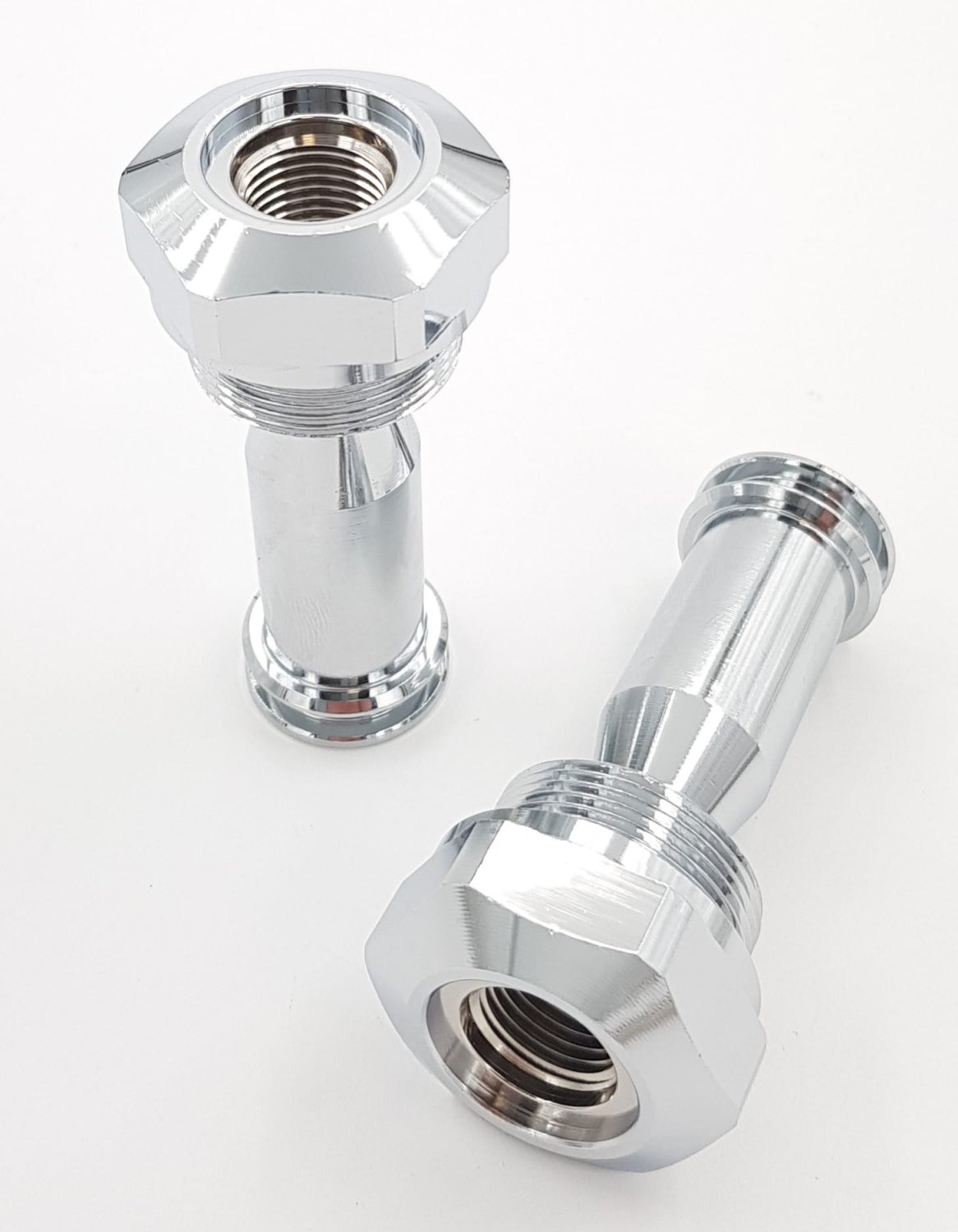

23e61 gruppenpilz kollektor oben verchromt grosse nut 8073648
E61 Gruppenpilz Kollektor oben verchromt (große Nut)
35,70 €

excl. Shipping costs
immediately available, 10 available
24o ring 04075 epdm8001699
O-RING 04075 EPDM
0,77 €

excl. Shipping costs
immediately available
25copper flat gasket o 10x6x1 mm8001983
COPPER FLAT GASKET ø 10x6x1 mm
1,31 €

excl. Shipping costs
immediately available, 6 available
26cylinder head screw m6x88001304
CYLINDER HEAD SCREW M6x8
1,67 €

excl. Shipping costs
immediately available, 15 available
27brew group spray nozzle8006973
BREW GROUP SPRAY NOZZLE
50,60 €

excl. Shipping costs
Delivery time
is determined
27group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
28shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
29cafelat e61 portafilter gasket 73x57x8 mm red8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs
immediately available
29wega filter holder gasket o 73 5x57 5x8 mm8061949
WEGA FILTER HOLDER GASKET ø 73.5x57.5x8 mm
6,08 €

excl. Shipping costs
immediately available
29gasket 73x57x8 mm for e61 brew unit8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs
immediately available
29rubber 73x57x8 5 mm for e61 brew unit8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs
immediately available
30cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available

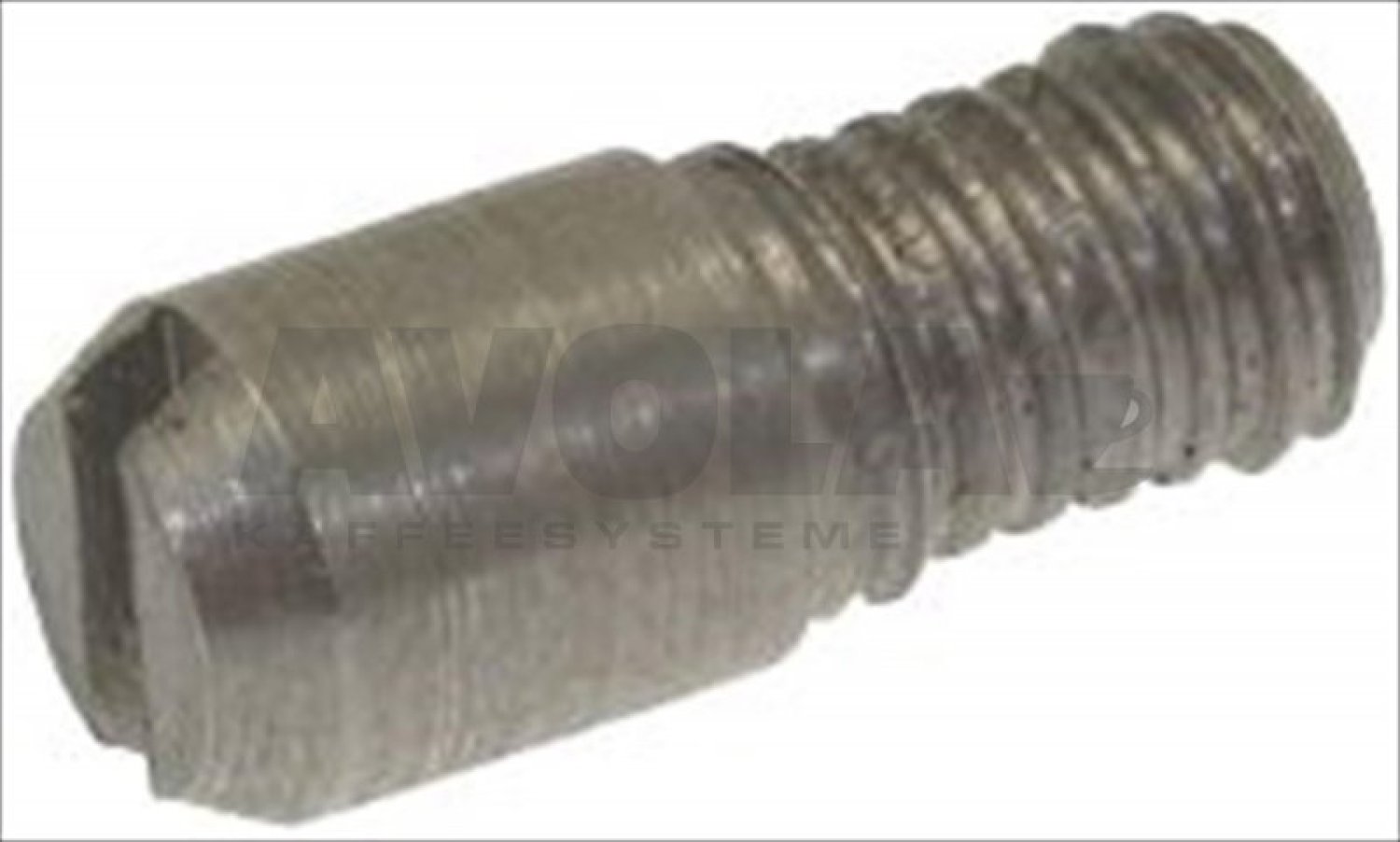

31blocking cam s steel screwm68007289
BLOCKING CAM S/STEEL SCREWM6
2,73 €

excl. Shipping costs
Delivery time 4-6 weeks
32ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 5 available
33epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
34cam guide bushing8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs
immediately available, 15 available
35spring o 15x25 mm8003821
SPRING ø 15x25 mm
2,02 €

excl. Shipping costs
immediately available
36stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 3 available

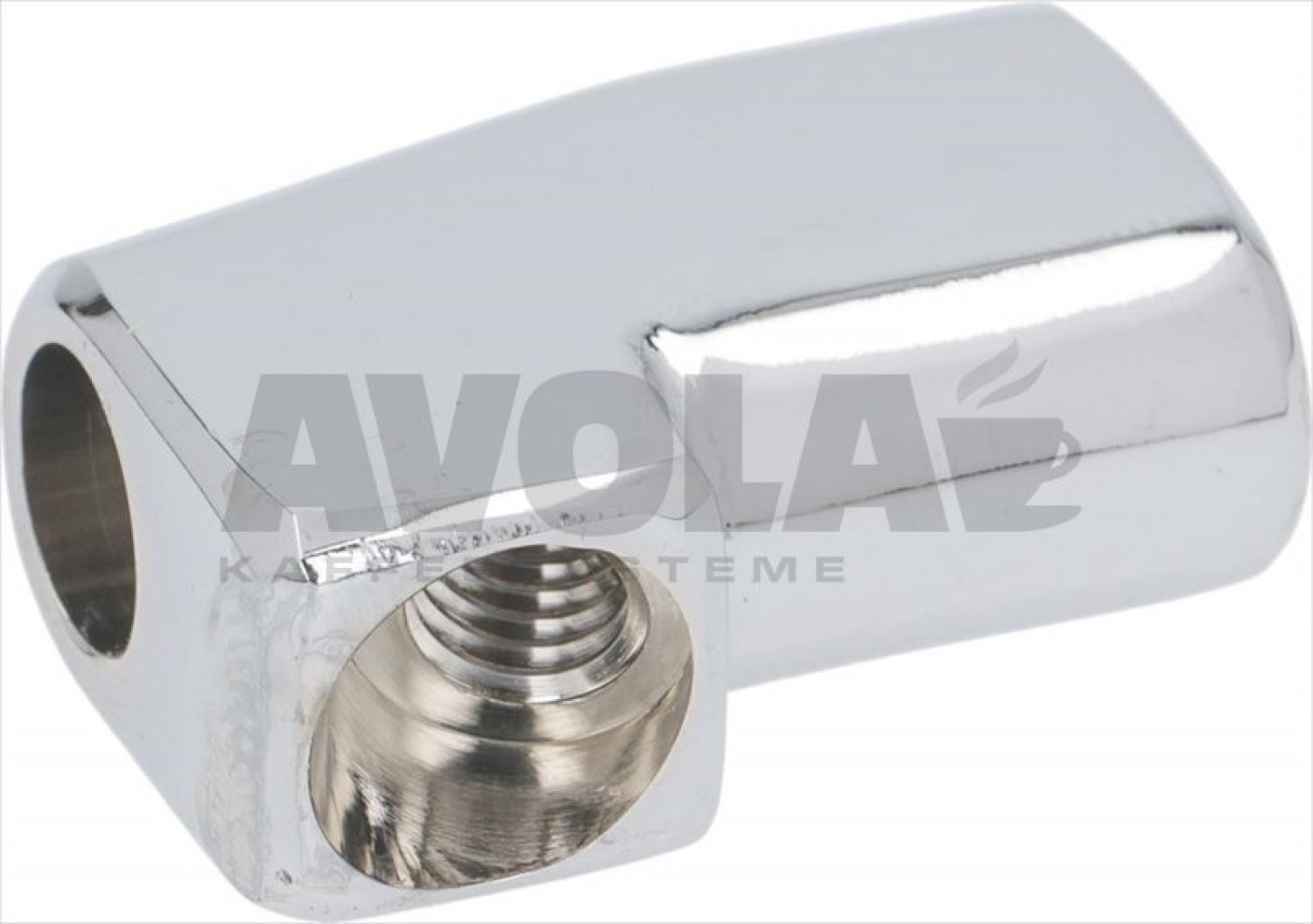

37chromium plated cam8002189
CHROMIUM-PLATED CAM
45,72 €

excl. Shipping costs
immediately available, 2 available

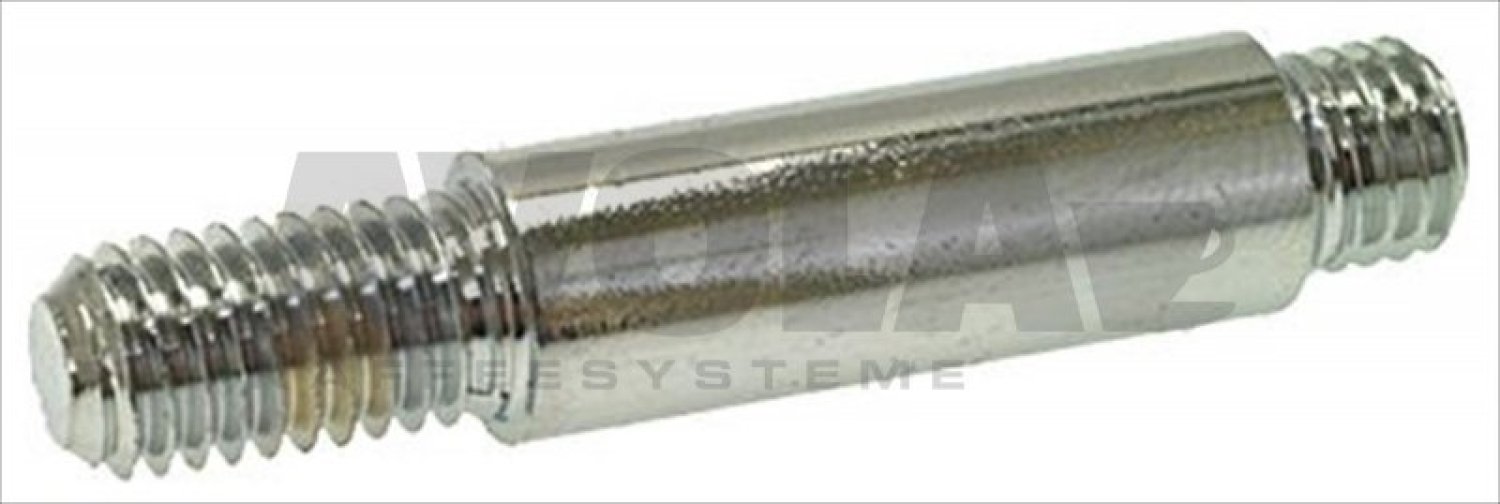

39unit operating rod8005109
UNIT OPERATING ROD
13,39 €

excl. Shipping costs
immediately available, 2 available

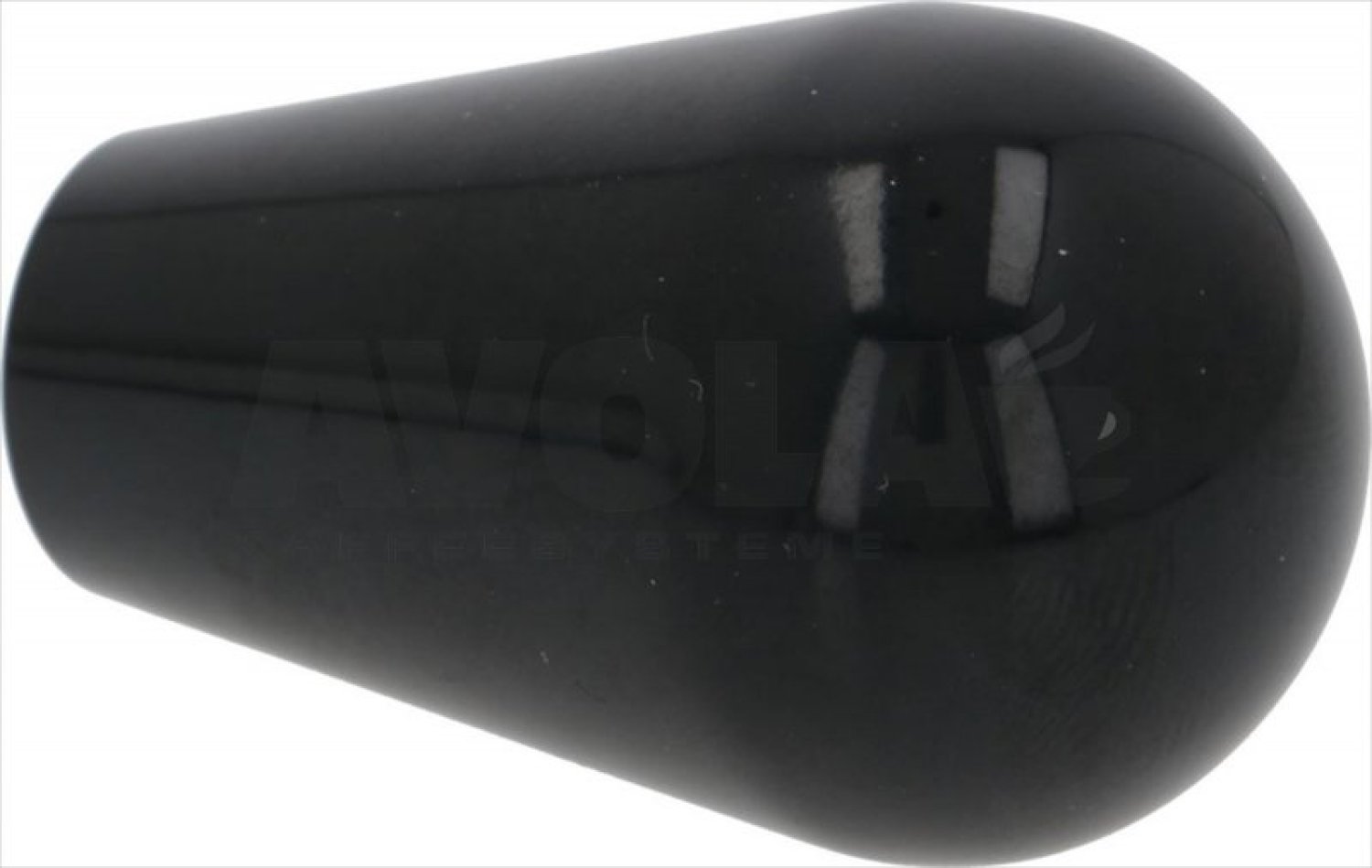

40knob m8x18003294
KNOB M8x1
6,56 €

excl. Shipping costs
immediately available, 3 available
42paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
Delivery time
is determined

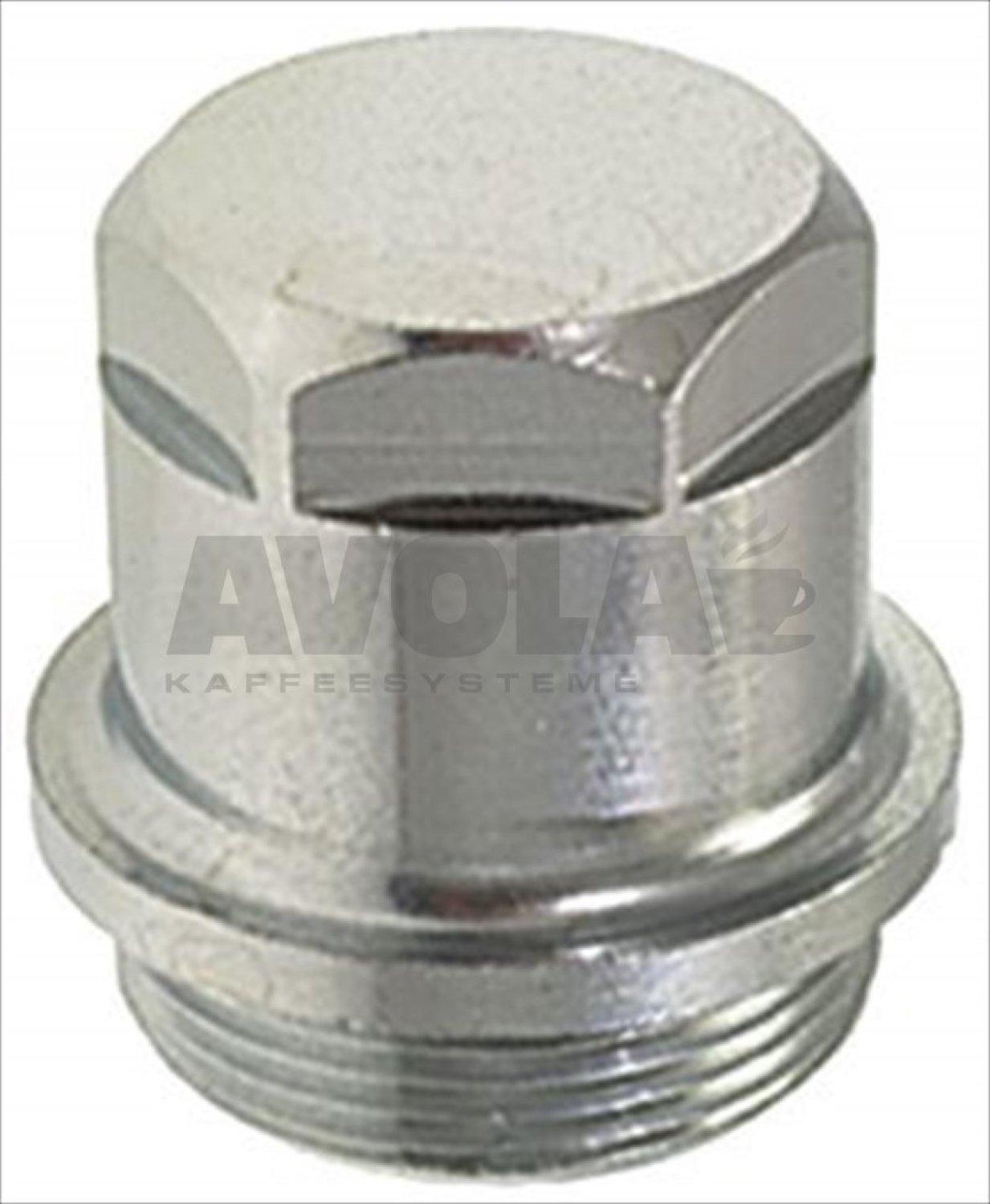

43chromium plated side cap8006380
CHROMIUM-PLATED SIDE CAP
14,96 €

excl. Shipping costs
Delivery time
is determined
44red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
44o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
45magnetventil flat ptfe gasket8001651
Magnetventil FLAT PTFE GASKET
12,48 €

excl. Shipping costs
immediately available, 6 available
463 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 5 available
463 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 8 available
473 way mechanical component lucifer8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs
immediately available, 7 available
473 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 17 available
48coil lucifer parker 220 240v 9w 50hz8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs
immediately available, 6 available
48coil parker zb09 9w 220 240v 50 60hz8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs
immediately available
49schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
52blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
531 cup filter 6 gr8001056
1 CUP FILTER 6 gr
5,39 €

excl. Shipping costs
immediately available, 1 available

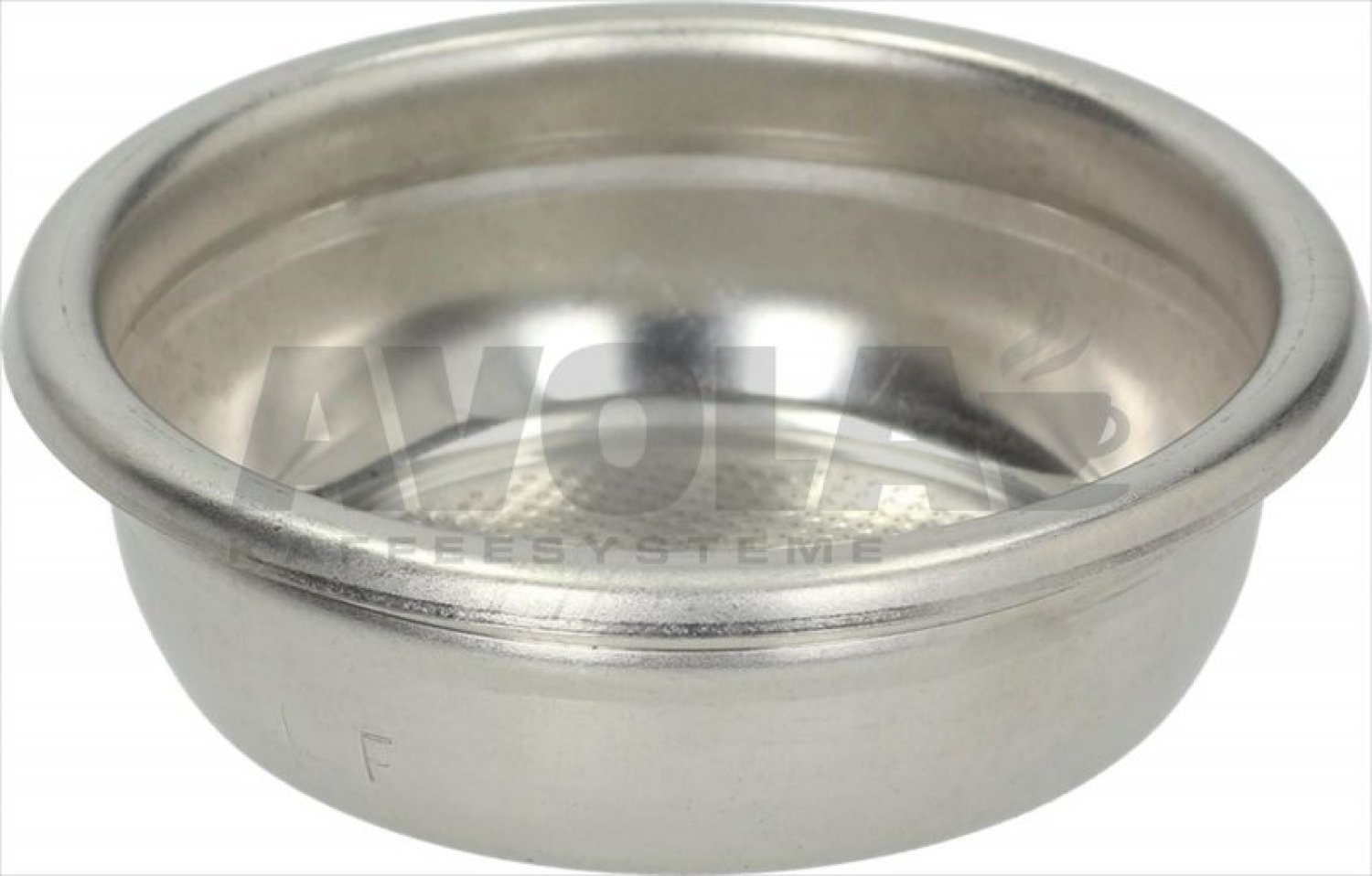

542 cup filter 14 grams8063469
2-CUP FILTER 14 GRAMS
4,81 €

excl. Shipping costs
immediately available, 7 available
552 cups filter 18 21gr o 70x28 mm8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs
immediately available, 6 available
56filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available

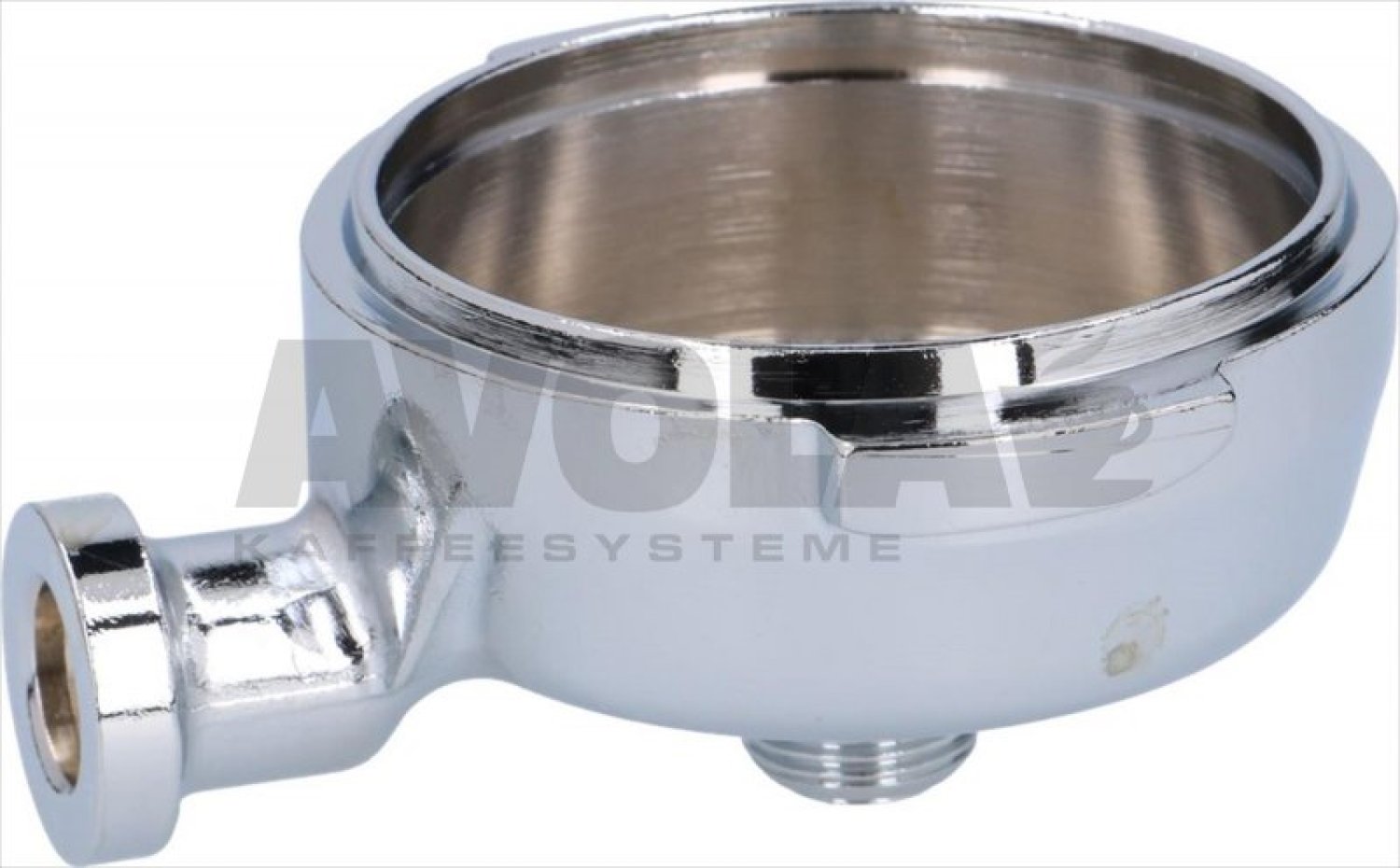

57filter holder coffee machines8001183
FILTER HOLDER COFFEE MACHINES
19,99 €

excl. Shipping costs
immediately available, 1 available
58filter holder handle m128003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs
immediately available, 2 available
59filter holder assembly 1 cup wega8069377
FILTER HOLDER ASSEMBLY 1 CUP WEGA
This article is no longer available
60filter holder assembly 2 cups wega8069376
FILTER HOLDER ASSEMBLY 2 CUPS WEGA
This article is no longer available
61filter holder assy wega8001233
FILTER HOLDER ASSY WEGA
56,60 €

excl. Shipping costs
Delivery time
is determined
62burn preventing ring for handle8001951
BURN PREVENTING RING FOR HANDLE
0,81 €

excl. Shipping costs
immediately available, 8 available
63black filter holder handle m128003250
BLACK FILTER HOLDER HANDLE M12
14,85 €

excl. Shipping costs
immediately available, 1 available
64chrome plated cap for filter holder knob8003336
CHROME PLATED CAP FOR FILTER HOLDER KNOB
3,81 €

excl. Shipping costs
immediately available, 8 available
65single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 14 available
66double spout o 3 8 rime 8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs
immediately available, 2 available
68shower 51 50 mm8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs
immediately available
69coffee group gasket 80x70x2 mm8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs
immediately available, 8 available
70coffee group gasket 77x73x2 mm8001729
COFFEE GROUP GASKET 77x73x2 mm
8,44 €

excl. Shipping costs
immediately available, 12 available

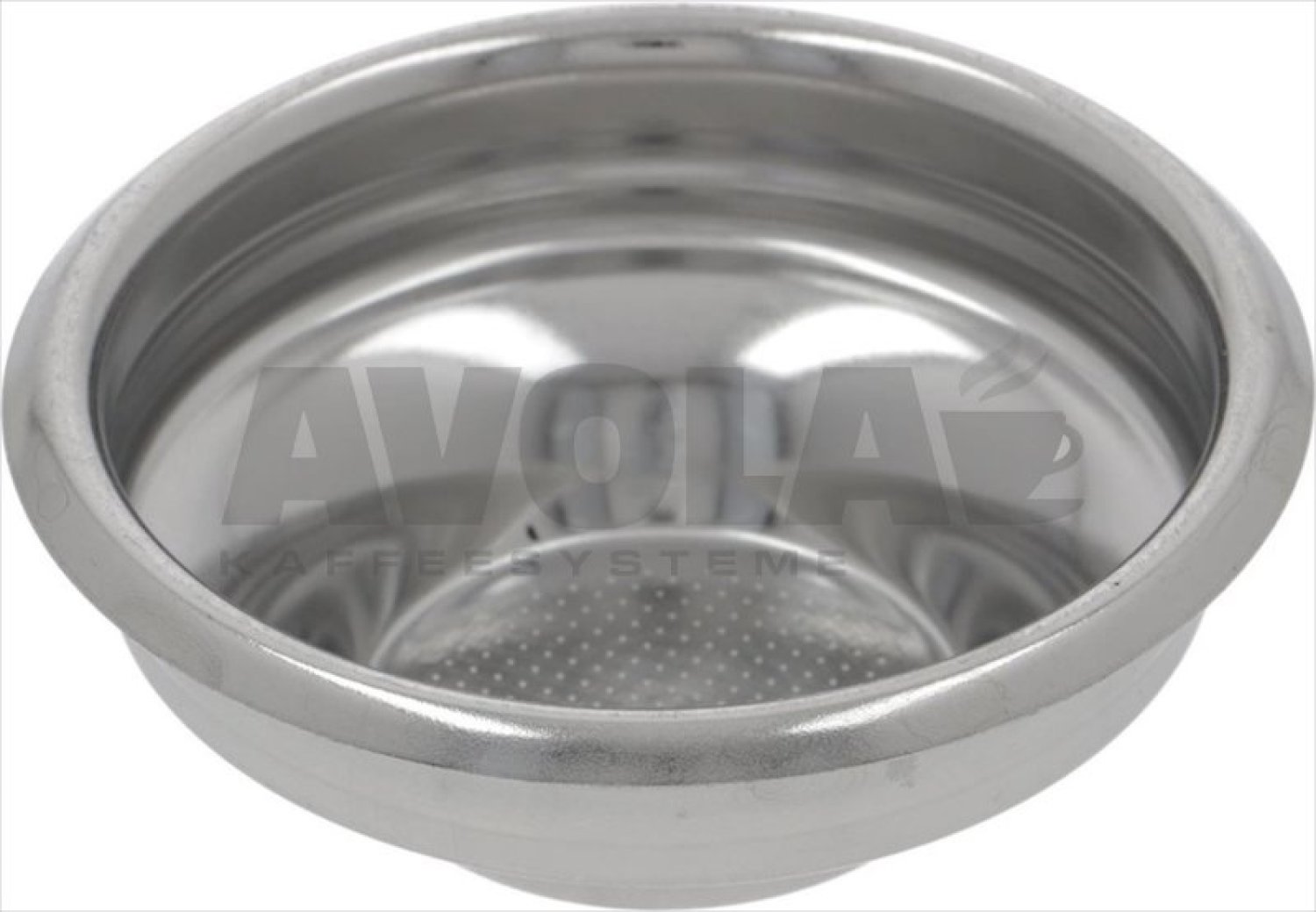

711 cup filter 7 gr8001057
1 CUP FILTER 7 gr
6,32 €

excl. Shipping costs
immediately available, 9 available
722 cups filter 14 gr o 70x24 5 mm8001058
2 Cups Filter 14 gr ø 70x24,5 mm
5,50 €

excl. Shipping costs
immediately available, 6 available
73rubber shim o 73 5x59x1 mm epdm8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available
74straight single spout o 3 88000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs
immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
