Visacrem Brava Brühgruppe V6

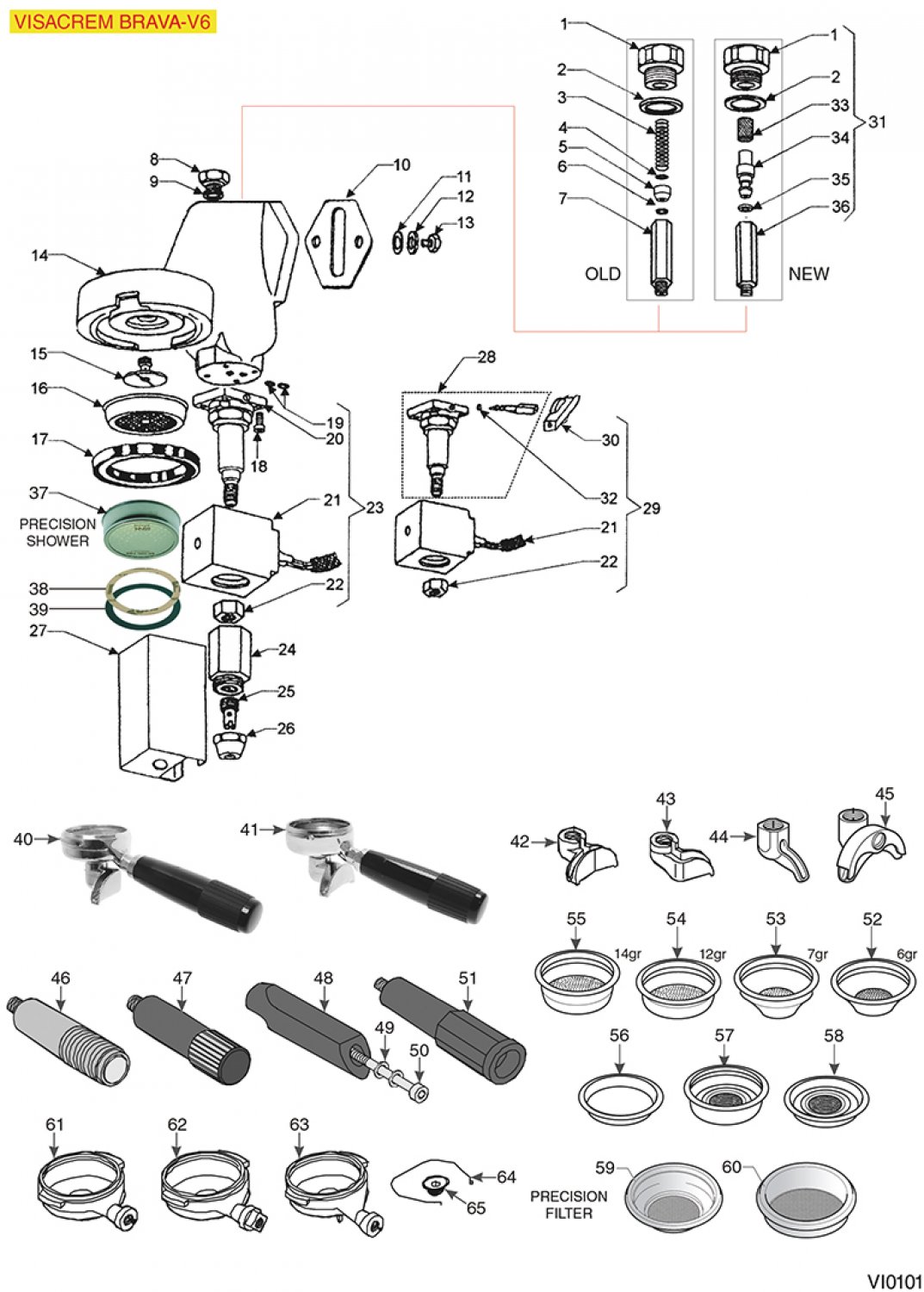

Drawing number 8081090

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1deckel o 3 8 fuer auslaufgruppe8076981
DECKEL ø 3/8 FÜR AUSLAUFGRUPPE
14,32 €

excl. Shipping costs
immediately available, 1 available
2copper flat gasket 22x17x1 5 mm8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs
immediately available
3jet spring o 7x28 mm8003788
JET SPRING ø 7x28 mm
2,07 €

excl. Shipping costs
immediately available
4water filter8001098
WATER FILTER
1,40 €

excl. Shipping costs
immediately available, 19 available
5nozzle o 8 loch o 0 7 mm8006981
NOZZLE ø 8 LOCH ø 0,7 mm
5,65 €

excl. Shipping costs
immediately available, 9 available
6o ring 0040 20 epdm8036617
O-RING 0040-20 EPDM
0,84 €

excl. Shipping costs
immediately available
9copper flat gasket8001535
COPPER FLAT GASKET
Price on request
10coffee group gasket 79x71x2 mm8001723
COFFEE GROUP GASKET 79x71x2 mm
5,49 €

excl. Shipping costs
immediately available, 10 available
15group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
16shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
16ims matrix dusche e61 duschsieb8280721
IMS Matrix Dusche E61 Duschsieb
27,95 €

excl. Shipping costs
immediately available, 10 available
17rubber 73x57x8 5 mm for e61 brew unit8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs
immediately available
17filter holder gasket o 73x57x8 mm8001902
FILTER HOLDER GASKET Ø 73x57x8 mm
3,47 €

excl. Shipping costs
immediately available
17filter holder gasket8001903
FILTER HOLDER GASKET
3,63 €

excl. Shipping costs
immediately available
18schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
19o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
203 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 13 available
21coil parker yb09 220 230v 9w 50 60hz8037447
COIL PARKER YB09 220/230V 9W 50/60Hz
32,59 €

excl. Shipping costs
immediately available, 2 available
233 way solenoid valve parker 230v 50 60hz8000979
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
111,67 €

excl. Shipping costs
Delivery time
is determined
24coupling discharge8005829
COUPLING DISCHARGE
9,01 €

excl. Shipping costs
Delivery time
is determined

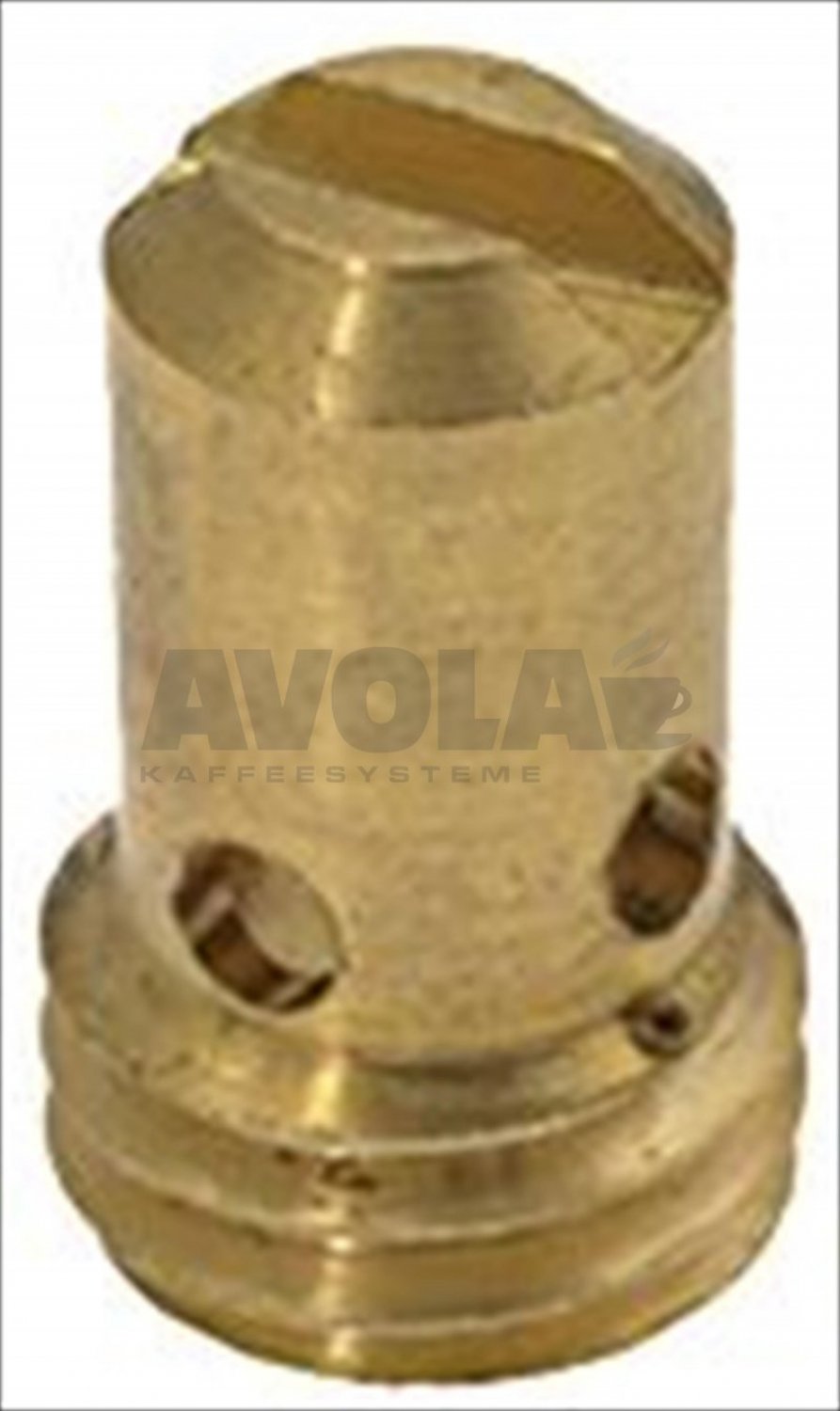

25drain jet swirl8005830
DRAIN JET SWIRL
9,01 €

excl. Shipping costs
Delivery time
is determined
26drain chromium plated fitting8005828
DRAIN CHROMIUM-PLATED FITTING
This article is no longer available
27solenoid cover8002689
SOLENOID COVER
Price on request
27manual solenoid cover8002690
MANUAL SOLENOID COVER
19,68 €

excl. Shipping costs
Delivery time
is determined
30solenoid valve handle8003290
SOLENOID VALVE HANDLE
3,18 €

excl. Shipping costs
Delivery time 4-6 weeks
33water filter o 8 5x15 mm8001111
WATER FILTER ø 8,5x15 mm
4,83 €

excl. Shipping costs
immediately available, 4 available

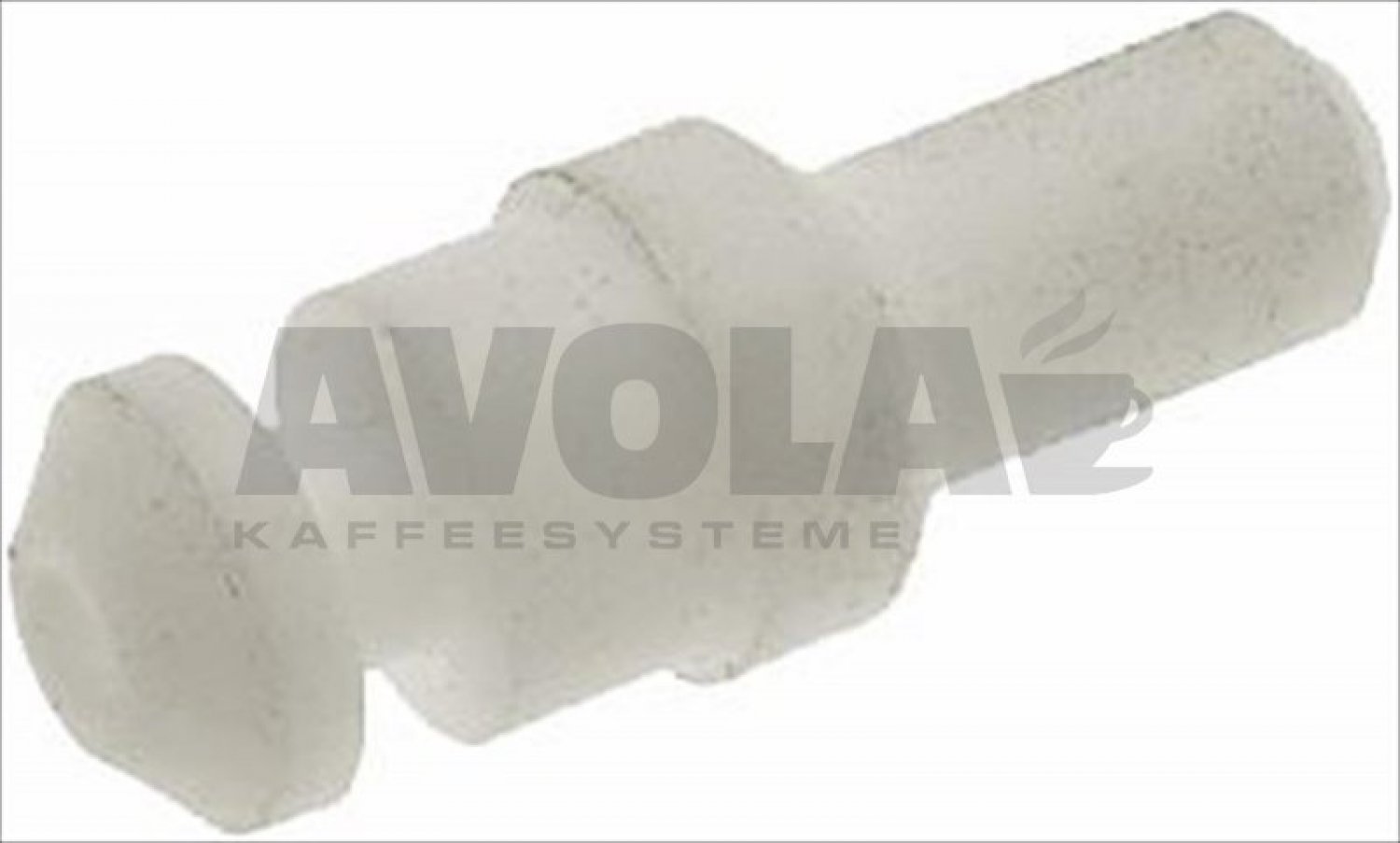

34nozzle group8006992
NOZZLE GROUP
4,89 €

excl. Shipping costs
Delivery time
is determined
35o ring 02015 silicon8001735
O-RING 02015 SILICON
1,02 €

excl. Shipping costs
immediately available
37precision shower screen8062792
PRECISION SHOWER SCREEN
15,90 €

excl. Shipping costs
immediately available, 4 available
37precision shower screen8062793
PRECISION SHOWER SCREEN
11,92 €

excl. Shipping costs
immediately available, 4 available
38paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
39rubber shim o 73 5x59x1 mm epdm8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available

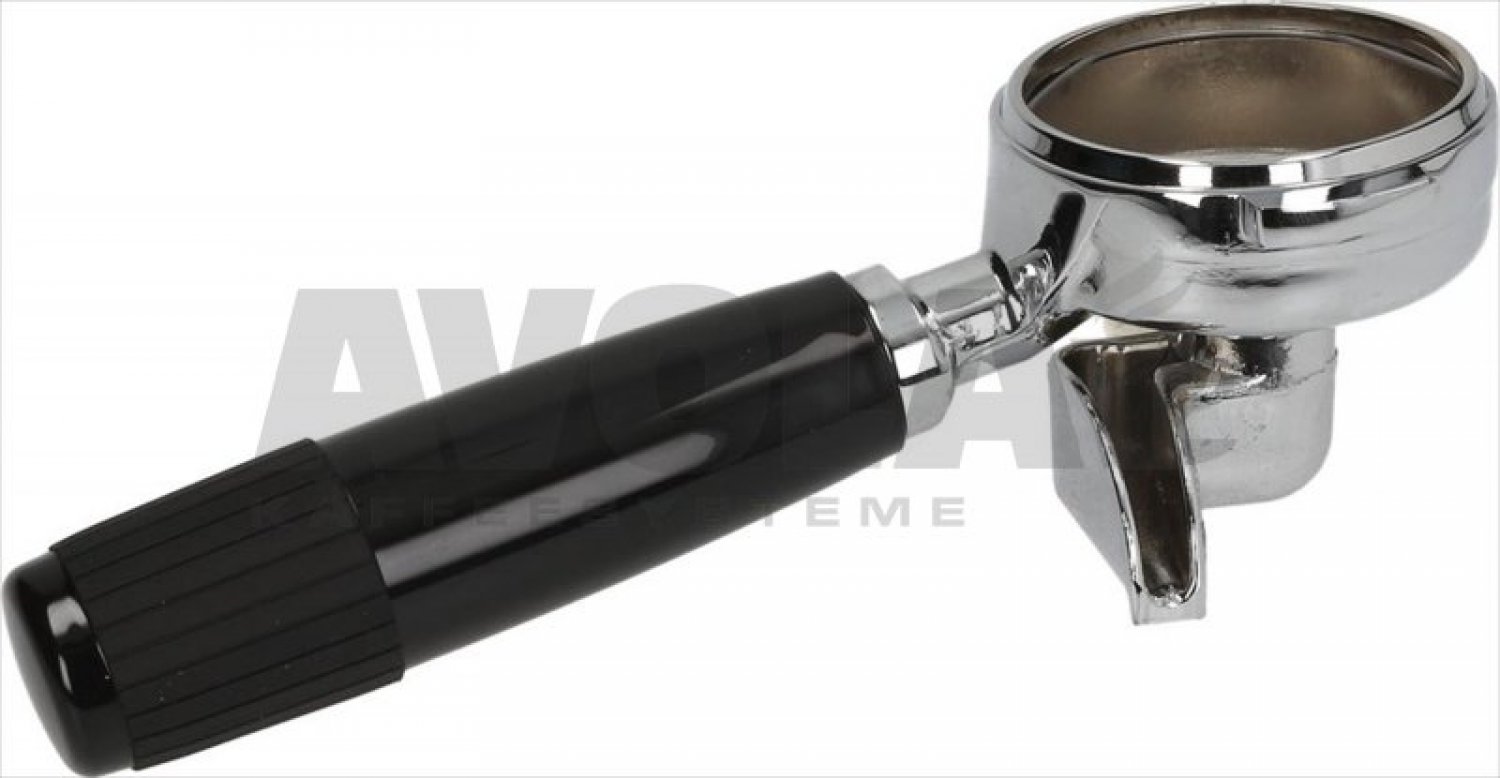

40siebtraeger komplett 1 tasse futurmat8077968
SIEBTRÄGER KOMPLETT 1 TASSE FUTURMAT
100,80 €

excl. Shipping costs
Delivery time 4-6 weeks
41siebtraeger komplett 2 tassen futurmat8077152
SIEBTRÄGER KOMPLETT 2 TASSEN FUTURMAT
96,50 €

excl. Shipping costs
Delivery time
is determined
42asulauf 2 tassen o 3 88073707
ASULAUF 2 TASSEN ø 3/8
26,78 €

excl. Shipping costs
Delivery time 4-6 weeks
43auslauf 1 tasse o 3 88073706
AUSLAUF 1 TASSE ø 3/8
31,75 €

excl. Shipping costs
Delivery time 4-6 weeks

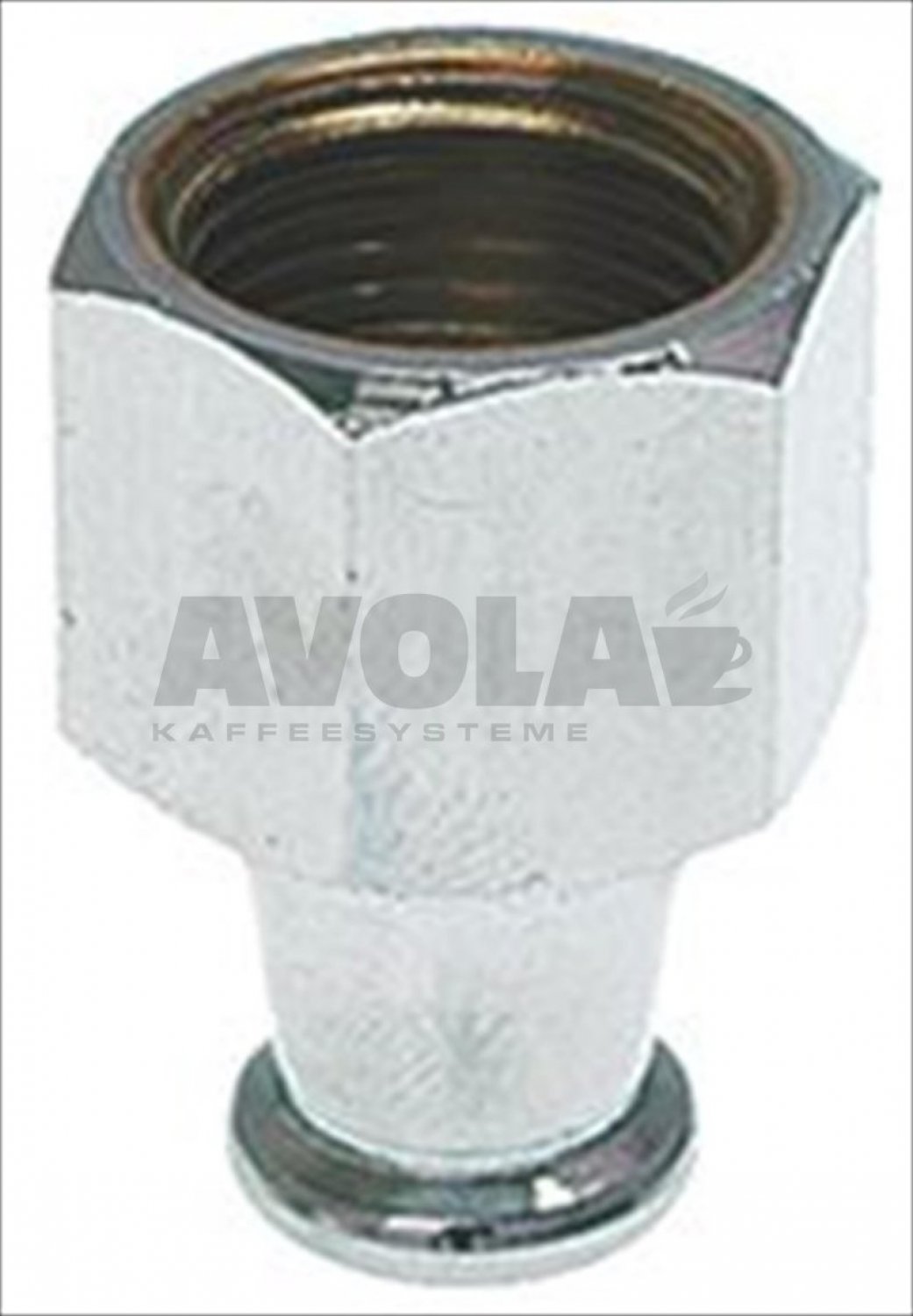

441 cup straight short spout8064590
1-CUP STRAIGHT SHORT SPOUT
3,05 €

excl. Shipping costs
immediately available, 5 available
44straight single spout o 3 88000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs
immediately available, 6 available
44single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 11 available
44closed single spout o 3 88000113
CLOSED SINGLE SPOUT ø 3/8
7,25 €

excl. Shipping costs
immediately available, 3 available
45lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available

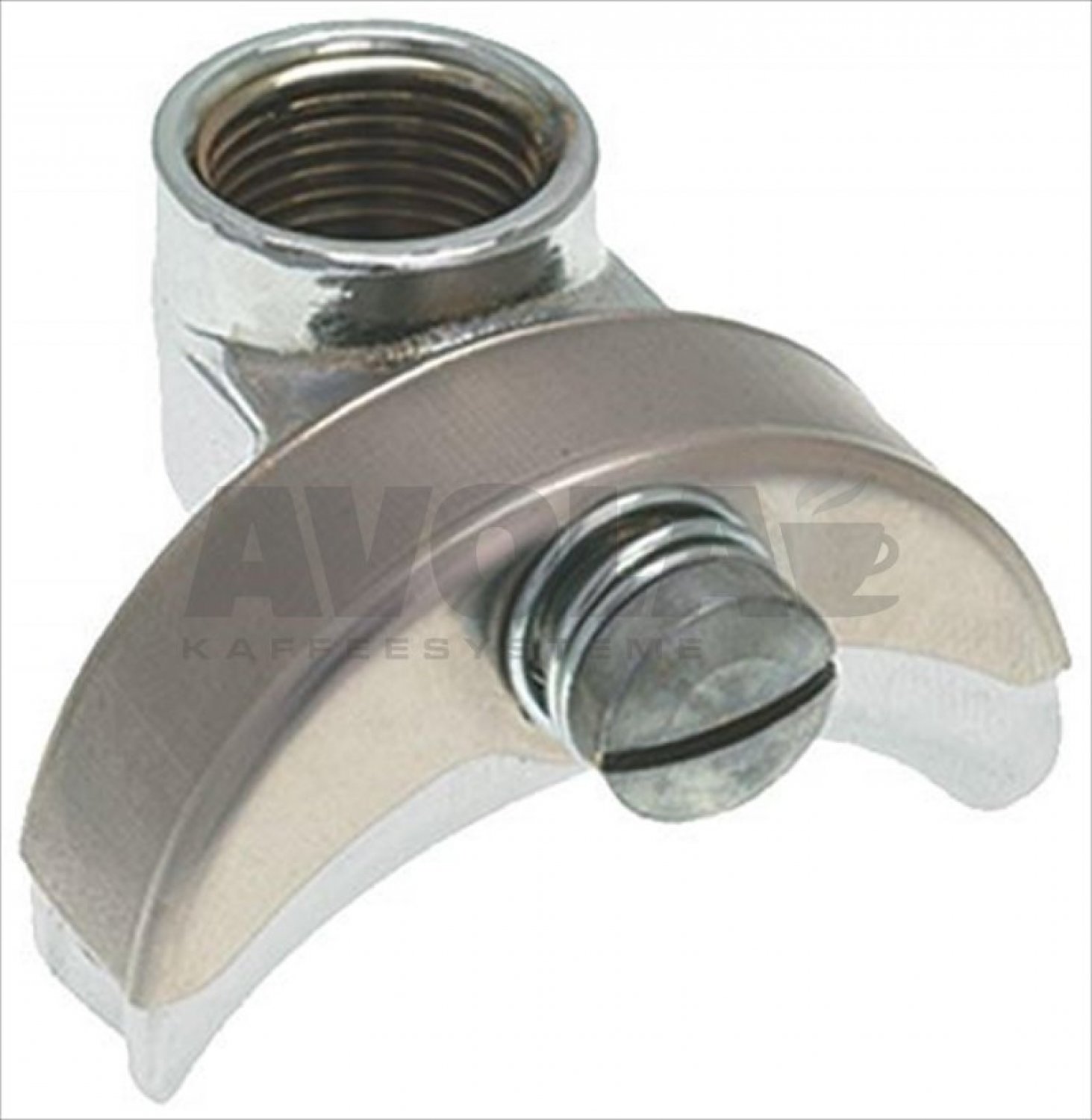

45adjustable short double spout8000122
ADJUSTABLE SHORT DOUBLE SPOUT
11,00 €

excl. Shipping costs
immediately available, 5 available
45double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 9 available

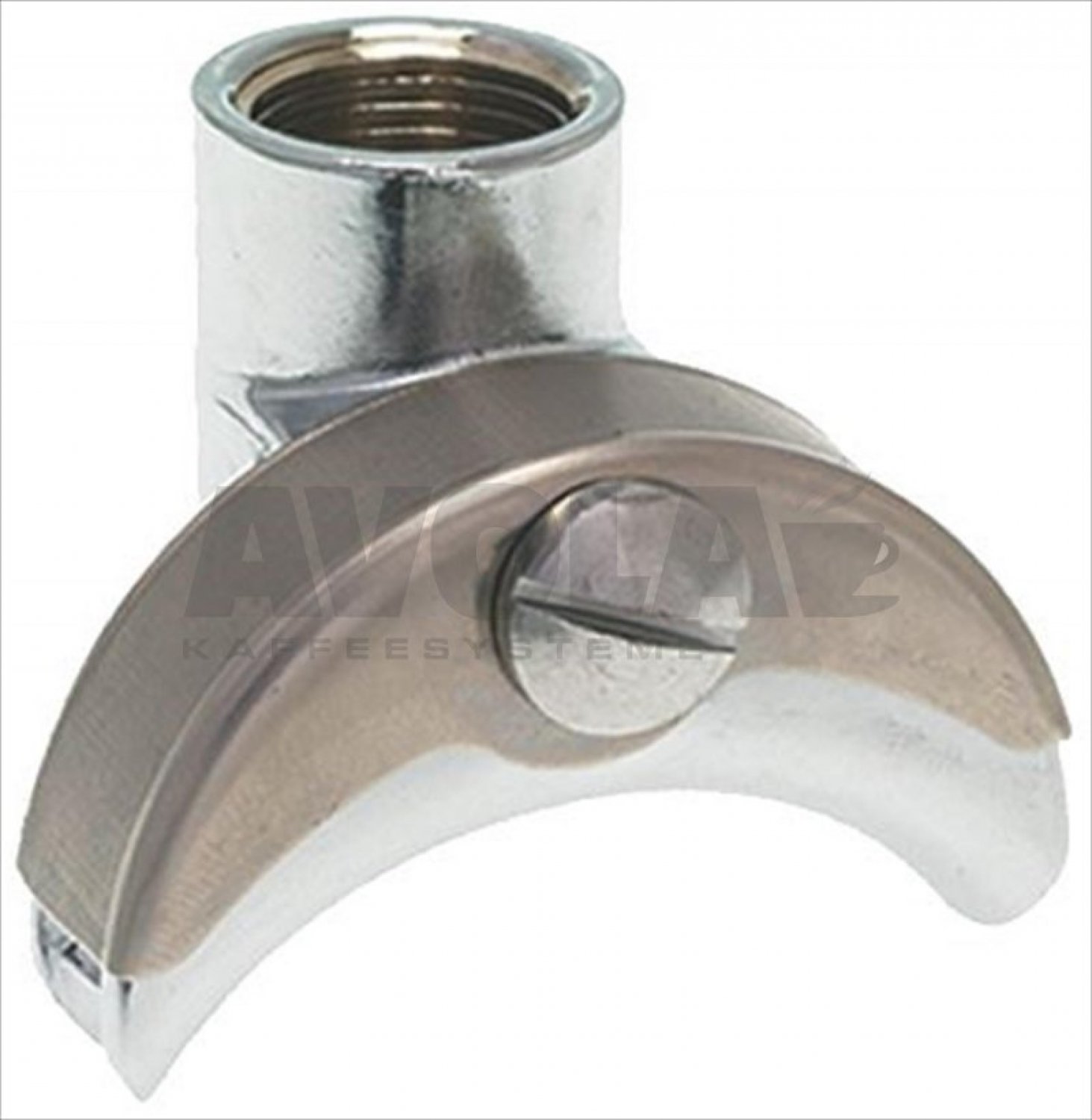

45long double spout o 3 88000120
LONG DOUBLE SPOUT ø 3/8
7,12 €

excl. Shipping costs
immediately available, 4 available
48filter holder handle8003338
FILTER HOLDER HANDLE
12,92 €

excl. Shipping costs
Delivery time
is determined
50cylinder head screw m8x808007324
CYLINDER HEAD SCREW M8x80
Price on request
51filter holder handle m128003339
FILTER HOLDER HANDLE M12
Price on request
521 cup filter 6 gr8001059
1 CUP FILTER 6 gr
Price on request
531 cup filter 7 gr8001061
1 CUP FILTER 7 gr
Price on request
542 cups filter 12 gr8001060
2 CUPS FILTER 12 gr
5,40 €

excl. Shipping costs
immediately available, 3 available
552 cups filter 14 gr8001062
2 CUPS FILTER 14 gr
Price on request
56blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available

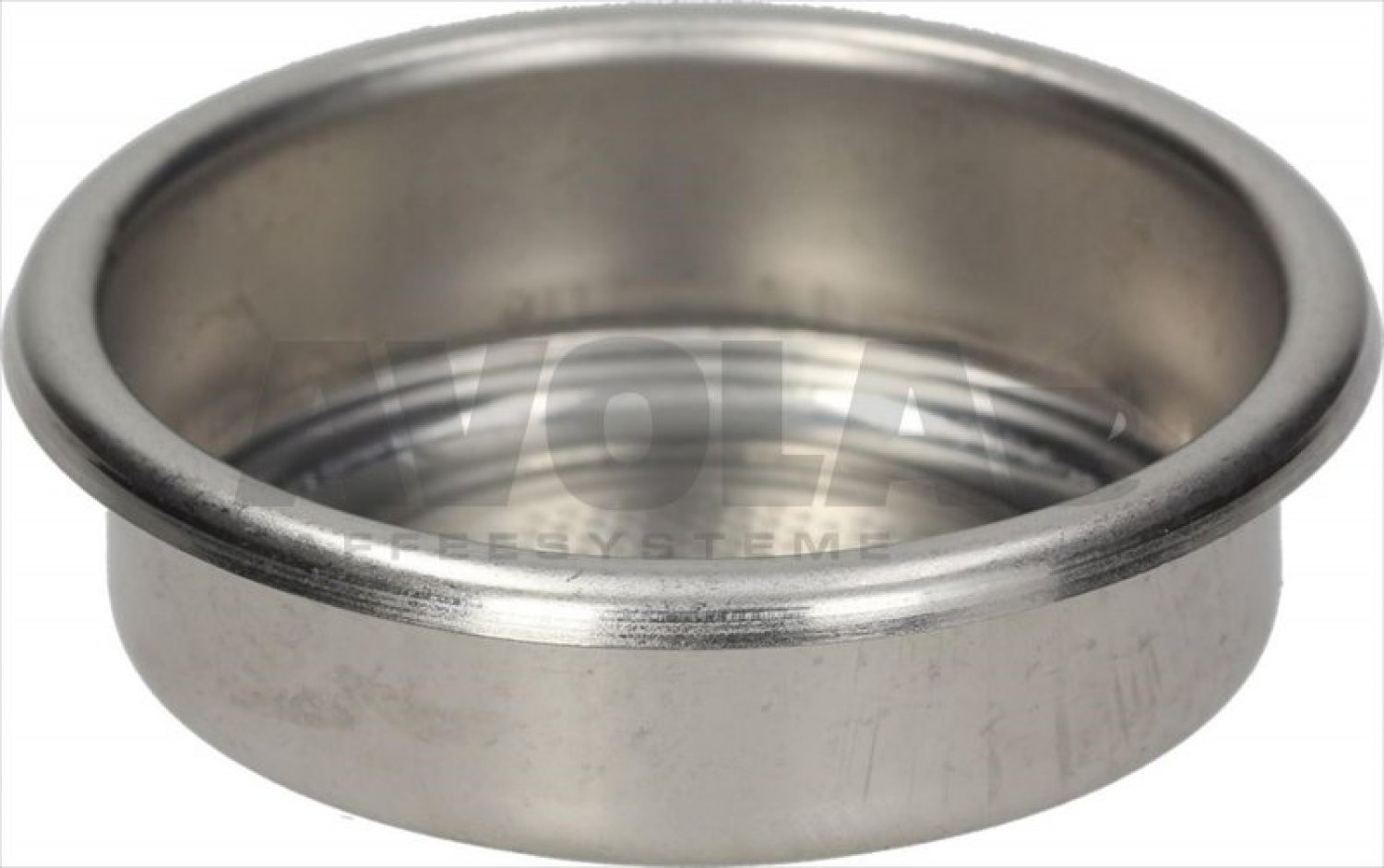

572 cups pod filter8001109
2 CUPS POD FILTER
7,01 €

excl. Shipping costs
immediately available, 2 available

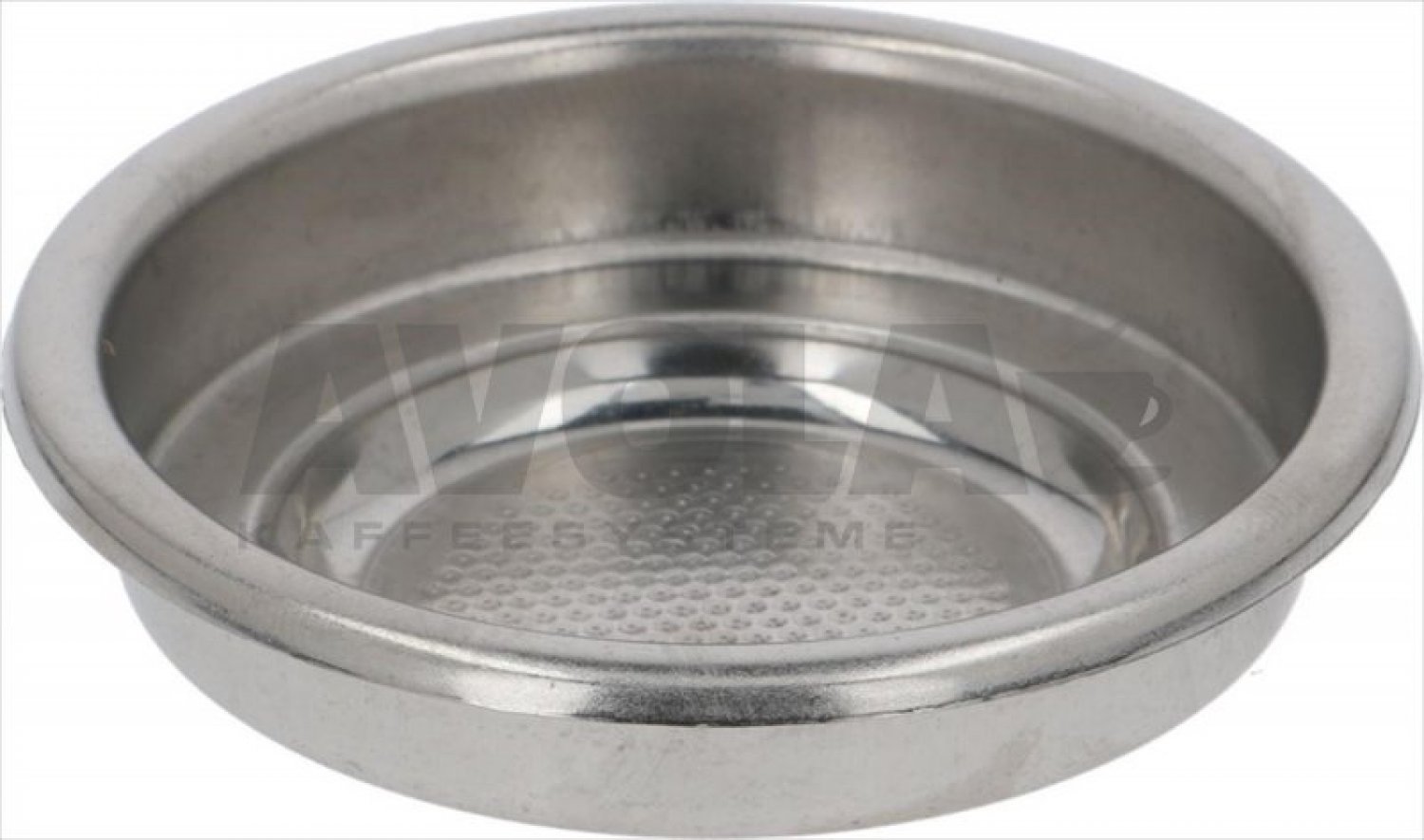

581 cup pod filter8001108
1 CUP POD FILTER
Price on request
59precision filter 1 cup 6 8 g h24 58062780
PRECISION FILTER 1 CUP 6/8 g H24.5
20,42 €

excl. Shipping costs
immediately available, 4 available
59precision filter 1 cup 7 9 g h26 58062781
PRECISION FILTER 1 CUP 7/9 g H26.5
15,70 €

excl. Shipping costs
immediately available, 3 available
60precision filter 2 cups 12 18 g h24 58062782
PRECISION FILTER 2 CUPS 12-18 g H24.5
18,39 €

excl. Shipping costs
immediately available, 3 available
60precision filter 2 cups 14 20 g h26 58062783
PRECISION FILTER 2 CUPS 14/20 g H26.5
16,54 €

excl. Shipping costs
immediately available, 4 available
60precision filter 2 cups 18 22 g h28 58062784
PRECISION FILTER 2 CUPS 18/22 g H28,5
21,97 €

excl. Shipping costs
immediately available, 4 available
61filter holder coffee machines8001183
FILTER HOLDER COFFEE MACHINES
19,99 €

excl. Shipping costs
immediately available, 2 available
62filter holder coffee machines8001196
FILTER HOLDER COFFEE MACHINES
58,42 €

excl. Shipping costs
Delivery time 4-6 weeks
63siebtraeger kaffeemaschinen futurmat8077909
SIEBTRÄGER KAFFEEMASCHINEN FUTURMAT
56,10 €

excl. Shipping costs
Delivery time 4-6 weeks
64filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
