GRUPPE M. HEBEL VIBIEMME CUBO REPLICA

Drawing number 8063012

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 12 available
2ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available
3nozzle m6x0 75 hole8006989
NOZZLE M6x0,75 HOLE
3,12 €

excl. Shipping costs
immediately available, 14 available
4upper chrome plated sleeve8063539
UPPER CHROME-PLATED SLEEVE
19,94 €

excl. Shipping costs
immediately available, 2 available
5ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
6vibiemme teflon gasket8036348
Vibiemme Teflon gasket
2,68 €

excl. Shipping costs
immediately available
7spring o 13x42 mm8003819
SPRING ø 13x42 mm
3,50 €

excl. Shipping costs
immediately available, 18 available
8delivery valve pin8005098
DELIVERY VALVE PIN
2,71 €

excl. Shipping costs
immediately available, 13 available
8complete spout valve8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs
immediately available
12group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
13shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
13ims matrix dusche e61 duschsieb8280721
IMS Matrix Dusche E61 Duschsieb
27,95 €

excl. Shipping costs
immediately available, 13 available
14vibiemme filter holder gasket 73 5x57 5x8 mm8007694
Vibiemme FILTER HOLDER GASKET 73,5x57,5x8 mm
5,45 €

excl. Shipping costs
immediately available
16e61 drain valve with gasket8007125
E61 drain valve with gasket
9,17 €

excl. Shipping costs
immediately available
17feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available
18flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
21spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
22triangular infusion pin8005159
TRIANGULAR INFUSION PIN
8,53 €

excl. Shipping costs
Delivery time
is determined
22auslaufventil komplett vorbruehkammer vibiemme8035527
Auslaufventil komplett Vorbrühkammer Vibiemme
12,90 €

excl. Shipping costs
immediately available
23cam locking stainless steel screw m68001289
CAM LOCKING STAINLESS STEEL SCREW M6
4,03 €

excl. Shipping costs
immediately available, 12 available
24cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available
26epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
27cam guide bushing8001571
CAM GUIDE BUSHING
5,93 €

excl. Shipping costs
immediately available, 11 available
28spring o 14 6x21 mm8003547
SPRING ø 14,6x21 mm
3,55 €

excl. Shipping costs
Delivery time 4-6 weeks
29stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 2 available

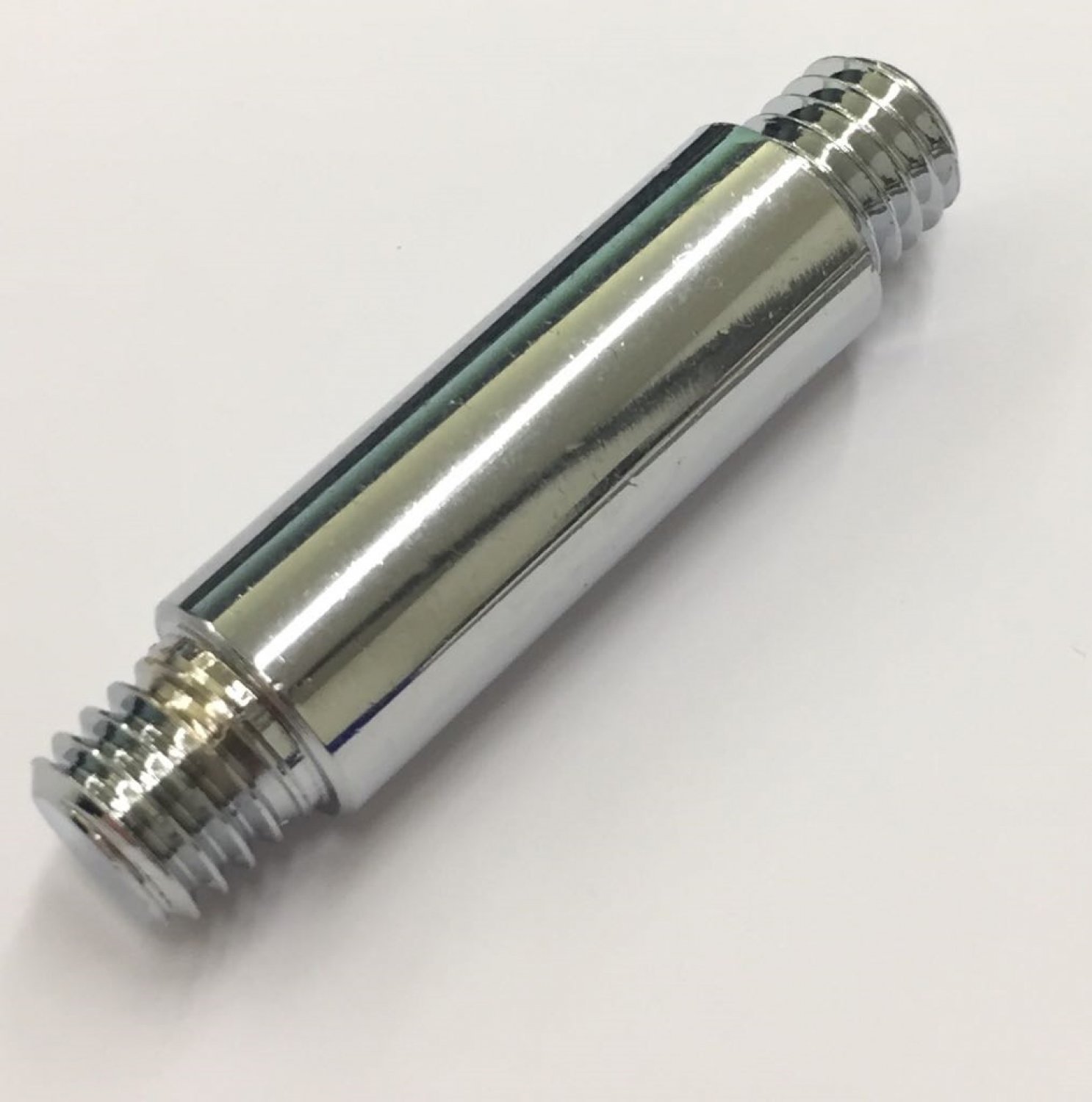

33vibiemme rod for lever8101288
Vibiemme rod for lever
14,90 €

excl. Shipping costs
immediately available, 6 available
34knob m8x18003294
KNOB M8x1
6,56 €

excl. Shipping costs
immediately available, 4 available

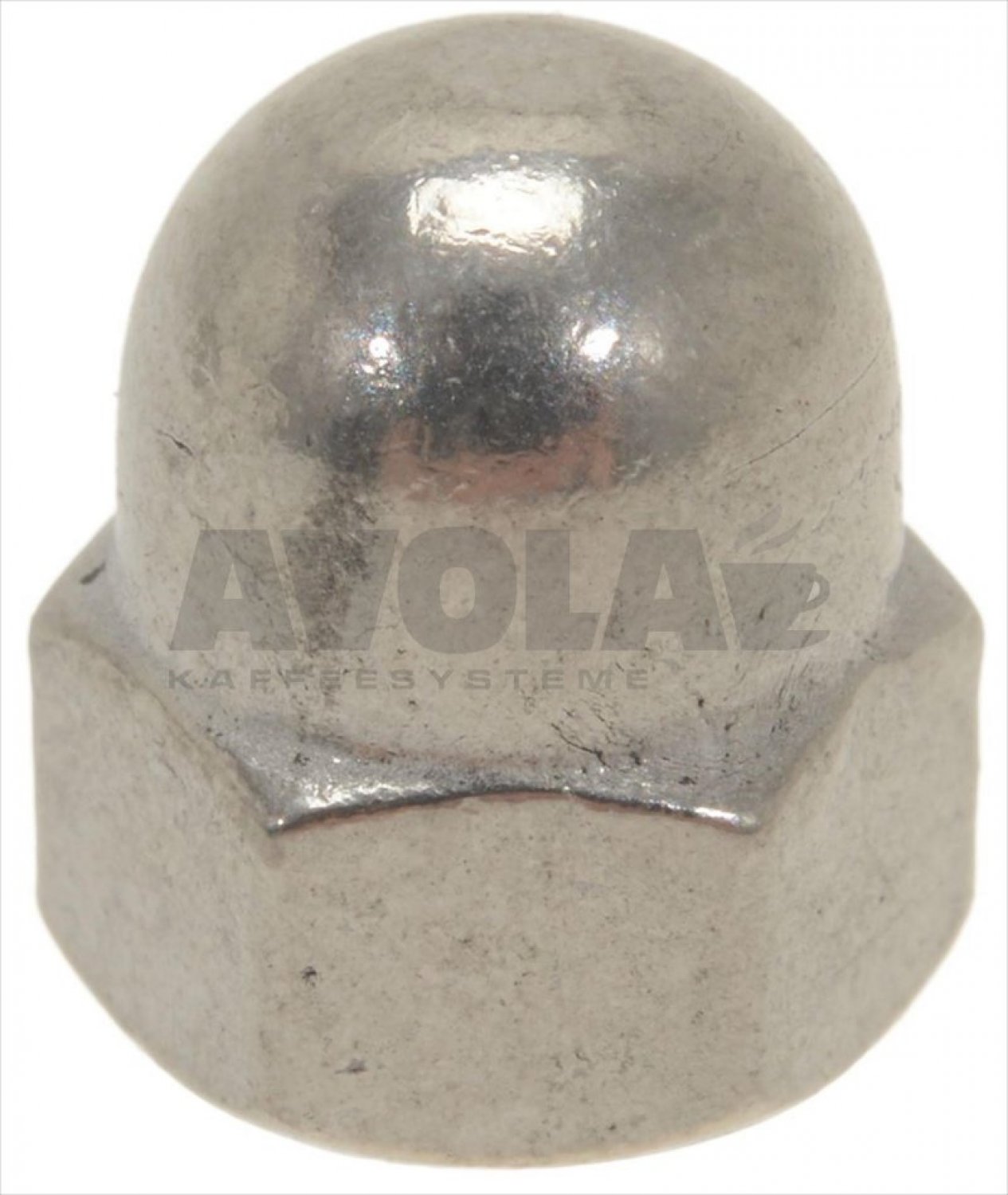

35blind hexagonal nut m68007252
BLIND HEXAGONAL NUT M6
1,11 €

excl. Shipping costs
immediately available
38coffee group gasket 80x70x2 mm8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs
immediately available, 10 available
38coffee group gasket 77x73x2 mm8001729
COFFEE GROUP GASKET 77x73x2 mm
8,44 €

excl. Shipping costs
immediately available, 8 available
40o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
41upper chrome plated sleeve8063548
UPPER CHROME-PLATED SLEEVE
This article is no longer available

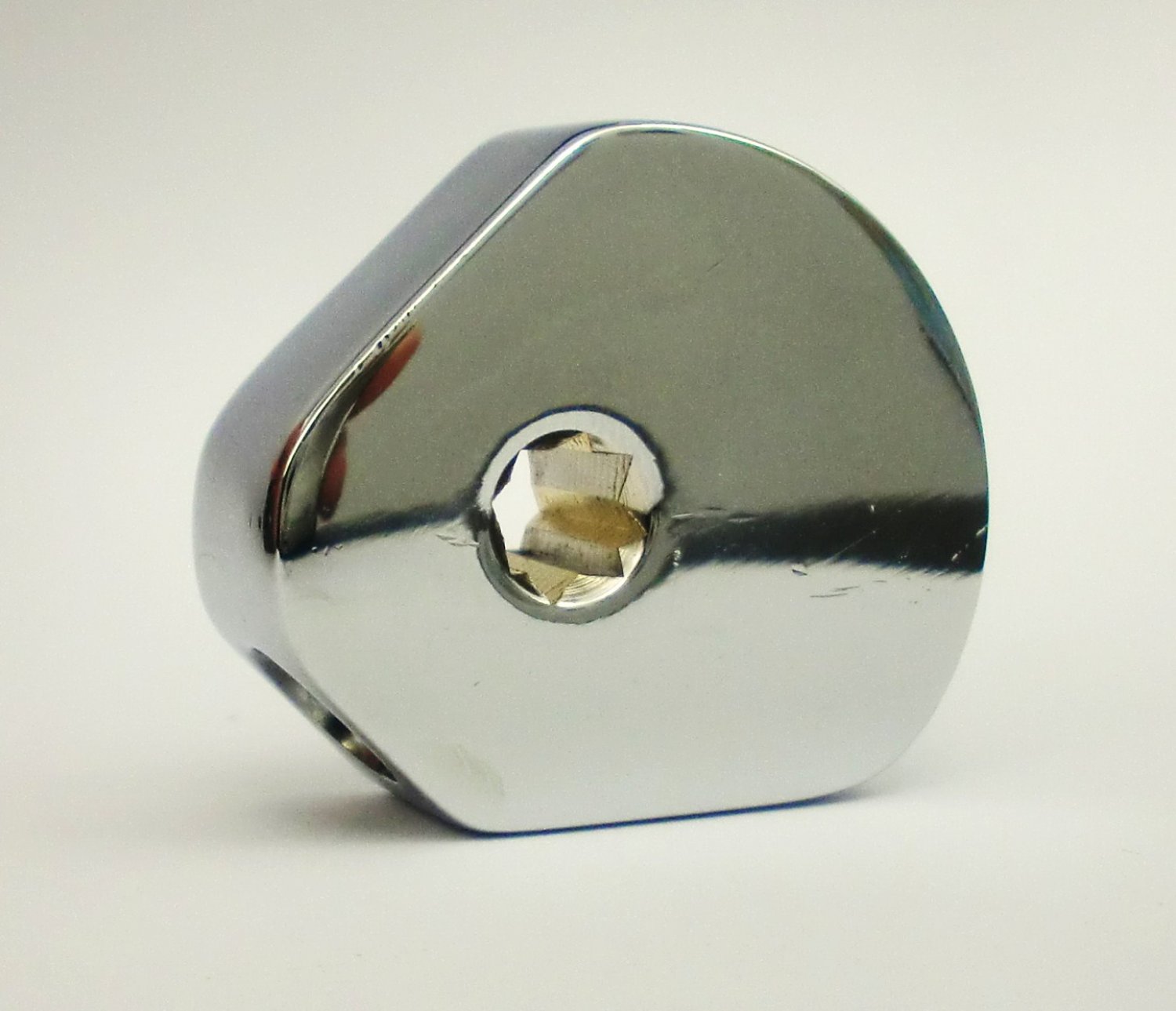

43mercury command handle8069174
MERCURY COMMAND HANDLE
35,70 €

excl. Shipping costs
immediately available, 1 available
44vibiemme e61 manuelle bruehgruppe8079659
Vibiemme E61 Manuelle Brühgruppe
395,00 €

excl. Shipping costs
Delivery time
is determined
1051 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 5 available
1061 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 6 available
1072 cup filter 14 grams8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs
immediately available, 20 available
1082 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 5 available
109single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available
110lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
110double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 6 available
111blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
112filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
113filter holder knob m108003166
FILTER HOLDER KNOB M10
10,14 €

excl. Shipping costs
immediately available, 6 available
114paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
115rubber shim o 73 5x59x1 mm epdm8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available
120filter holder vibiemme8001217
FILTER HOLDER VIBIEMME
39,34 €

excl. Shipping costs
immediately available, 1 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
