Spaziale

GRUPPE KAFFEEAUSGABE S5 COMPACT

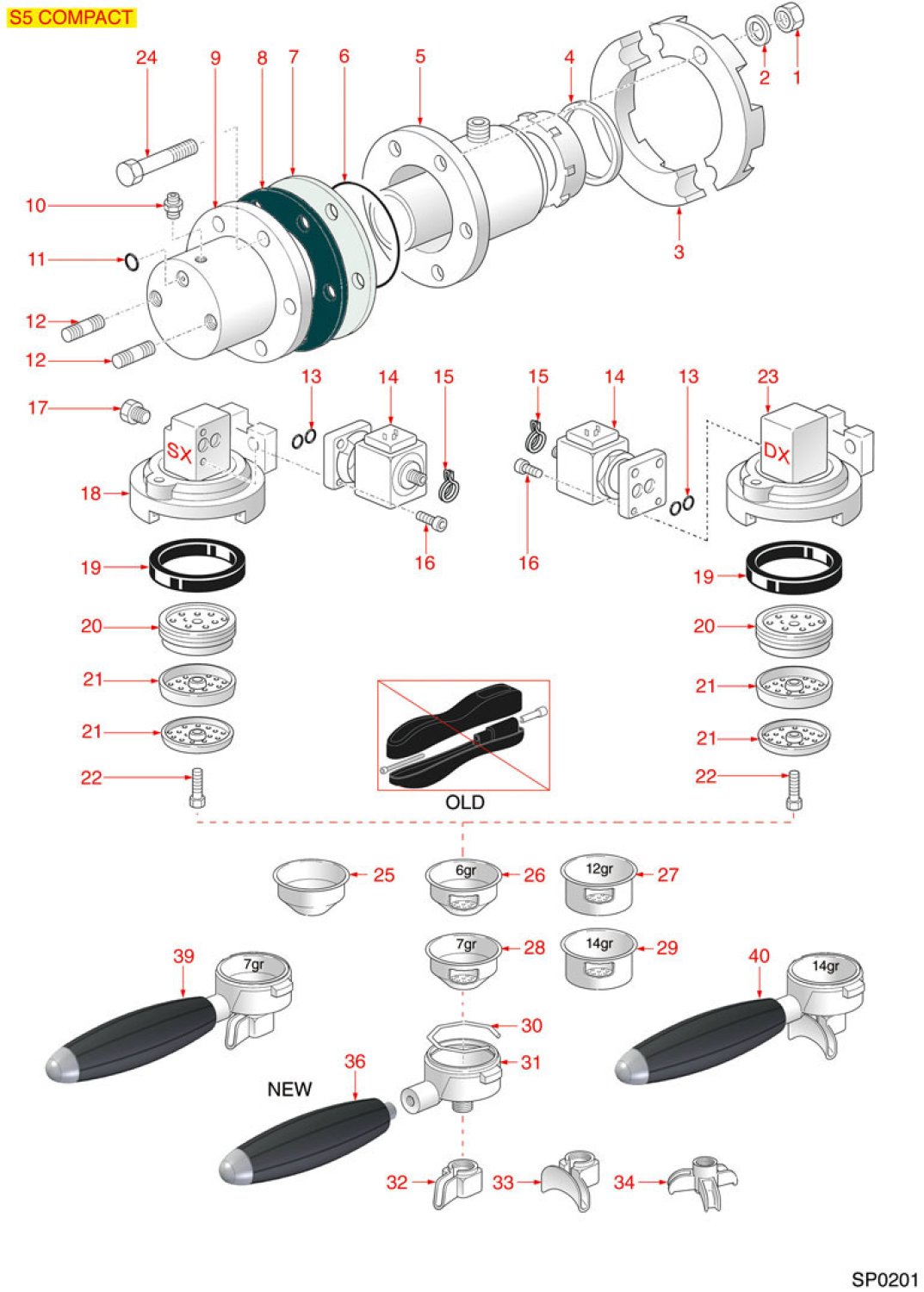

Drawing number 8057477

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1hexagonal nut m8 medium8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs
immediately available

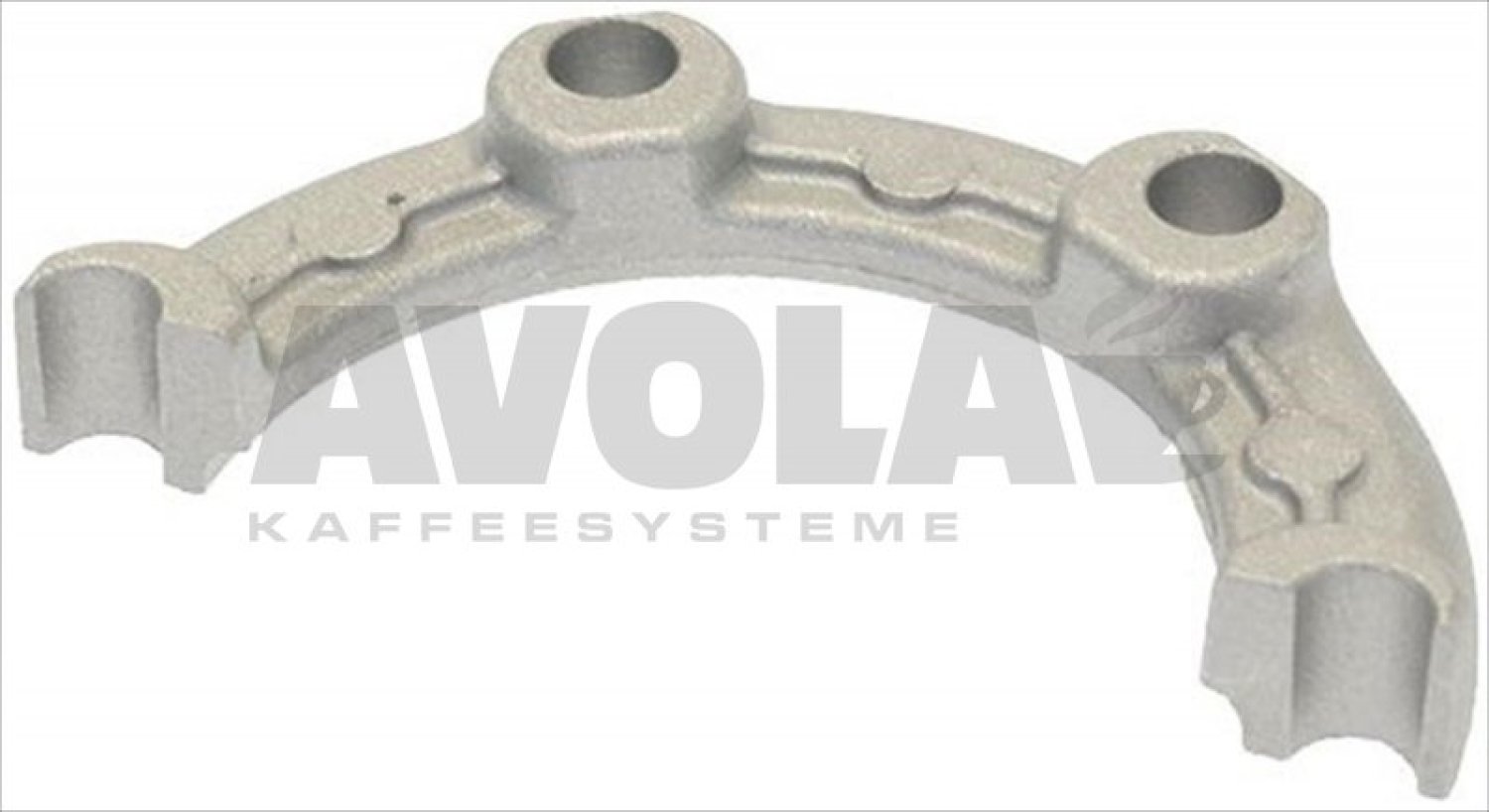

3halbring aus aluminium8000006
HALBRING AUS ALUMINIUM
9,06 €

excl. Shipping costs
Delivery time 4-6 weeks
4ptfe flat gasket8001806
PTFE FLAT GASKET
2,73 €

excl. Shipping costs
immediately available

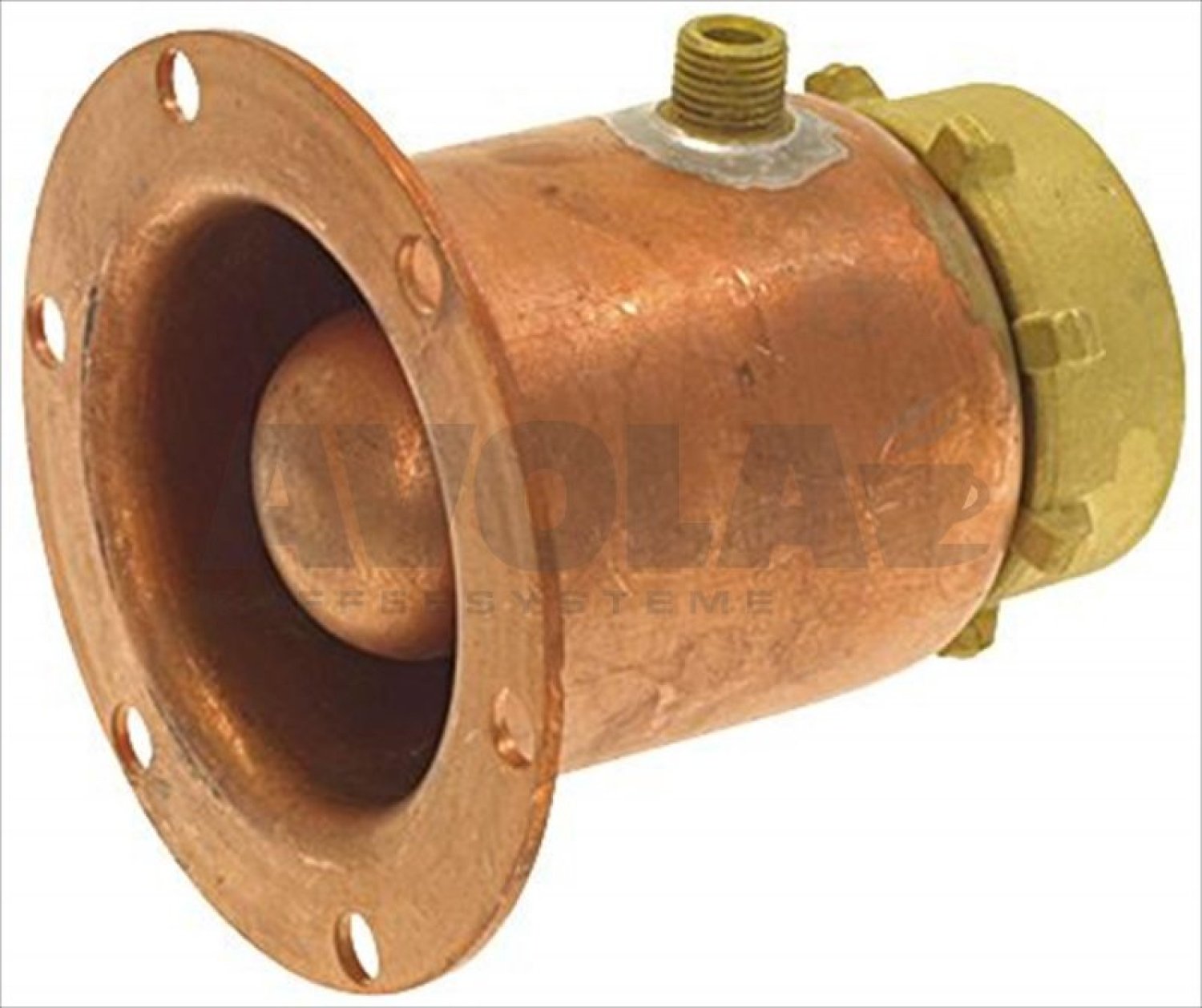

5small heat exchanger boiler8000193
SMALL HEAT EXCHANGER BOILER
210,09 €

excl. Shipping costs
Delivery time 4-6 weeks

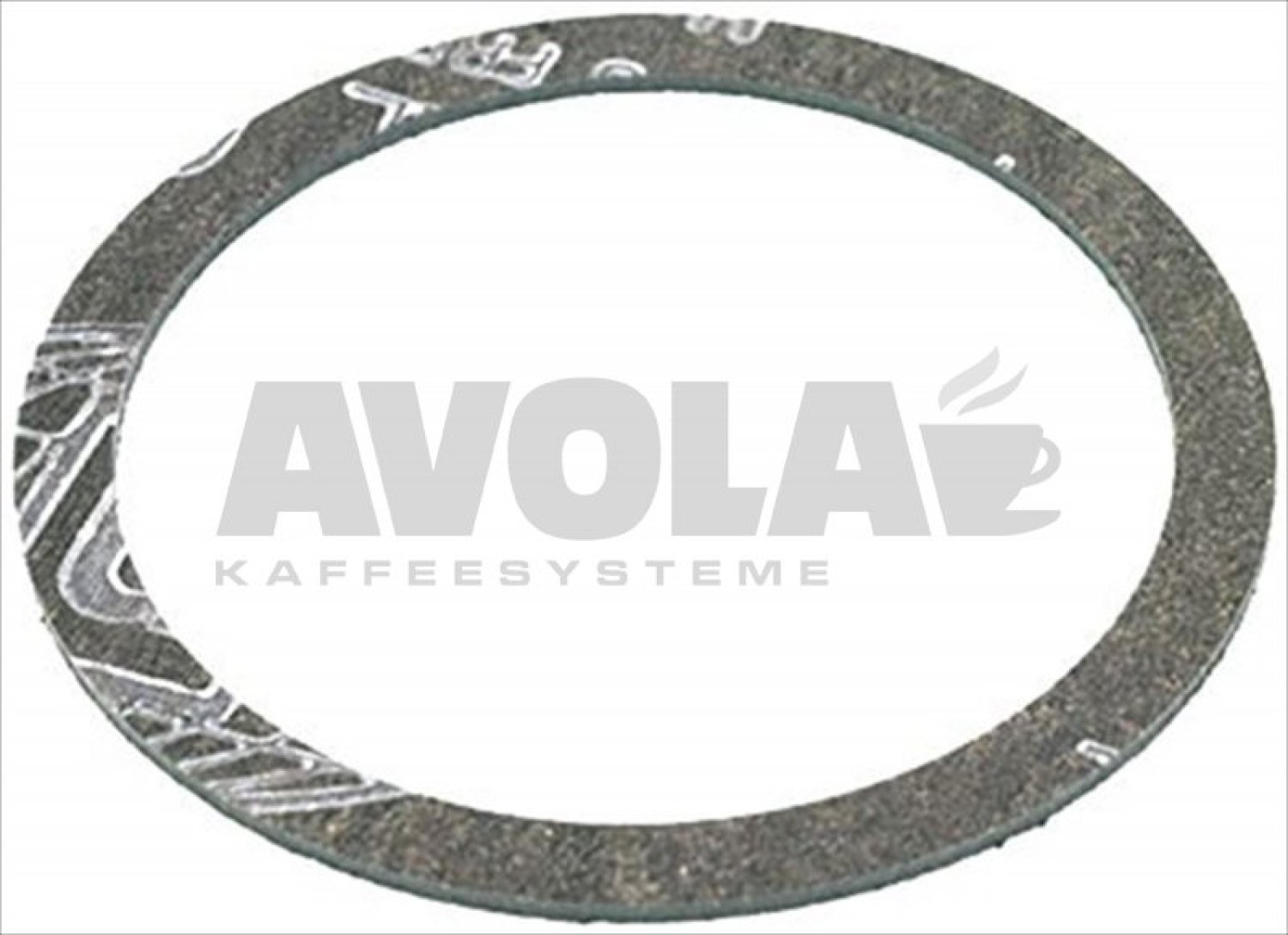

6coffee group gasket8001705
COFFEE GROUP GASKET
6,38 €

excl. Shipping costs
immediately available, 2 available

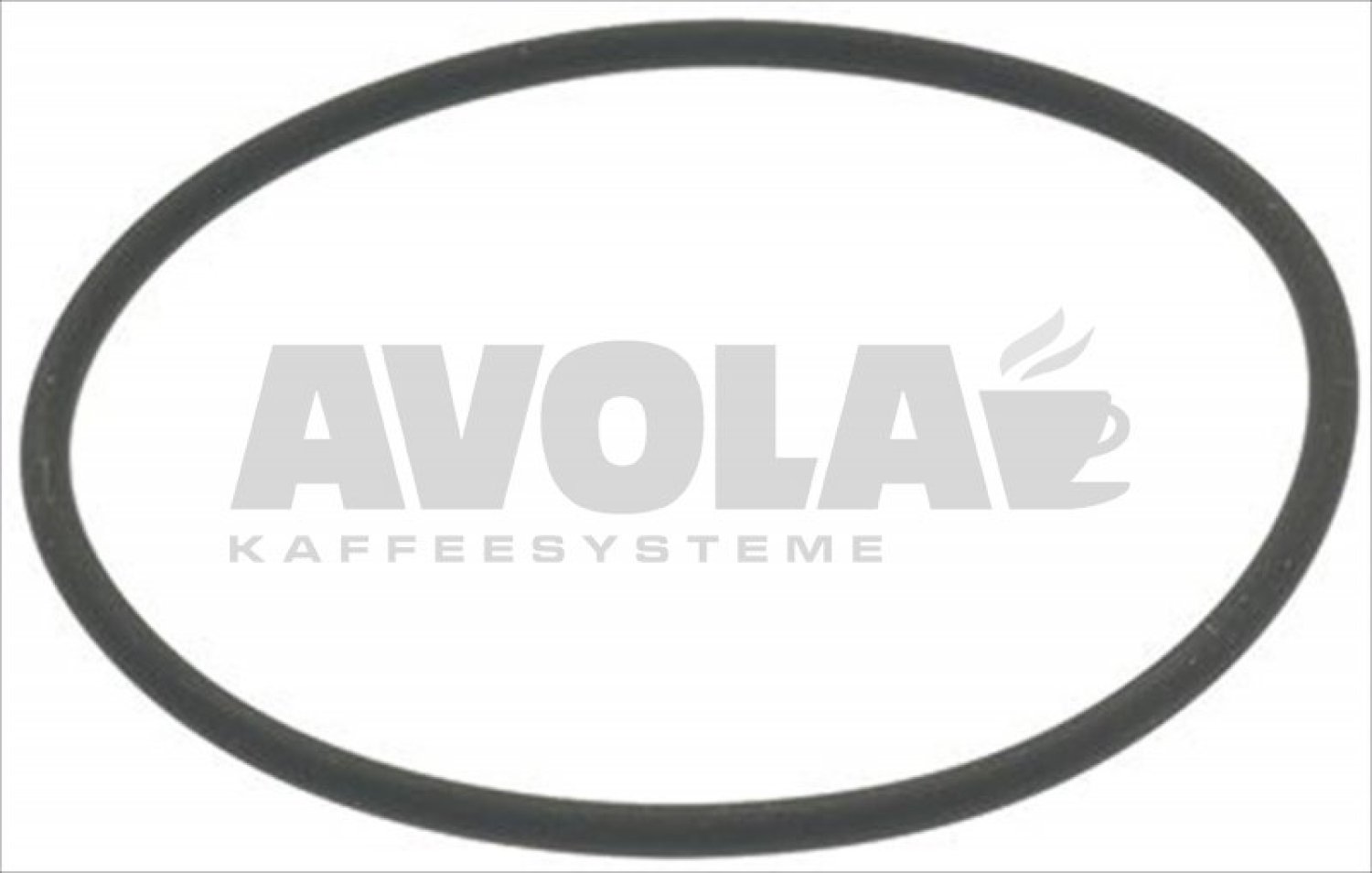

6spaziale o ring 04312 viton8001880
SPAZIALE O-RING 04312 VITON
4,02 €

excl. Shipping costs
immediately available, 8 available
7coffee group gasket o 112x66x3 5 mm8001921
COFFEE GROUP GASKET ø 112x66x3,5 mm
11,15 €

excl. Shipping costs
Delivery time
is determined
8coffee group gasket o 112x67x3 mm8001739
COFFEE GROUP GASKET ø 112x67x3 mm
10,28 €

excl. Shipping costs
Delivery time
is determined
11o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available

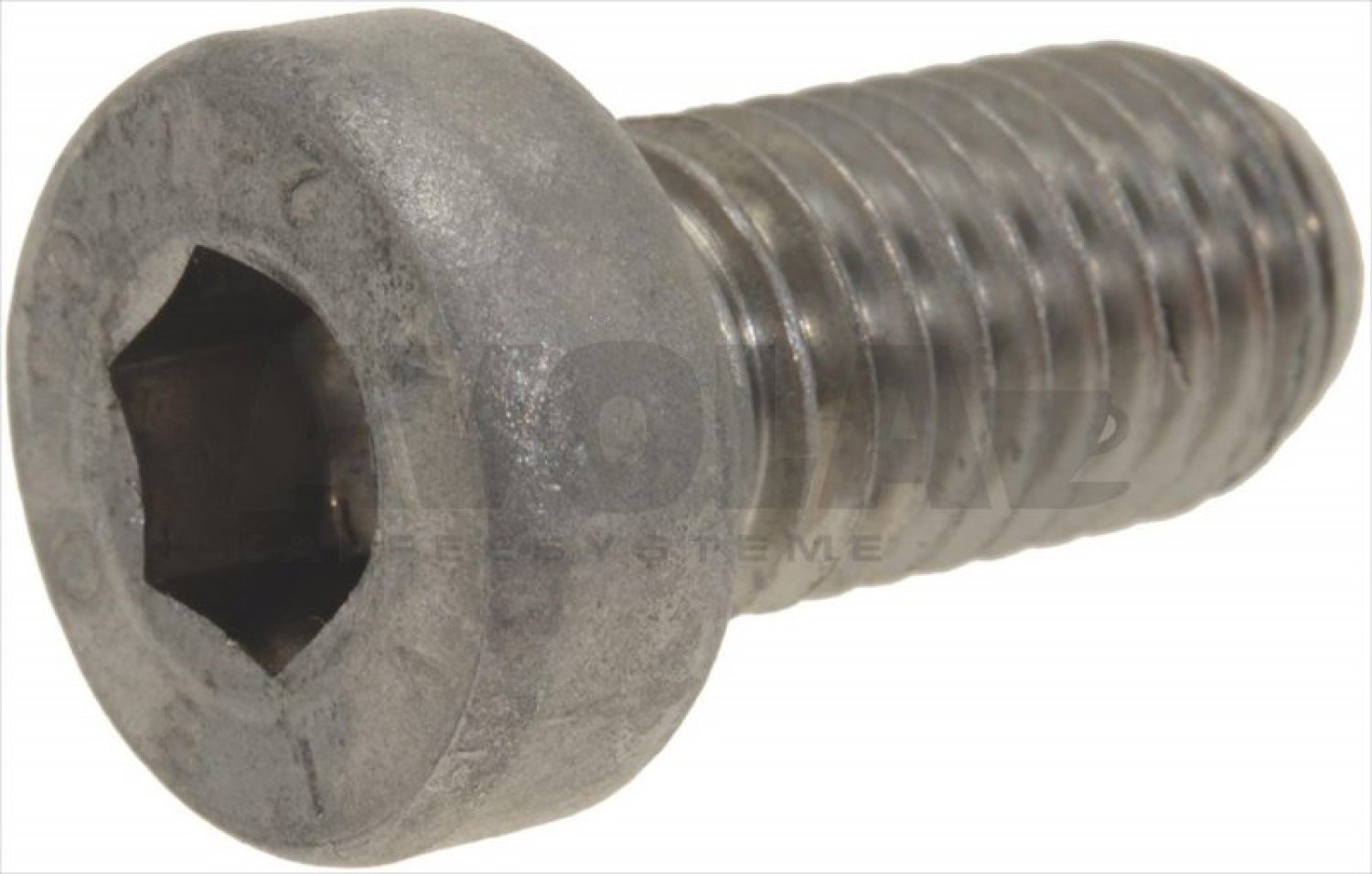

12low cylinder head screw m10x208002199
LOW CYLINDER HEAD SCREW M10x20
2,06 €

excl. Shipping costs
immediately available, 16 available
13red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
13o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
143 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 3 available
16schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available

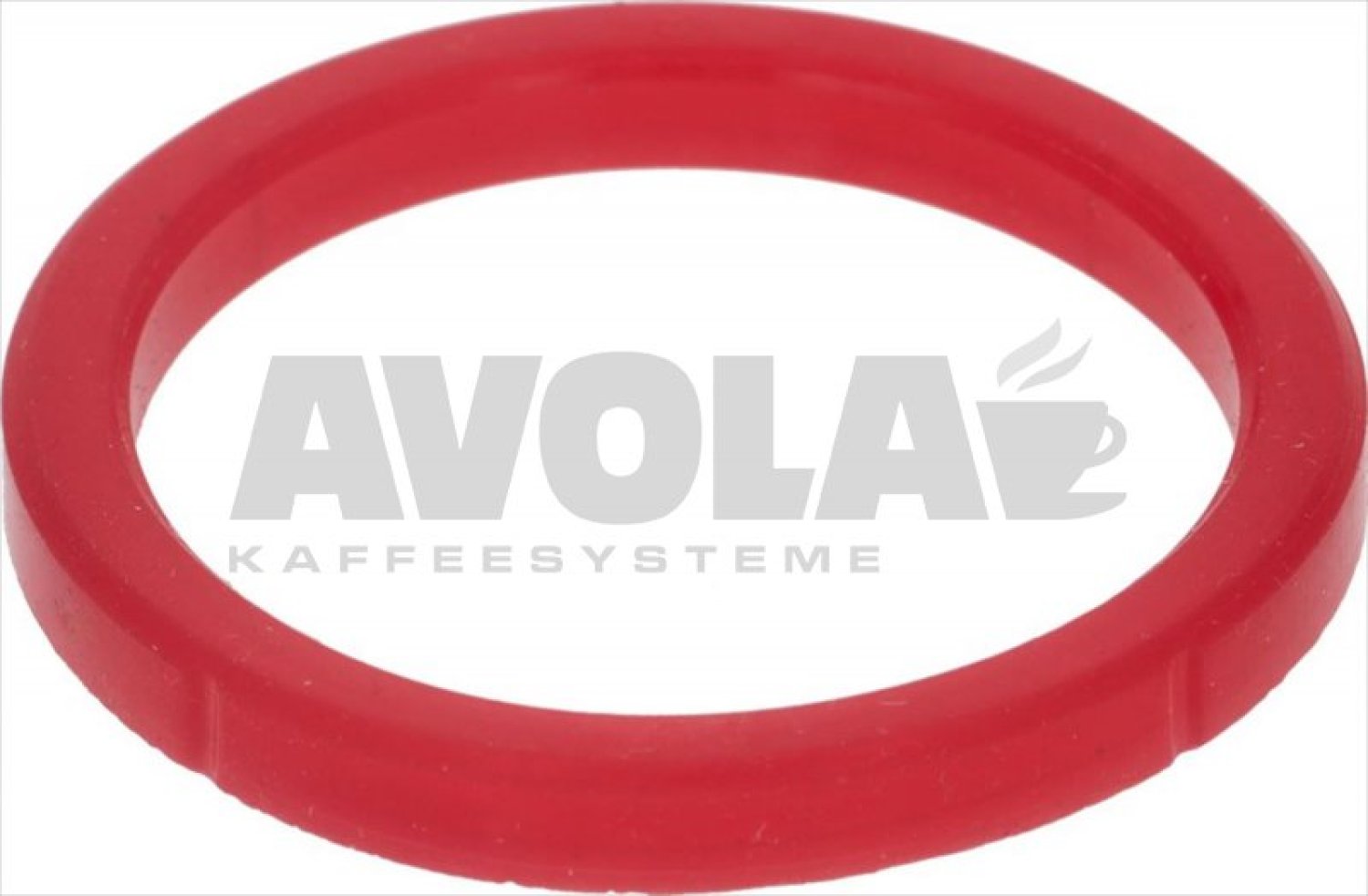

19filter holder gasket8002035
FILTER HOLDER GASKET
5,83 €

excl. Shipping costs
immediately available, 12 available

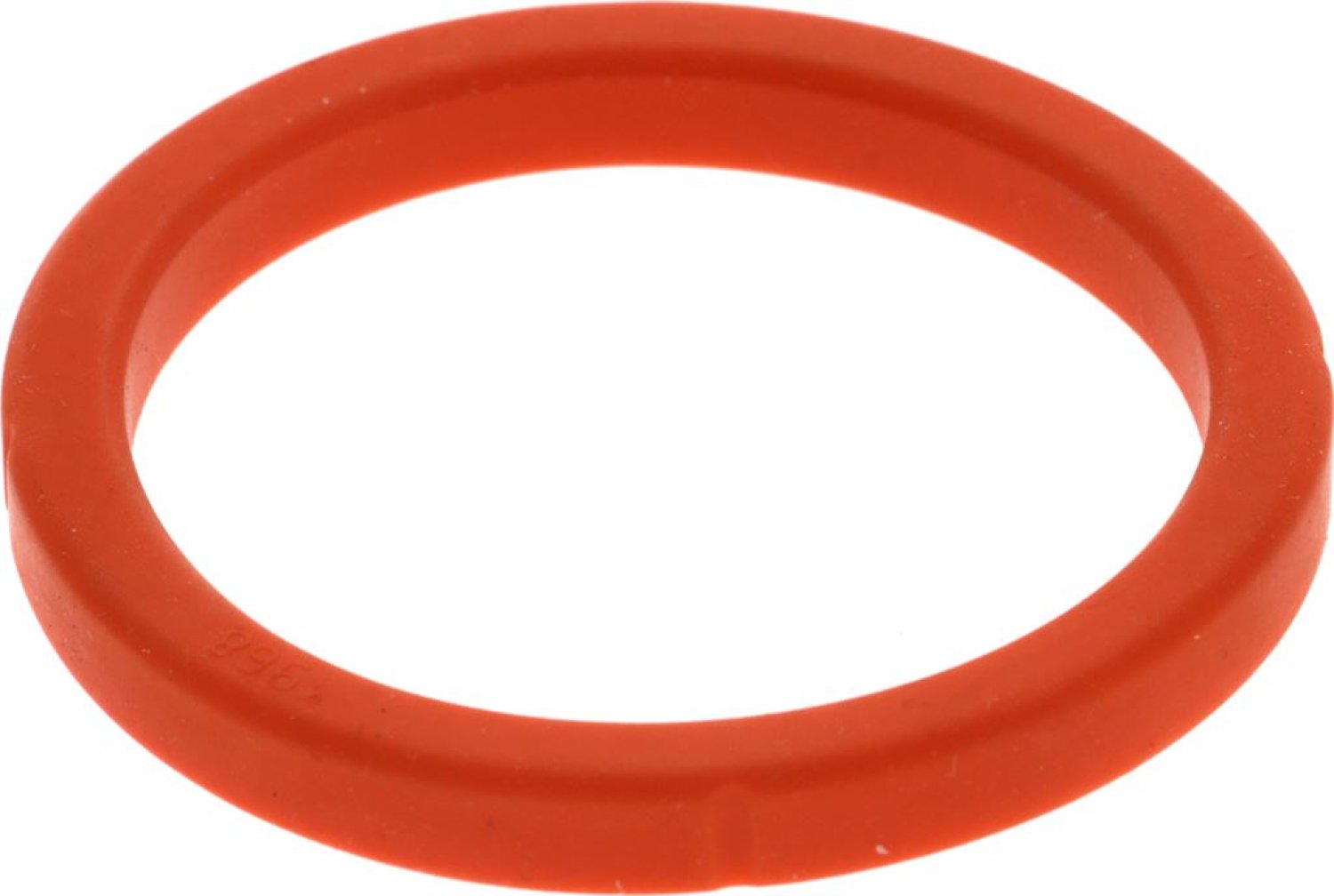

19la spaziale siebtraegerdichtung original o 64x52x7 mm8080221
La Spaziale Siebträgerdichtung Original ø 64x52x7 mm
7,03 €

excl. Shipping costs
immediately available, 20 available

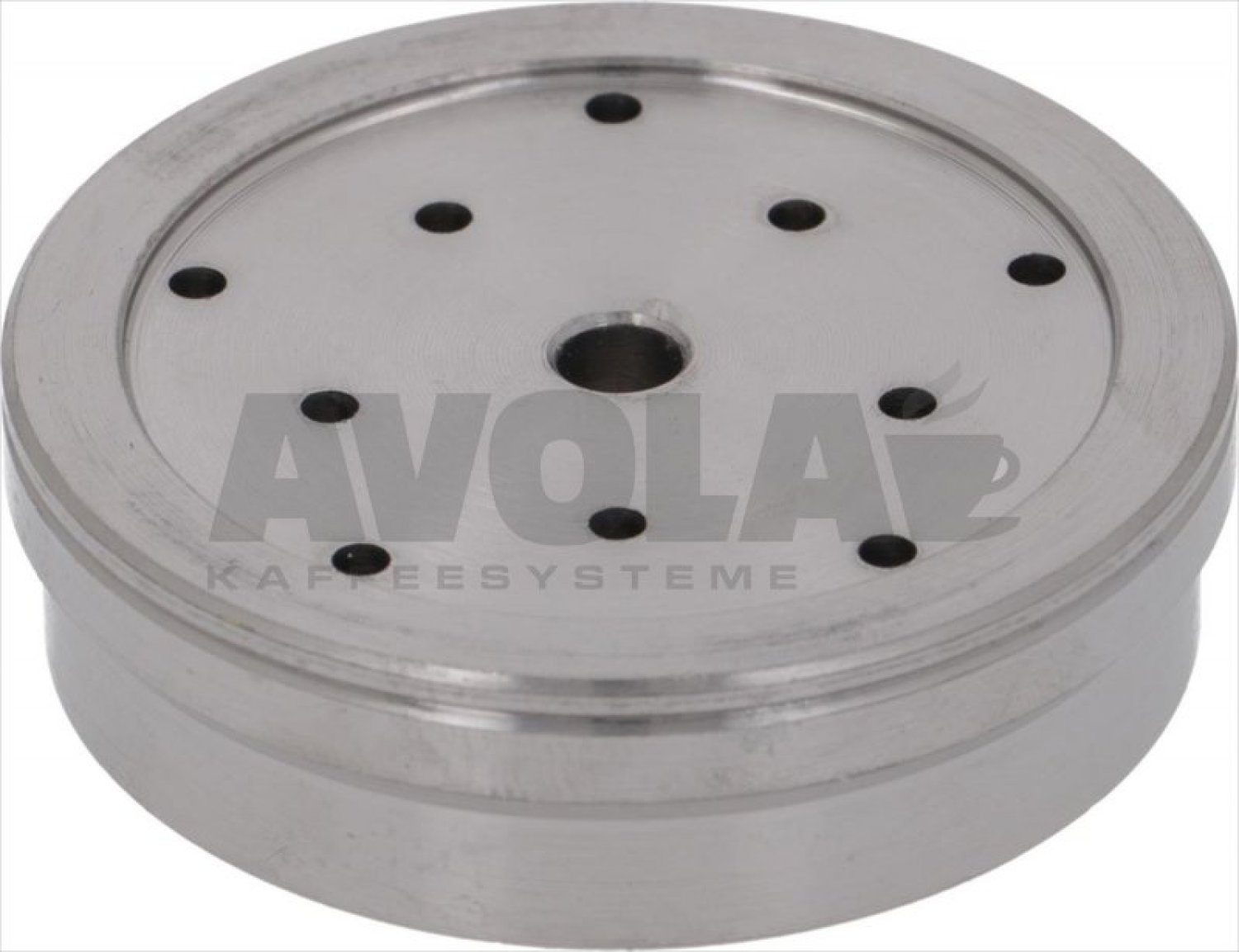

20shower holder diffuser8000618
SHOWER HOLDER DIFFUSER
45,40 €

excl. Shipping costs
Delivery time
is determined

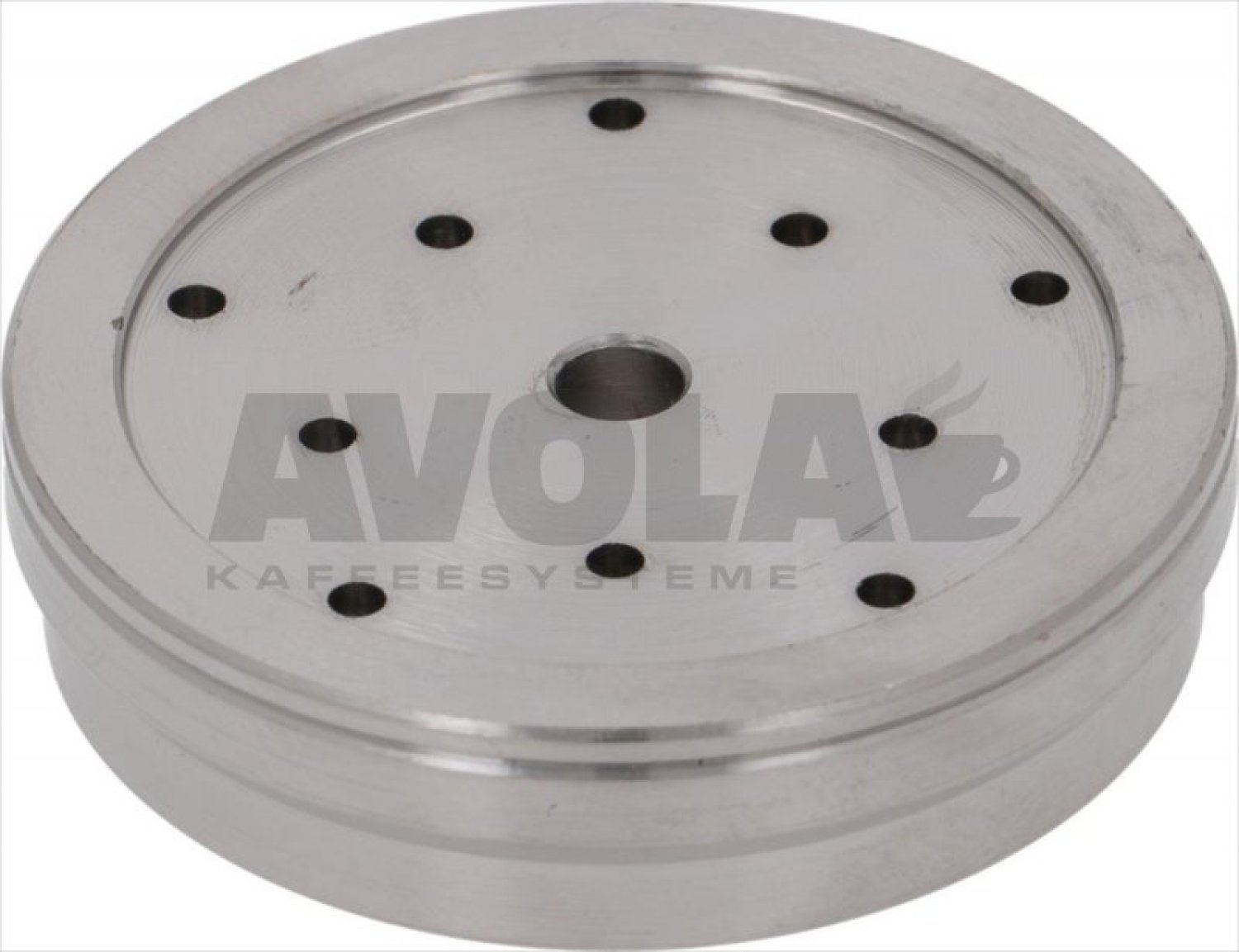

20shower holder diffuser8000619
SHOWER HOLDER DIFFUSER
36,84 €

excl. Shipping costs
immediately available, 1 available

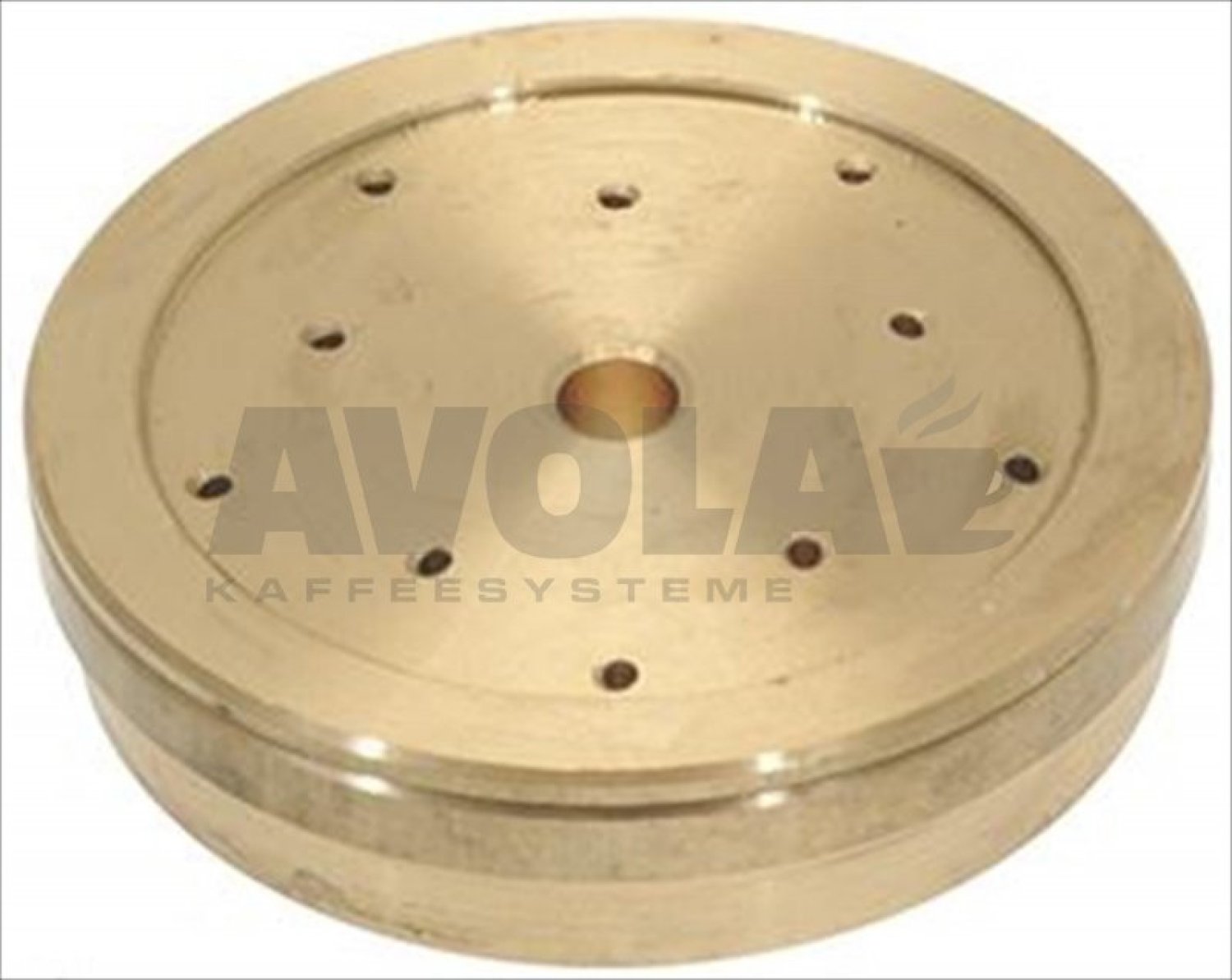

20shower holder diffuser8000646
SHOWER HOLDER DIFFUSER
31,21 €

excl. Shipping costs
immediately available, 1 available

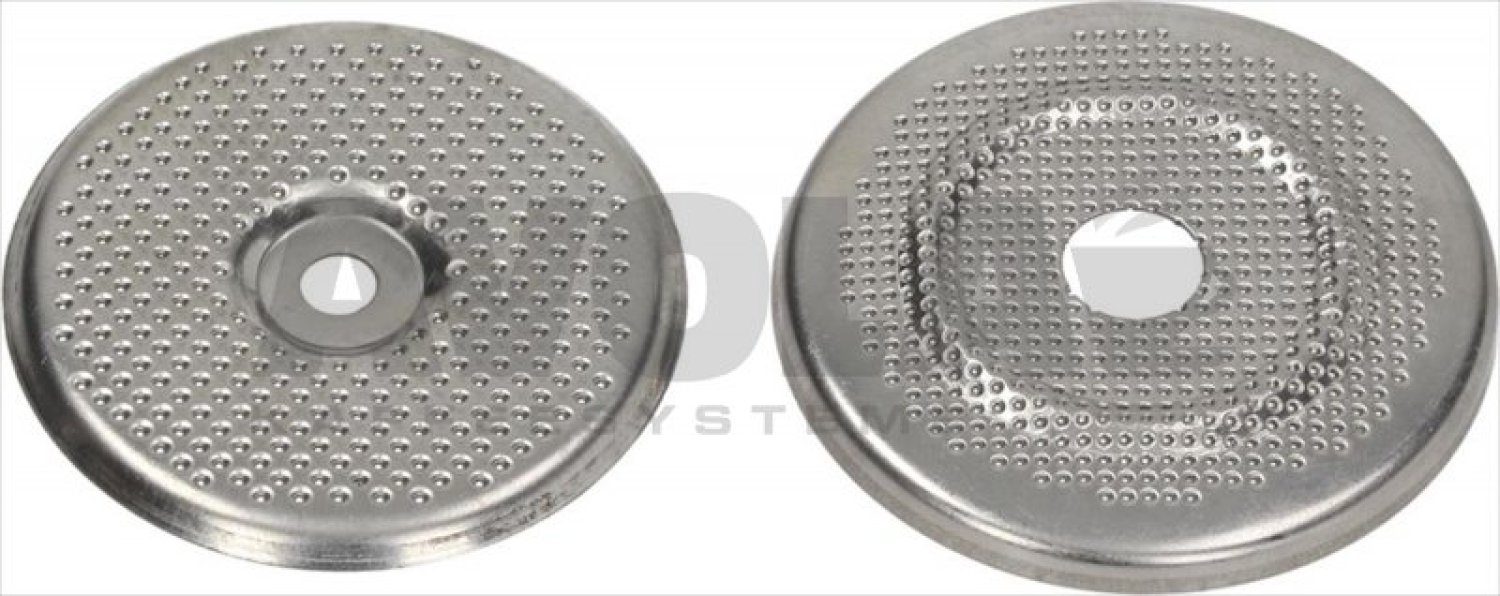

21shower screen o 49 52 mm8000585
SHOWER SCREEN ø 49/52 mm
7,91 €

excl. Shipping costs
immediately available, 6 available

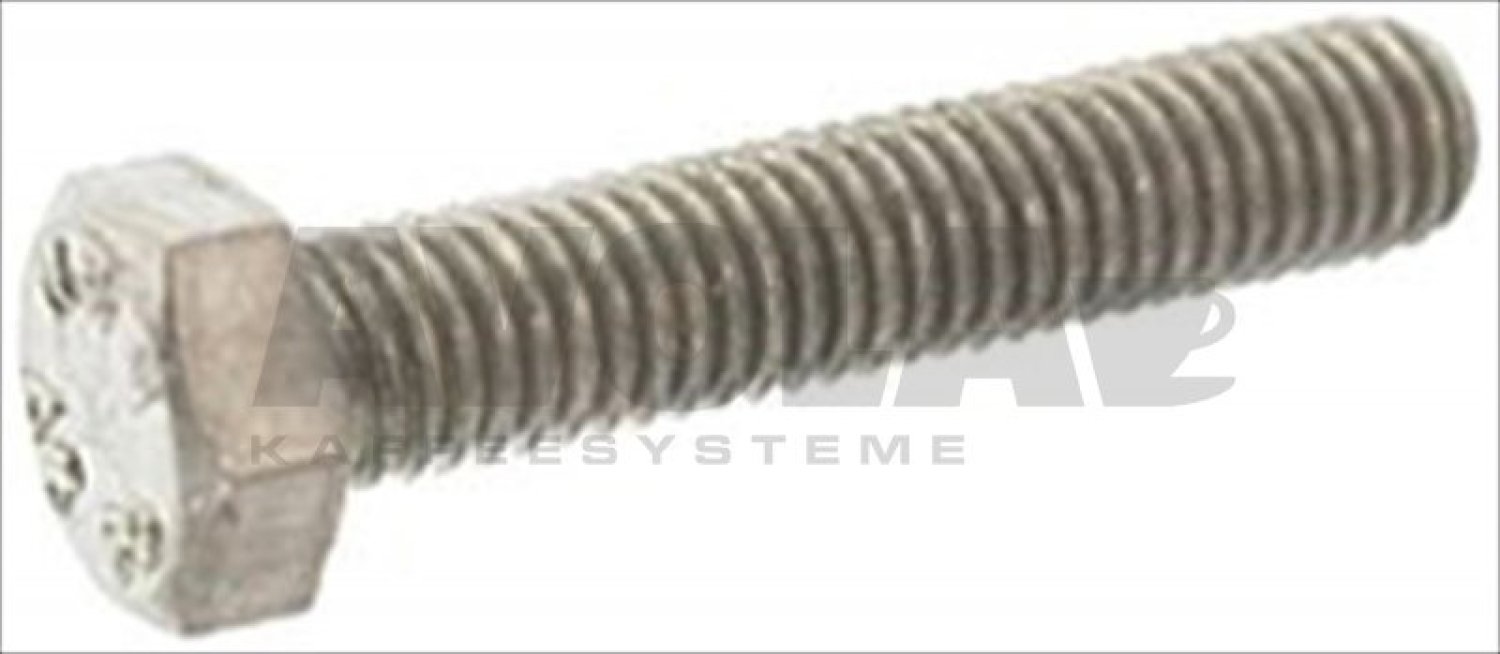

22hexagon head screw m5x258007320
HEXAGON HEAD SCREW M5x25
1,43 €

excl. Shipping costs
immediately available

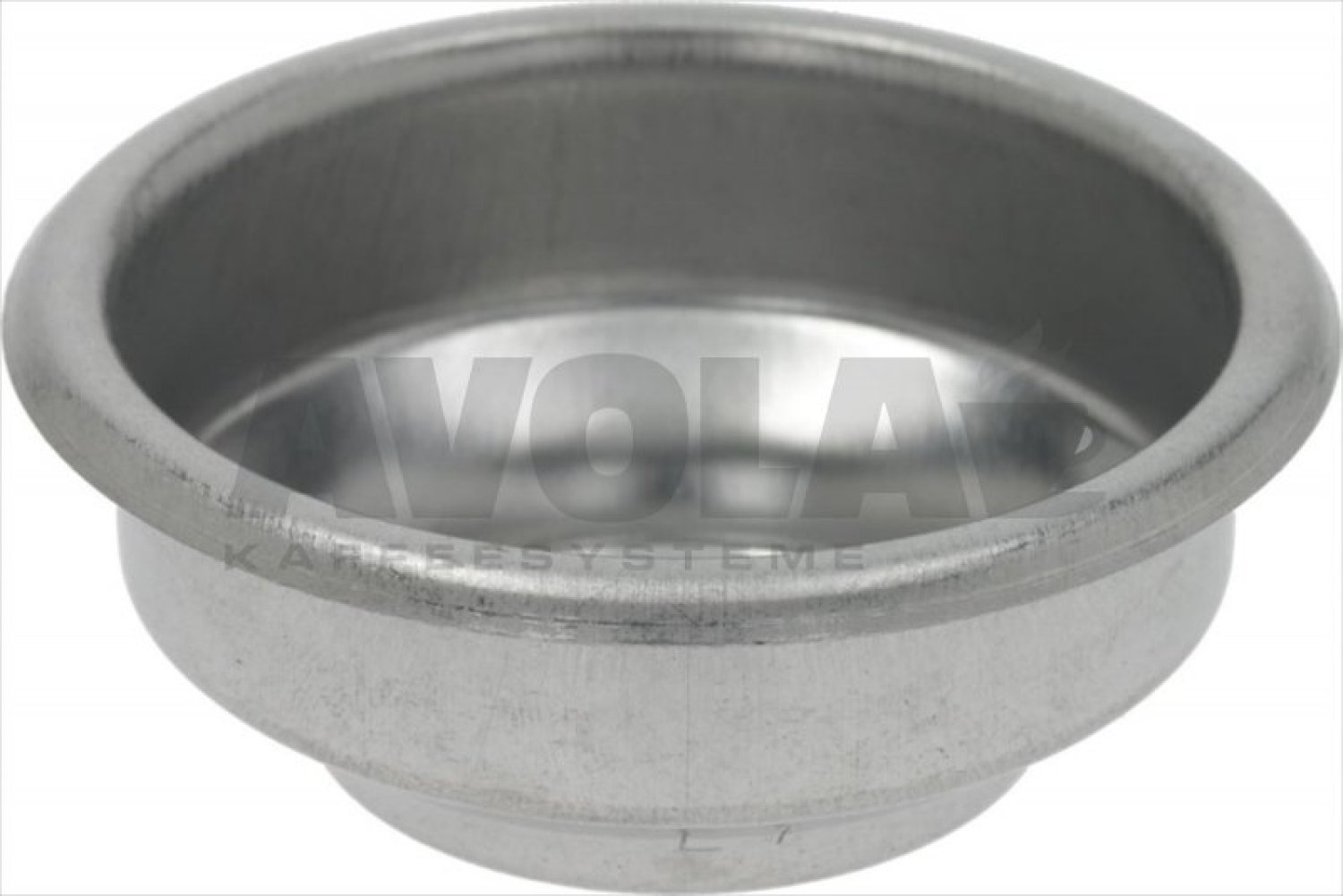

25blind filter 53mm la spaziale8001090
BLIND FILTER 53mm La Spaziale
5,22 €

excl. Shipping costs
immediately available, 6 available

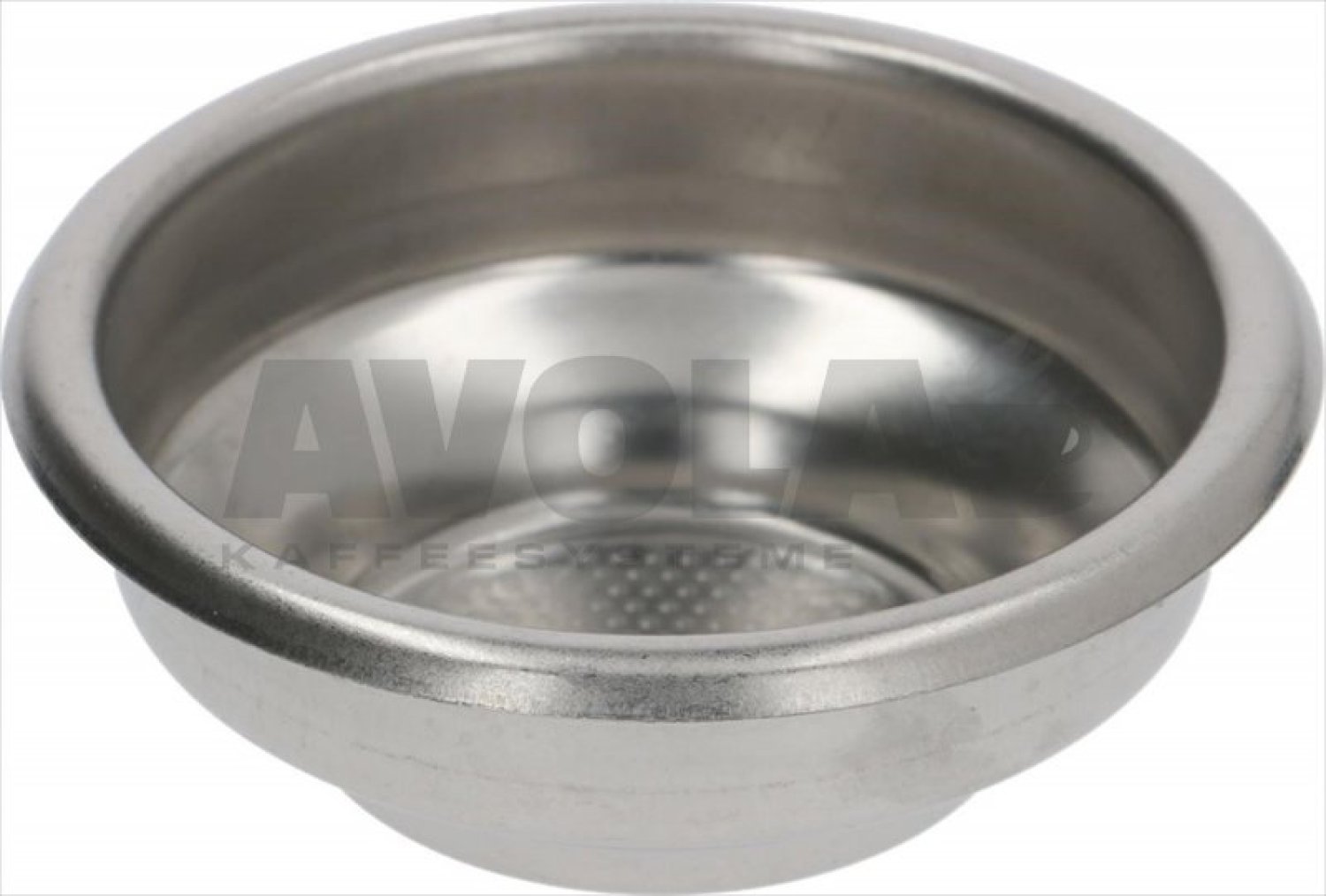

261 cup filter 6 gr8001068
1 CUP FILTER 6 gr
6,18 €

excl. Shipping costs
immediately available, 3 available

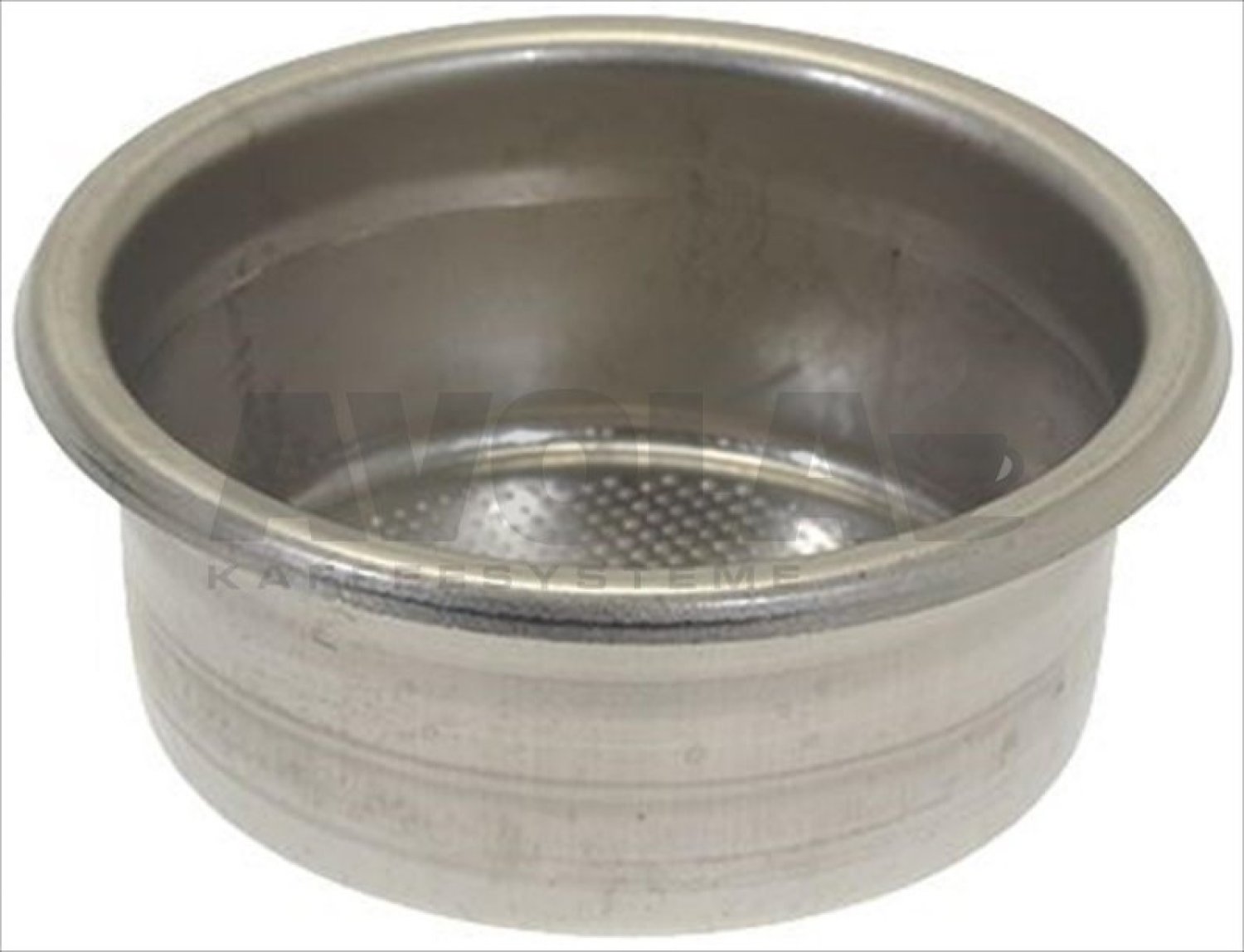

272 cups filter 12 gr8001069
2 CUPS FILTER 12 gr
5,03 €

excl. Shipping costs
immediately available, 7 available

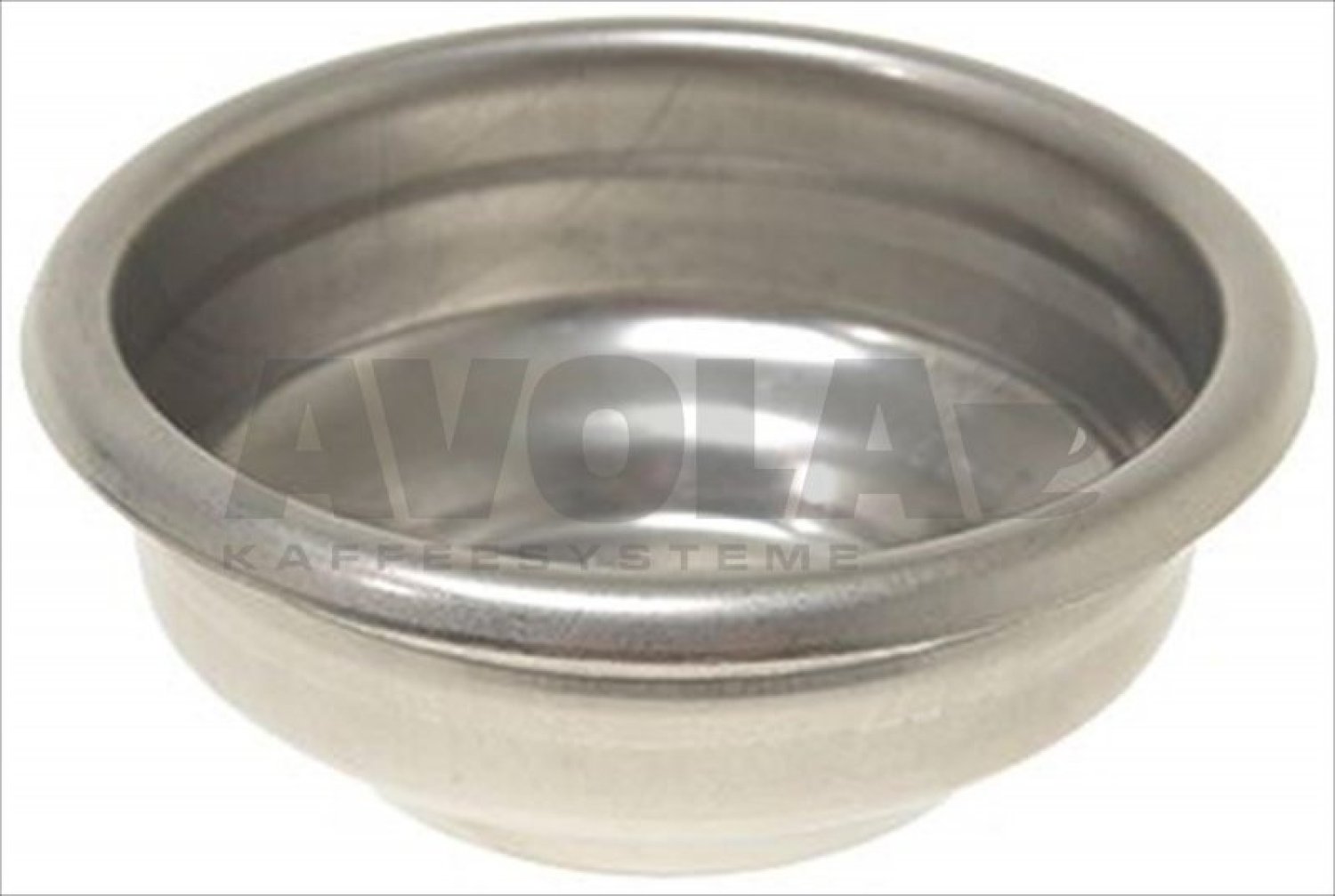

281 cup filter 7 gr8001088
1 CUP FILTER 7 gr
6,56 €

excl. Shipping costs
immediately available, 6 available

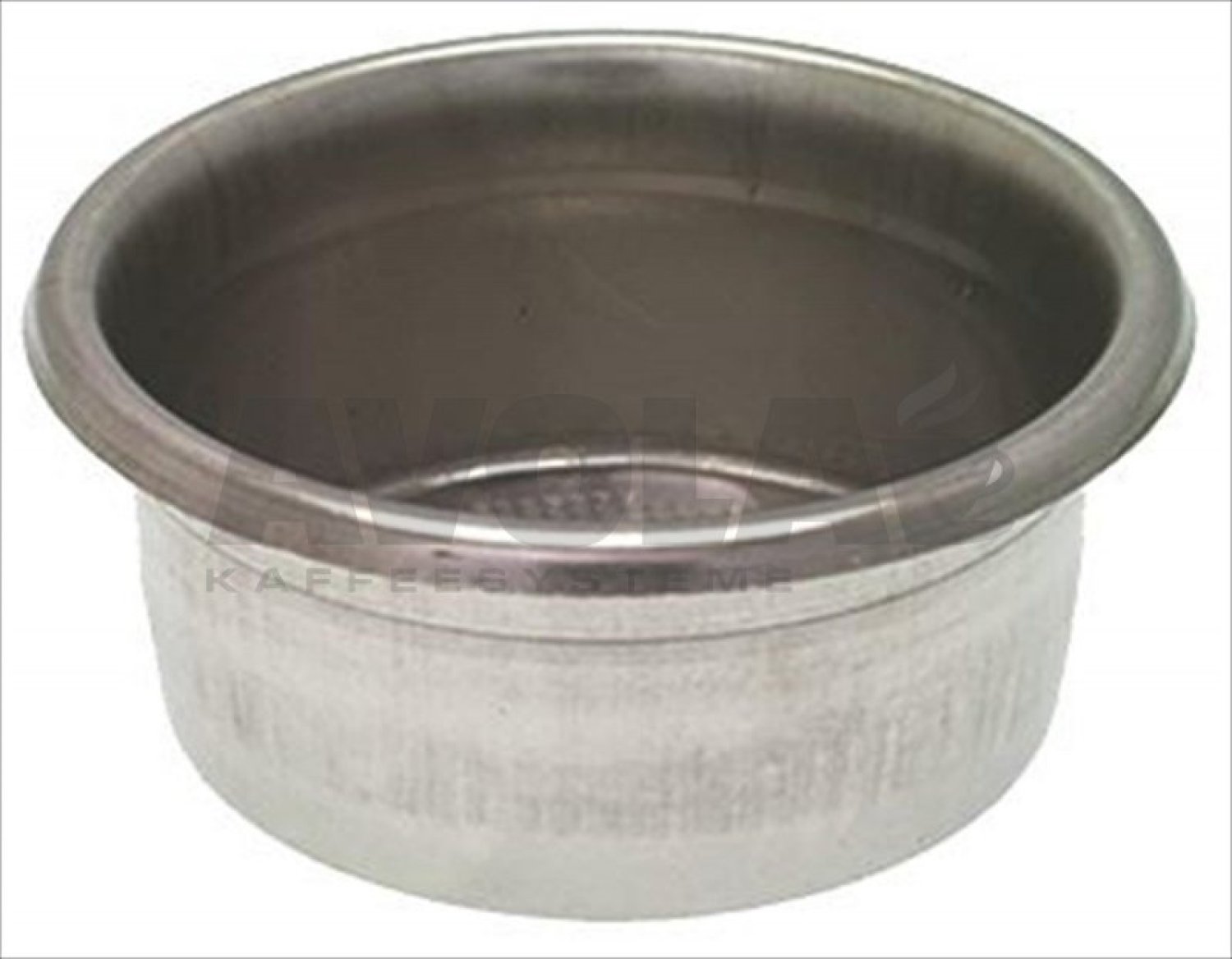

292 cup filter 14 grams8001089
2-CUP FILTER 14 GRAMS
6,77 €

excl. Shipping costs
immediately available, 7 available
30s steel filter locking spring8003542
S/STEEL FILTER LOCKING SPRING
1,62 €

excl. Shipping costs
immediately available

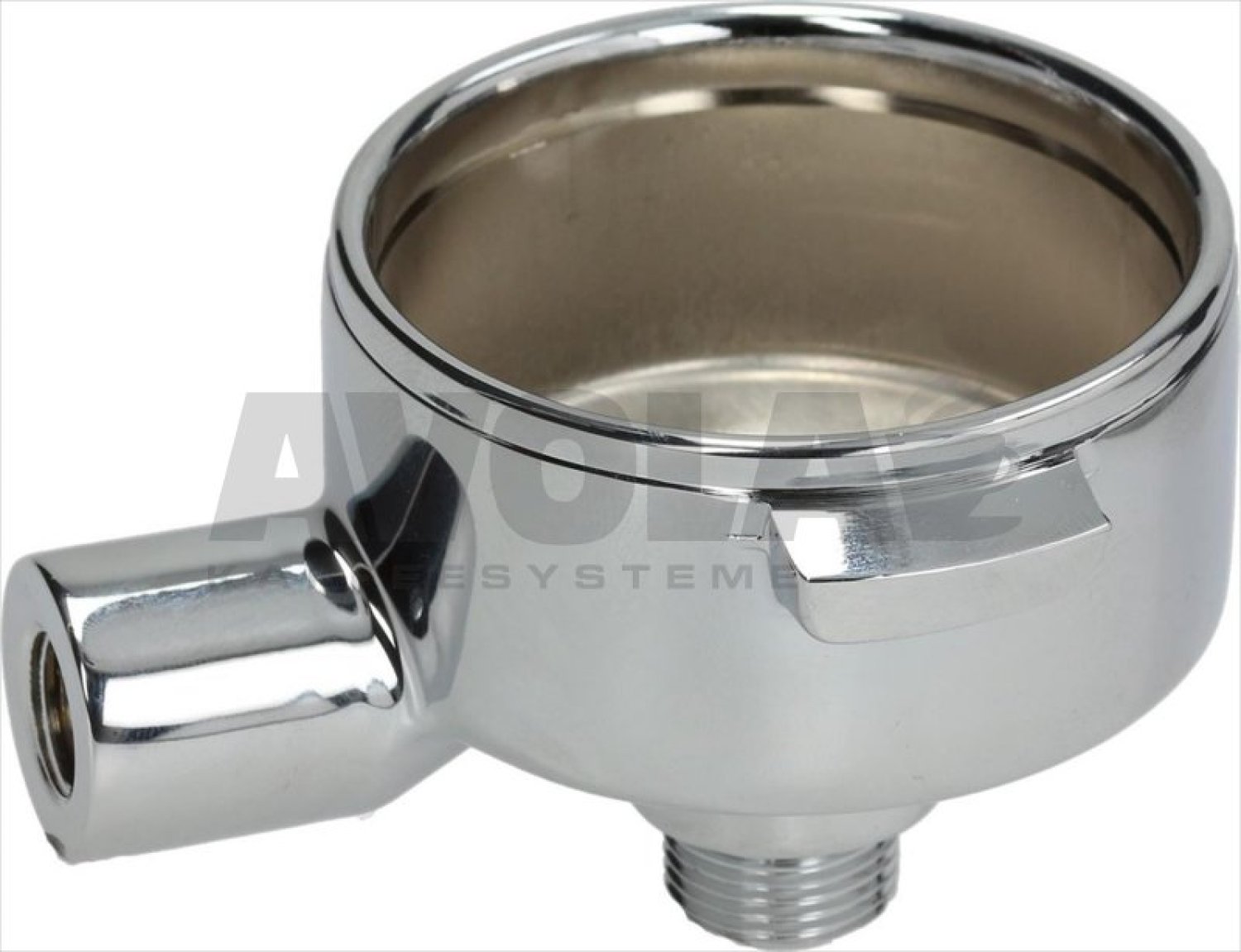

31filter holder spaziale8001212
FILTER HOLDER SPAZIALE
42,38 €

excl. Shipping costs
Delivery time
is determined

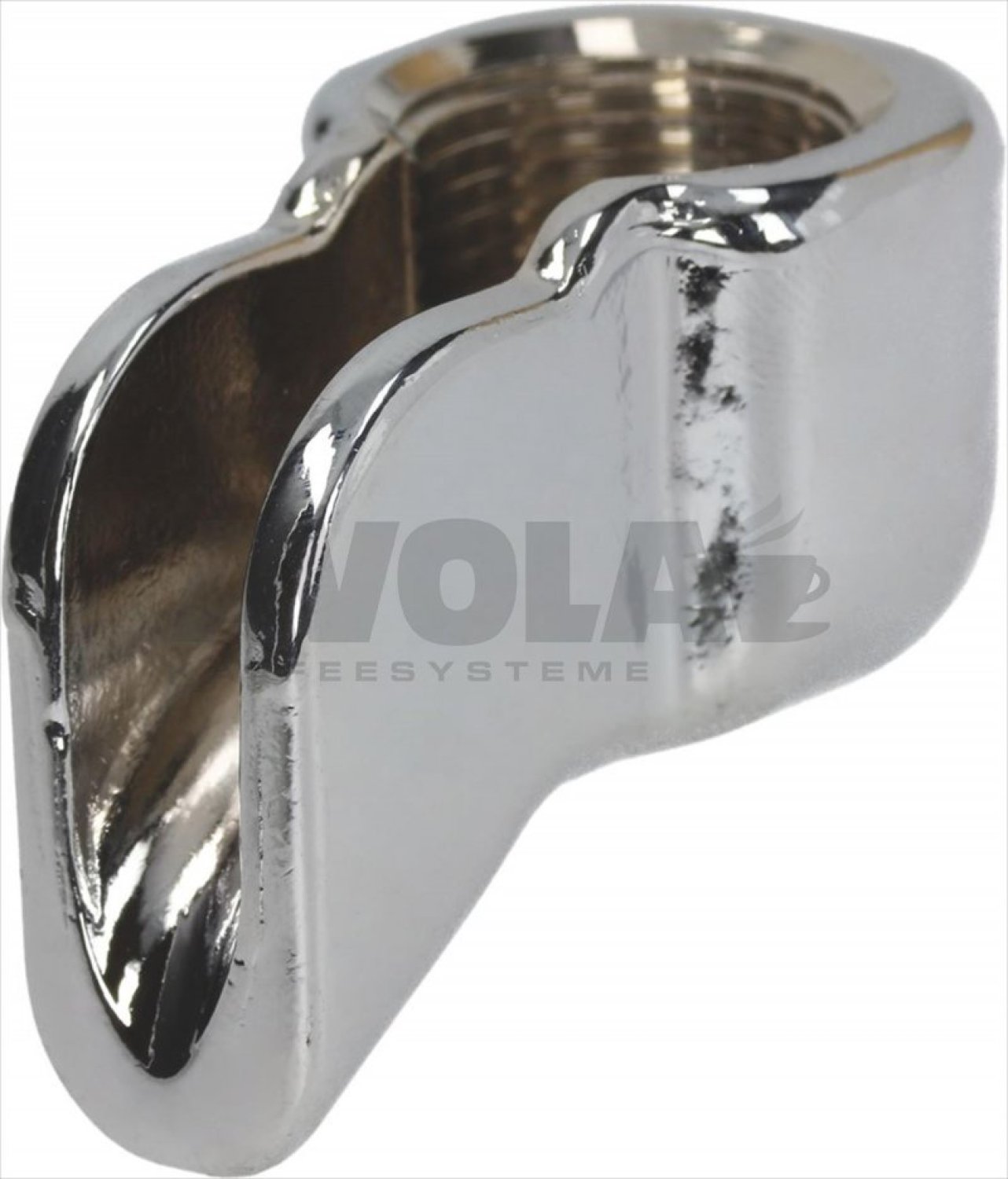

32one way spout8000114
ONE-WAY SPOUT
13,09 €

excl. Shipping costs
immediately available, 3 available
33double spout o 3 8 rime8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs
immediately available, 8 available
34triple spout o 3 88000129
TRIPLE SPOUT ø 3/8
10,01 €

excl. Shipping costs
immediately available, 1 available
39filter holder assembly 1 cup spaziale8001235
FILTER HOLDER ASSEMBLY 1 CUP SPAZIALE
69,16 €

excl. Shipping costs
immediately available, 1 available

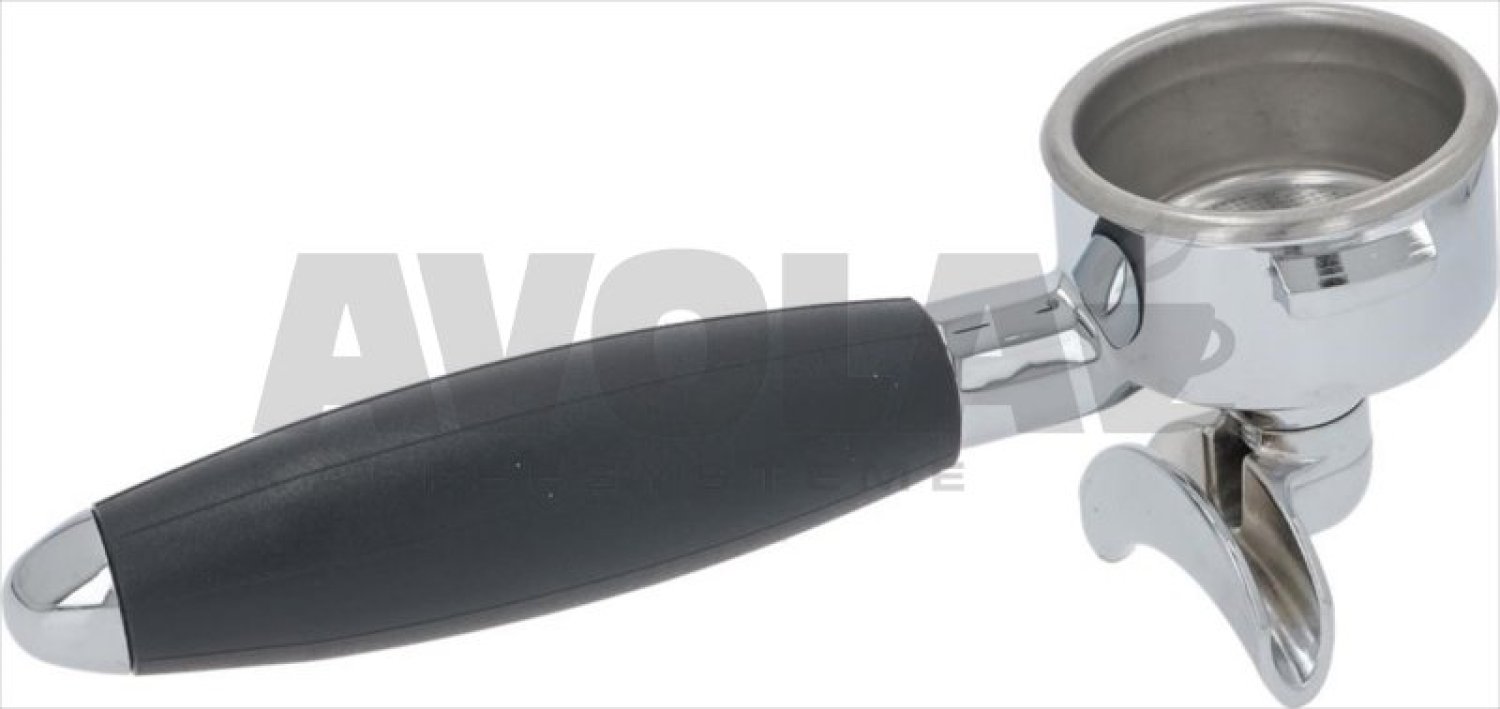

40complete filter holder 2 cups spaziale8001236
COMPLETE FILTER HOLDER 2 CUPS SPAZIALE
68,37 €

excl. Shipping costs
immediately available, 1 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
