SANREMO CAPRI BRÜHGRUPPE - WASSER DAMPFHAHN

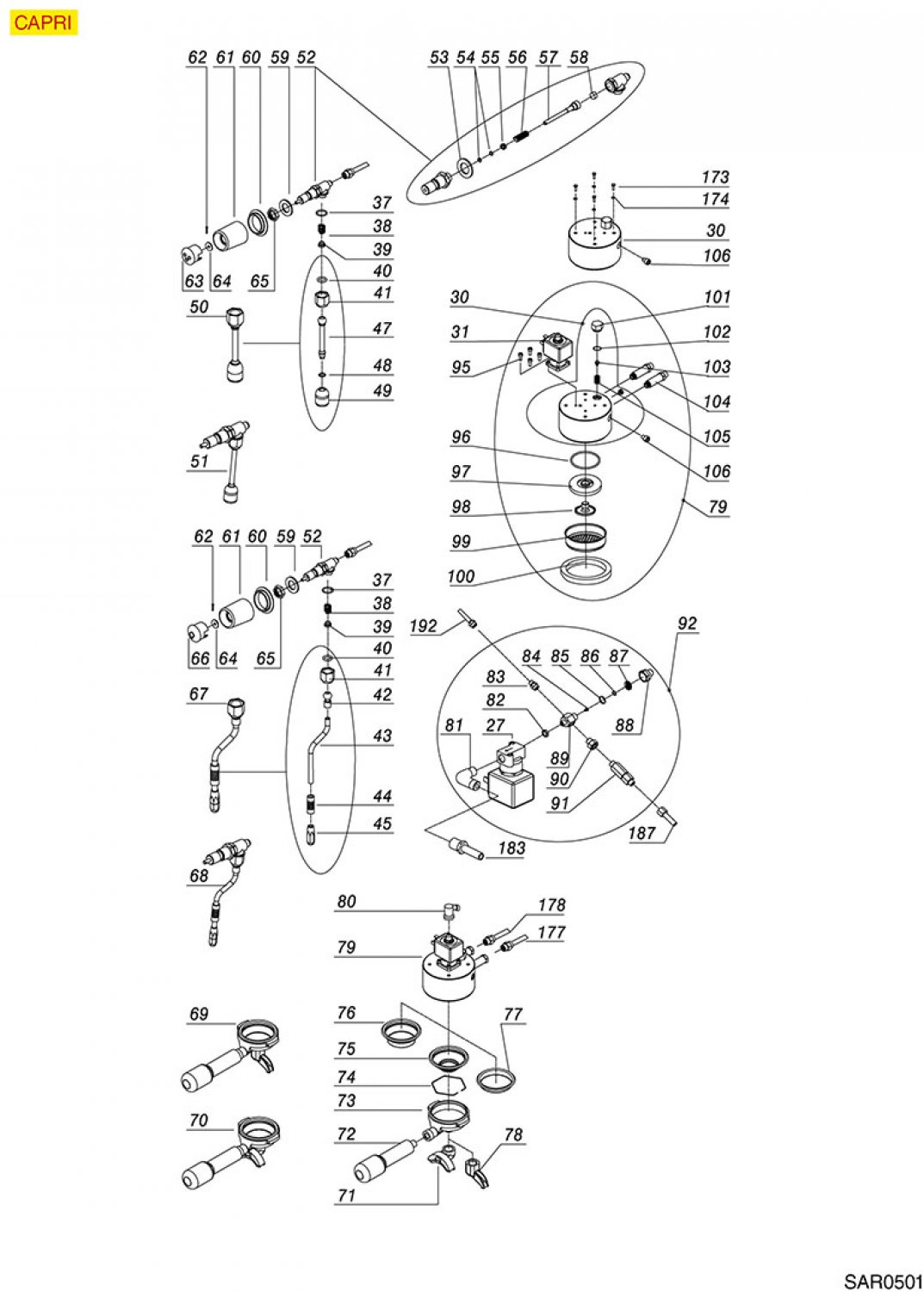

Drawing number 8069028

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

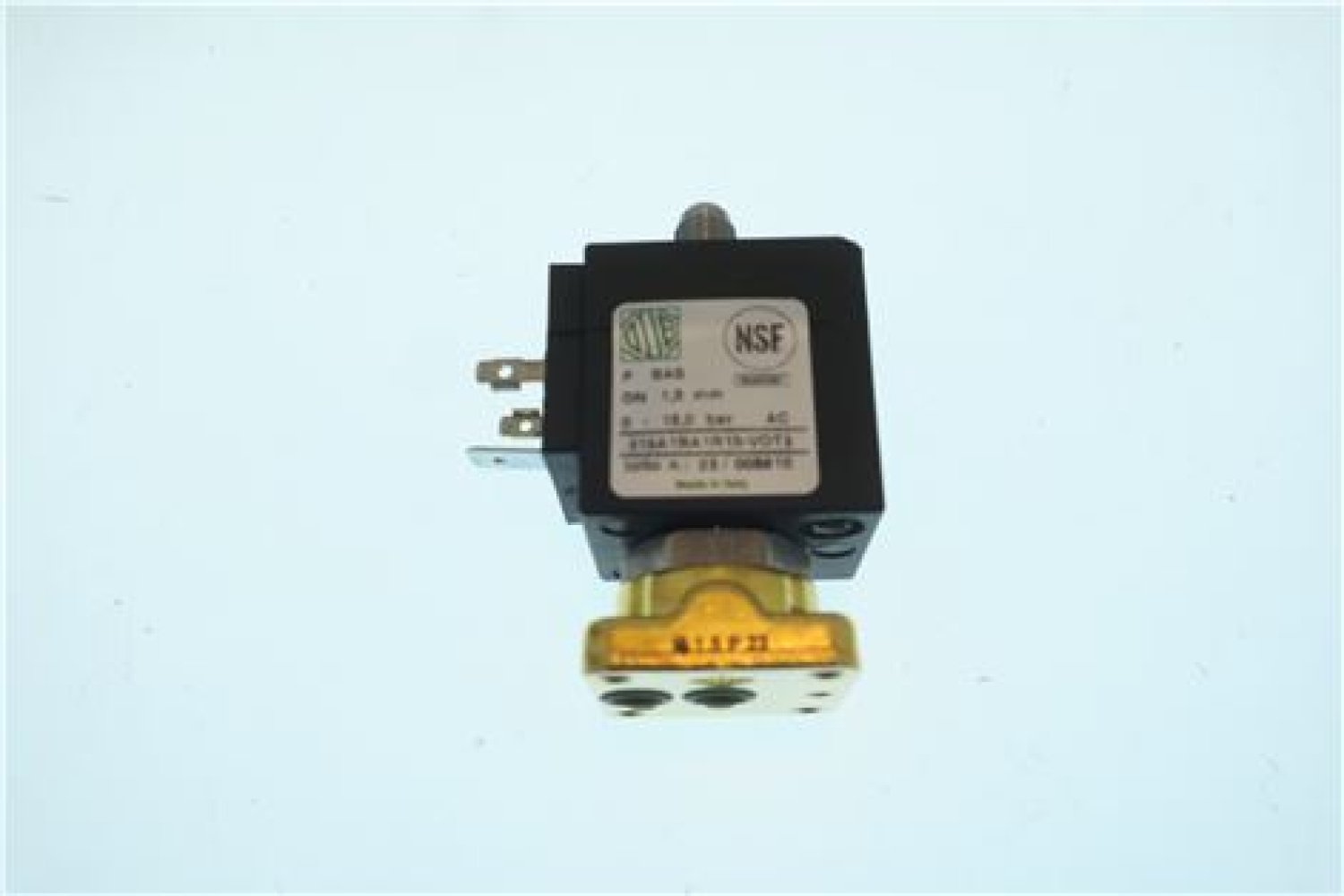

313 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
Delivery time
is determined
37or dichtung 02062 fkm gr8137958
OR-DICHTUNG 02062 FKM GR
Price on request
38spring o 12x16 5 mm8003554
SPRING ø 12x16,5 mm
2,88 €

excl. Shipping costs
immediately available, 13 available
39steam tap joint bushing8002144
STEAM TAP JOINT BUSHING
4,46 €

excl. Shipping costs
immediately available, 7 available
40o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available
41nut8069365
NUT
9,52 €

excl. Shipping costs
immediately available, 7 available
44burn preventing pipe handgrip8002158
BURN PREVENTING PIPE HANDGRIP
2,44 €

excl. Shipping costs
immediately available, 14 available
49water pipe nozzle 1 88006744
WATER PIPE NOZZLE 1/8
8,20 €

excl. Shipping costs
immediately available, 2 available
52water steam tap8005473
WATER/STEAM TAP
50,27 €

excl. Shipping costs
immediately available, 2 available
53copper flat gasket 22x17x1 5 mm8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs
immediately available
54o ring epdm r58048968
O-RING EPDM R5
1,25 €

excl. Shipping costs
immediately available
55spring bushing8001521
SPRING BUSHING
1,42 €

excl. Shipping costs
immediately available, 8 available
56tap spring8003795
TAP SPRING
1,80 €

excl. Shipping costs
immediately available, 8 available
57water steam tap pin8005137
WATER/STEAM TAP PIN
17,02 €

excl. Shipping costs
immediately available, 3 available
58blond gasket o 12x5 8 mm silicon8001670
blond gasket ø 12x5,8 mm silicon
1,20 €

excl. Shipping costs
immediately available
62stainless steel pin8024568
STAINLESS STEEL PIN
0,42 €

excl. Shipping costs
immediately available
64scheibe 20x6 3x1 5 aisi3048219715
Scheibe 20x6,3x1,5 AISI304
1,19 €

excl. Shipping costs
immediately available

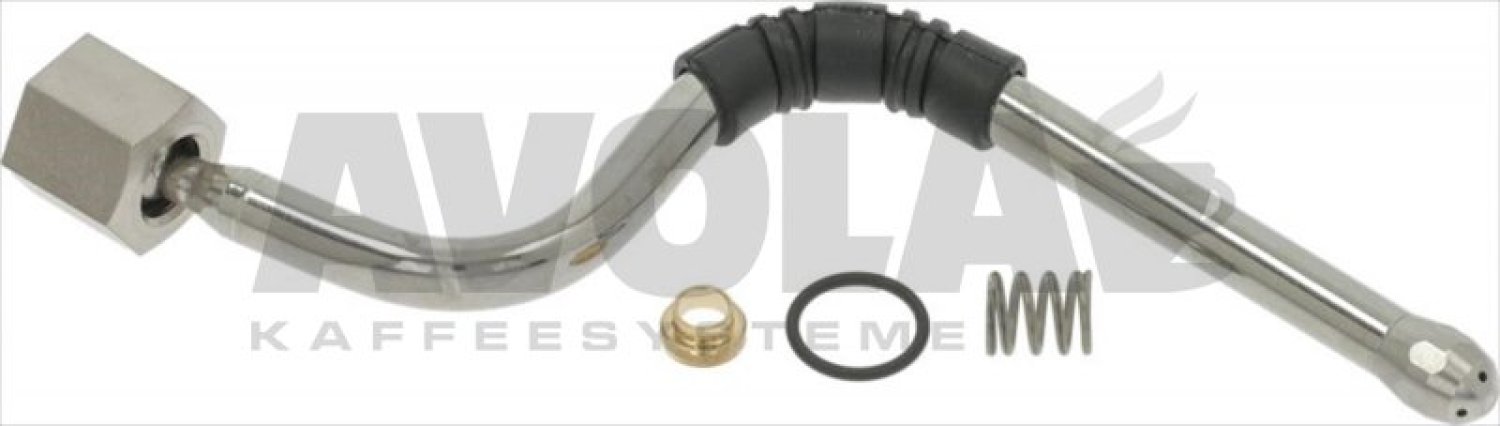

67dampfrohr komplett edelstahl o 10 mm8073683
DAMPFROHR KOMPLETT EDELSTAHL ø 10 mm
50,85 €

excl. Shipping costs
Delivery time
is determined
71lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
71double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 9 available
71double spout8000123
DOUBLE SPOUT
7,14 €

excl. Shipping costs
immediately available, 4 available
72filter holder handle m128003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs
immediately available, 4 available
74filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available, 19 available
751 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 14 available
762 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 5 available
77blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
78single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 20 available
78single spout o 3 8 kurz 24 50mm8000128
SINGLE SPOUT ø 3/8 kurz 24,50mm
5,74 €

excl. Shipping costs
immediately available, 7 available
79bruehgruppe komplett ass gruppo an ot57 gde61 230v gr co nor 8207797
Brühgruppe komplett ASS.GRUPPO AN.OT57 GDE61 230V GR.CO.NOR.
403,78 €

excl. Shipping costs
Delivery time
is determined
81anschluss l foermig o 1 8m o 6 mm8063840
ANSCHLUSS L-FÖRMIG ø 1/8M- ø 6 mm
9,46 €

excl. Shipping costs
Delivery time
is determined
86o ring 03037 fkm8060058
O-RING 03037 FKM
4,09 €

excl. Shipping costs
immediately available
88nichel plated fitting8022424
NICHEL-PLATED FITTING
6,66 €

excl. Shipping costs
Delivery time
is determined
90nichel plated fitting o 1 4 a 1 8 i8022425
NICHEL-PLATED FITTING ø 1/4 A-1/8 I
4,15 €

excl. Shipping costs
immediately available, 15 available
96o ring 03187 epdm8013757
O-RING 03187 EPDM
2,08 €

excl. Shipping costs
immediately available
98group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
99shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
100filter holder gasket o 73x57x8 mm8001902
FILTER HOLDER GASKET Ø 73x57x8 mm
3,47 €

excl. Shipping costs
immediately available, 8 available
102teflondichtung 3 8 zoll innendurchmesser8036592
Teflondichtung 3/8 Zoll Innendurchmesser
1,68 €

excl. Shipping costs
immediately available
103nozzle m6x1 hole8006984
NOZZLE M6x1 HOLE
3,27 €

excl. Shipping costs
immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
