LA SAN MARCO WASSERDAMPFHAEHNE 100-105

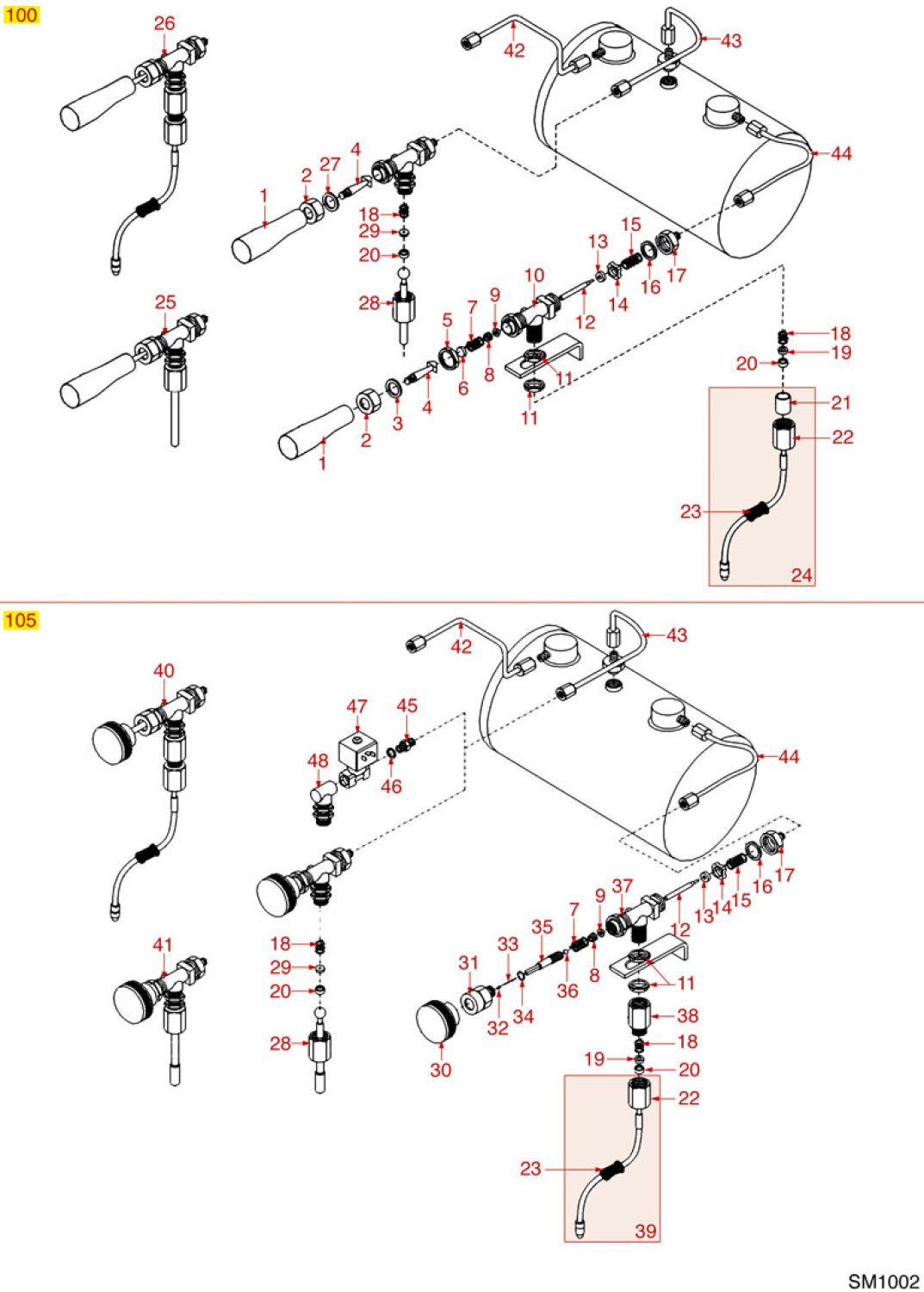

Drawing number 8057443

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

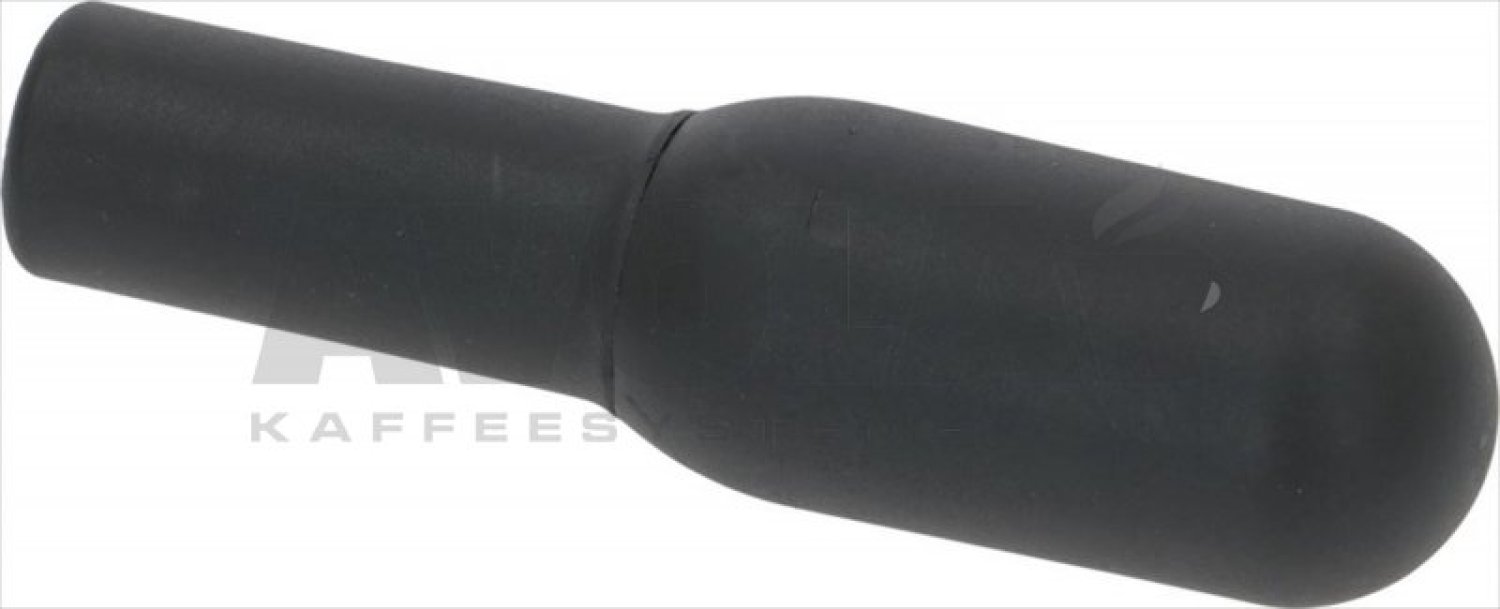

1water steam tap knob8003204
WATER/STEAM TAP KNOB
17,50 €

excl. Shipping costs
Delivery time
is determined
2nickel plated nut8007286
NICKEL-PLATED NUT
6,53 €

excl. Shipping costs
immediately available, 4 available
3shaped stainless steel washer8001692
SHAPED STAINLESS STEEL WASHER
4,71 €

excl. Shipping costs
immediately available, 10 available
4lever spindle for tap8005172
LEVER SPINDLE FOR TAP
14,05 €

excl. Shipping costs
immediately available, 6 available
5tap fitting8005852
TAP FITTING
3,06 €

excl. Shipping costs
Delivery time
is determined

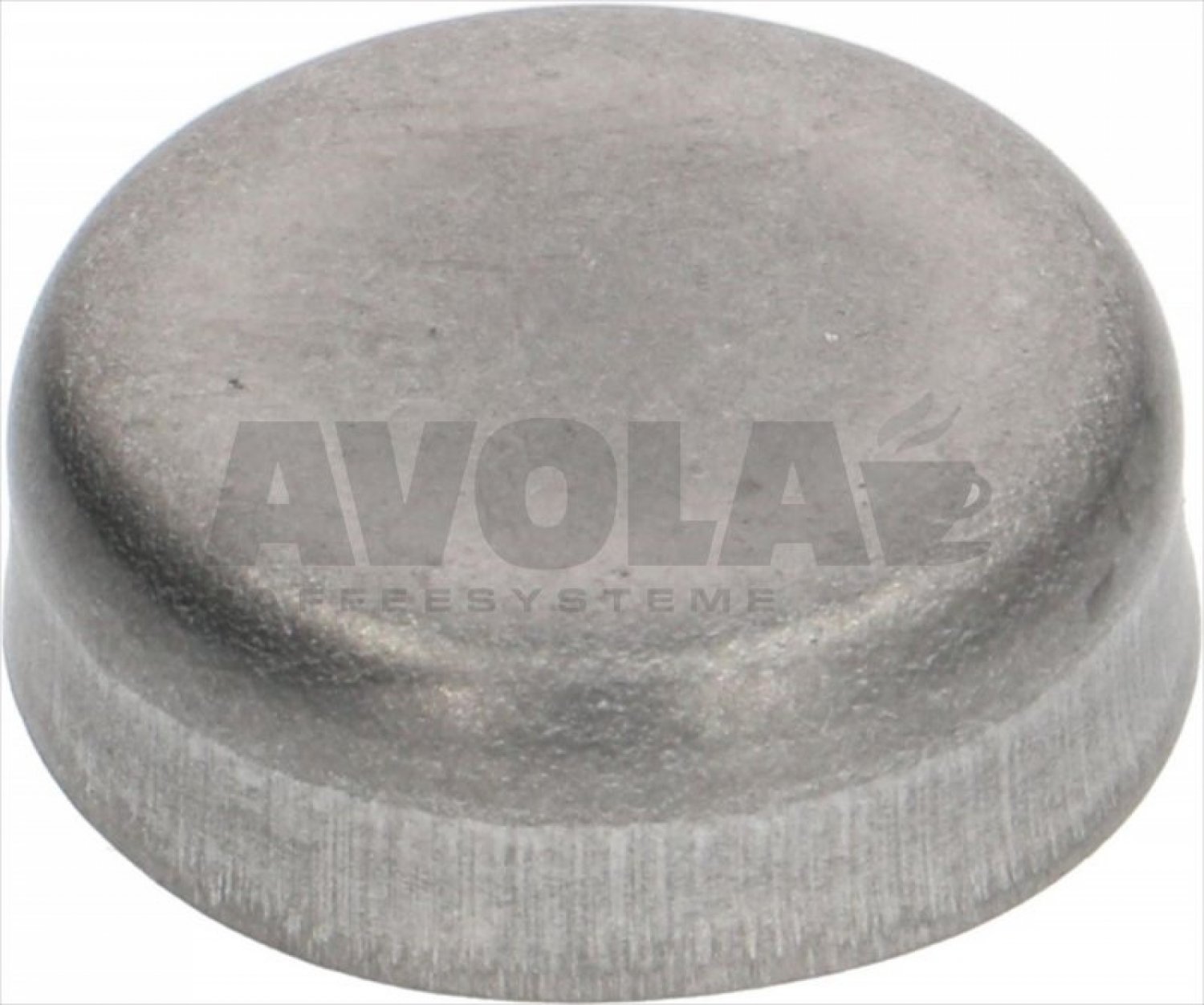

6st steel shield for tap8000324
ST.STEEL SHIELD FOR TAP
2,76 €

excl. Shipping costs
immediately available, 8 available
7tap spring o 16 x 218003801
TAP SPRING ø 16 x 21
1,75 €

excl. Shipping costs
immediately available, 11 available
8gasket holder8001691
GASKET HOLDER
2,61 €

excl. Shipping costs
immediately available, 9 available
9conical ptfe seal o 12 5x7x5 5 mm8001611
CONICAL PTFE SEAL ø 12,5x7x5,5 mm
0,82 €

excl. Shipping costs
immediately available, 12 available

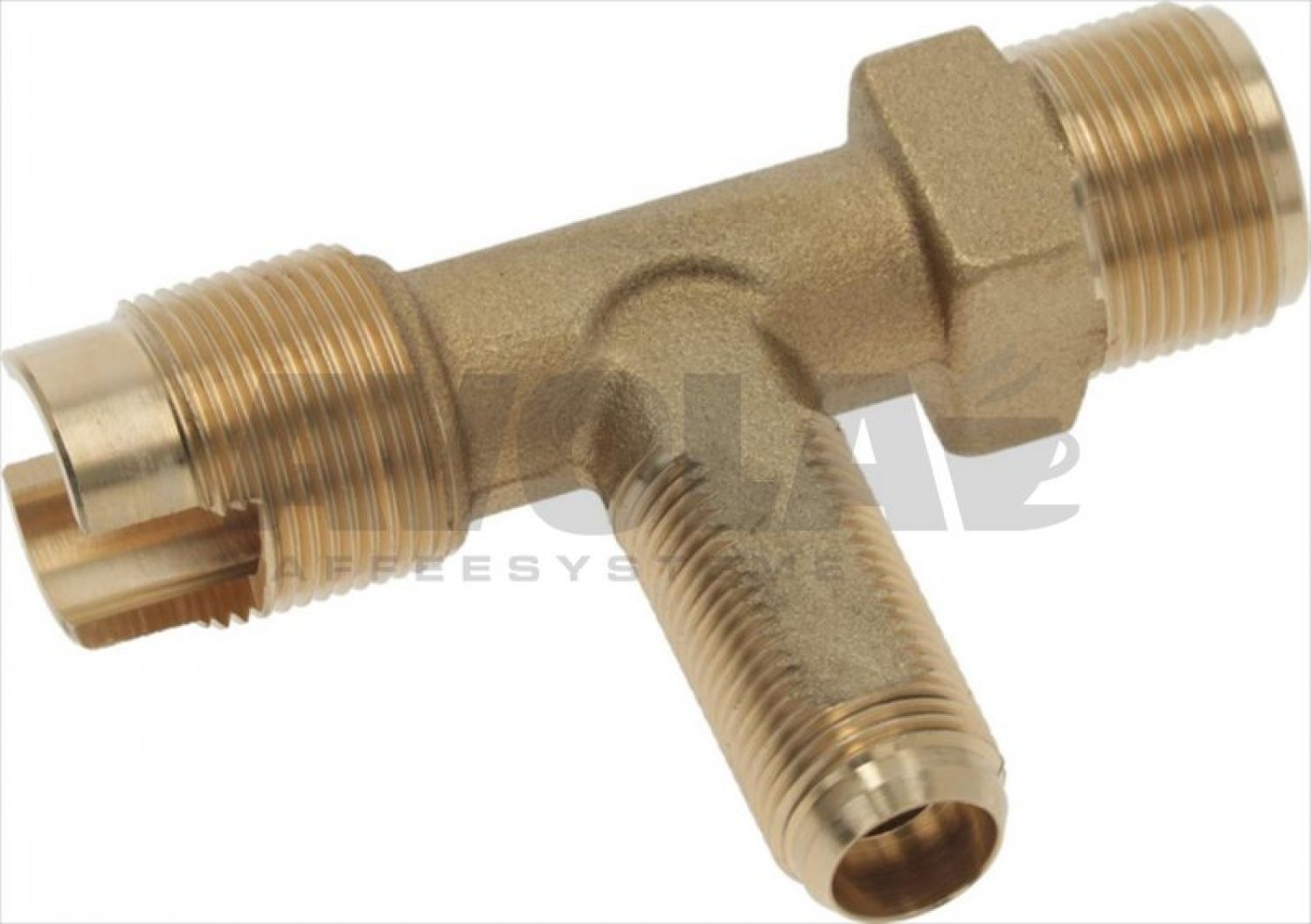

10san marco tap body8005598
San Marco TAP BODY
29,43 €

excl. Shipping costs
immediately available, 1 available
11brass nut o 3 88005663
BRASS NUT ø 3/8
2,90 €

excl. Shipping costs
immediately available, 9 available

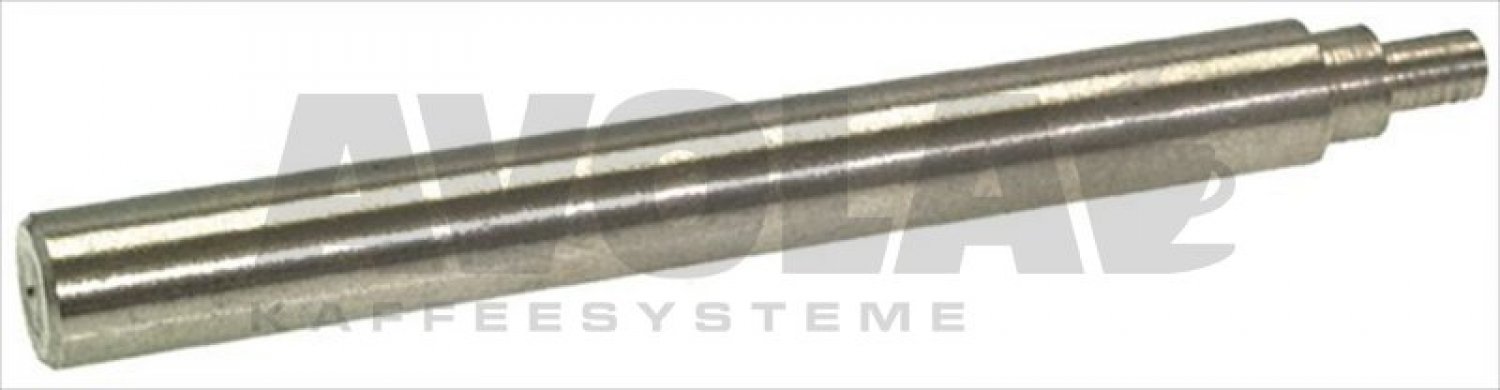

12la san marco tap spindle8005150
La San Marco TAP SPINDLE
2,98 €

excl. Shipping costs
Delivery time
is determined
13flat gasket silicon o 15x5 5x4 mm8079301
flat gasket silicon ø 15x5,5x4 mm
2,68 €

excl. Shipping costs
immediately available
13epdm flat gasket o 15x5 5x4 mm8001610
EPDM flat gasket ø 15x5,5x4 mm
1,07 €

excl. Shipping costs
immediately available, 19 available
14san marco valve body8007144
San Marco valve body
6,33 €

excl. Shipping costs
Delivery time
is determined
15san marco valve spring o 16x20 mm8003824
San Marco valve spring ø 16x20 mm
2,21 €

excl. Shipping costs
immediately available, 6 available
16asbestos free flat gasket o 23 5x20x1 mm8001609
ASBESTOS FREE FLAT GASKET ø 23,5x20x1 mm
1,21 €

excl. Shipping costs
immediately available
17tap coupling o 1 48005851
TAP COUPLING ø 1/4
8,81 €

excl. Shipping costs
immediately available, 4 available
18spring o 12x15 mm8003822
SPRING ø 12x15 mm
2,32 €

excl. Shipping costs
immediately available, 7 available
19washer8001554
WASHER
1,51 €

excl. Shipping costs
immediately available, 15 available
20conical ptfe seal8001612
CONICAL PTFE SEAL
1,11 €

excl. Shipping costs
immediately available
21conical ptfe seal o 16x20 mm8001959
CONICAL PTFE SEAL ø 16x20 mm
4,01 €

excl. Shipping costs
immediately available, 7 available
22steam tube fitting o 3 88005836
STEAM TUBE FITTING ø 3/8
6,81 €

excl. Shipping costs
immediately available, 3 available

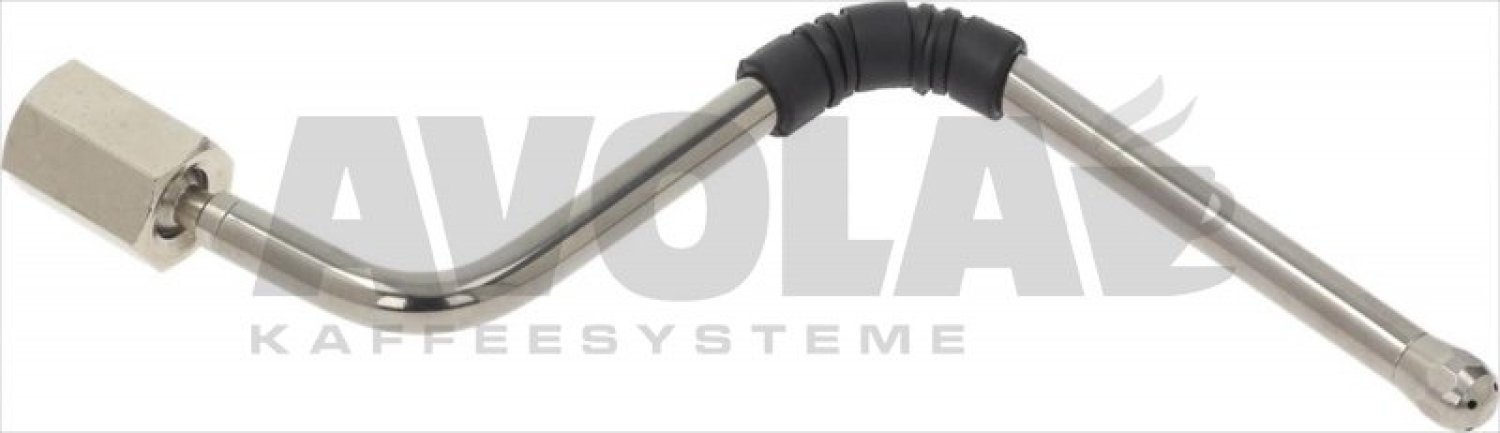

24stainless steel steam pipe compl 8006638
STAINLESS STEEL STEAM PIPE COMPL.
48,08 €

excl. Shipping costs
immediately available, 1 available

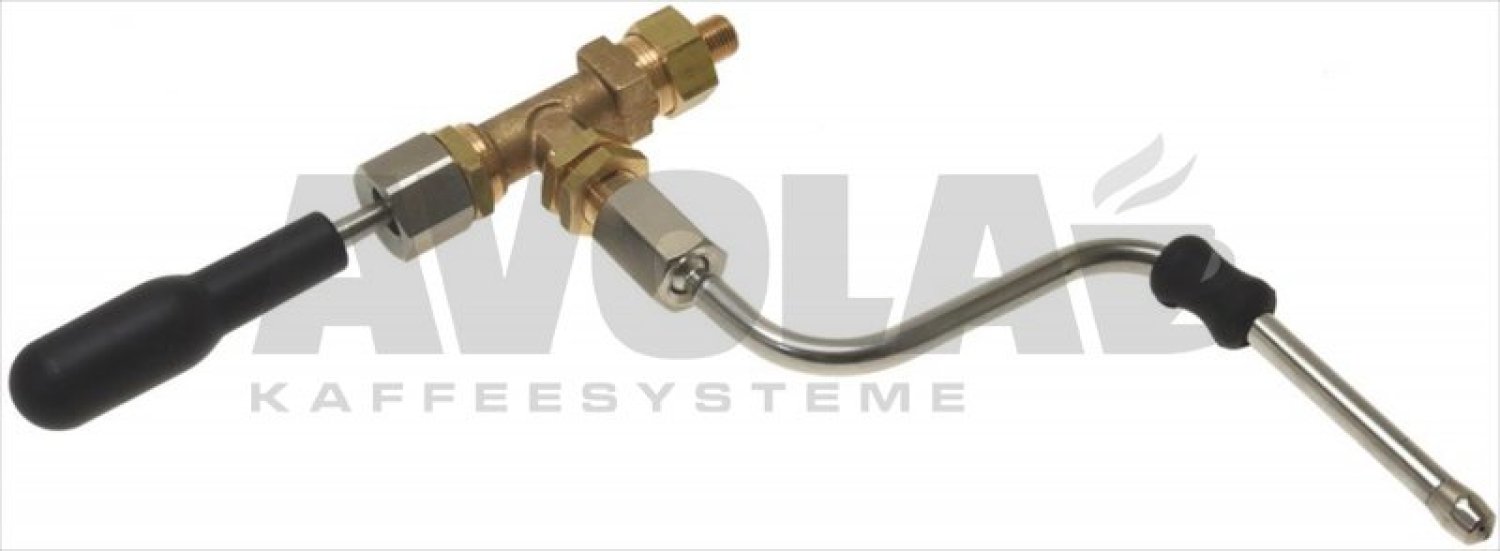

26dampfhahn la san marco fuer sm105 mit hebelventil komplett8113818
Dampfhahn La San Marco für SM105 mit Hebelventil komplett
146,37 €

excl. Shipping costs
immediately available, 1 available

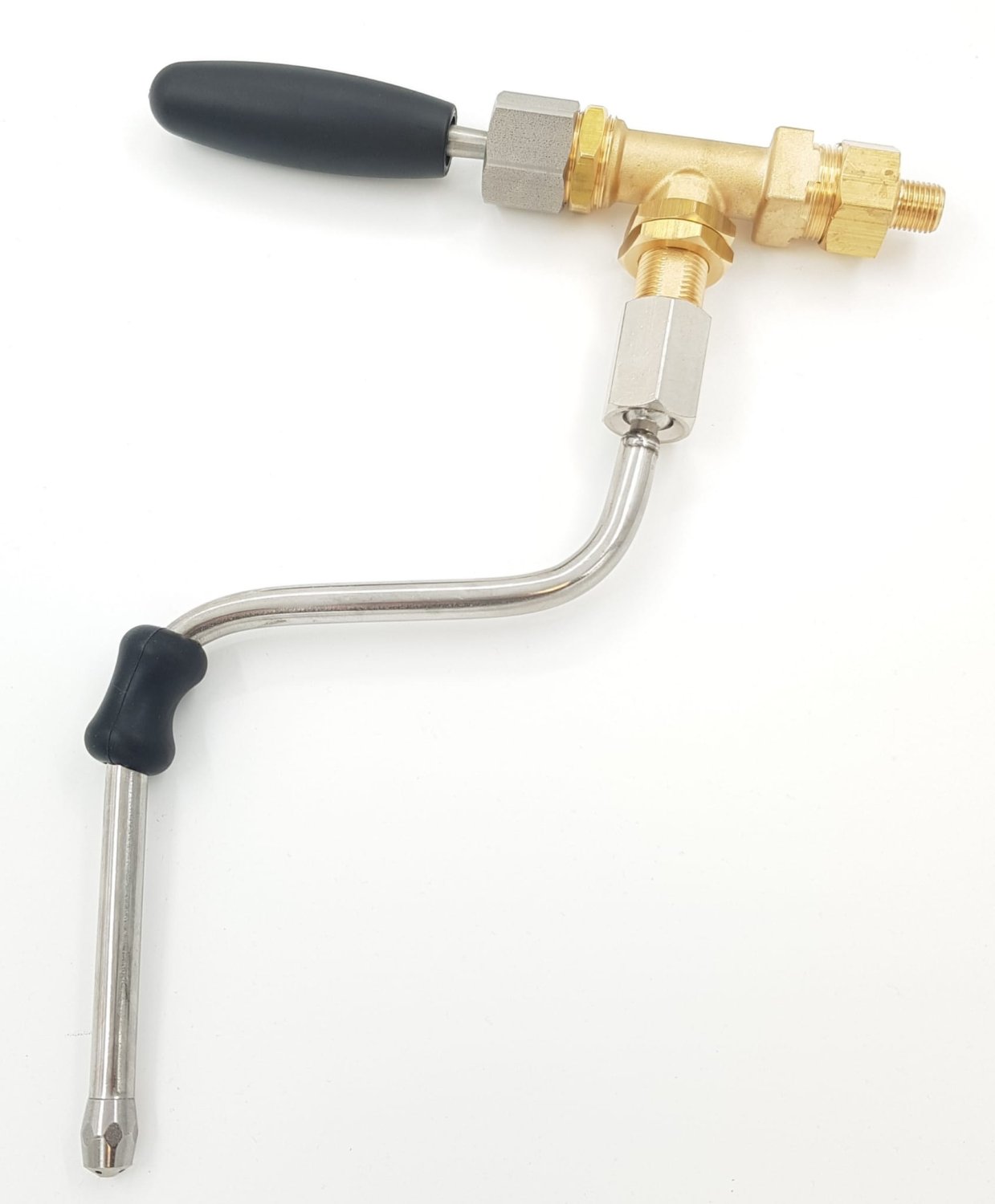

26dampfhahn la san marco sm100 2014 komplett8113817
Dampfhahn La San Marco SM100 2014 komplett
119,00 €

excl. Shipping costs
immediately available, 2 available

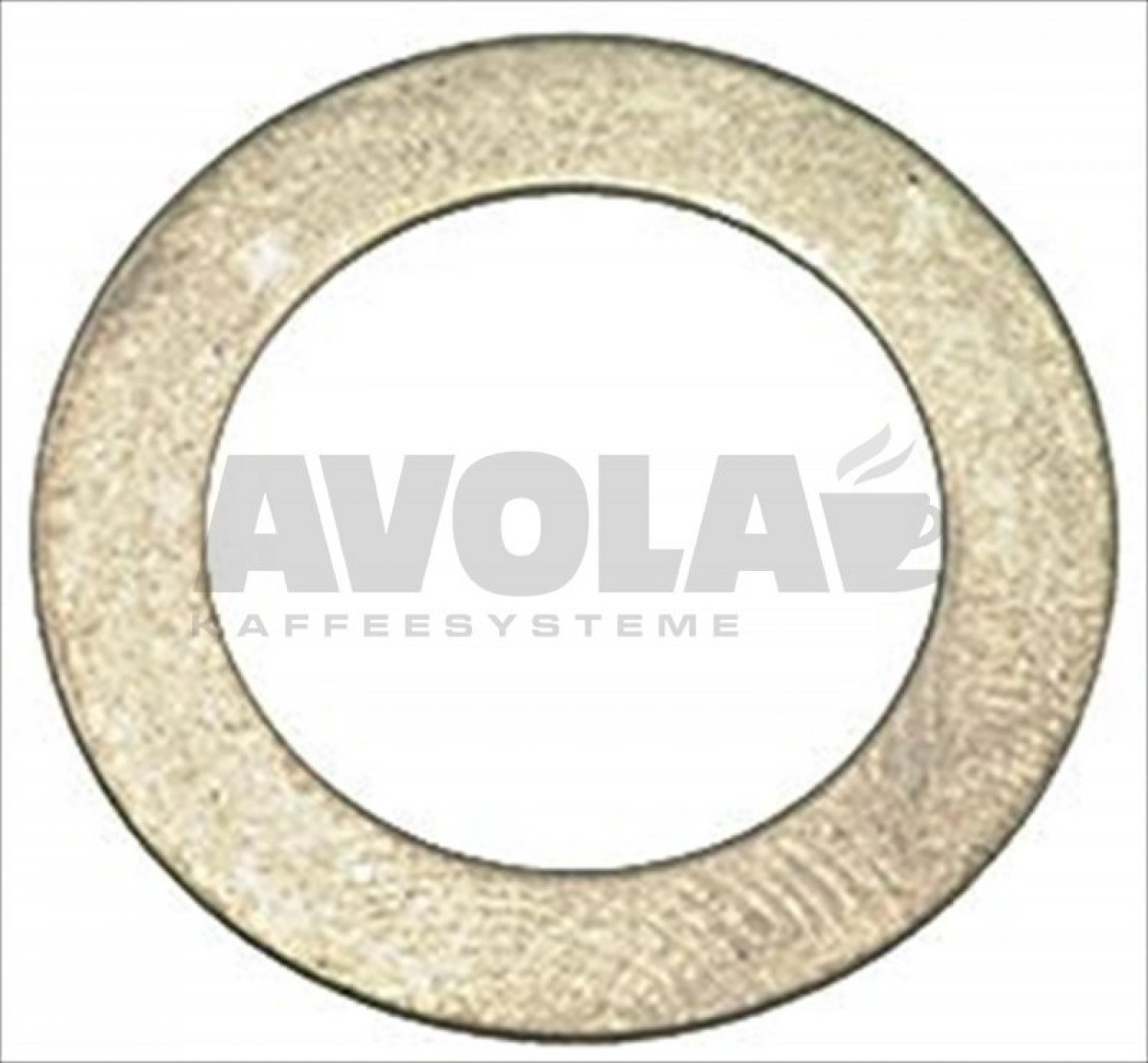

27st steel washer o 23x15x0 58001439
ST.STEEL WASHER ø 23x15x0,5
2,02 €

excl. Shipping costs
immediately available, 8 available
28san marco water pipe8006794
San Marco WATER PIPE
53,45 €

excl. Shipping costs
immediately available, 1 available

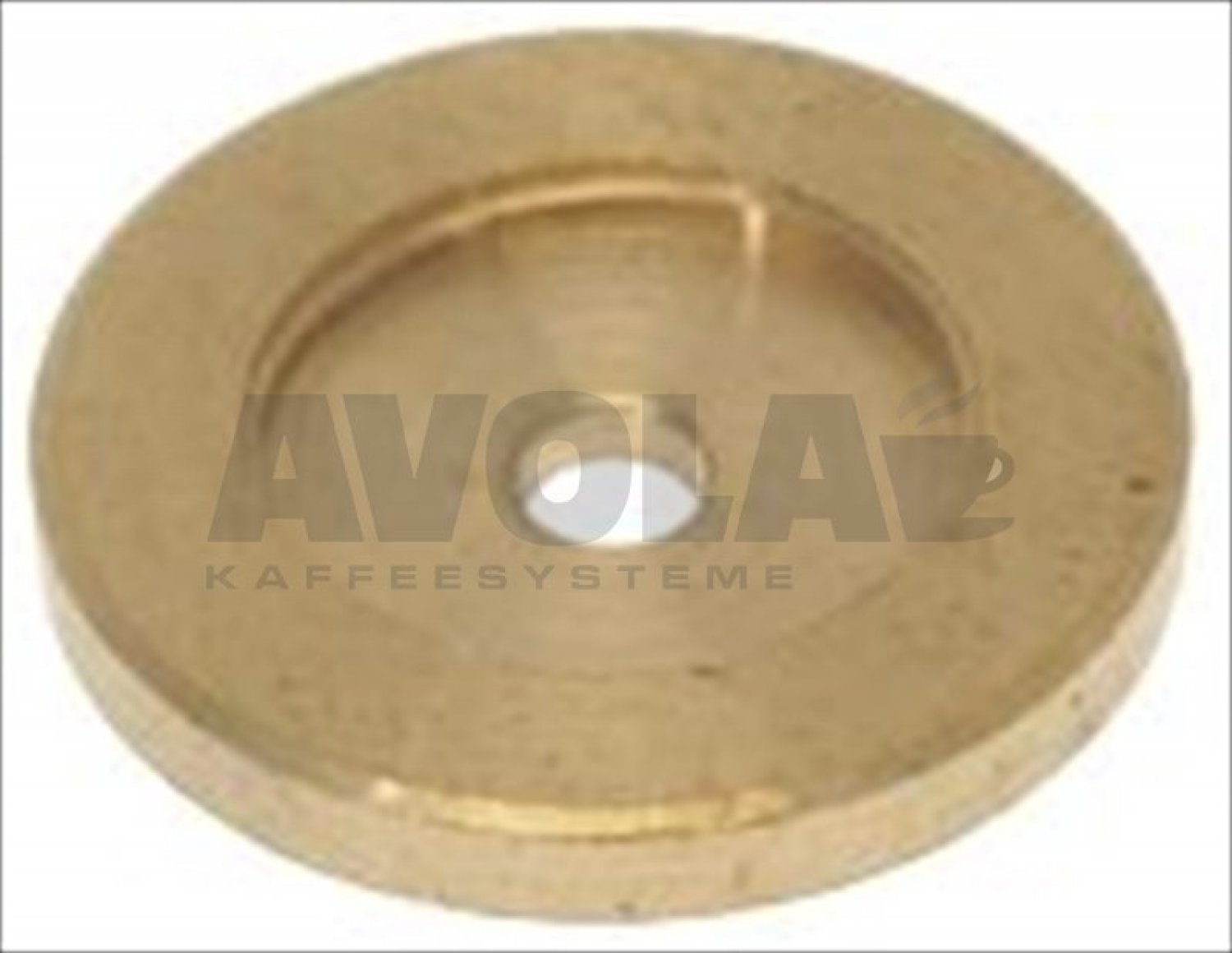

29washer for articulation o 14 mm8001957
WASHER FOR ARTICULATION Ø 14 mm
2,46 €

excl. Shipping costs
Delivery time
is determined

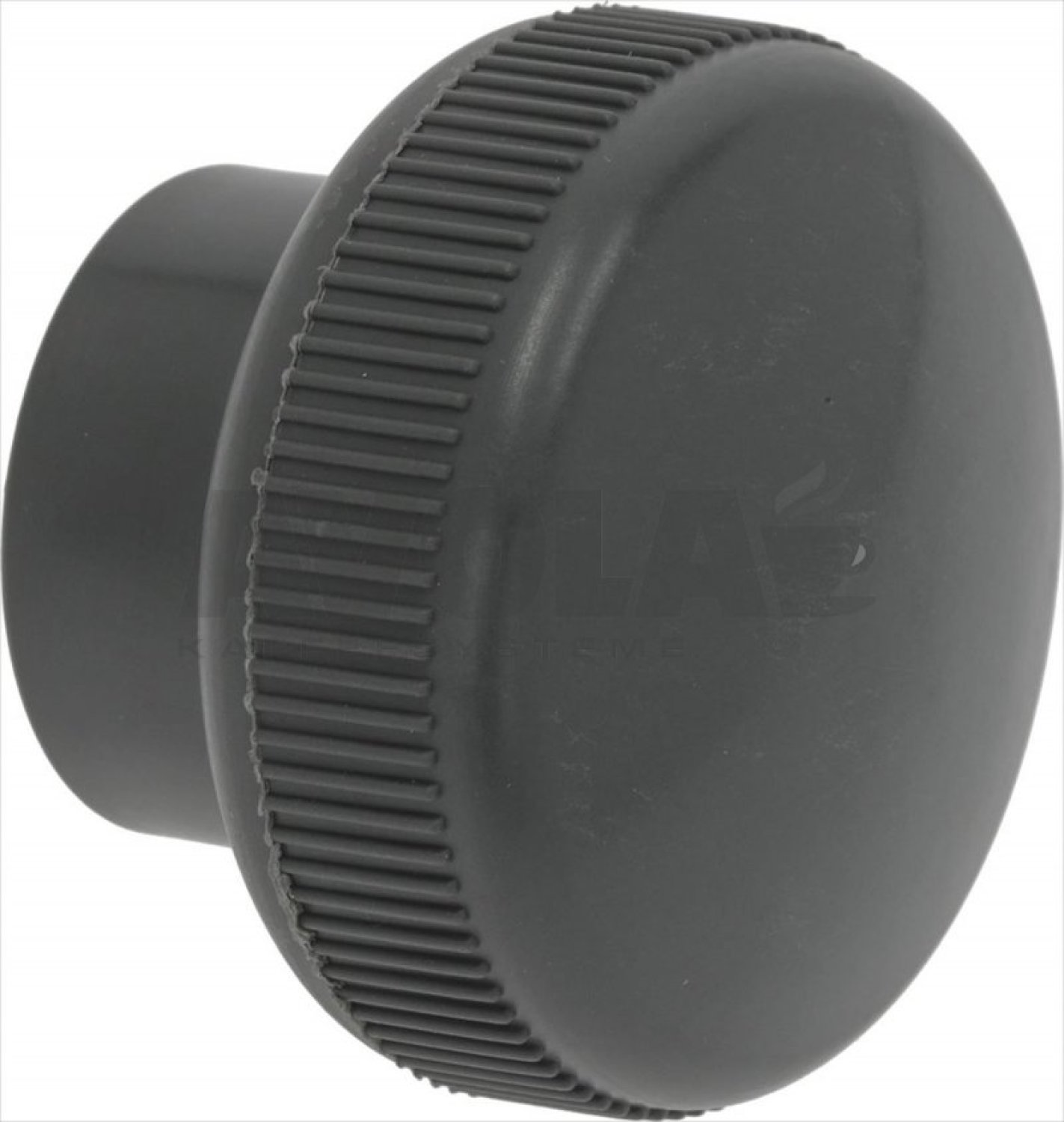

30water steam tap knob8003325
WATER/STEAM TAP KNOB
17,42 €

excl. Shipping costs
Delivery time 4-6 weeks

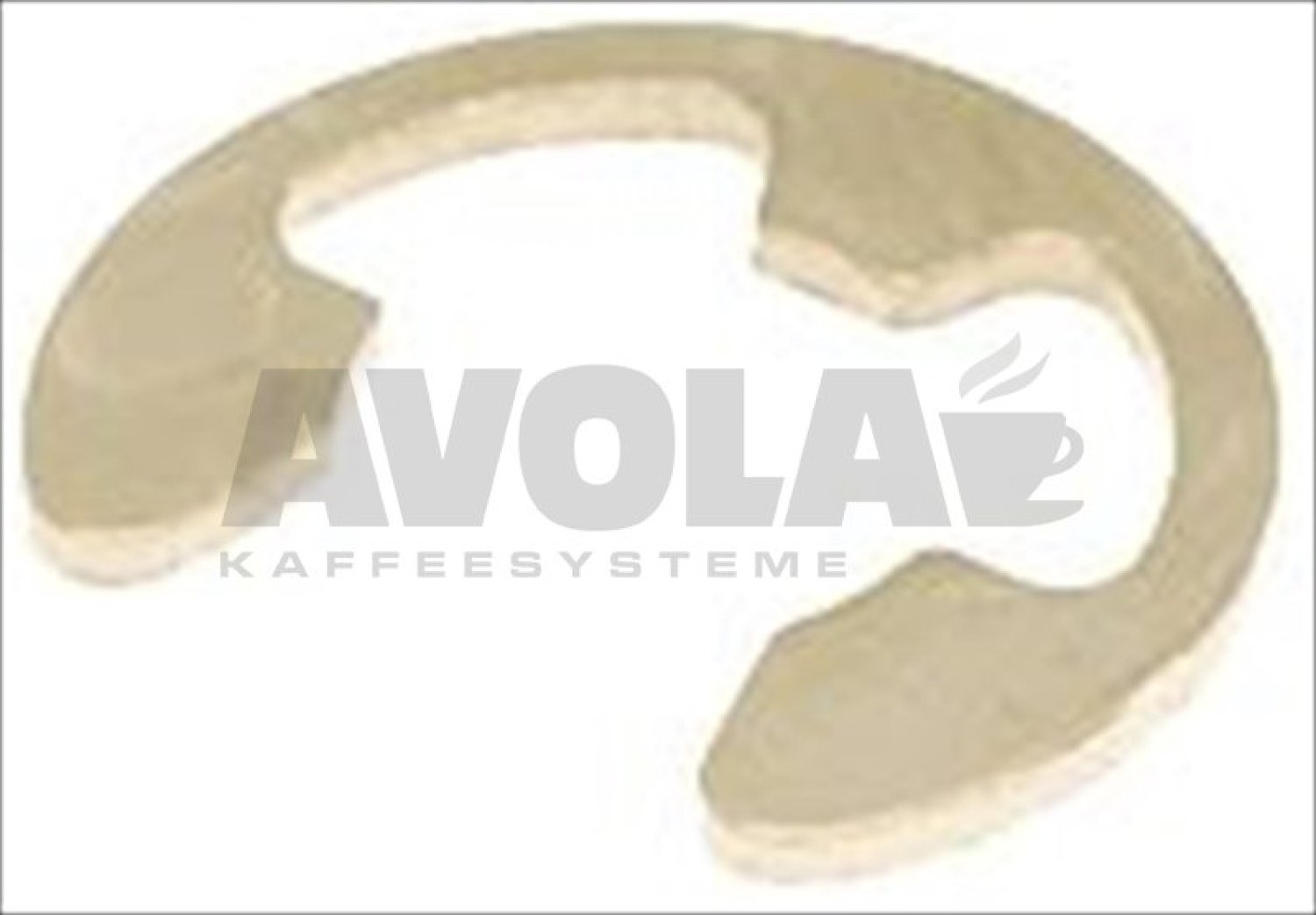

34spring ring radial8001557
SPRING RING RADIAL
1,31 €

excl. Shipping costs
immediately available, 13 available

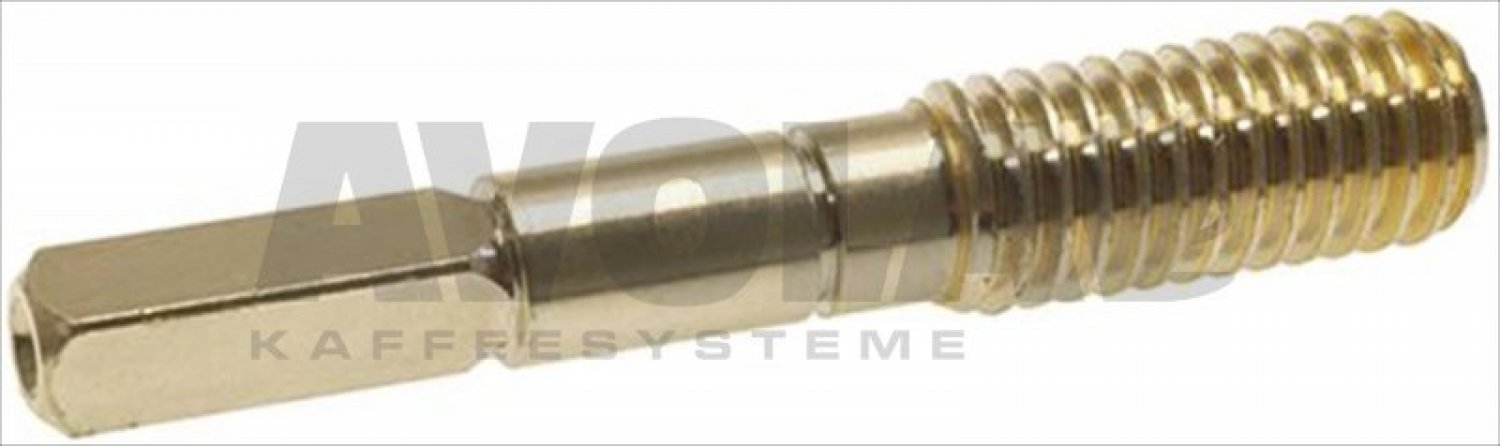

35tap spindle8005196
TAP SPINDLE
25,20 €

excl. Shipping costs
Delivery time
is determined

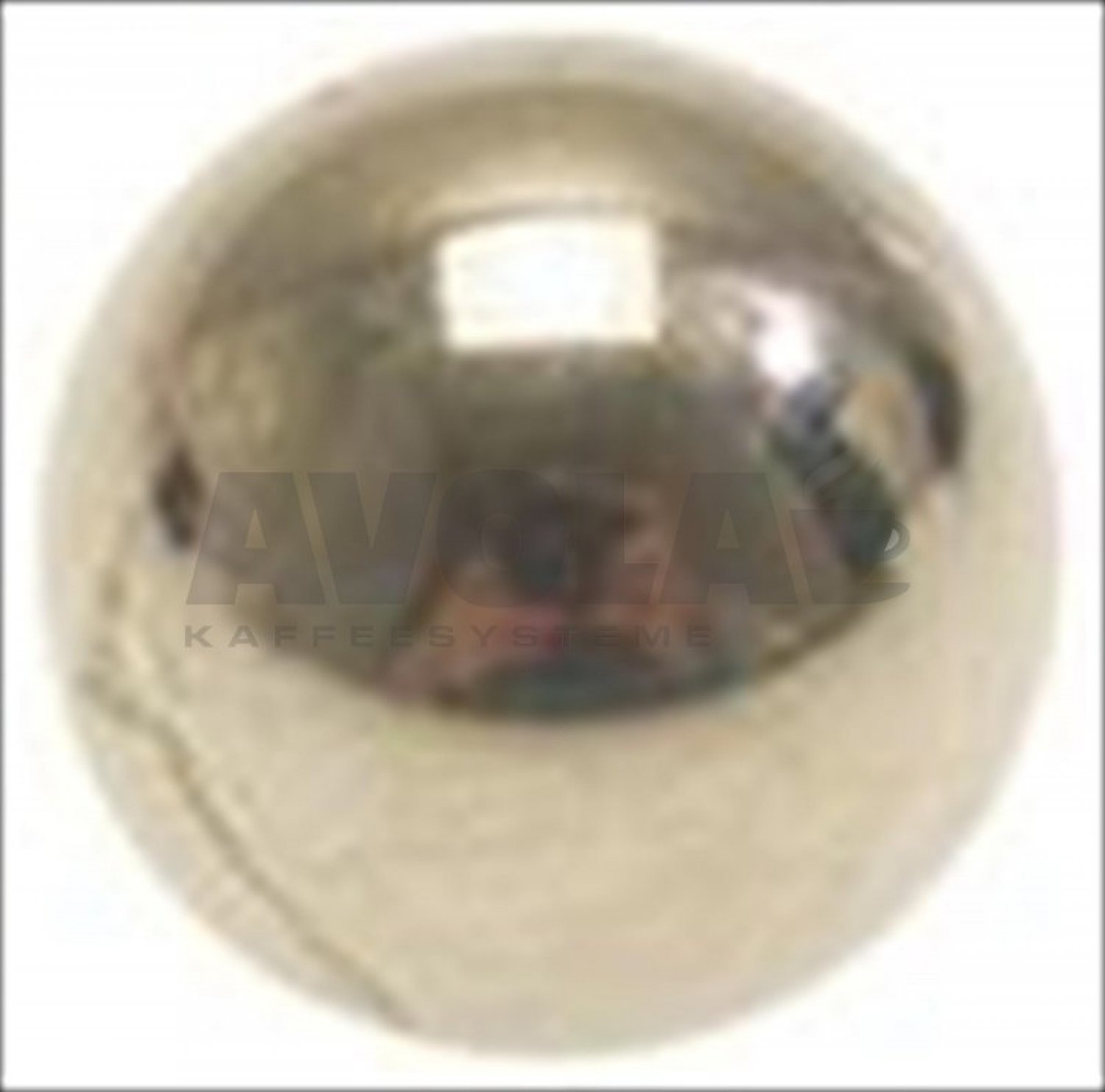

36stainless steel ball8062663
STAINLESS STEEL BALL
3,03 €

excl. Shipping costs
Delivery time 4-6 weeks

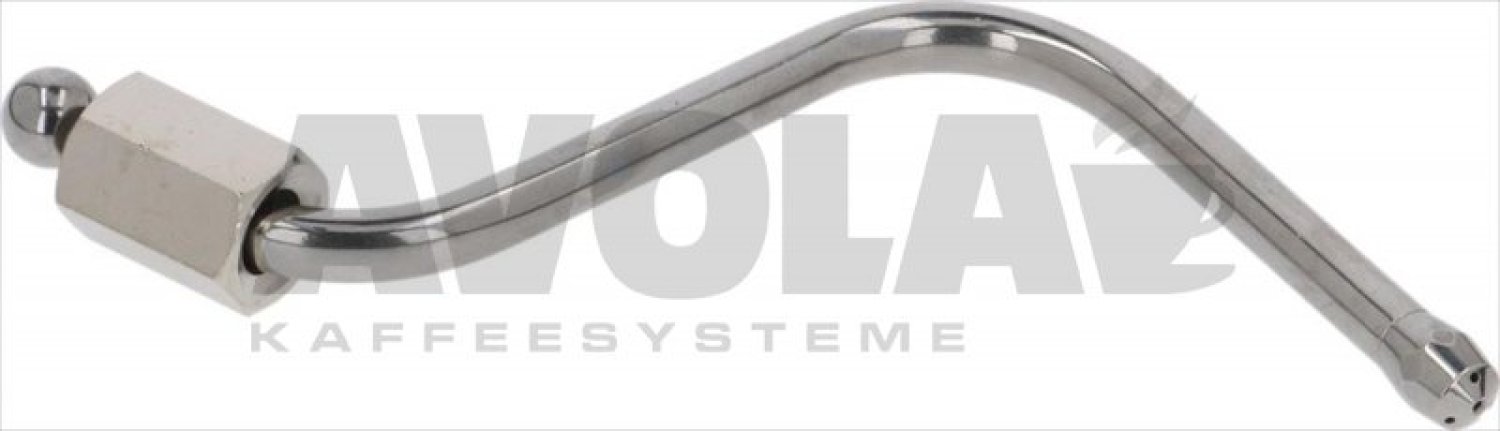

39steam pipe complete8006793
STEAM PIPE COMPLETE
75,66 €

excl. Shipping costs
Delivery time 4-6 weeks

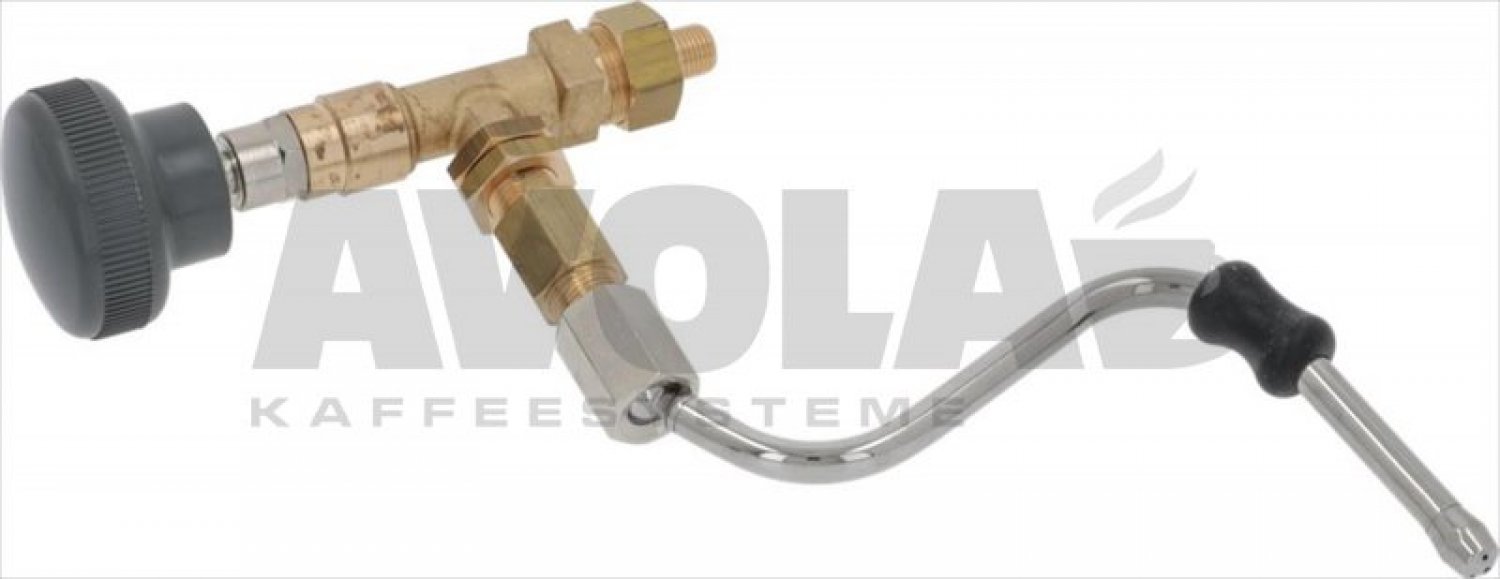

40la san marco 105 steam tap8005608
La San Marco 105 STEAM TAP
167,61 €

excl. Shipping costs
Delivery time 4-6 weeks

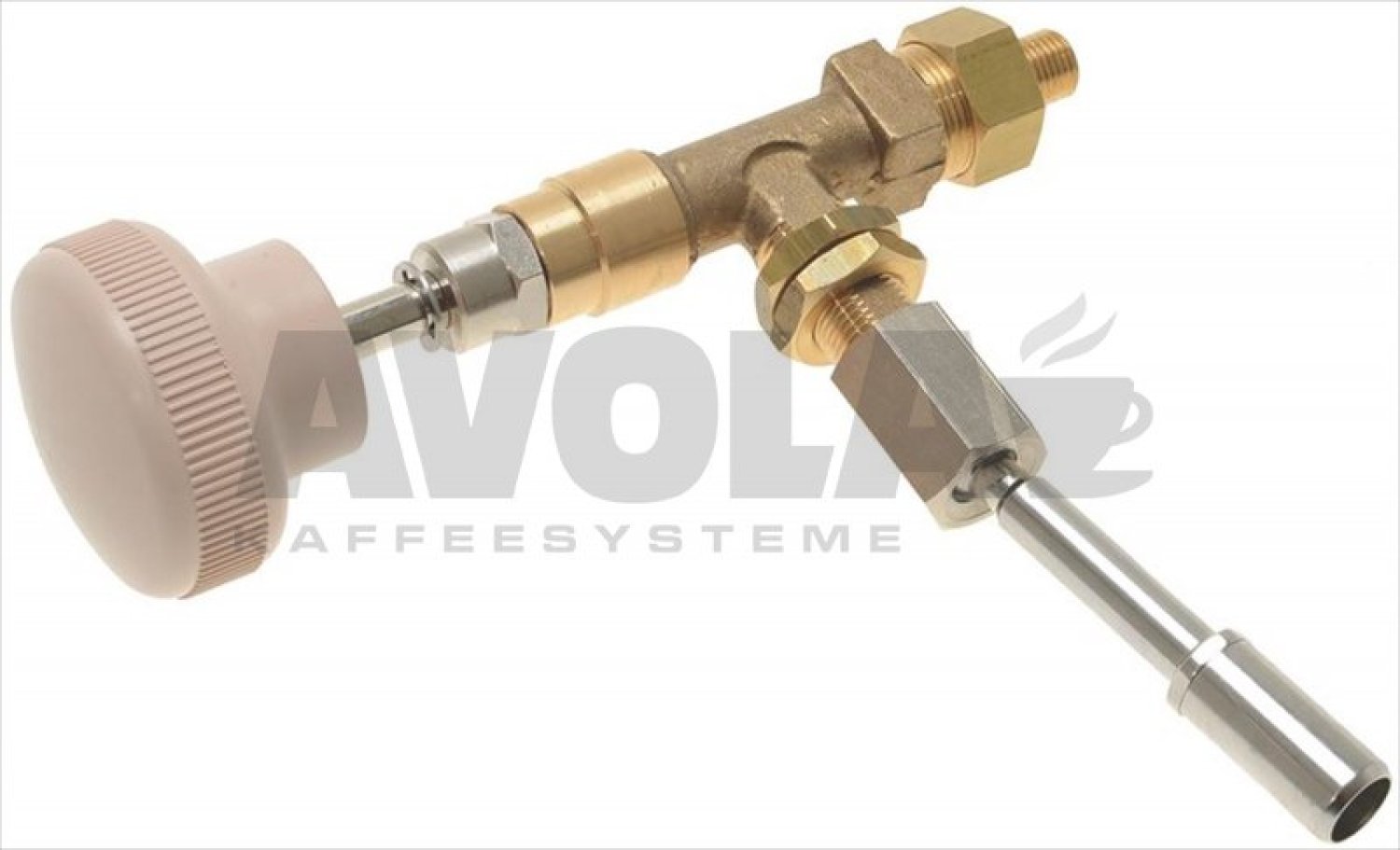

41water tap8005607
WATER TAP
149,95 €

excl. Shipping costs
Delivery time 4-6 weeks
448281424
La San Marco Kupferrohr links 100 2 gruppig
41,65 €

excl. Shipping costs
Delivery time
is determined
45fitting o 1 48005710
Fitting ø 1/4
3,64 €

excl. Shipping costs
immediately available, 20 available
46washer8001554
WASHER
1,51 €

excl. Shipping costs
immediately available, 15 available
472 way solenoid valve ode8000815
2-WAY SOLENOID VALVE ODE
26,50 €

excl. Shipping costs
immediately available, 19 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
