LA SAN MARCO GRUPPE KAFFEEAUSGABE 85-95

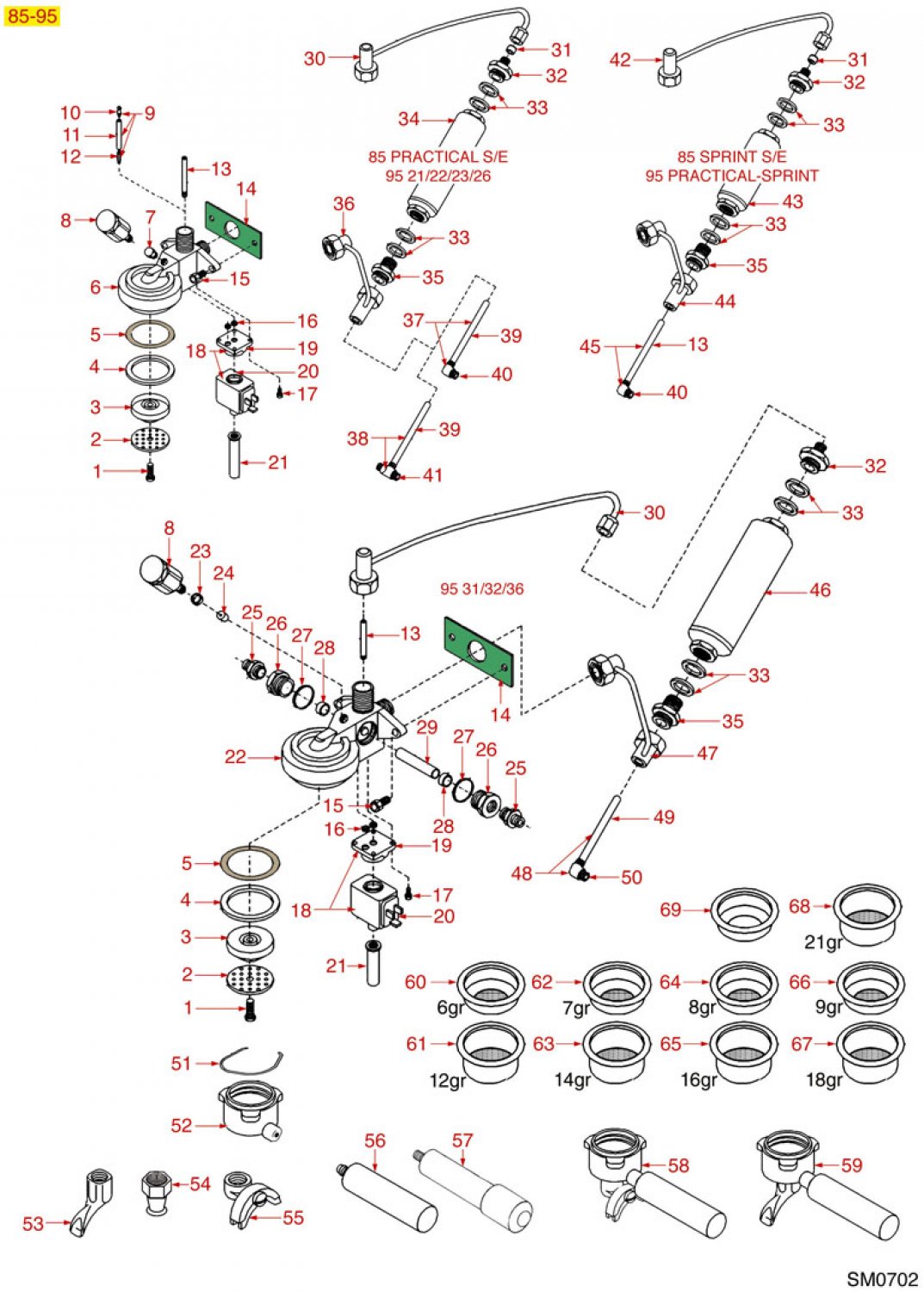

Drawing number 8057442

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1showerscrew m5x208007250
SHOWERSCREW M5x20
1,25 €

excl. Shipping costs
immediately available
2shower screen o 48 mm8000580
SHOWER SCREEN ø 48 mm
4,63 €

excl. Shipping costs
immediately available
3shower holder diffuser8000645
SHOWER HOLDER DIFFUSER
25,32 €

excl. Shipping costs
Delivery time
is determined
4filter holder gasket o 64x53x5 5 mm8002016
FILTER HOLDER GASKET ø 64x53x5,5 mm
3,84 €

excl. Shipping costs
immediately available, 14 available
4la san marco silikon dichtung siebtraegerdichtung 64 6x53xh 5 5mm8279244
La San Marco Silikon Dichtung Siebträgerdichtung 64,6X53XH.5.5MM
5,95 €

excl. Shipping costs
immediately available
4la san marco original siebtraegerdichtung mit praegung8079300
La San Marco Original Siebträgerdichtung mit Prägung
5,90 €

excl. Shipping costs
immediately available, 8 available
5rubber piece o 64x53x1 mm epdm8063523
RUBBER PIECE ø 64x53x1 mm EPDM
1,06 €

excl. Shipping costs
immediately available
5paper seal o 64x53x0 7 mm8002176
Paper seal ø 64x53x0,7 mm
0,54 €

excl. Shipping costs
immediately available

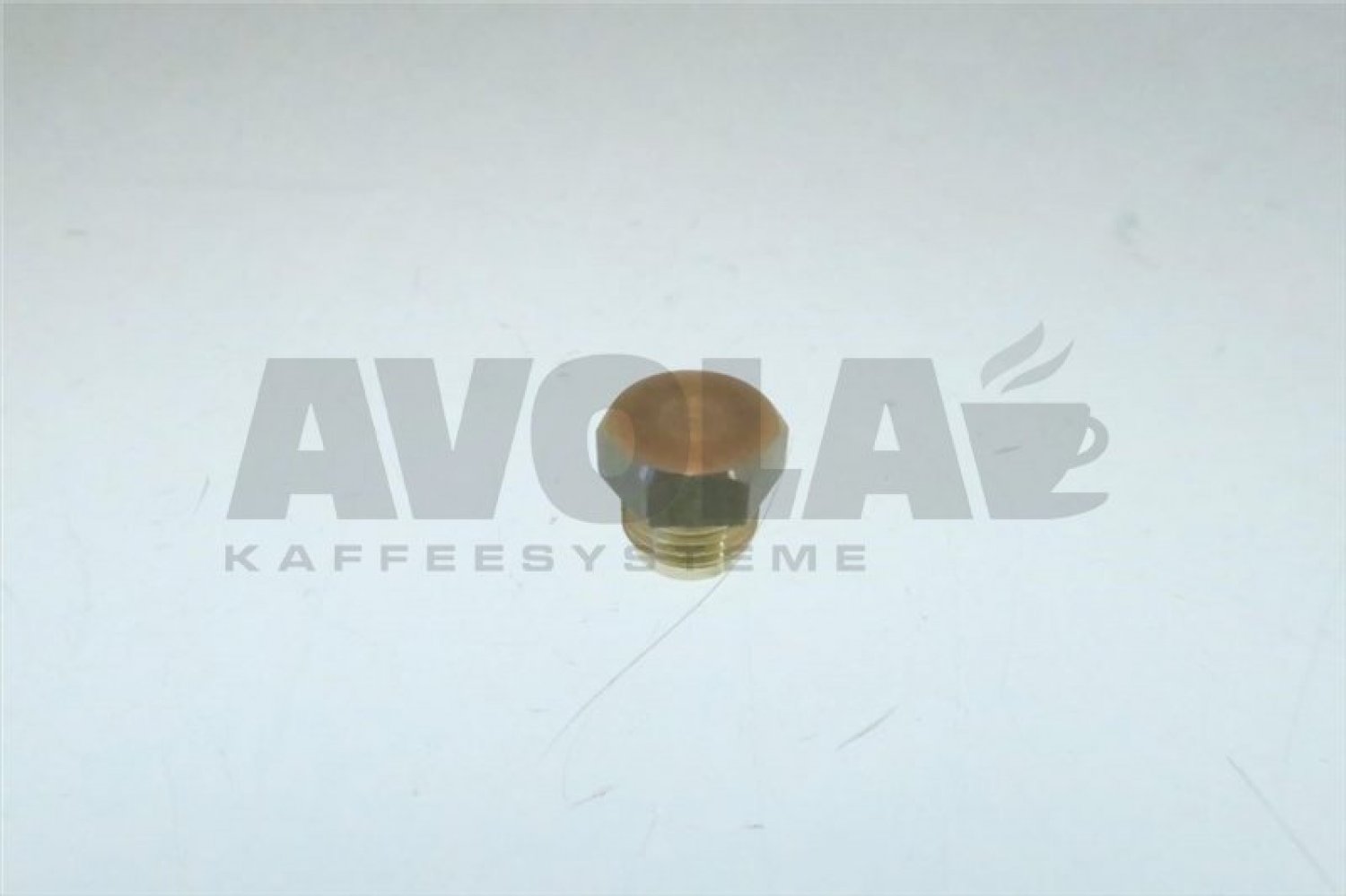

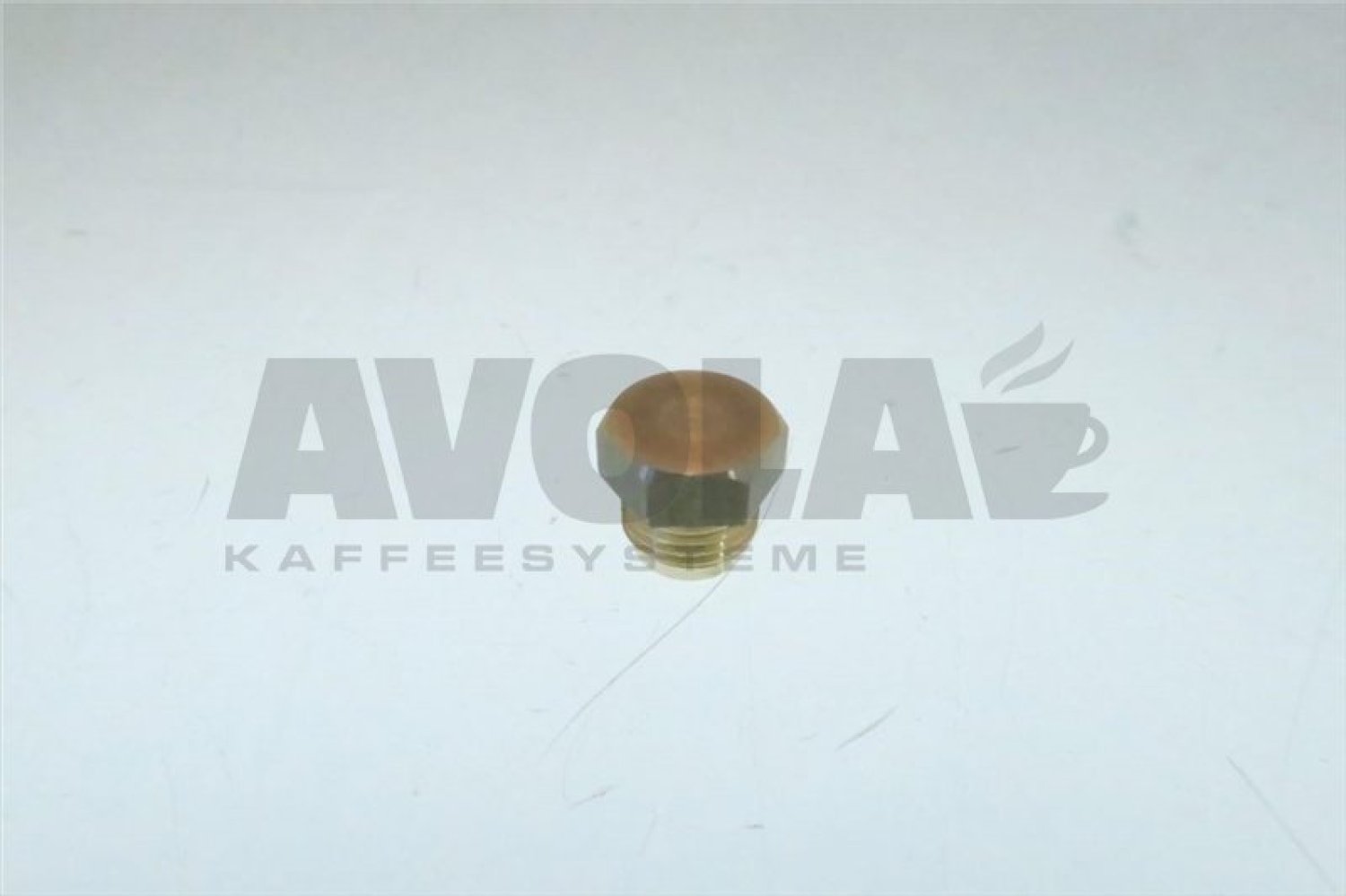

7blindstopfen san marco8159022
Blindstopfen San Marco
5,37 €

excl. Shipping costs
immediately available, 5 available
8la san marco group infuser8002696
La San Marco GROUP INFUSER
35,22 €

excl. Shipping costs
immediately available, 2 available

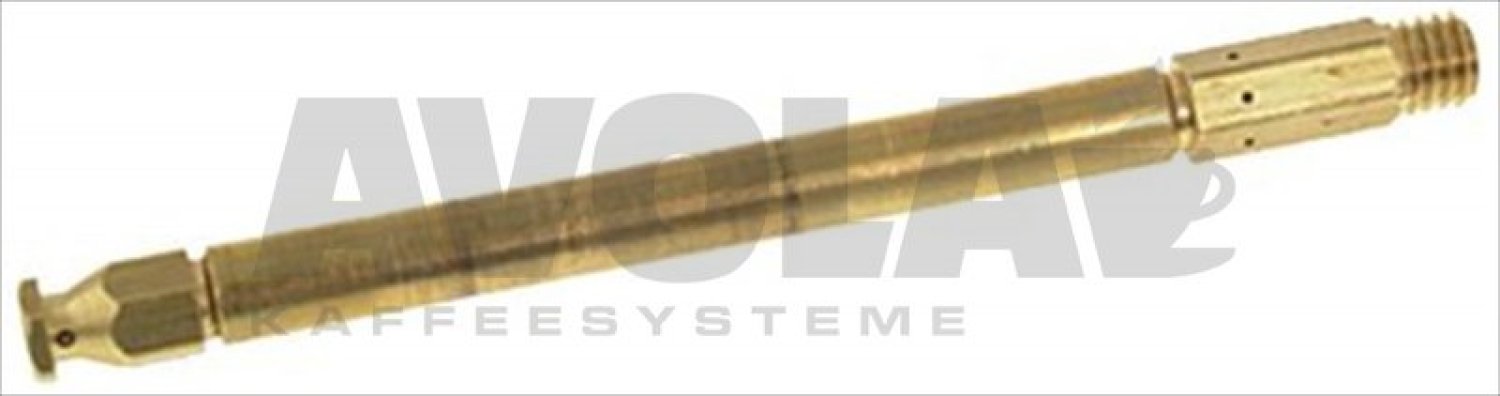

9la san marco complete nozzle8006996
LA SAN MARCO COMPLETE NOZZLE
12,01 €

excl. Shipping costs
immediately available, 5 available
10nozzle m5x18006957
NOZZLE M5x1
6,81 €

excl. Shipping costs
immediately available, 7 available

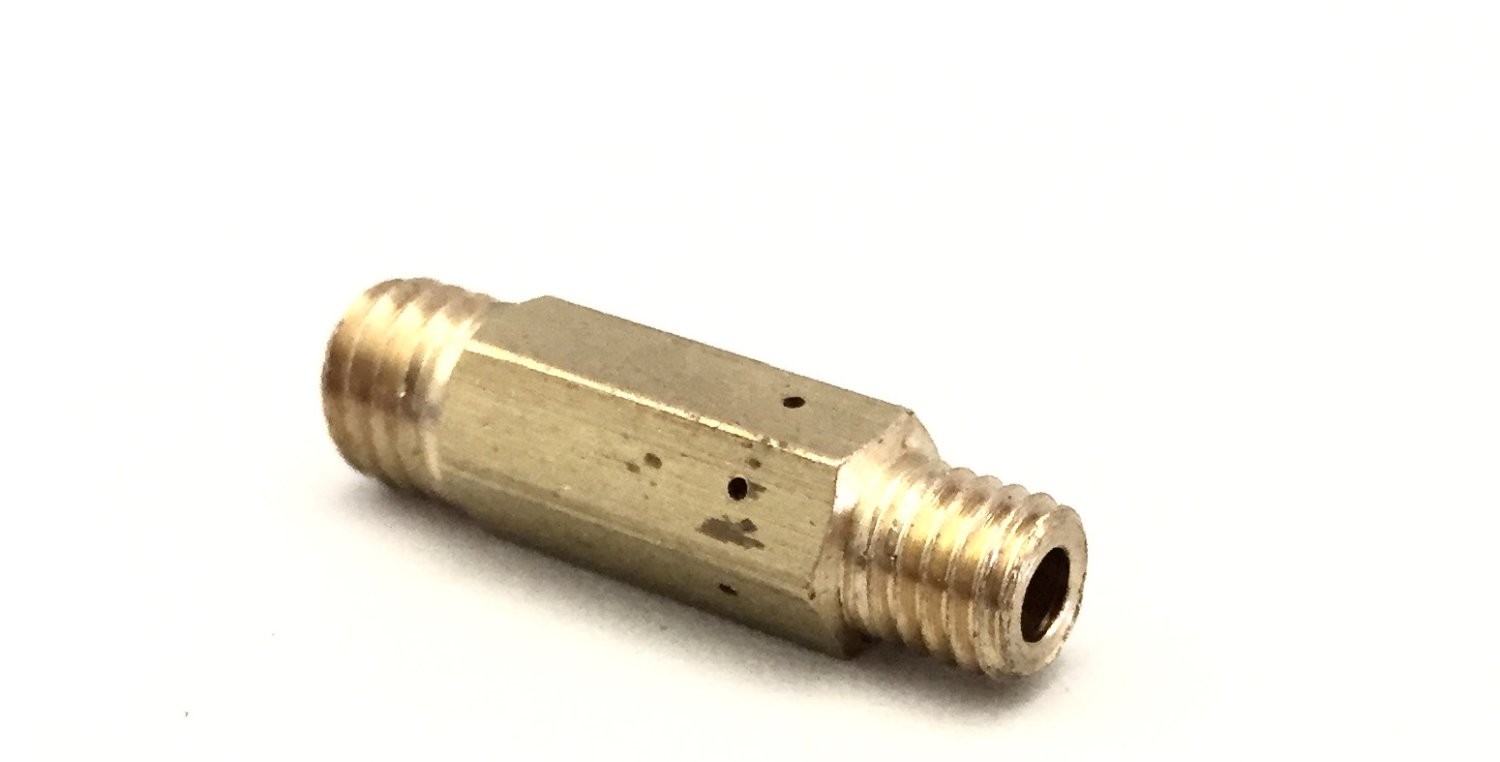

12san marco gigleur duese 2054088080980
San Marco Gigleur Düse 205408
3,57 €

excl. Shipping costs
immediately available, 6 available
13nozzle group8006972
NOZZLE GROUP
18,66 €

excl. Shipping costs
Delivery time
is determined
13nozzle group8006997
NOZZLE GROUP
10,09 €

excl. Shipping costs
immediately available, 2 available
14coffee group gasket 95x45 mm8001742
COFFEE GROUP GASKET 95x45 mm
5,34 €

excl. Shipping costs
immediately available, 13 available
15schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 9128061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs
immediately available
16red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
17low cylinder head screw m4x128001290
LOW CYLINDER HEAD SCREW M4x12
2,24 €

excl. Shipping costs
immediately available
183 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 8 available
183 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 5 available
193 way mechanical component lucifer8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs
immediately available, 7 available
193 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 13 available
20coil lucifer parker 220 240v 9w 50hz8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs
immediately available, 7 available
20coil parker zb09 9w 220 240v 50 60hz8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs
immediately available, 14 available

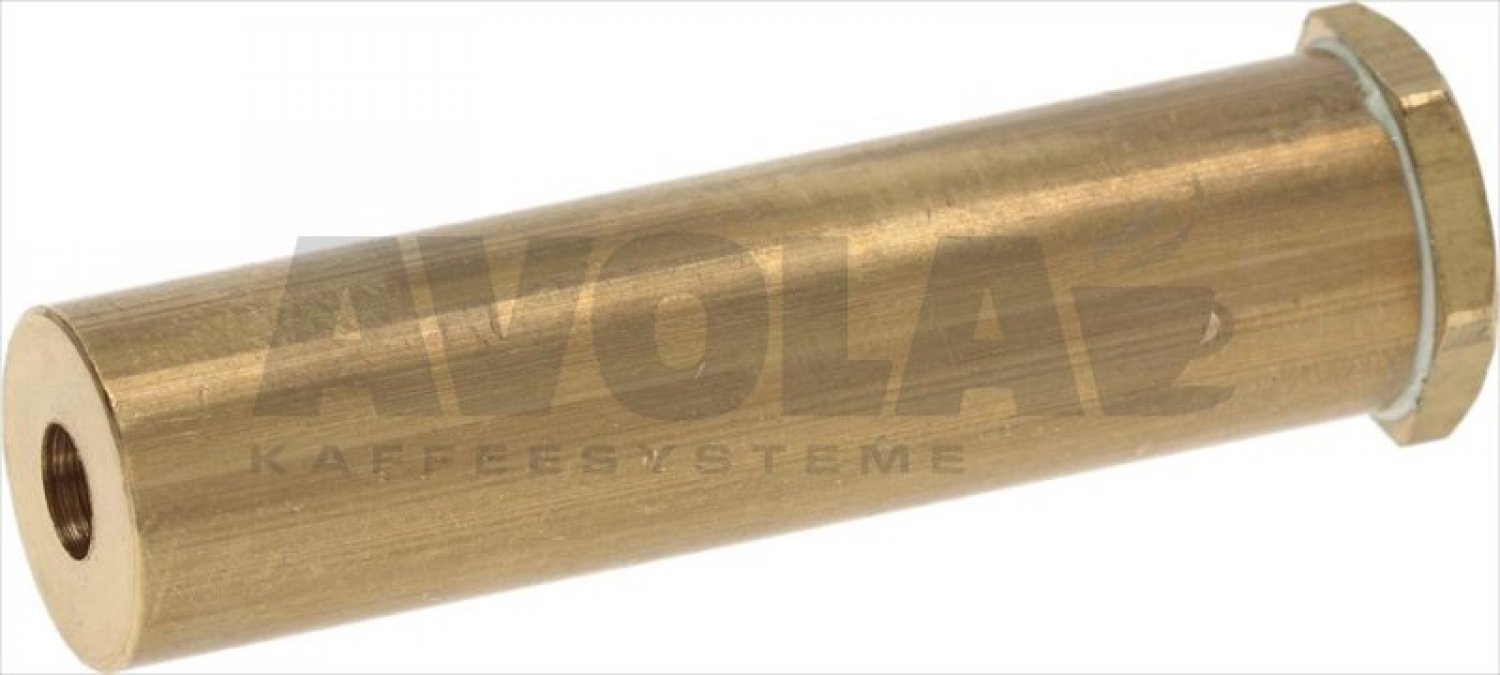

21drain pipe8006807
DRAIN PIPE
24,54 €

excl. Shipping costs
Delivery time
is determined

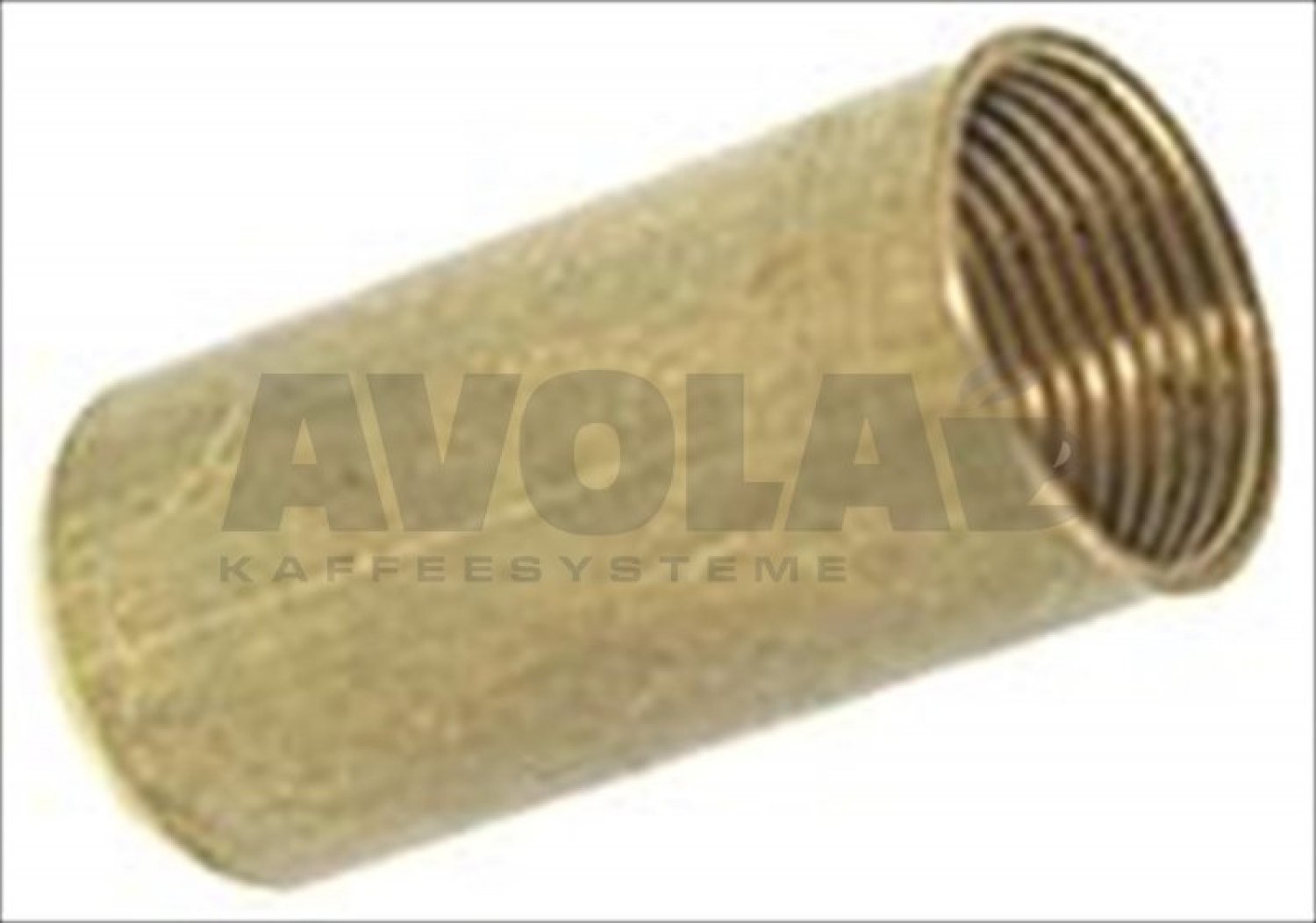

21drain pipe8006808
DRAIN PIPE
20,08 €

excl. Shipping costs
Delivery time 4-6 weeks
22bruehgruppe san marco8140581
Brühgruppe San Marco
184,96 €

excl. Shipping costs
Delivery time 4-6 weeks
23o ring 0117 epdm8018537
O-RING 0117 EPDM
0,73 €

excl. Shipping costs
immediately available
248352496
San Marco Teflonreduzierung Brühgruppe (1 Stück)
7,28 €

excl. Shipping costs
immediately available, 1 available
25group fitting8005824
GROUP FITTING
15,34 €

excl. Shipping costs
Delivery time
is determined
26group fitting8005824
GROUP FITTING
15,34 €

excl. Shipping costs
Delivery time
is determined
27red silicone o ring 030878001969
RED SILICONE O-RING 03087
1,57 €

excl. Shipping costs
immediately available
28pipe olive8021989
PIPE OLIVE
3,55 €

excl. Shipping costs
immediately available, 4 available
29refrigeration pipe8006792
REFRIGERATION PIPE
6,33 €

excl. Shipping costs
Delivery time
is determined

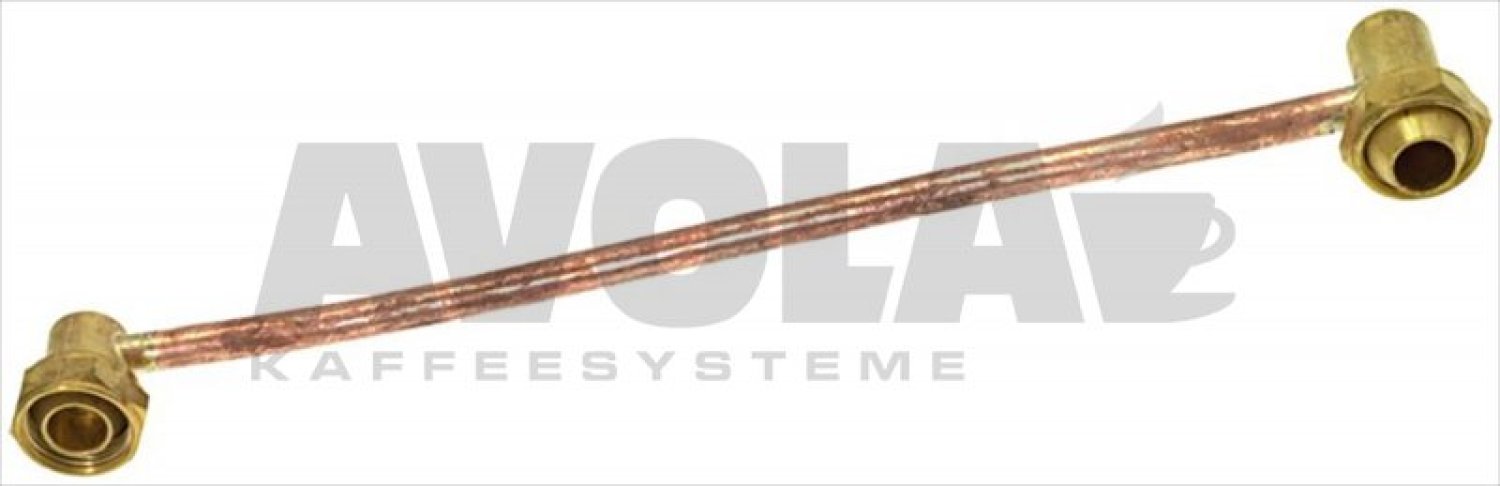

30exchanger assembly pipe8006773
EXCHANGER ASSEMBLY PIPE
Price on request
30exchanger assembly pipe8006777
EXCHANGER ASSEMBLY PIPE
57,80 €

excl. Shipping costs
Delivery time 4-6 weeks
31conical ptfe seal8001961
CONICAL PTFE SEAL
3,55 €

excl. Shipping costs
immediately available, 9 available
32upper thermal fitting8005822
UPPER THERMAL FITTING
21,86 €

excl. Shipping costs
Delivery time
is determined
33ptfe flat gasket o 27x21x2 mm8001555
PTFE FLAT GASKET ø 27x21x2 mm
3,12 €

excl. Shipping costs
immediately available
34thermal pipe8006637
THERMAL PIPE
120,29 €

excl. Shipping costs
Delivery time 4-6 weeks
35lower thermal fitting 3 48005823
LOWER THERMAL FITTING 3/4
21,30 €

excl. Shipping costs
Delivery time
is determined

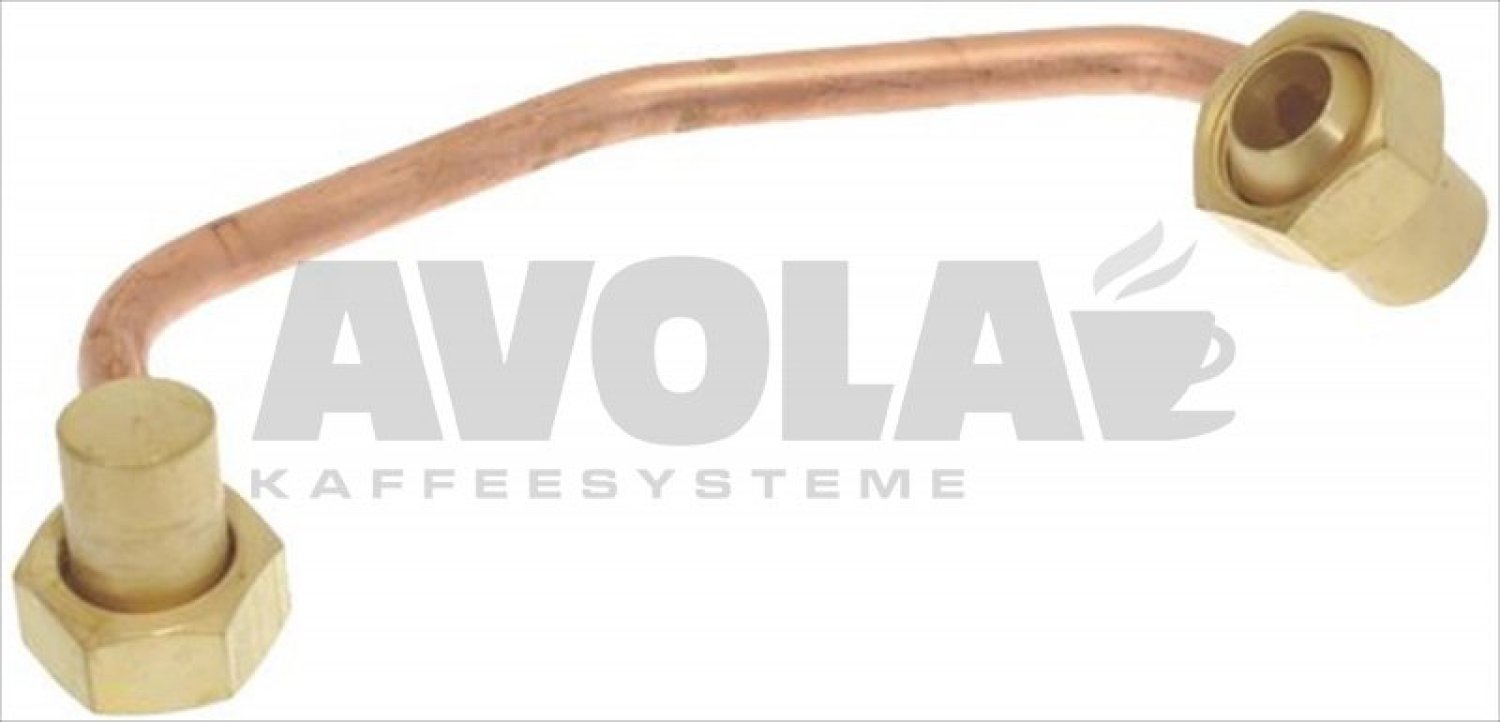

36exchanger assembly pipe8006643
EXCHANGER ASSEMBLY PIPE
53,99 €

excl. Shipping costs
immediately available, 1 available

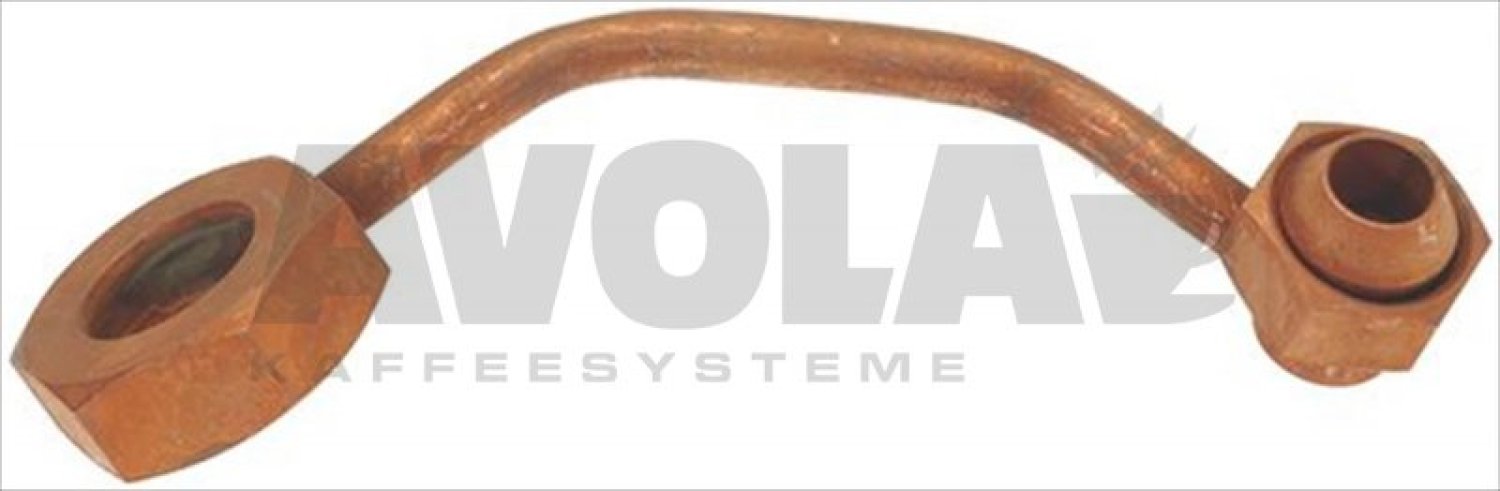

36exchanger assembly pipe8006774
EXCHANGER ASSEMBLY PIPE
57,81 €

excl. Shipping costs
Delivery time
is determined

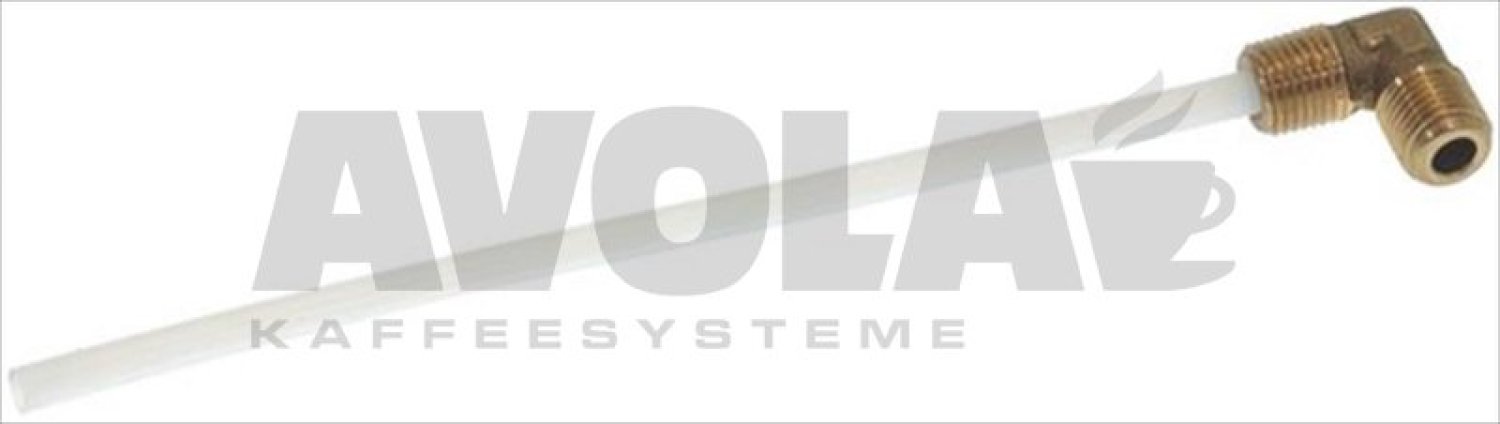

37injection pipe8006775
INJECTION PIPE
12,22 €

excl. Shipping costs
immediately available, 5 available
38injection pipe8006776
INJECTION PIPE
10,84 €

excl. Shipping costs
immediately available, 3 available
42exchanger assembly pipe8006648
EXCHANGER ASSEMBLY PIPE
56,94 €

excl. Shipping costs
Delivery time
is determined
43thermal pipe8006641
THERMAL PIPE
This article is no longer available
44exchanger assembly pipe8006640
EXCHANGER ASSEMBLY PIPE
67,63 €

excl. Shipping costs
Delivery time 4-6 weeks
45injection pipe 1 4 a8006639
INJECTION PIPE 1/4 A
26,54 €

excl. Shipping costs
immediately available, 1 available
46thermal pipe8006778
THERMAL PIPE
136,66 €

excl. Shipping costs
immediately available, 1 available

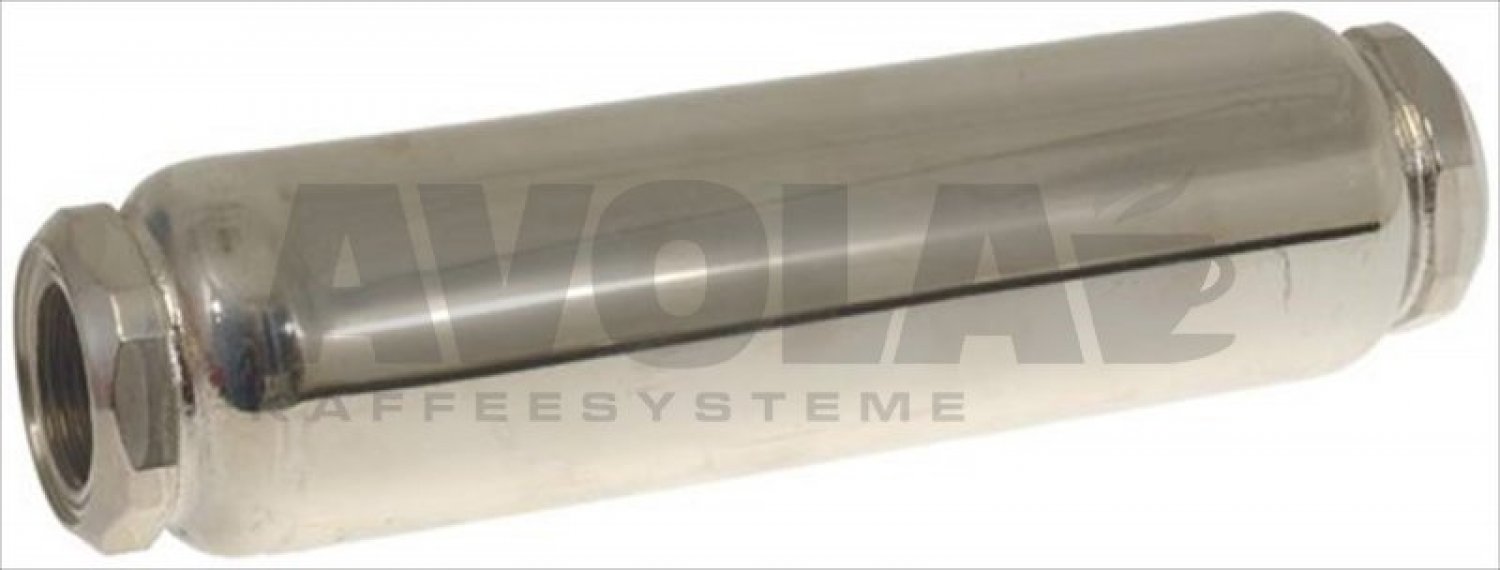

46thermal pipe8006730
THERMAL PIPE
64,46 €

excl. Shipping costs
Delivery time 4-6 weeks
47exchanger assembly pipe8006785
EXCHANGER ASSEMBLY PIPE
59,00 €

excl. Shipping costs
Delivery time 4-6 weeks
48injection pipe8006775
INJECTION PIPE
12,22 €

excl. Shipping costs
immediately available, 5 available
48injection pipe8006786
INJECTION PIPE
27,02 €

excl. Shipping costs
immediately available, 3 available
51filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
52filter holder san marco8001207
FILTER HOLDER SAN MARCO
26,08 €

excl. Shipping costs
immediately available, 2 available
53single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 11 available
54straight single spout o 3 88000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs
immediately available, 6 available
55lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
55double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 9 available
56san marco black knob for filter holder m108003207
San Marco black knob for filter holder M10
12,90 €

excl. Shipping costs
immediately available, 4 available
57filter holder handle m108003350
FILTER HOLDER HANDLE M10
6,55 €

excl. Shipping costs
immediately available, 3 available
582 cups filter holder assembly san marco8001182
2 CUPS FILTER HOLDER ASSEMBLY SAN MARCO
36,53 €

excl. Shipping costs
immediately available, 2 available
591 cup filter holder assembly san marco8001232
1 CUP FILTER HOLDER ASSEMBLY SAN MARCO
41,58 €

excl. Shipping costs
immediately available, 2 available
601 cup filter 6 gr8001047
1 CUP FILTER 6 gr
5,63 €

excl. Shipping costs
immediately available, 6 available
612 cups filter 12 gr8001073
2 CUPS FILTER 12 gr
5,55 €

excl. Shipping costs
immediately available, 5 available
62coffee filter 1 cup 7 grams8001086
Coffee filter 1 cup 7 grams
7,41 €

excl. Shipping costs
immediately available, 4 available
63filter 2 cups 14 gr new type8001084
FILTER 2 CUPS 14 gr NEW TYPE
5,68 €

excl. Shipping costs
immediately available, 7 available
641 cup filter 8 gr8001085
1-CUP FILTER 8 gr
5,85 €

excl. Shipping costs
immediately available, 2 available
652 cup filter 16 g8001087
2 CUP FILTER 16 g
7,18 €

excl. Shipping costs
immediately available, 7 available
661 cup filter 9 gr8001053
1 CUP FILTER 9 gr
6,39 €

excl. Shipping costs
immediately available, 4 available
672 cups filter 18 gr8001054
2 CUPS FILTER 18 gr
7,79 €

excl. Shipping costs
immediately available, 6 available
682 cups filter 21 gr8001055
2 CUPS FILTER 21 gr
6,14 €

excl. Shipping costs
immediately available, 3 available
69la san marco blind filter8001093
La San Marco BLIND FILTER
2,92 €

excl. Shipping costs
immediately available, 8 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
