San Marco Grinder

SMM1001 DOSIERMAHLWERK SMLK

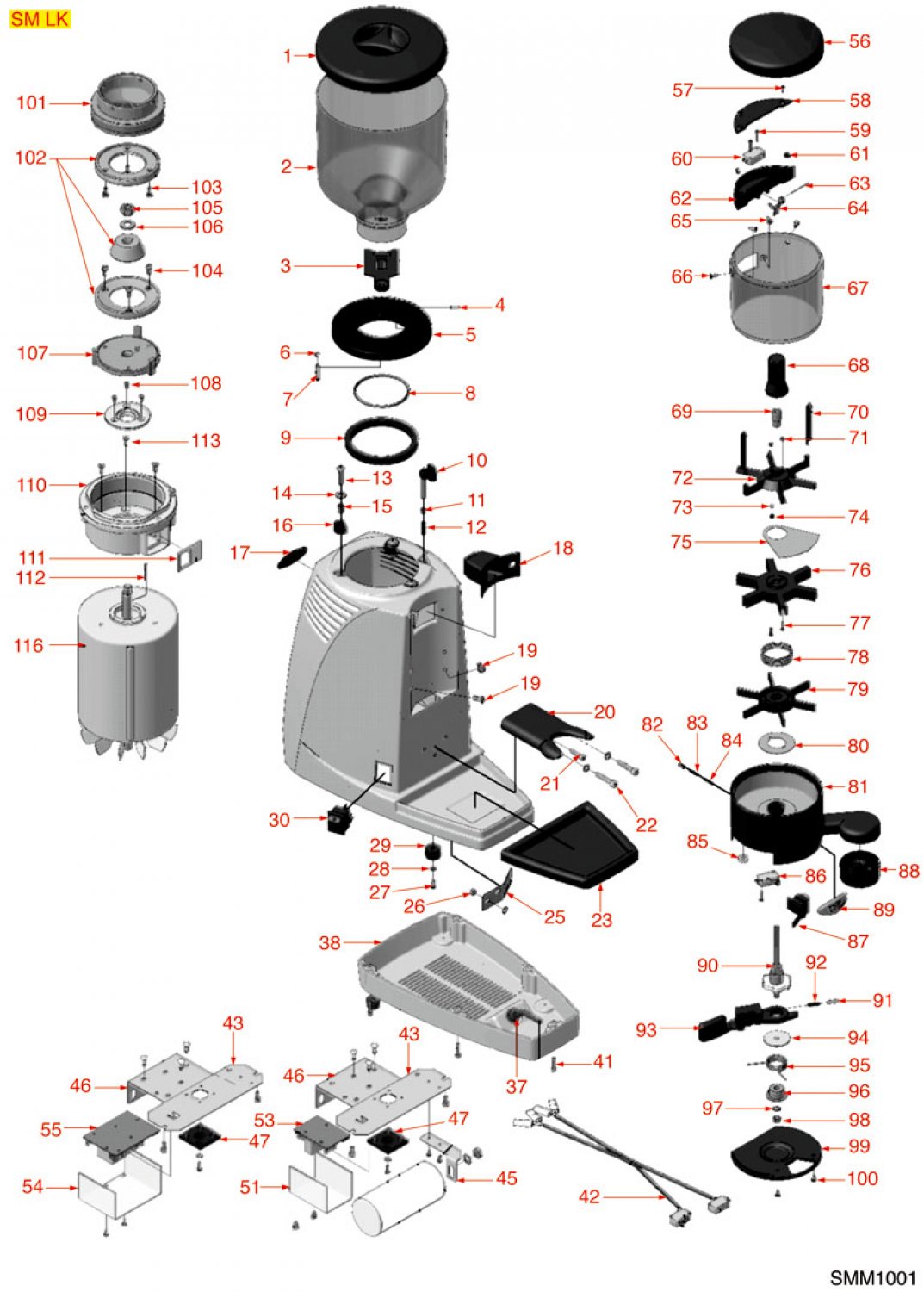

Drawing number 8057461

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1coffee hopper lid8000447
COFFEE HOPPER LID
22,48 €

excl. Shipping costs
Delivery time
is determined
2san marco coffee hopper8000355
San Marco COFFEE HOPPER
36,21 €

excl. Shipping costs
Delivery time
is determined
3coffee hopper closing sheet8004120
COFFEE HOPPER CLOSING SHEET
5,30 €

excl. Shipping costs
Delivery time
is determined
4san marco sicherungsbolzen fuer mahlscheibentraeger und bohnenbehaelter8336860
San marco Sicherungsbolzen für Mahlscheibenträger und Bohnenbehälter
20,83 €

excl. Shipping costs
Delivery time 4-6 weeks
6stainless steel circlip ra 4 uni 74378005617
STAINLESS STEEL CIRCLIP RA-4 UNI 7437
0,48 €

excl. Shipping costs
immediately available
8o ring 0171 epdm8001940
O-RING 0171 EPDM
3,03 €

excl. Shipping costs
immediately available, 12 available
9gasket8001918
GASKET
7,15 €

excl. Shipping costs
Delivery time 4-6 weeks
10san marco locking pin8004478
San Marco LOCKING PIN
5,55 €

excl. Shipping costs
Delivery time
is determined
11bushing8004470
BUSHING
1,88 €

excl. Shipping costs
Delivery time 4-6 weeks
12pin spring o 5 5x32 mm8003706
Pin spring ø 5,5x32 mm
2,59 €

excl. Shipping costs
immediately available, 1 available
18gasket for coffee outlet opening8004113
GASKET FOR COFFEE OUTLET OPENING
6,85 €

excl. Shipping costs
Delivery time
is determined
20filter holder fork8001161
FILTER HOLDER FORK
10,84 €

excl. Shipping costs
Delivery time 4-6 weeks
23coffee collecting tray8004580
COFFEE COLLECTING TRAY
15,87 €

excl. Shipping costs
immediately available, 3 available
26hexagonal nut mid m58029978
HEXAGONAL NUT MID M5
Price on request
30black bipolar switch 16a 250v8020542
BLACK BIPOLAR SWITCH 16A 250V
6,09 €

excl. Shipping costs
Delivery time
is determined
53san marco printed circuit board 230v8006252
SAN MARCO PRINTED CIRCUIT BOARD 230V
79,69 €
79,69 €

excl. Shipping costs
Delivery time
is determined
56doser lid8000674
DOSER LID
This article is no longer available
58microswitch box lid8004117
MICROSWITCH BOX LID
5,71 €

excl. Shipping costs
Delivery time
is determined
60microswitch 16a 250v8016308
MICROSWITCH 16A 250V
9,54 €

excl. Shipping costs
immediately available, 3 available
61sechskantmutter m4 messing8075588
SECHSKANTMUTTER M4 Messing
Price on request
62microswitch box8004118
MICROSWITCH BOX
9,64 €

excl. Shipping costs
Delivery time
is determined
63pin for flap8002898
PIN FOR FLAP
3,58 €

excl. Shipping costs
Delivery time
is determined
64overflow flap8004124
OVERFLOW FLAP
17,70 €

excl. Shipping costs
immediately available, 1 available
67doser cylinder8004109
DOSER CYLINDER
21,43 €

excl. Shipping costs
Delivery time
is determined
68adjustment knob8003190
ADJUSTMENT KNOB
10,91 €

excl. Shipping costs
Delivery time
is determined
70scraper for doser8005345
SCRAPER FOR DOSER
2,17 €

excl. Shipping costs
immediately available, 4 available
71hexagonal nut m38005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs
immediately available
72san marco top star8005335
San Marco TOP STAR
10,59 €

excl. Shipping costs
Delivery time
is determined
73locking ball8004125
LOCKING BALL
1,51 €

excl. Shipping costs
Delivery time
is determined
74spring for star closing ball8003581
SPRING FOR STAR CLOSING BALL
Price on request
75san marco dividing sheet8004122
SAN MARCO DIVIDING SHEET
6,71 €

excl. Shipping costs
Delivery time
is determined
76central star8005340
CENTRAL STAR
7,34 €

excl. Shipping costs
Delivery time
is determined
78star spring8003576
STAR SPRING
4,52 €

excl. Shipping costs
Delivery time 4-6 weeks
79bottom star8005339
BOTTOM STAR
7,40 €

excl. Shipping costs
Delivery time 4-6 weeks
83pin spring8003705
PIN SPRING
3,56 €

excl. Shipping costs
Delivery time 4-6 weeks
84bolzen o 4x16 mm8005214
BOLZEN ø 4x16 mm
1,26 €

excl. Shipping costs
immediately available, 11 available
86microswitch 10 4 a 250v8059597
MICROSWITCH 10(4)A 250V
11,40 €

excl. Shipping costs
immediately available, 2 available
87counter for coffee grinder8004111
COUNTER FOR COFFEE GRINDER
41,65 €

excl. Shipping costs
immediately available, 1 available
88tamper8006181
TAMPER
6,44 €

excl. Shipping costs
Delivery time 4-6 weeks
88san marco presser o 56 5 mm8006182
SAN MARCO PRESSER ø 56,5 mm
8,14 €

excl. Shipping costs
immediately available, 1 available
90doser lever pin8004114
DOSER LEVER PIN
22,84 €

excl. Shipping costs
Delivery time 4-6 weeks
91doser lever pin8005174
DOSER LEVER PIN
5,93 €

excl. Shipping costs
Delivery time 4-6 weeks
92pin spring8003578
PIN SPRING
1,26 €

excl. Shipping costs
Delivery time
is determined
93doser lever8004112
DOSER LEVER
13,24 €

excl. Shipping costs
Delivery time
is determined
95doser lever return spring8003580
DOSER LEVER RETURN SPRING
5,18 €

excl. Shipping costs
Delivery time
is determined
98mid hexagonal nut m68007269
MID HEXAGONAL NUT M6
Price on request
102half conical grind burr s marco pair rh8003896
HALF CONICAL GRIND.BURR S.MARCO(PAIR) RH
110,02 €

excl. Shipping costs
Delivery time 4-6 weeks
103cylinder head screw m5x128007321
CYLINDER HEAD SCREW M5x12
1,38 €

excl. Shipping costs
immediately available
104cylinder head screw m5x128007321
CYLINDER HEAD SCREW M5x12
1,38 €

excl. Shipping costs
immediately available
111gasket for coffee outlet opening8001708
GASKET FOR COFFEE OUTLET OPENING
4,57 €

excl. Shipping costs
immediately available, 18 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
