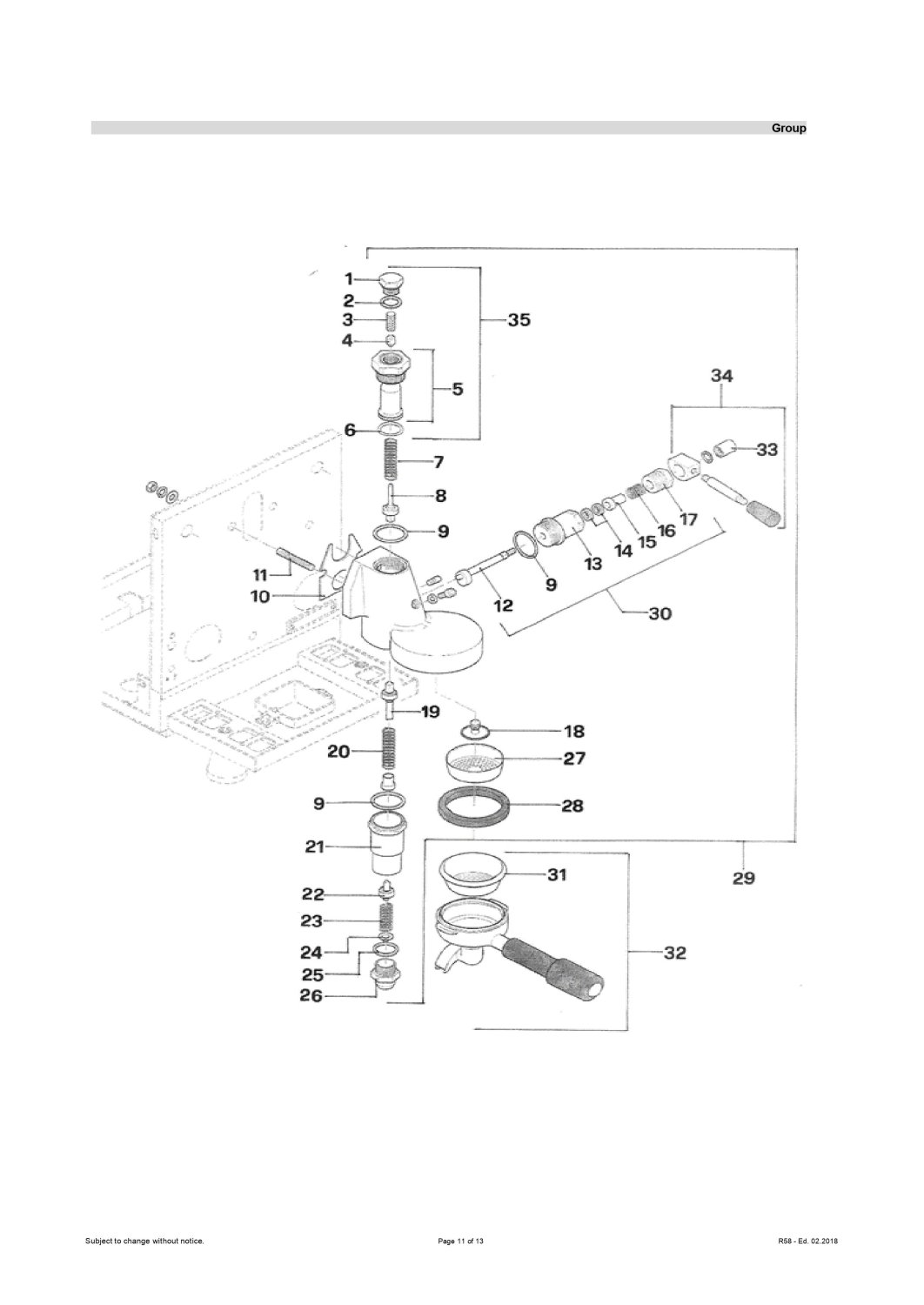

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.
| Pos.: | Item No.: | Image: | Description: | Shipment: | Price
(inkl. 19% VAT): | Qty.: |
|---|
| 1 | 8069006 |  | 8069006
Rocket Stopfen Brühgruppe |
excl. Shipping costs
immediately available, 4 available |
10,54 € | |
| 2 | 8001581 |  | 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm |
excl. Shipping costs
immediately available |
1,65 € | |
| 3 | 8001115 |  | 8001115
Water filter ø 8,5x22 mm |
excl. Shipping costs
immediately available |
1,79 € | |
| 4 | 8006984 |  | 8006984
NOZZLE M6x1 HOLE |
excl. Shipping costs
immediately available, 11 available |
3,27 € | |
| 5 | 8140834 |  | 8140834

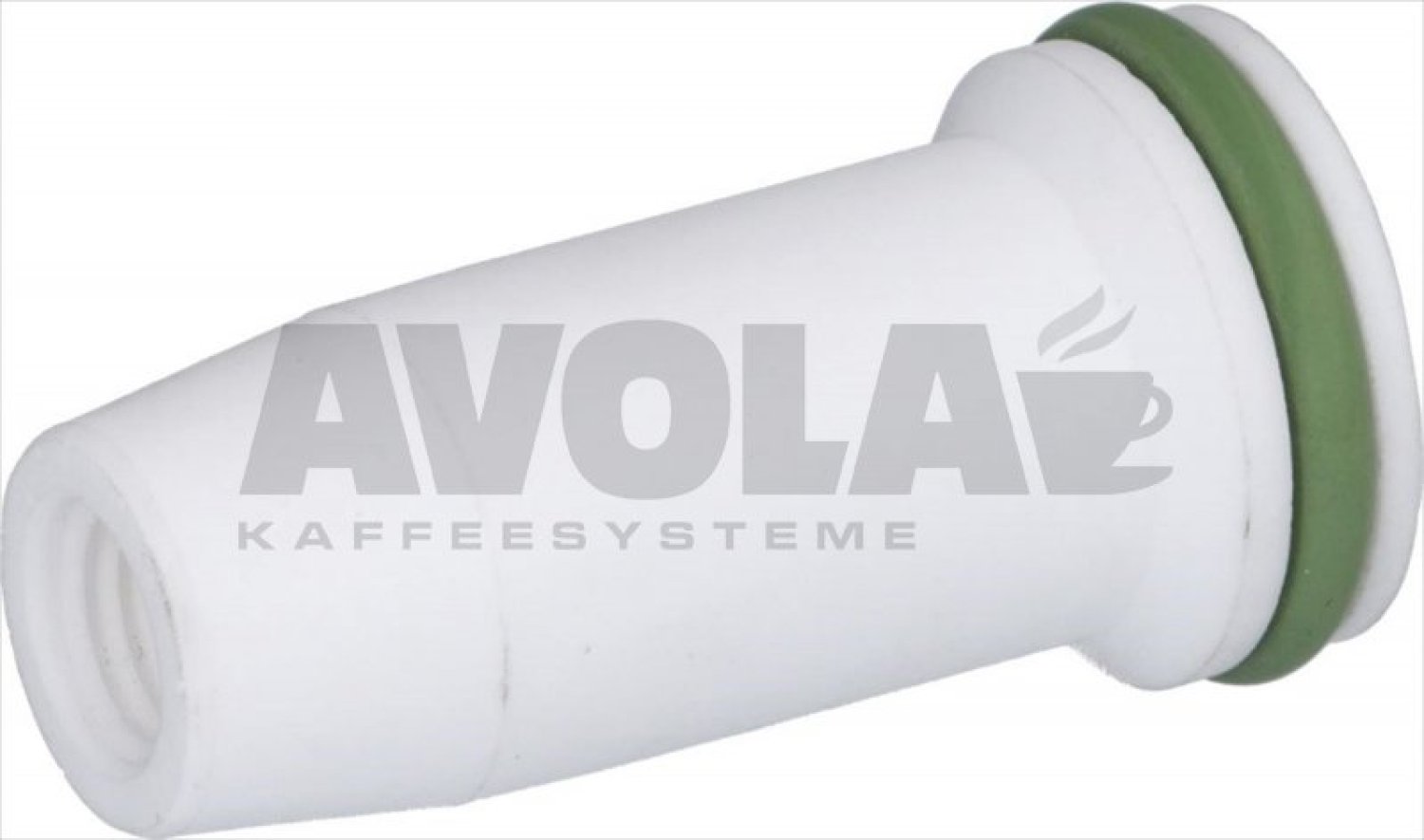

Rocket Austauschzylinder Keramik für Brühgruppenpilz |
excl. Shipping costs
immediately available, 14 available |
35,70 € | |
| 6 | 8105782 |  | 8105782

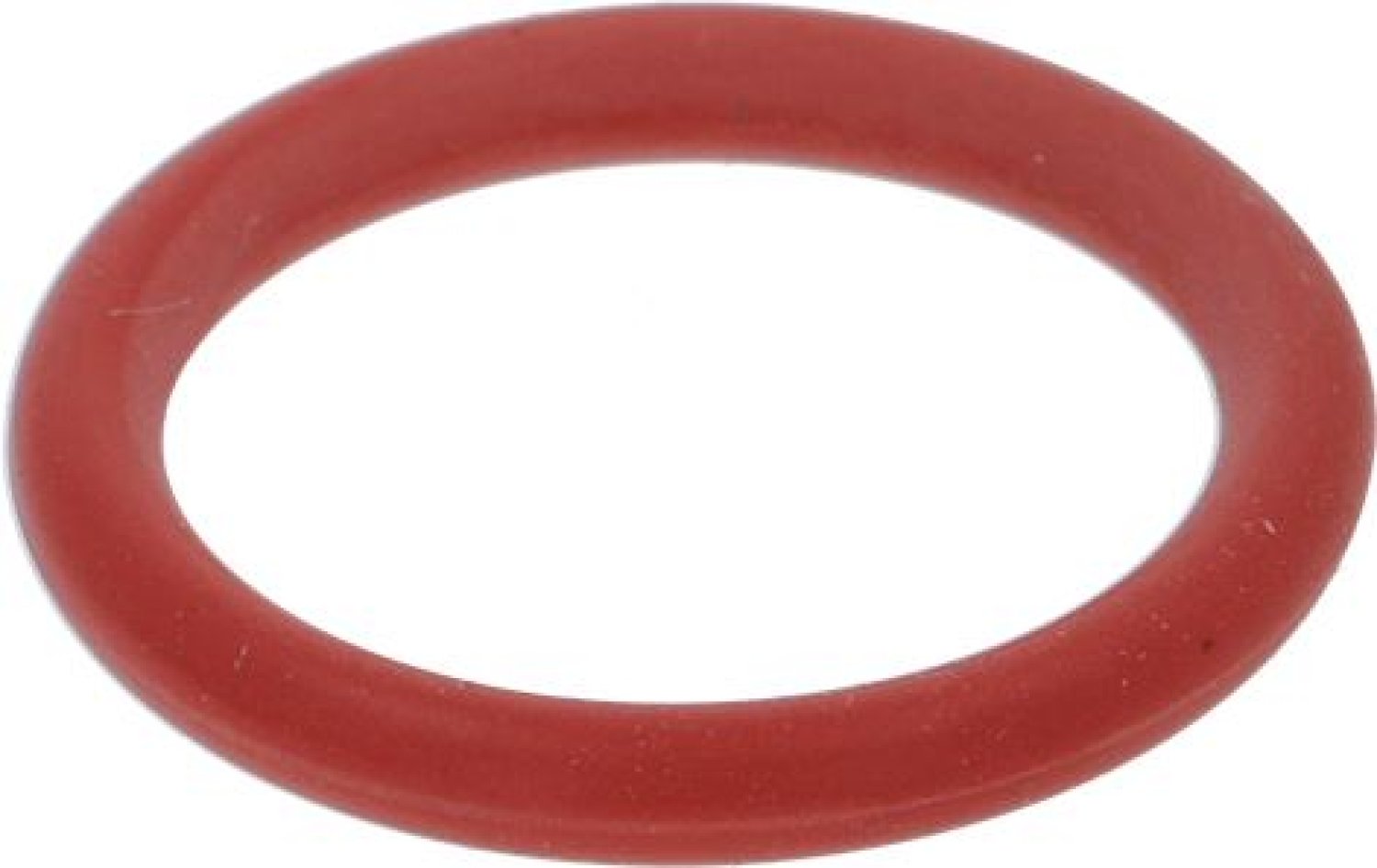

Rocket Dichtung für Gruppenkollektor 1 Stück |
excl. Shipping costs
immediately available |
3,45 € | |
| 7 | 8003820 |  | 8003820
SPRING ø 14x45 mm |
excl. Shipping costs
immediately available |
1,57 € | |
| 8 | 8105967 |  | 8105967
Rocket Einlassventil E61 Brühgruppe Ventil oben (1 Stück) |
excl. Shipping costs
immediately available, 3 available |
33,34 € | |
| 9 | 8079477 |  | 8079477
ROCKET Flachdichtung aus Teflon 36x30x3 mm |
excl. Shipping costs
immediately available |
2,50 € | |
| 10 | 8069008 |  | 8069008
Rocket Gruppendichtung |
excl. Shipping costs
immediately available, 4 available |
4,64 € | |
| 11 | 8105750 |  | 8105750
Gewindestift Innensechskant M8x1,25 16mm Länge (1 Stück) |
excl. Shipping costs
available 3-5 working days after receipt of payment |
1,96 € | |
| 12 | 8106013 |  | 8106013
Rocket Nockenwelle Brühgruppe E61 |
excl. Shipping costs
immediately available, 7 available |
29,90 € | |
| 13 | 8101292 |  | 8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert |
excl. Shipping costs
immediately available, 5 available |
19,90 € | |
| 14 | 8001570 |  | 8001570
EPDM flat gasket 15,5x7,5x4 mm |
excl. Shipping costs
immediately available |
0,90 € | |
| 15 | 8105822 |  | 8105822
Rocket Buchse für Nockenwelle |
excl. Shipping costs
immediately available, 10 available |
6,60 € | |
| 16 | 8003821 |  | 8003821
SPRING ø 15x25 mm |
excl. Shipping costs
immediately available |
2,02 € | |
| 17 | 8105804 |  | 8105804

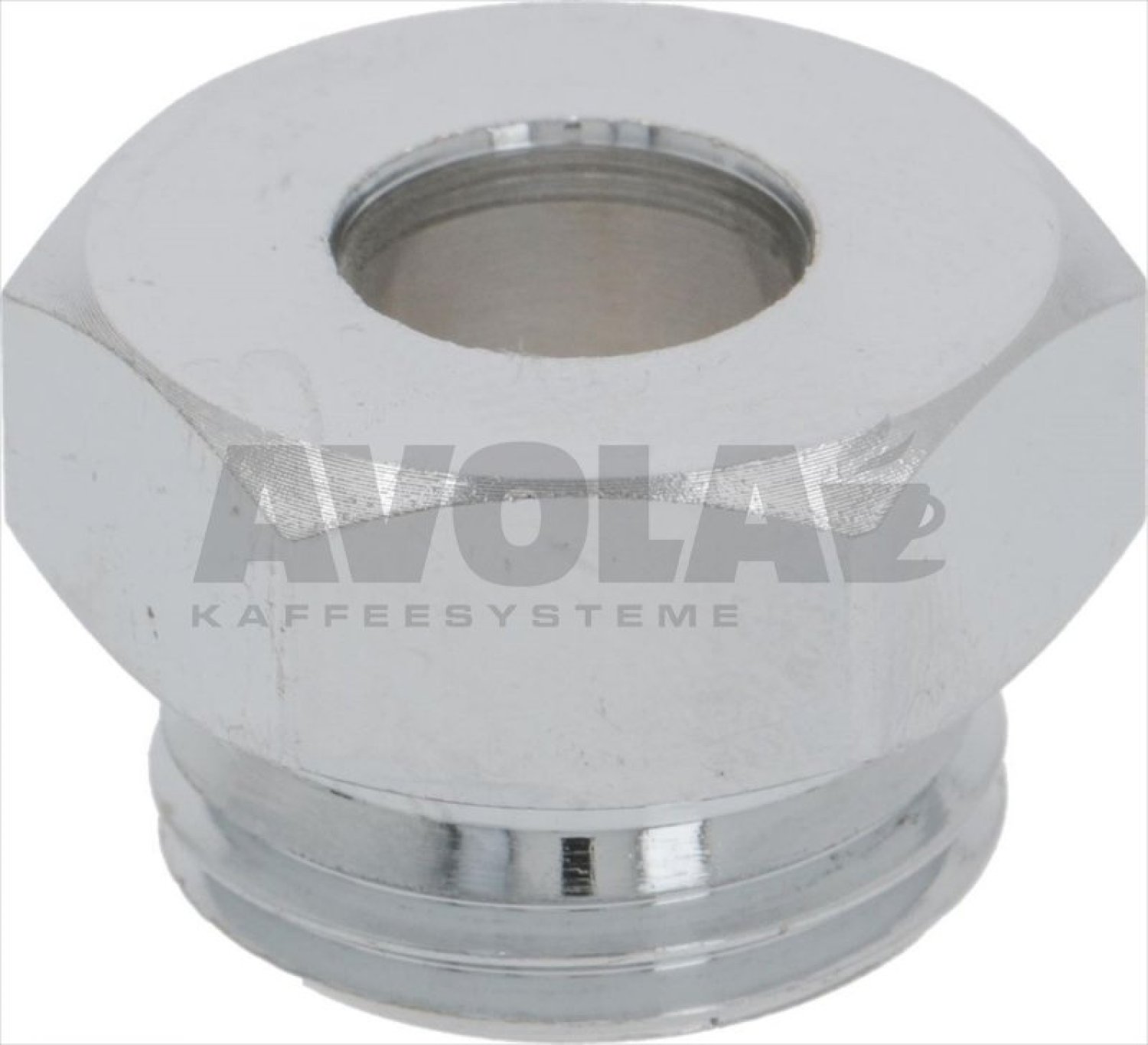

Rocket E61 Mutter für Nockenwellenaufnahme |
excl. Shipping costs
immediately available, 7 available |
10,71 € | |
| 18 | 8140833 |  | 8140833
Rocket Verteilerscheibe E61 Gruppe ø 30 mm M10x1 |
excl. Shipping costs
immediately available, 3 available |
12,40 € | |
| 19 | 8106001 |  | 8106001
Rocket E61 Vorbrühkammernventil Ventil Mitte (1 Stück) |
excl. Shipping costs
immediately available, 9 available |
16,51 € | |
| 20 | 8003820 | | 8003820
SPRING ø 14x45 mm |
excl. Shipping costs
immediately available |
1,57 € | |
| 21 | 8106027 |  | 8106027

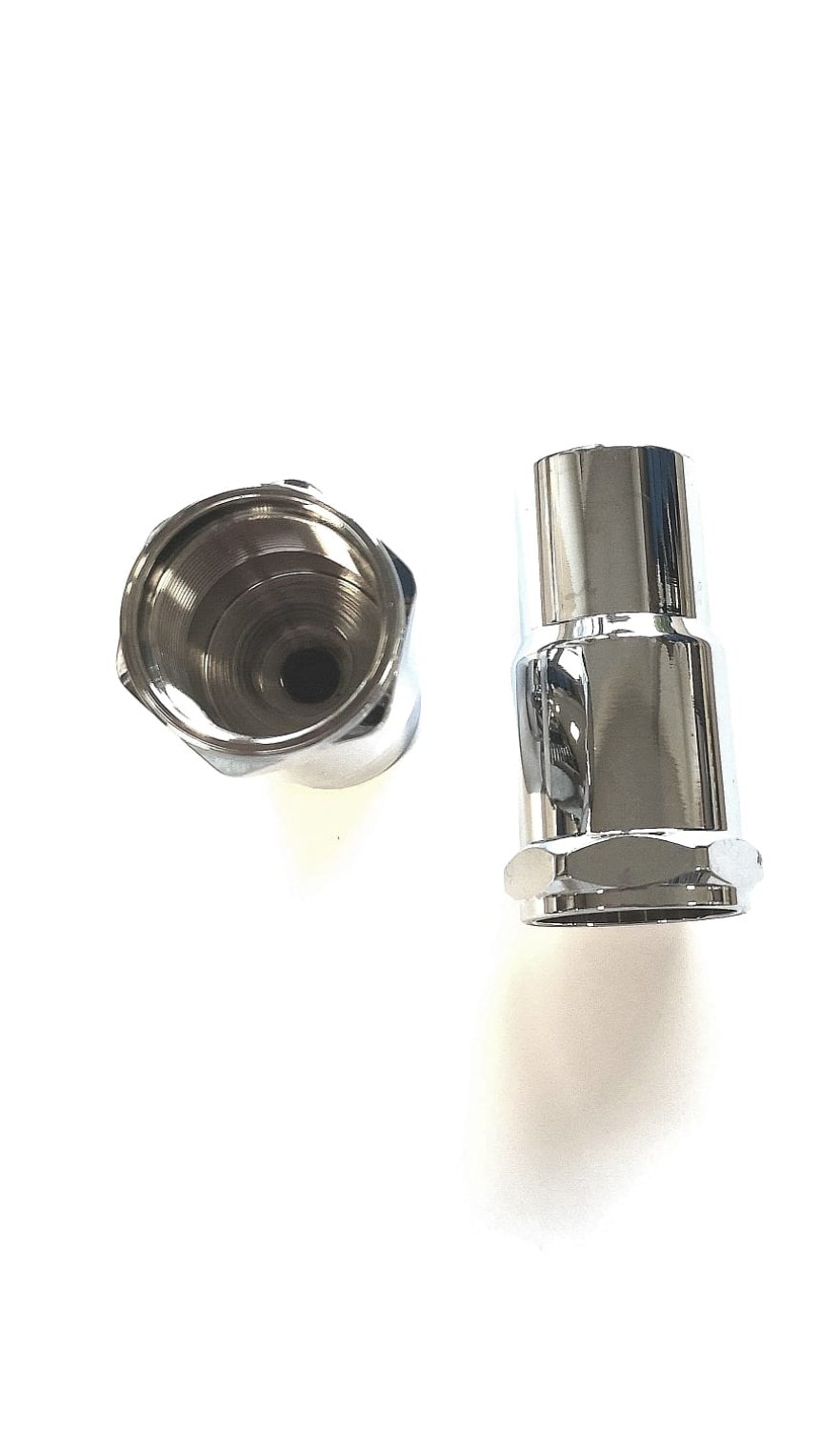

Rocket Vorbrühzylinder |
excl. Shipping costs
immediately available, 4 available |
35,70 € | |
| 22 | 8105968 |  | 8105968
Rocket Auslassventil E61 |
excl. Shipping costs
Delivery time
is determined |
15,52 € | |
| 23 | 8281551 |  | 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen |
excl. Shipping costs
immediately available |
2,68 € | |
| 24 | 8005864 |  | 8005864
DRAIN JET SWIRL |
excl. Shipping costs
immediately available, 14 available |
2,78 € | |
| 25 | 8001415 |  | 8001415
Flat gasket PTFE ø 26x21x2 mm |
excl. Shipping costs
immediately available |
2,32 € | |
| 26 | 8105825 |  | 8105825
DRAIN CHROMIUM-PLATED FITTING |
excl. Shipping costs
immediately available, 1 available |
7,20 € | |
| 27 | 8000608 |  | 8000608
Shower screen für E61 brew unit |
excl. Shipping costs
immediately available |
5,20 € | |
| 27 | 8280721 |  | 8280721
IMS Matrix Dusche E61 Duschsieb |
excl. Shipping costs
immediately available, 10 available |
27,95 € | |
| 28 | 8060996 |  | 8060996
Gasket 73x57x8 mm - for E61 brew unit |
excl. Shipping costs
immediately available |
3,90 € | |
| 29 | 8106228 |  | 8106228
Rocket Giotto Cellini R58 Cinquantotto E61-Brühgruppe mit Keramikgruppenpilz |
excl. Shipping costs
immediately available, 1 available |
357,00 € | |
| 30 | 8106057 |  | 8106057
E61 Nockenwelle komplett montiert in Führung Anschluss verchromt |
excl. Shipping costs
immediately available, 3 available |
49,00 € | |
| 31 | 8001103 |  | 8001103
BLIND FILTER Ø58mm |
excl. Shipping costs
immediately available |
2,56 € | |
| 31 | 8105891 |  | 8105891

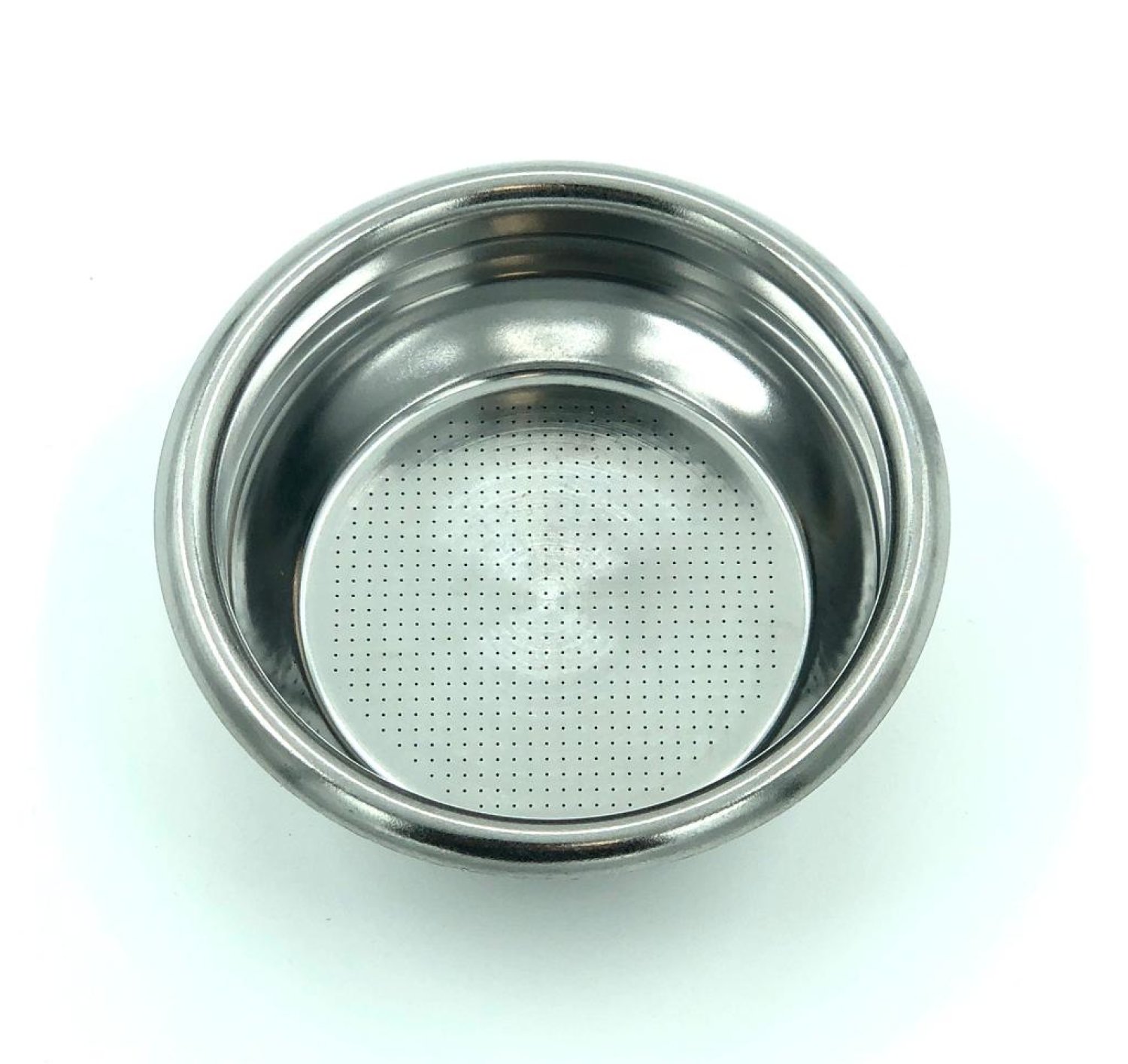

Rocket 2 Tassen Sieb |
excl. Shipping costs
immediately available, 5 available |
9,95 €
9,95 € | |
| 31 | 8105878 |  | 8105878

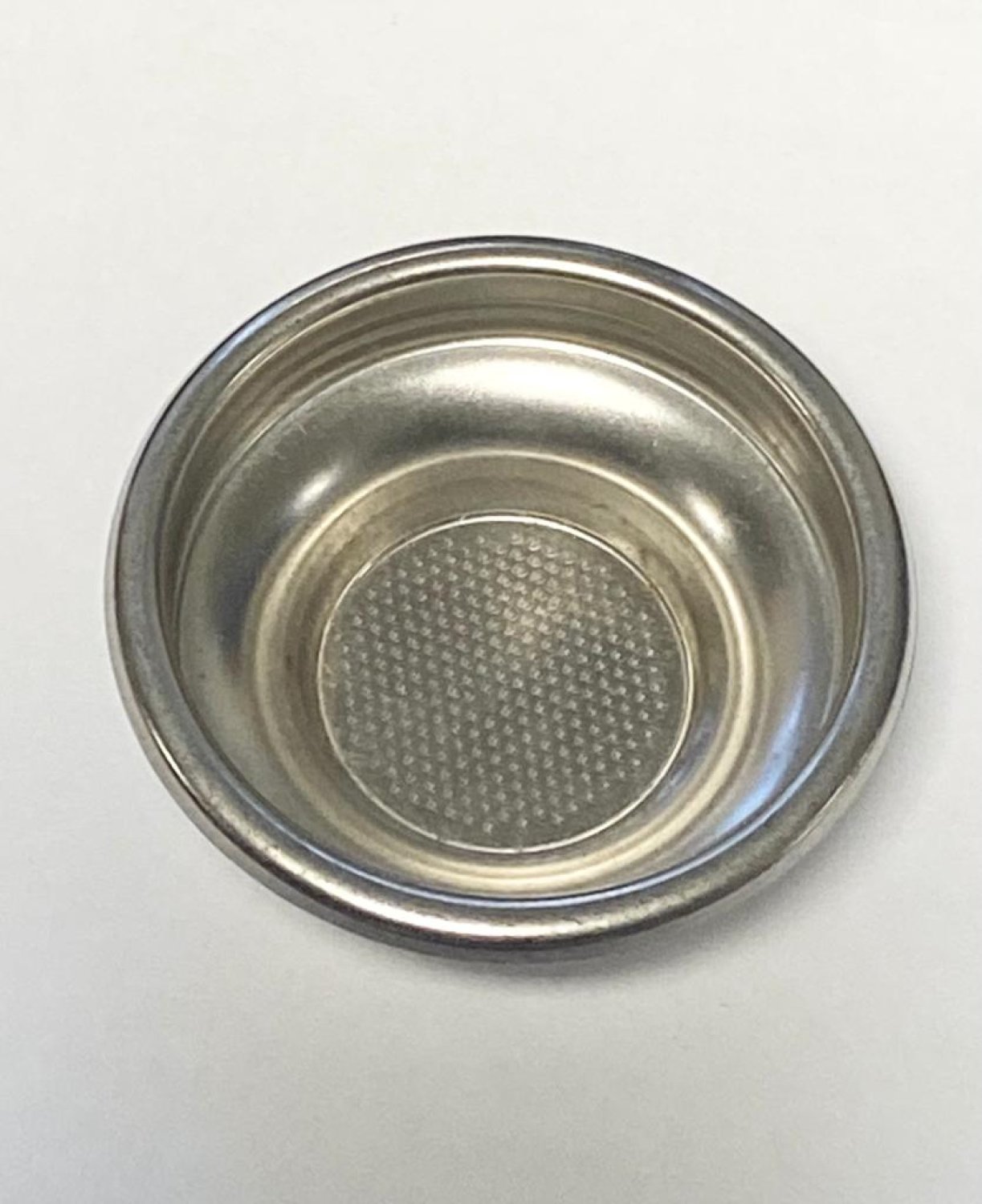

Rocket Eintassen-Sieb |
excl. Shipping costs
immediately available, 9 available |
6,95 € | |
| 32 | 8081298 |  | 8081298

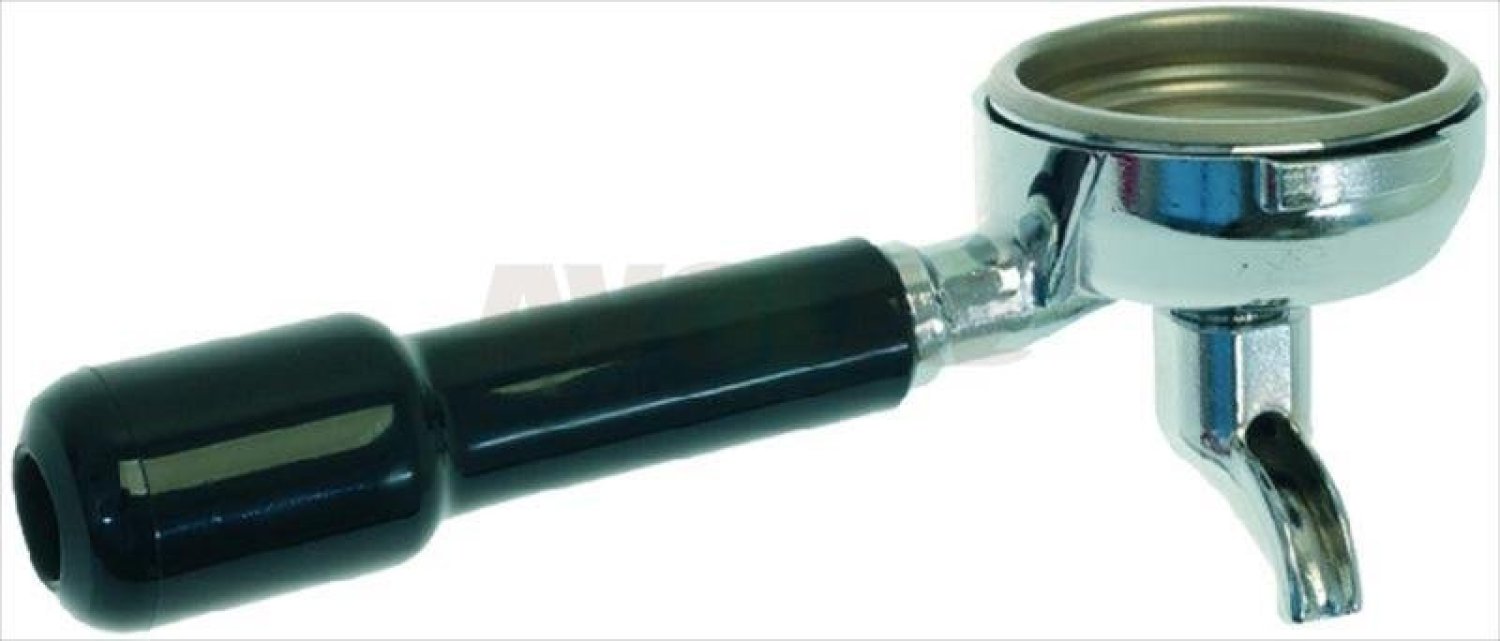

Rocket Siebträger 1 Tasse komplett |
excl. Shipping costs
immediately available, 3 available |
53,55 € | |
| 32 | 8073509 |  | 8073509
Rocket Siebträger 2 Tassen komplett (1 Stück) |
excl. Shipping costs
Delivery time
is determined |
52,28 € | |
| 33 | 8002794 |  | 8002794
CHROMIUM-PLATED CAP M6 |
excl. Shipping costs
immediately available, 6 available |
3,51 € | |
| 34 | 8106071 |  | 8106071
Rocket E61 Bezugshebel |
excl. Shipping costs
immediately available, 1 available |
38,15 € | |
| 35 | 8080668 |  | 8080668
Brühgruppen Kollektor E61 Keramik - Rocket Espresso |
excl. Shipping costs
immediately available, 6 available |
71,40 € | |
If your article is not listed, please use the following form and enter the desired numbers.
