Rocket

ROCKET CELLINI - GIOTTO PLUS V2 WASSER DAMPF BEREICH

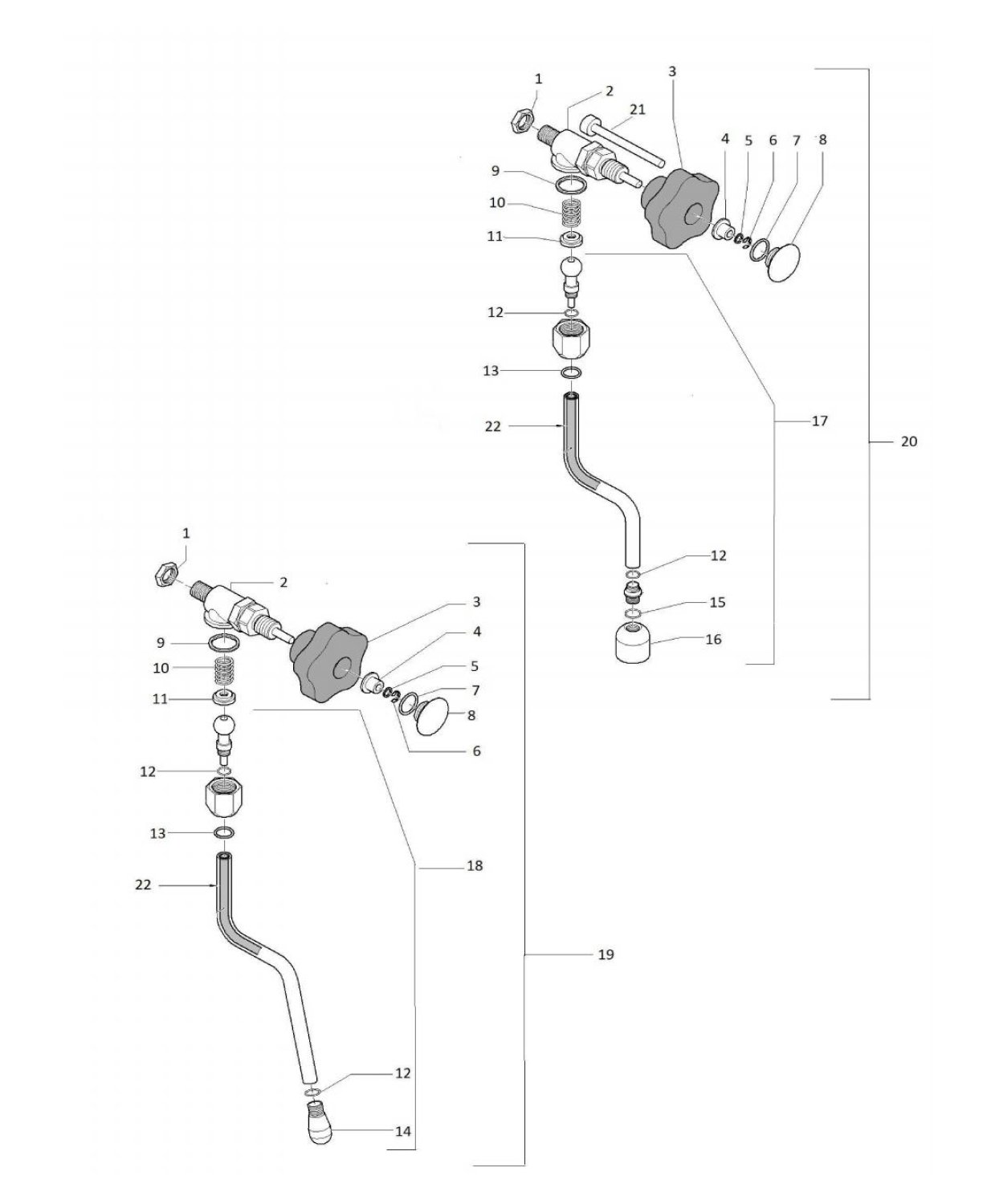

Drawing number 8063238

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
2rocket dampfhahn heisswasserhahn alt bis seriennr d1224g2v31818069011
Rocket Dampfhahn Heisswasserhahn alt (bis Seriennr.: D1224G2V3181)
38,08 €

excl. Shipping costs
immediately available, 7 available
2rocket dampfhahn heisswasserhahn neue version ab seriennr d1224g2v31818069012
Rocket Dampfhahn Heisswasserhahn neue Version (ab Seriennr.: D1224g2v3181)
66,93 €

excl. Shipping costs
immediately available, 3 available
3rocket drehknopf wasser dampfventil8073652
Rocket Drehknopf Wasser Dampfventil
17,50 €

excl. Shipping costs
immediately available, 2 available
4rocket fuehrungsplatte knebel8079638
Rocket Führungsplatte Knebel
4,95 €

excl. Shipping costs
immediately available, 18 available
5copper flat gasket o 10x6x1 mm8001983
COPPER FLAT GASKET ø 10x6x1 mm
1,31 €

excl. Shipping costs
immediately available, 2 available
6stainless steel circlip ra 4 uni 74378005617
STAINLESS STEEL CIRCLIP RA-4 UNI 7437
0,48 €

excl. Shipping costs
immediately available
7rocket o ring8069014
Rocket O-RING
1,43 €

excl. Shipping costs
immediately available, 18 available
8rocket cellini giotto abdeckung handgriff wasser dampf8080806
Rocket Cellini - Giotto Abdeckung Handgriff Wasser Dampf
18,92 €

excl. Shipping costs
immediately available, 4 available
9ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available
12orm 0060 10 epdm 1 pcs8007696
ORM 0060-10 EPDM - 1 pcs
3,08 €

excl. Shipping costs
immediately available
14dampfduese 2 loch m8 5x0 75 aussengewinde loecher o 1 5mm8037348
Dampfdüse 2 Loch M8,5x0,75 Aussengewinde Löcher ø 1,5mm
9,52 €

excl. Shipping costs
immediately available, 3 available
14stain steel steam nozzle 4 holes8006594
STAIN.STEEL STEAM NOZZLE 4 HOLES
9,03 €

excl. Shipping costs
immediately available, 7 available
14rocket steam nozzle kit mozzafiato appartamento cellini giotto8079352
ROCKET STEAM NOZZLE KIT Mozzafiato, Appartamento, Cellini, Giotto
25,48 €

excl. Shipping costs
immediately available, 1 available
21hahnbolzen inkl dichtung 74mm lang ventilspindel bolzen spindel8068991
Hahnbolzen inkl. Dichtung - 74mm lang Ventilspindel Bolzen Spindel
17,22 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
