Rocket

Cellini - Giotto Evoluzione V1 Kessel

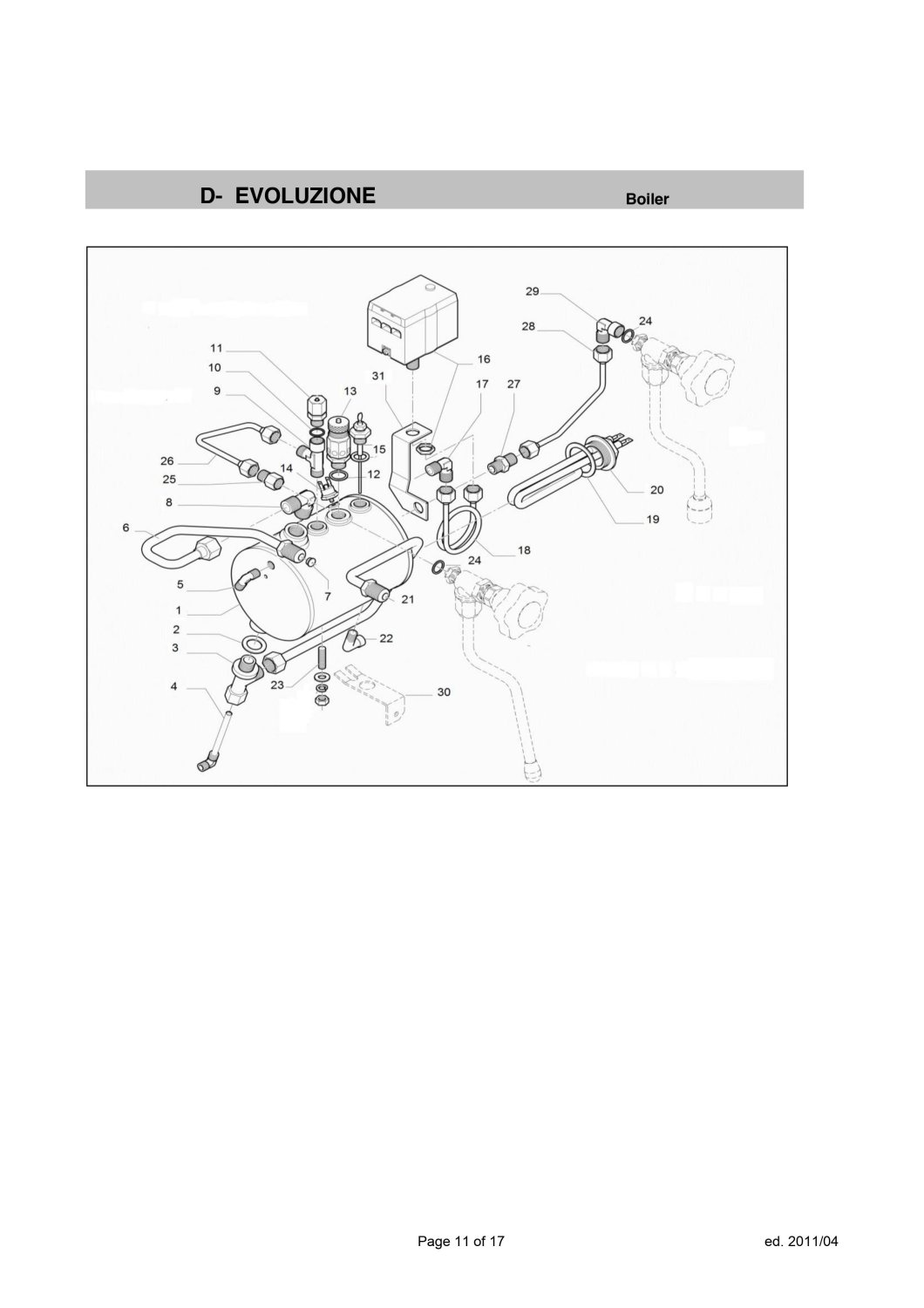

Drawing number 8144534

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

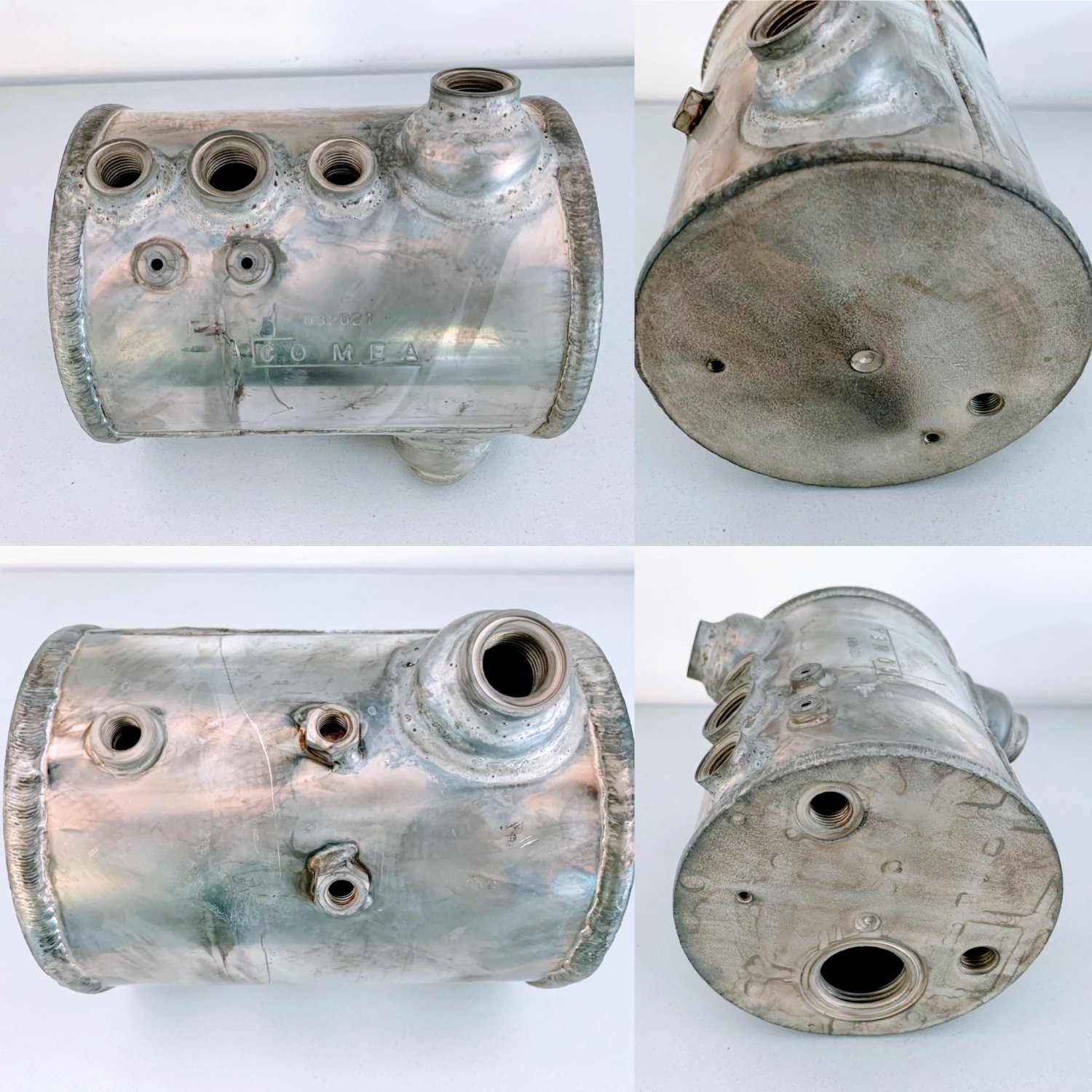

1rocket giotto cellini mozzafiato evo boiler kessel8069605
Rocket Giotto Cellini Mozzafiato Evo Boiler Kessel
267,80 €

excl. Shipping costs
immediately available, 3 available
2round copper gasket o 23x17x3 mm 3 8 zoll8001472
ROUND COPPER GASKET ø 23x17x3 mm - 3/8 Zoll
1,65 €

excl. Shipping costs
immediately available
3rocket kesselfitting t anschluss 3 8a x 1 4i8125592
Rocket Kesselfitting T-anschluss 3/8A x 1/4i
16,95 €

excl. Shipping costs
immediately available, 4 available
4rocket injektorrohr 1 4 quot 1 8 quot8141000
Rocket Injektorrohr 1/4" 1/8"
20,11 €

excl. Shipping costs
immediately available, 1 available
5l fitting o 1 8 1 88005642
L-FITTING ø 1/8 -1/8
4,49 €

excl. Shipping costs
immediately available, 6 available

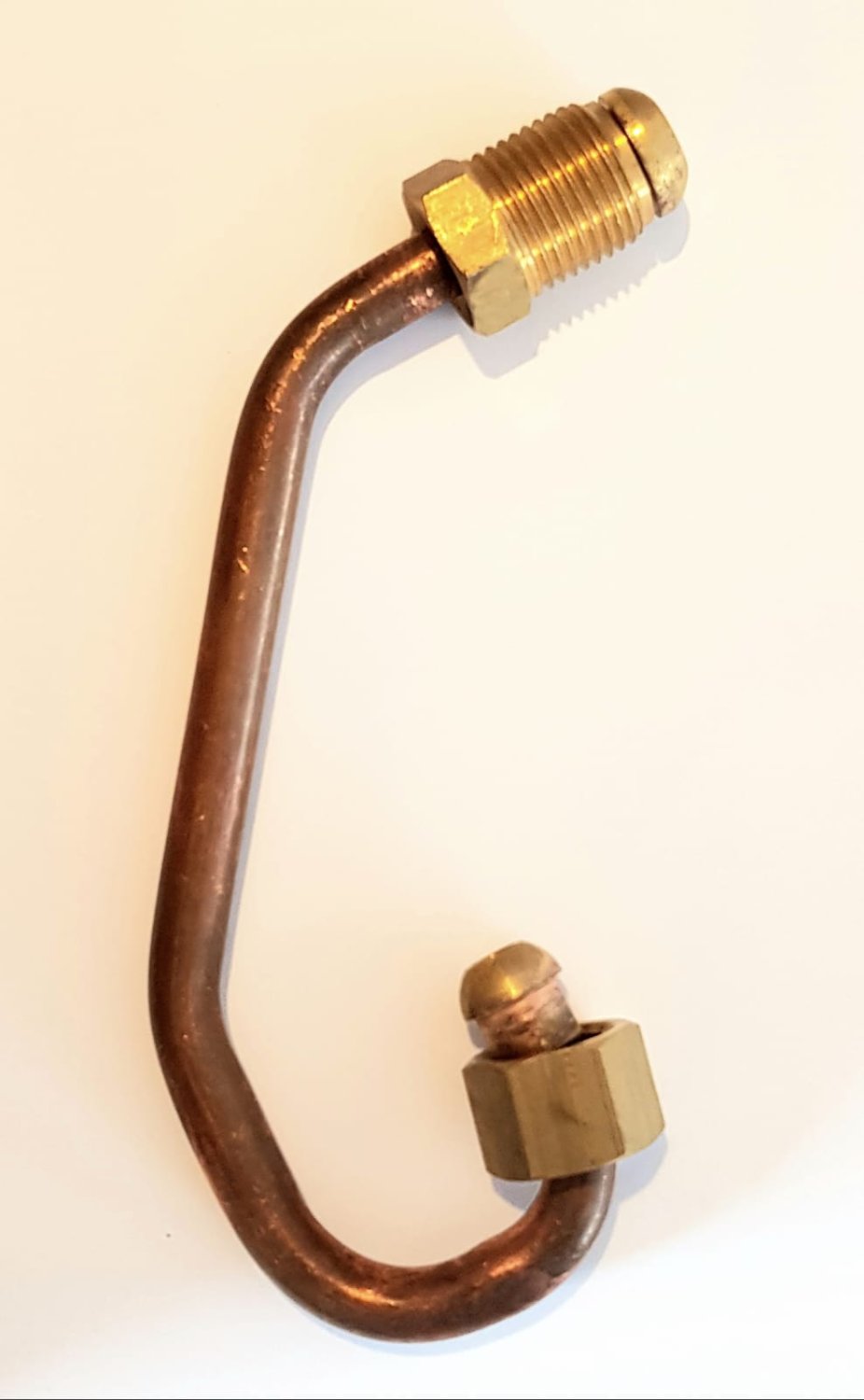

6rocket waermetauscher gruppenrohr oben8280283
Rocket Wärmetauscher Gruppenrohr oben
24,89 €

excl. Shipping costs
immediately available, 2 available

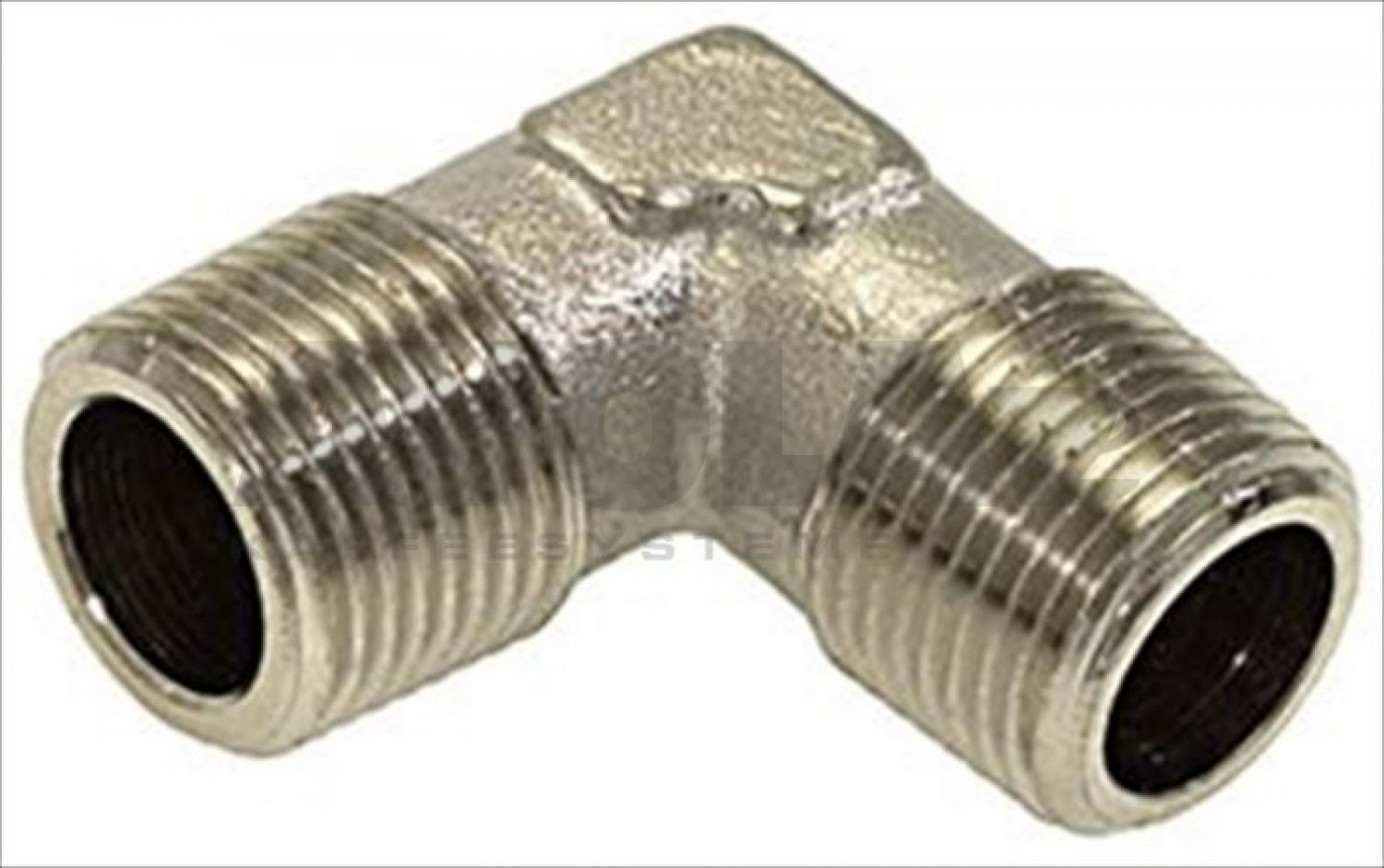

8l fitting o 3 8 a 3 8 a8005876
L-FITTING ø 3/8 A-3/8 A
9,66 €

excl. Shipping costs
immediately available, 17 available
9t stueck 1 4 quot fmm ecm8101406
T-Stück 1/4" FMM ECM
9,52 €

excl. Shipping costs
immediately available, 6 available
10ptfe flat gasket o18x13x2 mm8001641
PTFE FLAT GASKET Ø18x13x2 mm
2,21 €

excl. Shipping costs
immediately available
11boiler valve 1 4 zoll8064152
BOILER VALVE 1/4 Zoll
7,90 €

excl. Shipping costs
immediately available, 15 available
11fluid o tech 1 4 quot bsp unterdruckventil antivakuumventil edelstahl8393315
Fluid-o-tech 1/4" BSP Unterdruckventil Antivakuumventil Edelstahl
34,90 €

excl. Shipping costs
immediately available
11o 1 4 rime boiler valve8007153
ø 1/4″ - BOILER VALVE
7,52 €

excl. Shipping costs
Delivery time 4-6 weeks
12ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available, 13 available
13boiler valve8064144
BOILER VALVE
12,90 €

excl. Shipping costs
immediately available, 12 available
14original rocket sicherheitsthermostat m4 135 deg c gewindelaenge 6mm8280862
Original Rocket Sicherheitsthermostat M4 135°C Gewindelänge 6mm
11,90 €

excl. Shipping costs
immediately available
15niveausonde o 1 4 m 80 mm8073951
Niveausonde ø 1/4 M-80 mm
21,30 €
17,26 €

excl. Shipping costs
immediately available, 11 available

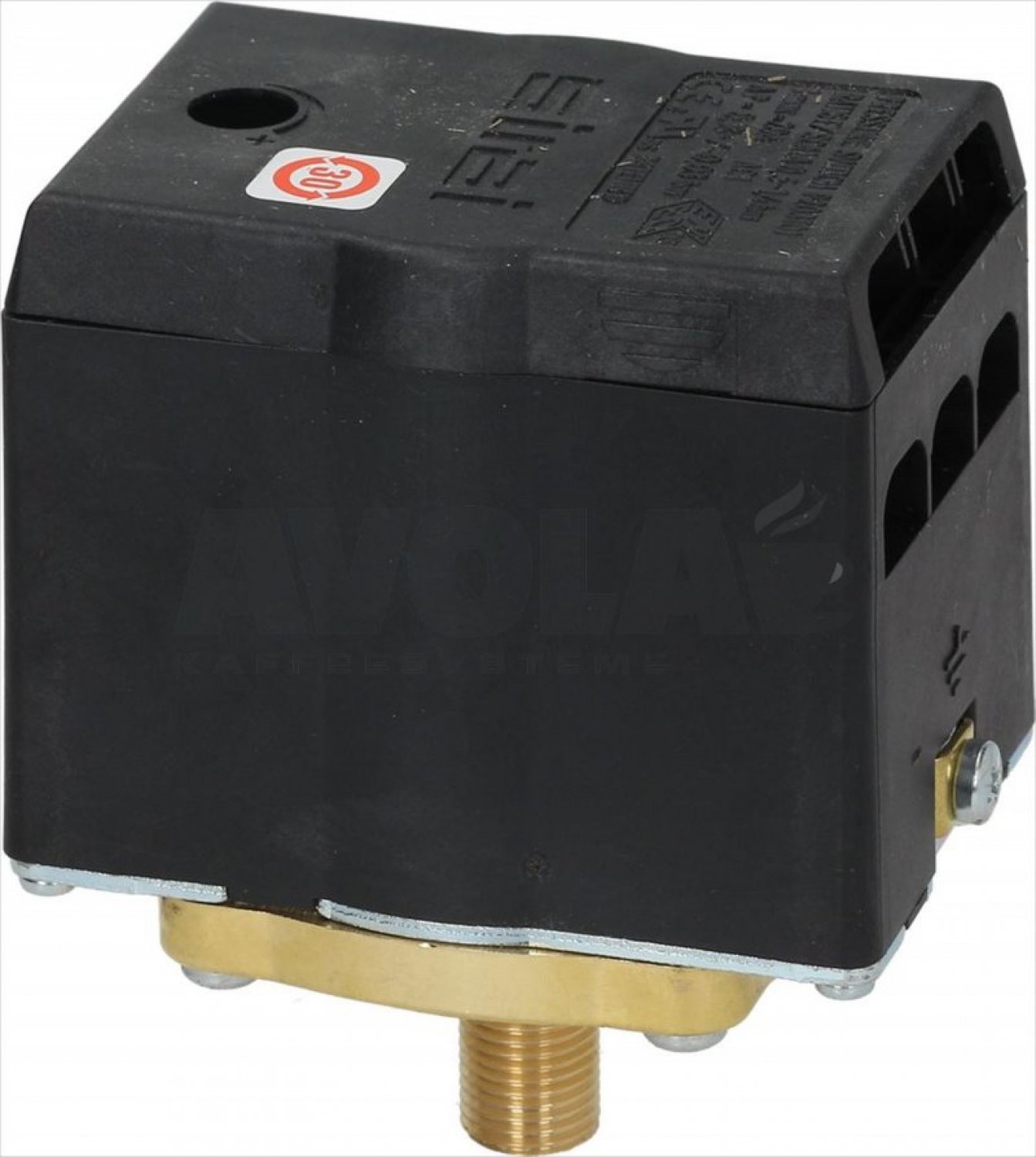

16pressure switch p203t01 2 poles 20a 1 48005075
PRESSURE SWITCH P203T01 2-POLES 20A 1/4
74,35 €

excl. Shipping costs
immediately available, 1 available
17nichel platedl fitting8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs
immediately available, 6 available

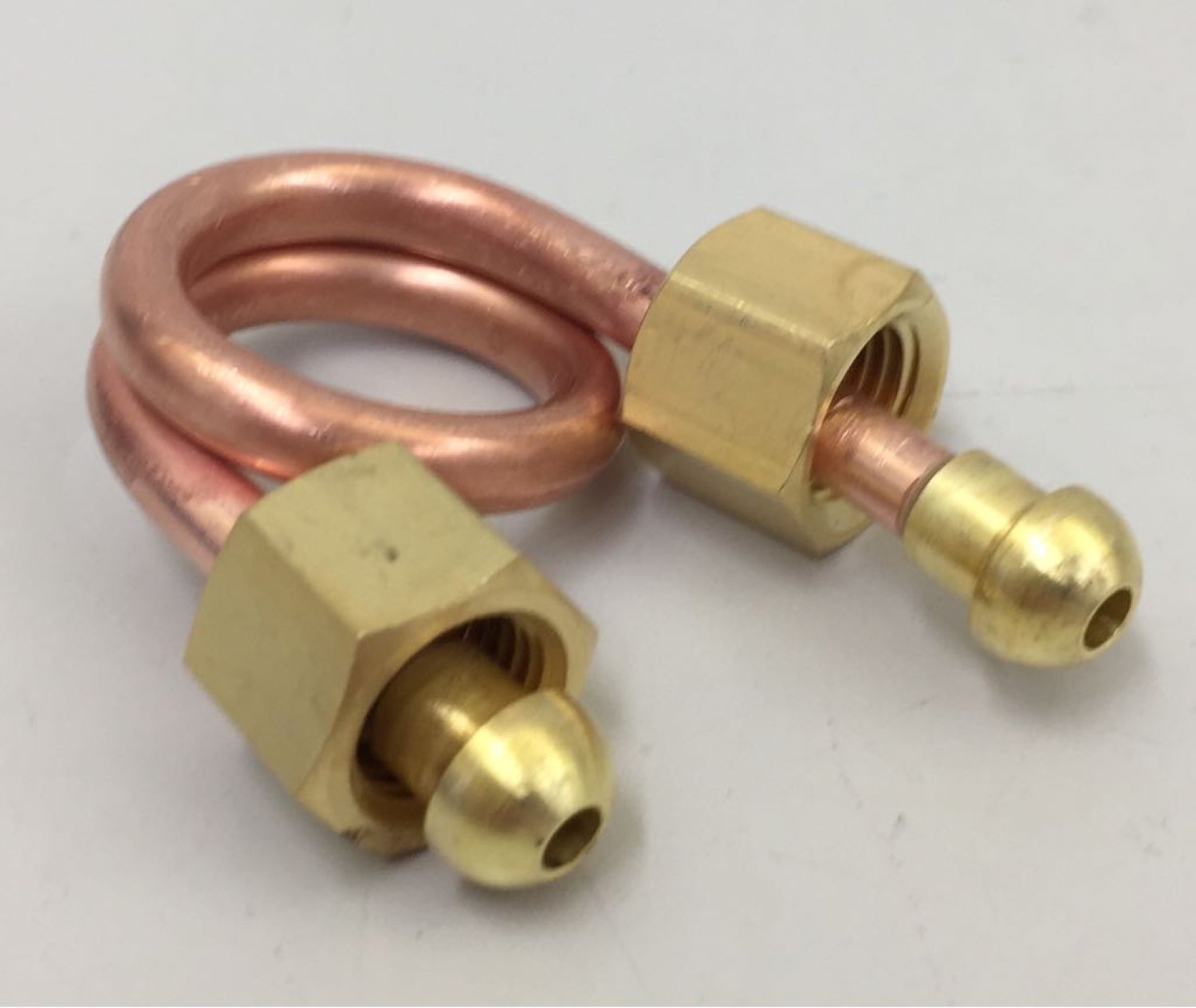

18rocket pipe boiler to pressostat8101411
Rocket pipe boiler to pressostat
20,23 €

excl. Shipping costs
immediately available, 14 available
19teflondichtung fuer heizung 40 5x33 3x3 mm8139595
Teflondichtung für Heizung 40,5x33,3x3 mm
2,38 €

excl. Shipping costs
immediately available

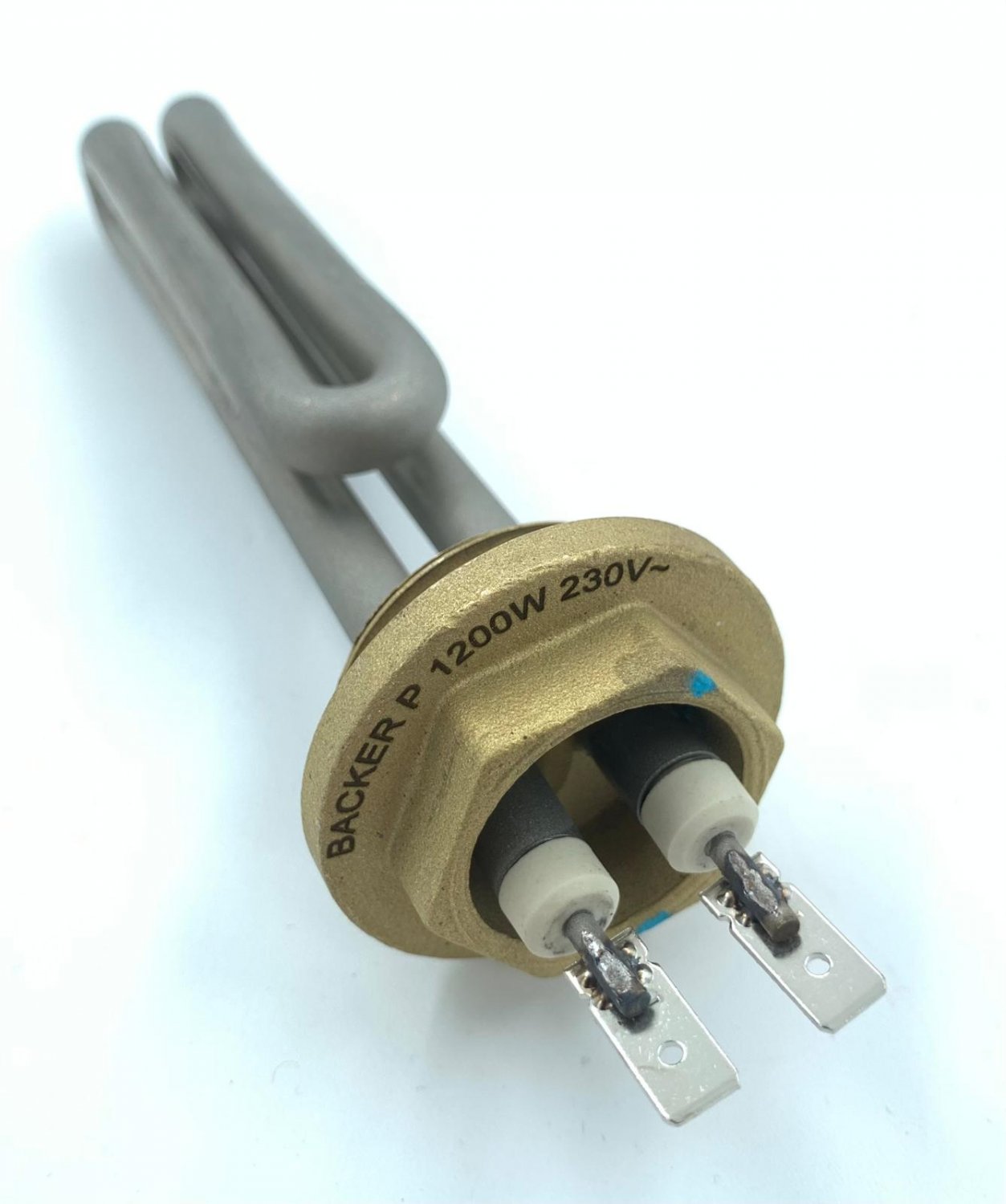

20original rocket heizung 1200w 230v8101461
Original Rocket Heizung 1200W 230V
54,92 €

excl. Shipping costs
immediately available, 14 available

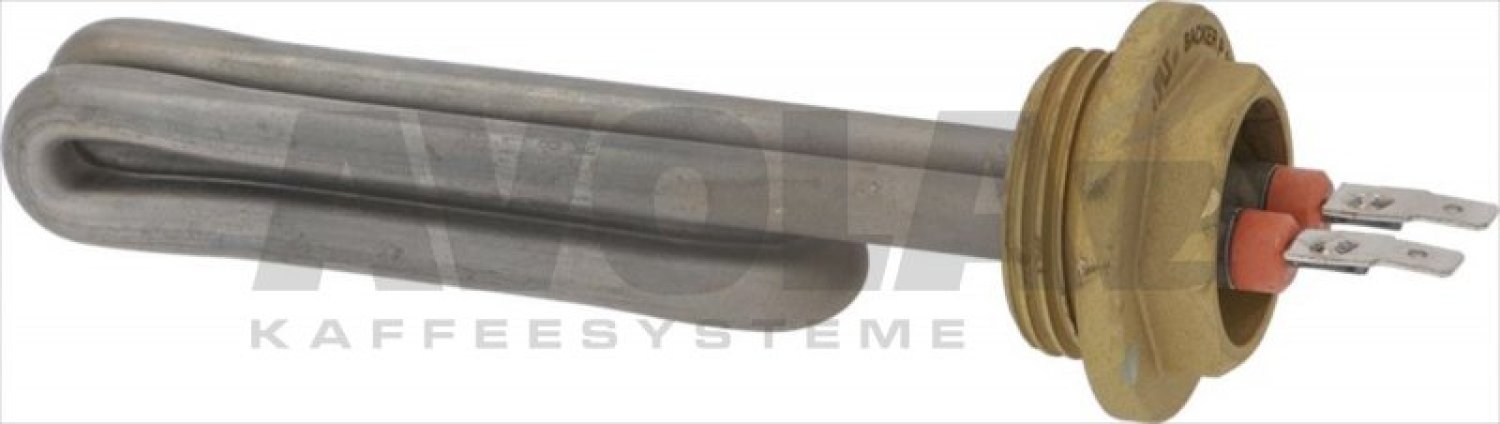

20rocket heating element v1158106114
Rocket Heating element V115
77,35 €

excl. Shipping costs
Delivery time
is determined
21rocket lower pipe hx to group8080844
Rocket lower pipe HX to group
35,70 €

excl. Shipping costs
immediately available, 3 available
22l fitting o 1 88005885
L-FITTING ø 1/8
5,46 €

excl. Shipping costs
immediately available, 3 available
23gewindestift innensechskant m8x1 25 16mm laenge 1 stueck8105750
Gewindestift Innensechskant M8x1,25 16mm Länge (1 Stück)
1,96 €

excl. Shipping costs
available 3-5 working days after receipt of payment
24rocket kupferdichtung 1 4 rime8105773
Rocket Kupferdichtung 1/4″
2,26 €

excl. Shipping costs
immediately available, 5 available

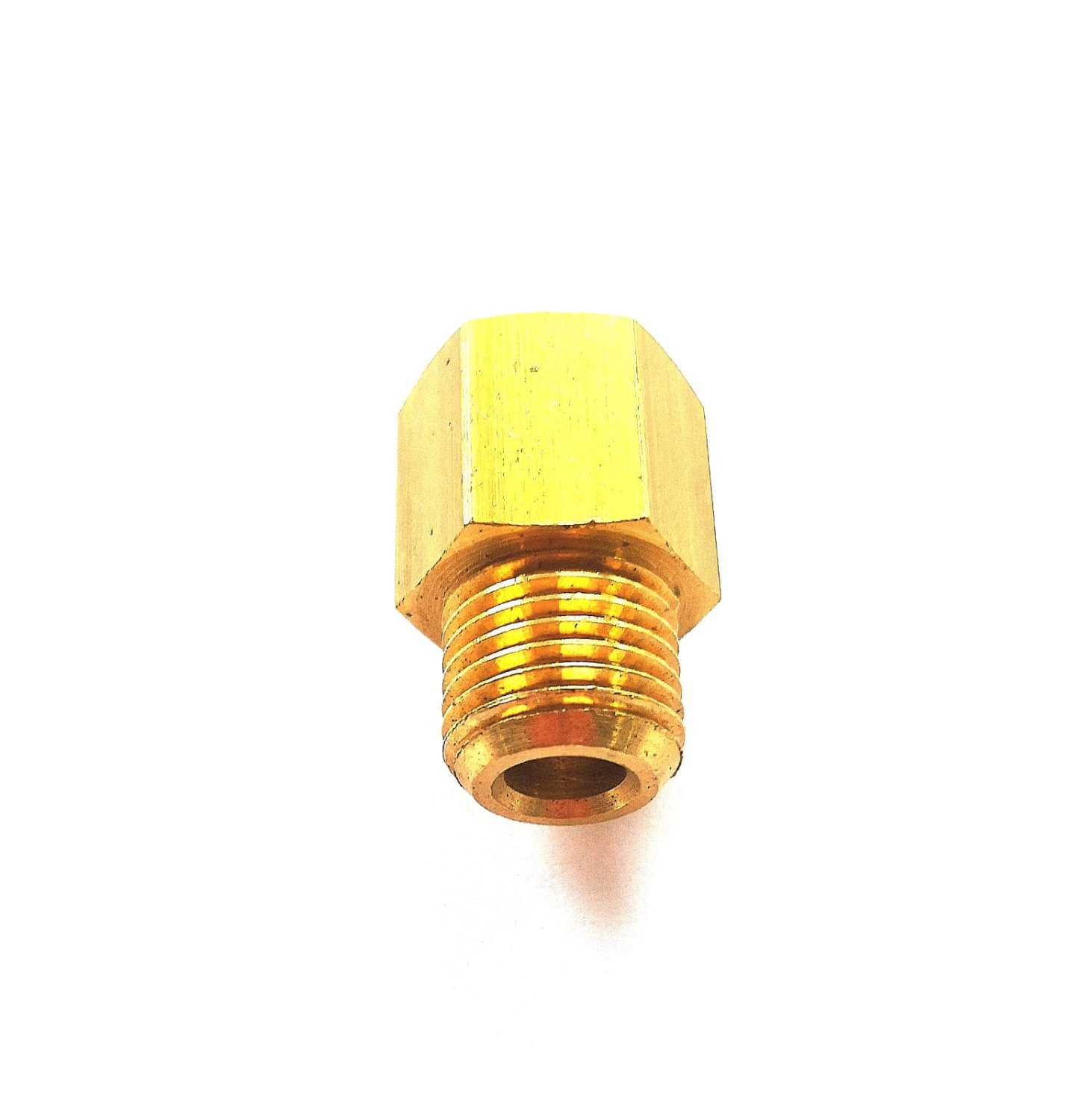

25rocket anschluss o 1 4 aussengew 1 4 innengewinde8105792
Rocket Anschluss ø 1/4 Aussengew.1/4 Innengewinde
5,71 €

excl. Shipping costs
immediately available, 8 available
26rocket cellini giotto appartamento rohr zum dampfhahn8079670
Rocket Cellini Giotto Appartamento Rohr zum Dampfhahn
22,32 €

excl. Shipping costs
immediately available, 6 available
27doppelnippel ecm rocket anschluss o 1 4 aussengewinde8101400
Doppelnippel ECM Rocket Anschluss ø 1/4 Außengewinde
5,95 €

excl. Shipping costs
immediately available
28rocket rohr kessel zum heisswasserventil bis seriennr d12238080585
Rocket Rohr Kessel zum Heisswasserventil bis Seriennr D1223...
29,50 €

excl. Shipping costs
immediately available, 4 available

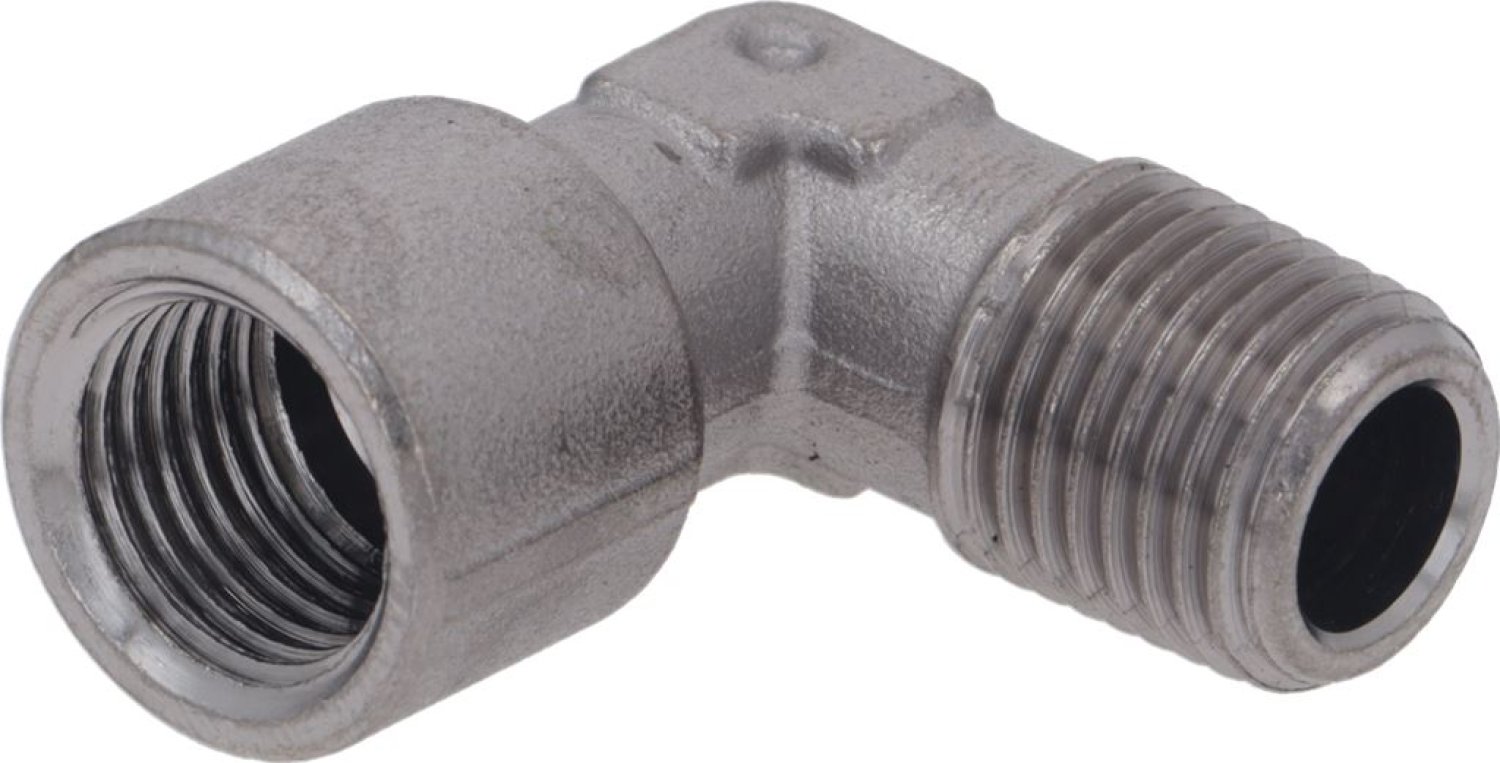

29rocket connector 1 48105819
Rocket Connector 1/4
8,00 €

excl. Shipping costs
Delivery time 4-6 weeks

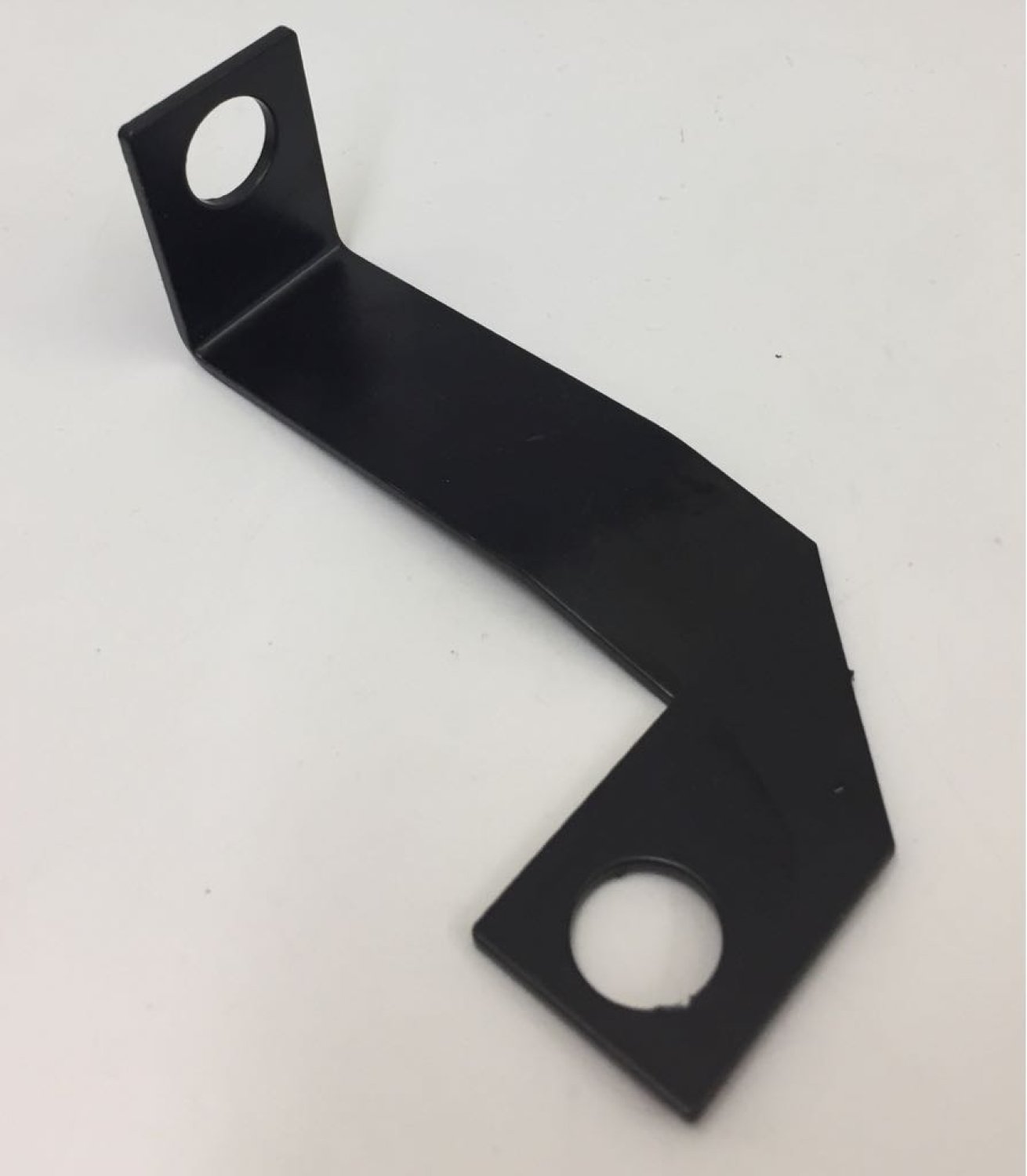

31rocket pressostat halteblech nicht mehr lieferbar8101418
Rocket Pressostat Halteblech (nicht mehr lieferbar)
This article is no longer available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
