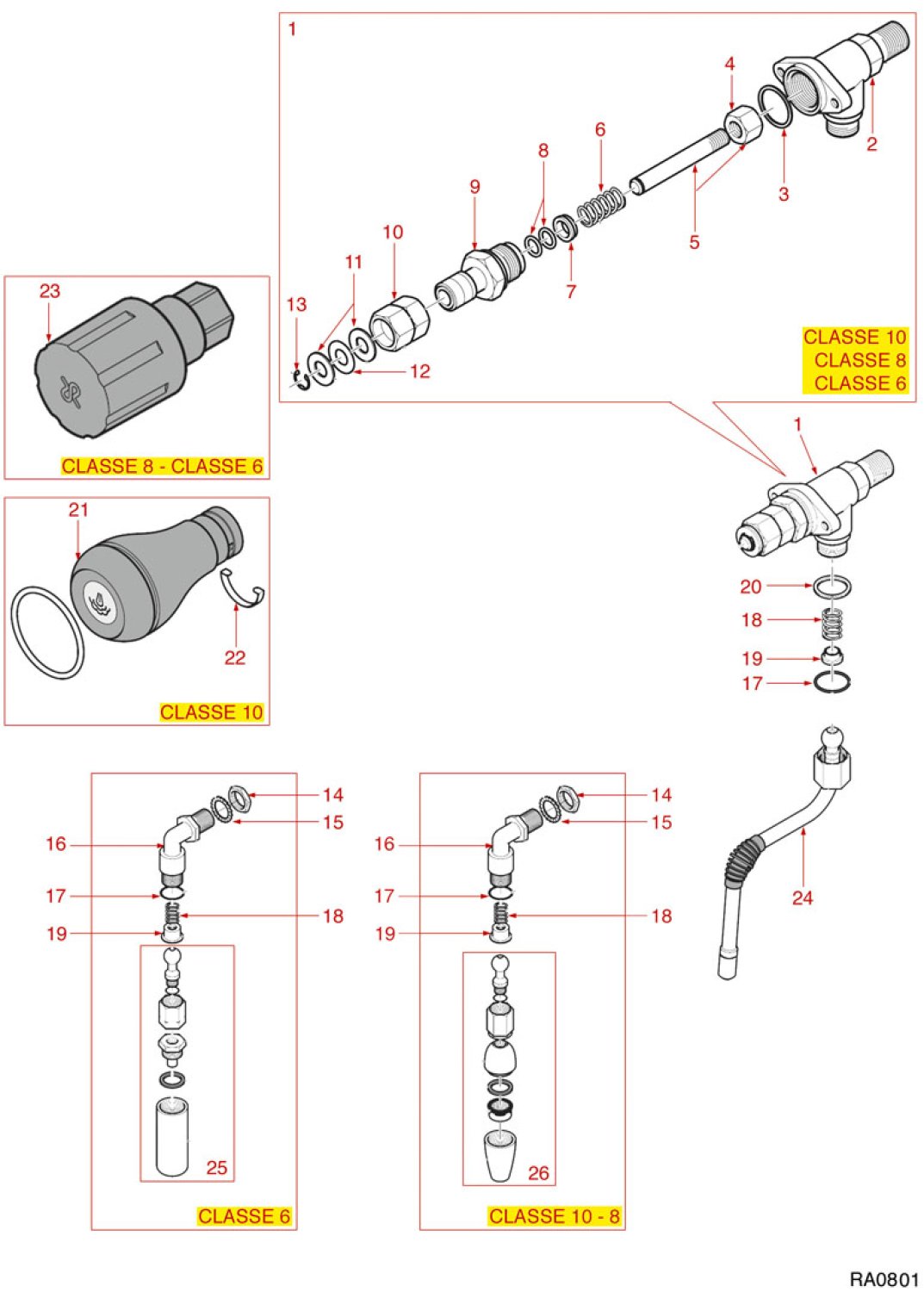

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.
Pos.: | Item No.: | Image: | Description: | Shipment: | Price (inkl. 19% VAT): | Qty.: |
---|

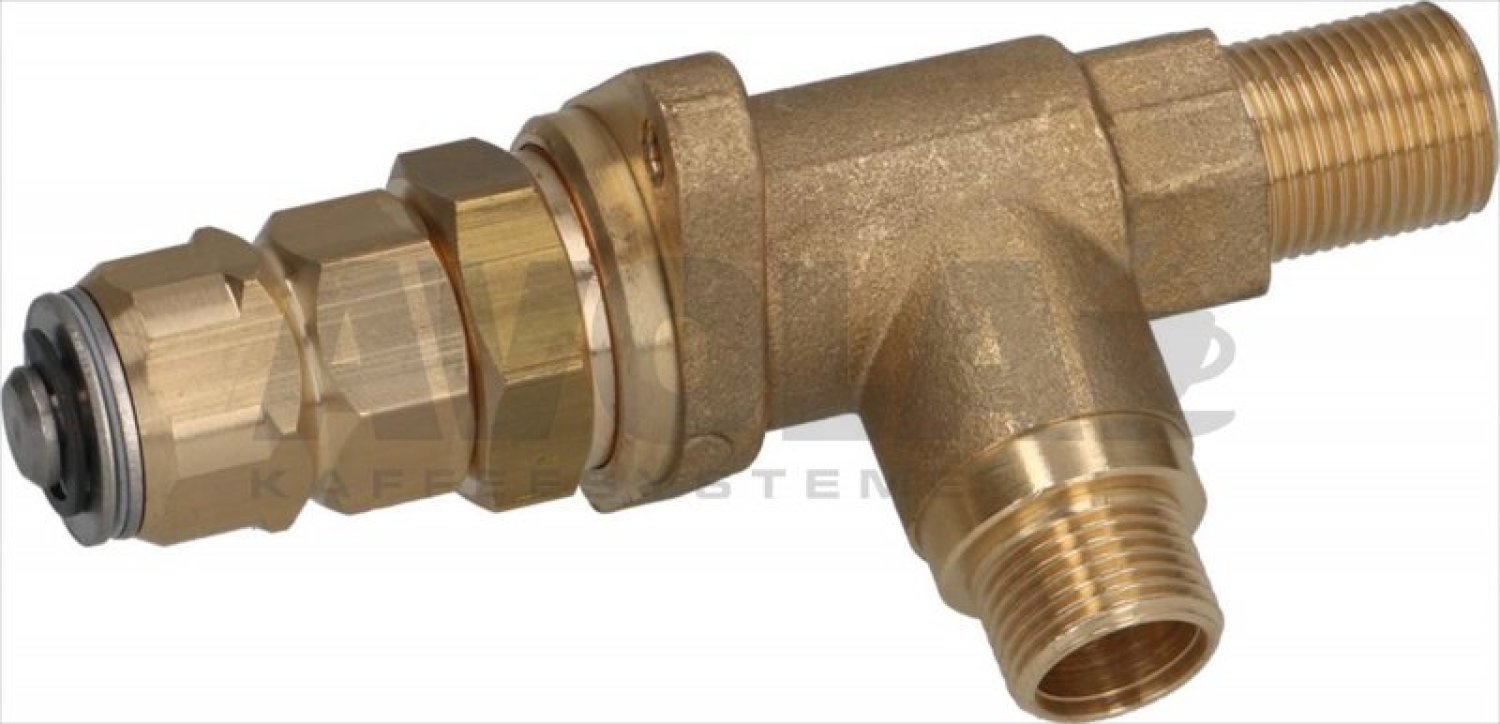

1 | 8005630 |  | 8005630 STEAM/WATER TAP | excl. Shipping costs immediately available, 1 available |
51,31 € | |
3 | 8001982 |  | 8001982 FLAT COPPER GASKET ø 24x21x1 mm | excl. Shipping costs immediately available |
0,96 € | |
4 | 8007258 |  | 8007258 NUT WITH GASKET | excl. Shipping costs immediately available, 9 available |
12,13 € | |
5 | 8005147 |  | 8005147 TAP ROD | excl. Shipping costs Delivery time is determined |
12,84 € | |
6 | 8003559 |  | 8003559 SPRING ø 12x31 mm | excl. Shipping costs immediately available, 6 available |
3,46 € | |
7 | 8003560 |  | 8003560 SPRING GUIDE | excl. Shipping costs Delivery time is determined |
4,72 € | |
8 | 8001975 |  | 8001975 O-RING 02037 EPDM | excl. Shipping costs immediately available |
0,76 € | |

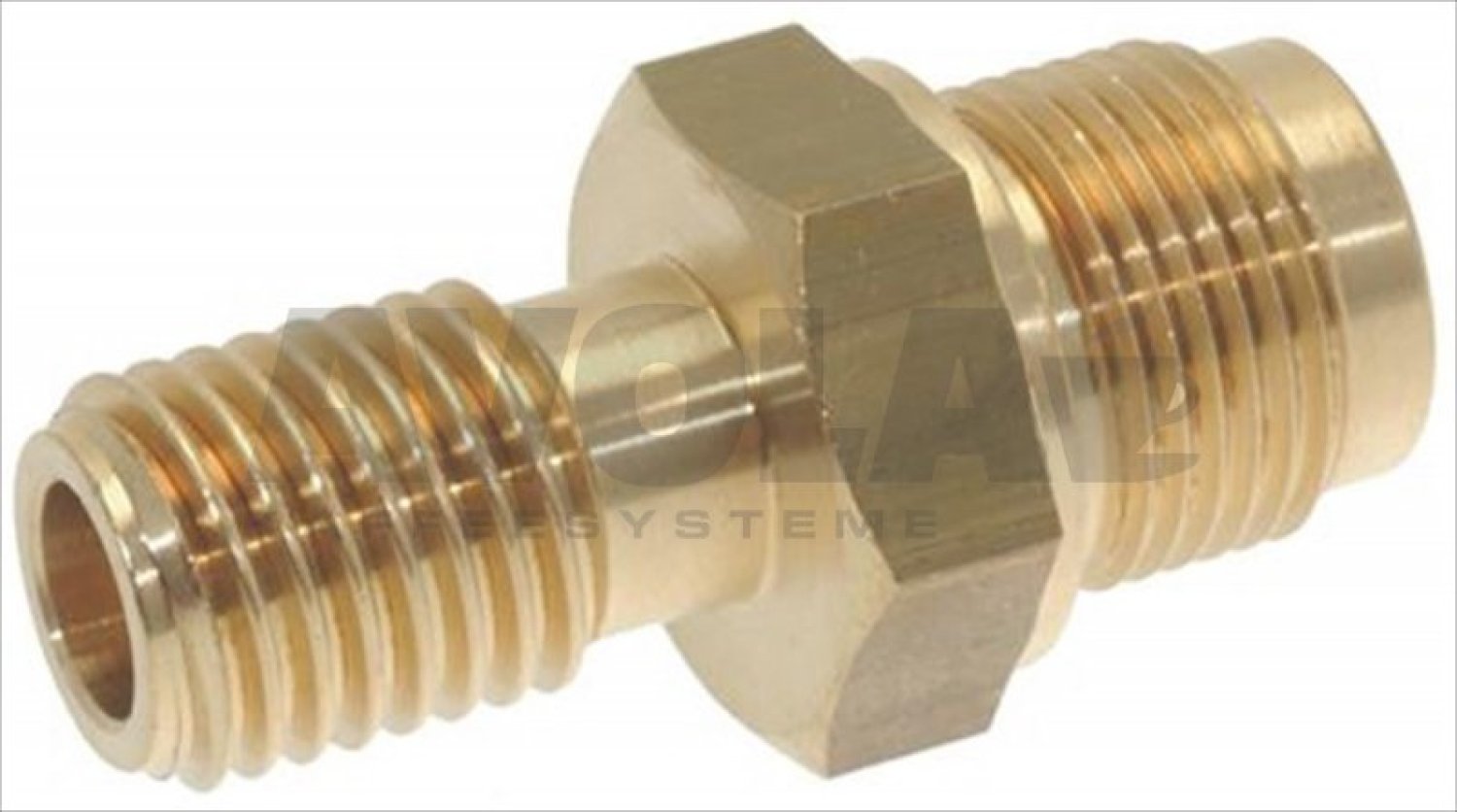

9 | 8005465 |  | 8005465 TAP PIN | excl. Shipping costs Delivery time 4-6 weeks |
23,15 € | |

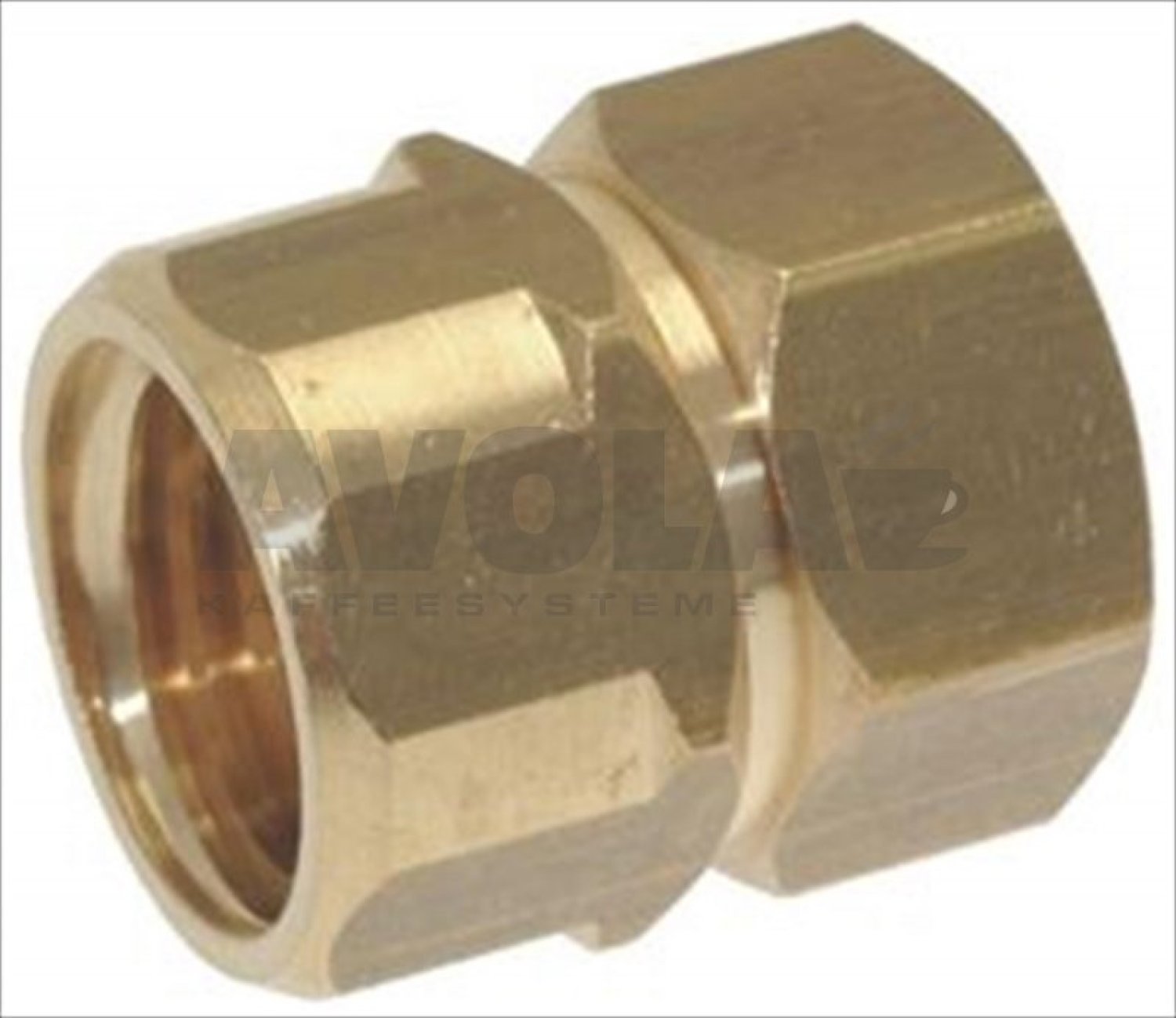

10 | 8005464 |  | 8005464 TAP BUSHING | excl. Shipping costs Delivery time is determined |
18,52 € | |
11 | 8007259 |  | 8007259 WASHER FLAT LARGE M8 | excl. Shipping costs Delivery time is determined |
| |
12 | 8001671 |  | 8001671 PTFE FLAT GASKET ø 18x9x0,5 mm | excl. Shipping costs immediately available |
1,36 € | |
13 | 8005547 |  | 8005547 SPRING RING RADIAL | excl. Shipping costs immediately available, 16 available |
0,52 € | |
14 | 8006856 |  | 8006856 NUT 3/8 | excl. Shipping costs immediately available, 8 available |
2,55 € | |
15 | 8005621 |  | 8005621 COGGED WASHER | excl. Shipping costs Delivery time is determined |
1,38 € | |
17 | 8001977 |  | 8001977 O-RING 0115 EPDM | excl. Shipping costs immediately available |
0,93 € | |
18 | 8003667 |  | 8003667 SPRING ø 12x15 mm | excl. Shipping costs immediately available, 8 available |
2,94 € | |
19 | 8001858 |  | 8001858 STEAM PIPE ARTICULATION BUSHING | excl. Shipping costs immediately available, 13 available |
1,45 € | |
20 | 8001486 |  | 8001486 PTFE FLAT GASKET 21x16,8x2 mm | excl. Shipping costs immediately available |
1,37 € | |

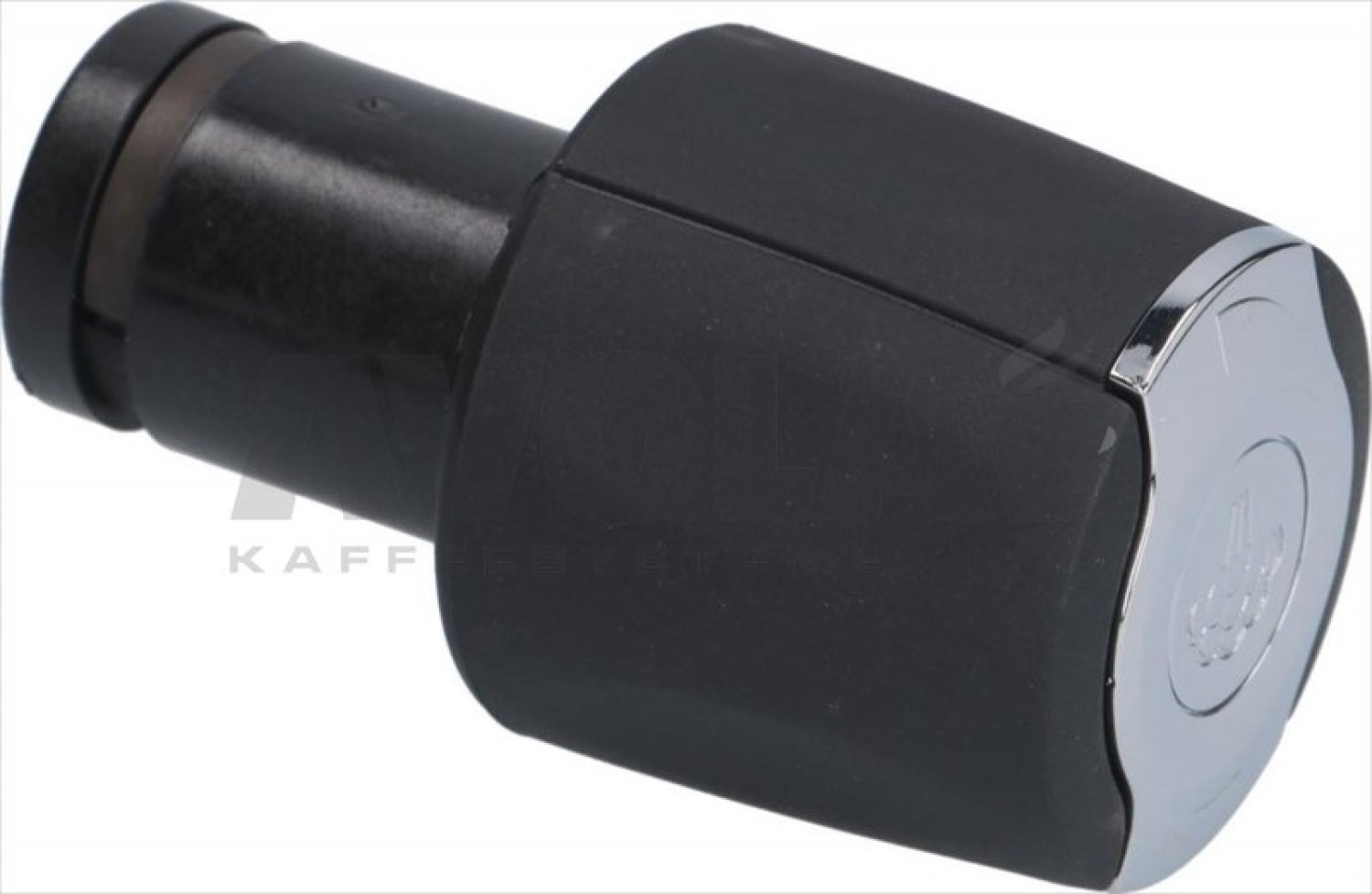

21 | 8003157 |  | 8003157 STEAM TAP KNOB | excl. Shipping costs immediately available, 1 available |
| |
22 | 8003854 |  | 8003854 STEAM HANDLE SPRING | excl. Shipping costs immediately available |
1,77 € | |
23 | 8003155 |  | 8003155 WATER/STEAM TAP KNOB | excl. Shipping costs immediately available, 1 available |
40,07 € | |
24 | 8006857 |  | 8006857 RANCILIO STEAM PIPE | |
| |
24 | 8006892 |  | 8006892 STAINLESS STEEL STEAM PIPE COMPLETE | excl. Shipping costs immediately available, 1 available |
36,12 € | |

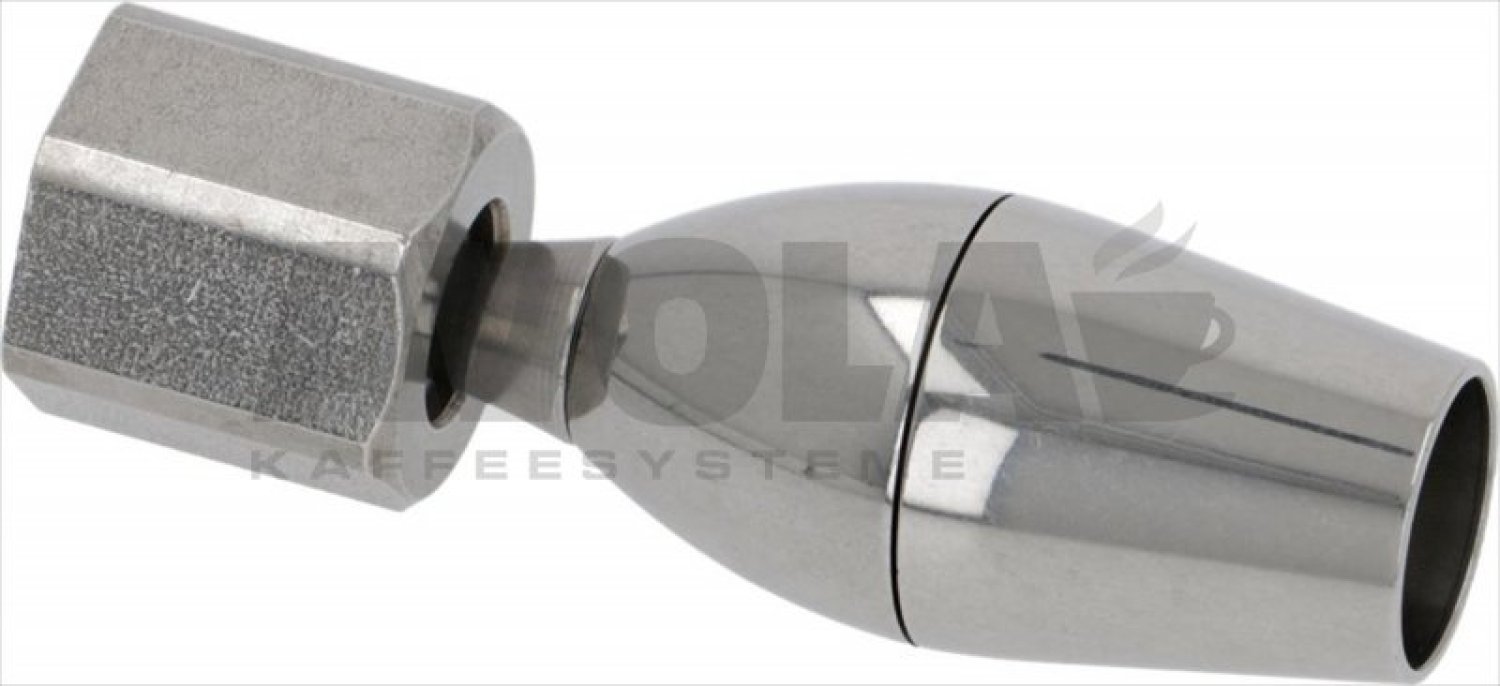

26 | 8006585 |  | 8006585 COMPLETE WATER PIPE | excl. Shipping costs Delivery time is determined |
76,39 € | |
If your article is not listed, please use the following form and enter the desired numbers.
