Rancilio

RANCILIO NIVEAUGRUPPEN

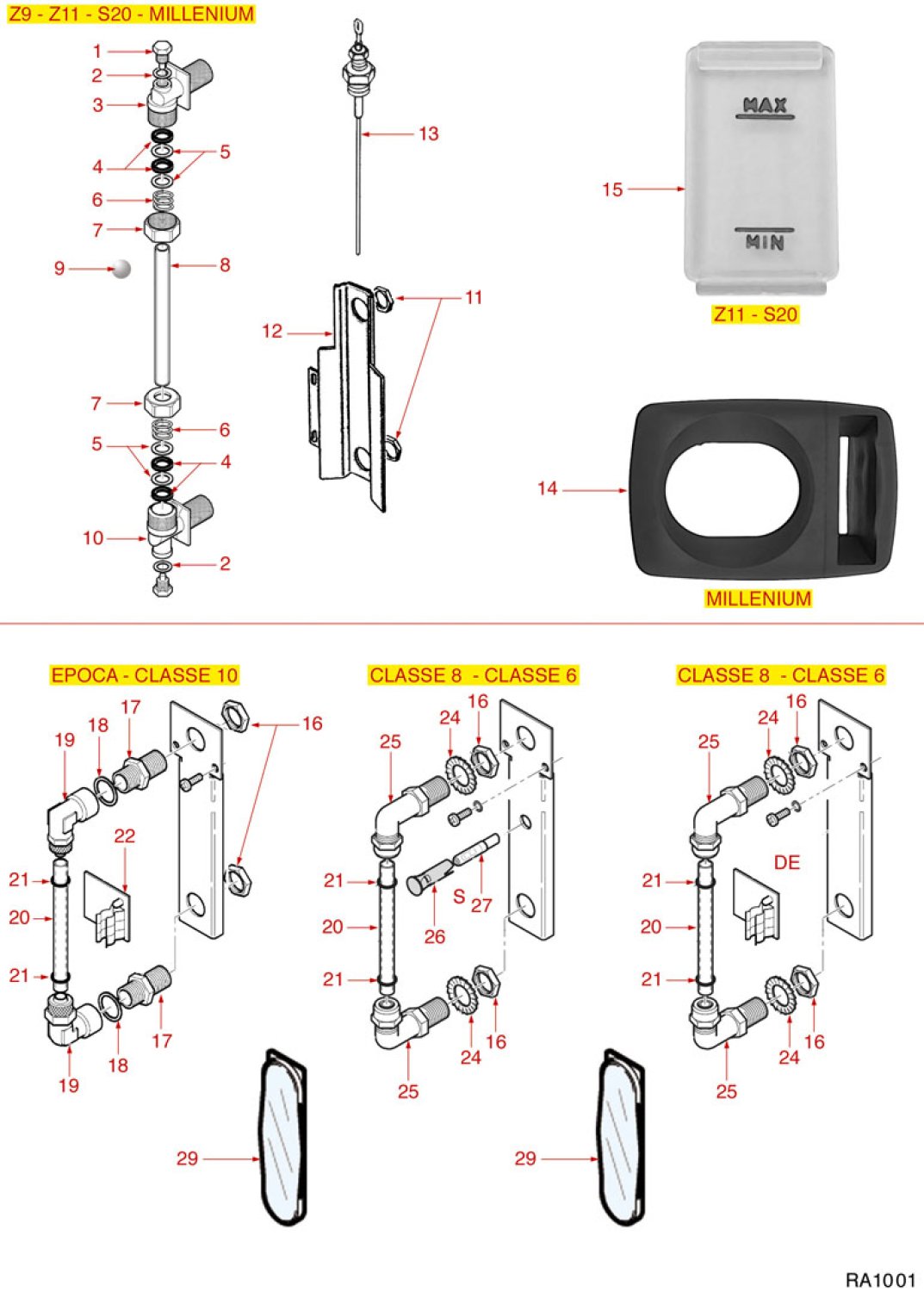

Drawing number 8057408

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

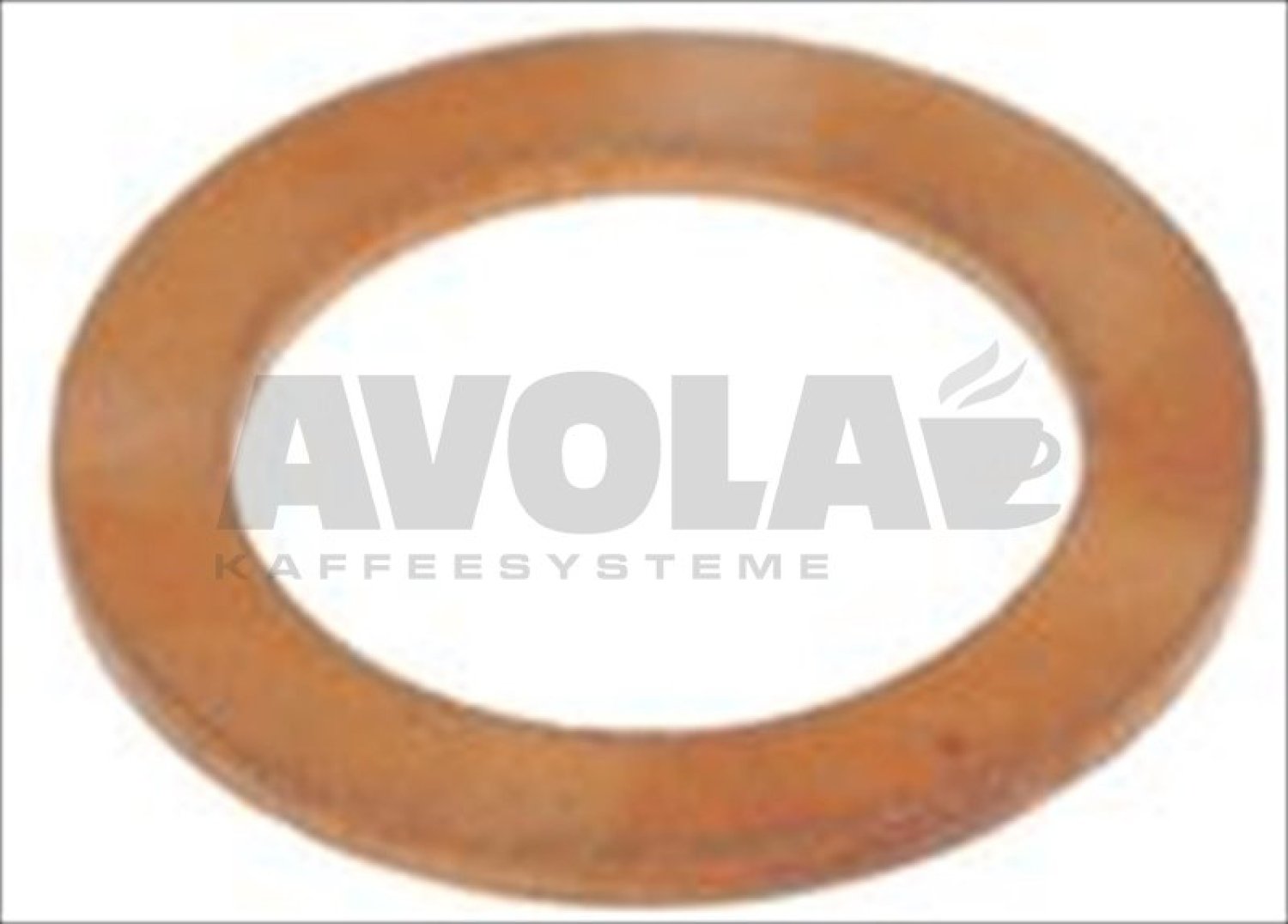

2copper flat gasket8005618
COPPER FLAT GASKET
0,67 €

excl. Shipping costs
immediately available, 3 available

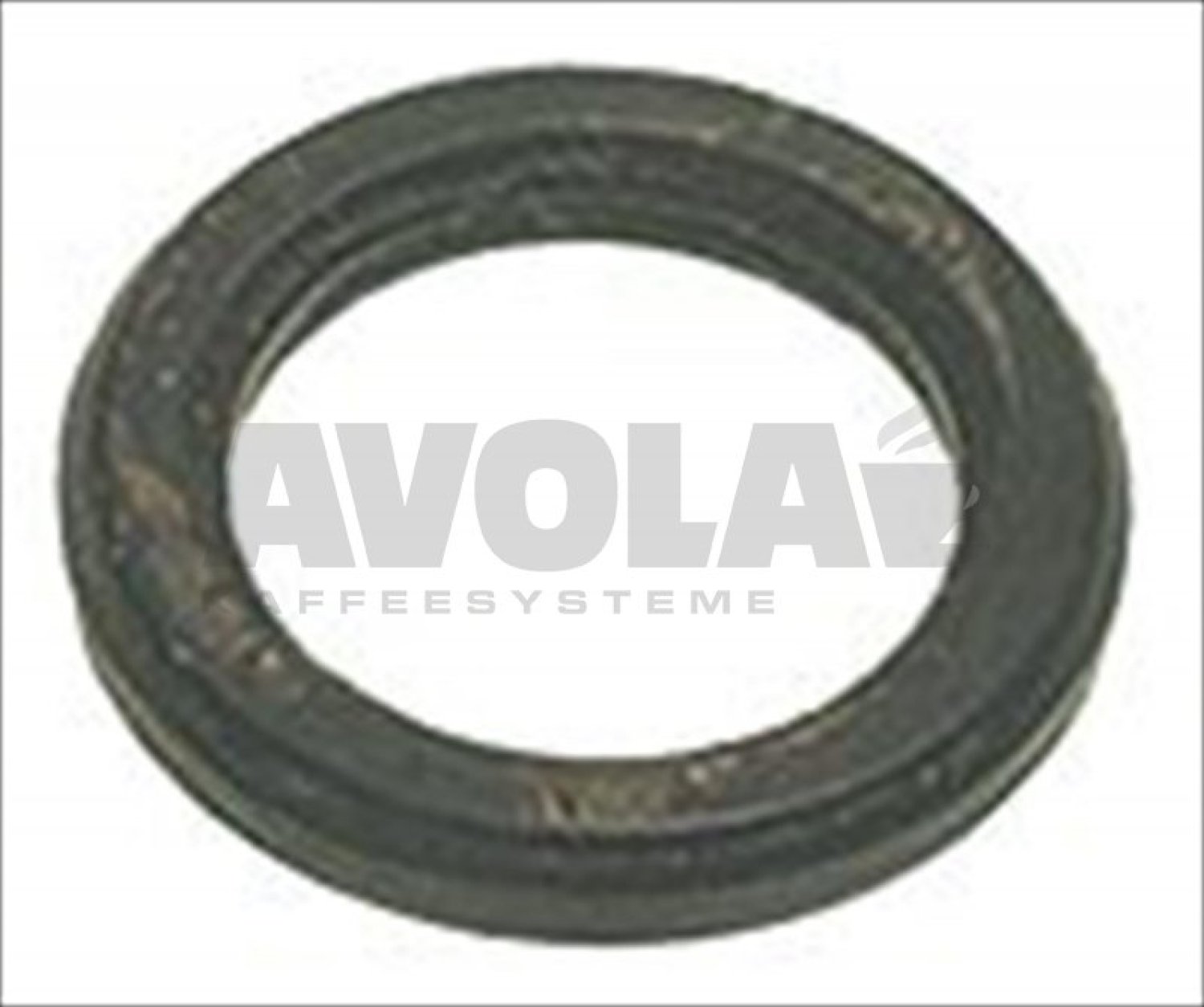

4flat epdm gasket o 18x12x3 mm8001526
FLAT EPDM GASKET ø 18x12x3 mm
1,27 €

excl. Shipping costs
immediately available

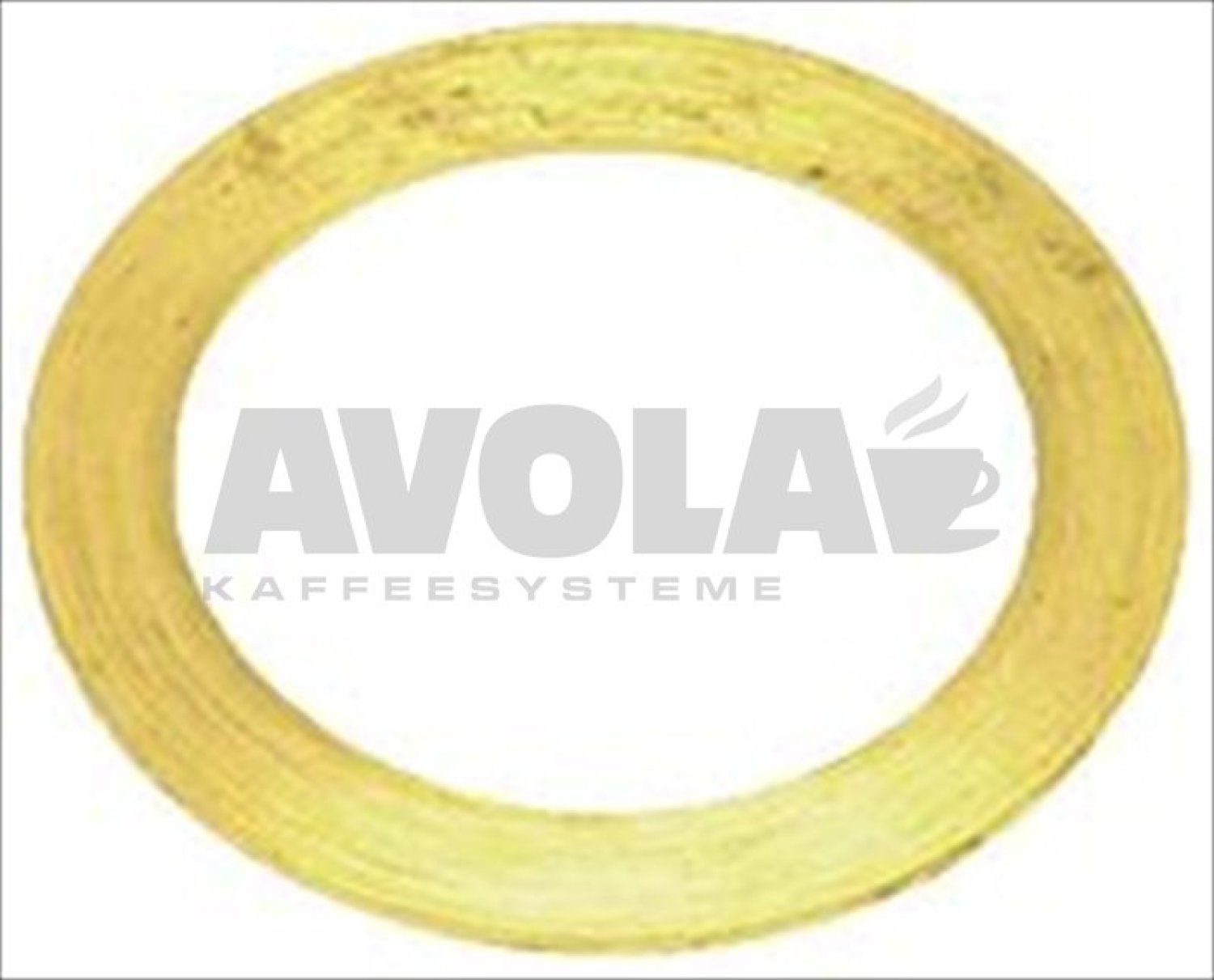

5brass washer8001979
BRASS WASHER
Price on request
6level spring8003846
LEVEL SPRING
2,36 €

excl. Shipping costs
immediately available, 6 available

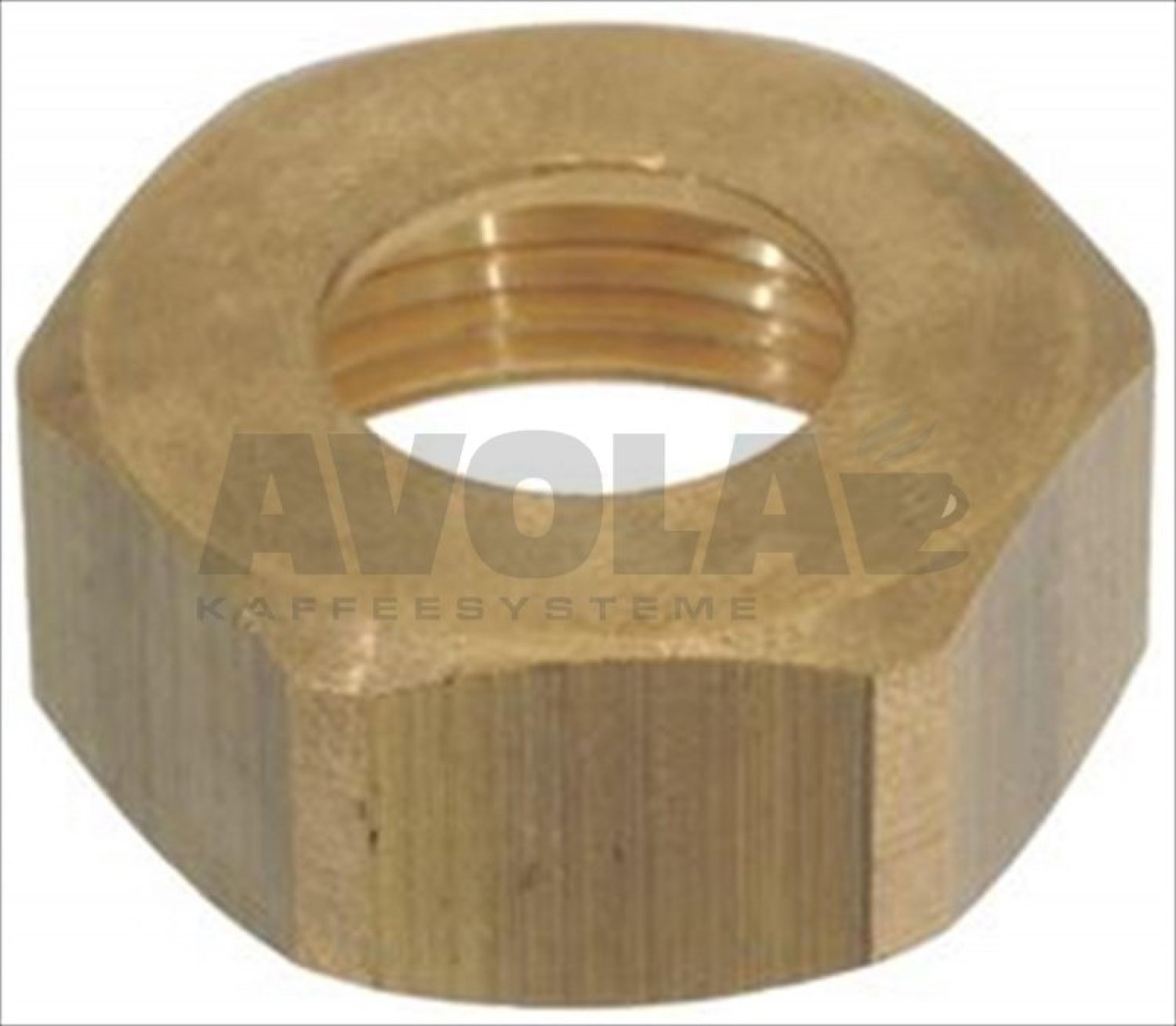

7glass fastening nut8002639
GLASS FASTENING NUT
5,58 €

excl. Shipping costs
Delivery time 4-6 weeks

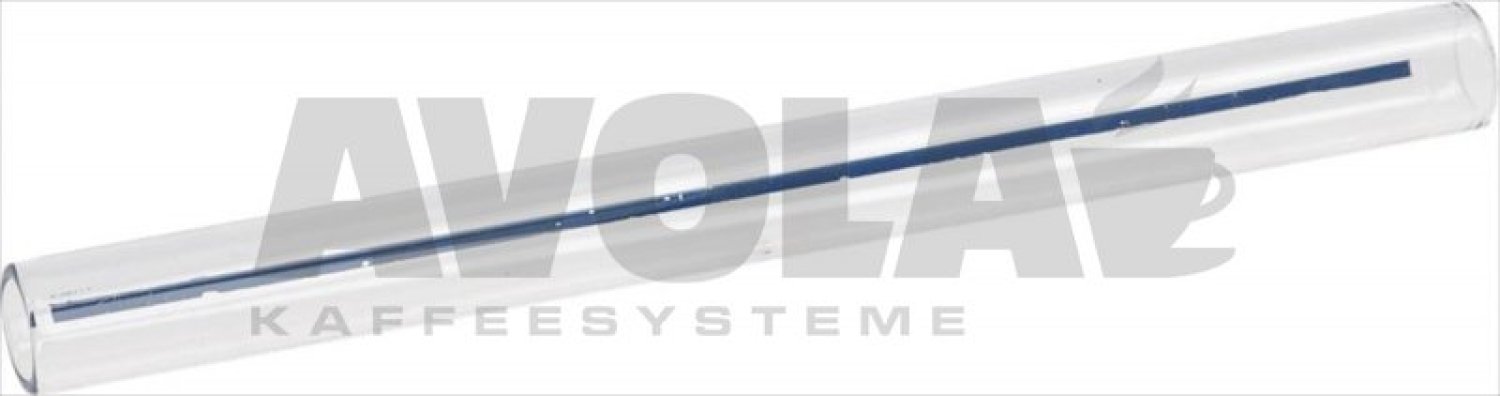

8level glass8007031
LEVEL GLASS
8,18 €

excl. Shipping costs
immediately available, 1 available
9red level ball8005083
RED LEVEL BALL
1,92 €

excl. Shipping costs
immediately available, 16 available
13level probe o 1 4 m 125 mm8005325
LEVEL PROBE ø 1/4 M-125 mm
16,72 €

excl. Shipping costs
immediately available, 2 available
13level probe o 1 4 m 115 mm8005331
LEVEL PROBE ø 1/4 M-115 mm
10,79 €

excl. Shipping costs
immediately available, 7 available

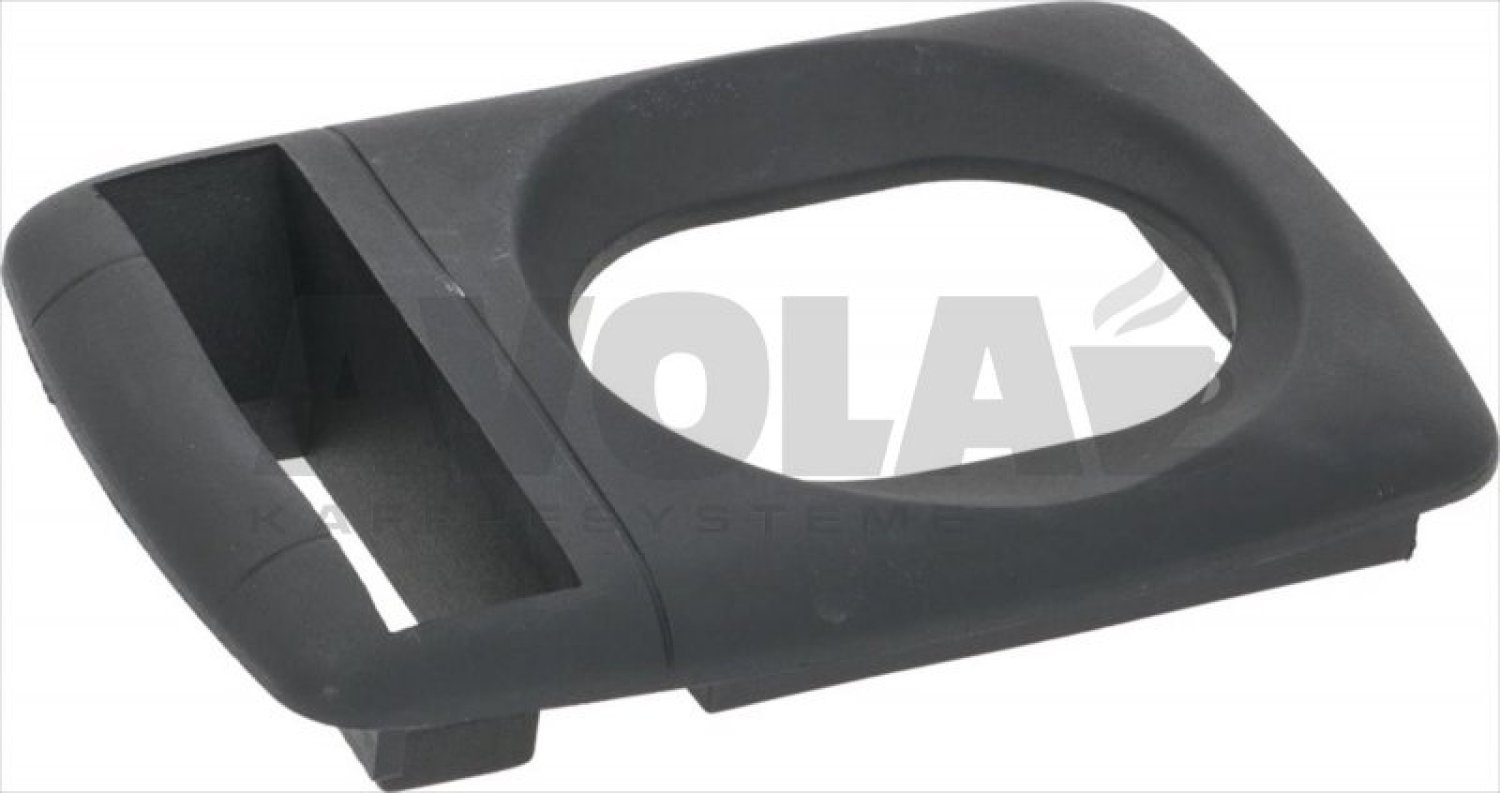

14level pressure gauge cover ml8002695
LEVEL/PRESSURE GAUGE COVER ML
8,64 €

excl. Shipping costs
Delivery time 4-6 weeks

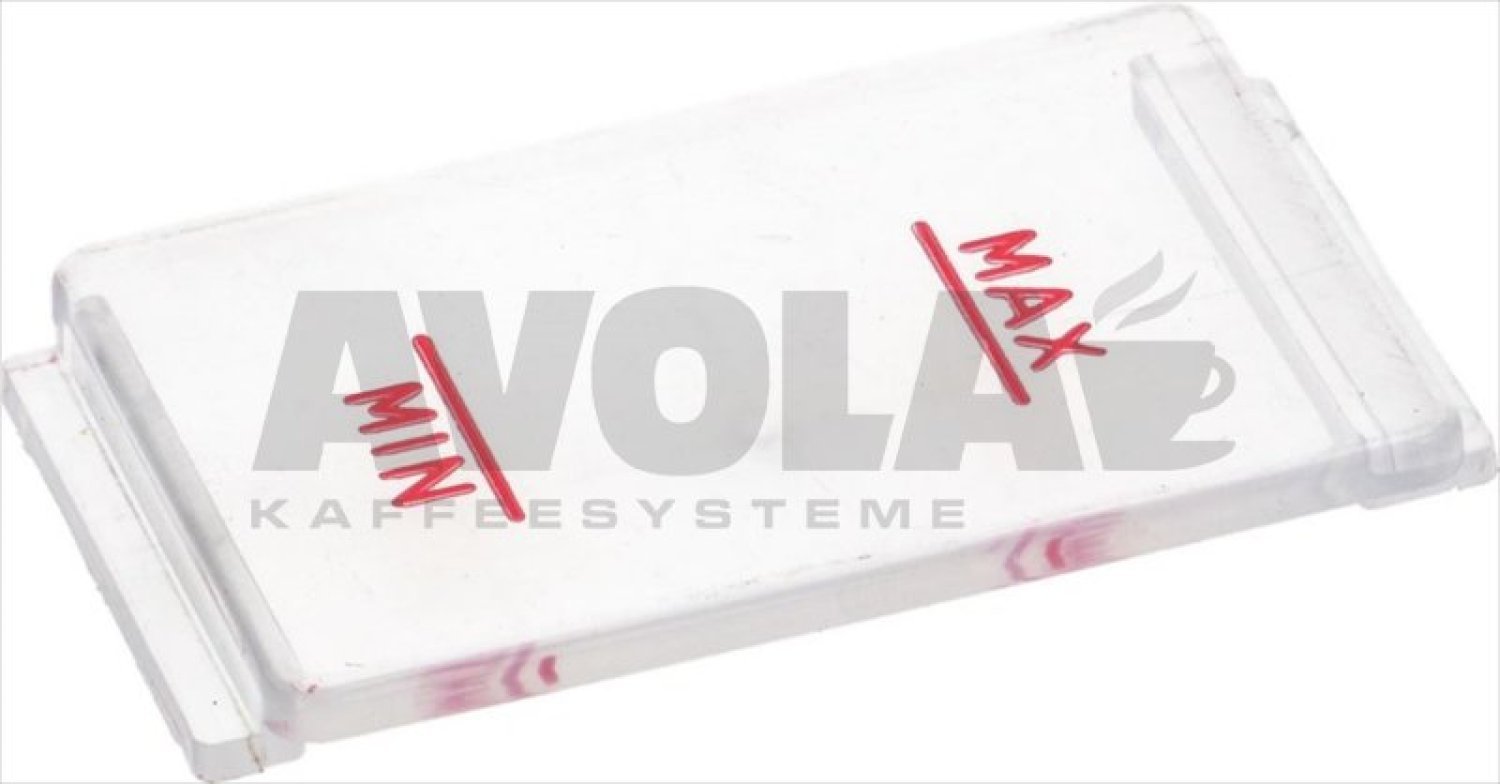

15level plate 90x50 mm8002691
LEVEL PLATE 90x50 mm
10,98 €

excl. Shipping costs
Delivery time
is determined
16nut 3 88006856
NUT 3/8
2,55 €

excl. Shipping costs
immediately available, 8 available
18ptfe flat gasket o 22x17x2 mm8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs
immediately available
18copper flat gasket 22x17x1 5 mm8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs
immediately available

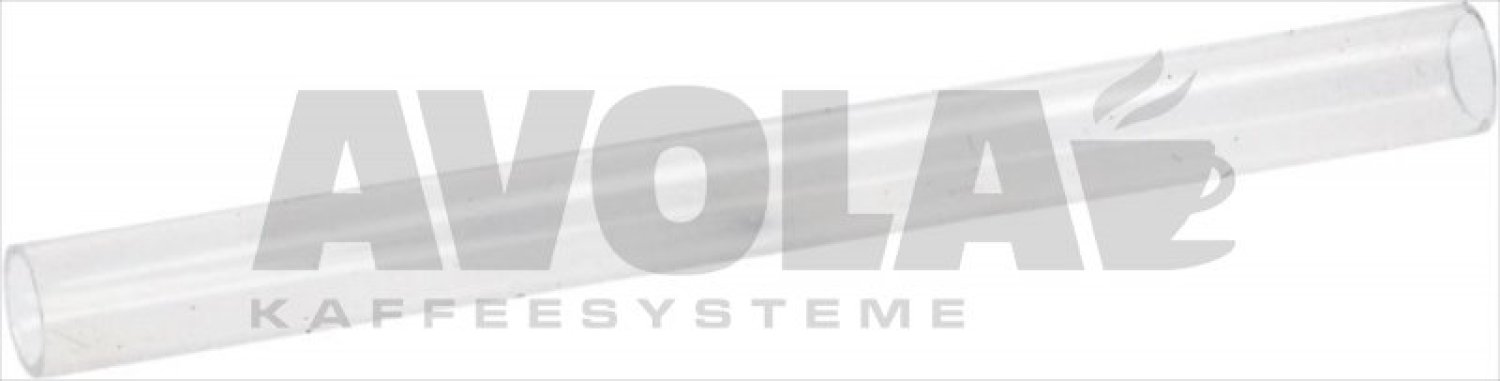

20ptfe level glass8006898
PTFE LEVEL GLASS
13,61 €

excl. Shipping costs
immediately available, 1 available
21o ring 02037 epdm8001975
O-RING 02037 EPDM
0,76 €

excl. Shipping costs
immediately available

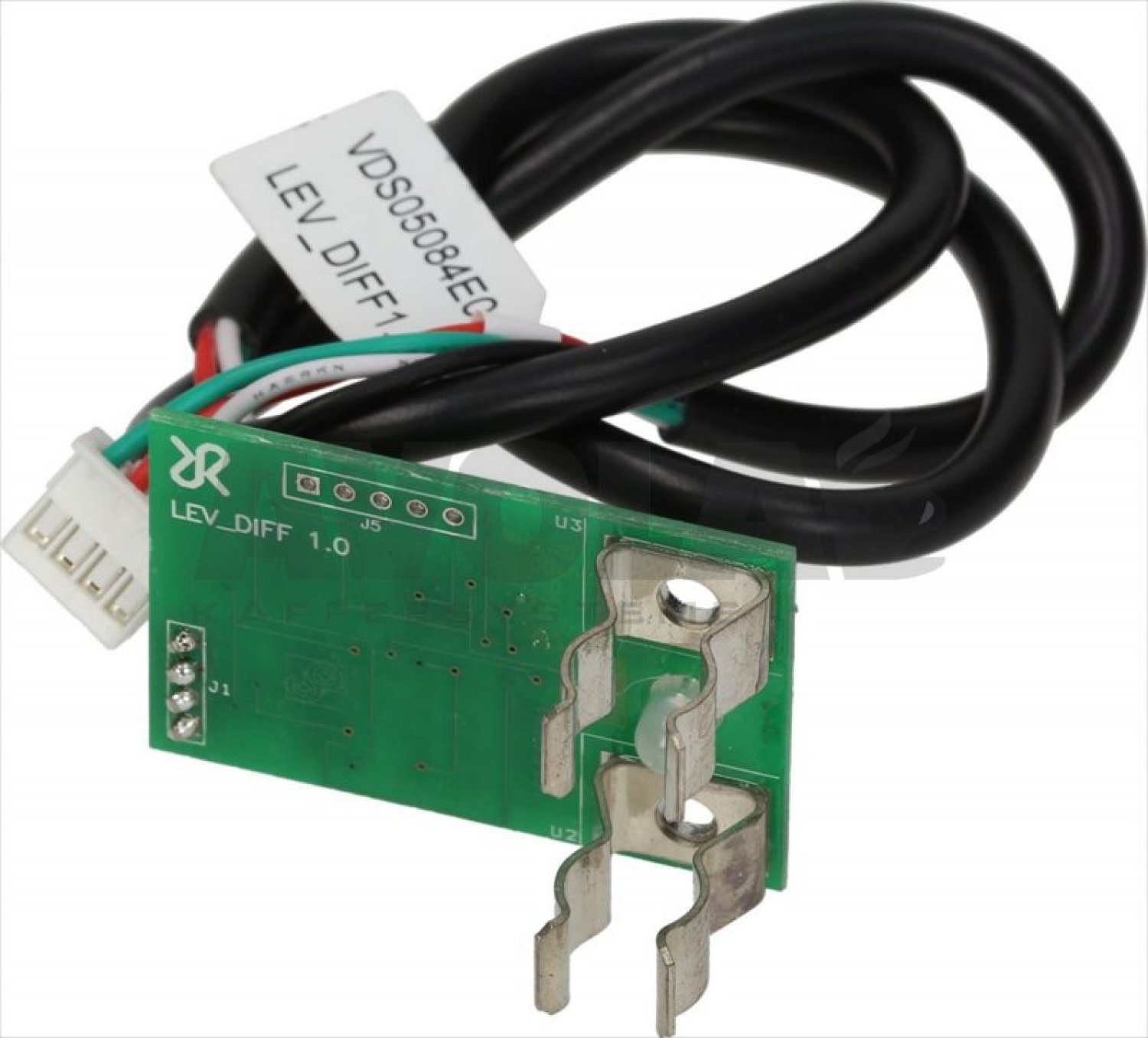

22level control circuit board8006243
LEVEL CONTROL CIRCUIT BOARD
This article is no longer available

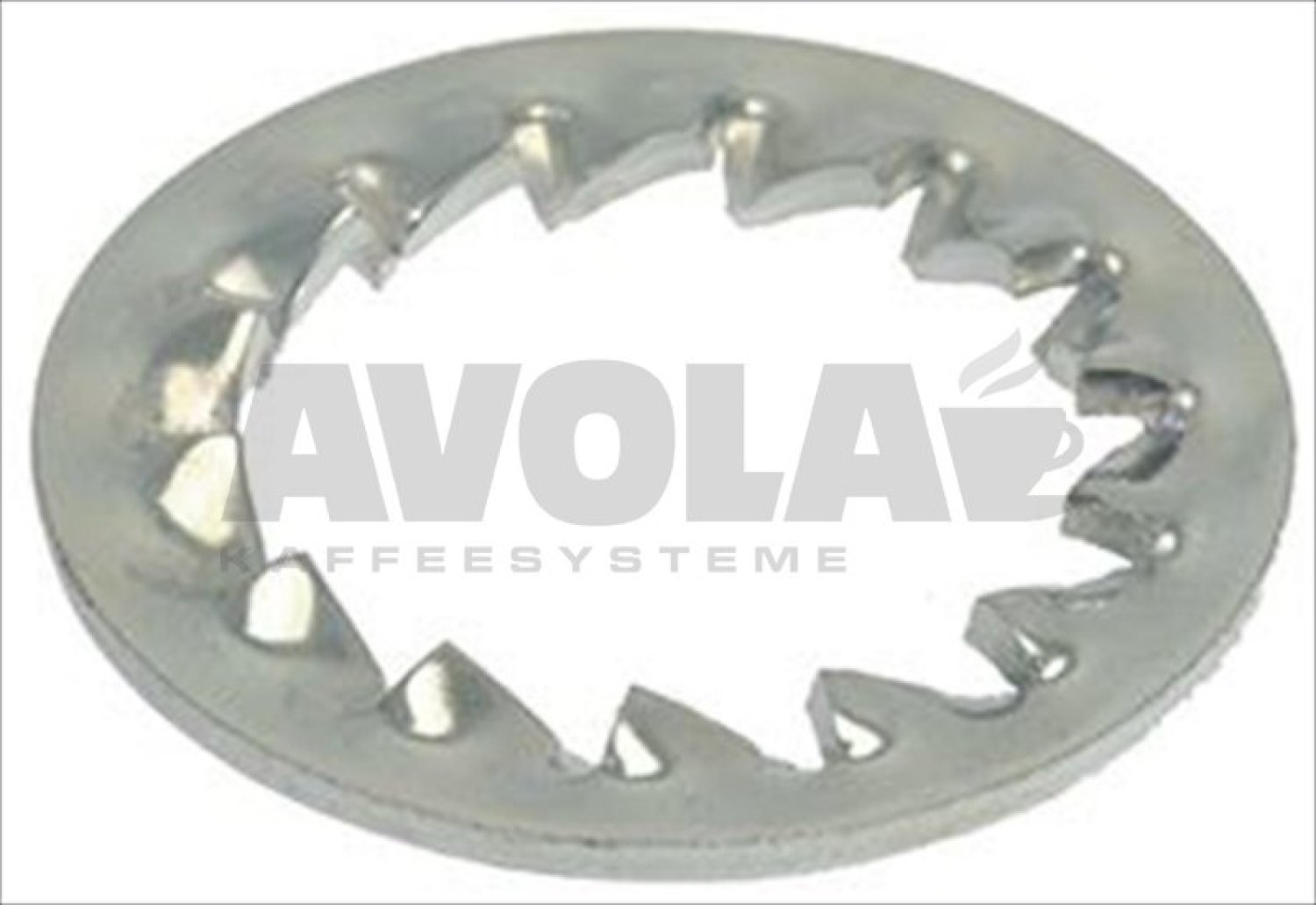

24cogged washer8005621
COGGED WASHER
1,38 €

excl. Shipping costs
Delivery time
is determined
26orange lamp receptacle8015690
ORANGE LAMP RECEPTACLE
Price on request
27neutral indicator lamp 220v8015640
NEUTRAL INDICATOR LAMP 220V
5,97 €

excl. Shipping costs
immediately available, 3 available
29level gauge plate 61x18 mm8002640
LEVEL GAUGE PLATE 61x18 mm
6,99 €

excl. Shipping costs
immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
