Rancilio

RANCILIO BOILER CLASSE 10

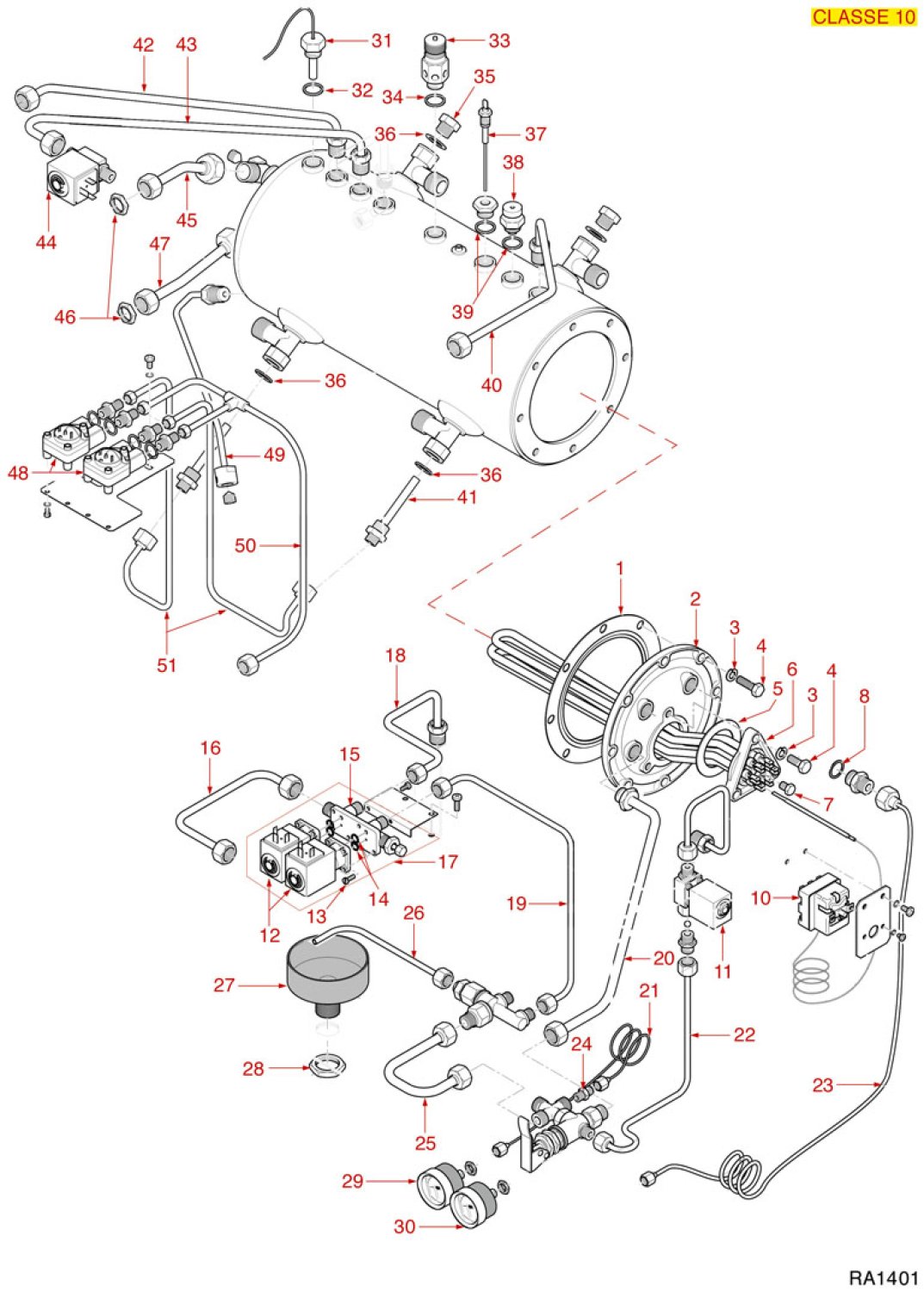

Drawing number 8057412

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1boiler gasket8001974
BOILER GASKET
19,03 €

excl. Shipping costs
immediately available, 3 available
1rancilio kesseldichtung o 220x175x2 mm 13 loch old modell8035606
RANCILIO KESSELDICHTUNG ø 220x175x2 MM 13 LOCH OLD MODELL
28,56 €

excl. Shipping costs
immediately available, 1 available
4schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 9128061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs
immediately available
5ptfe flat gasket o 65x47x1 5 mm8001683
PTFE FLAT GASKET ø 65x47x1,5 mm
4,64 €

excl. Shipping costs
immediately available, 7 available
6heating element 4300w 230 400v8007414
HEATING ELEMENT 4300W 230/400V
72,13 €

excl. Shipping costs
Delivery time
is determined

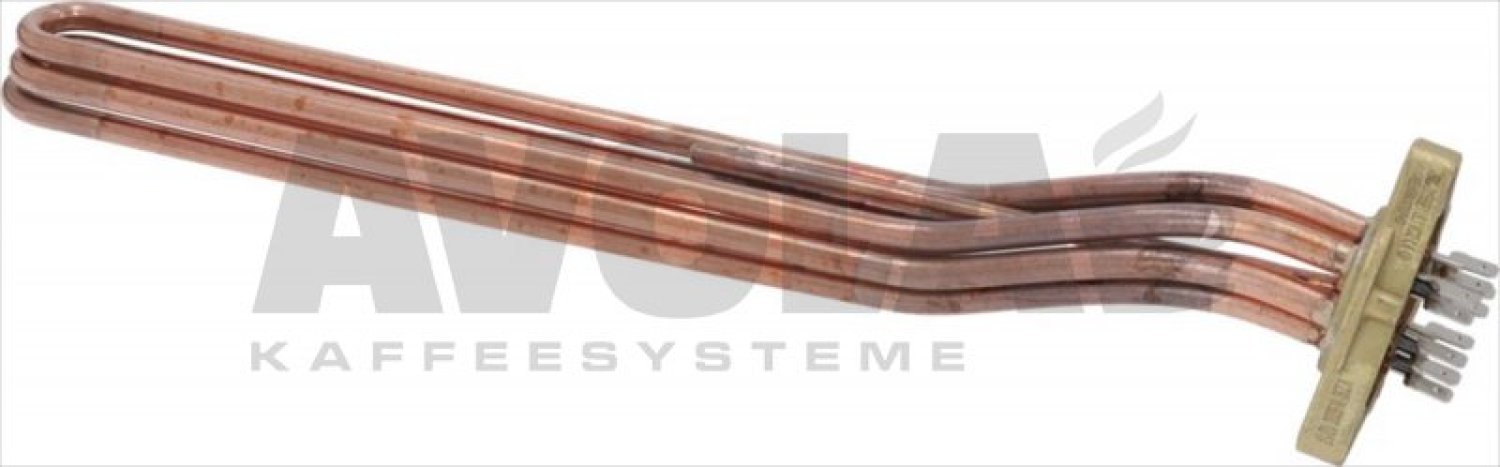

6heating element 6000w 230v8007415
HEATING ELEMENT 6000W 230V
72,96 €

excl. Shipping costs
Delivery time
is determined

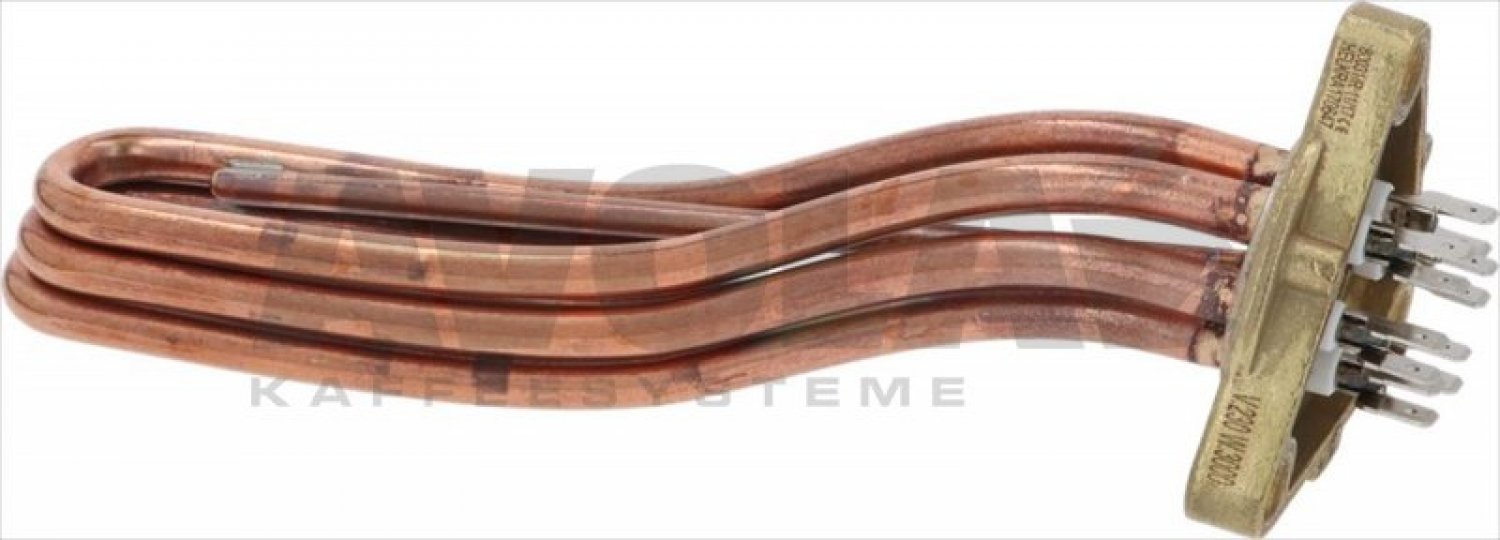

6heating element 3000w 220 380v8007539
HEATING ELEMENT 3000W 220/380V
61,59 €

excl. Shipping costs
immediately available, 1 available
7cover for heating element m 10x18007543
COVER FOR HEATING ELEMENT M 10x1
2,27 €

excl. Shipping costs
immediately available, 1 available
8ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available
10three phase thermostat 1878006461
THREE-PHASE THERMOSTAT 187
156,95 €

excl. Shipping costs
immediately available, 1 available
10rancilio classe 8 thermostat 169 deg c8089474
Rancilio Classe 8 Thermostat 169°C
156,71 €

excl. Shipping costs
Delivery time 4-6 weeks

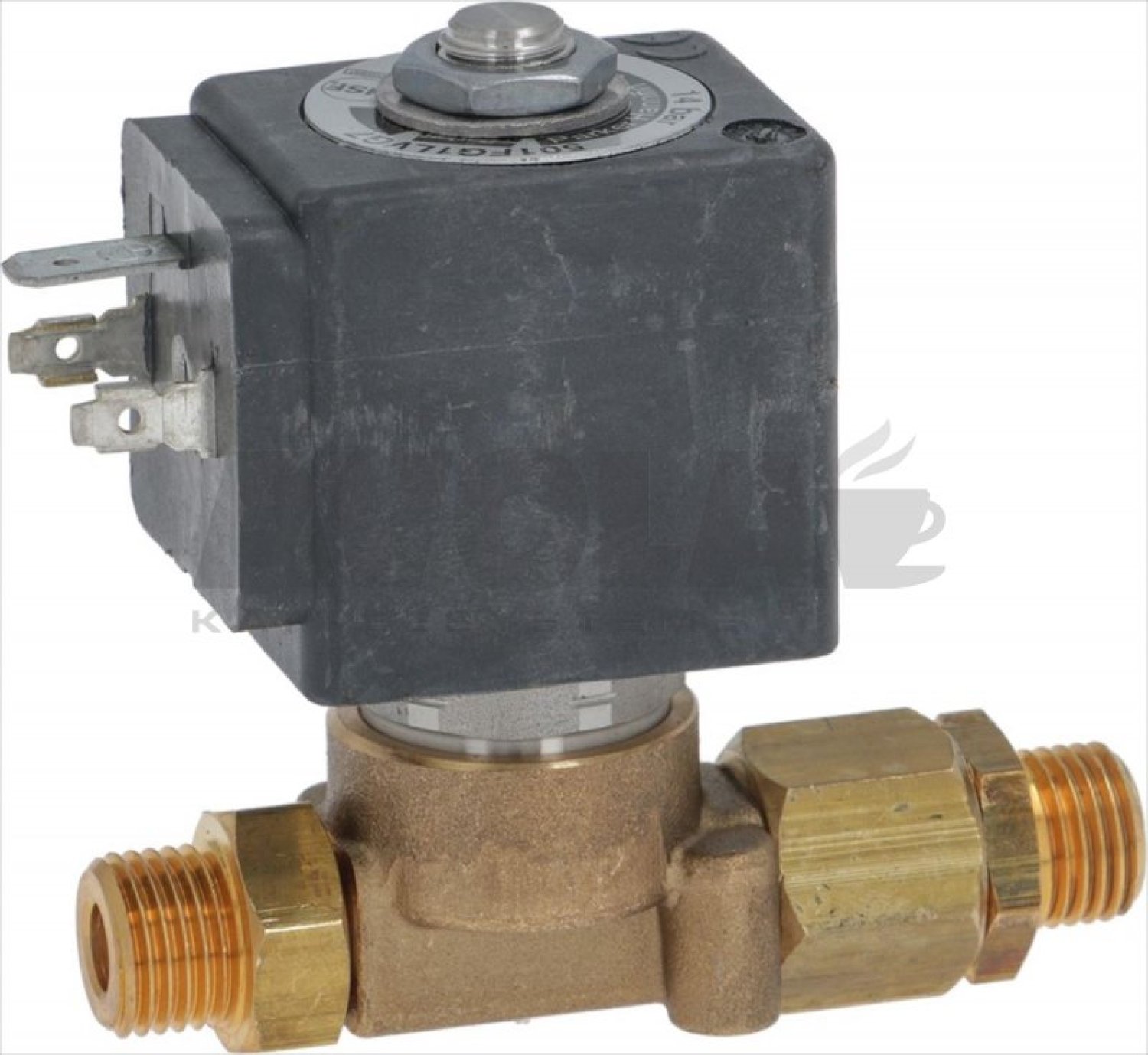

11rancilio fuellventil 2 wege magnetventil 24v mit rueckschlagventil8080537
RANCILIO FÜLLVENTIL 2-WEGE-MAGNETVENTIL 24V MIT RÜCKSCHLAGVENTIL
131,26 €

excl. Shipping costs
Delivery time
is determined
112 way solenoid valve lucifer 240v 50hz8000975
2-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,99 €

excl. Shipping costs
immediately available, 5 available

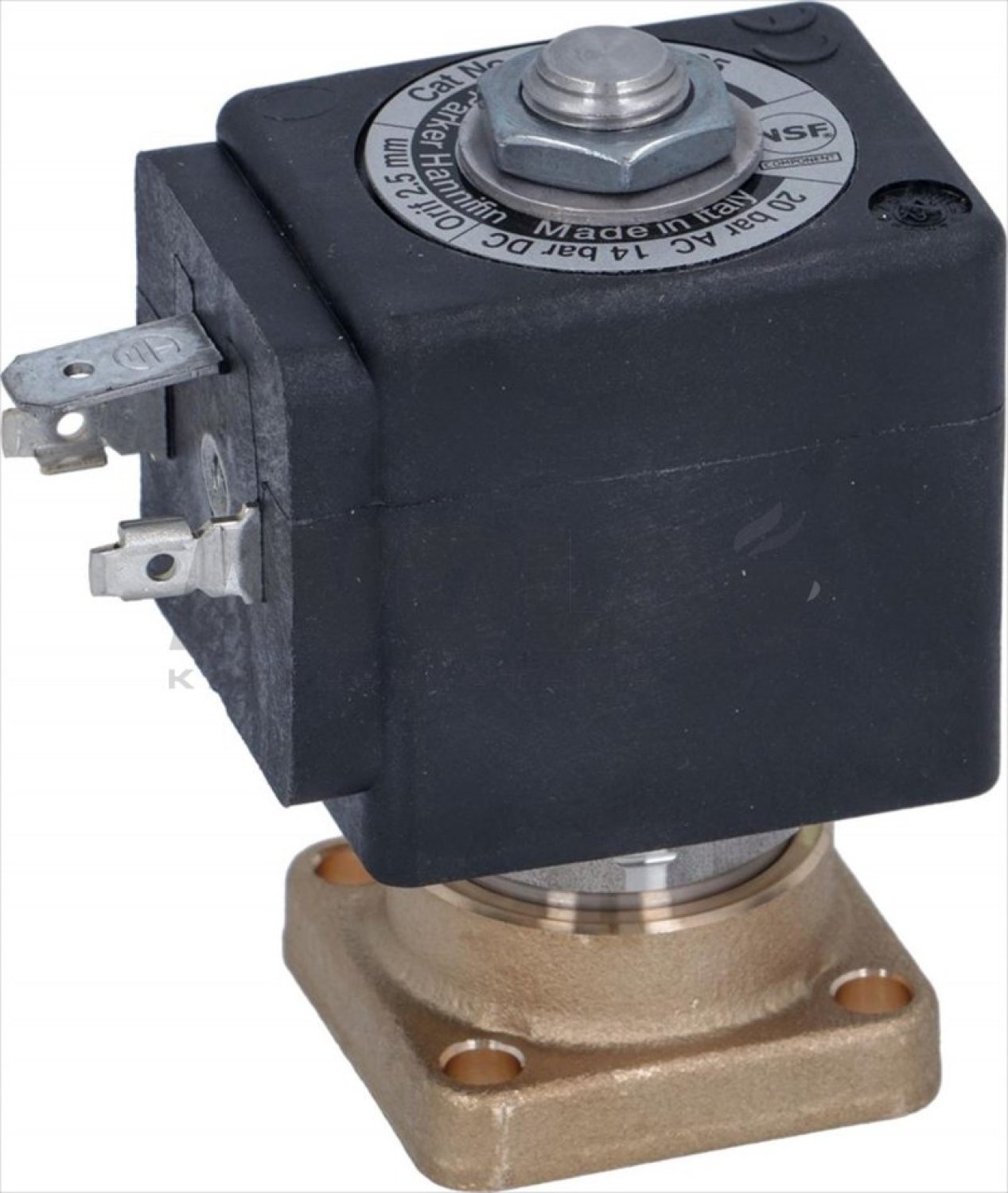

122 way solenoid valve parker 230v 50 60hz8000968
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
62,12 €

excl. Shipping costs
immediately available, 3 available
13low cylinder head screw m4x128001290
LOW CYLINDER HEAD SCREW M4x12
2,24 €

excl. Shipping costs
immediately available
14red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
14o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available

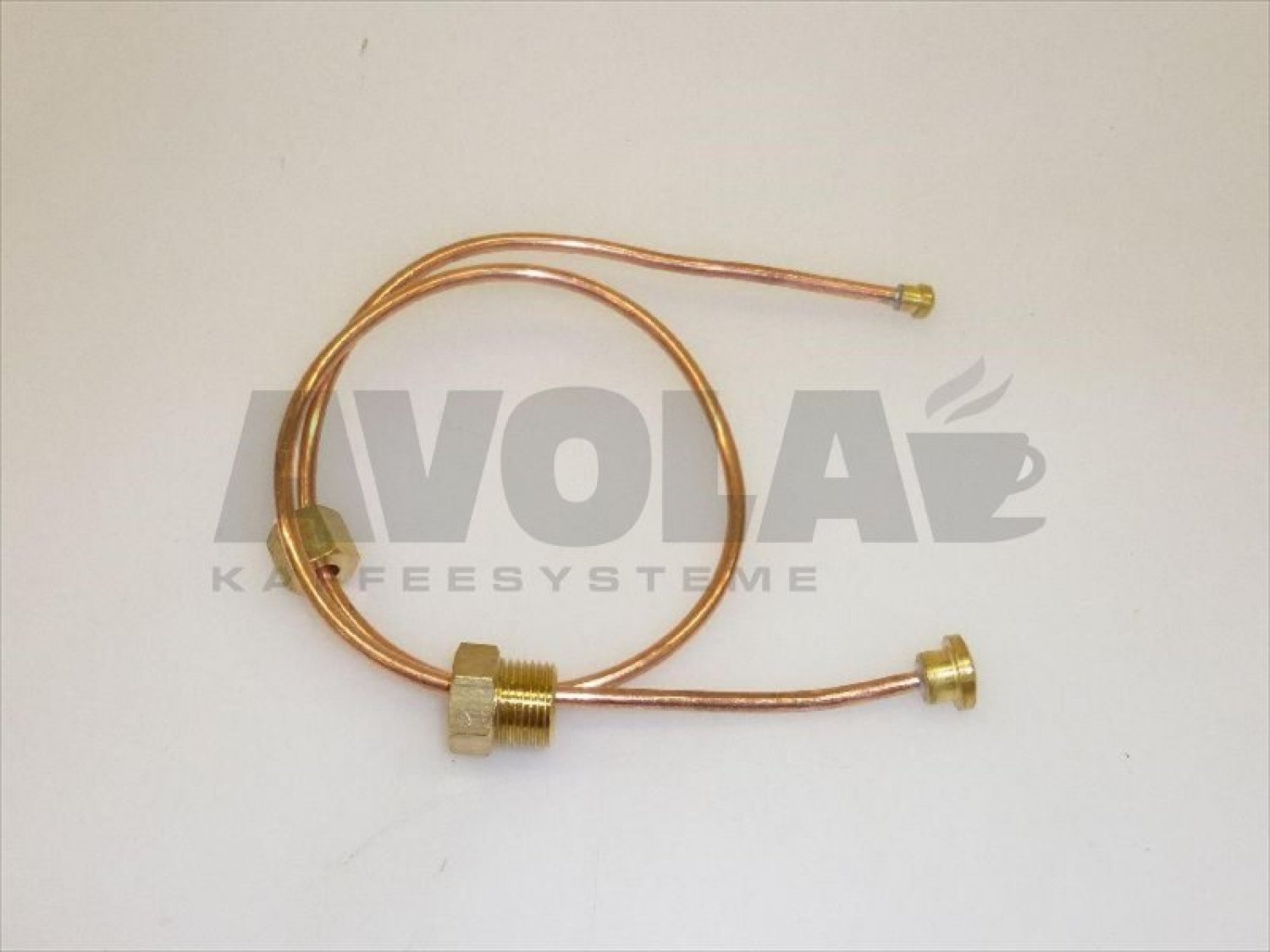

21rancilio kapillarrohr8073651
RANCILIO KAPILLARROHR
45,68 €

excl. Shipping costs
immediately available, 1 available

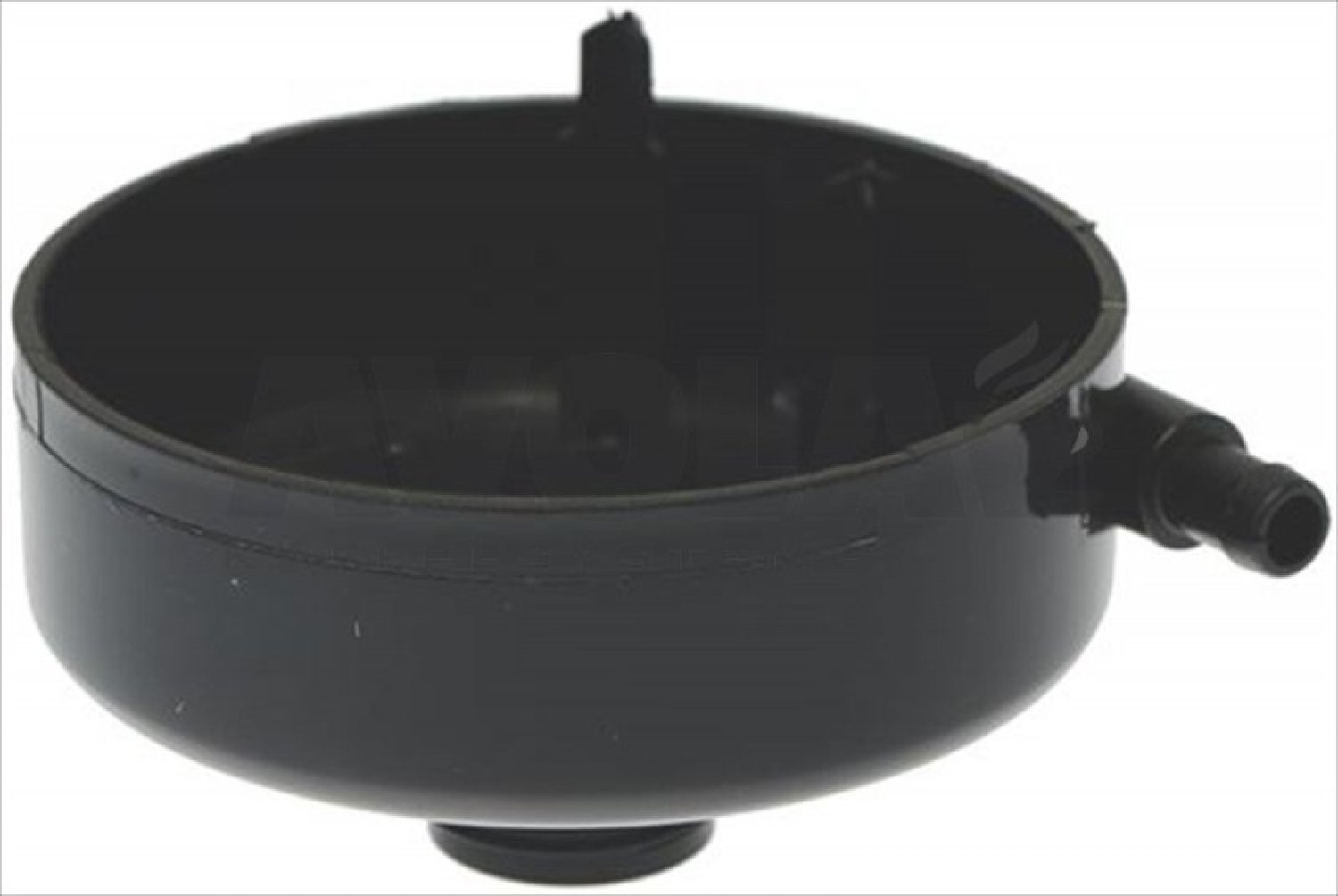

27drain tub nsf8007241
DRAIN TUB NSF
16,16 €

excl. Shipping costs
Delivery time
is determined

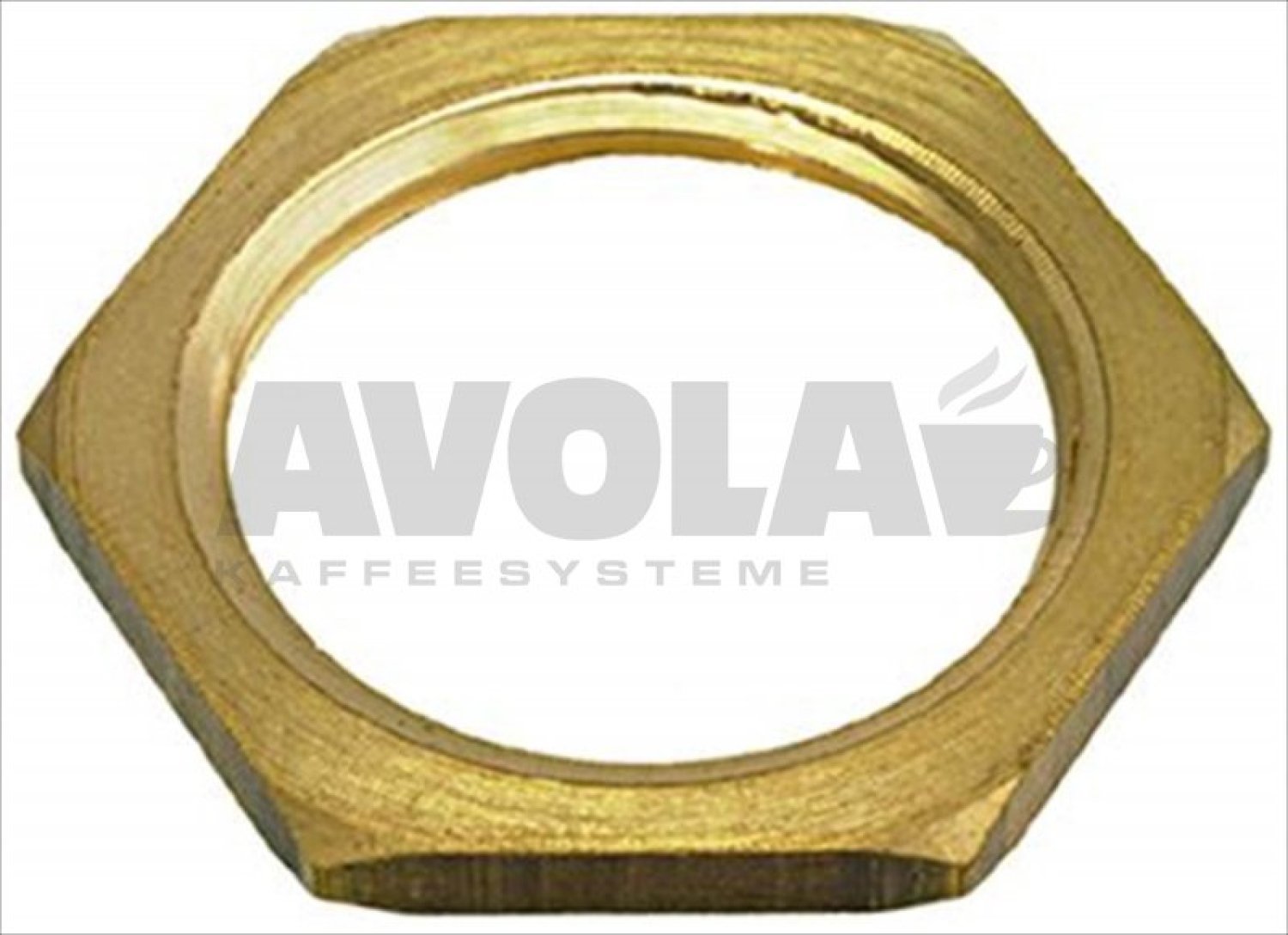

28nut o 3 4 quot8005891
NUT ø 3/4"
3,75 €

excl. Shipping costs
Delivery time
is determined

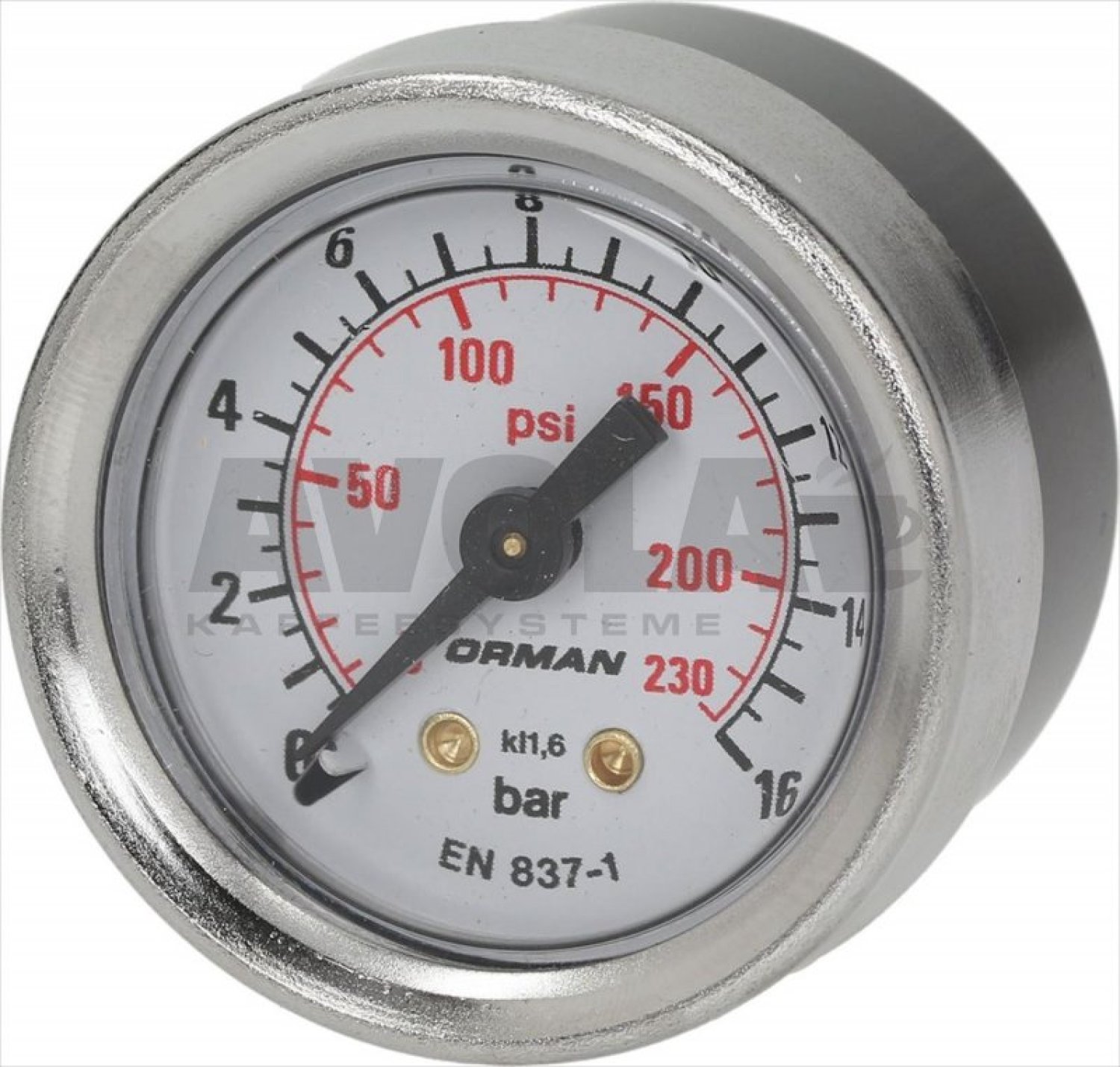

29pump pressure gauge8003455
PUMP PRESSURE GAUGE
21,30 €

excl. Shipping costs
immediately available, 1 available

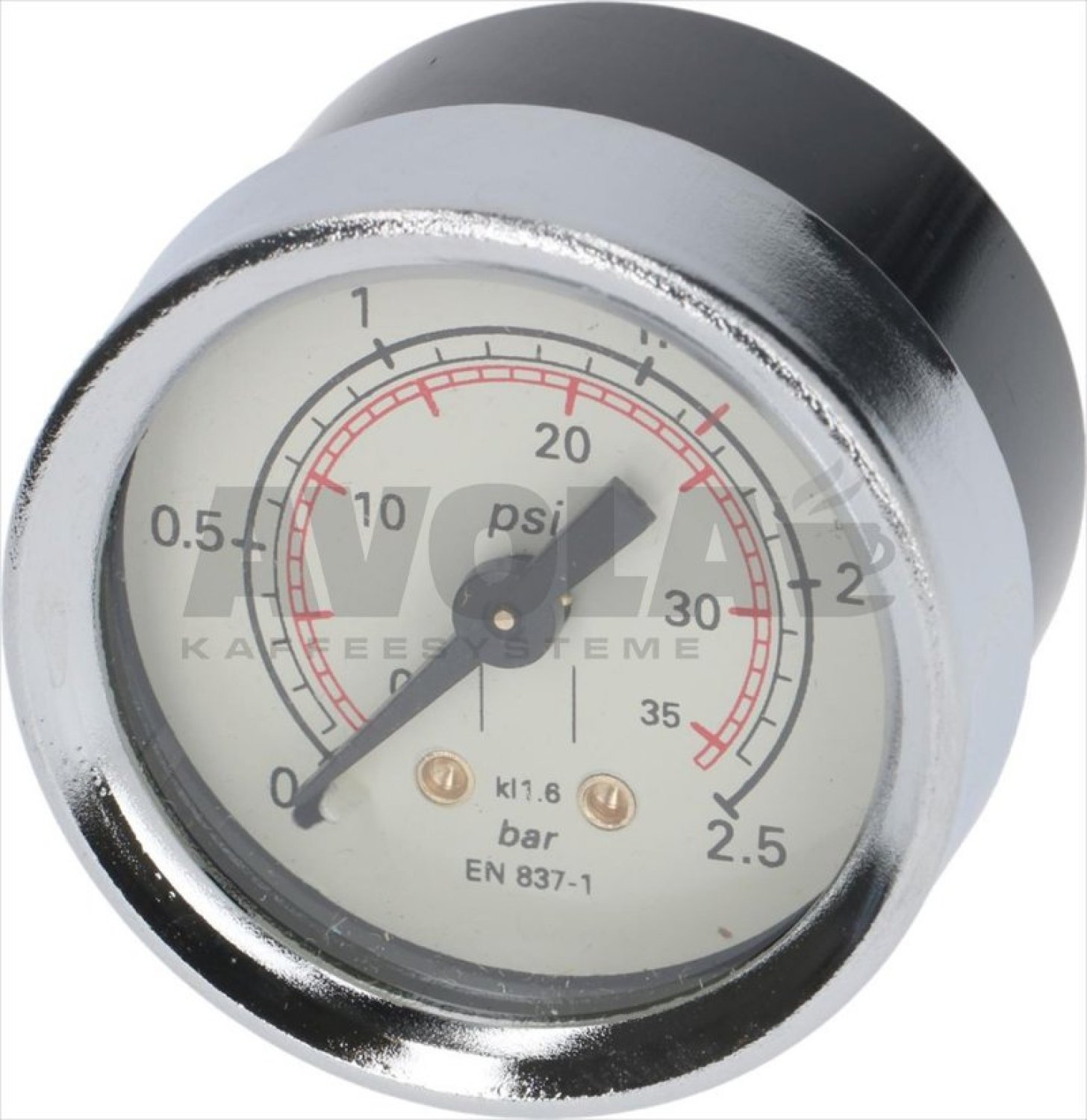

30boiler pressure gauge8003457
BOILER PRESSURE GAUGE
34,87 €

excl. Shipping costs
Delivery time
is determined

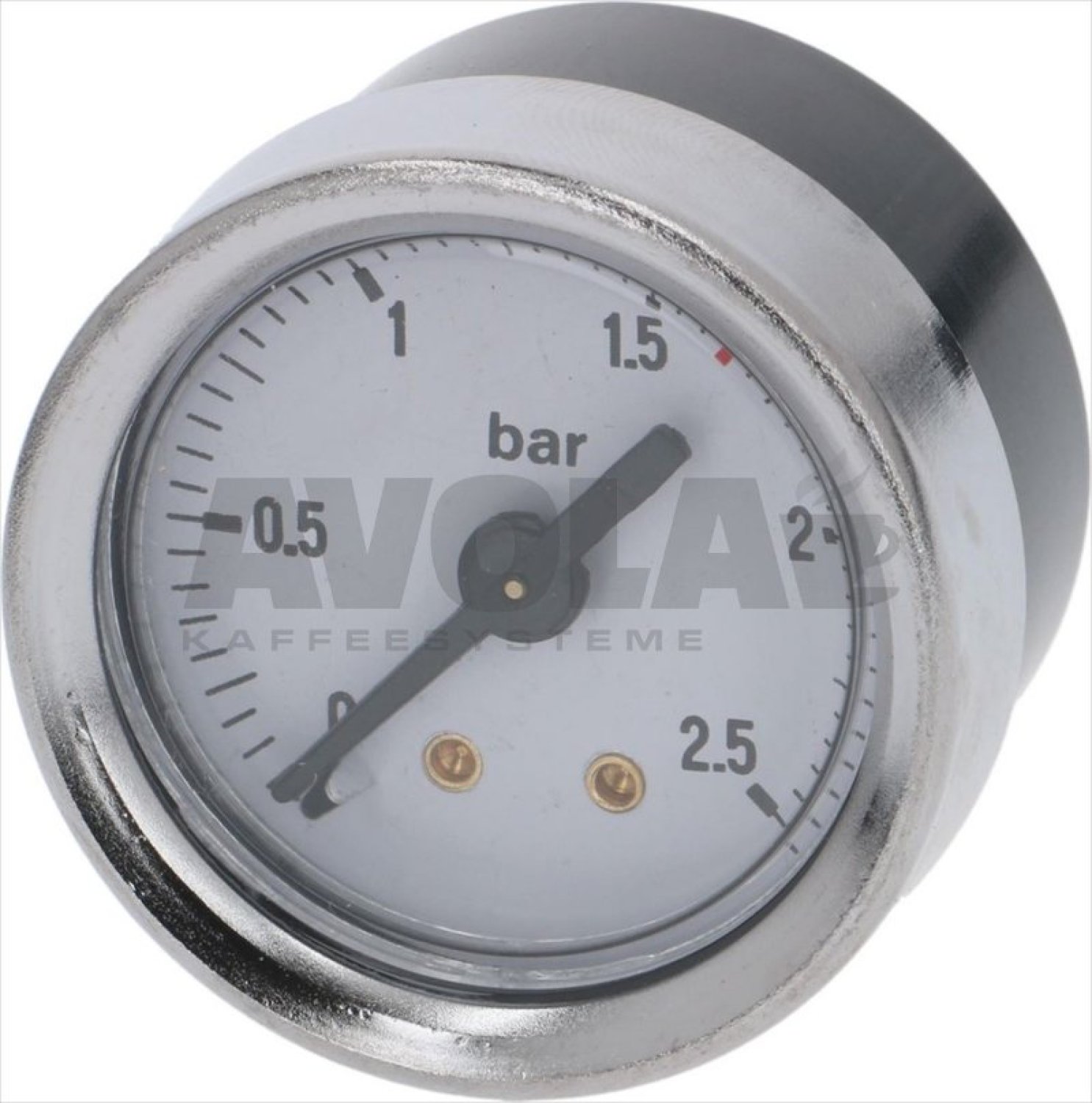

30boiler pressure gauge8003466
BOILER PRESSURE GAUGE
33,40 €

excl. Shipping costs
Delivery time
is determined

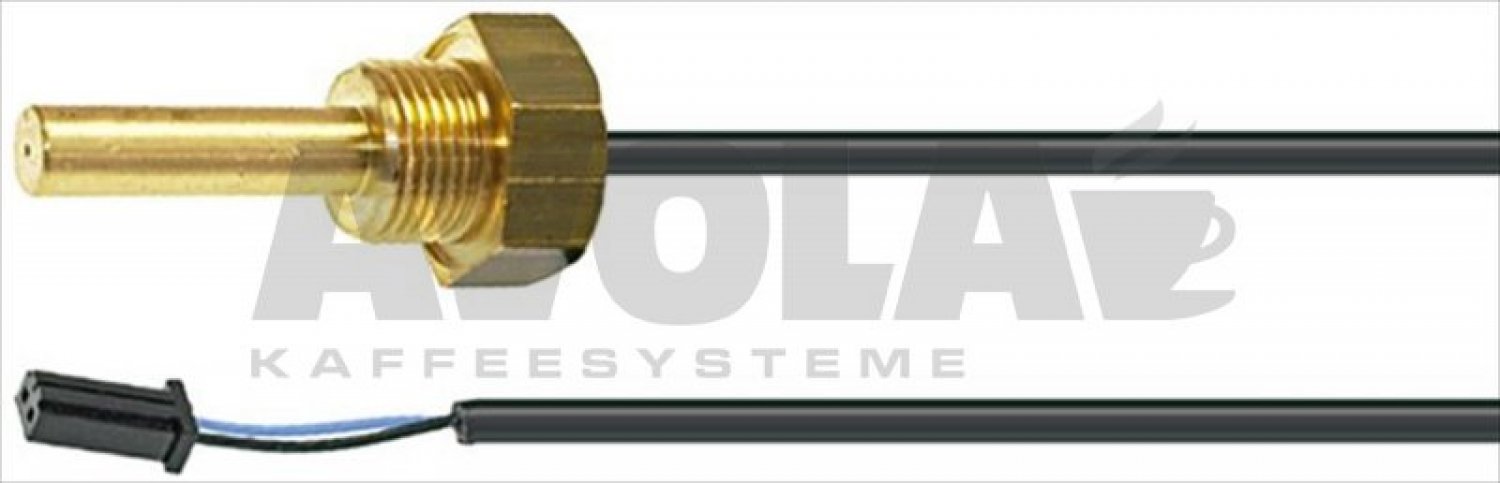

31temperature probe8005330
TEMPERATURE PROBE
100,63 €

excl. Shipping costs
Delivery time
is determined
33boiler valve8007067
BOILER VALVE
27,98 €

excl. Shipping costs
immediately available, 2 available

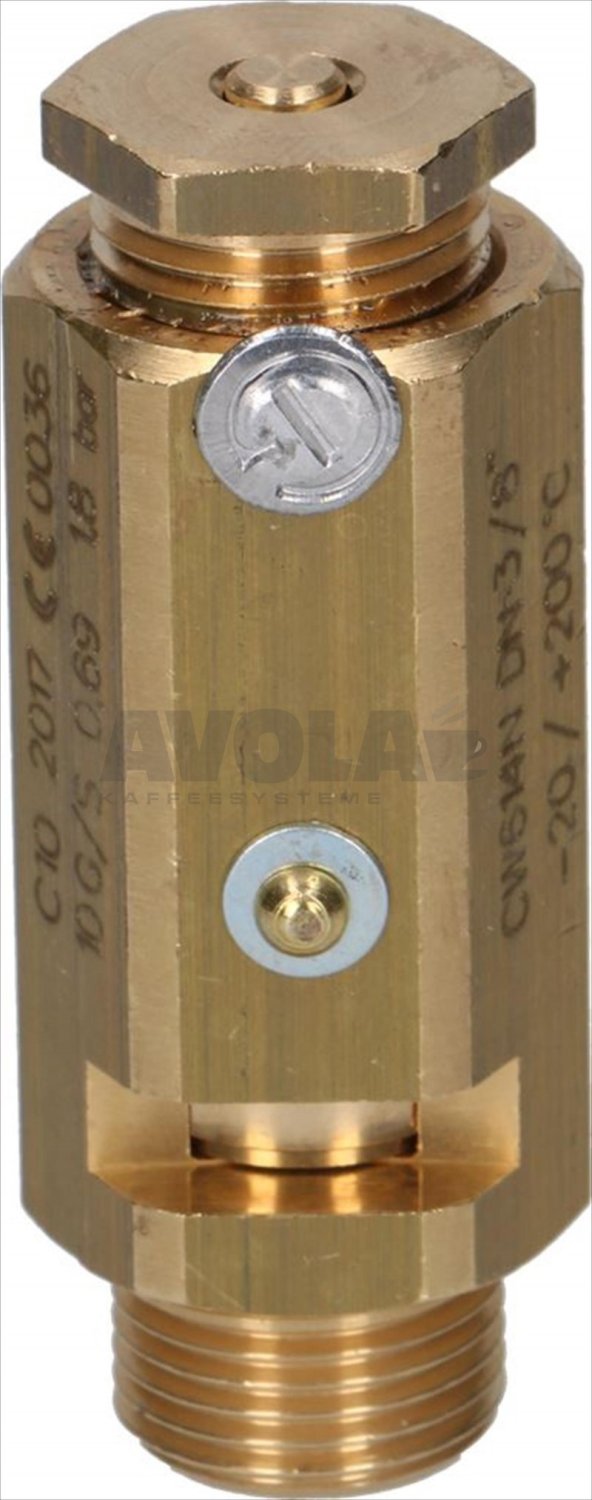

33sicherheitsventil o3 8 quot m 1 8bar ce ped8007159
Sicherheitsventil ø3/8"M-1,8bar CE/PED
27,98 €

excl. Shipping costs
Delivery time
is determined
34ptfe flat gasket o 22x17x2 mm8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs
immediately available
34asbestos free flat gasket o 22x17x2 mm8001632
ASBESTOS FREE FLAT GASKET ø 22x17x2 mm
1,18 €

excl. Shipping costs
immediately available
36copper flat gasket 22x17x1 5 mm8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs
immediately available
37level probe o 1 4 m 115 mm8005331
LEVEL PROBE ø 1/4 M-115 mm
10,79 €

excl. Shipping costs
immediately available, 7 available
39copper flat gasket 22x17x1 5 mm8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs
immediately available
41injection pipe8006586
INJECTION PIPE
20,16 €

excl. Shipping costs
Delivery time
is determined

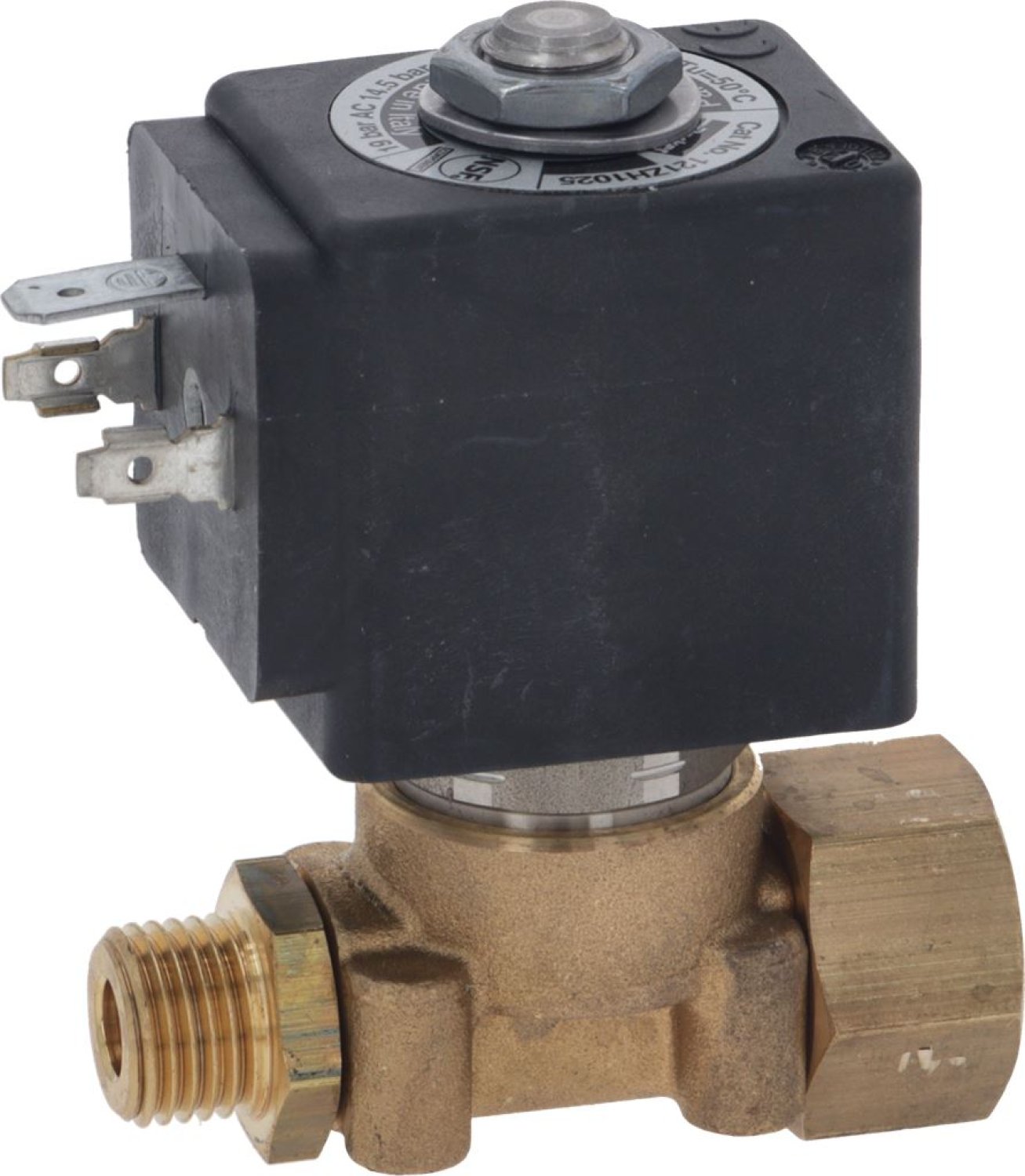

442 wege magnetventil 24v8069388
2 WEGE MAGNETVENTIL 24V
61,39 €

excl. Shipping costs
Delivery time
is determined
442 wege magnetventil 230v rancilio 1 4 quot m 3 8 quot f8069389
2 WEGE MAGNETVENTIL 230V Rancilio 1/4"M 3/8"F
70,27 €

excl. Shipping costs
immediately available, 1 available
46nut 3 88006856
NUT 3/8
2,55 €

excl. Shipping costs
immediately available, 8 available
48volumetric flowmeter gicar8006924
VOLUMETRIC FLOWMETER GICAR
58,13 €

excl. Shipping costs
immediately available, 1 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
