Profitec

Move Hydraulik

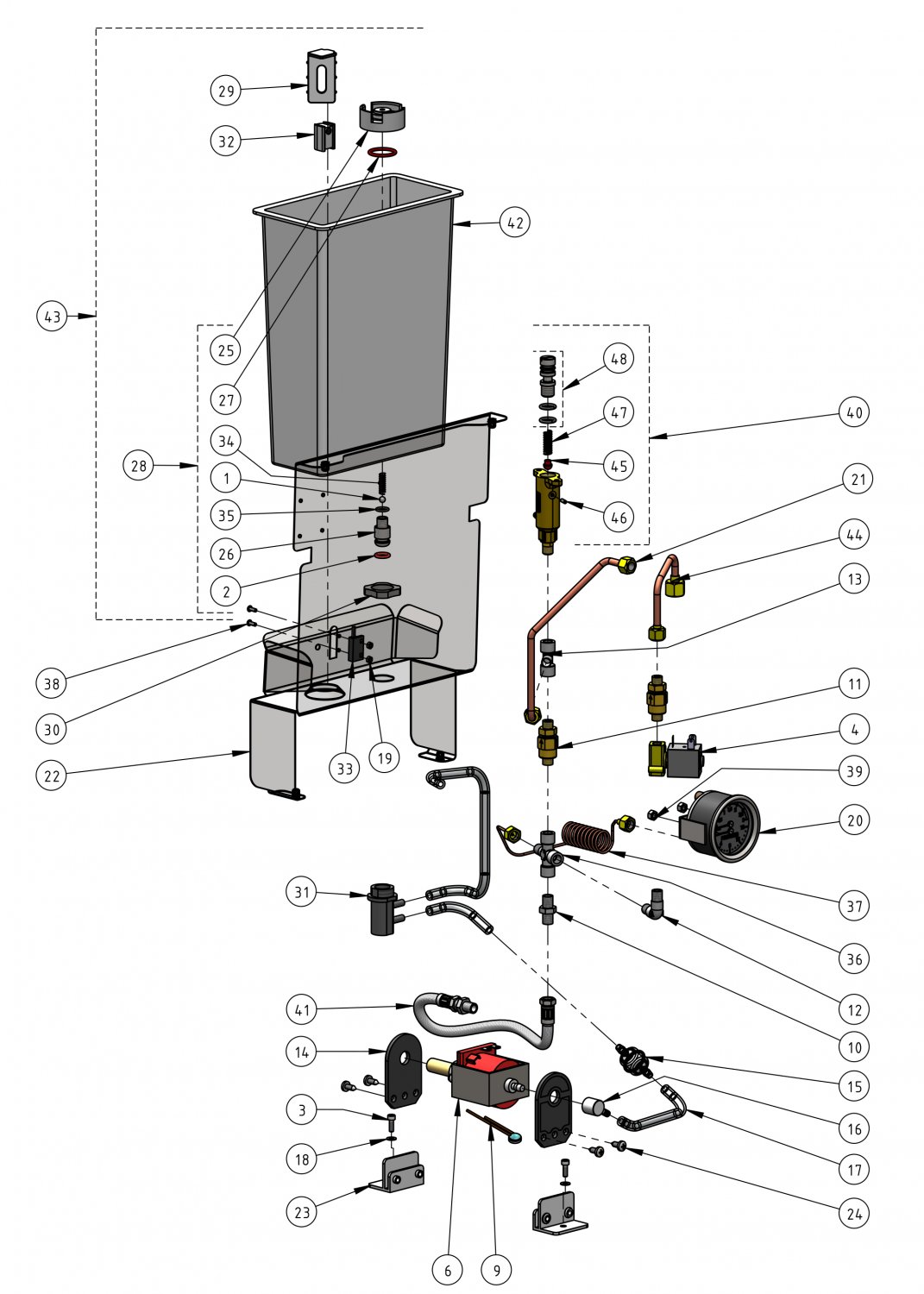

Drawing number 8393234

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1ecm bezzera kugel wassertank8069353
ECM BEZZERA Kugel Wassertank
2,26 €

excl. Shipping costs
immediately available, 5 available
2o ring wassertankadapter unten ecm profitec8136877
O-Ring Wassertankadapter unten ECM Profitec
1,32 €

excl. Shipping costs
immediately available
3schraube zylinderkopf m4x128164400
Schraube Zylinderkopf M4x12
1,49 €

excl. Shipping costs
immediately available, 10 available
42 way solenoid valve ode8000815
2-WAY SOLENOID VALVE ODE
26,50 €

excl. Shipping costs
immediately available, 18 available
68164644
Vibrationspumpe 120V 60Hz
52,87 €

excl. Shipping costs
Delivery time
is determined
68164655
Vibrationspumpe 100V 60Hz
63,34 €

excl. Shipping costs
Delivery time
is determined
9thermal protection 1008064013
THERMAL PROTECTION 100
11,78 €

excl. Shipping costs
immediately available, 9 available
108393176
Anschluss ø 1/8 A-1/8 A ECM
4,76 €

excl. Shipping costs
Delivery time
is determined
11rueckschlagventil o 1 8 quot m 1 8 m bsp8280846
Rückschlagventil ø 1/8 " M-1/8 M BSP
10,00 €

excl. Shipping costs
immediately available, 8 available
12l verbindungsstueck 1 8 quot m 1 8 quot m8125580
L-Verbindungsstück 1/8"M 1/8"M
10,08 €

excl. Shipping costs
immediately available, 6 available
13t anschluss o 1 8 i 1 8a 1 8 i vernickelt8005873
T- Anschluss ø 1/8 I-1/8a-1/8 I vernickelt
7,15 €

excl. Shipping costs
immediately available, 7 available
14ecm pumpenhalterung gummi 1 stueck8079691
ECM Pumpenhalterung Gummi - 1 Stück
3,58 €

excl. Shipping costs
immediately available, 7 available
15wasserfilter ecm tankfilter partikelfilter8102293
Wasserfilter ECM Tankfilter Partikelfilter
5,26 €

excl. Shipping costs
immediately available, 15 available
19sechskantmutter edelstahl m3 a2 din 9348061381
SECHSKANTMUTTER EDELSTAHL M3 A2 DIN 934
0,75 €

excl. Shipping costs
immediately available
19ecm mutter m38118546
ECM Mutter M3
0,12 €

excl. Shipping costs
immediately available
20profitec pro400 manometer 60mm8352375
Profitec Pro400 Manometer 60mm
41,65 €

excl. Shipping costs
immediately available, 3 available
23ecm pumpenhalterung halterung pumpe l 1 stueck8080944
ECM Pumpenhalterung Halterung Pumpe L - 1 Stück
3,80 €

excl. Shipping costs
immediately available, 15 available
24schraube pumpenhalterung 4 8x13mm8164551
Schraube Pumpenhalterung 4,8x13mm
1,31 €

excl. Shipping costs
immediately available, 4 available
28ecm profitec edelstahltankadapter fuer wasserfilter brita 1 stueck 8140904
ECM Profitec Edelstahltankadapter für Wasserfilter Brita (1 Stück)
23,90 €

excl. Shipping costs
immediately available
29abdeckung fuer schwimmerfuehrung ecm profitec8101531
Abdeckung für Schwimmerführung ECM Profitec
3,57 €

excl. Shipping costs
immediately available, 10 available
30ecm mutter fuer wassertank tankaufnahme8073607
ECM Mutter für Wassertank Tankaufnahme
4,52 €

excl. Shipping costs
immediately available, 13 available
31ecm wassertankaufnahme neue version8073606
ECM Wassertankaufnahme neue Version
7,50 €

excl. Shipping costs
immediately available, 11 available
32ecm reed schwimmer wassertank8069475
ECM Reed Schwimmer Wassertank
6,89 €

excl. Shipping costs
immediately available, 10 available
33ecm fuellstandsone tank reedkontakt reed sensor pic ms 324 1253a8059519
ECM Füllstandsone Tank Reedkontakt Reed Sensor PIC MS-324/1253A
11,78 €

excl. Shipping costs
immediately available, 8 available
34ecm bezzera feder wassertank8069352
ECM BEZZERA Feder Wassertank
2,68 €

excl. Shipping costs
immediately available, 16 available
35profitec o ring wassertankadapter mitte8136878
Profitec O-Ring Wassertankadapter Mitte
1,19 €

excl. Shipping costs
immediately available, 3 available
368164570
Kreuzfitting 1/8" MFFF
2,95 €

excl. Shipping costs
Delivery time
is determined
37ecm kapillarrohr manometer 1 8 1 8 zoll8073669
ECM Kapillarrohr Manometer 1/8 - 1/8 Zoll
8,90 €

excl. Shipping costs
Delivery time
is determined
39sechskantmutter edelstahl m5 a2 din 9348061379
Sechskantmutter Edelstahl M5 A2 Din 934
0,26 €

excl. Shipping costs
immediately available
40expansion valve8069467
EXPANSION VALVE
39,90 €

excl. Shipping costs
immediately available, 15 available
41ecm flexschlauch 17 cm 1 8 quot m 1 8 quot f p80128069568
ECM Flexschlauch 17 cm 1/8"M-1/8"F - P8012
12,90 €

excl. Shipping costs
immediately available, 19 available
42ecm wassertank synchronika classika ii casa profitec ohne ventil und ohne schwimmer blank8080972
ECM Wassertank Synchronika Classika II Casa Profitec ohne Ventil und ohne Schwimmer blank
29,75 €

excl. Shipping costs
immediately available, 5 available
43profitec pro 300 500 600 700 800 classika ii synchronika wassertank8080548
Profitec Pro 300 500 600 700 800 Classika II Synchronika Wassertank
48,50 €

excl. Shipping costs
immediately available, 2 available
45silicone mushroom gasket8007697
SILICONE MUSHROOM GASKET
1,50 €

excl. Shipping costs
immediately available
468164579
Gewindestift M3 mm V2 für Quicksteamventile
0,99 €

excl. Shipping costs
immediately available, 9 available
47feder ecm expansionsventil neue version 8080377
Feder ECM Expansionsventil (neue Version)
2,55 €

excl. Shipping costs
immediately available
488164578
Pressure adjustment expansion valve
14,34 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
