LA PAVONI ROMANTICA HANDHEBELGRUPPE

Drawing number 8057378

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

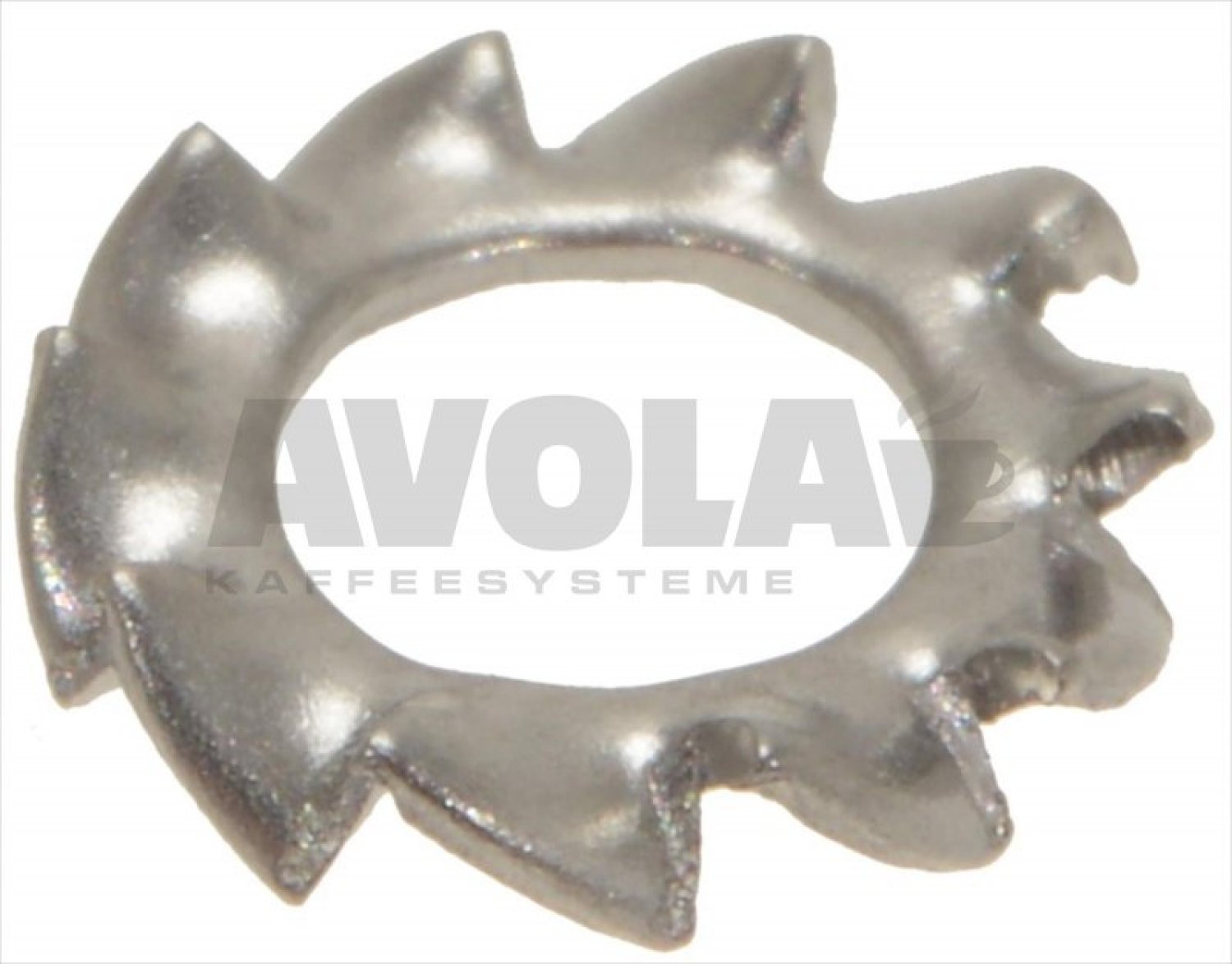

3toothed washer ext m48005616
TOOTHED WASHER EXT. M4
0,98 €

excl. Shipping costs
immediately available

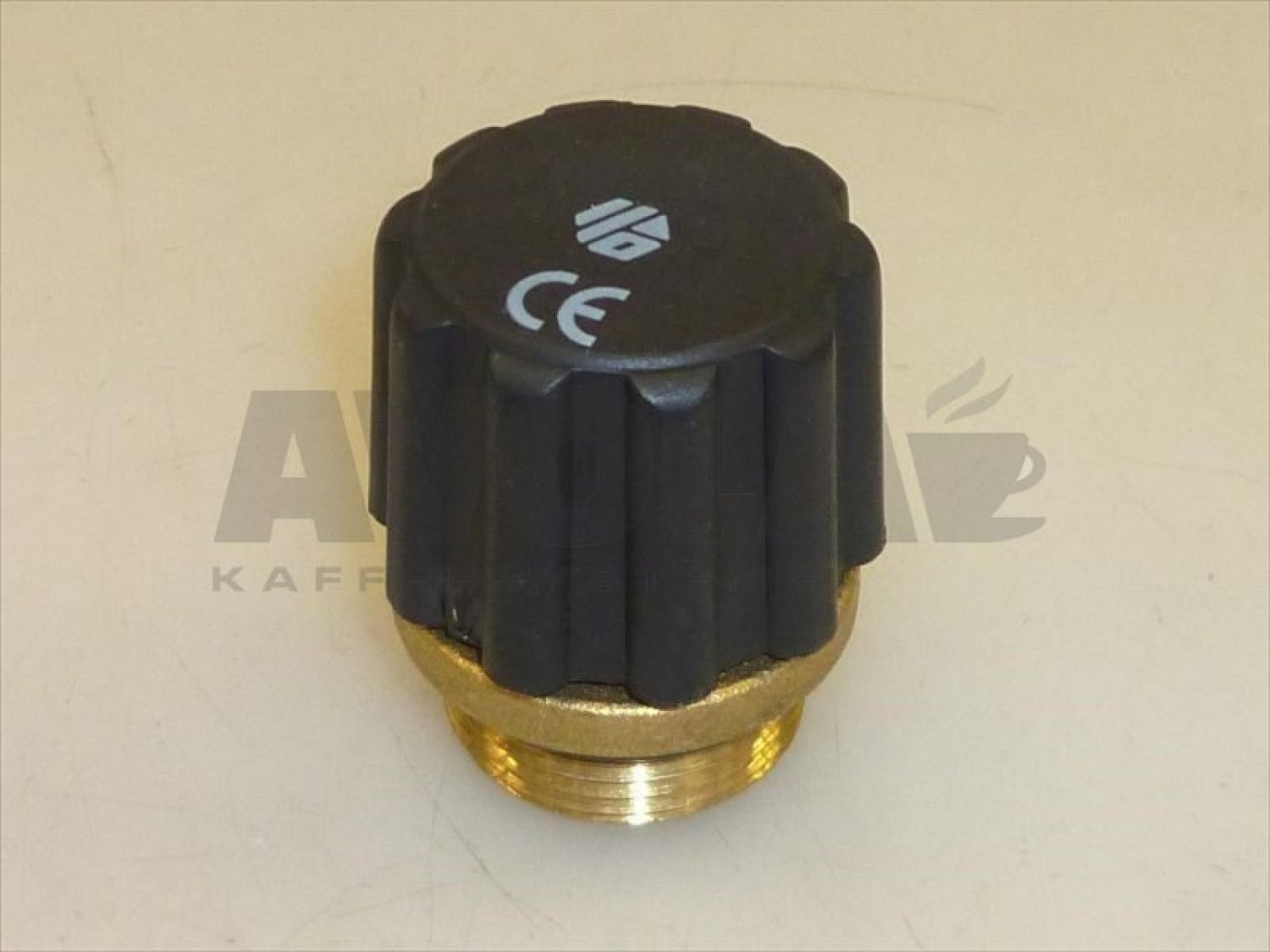

5kesselverschluss la pavoni romantica8062441
Kesselverschluss La Pavoni Romantica
49,98 €

excl. Shipping costs
immediately available, 8 available

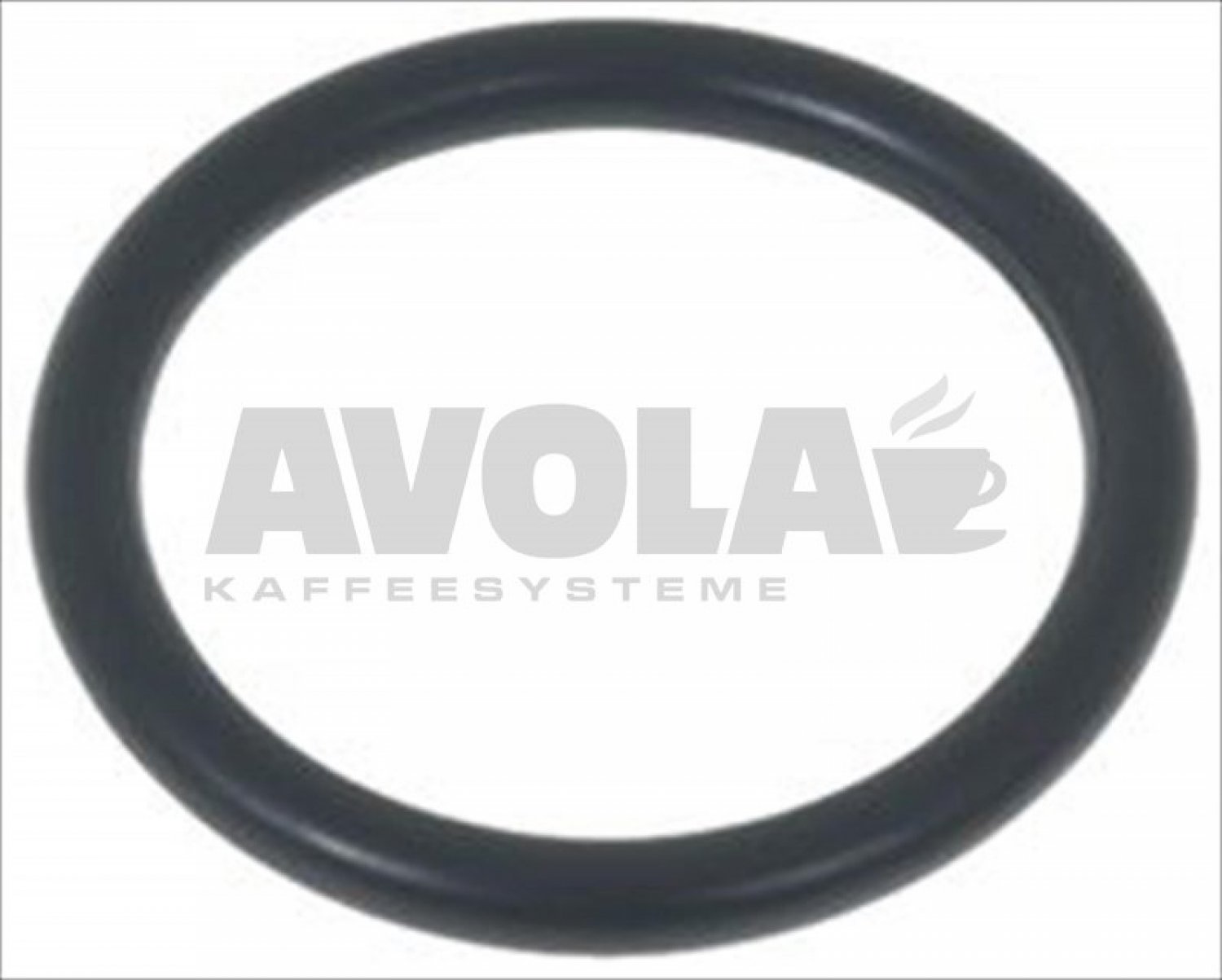

6epdm o ring 041128001704
EPDM O RING 04112
1,37 €

excl. Shipping costs
immediately available
8boiler gasket o 93x80x2 mm8001706
BOILER GASKET ø 93x80x2 mm
9,42 €

excl. Shipping costs
immediately available, 20 available
9boiler gasket o 93x80x2 mm8001706
BOILER GASKET ø 93x80x2 mm
9,42 €

excl. Shipping costs
immediately available, 20 available

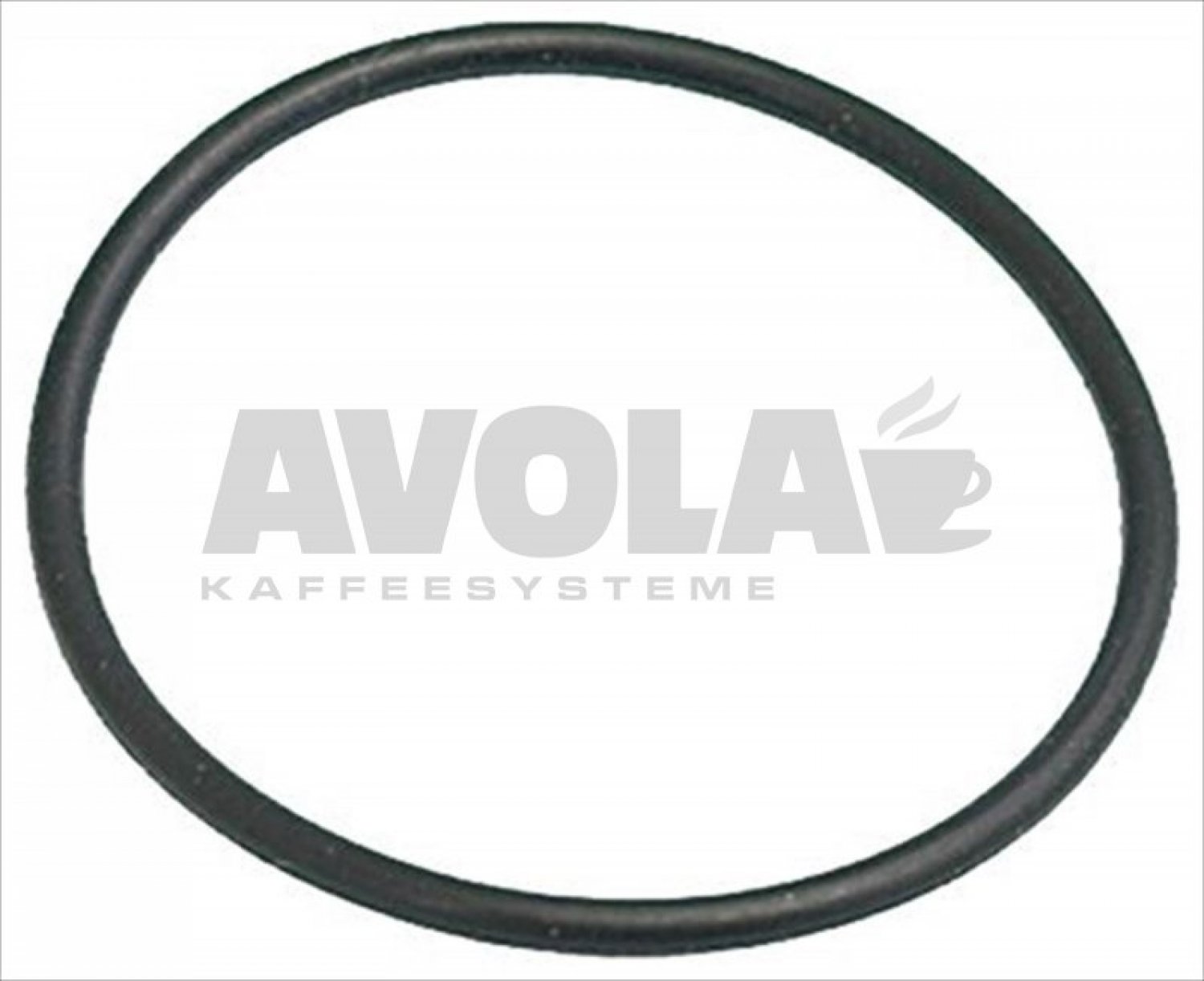

11o ring 0176 epdm8001835
O-RING 0176 EPDM
2,81 €

excl. Shipping costs
immediately available
12heating element 920 1000w 230 240v8007416
HEATING ELEMENT 920/1000W 230/240V
42,55 €

excl. Shipping costs
immediately available, 1 available
13cylinder head screw m5x108001294
CYLINDER HEAD SCREW M5x10
1,01 €

excl. Shipping costs
immediately available

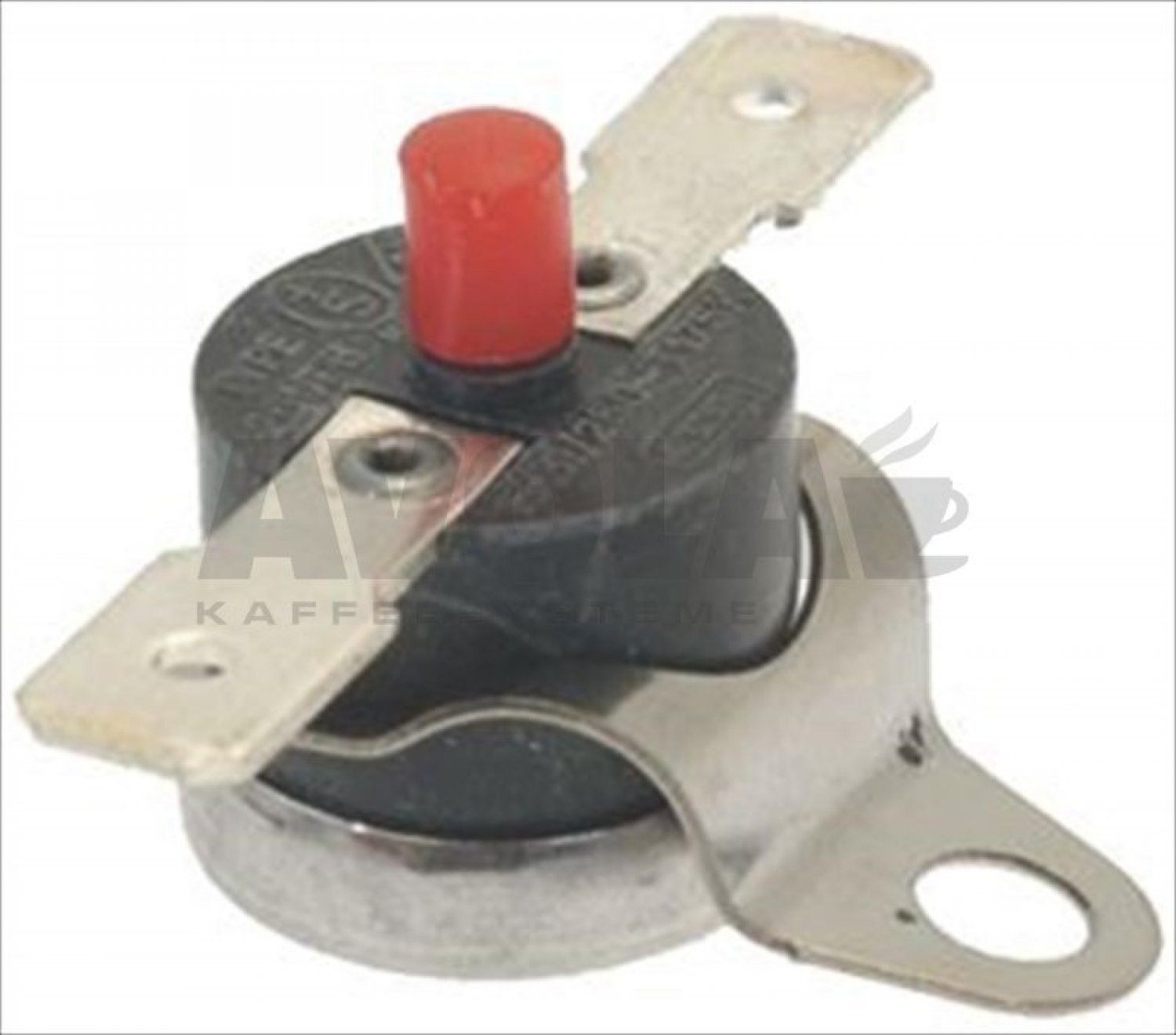

14contact thermostat 1278006426
CONTACT THERMOSTAT 127
12,90 €

excl. Shipping costs
immediately available, 7 available
16sechskantmutter m4 messing8075588
SECHSKANTMUTTER M4 Messing
Price on request

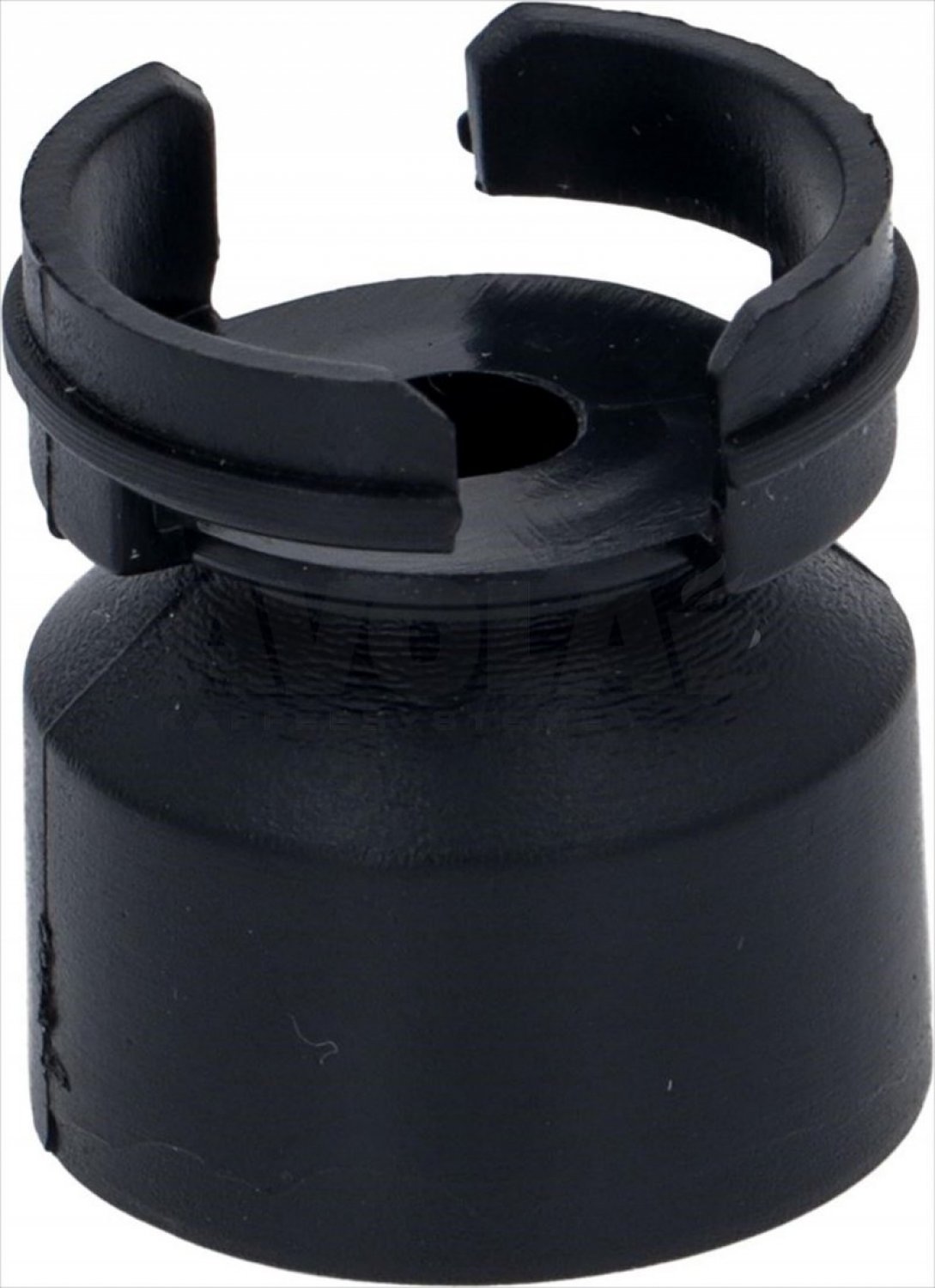

17pavoni abdeckung fuer thermoastat8080518
PAVONI Abdeckung für Thermoastat
5,95 €

excl. Shipping costs
immediately available, 8 available
18pressure switch pipe8006650
PRESSURE SWITCH PIPE
31,80 €

excl. Shipping costs
Delivery time
is determined

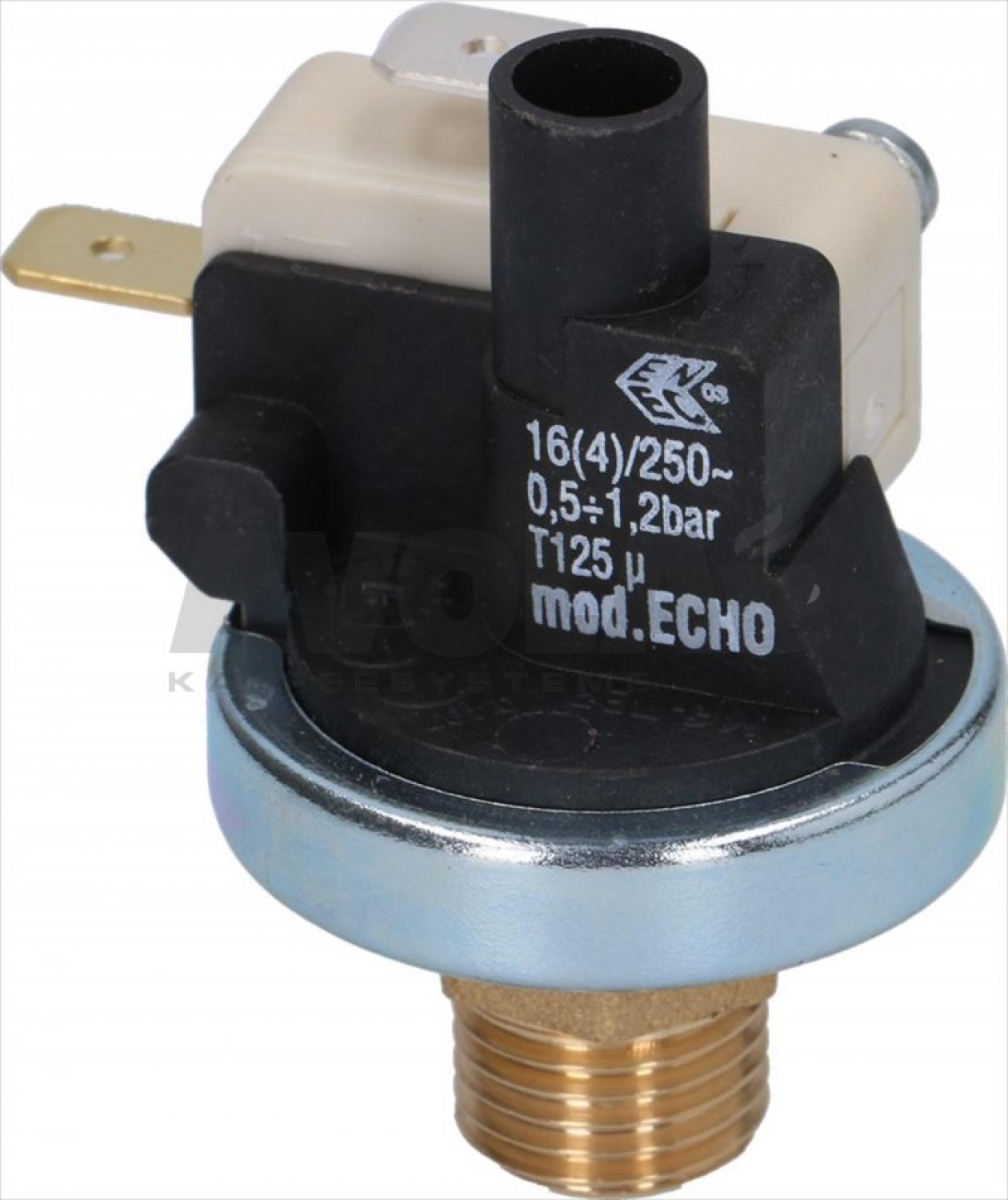

19pressure switch 0 5 1 2 bar 1 48005057
PRESSURE SWITCH 0.5-1.2 BAR 1/4
22,50 €

excl. Shipping costs
immediately available, 11 available
201 cup filter8001072
1 CUP FILTER
14,39 €

excl. Shipping costs
immediately available, 3 available

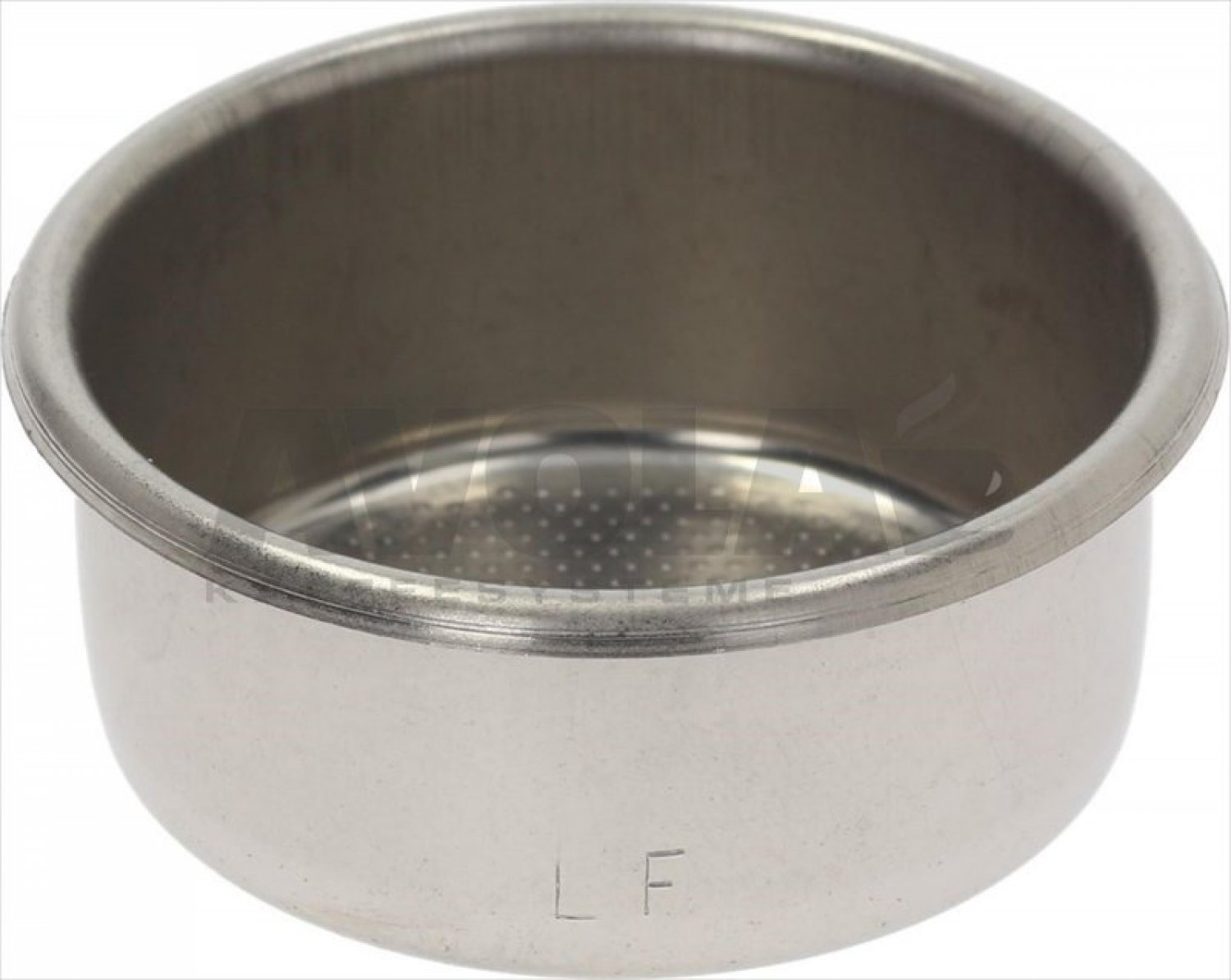

212 cups filter8001031
2 CUPS FILTER
15,52 €

excl. Shipping costs
immediately available, 7 available
23plastic measuring spoon 20 ml8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs
immediately available, 13 available
24power cord 16a 250v 1400 mm8063253
POWER CORD 16A 250V 1400 mm
20,49 €

excl. Shipping costs
immediately available, 1 available
25red bipolar switch 16a 250v8004732
RED BIPOLAR SWITCH 16A 250V
9,10 €

excl. Shipping costs
immediately available, 3 available
25green bipolar switch 16a 250v8020933
GREEN BIPOLAR SWITCH 16A 250V
11,76 €

excl. Shipping costs
immediately available, 4 available

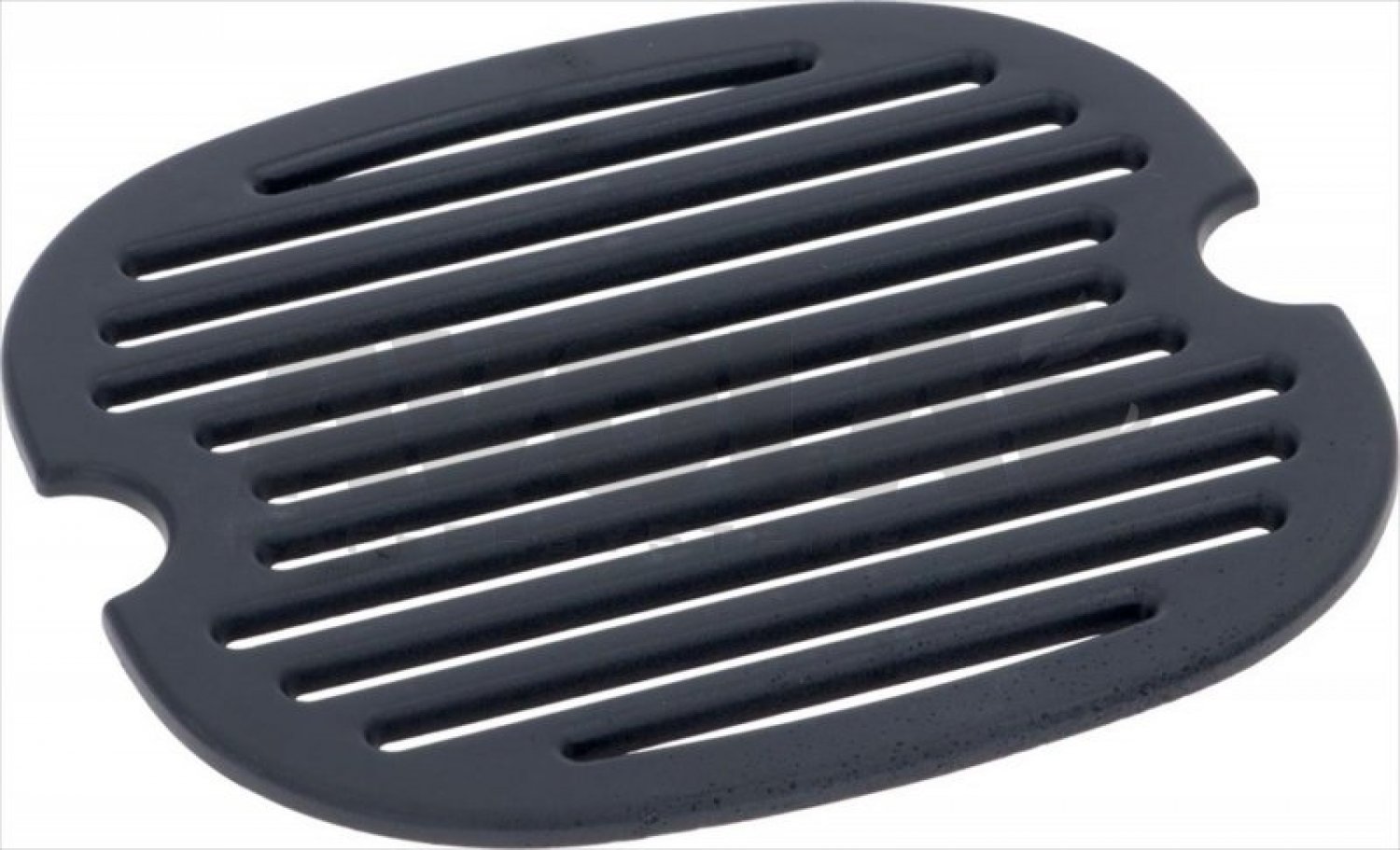

26plastic cup support grid8001312
PLASTIC CUP SUPPORT GRID
8,21 €

excl. Shipping costs
immediately available, 2 available

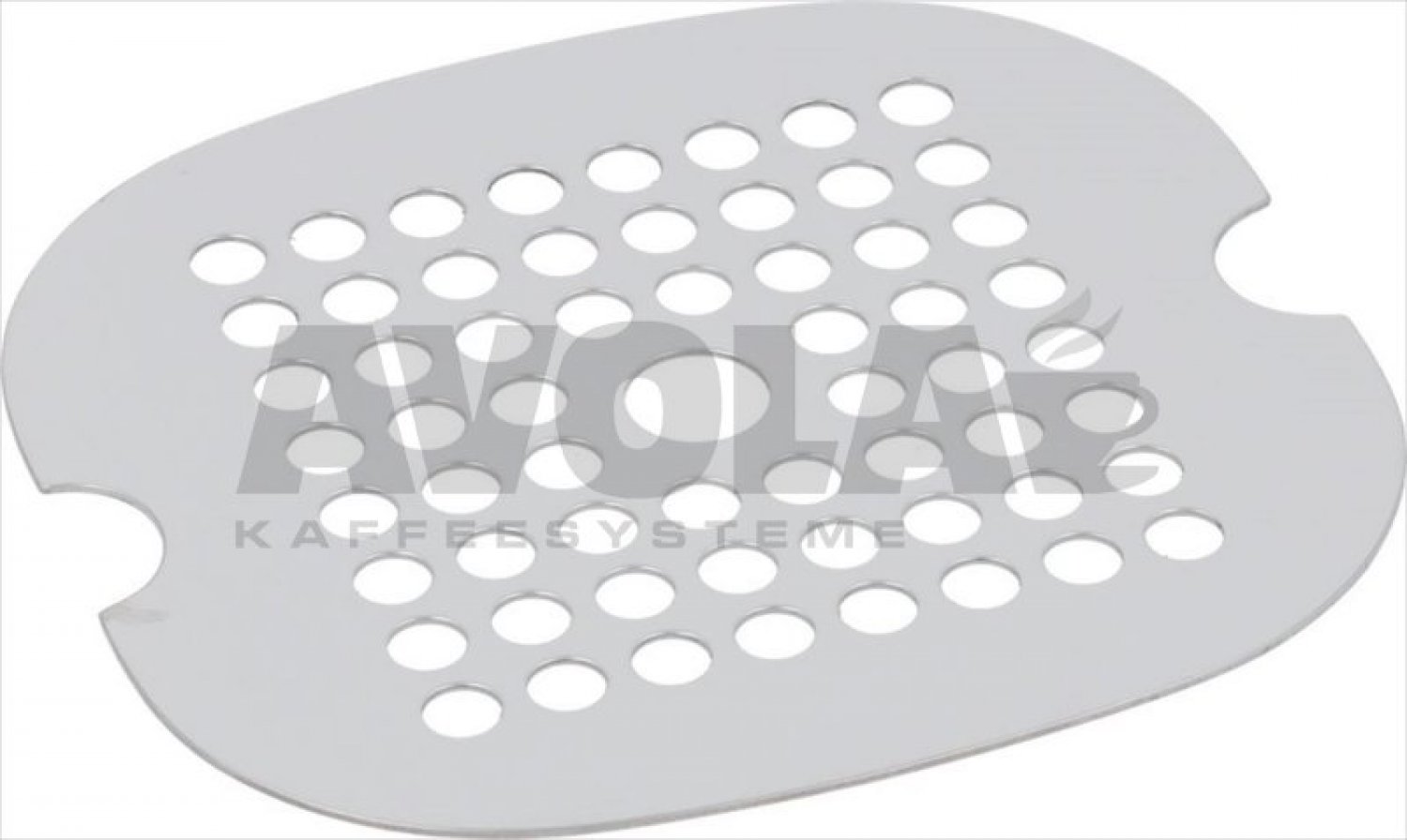

27chrome plated steel cup support grid8001311
CHROME-PLATED STEEL CUP SUPPORT GRID
24,04 €

excl. Shipping costs
immediately available, 2 available

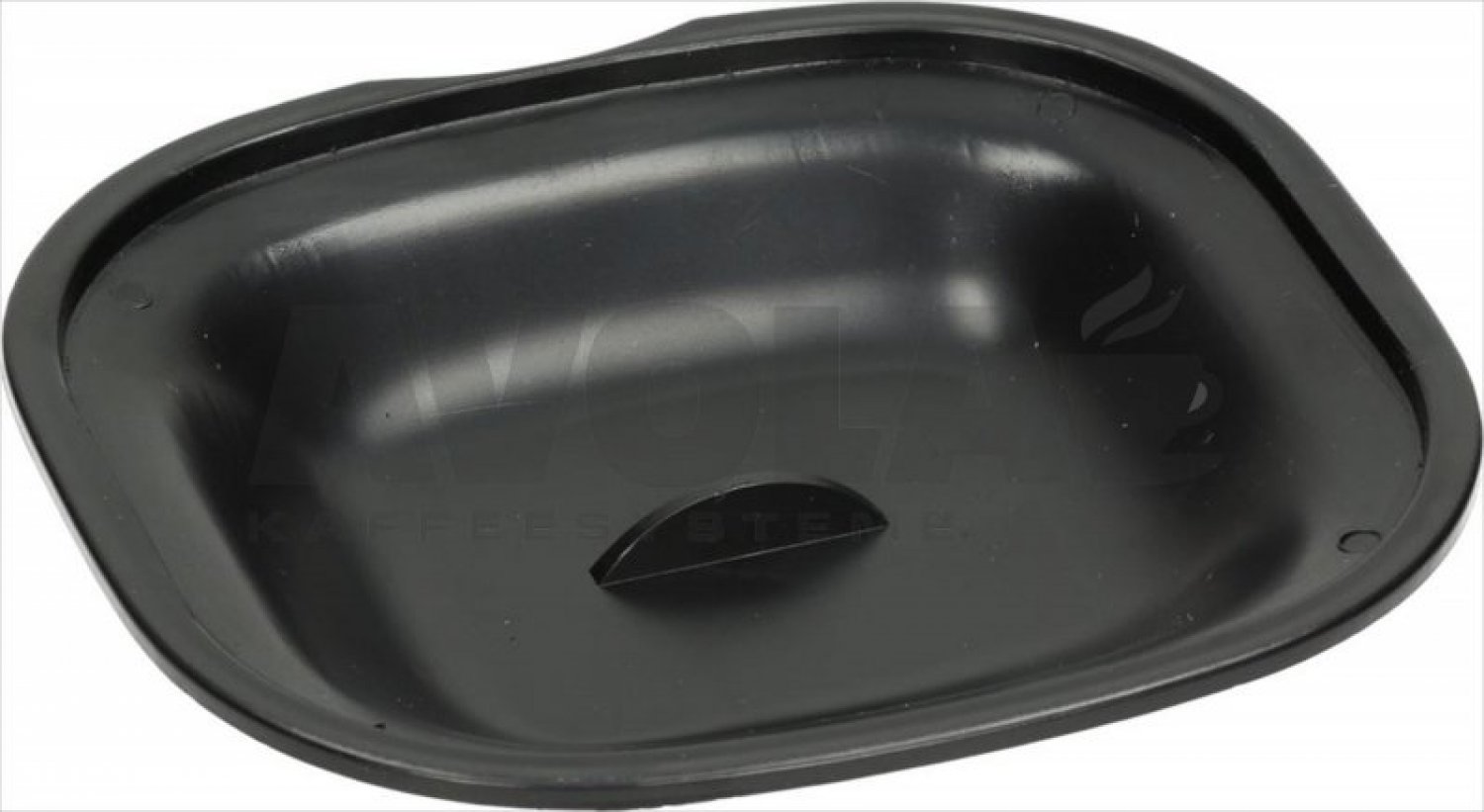

28plastic tray8000030
PLASTIC TRAY
6,90 €

excl. Shipping costs
immediately available, 2 available
32pavoni logo sticker8000150
PAVONI LOGO STICKER
8,48 €

excl. Shipping costs
immediately available, 6 available

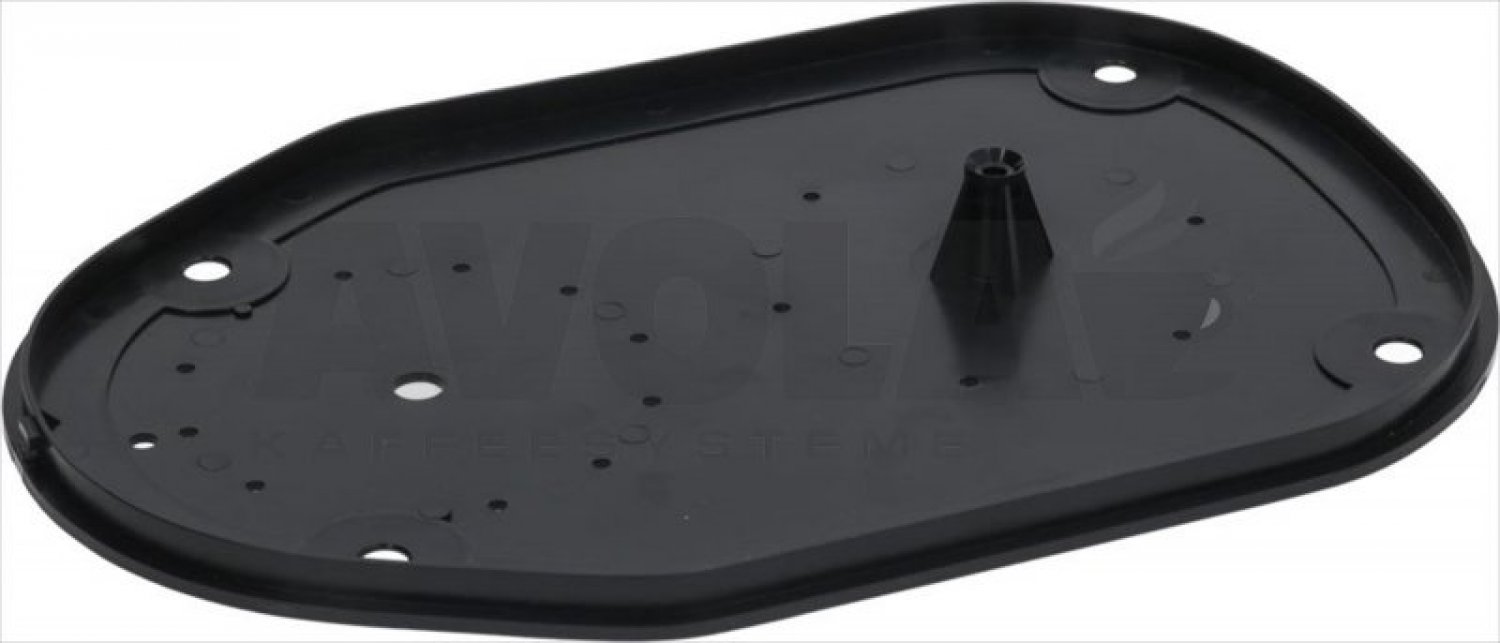

39underbase tray8000035
UNDERBASE TRAY
13,95 €

excl. Shipping costs
immediately available, 1 available

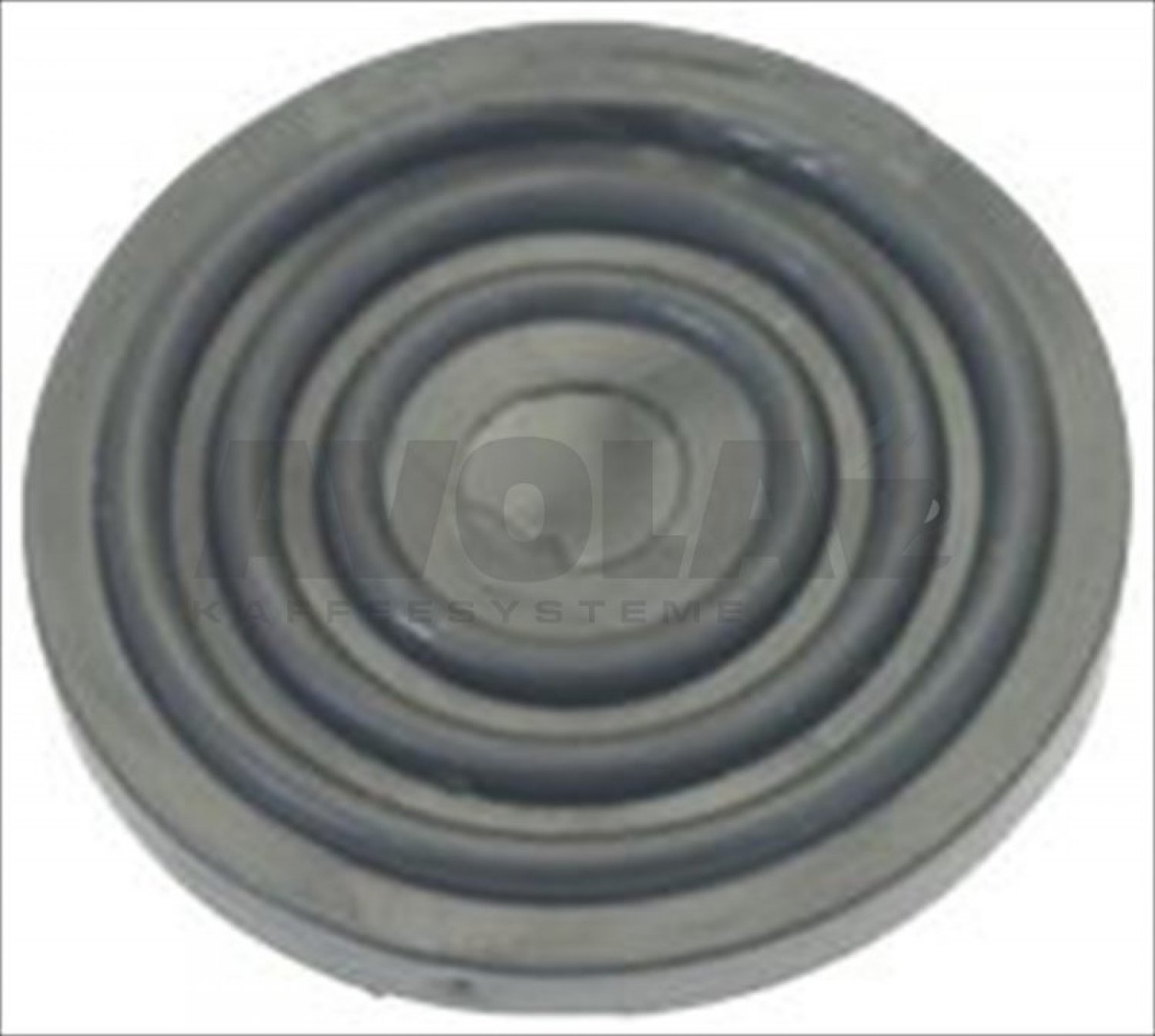

40foot8004586
FOOT
1,86 €

excl. Shipping costs
immediately available, 8 available

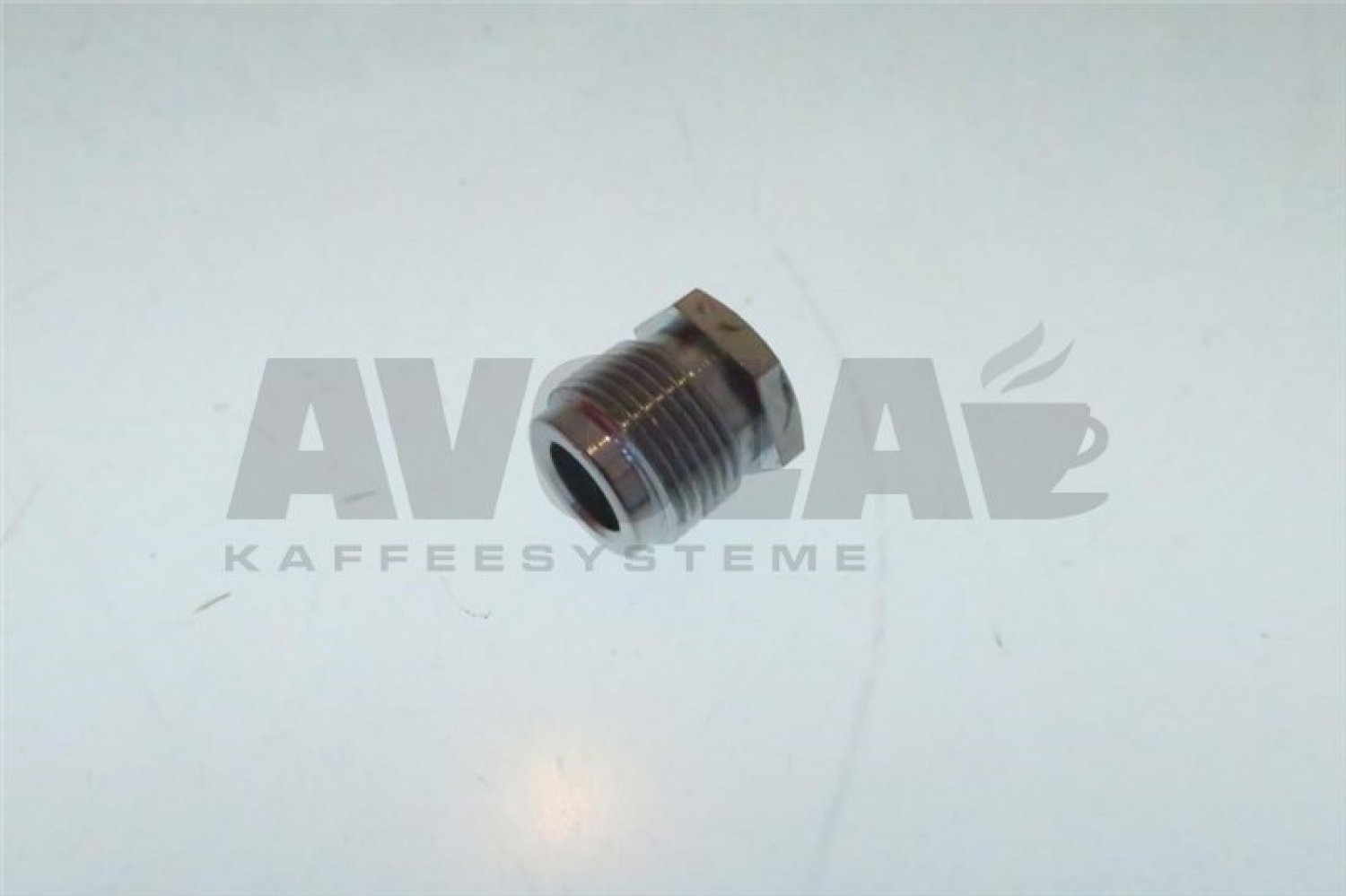

45pavoni europiccola stopfen fuer dampfventil verchromt8352461
Pavoni Europiccola Stopfen für Dampfventil verchromt
5,95 €

excl. Shipping costs
Delivery time 4-6 weeks
46flat nbr gasket o 12x7x5 mm8001700
Flat NBR gasket ø 12x7x5 mm
2,92 €

excl. Shipping costs
immediately available, 11 available
47brass washer flat o 12x7x1 mm8007268
BRASS WASHER FLAT ø 12x7x1 mm
1,87 €

excl. Shipping costs
immediately available, 7 available
50o ring gasket 0106 epdm8018501
O-RING GASKET 0106 EPDM
1,44 €

excl. Shipping costs
immediately available
55silicone hose o 4x7 shore 60 1 m8006716
Silicone hose ø 4x7 SHORE 60 - 1 m
5,95 €

excl. Shipping costs
Delivery time 4-6 weeks

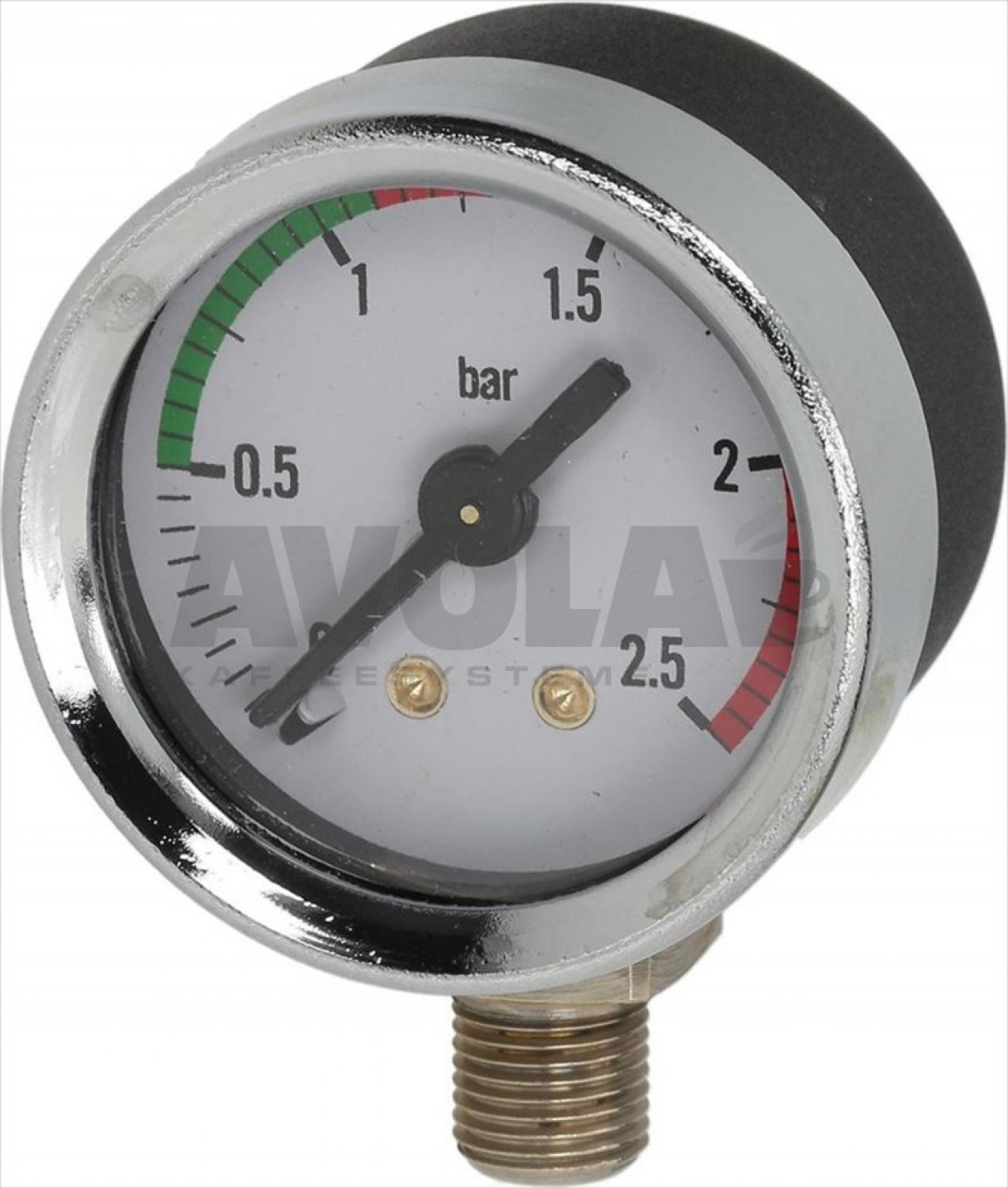

58boiler pressure gauge8003458
BOILER PRESSURE GAUGE
30,94 €

excl. Shipping costs
immediately available, 3 available

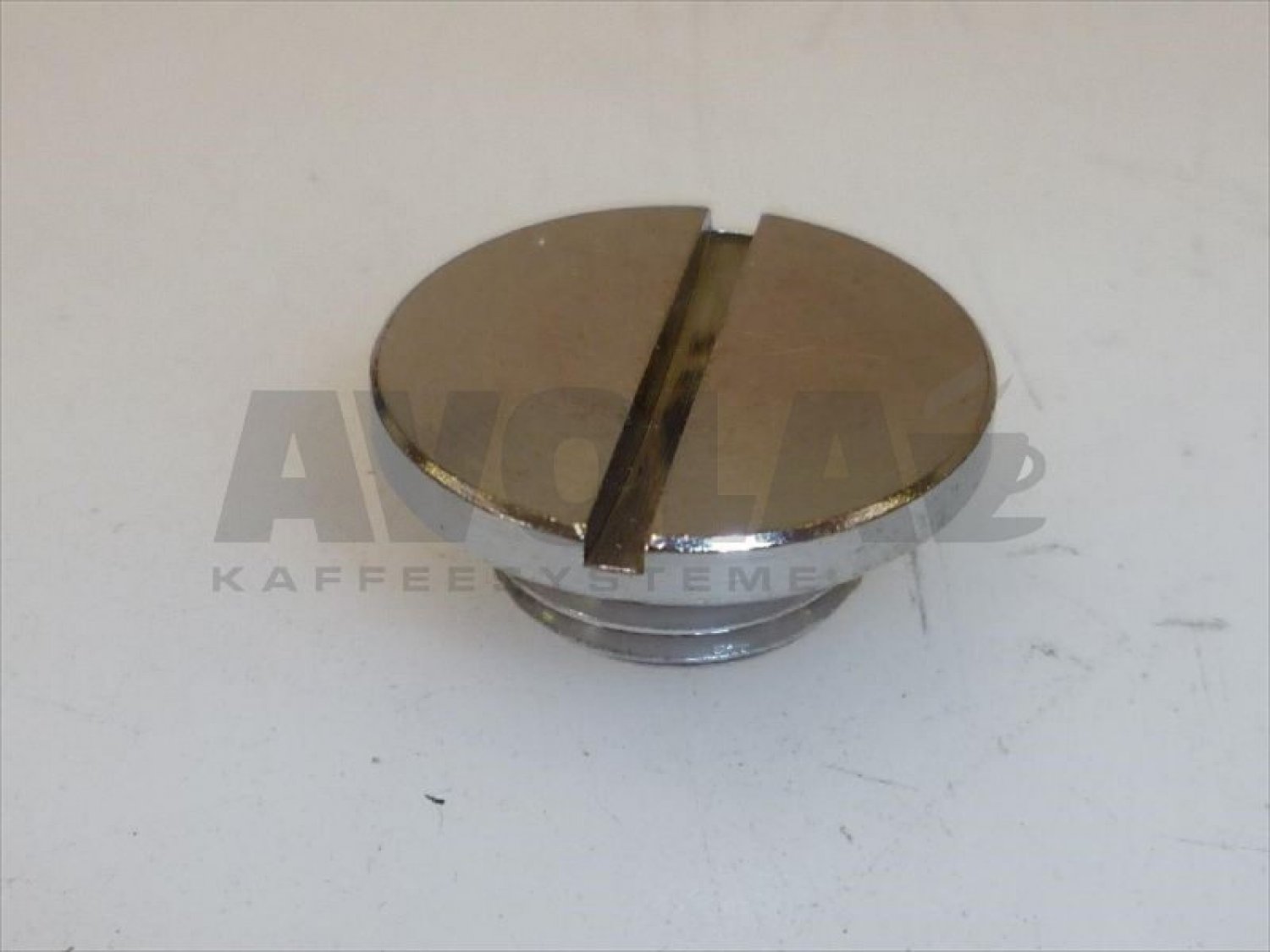

60la pavoni europiccola blindstopfen verchromt8037790
La Pavoni Europiccola Blindstopfen verchromt
8,71 €

excl. Shipping costs
immediately available, 3 available
61eflon flat gasket o 17x12x1 5 mm8001696
EFLON FLAT GASKET ø 17x12x1,5 mm
3,08 €

excl. Shipping costs
immediately available, 6 available

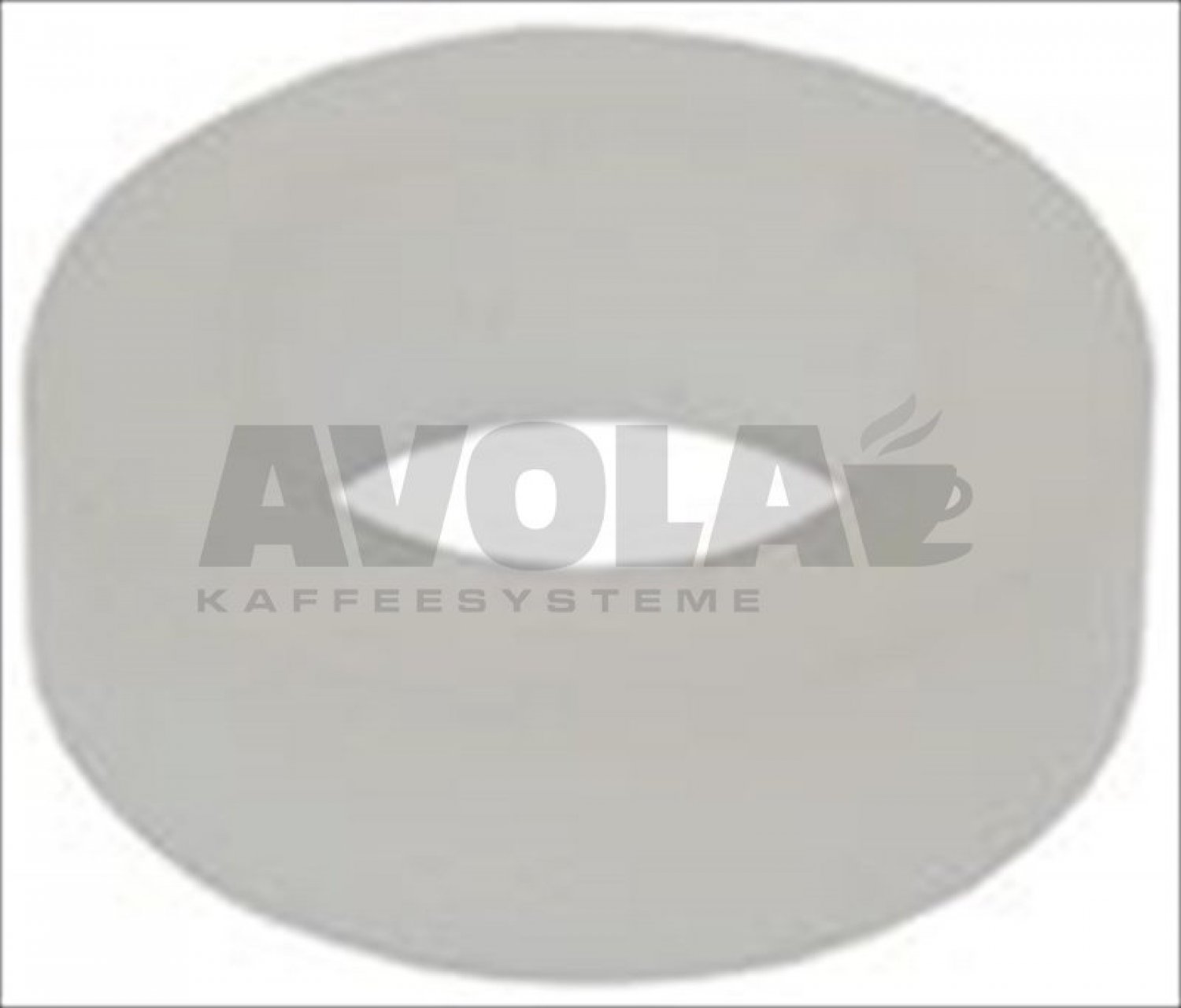

63flat silicone gasket o 15x9x5 mm8001697
FLAT SILICONE GASKET ø 15x9x5 mm
3,51 €

excl. Shipping costs
immediately available
65la pavoni europiccola level plate8002649
La Pavoni Europiccola level plate
8,33 €

excl. Shipping costs
immediately available, 3 available
66level glass o 9x132 mm8007006
LEVEL GLASS ø 9x132 mm
5,56 €

excl. Shipping costs
immediately available, 6 available
67untere halterung wasserstandglas la pavoni8035614
Untere Halterung Wasserstandglas La Pavoni
23,86 €

excl. Shipping costs
immediately available, 3 available

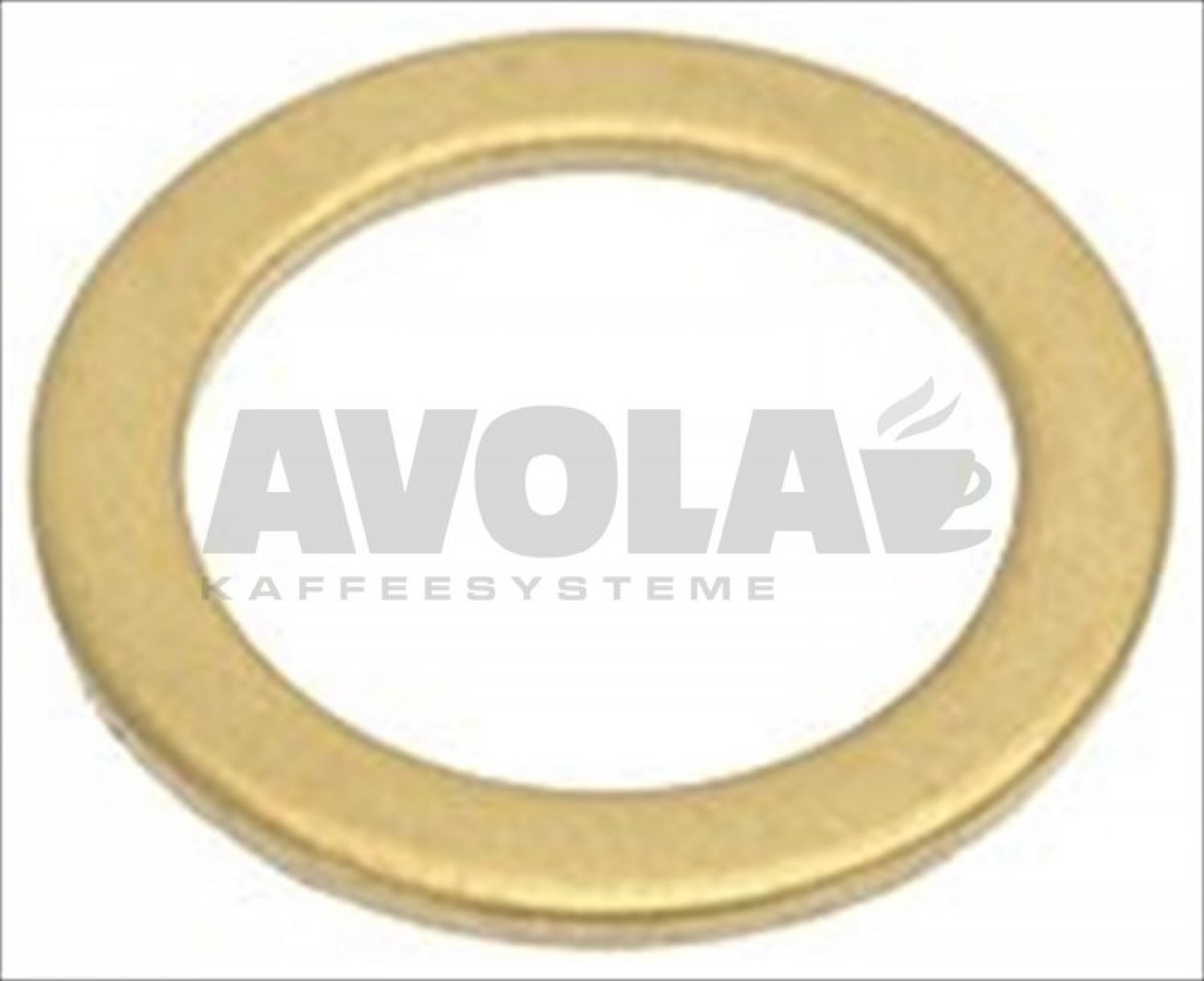

68brass washer flat o 17x12x1 mm8007264
BRASS WASHER FLAT ø 17x12x1 mm
2,78 €

excl. Shipping costs
immediately available, 17 available
69nut m12 for steam tap8007266
NUT M12 FOR STEAM TAP
2,93 €

excl. Shipping costs
immediately available, 5 available
71o ring 03112 epdm8014745
O-RING 03112 EPDM
1,49 €

excl. Shipping costs
immediately available

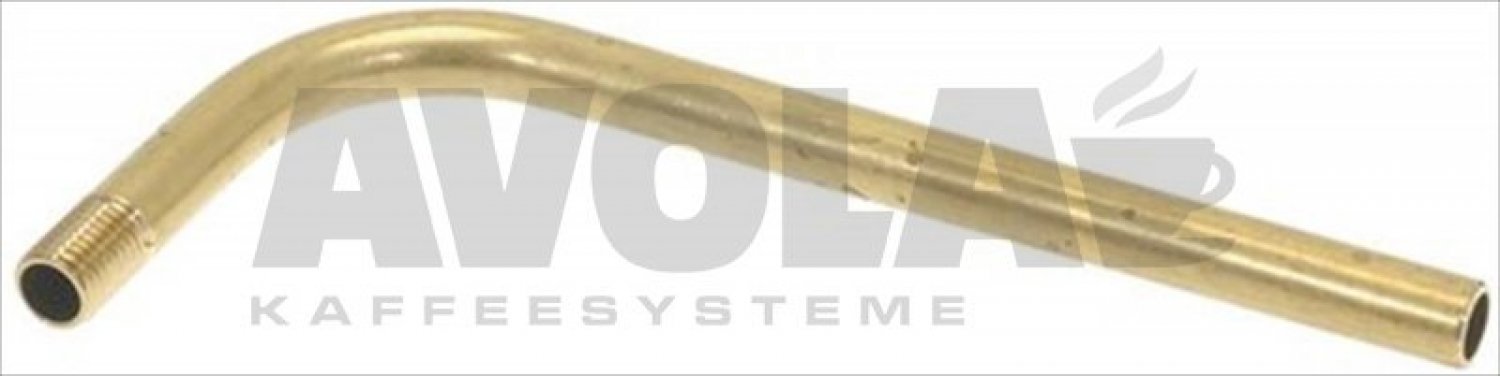

72la pavoni suction pipe8035545
La Pavoni suction pipe
12,55 €

excl. Shipping costs
immediately available, 4 available
74lip seal o 21x11x4 5 mm8001698
LIP SEAL ø 21x11x4,5 mm
5,41 €

excl. Shipping costs
immediately available, 14 available
75punched washer8007263
PUNCHED WASHER
3,33 €

excl. Shipping costs
immediately available

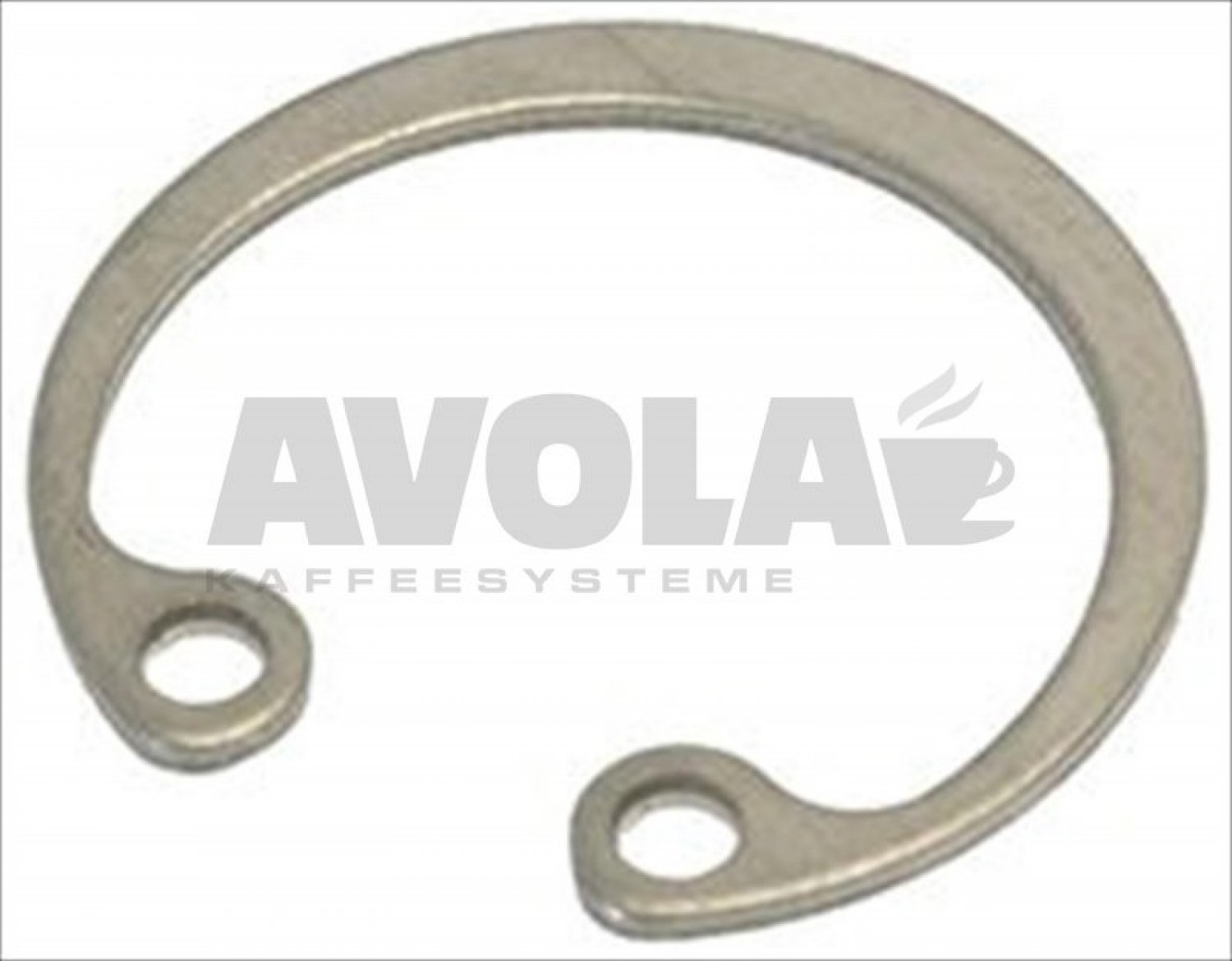

76seeger ring j 208005468
SEEGER RING J-20
2,68 €

excl. Shipping costs
immediately available, 12 available
78lip seal o 44x33x5 5 mm8001695
LIP SEAL ø 44x33x5,5 mm
7,02 €

excl. Shipping costs
immediately available, 17 available
78lippendichtung silikon pavoni europiccola 1 stueck 8140739
Lippendichtung Silikon Pavoni Europiccola (1 Stück)
5,95 €

excl. Shipping costs
immediately available, 12 available
79la pavoni europiccola kolben aus edelstahl fuer handhebelgruppe8280954
La Pavoni Europiccola Kolben aus Edelstahl für Handhebelgruppe
Price on request
79pavoni europiccola piston lever8005080
Pavoni Europiccola piston lever
25,43 €

excl. Shipping costs
Delivery time 4-6 weeks
80shower8000562
SHOWER
6,51 €

excl. Shipping costs
immediately available, 6 available

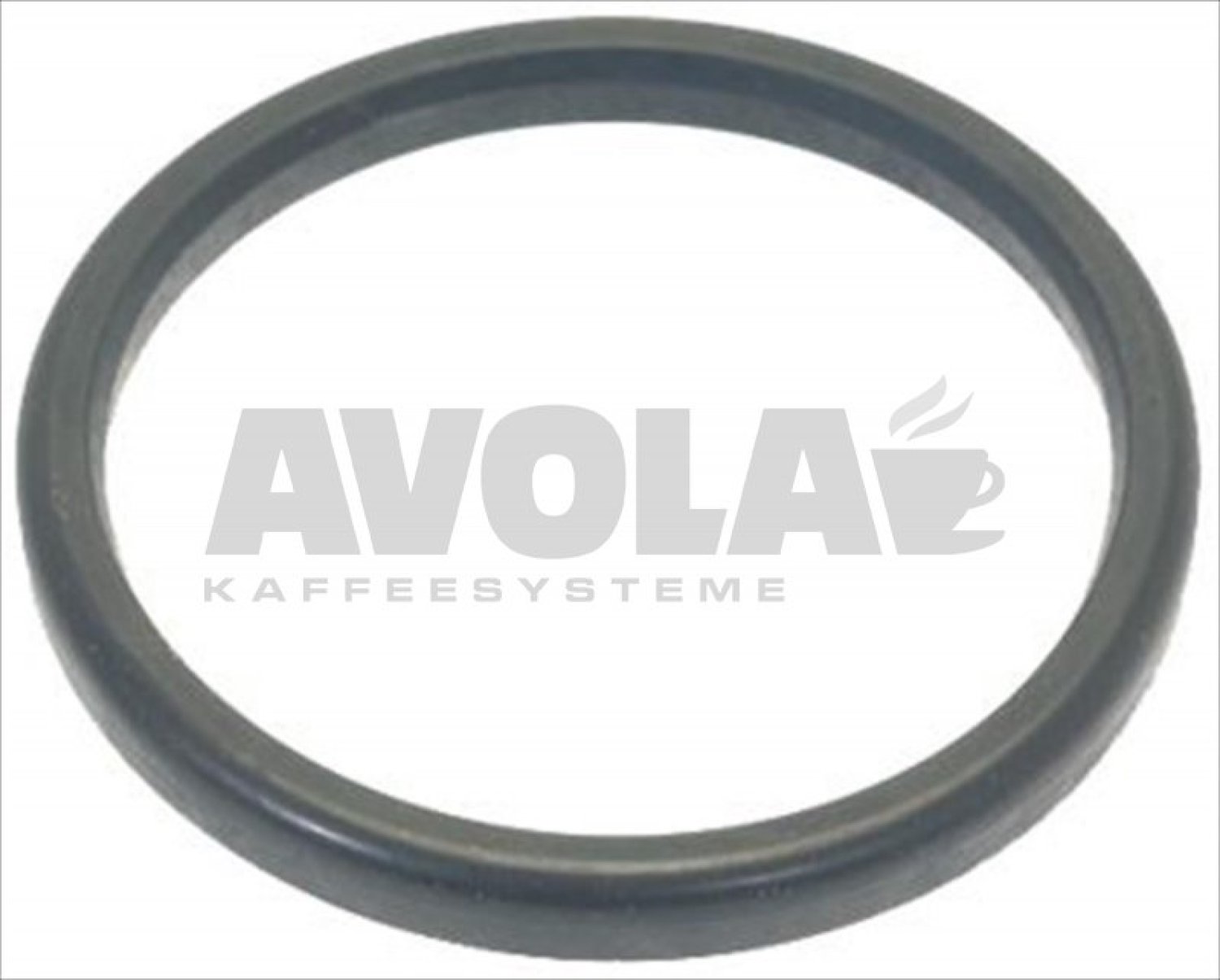

81filter holder gasket o 60x50x5 5 mm8001693
FILTER HOLDER GASKET ø 60x50x5,5 mm
3,82 €

excl. Shipping costs
immediately available, 17 available

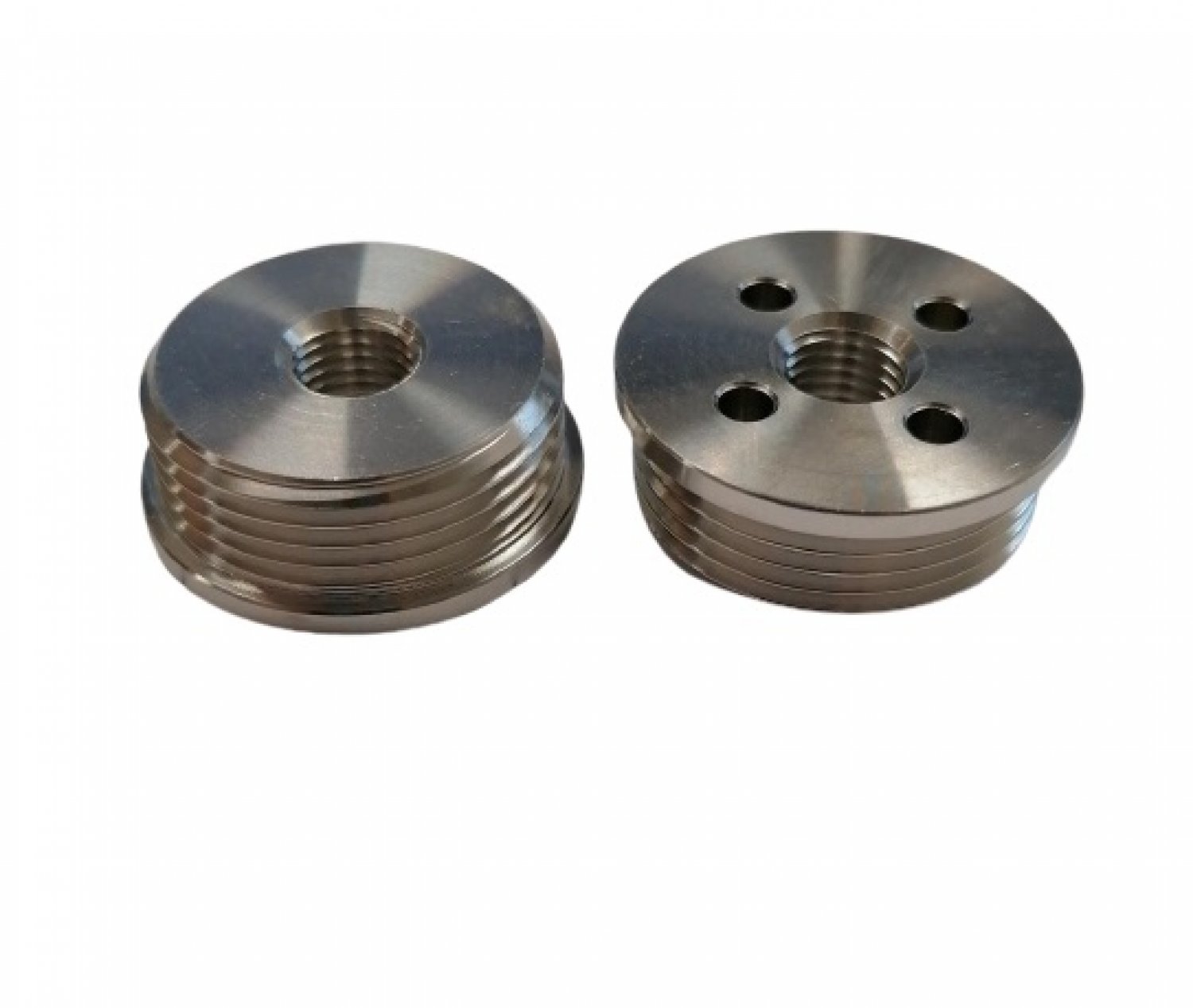

82gruppenverschluss aus edelstahl mit gewinde fuer steigrohr o 25 mm nicht mehr lieferbar 8280952
Gruppenverschluss aus Edelstahl mit Gewinde für Steigrohr ø 25 mm (nicht mehr lieferbar)
This article is no longer available
82gruppenverschluss mit gewinde fuer steigrohr o 25 mm8035615
Gruppenverschluss mit Gewinde für Steigrohr ø 25 mm
9,19 €

excl. Shipping costs
immediately available, 2 available
84o ring 0152 epdm8001392
O-RING 0152 EPDM
1,65 €

excl. Shipping costs
immediately available
87buchse fuer hebelgruppegelenk mit laufrollen8280953
Buchse für Hebelgruppegelenk mit Laufrollen
Price on request
87articulation bushing8002201
ARTICULATION BUSHING
3,84 €

excl. Shipping costs
immediately available, 8 available

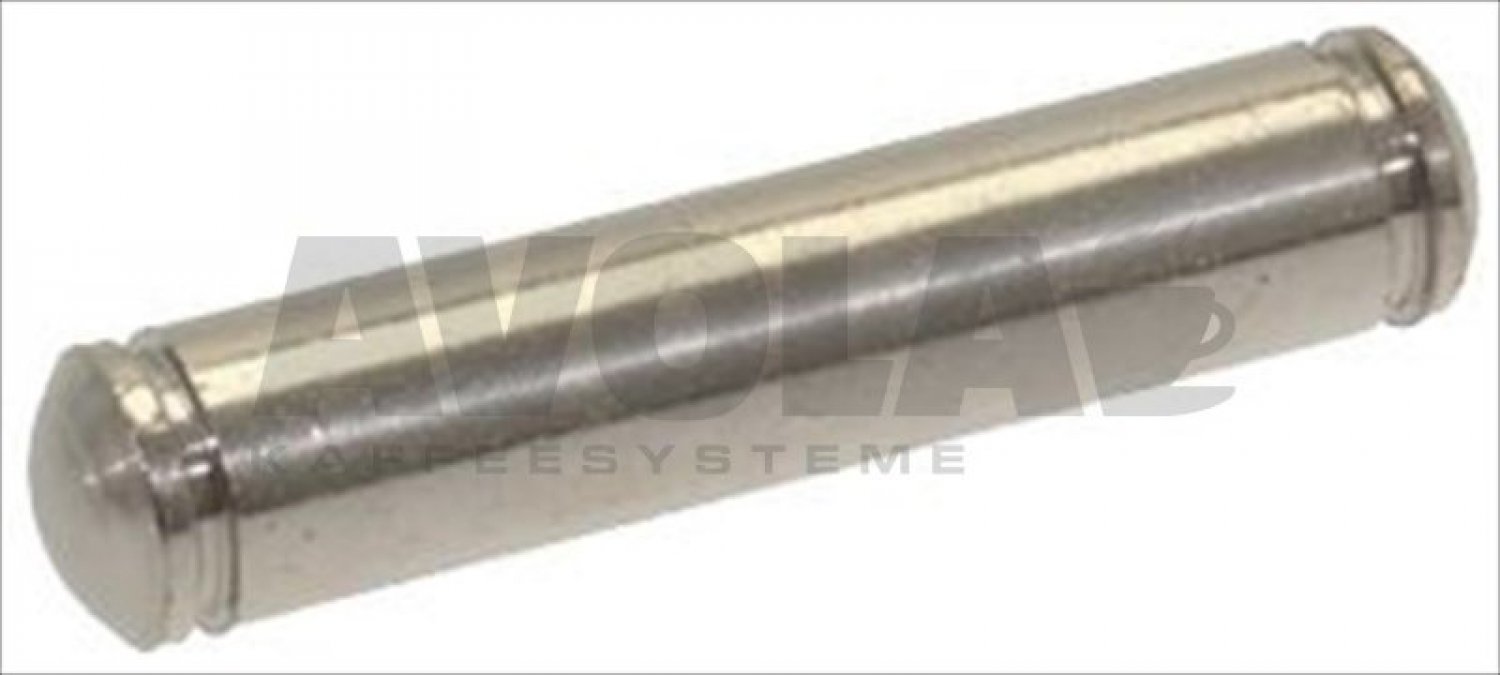

89la pavoni fork pin8005158
La Pavoni fork pin
4,63 €

excl. Shipping costs
immediately available, 6 available
90radial seeger ring8003556
RADIAL SEEGER RING
1,15 €

excl. Shipping costs
immediately available
96double spout8000123
DOUBLE SPOUT
7,14 €

excl. Shipping costs
immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
