Mazzer Grinder

MAZZER KONY

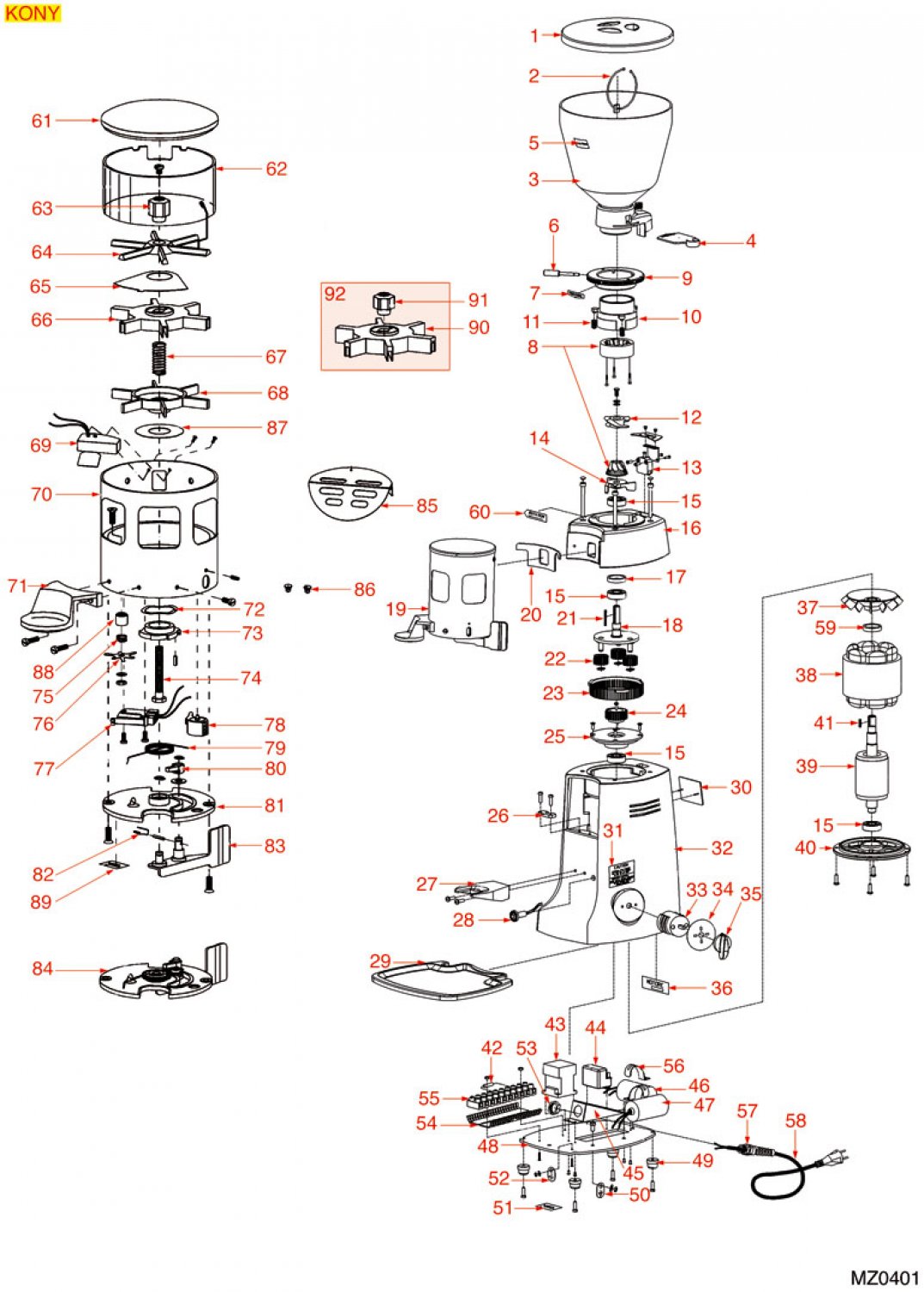

Drawing number 8057664

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1coffee hopper lid8004143
COFFEE HOPPER LID
16,28 €

excl. Shipping costs
Delivery time
is determined

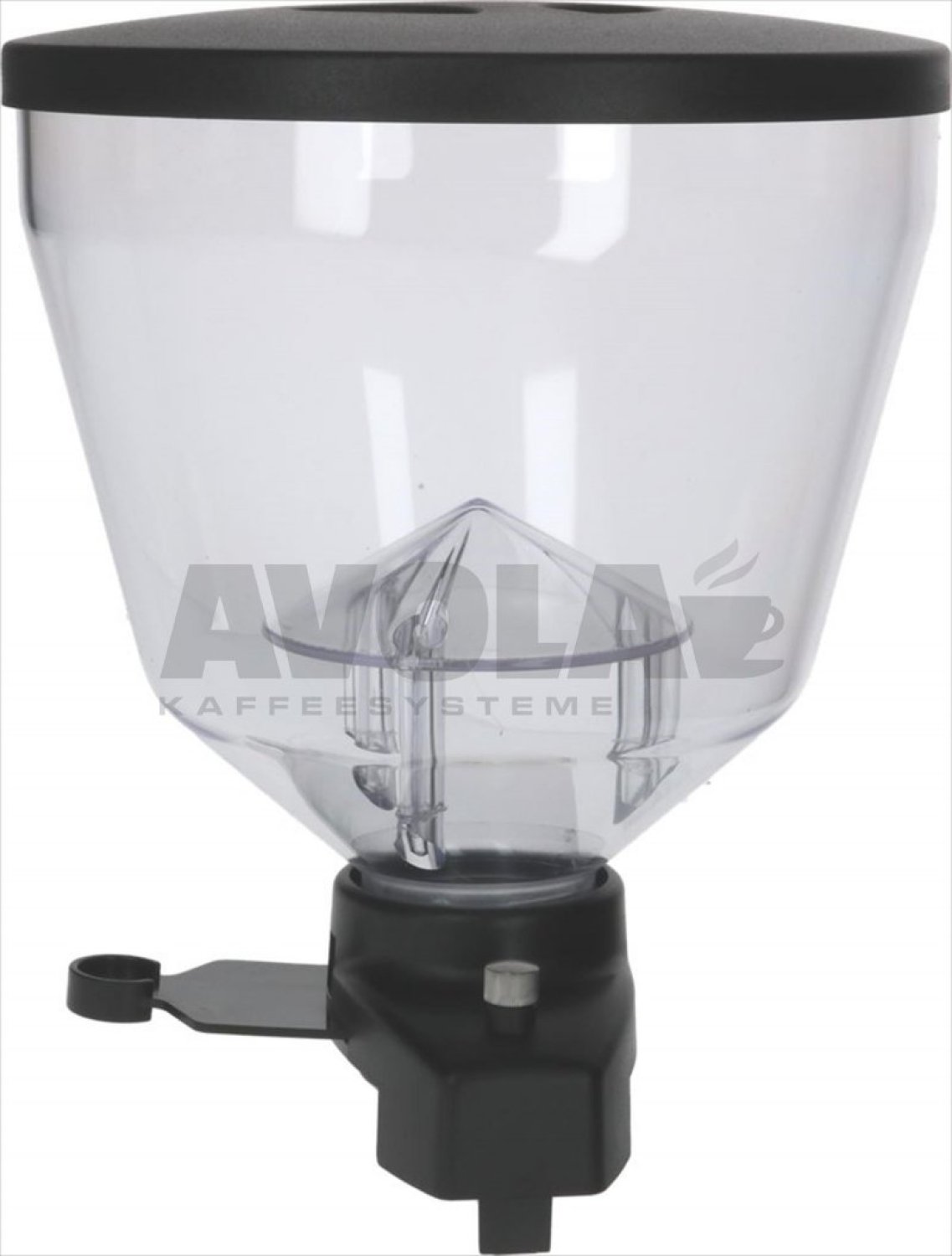

3coffee hopper8000376
COFFEE HOPPER
87,20 €

excl. Shipping costs
Delivery time
is determined
4closing sheet for coffee hopper8004157
CLOSING SHEET FOR COFFEE HOPPER
7,91 €

excl. Shipping costs
Delivery time
is determined
5caution hopper label8000022
CAUTION-HOPPER LABEL
1,55 €

excl. Shipping costs
Delivery time
is determined
6adjustment ring pin m58005206
ADJUSTMENT RING PIN M5
18,81 €

excl. Shipping costs
immediately available, 3 available
7coarse fine label8000021
COARSE-FINE LABEL
2,90 €

excl. Shipping costs
immediately available, 7 available
8con gr burrs mazzer pair rh single ph 8003903
CON.GR.BURRS MAZZER (PAIR) RH SINGLE-PH.
155,41 €

excl. Shipping costs
Delivery time
is determined
8con gr burrs mazzer pair rh three ph 8003908
CON.GR.BURRS MAZZER (PAIR) RH THREE-PH.
185,64 €

excl. Shipping costs
Delivery time
is determined

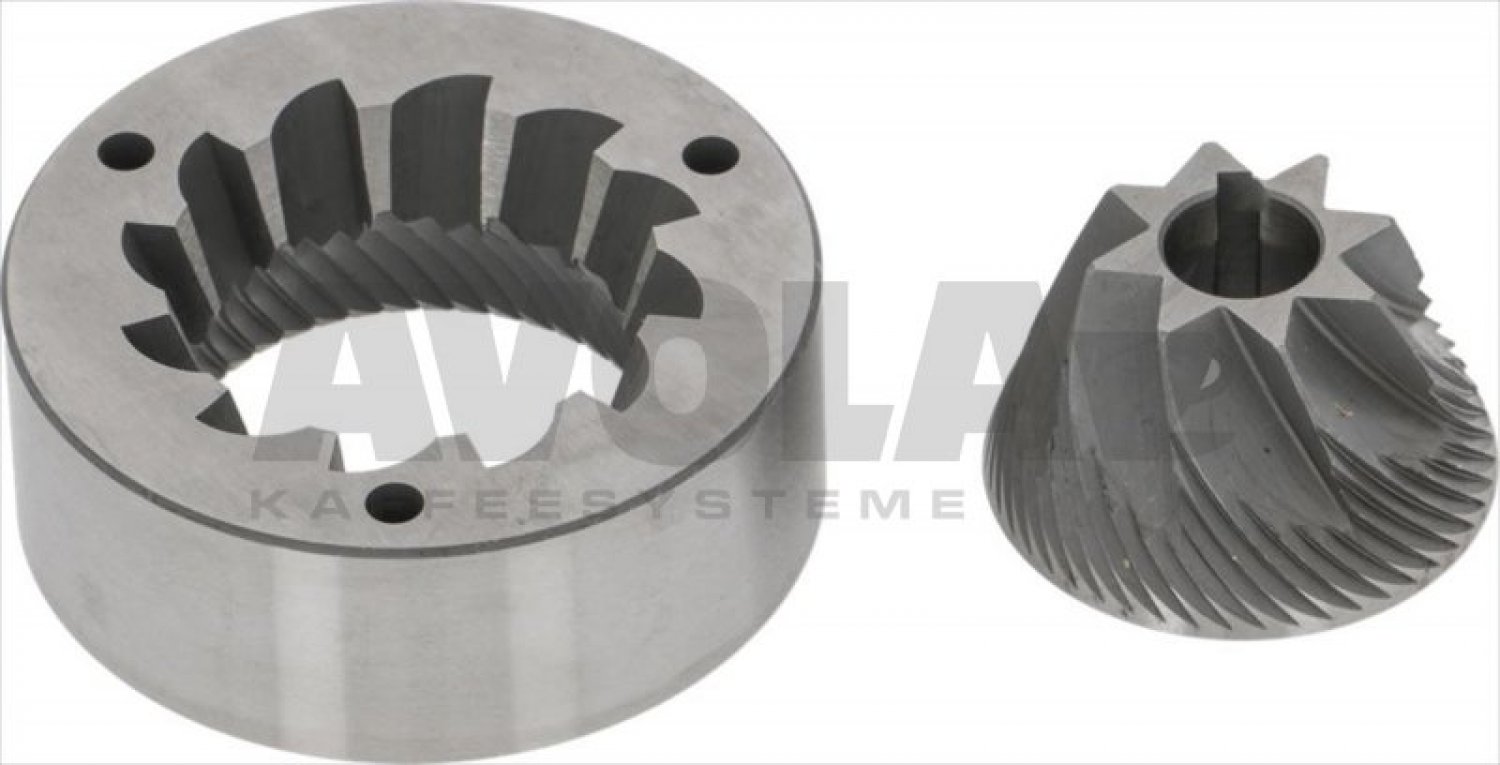

8mazzer kony mahlscheiben konisch einphasig o638060824
Mazzer Kony Mahlscheiben konisch einphasig Ø63
61,65 €

excl. Shipping costs
Delivery time
is determined
9adjustment ring8004562
ADJUSTMENT RING
91,05 €

excl. Shipping costs
Delivery time 4-6 weeks
11grinding control spring8003595
GRINDING CONTROL SPRING
3,19 €

excl. Shipping costs
immediately available, 8 available
13safety switch8005049
SAFETY SWITCH
38,78 €

excl. Shipping costs
Delivery time
is determined

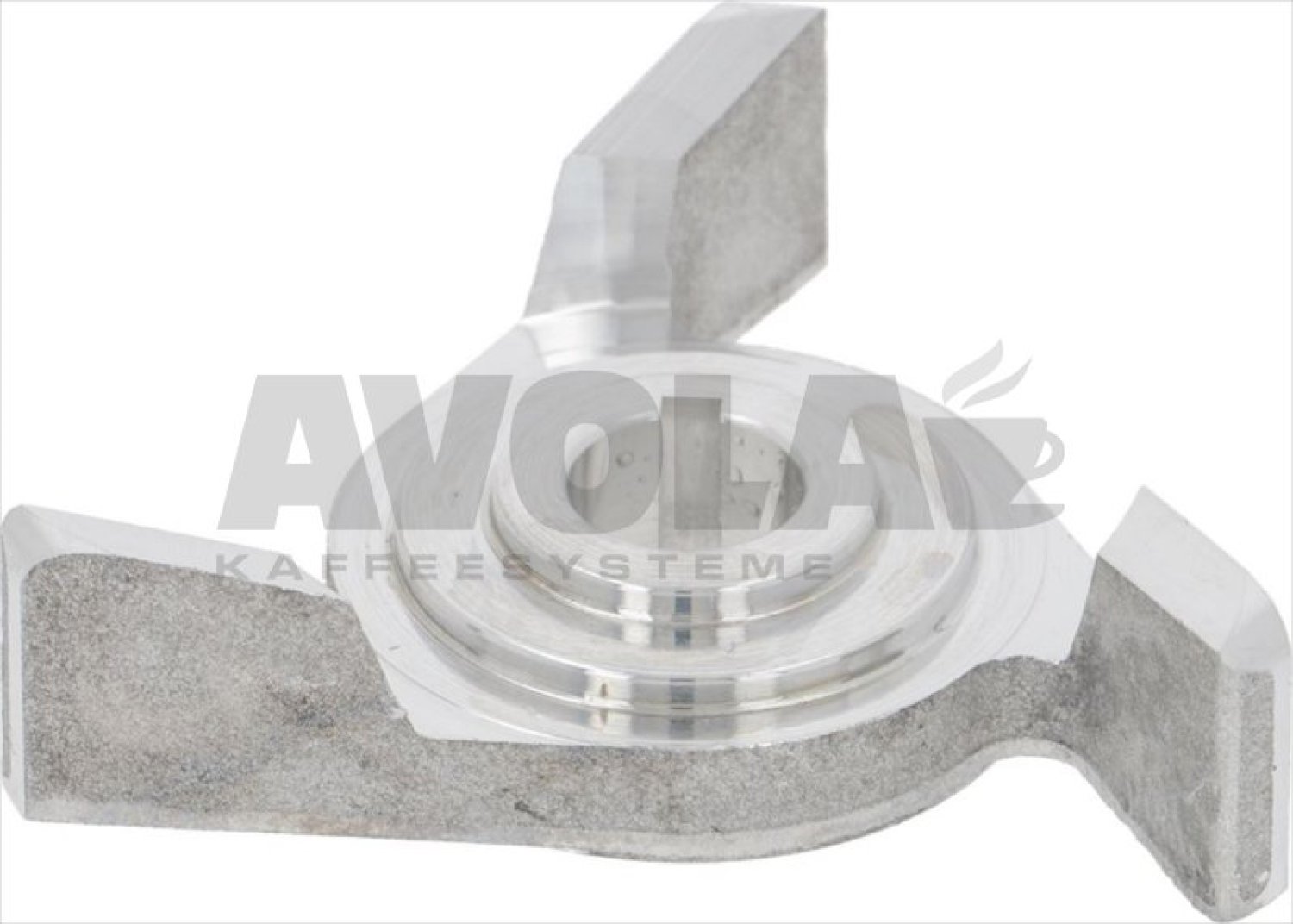

14grinding burrs bottom holder single ph 8003909
GRINDING BURRS BOTTOM HOLDER SINGLE-PH.
73,55 €

excl. Shipping costs
Delivery time 4-6 weeks
15bearing 6202 ddu nsk8011521
BEARING 6202 DDU NSK
12,79 €

excl. Shipping costs
Delivery time
is determined
17mazzer spacer o 20x15x4 mm8004463
Mazzer SPACER ø 20x15x4 mm
10,66 €

excl. Shipping costs
Delivery time 4-6 weeks
183 phase shaft with 3 pins8004464
3-PHASE SHAFT WITH 3 PINS
105,79 €

excl. Shipping costs
Delivery time 4-6 weeks
20mazzer aer stop gasket8002070
Mazzer AER-STOP GASKET
2,75 €

excl. Shipping costs
immediately available, 3 available
22reduction gear8002704
REDUCTION GEAR
21,21 €

excl. Shipping costs
Delivery time 4-6 weeks
23reduction gear8002705
REDUCTION GEAR
42,07 €

excl. Shipping costs
Delivery time 4-6 weeks
24reduction gear8002706
REDUCTION GEAR
52,07 €

excl. Shipping costs
Delivery time 4-6 weeks
27filter holder fork8004158
FILTER HOLDER FORK
27,17 €

excl. Shipping costs
Delivery time
is determined
28green indicator lamp 230 400v8002776
GREEN INDICATOR LAMP 230/400V
11,27 €

excl. Shipping costs
Delivery time
is determined
29grounds tray8004560
GROUNDS TRAY
59,64 €

excl. Shipping costs
Delivery time
is determined
30label 4m mazzer8004147
LABEL 4M MAZZER
11,69 €

excl. Shipping costs
immediately available, 2 available
33selector switch 0 1 start positions 20a8000298
SELECTOR SWITCH 0-1-START POSITIONS 20A
59,52 €

excl. Shipping costs
Delivery time
is determined
33selector switch 0 1 positions 20a 690v8000299
SELECTOR SWITCH 0-1- POSITIONS 20A 690V
61,76 €

excl. Shipping costs
Delivery time
is determined
38wound stator 230 400v 50hz8003099
WOUND STATOR 230/400V 50Hz
233,41 €

excl. Shipping costs
Delivery time 4-6 weeks
38wound stator 220 240v 50hz8003100
WOUND STATOR 220/240V 50Hz
233,41 €

excl. Shipping costs
Delivery time
is determined
39rotor super jolly8003102
ROTOR SUPER JOLLY
114,87 €

excl. Shipping costs
immediately available, 1 available
43contactor lovato bg0910a8006909
CONTACTOR LOVATO BG0910A
54,59 €

excl. Shipping costs
immediately available, 1 available
44circuit interrupter 4cr 1 6708004563
CIRCUIT INTERRUPTER 4CR-1-670
94,77 €

excl. Shipping costs
Delivery time 4-6 weeks
46capacitor8011680
CAPACITOR
11,07 €

excl. Shipping costs
immediately available, 5 available
49foot assembly m5x0 758004624
FOOT ASSEMBLY M5x0,75
4,64 €

excl. Shipping costs
immediately available, 7 available
51aufkleber danger8004174
AUFKLEBER DANGER
2,42 €

excl. Shipping costs
Delivery time
is determined
60motor rotation label8003106
MOTOR ROTATION LABEL
Price on request
61mazze doser lid o 125 mm8004161
MAZZE DOSER LID ø 125 mm
17,46 €

excl. Shipping costs
immediately available, 1 available
62doser cylinder o 120x68 mm8004162
DOSER CYLINDER ø 120x68 mm
17,54 €

excl. Shipping costs
Delivery time
is determined
63small control handle8003411
SMALL CONTROL HANDLE
11,67 €

excl. Shipping costs
Delivery time
is determined
64upper star with pin8005341
UPPER STAR WITH PIN
22,93 €

excl. Shipping costs
Delivery time
is determined
65closing sector8004163
CLOSING SECTOR
11,17 €

excl. Shipping costs
Delivery time
is determined
66star female 8005412
STAR (FEMALE)
21,78 €

excl. Shipping costs
Delivery time
is determined
67doser pressure spring8004164
DOSER PRESSURE SPRING
Price on request
68mazzer star male new version o 112mm8005413
Mazzer STAR (MALE) new Version Ø 112mm
19,67 €

excl. Shipping costs
Delivery time
is determined
69upper microswitch assembly8003109
UPPER MICROSWITCH ASSEMBLY
95,78 €

excl. Shipping costs
Delivery time
is determined
71coffee tamper8006221
COFFEE TAMPER
28,92 €

excl. Shipping costs
Delivery time
is determined
71coffee tamper8006222
COFFEE TAMPER
29,04 €

excl. Shipping costs
Delivery time
is determined
71coffee tamper o 57 5 mm8006223
COFFEE TAMPER ø 57,5 mm
29,23 €

excl. Shipping costs
Delivery time
is determined
72compensation ring8004166
COMPENSATION RING
Price on request
73pawl for coffee grinder doser8004167
PAWL FOR COFFEE GRINDER/DOSER
25,70 €

excl. Shipping costs
Delivery time
is determined
74st steel screw for dosing adjust m8x708004168
ST.STEEL SCREW FOR DOSING ADJUST. M8x70
12,36 €

excl. Shipping costs
Delivery time
is determined
75lower microrelease spring8003861
LOWER MICRORELEASE SPRING
1,56 €

excl. Shipping costs
Delivery time
is determined
76lower microswitch star8005414
LOWER MICROSWITCH STAR
Price on request
77microswitch 12a 250 v8003110
MICROSWITCH 12A 250 V
62,11 €

excl. Shipping costs
Delivery time 4-6 weeks
78counter for coffee grinder8004169
COUNTER FOR COFFEE GRINDER
51,77 €

excl. Shipping costs
Delivery time
is determined
79doser lever return spring8003862
DOSER LEVER RETURN SPRING
5,94 €

excl. Shipping costs
immediately available, 10 available
80doser retainer8004170
DOSER RETAINER
10,98 €

excl. Shipping costs
immediately available, 2 available
82retainer spring8003863
RETAINER SPRING
2,98 €

excl. Shipping costs
immediately available, 3 available
83doser lever8004171
DOSER LEVER
80,50 €

excl. Shipping costs
Delivery time
is determined
84doser lever assembly8004172
DOSER LEVER ASSEMBLY
73,84 €

excl. Shipping costs
Delivery time
is determined
85coffee outlet protection8004458
COFFEE OUTLET PROTECTION
50,29 €

excl. Shipping costs
Delivery time
is determined
87doser washer8004173
DOSER WASHER
Price on request
88lower microswitch star spacer8005415
LOWER MICROSWITCH STAR SPACER
6,43 €

excl. Shipping costs
Delivery time
is determined
89aufkleber danger8004174
AUFKLEBER DANGER
2,42 €

excl. Shipping costs
Delivery time
is determined
92star with adjustment knob8005416
STAR WITH ADJUSTMENT KNOB
62,83 €

excl. Shipping costs
Delivery time 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
