MACCHIAVALLEY CRISTALLO I – IM – II - III BRÜHGRUPPE

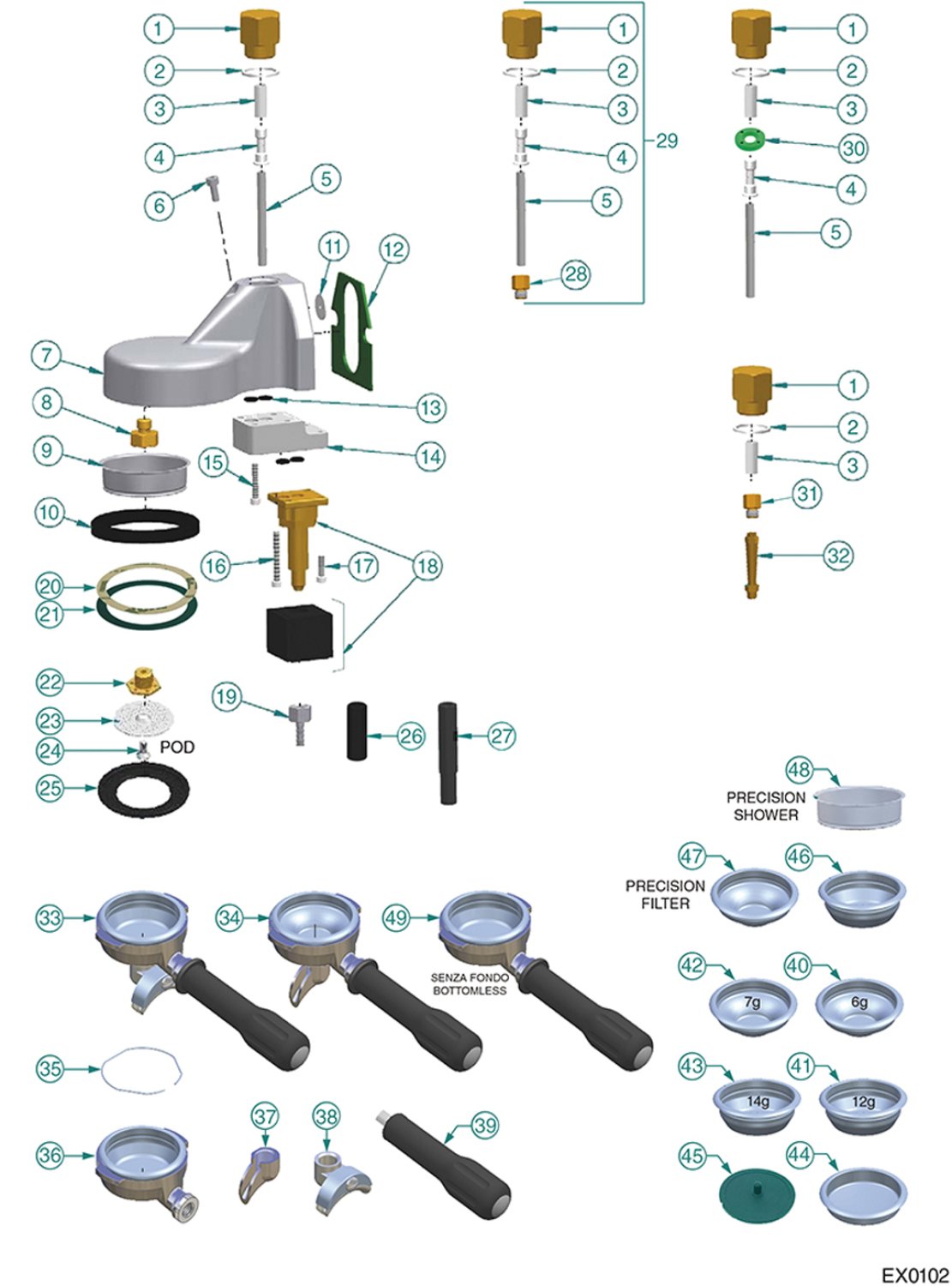

Drawing number 8079237

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

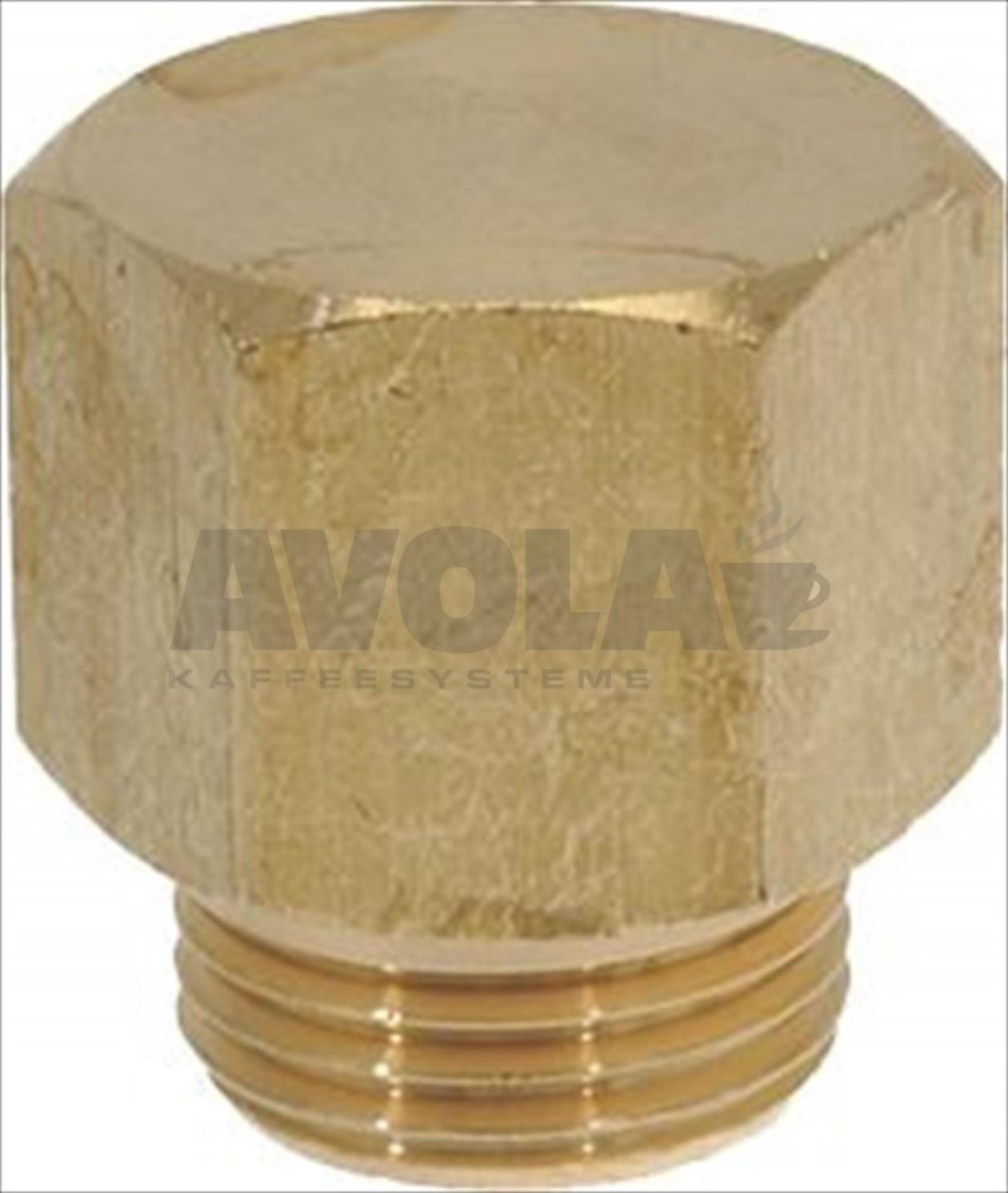

1cap o 1 2 a8006378
CAP ø 1/2 A
31,68 €

excl. Shipping costs
Delivery time
is determined

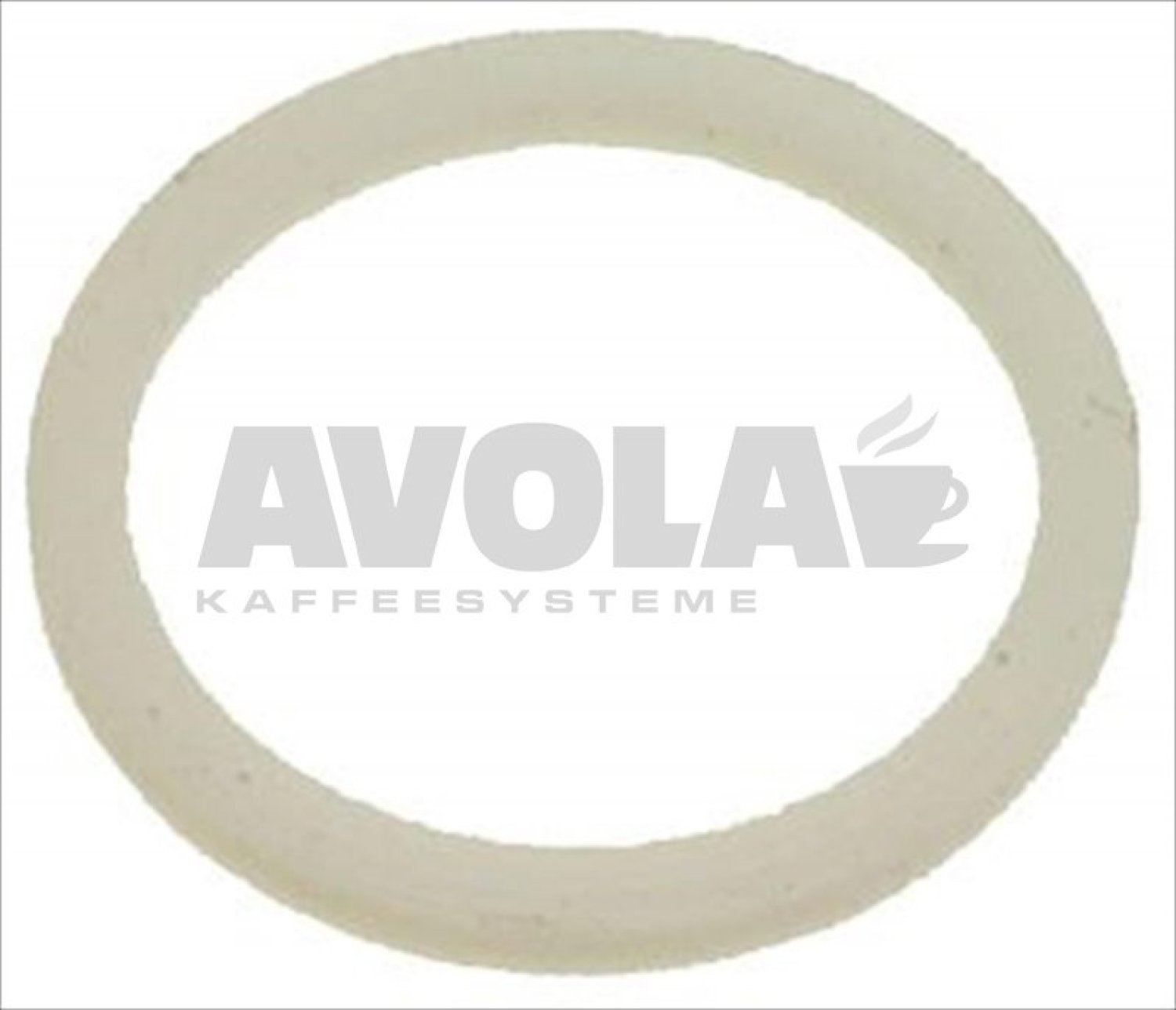

2flat ptfe gasket o 26x21 5x2 mm8001754
FLAT PTFE GASKET ø 26x21,5x2 mm
6,44 €

excl. Shipping costs
immediately available, 3 available
3water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available

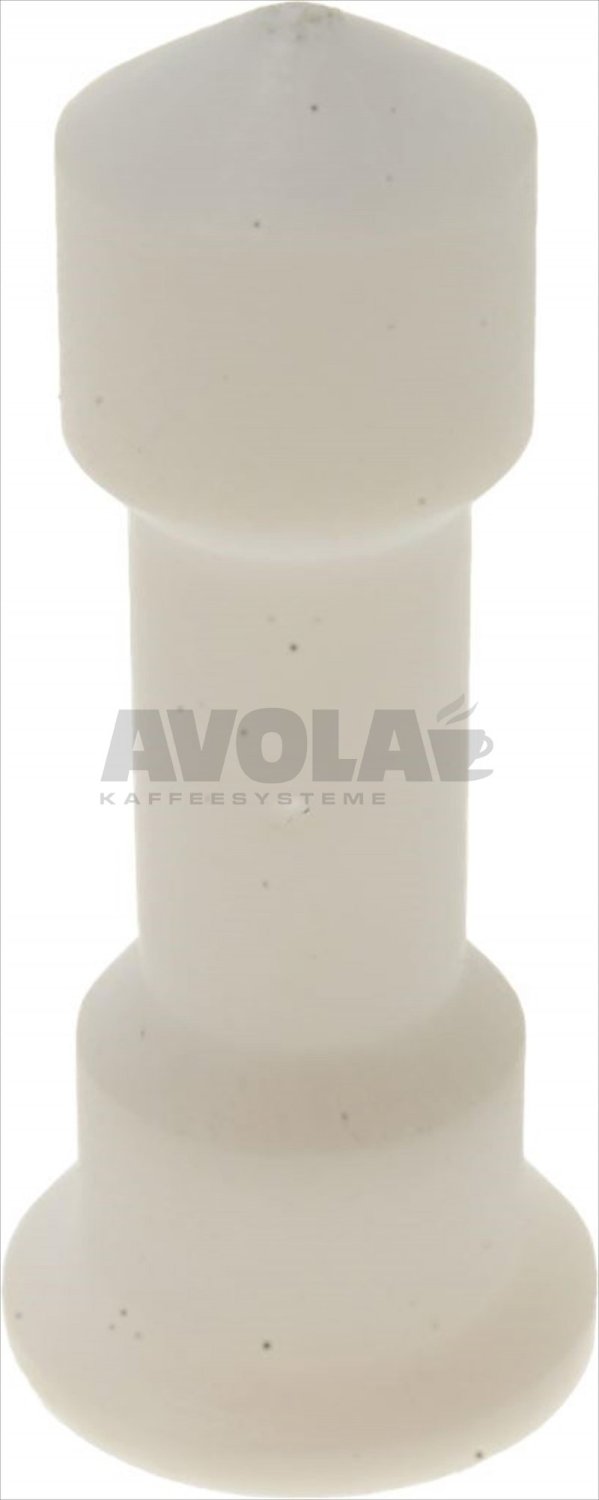

4macchiavalley expobar gruppenduese8074011
Macchiavalley Expobar Gruppendüse
35,70 €

excl. Shipping costs
immediately available, 1 available

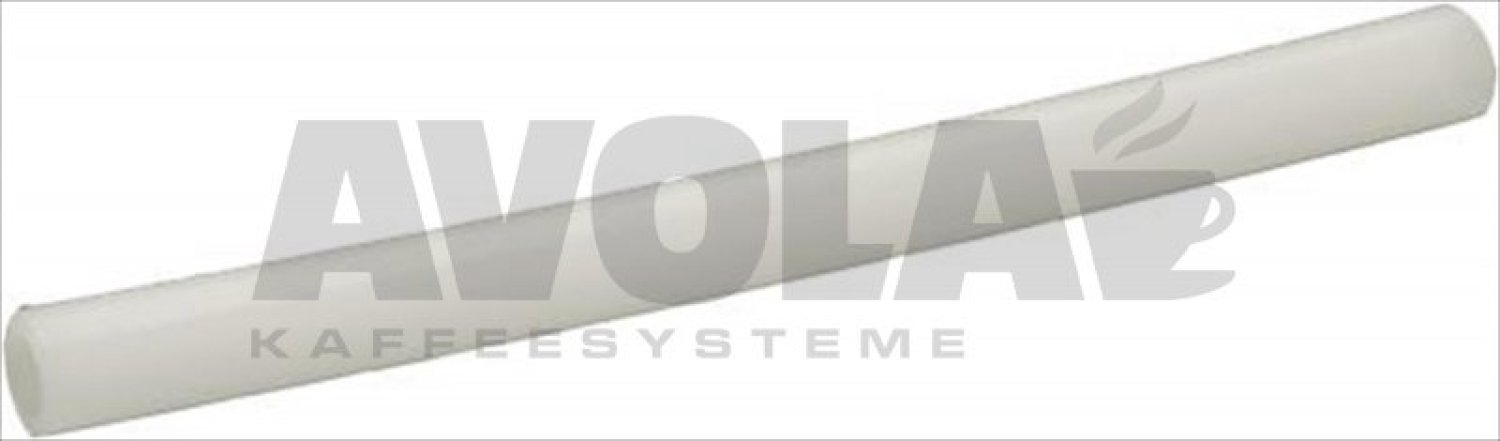

5jet holder brew group8005129
JET HOLDER BREW GROUP
6,19 €

excl. Shipping costs
immediately available, 7 available
6low cylinder head screw m6x10 uni 93278001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs
immediately available

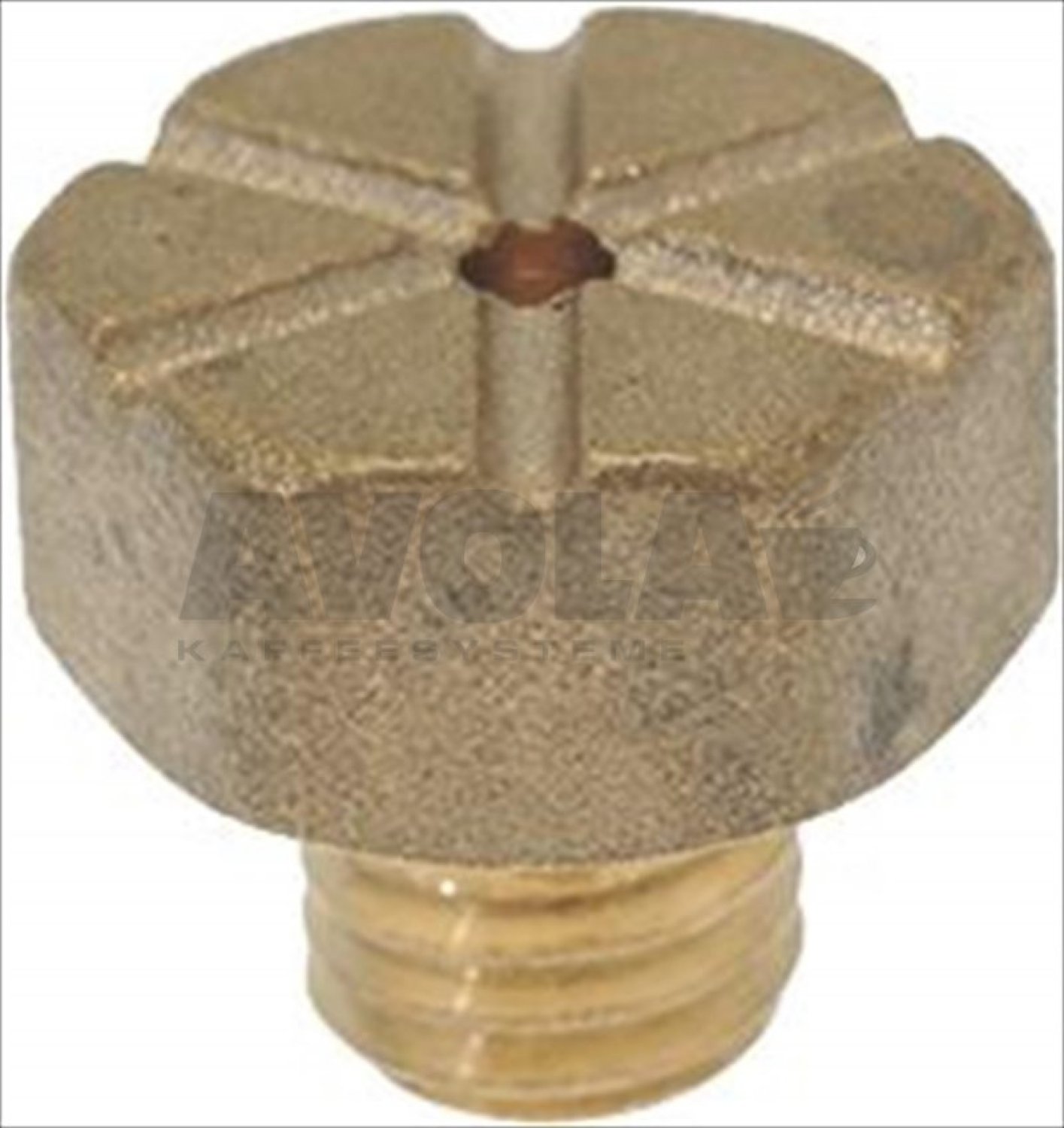

8group sprinkler m108006976
GROUP SPRINKLER M10
21,68 €

excl. Shipping costs
immediately available, 4 available
9shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
9ims matrix dusche e61 duschsieb8280721
IMS Matrix Dusche E61 Duschsieb
27,95 €

excl. Shipping costs
immediately available, 10 available
10cafelat e61 portafilter gasket 73x57x8 mm red8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs
immediately available, 11 available

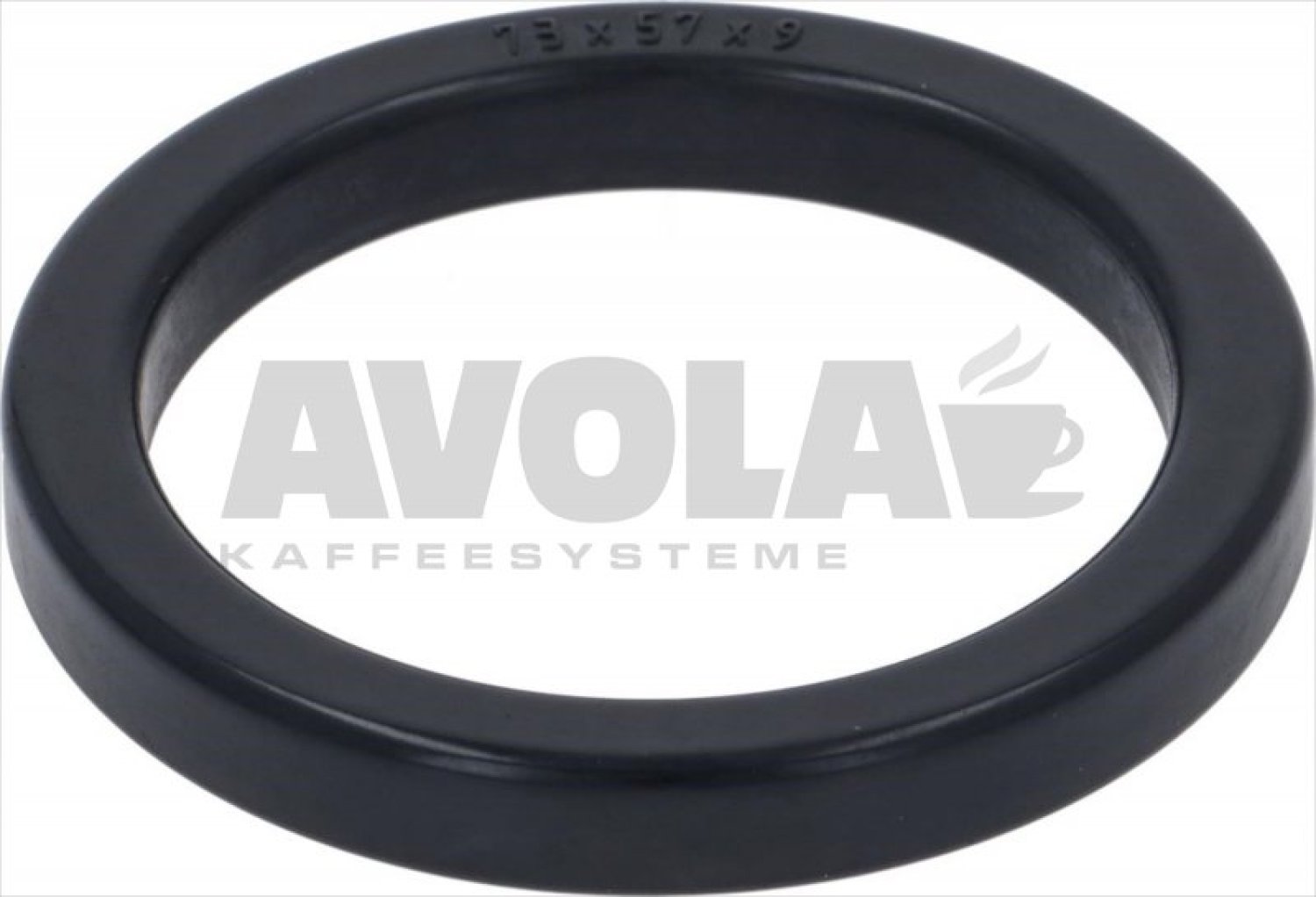

10filter holder gasket o 73x57x9 mm8001904
FILTER HOLDER GASKET ø 73x57x9 mm
3,99 €

excl. Shipping costs
immediately available, 16 available
10gasket 73x57x8 mm for e61 brew unit8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs
immediately available
10rubber 73x57x8 5 mm for e61 brew unit8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs
immediately available

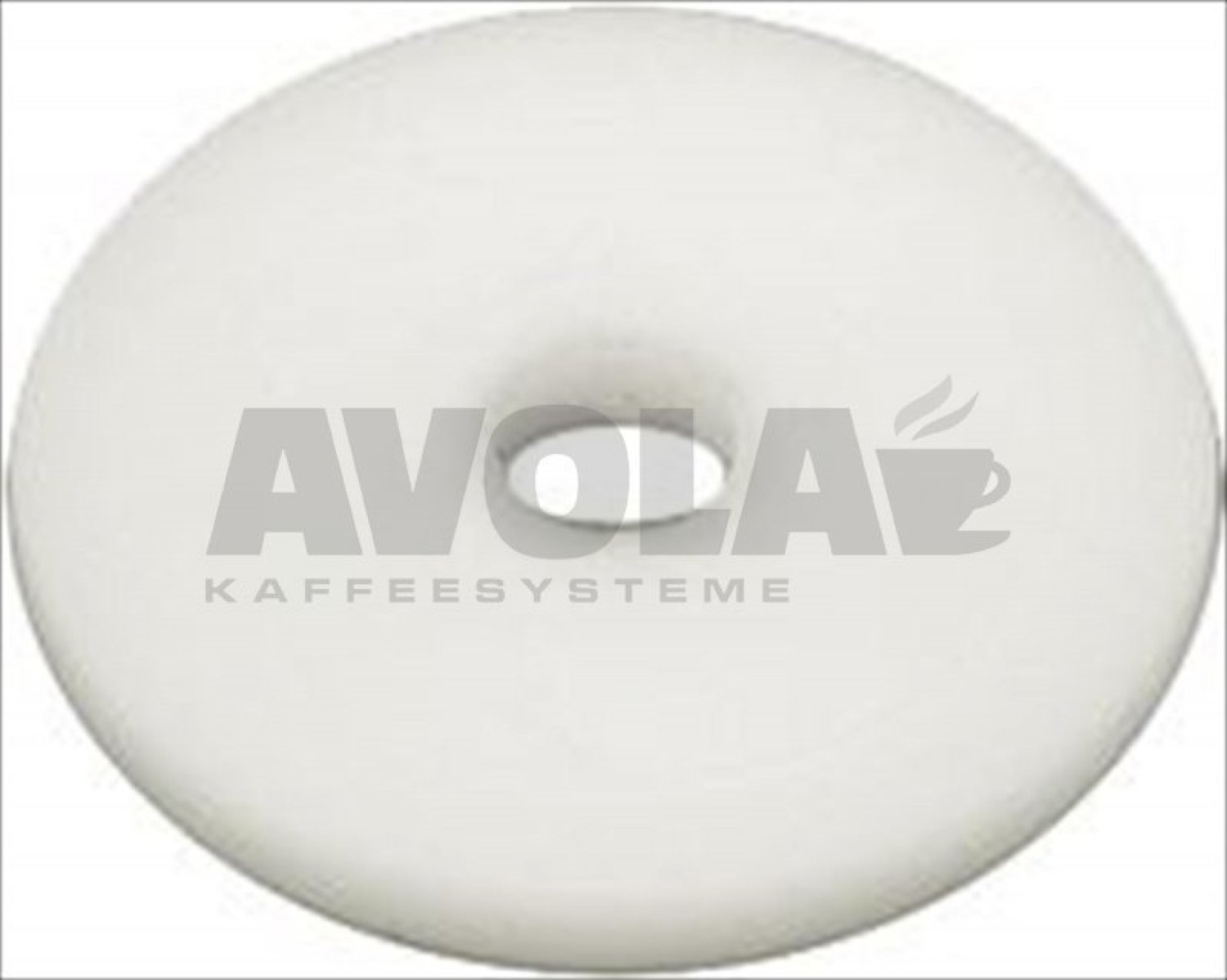

11ptfe flat gasket o 18x3 5x1 mm8001349
PTFE FLAT GASKET ø 18x3,5x1 mm
3,75 €

excl. Shipping costs
immediately available, 7 available
12coffee group gasket 75x68x2 mm8001753
COFFEE GROUP GASKET 75x68x2 mm
5,89 €

excl. Shipping costs
immediately available, 8 available
13red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available

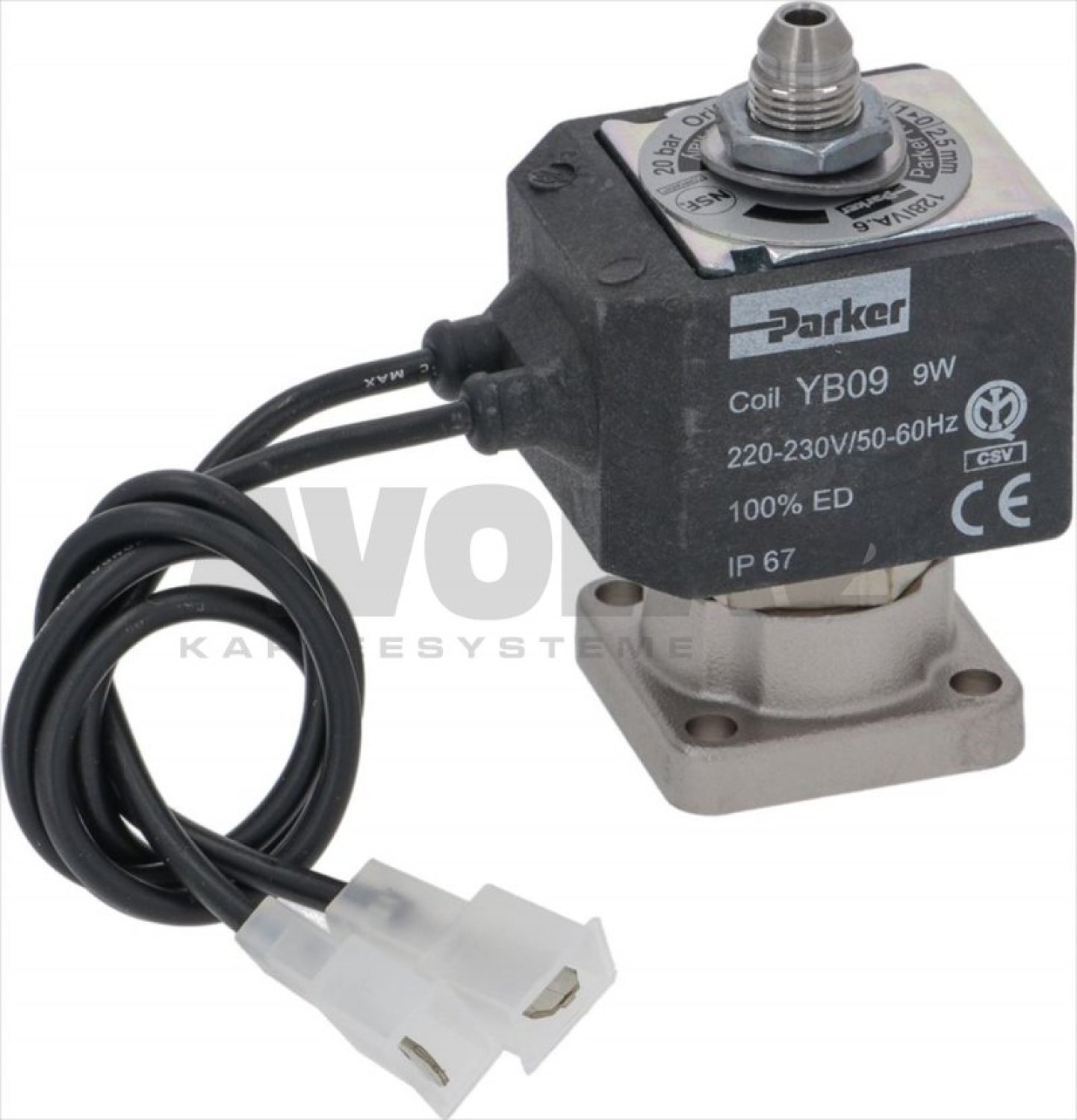

18expobar magnetventil parker 3 wege 230v 50 60hz8073738
Expobar Magnetventil Parker 3-WEGE 230V 50/60hz
76,18 €

excl. Shipping costs
Delivery time 4-6 weeks
20paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
21rubber shim o 73 5x59x1 mm epdm8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available

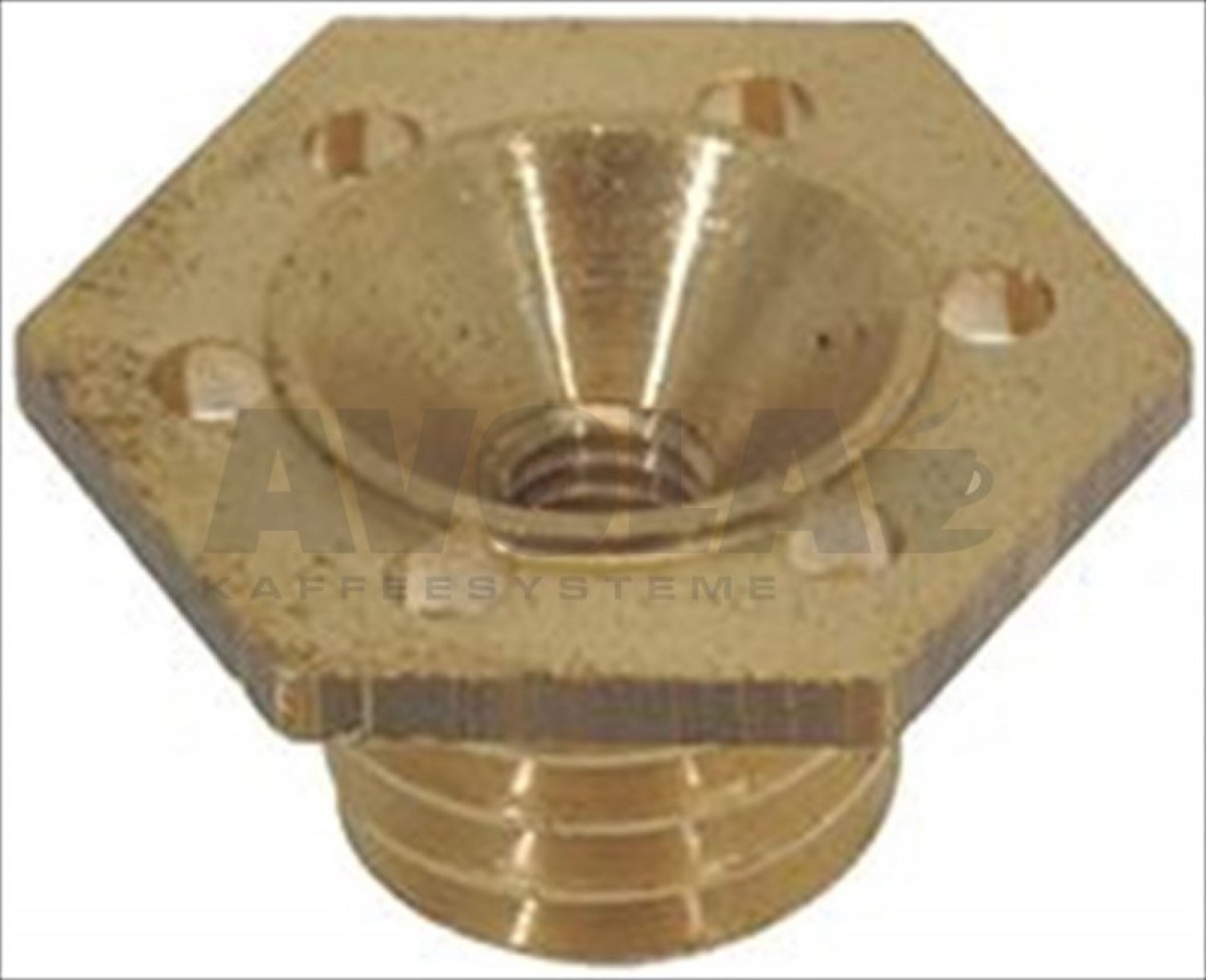

22brew group spray nozzle m10x1 58006968
BREW GROUP SPRAY NOZZLE M10x1.5
13,63 €

excl. Shipping costs
Delivery time
is determined

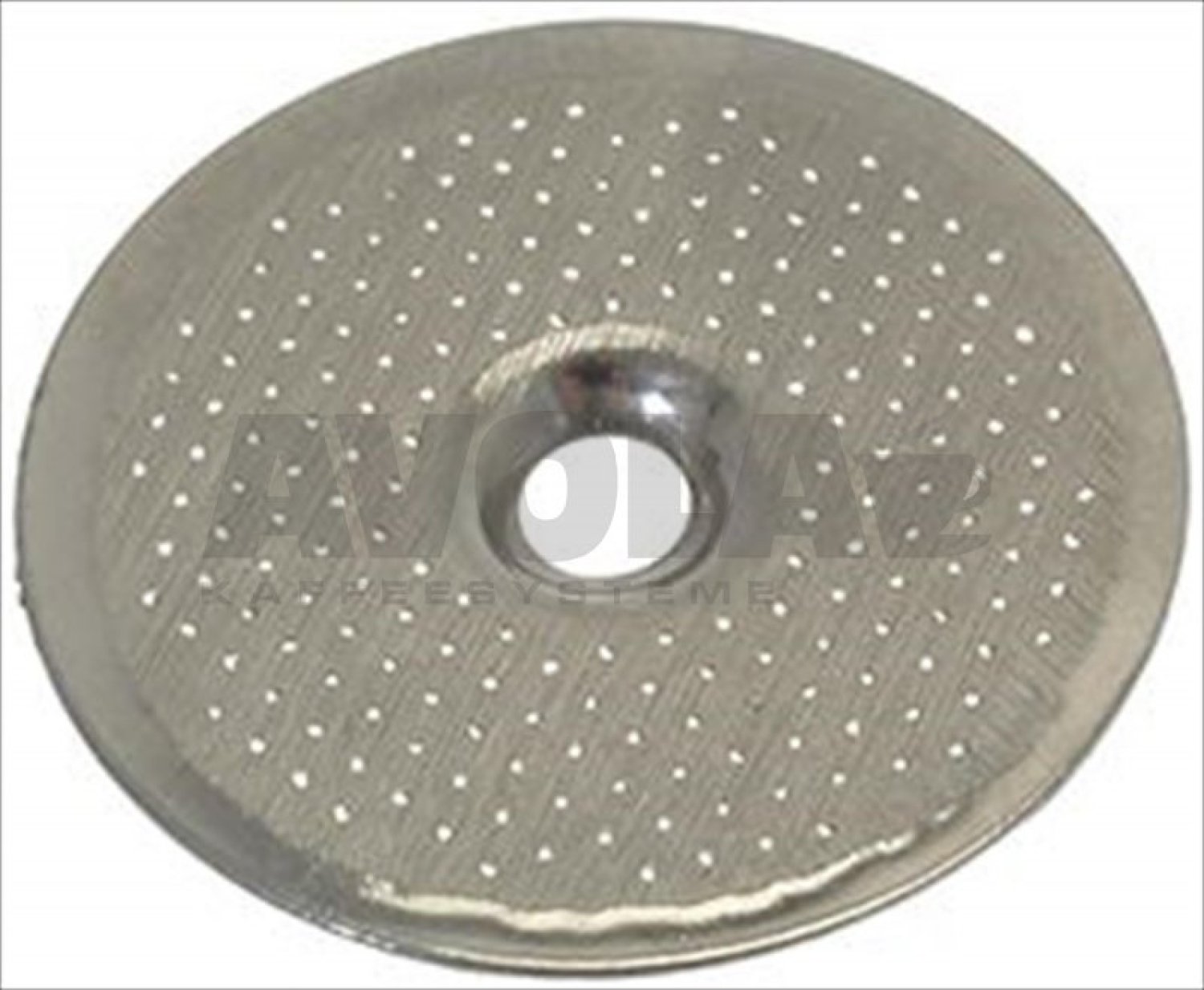

23shower o 34 mm8000553
SHOWER ø 34 mm
7,06 €

excl. Shipping costs
immediately available, 1 available

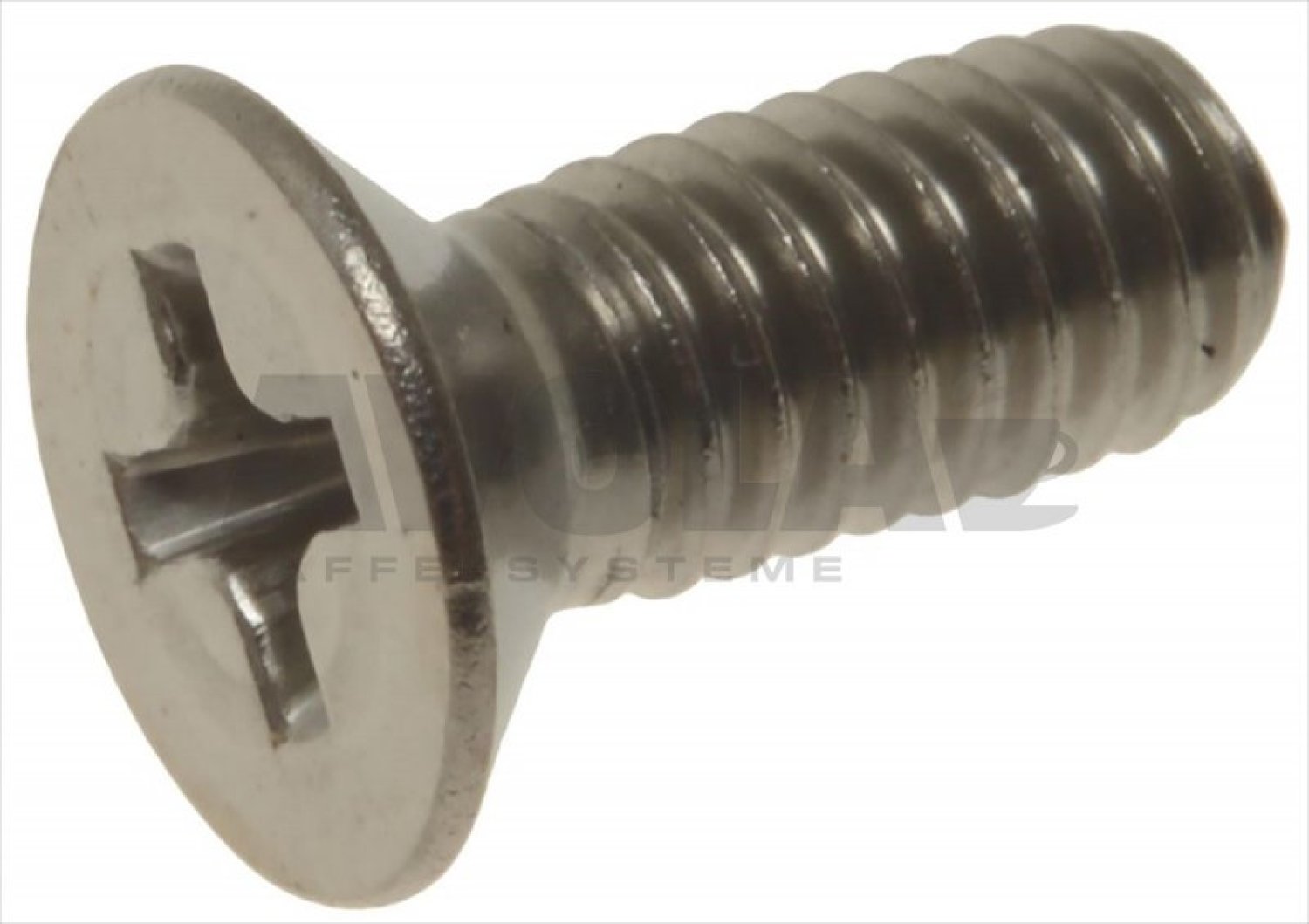

24countersunk flat head screws m4x108007244
COUNTERSUNK FLAT HEAD SCREWS M4x10
1,05 €

excl. Shipping costs
immediately available

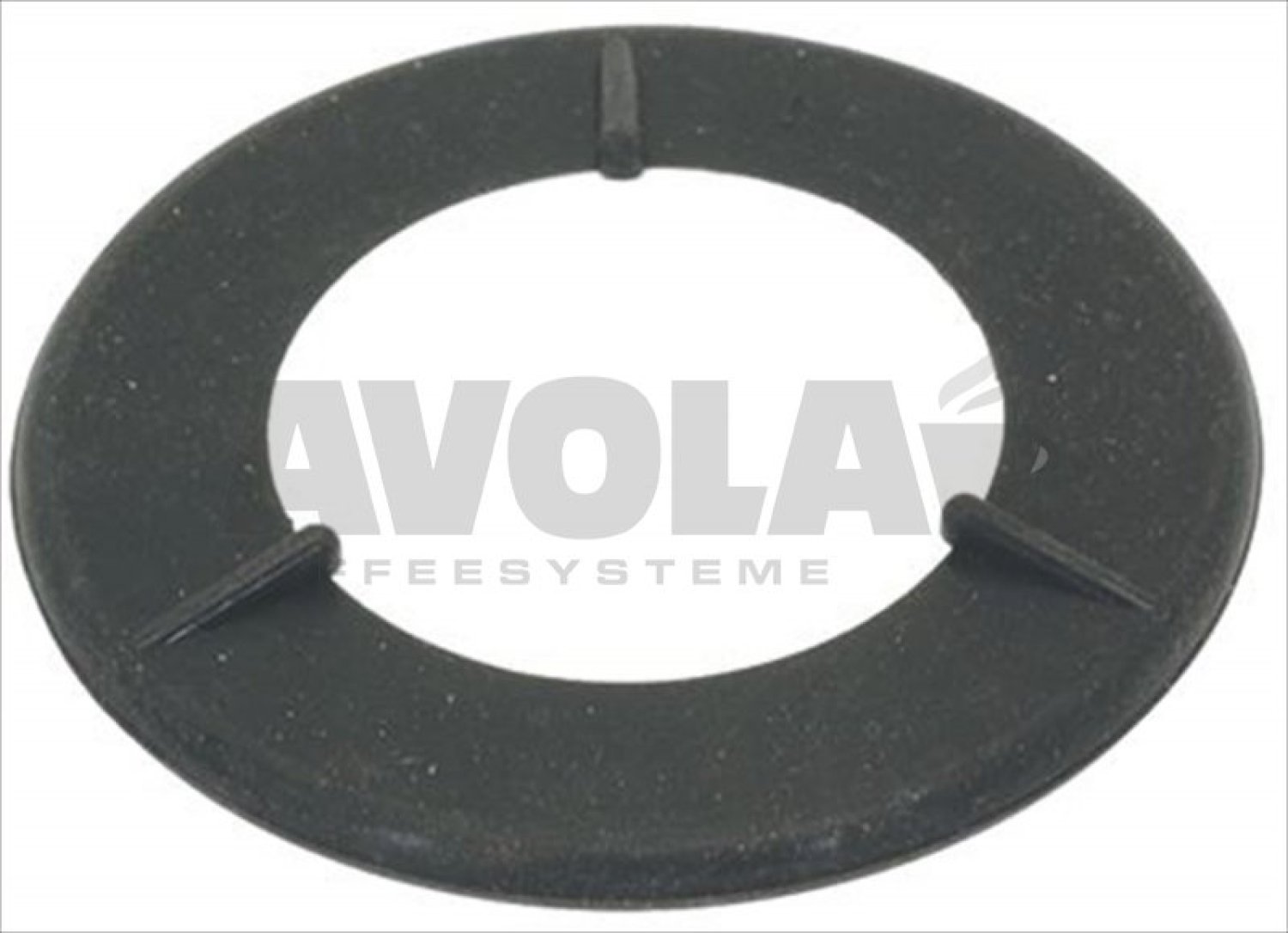

25group gasket o 51 mm8001347
GROUP GASKET ø 51 mm
9,29 €

excl. Shipping costs
immediately available, 12 available

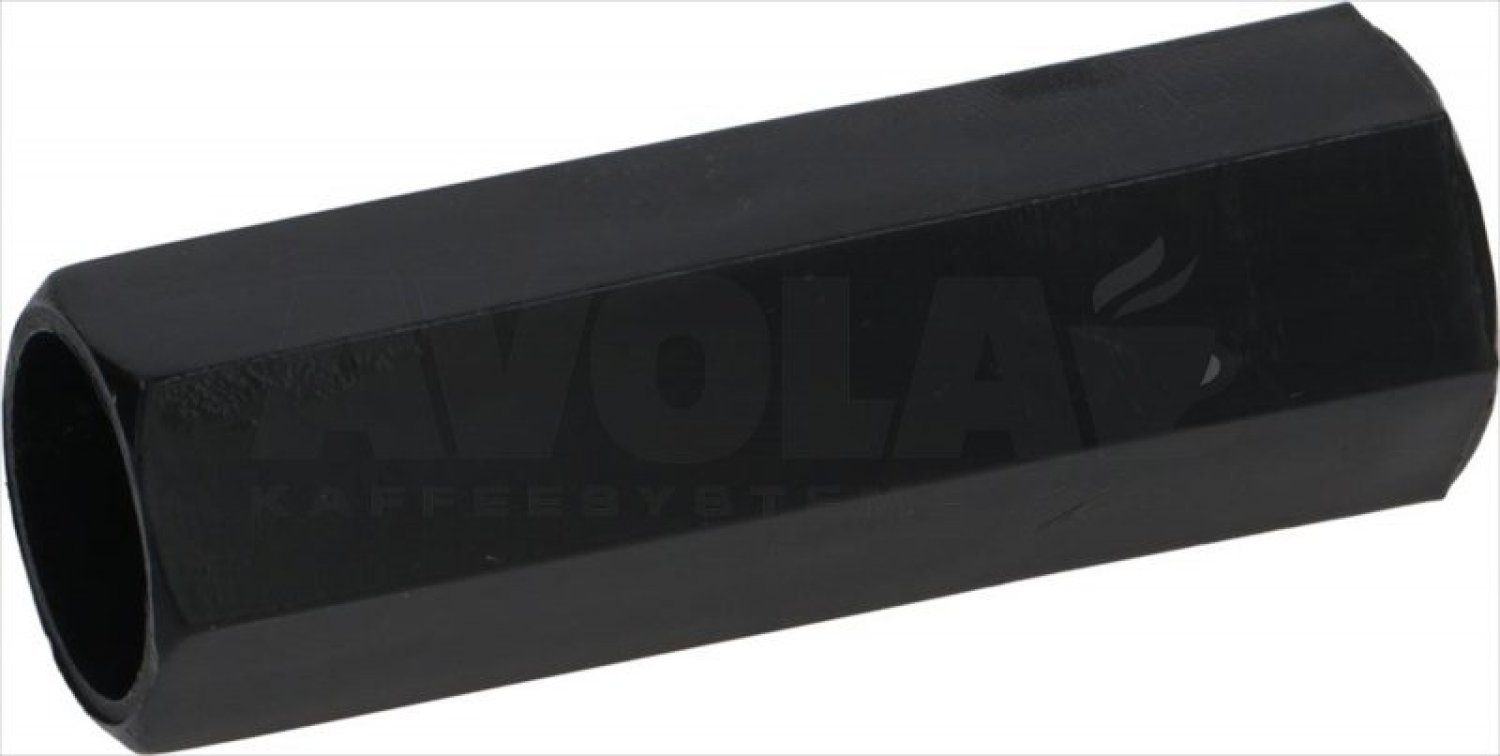

26drain pipe8006901
DRAIN PIPE
5,95 €

excl. Shipping costs
immediately available, 2 available

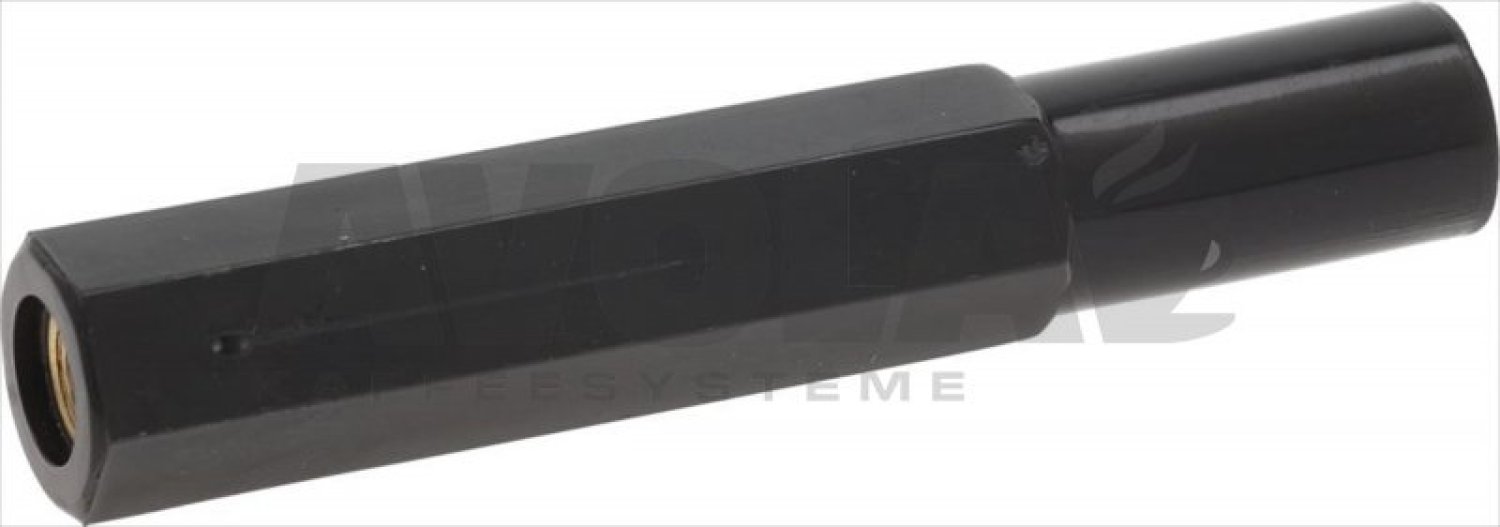

27drain pipe8006902
DRAIN PIPE
6,41 €

excl. Shipping costs
immediately available, 12 available
30flat viton gasket o 15x5 5x3 mm8001348
FLAT VITON GASKET ø 15x5,5x3 mm
10,89 €

excl. Shipping costs
immediately available, 5 available
31nozzle m6x1 hole8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs
immediately available

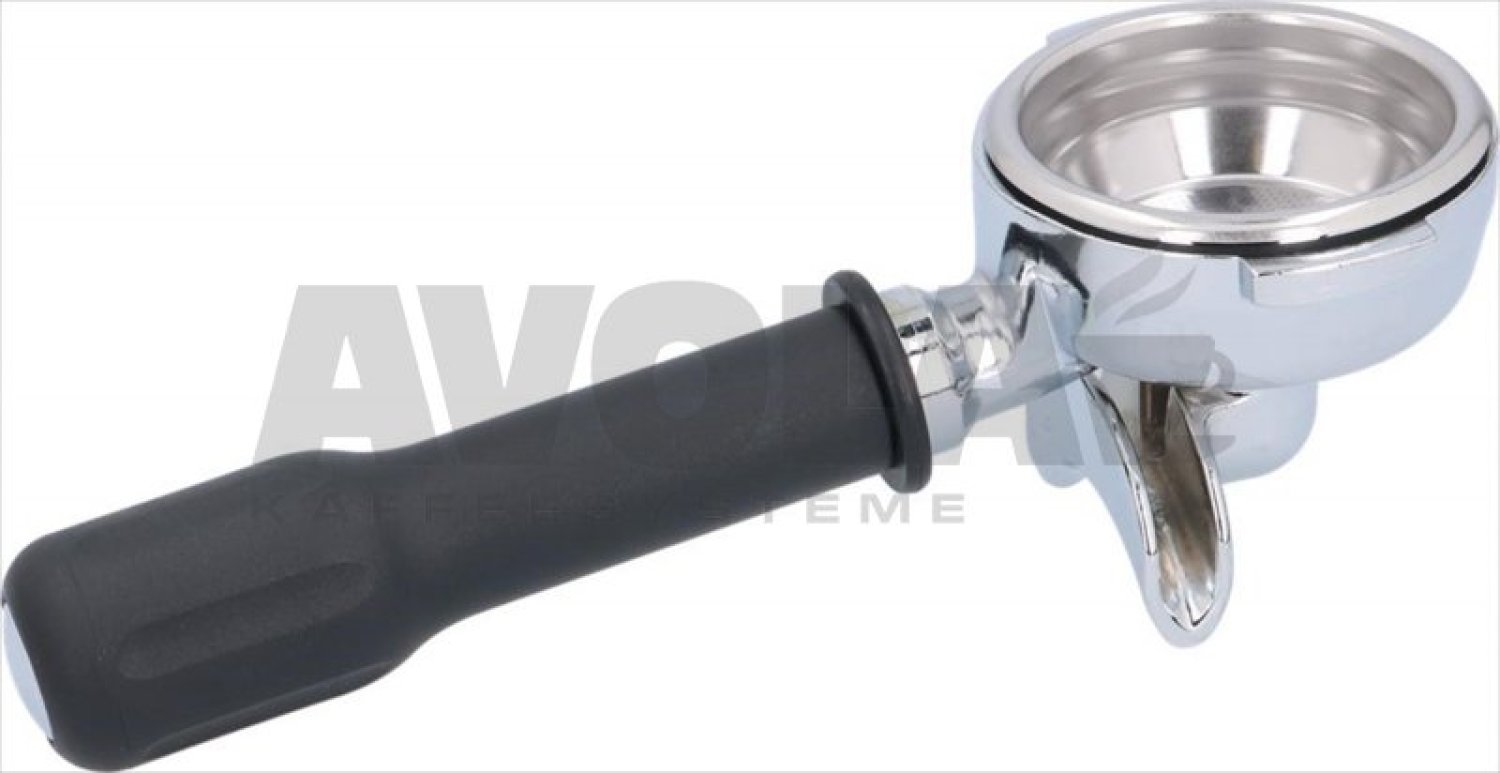

332 cups filter holder assembly expobar8014199
2 CUPS FILTER HOLDER ASSEMBLY EXPOBAR
60,81 €

excl. Shipping costs
immediately available, 1 available
341 cup filter holder assembly expobar8014198
1 CUP FILTER HOLDER ASSEMBLY EXPOBAR
37,93 €

excl. Shipping costs
Delivery time
is determined
35filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
36coffee machine filter holder8001215
COFFEE MACHINE FILTER HOLDER
23,67 €

excl. Shipping costs
immediately available, 1 available

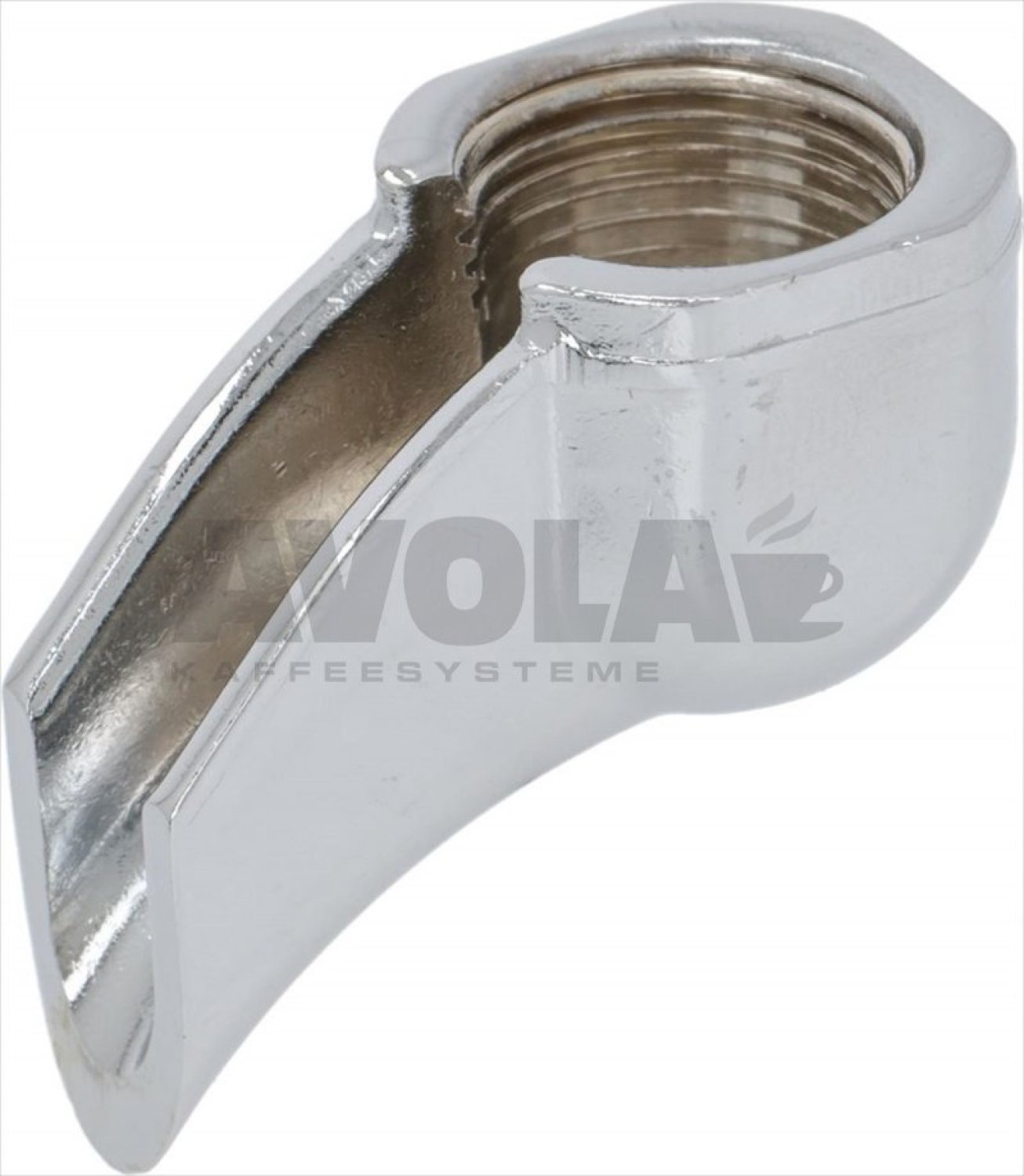

37single spout8061003
SINGLE SPOUT
7,91 €

excl. Shipping costs
immediately available, 10 available
38double spout o 3 8 rime8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs
immediately available, 6 available
39filter holder handle m128063627
FILTER HOLDER HANDLE M12
8,16 €

excl. Shipping costs
Delivery time
is determined
401 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 6 available
412 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 10 available
44blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available

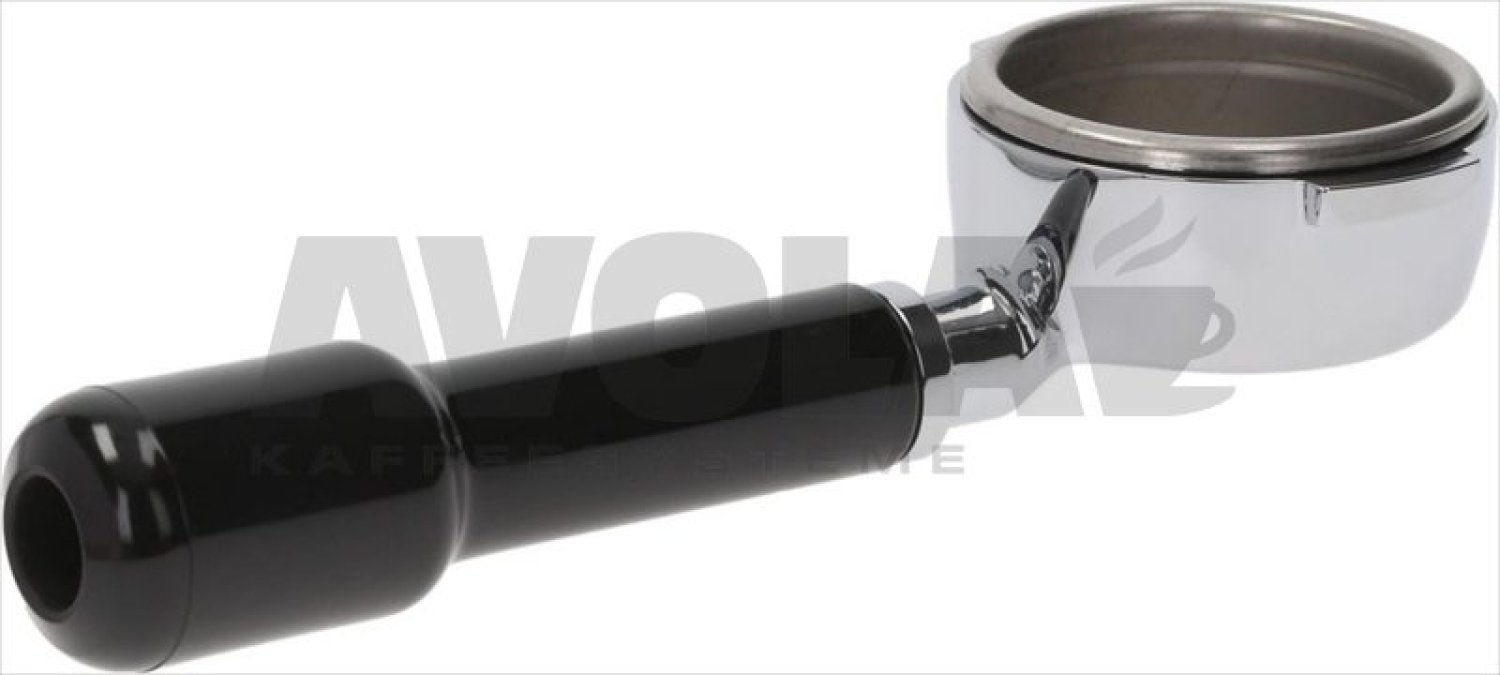

49bottomless filter holder crem expobar8001266
BOTTOMLESS FILTER HOLDER CREM EXPOBAR
37,38 €

excl. Shipping costs
immediately available, 1 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
