LA SCALA DAMPFVENTILE

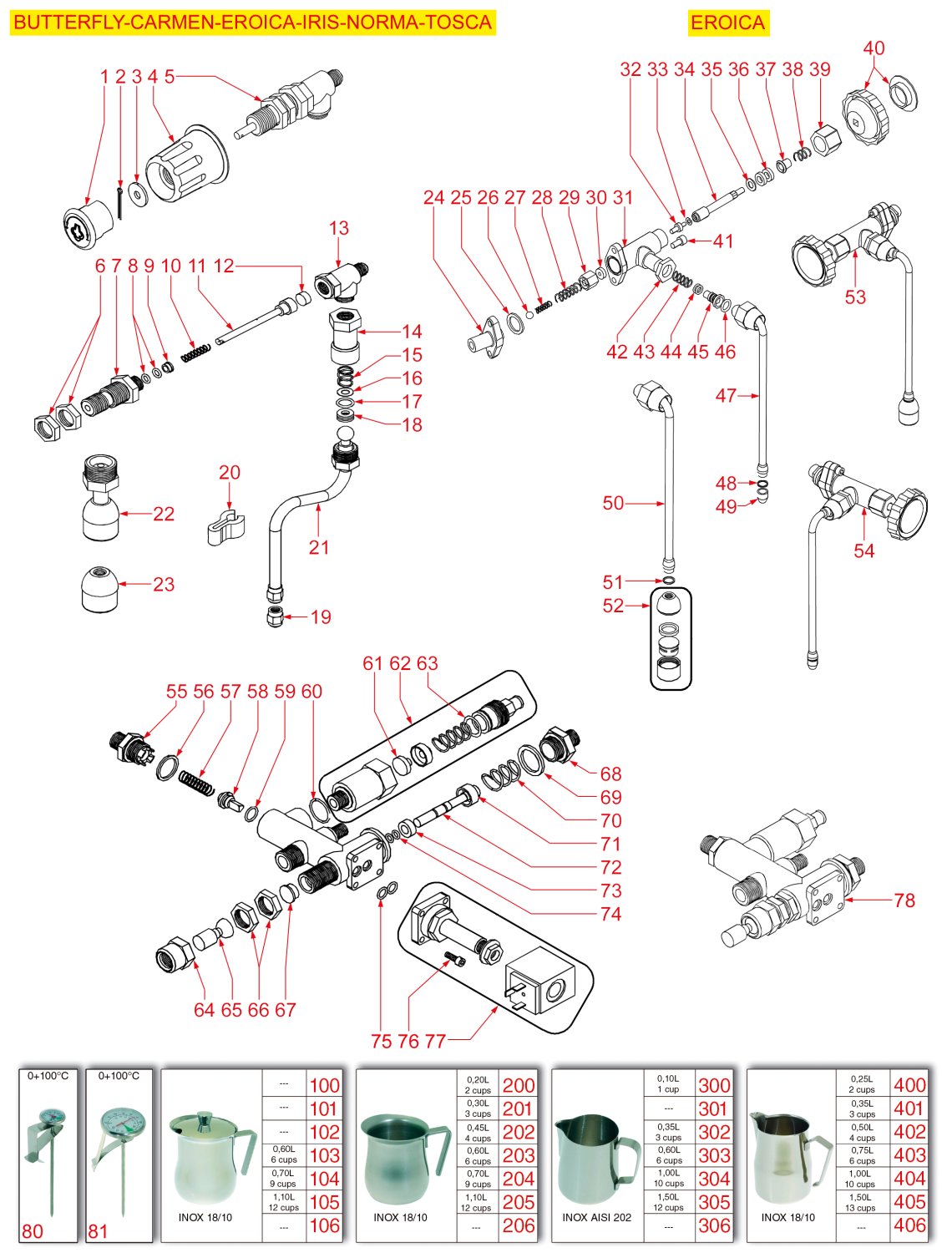

Drawing number 8139690

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1water cap for knob8003154
WATER CAP FOR KNOB
3,03 €

excl. Shipping costs
Delivery time
is determined
2stainless steel pin8024568
STAINLESS STEEL PIN
0,42 €

excl. Shipping costs
immediately available
3brass flat washer8007312
BRASS FLAT WASHER
2,77 €

excl. Shipping costs
immediately available, 8 available
4water steam tap handle8003258
WATER/STEAM TAP HANDLE
11,90 €

excl. Shipping costs
immediately available, 1 available
5water steam tap8005473
WATER/STEAM TAP
50,27 €

excl. Shipping costs
immediately available, 2 available
6nut o 1 28005857
NUT ø 1/2
2,77 €

excl. Shipping costs
immediately available, 11 available

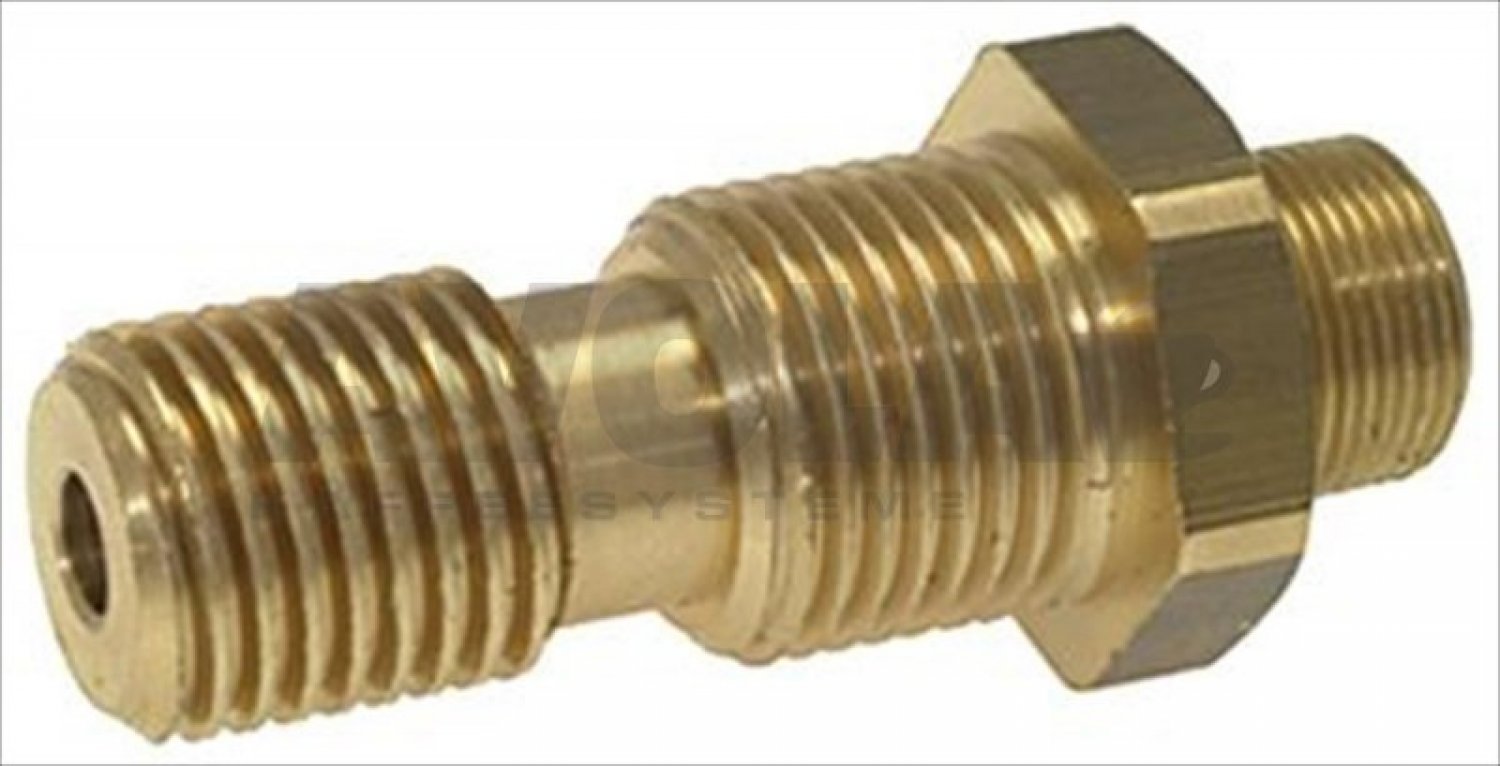

7tap pin8005841
TAP PIN
11,10 €

excl. Shipping costs
Delivery time
is determined
8o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
9spring bushing8001521
SPRING BUSHING
1,42 €

excl. Shipping costs
immediately available, 8 available
10tap spring8003795
TAP SPRING
1,80 €

excl. Shipping costs
immediately available, 8 available
11water steam tap pin8005137
WATER/STEAM TAP PIN
17,02 €

excl. Shipping costs
immediately available, 3 available
12blond gasket o 12x5 8 mm silicon8001670
blond gasket ø 12x5,8 mm silicon
1,20 €

excl. Shipping costs
immediately available
13tap body8005430
TAP BODY
15,66 €

excl. Shipping costs
Delivery time
is determined
15spring o 12x15 mm8003667
SPRING ø 12x15 mm
2,94 €

excl. Shipping costs
immediately available, 6 available
16brass washer flat8007257
BRASS WASHER FLAT
1,61 €

excl. Shipping costs
immediately available, 10 available
17o ring 02043 epdm8001593
O-RING 02043 EPDM
0,79 €

excl. Shipping costs
immediately available
18conical ptfe seal o 14x7x6 mm8001618
CONICAL PTFE SEAL ø 14x7x6 mm
3,46 €

excl. Shipping costs
immediately available, 8 available
18o ring 0114 epdm8001820
O-RING 0114 EPDM
0,60 €

excl. Shipping costs
immediately available
20steam pipe clip o 8 10 mm8001387
STEAM PIPE CLIP ø 8-10 mm
2,32 €

excl. Shipping costs
immediately available, 15 available
21stainl steel complete steam pipe8006581
STAINL.STEEL COMPLETE STEAM PIPE
55,86 €

excl. Shipping costs
Delivery time
is determined

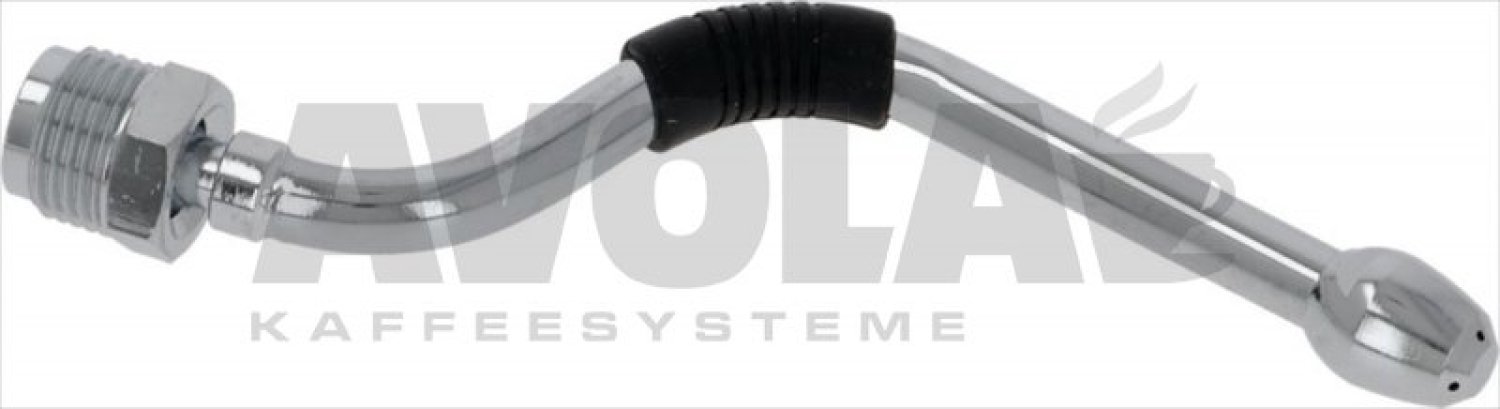

21dampfrohr komplett verchromt andoslash 10 mm8089274
DAMPFROHR KOMPLETT VERCHROMT ø 10 mm
41,42 €

excl. Shipping costs
Delivery time 4-6 weeks
22water pipe completo8006582
WATER PIPE COMPLETO
27,88 €

excl. Shipping costs
Delivery time 4-6 weeks
23water pipe nozzle 1 88006744
WATER PIPE NOZZLE 1/8
8,20 €

excl. Shipping costs
immediately available, 2 available
25ptfe flat gasket o 24x18x2 mm8001579
PTFE FLAT GASKET ø 24x18x2 mm
1,46 €

excl. Shipping costs
immediately available, 12 available
26stainless steel ball o 8 mm8005084
STAINLESS STEEL BALL ø 8 mm
2,46 €

excl. Shipping costs
immediately available, 6 available
27spring 8x30 mm8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs
immediately available, 14 available
28tap spring o 11 5x30 mm8003671
TAP SPRING ø 11,5x30 mm
2,98 €

excl. Shipping costs
immediately available, 9 available
29gasket holder for tap8001420
GASKET HOLDER FOR TAP
4,76 €

excl. Shipping costs
immediately available, 14 available
30nbr flat gasket o 13x4x4 mm8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs
immediately available
30viton flat gasket 13x4x4 mm8001990
VITON FLAT GASKET 13x4x4 mm
1,62 €

excl. Shipping costs
immediately available

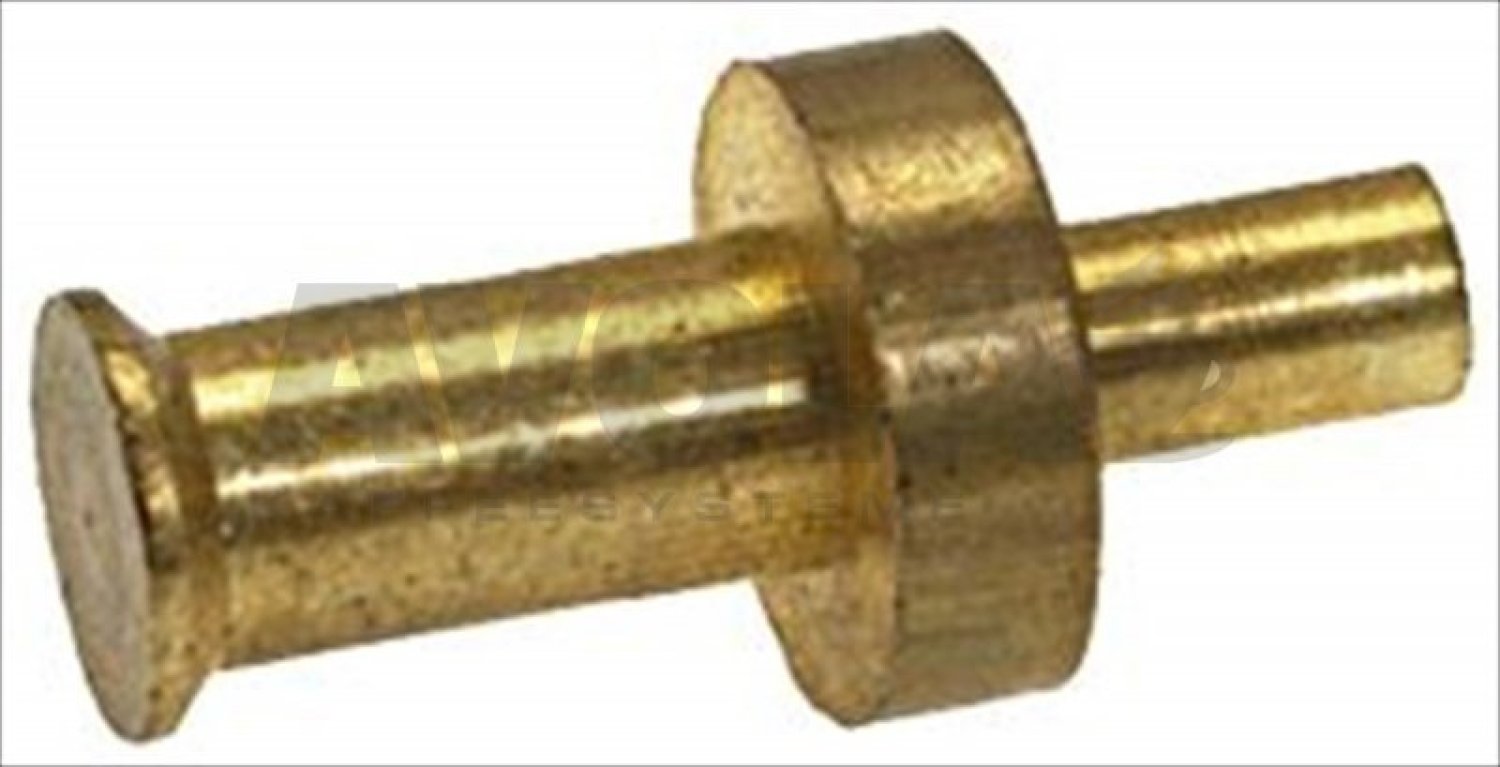

32tap spindle8005110
TAP SPINDLE
5,24 €

excl. Shipping costs
immediately available, 3 available
33flachscheibe m48075594
FLACHSCHEIBE M4
Price on request
34tap handle spindle8005155
TAP HANDLE SPINDLE
11,65 €

excl. Shipping costs
immediately available, 2 available

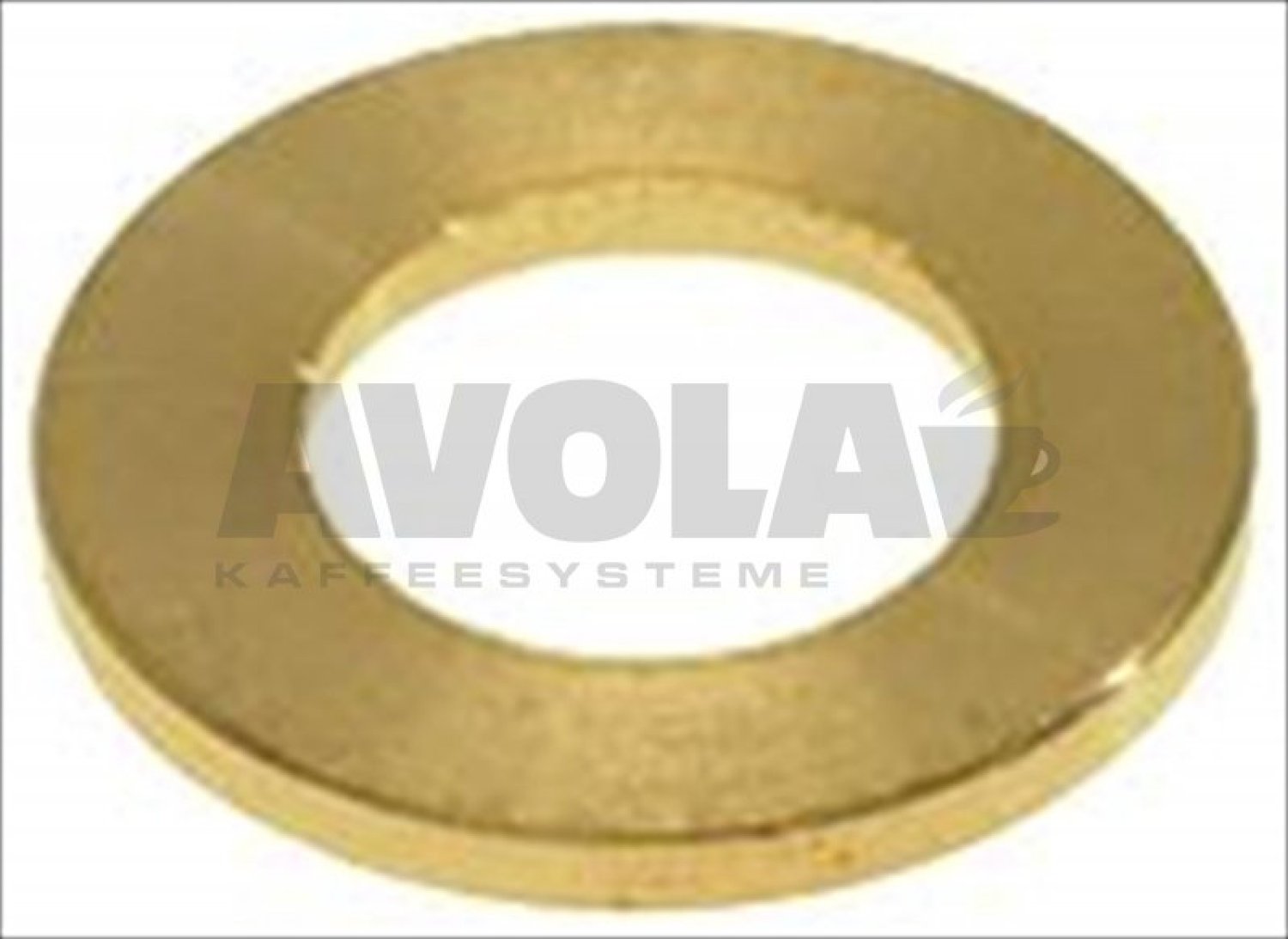

35washer 15x8 4x1 mm8001912
WASHER 15x8,4x1 mm
0,79 €

excl. Shipping costs
immediately available, 7 available
36epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
37tap rod bushing8001578
TAP ROD BUSHING
1,67 €

excl. Shipping costs
immediately available, 14 available

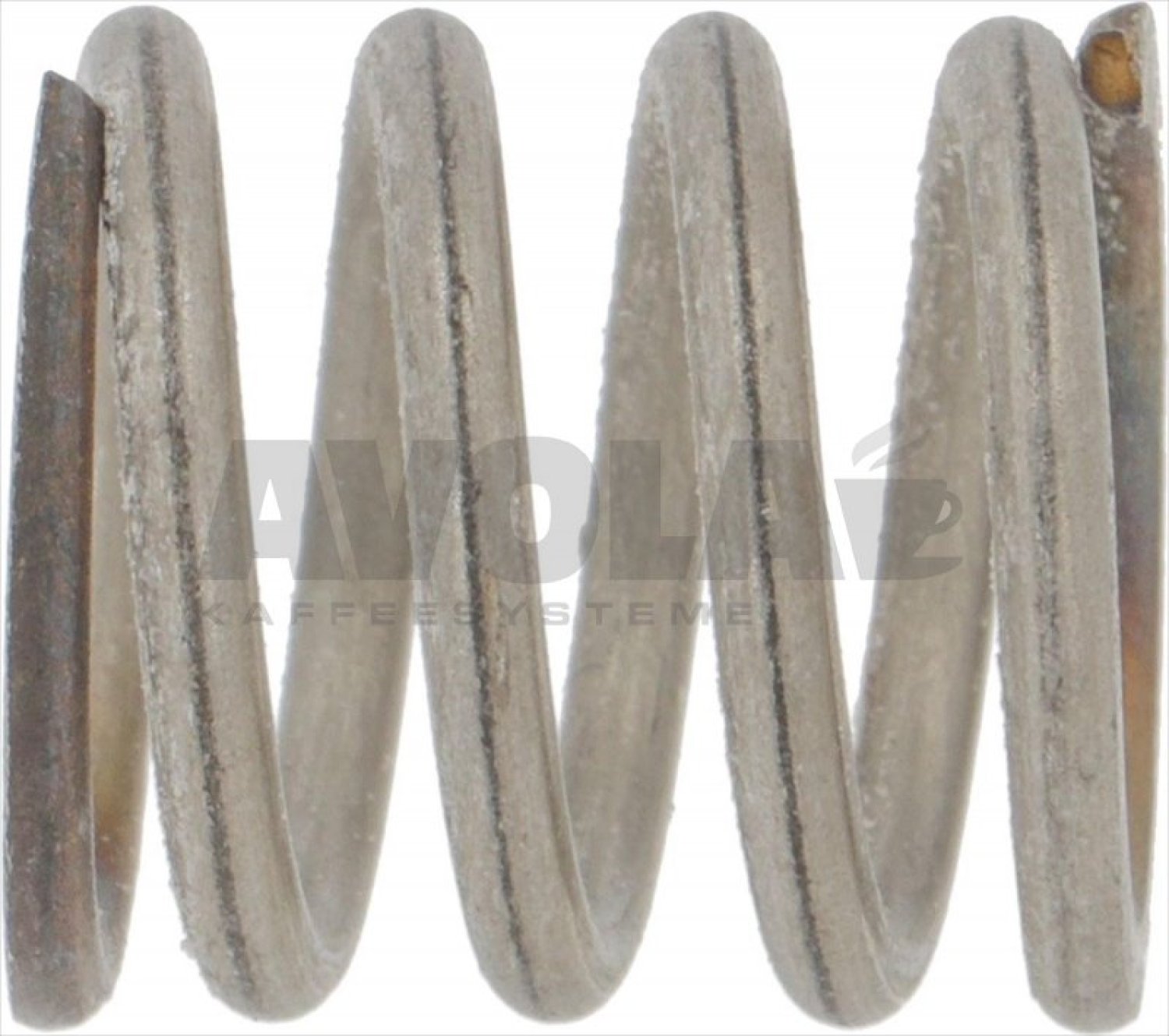

38spring8003815
SPRING
1,52 €

excl. Shipping costs
immediately available
40water steam tap knob8003330
WATER/STEAM TAP KNOB
15,98 €

excl. Shipping costs
immediately available, 3 available
42nut8005455
NUT
3,38 €

excl. Shipping costs
immediately available, 15 available

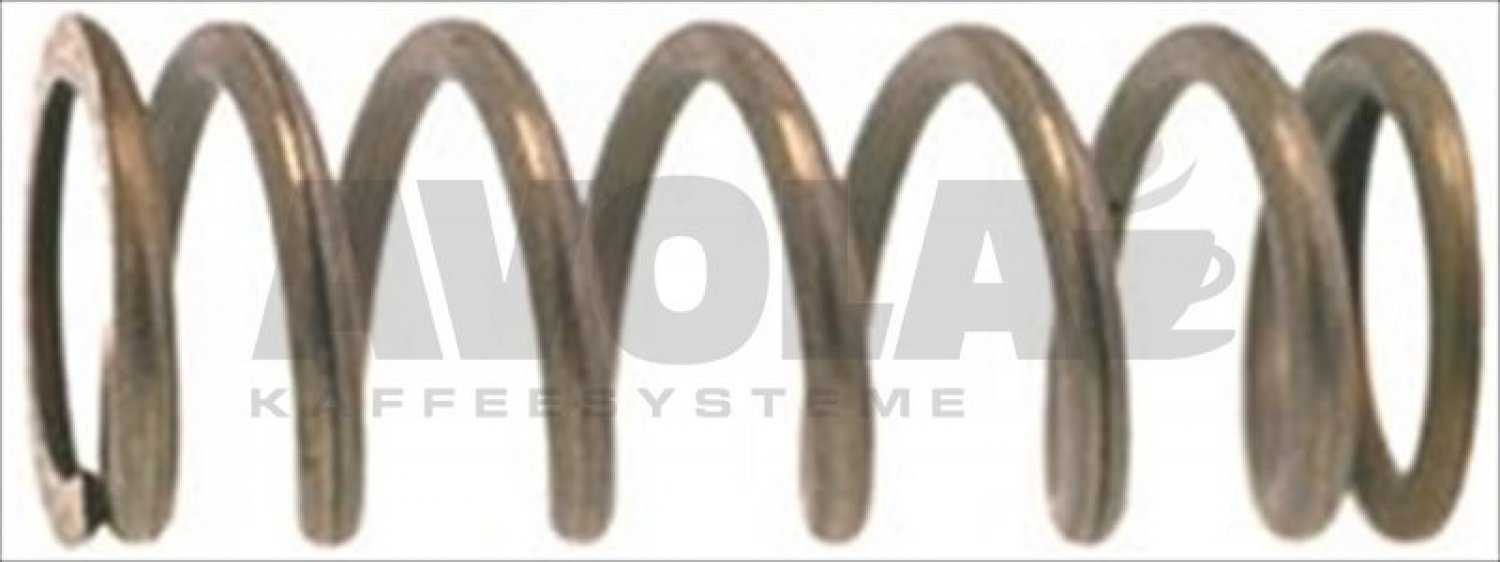

43feder o 11x25 mm8073892
FEDER ø 11x25 mm
6,28 €

excl. Shipping costs
immediately available, 9 available
44o ring r6 epdm8001771
O-RING R6 EPDM
1,13 €

excl. Shipping costs
immediately available
45steam pipe bushing8005523
STEAM PIPE BUSHING
4,27 €

excl. Shipping costs
immediately available, 13 available
46o ring 03043 viton8001513
O-RING 03043 VITON
1,18 €

excl. Shipping costs
immediately available

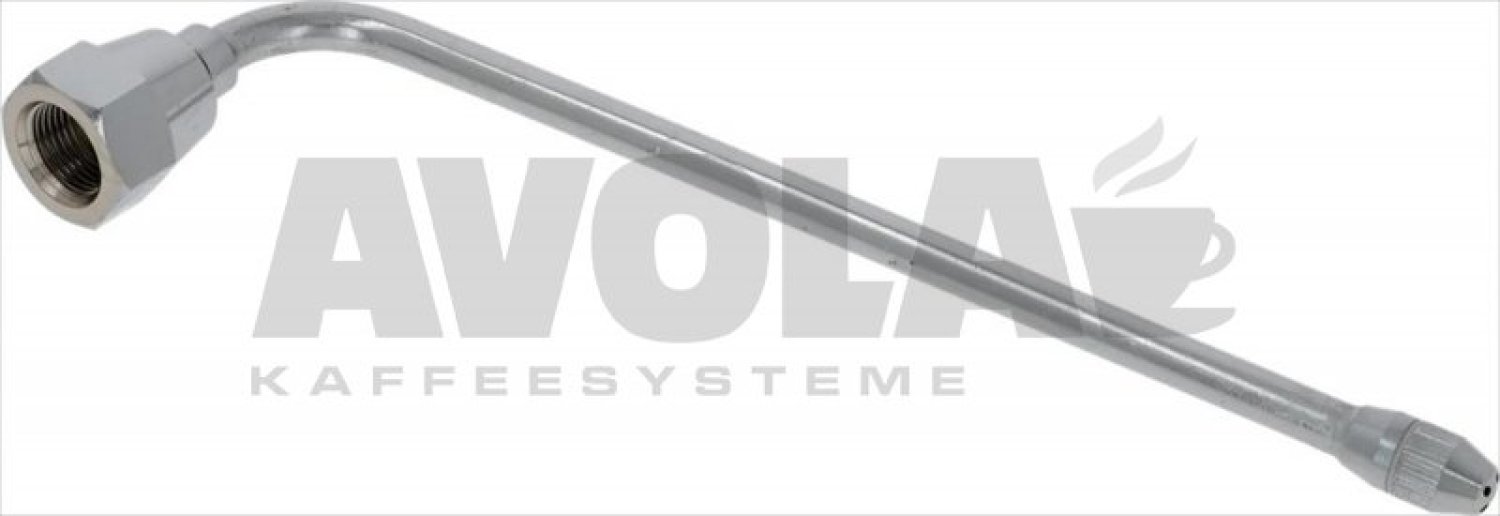

47dampfrohr komplett verchromt o 8 mm8089275
Dampfrohr komplett verchromt ø 8 mm
44,46 €

excl. Shipping costs
Delivery time 4-6 weeks
48flat gasket 12x10x1 mm8001374
FLAT GASKET 12x10x1 mm
1,02 €

excl. Shipping costs
immediately available
49steam nozzle m10x1 4 holes8006789
STEAM NOZZLE M10x1 4 HOLES
5,58 €

excl. Shipping costs
immediately available, 8 available
51o ring r6 epdm8001771
O-RING R6 EPDM
1,13 €

excl. Shipping costs
immediately available
52water pipe nozzle 1 88006744
WATER PIPE NOZZLE 1/8
8,20 €

excl. Shipping costs
immediately available, 2 available

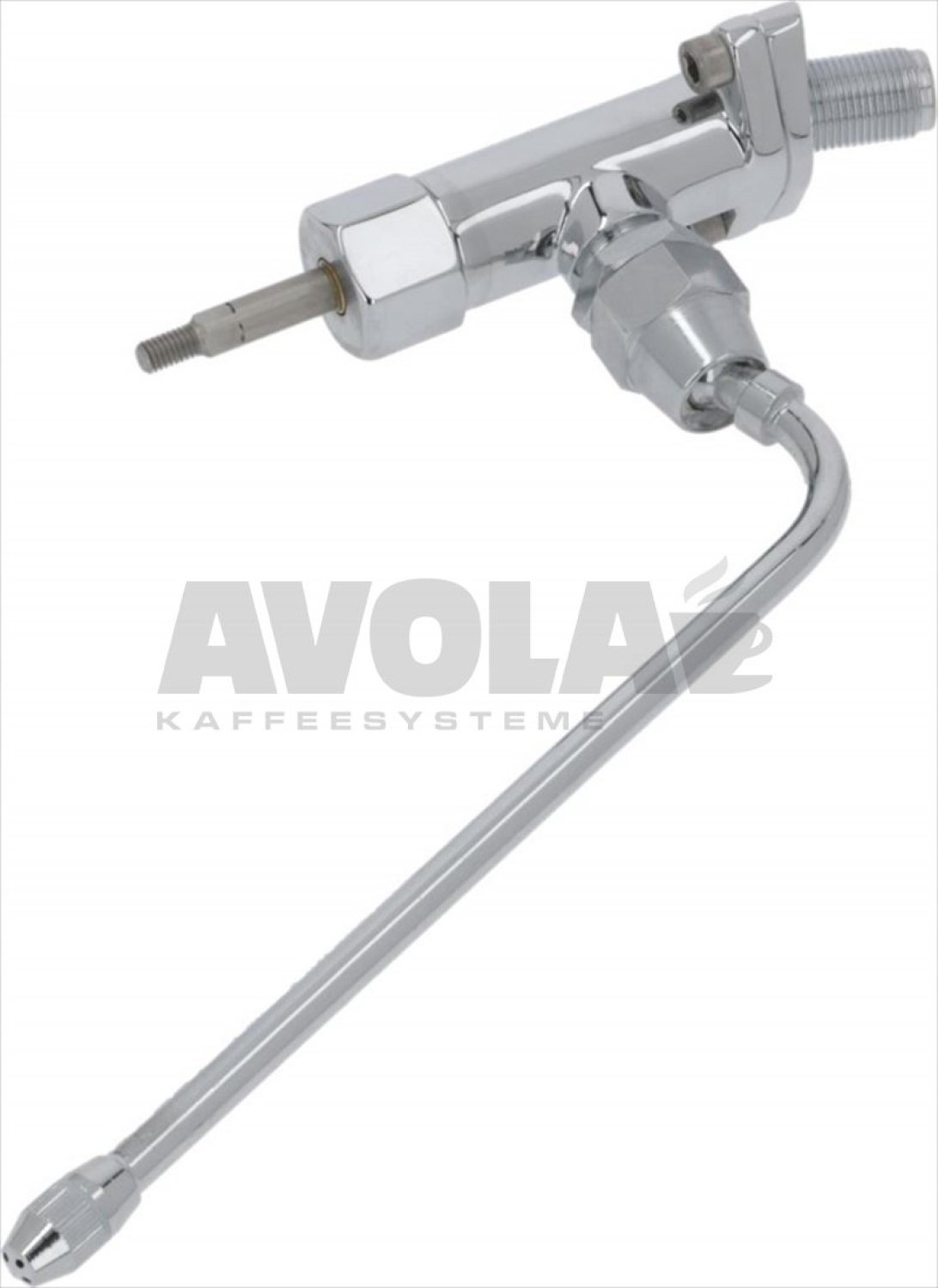

54dampfhahn komplett8089268
DAMPFHAHN KOMPLETT
129,03 €

excl. Shipping costs
Delivery time 4-6 weeks
56ptfe flat gasket o 22x17x2 mm8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs
immediately available
57spring 8x30 mm8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs
immediately available, 14 available
58non return valve8007117
NON-RETURN VALVE
4,66 €

excl. Shipping costs
immediately available, 3 available
59or dichtung r7 epdm8099433
OR-DICHTUNG R7 EPDM
3,09 €
3,09 €

excl. Shipping costs
immediately available, 7 available
60ptfe flat gasket o18x13x2 mm8001641
PTFE FLAT GASKET Ø18x13x2 mm
2,21 €

excl. Shipping costs
immediately available
61flat epdm gasket8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs
immediately available
62expansion valve o 1 4 rime 8007160
EXPANSION VALVE ø 1/4″
16,04 €

excl. Shipping costs
immediately available, 7 available
63o ring 02056 epdm8001503
O-RING 02056 EPDM
1,09 €

excl. Shipping costs
immediately available
64mutter o 3 8 i fuer einlaufhahn8073937
MUTTER ø 3/8 I FÜR EINLAUFHAHN
14,74 €

excl. Shipping costs
Delivery time 4-6 weeks

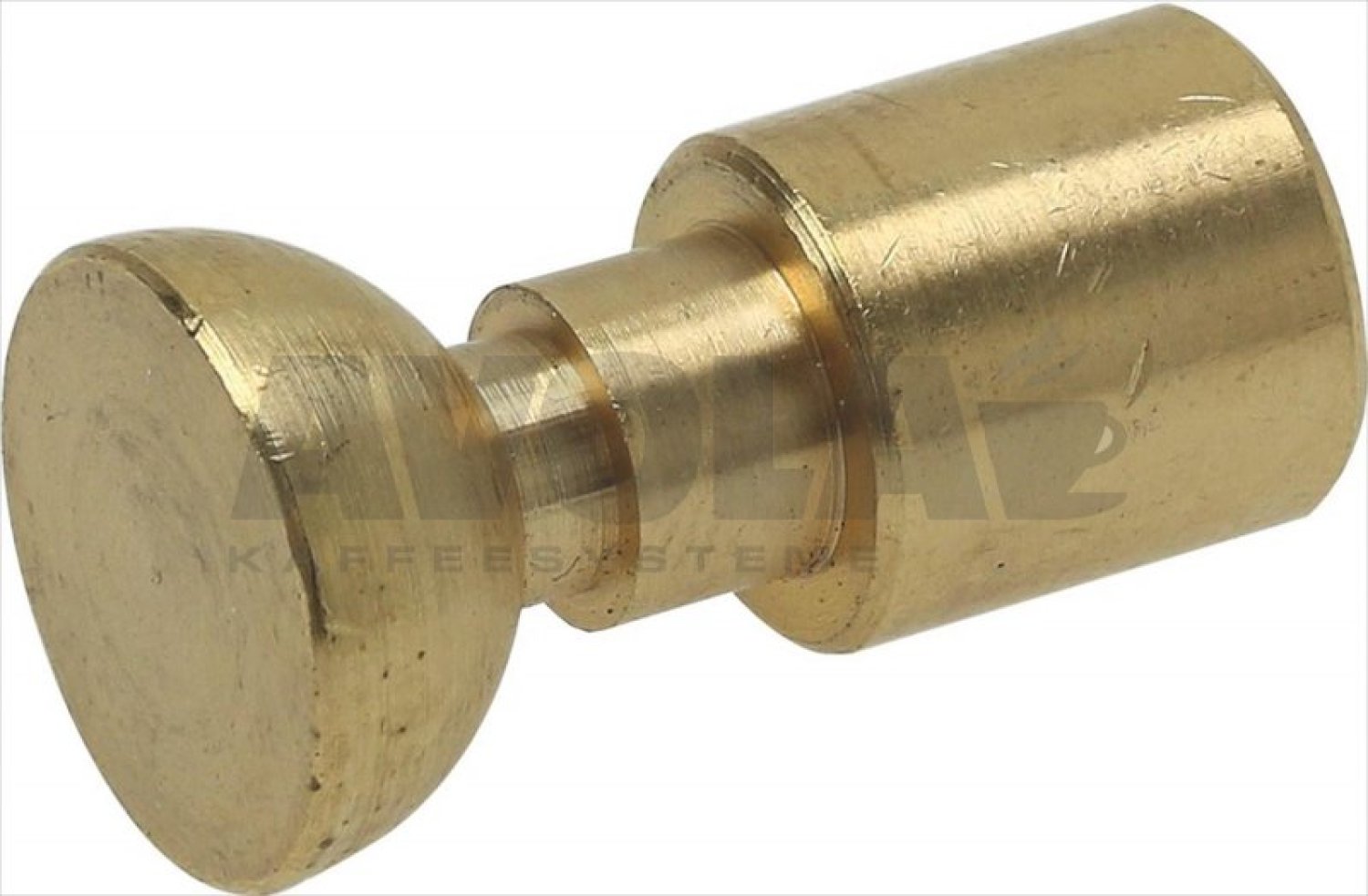

65achse klein fuer einlaufhahn8089071
ACHSE KLEIN FÜR EINLAUFHAHN
8,13 €

excl. Shipping costs
Delivery time 4-6 weeks
66nut8005455
NUT
3,38 €

excl. Shipping costs
immediately available, 15 available

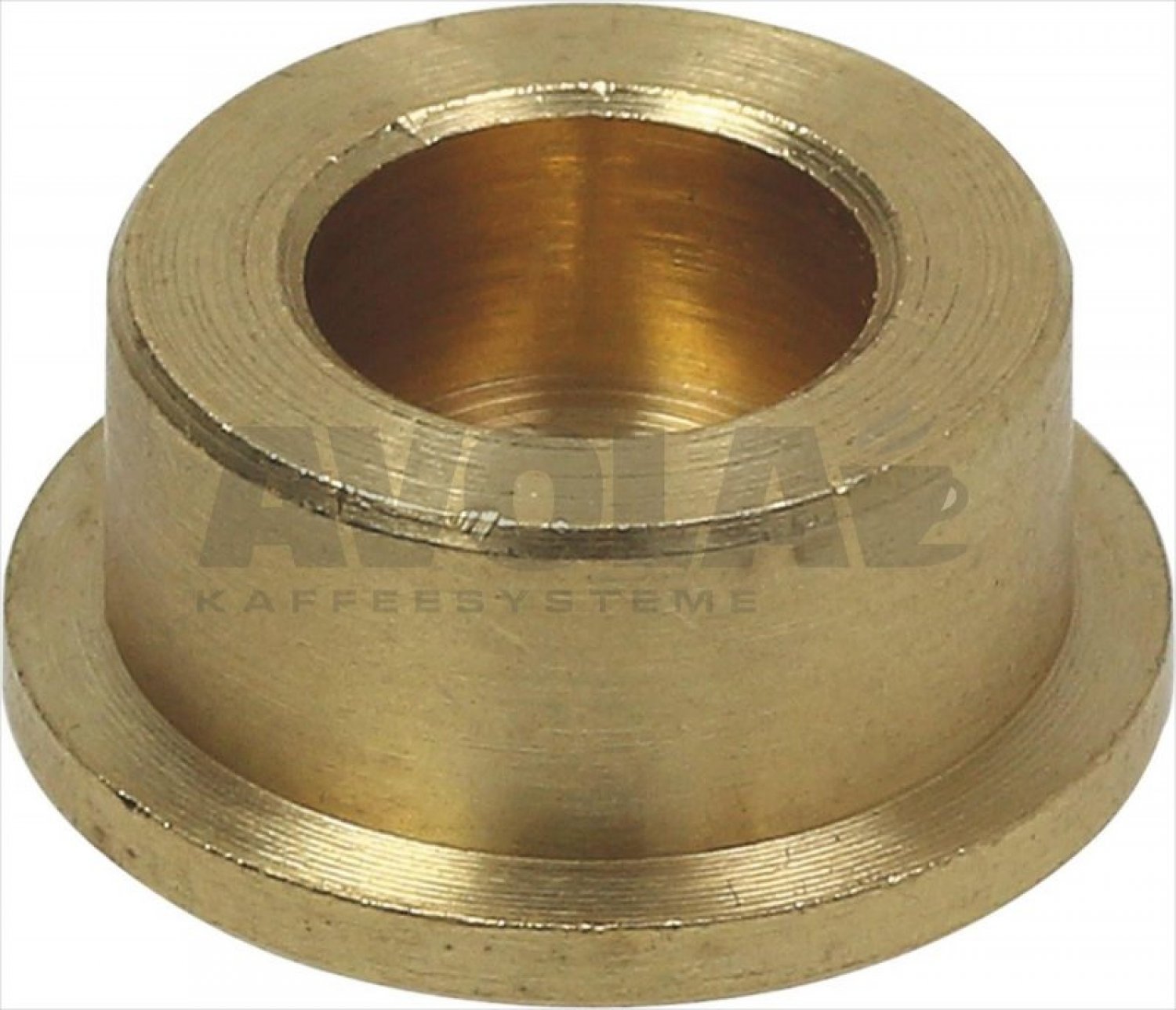

67buchse fuer einlaufhahn8089108
BUCHSE FÜR EINLAUFHAHN
4,76 €

excl. Shipping costs
Delivery time
is determined
69copper flat gasket 22x17x1 5 mm8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs
immediately available
70tap spring o 11 5x30 mm8003671
TAP SPRING ø 11,5x30 mm
2,98 €

excl. Shipping costs
immediately available, 9 available

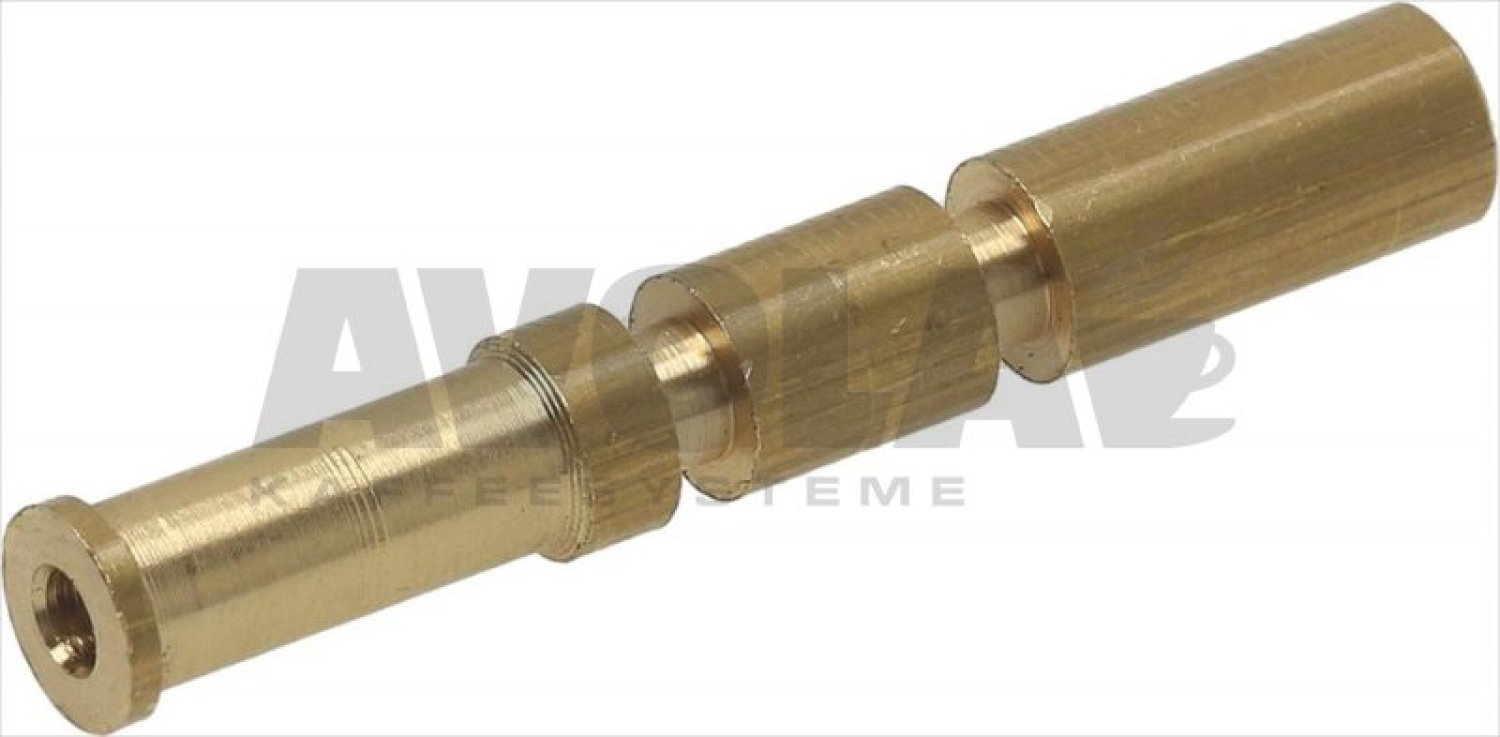

72achse fuer einlaufhahn8089070
ACHSE FÜR EINLAUFHAHN
7,82 €

excl. Shipping costs
Delivery time
is determined
73nbr flat gasket o 13x4x4 mm8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs
immediately available
78einlaufhahn8076996
EINLAUFHAHN
82,66 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
