La Scala

LA SCALA BRÜHGRUPPE BUTTERFLY

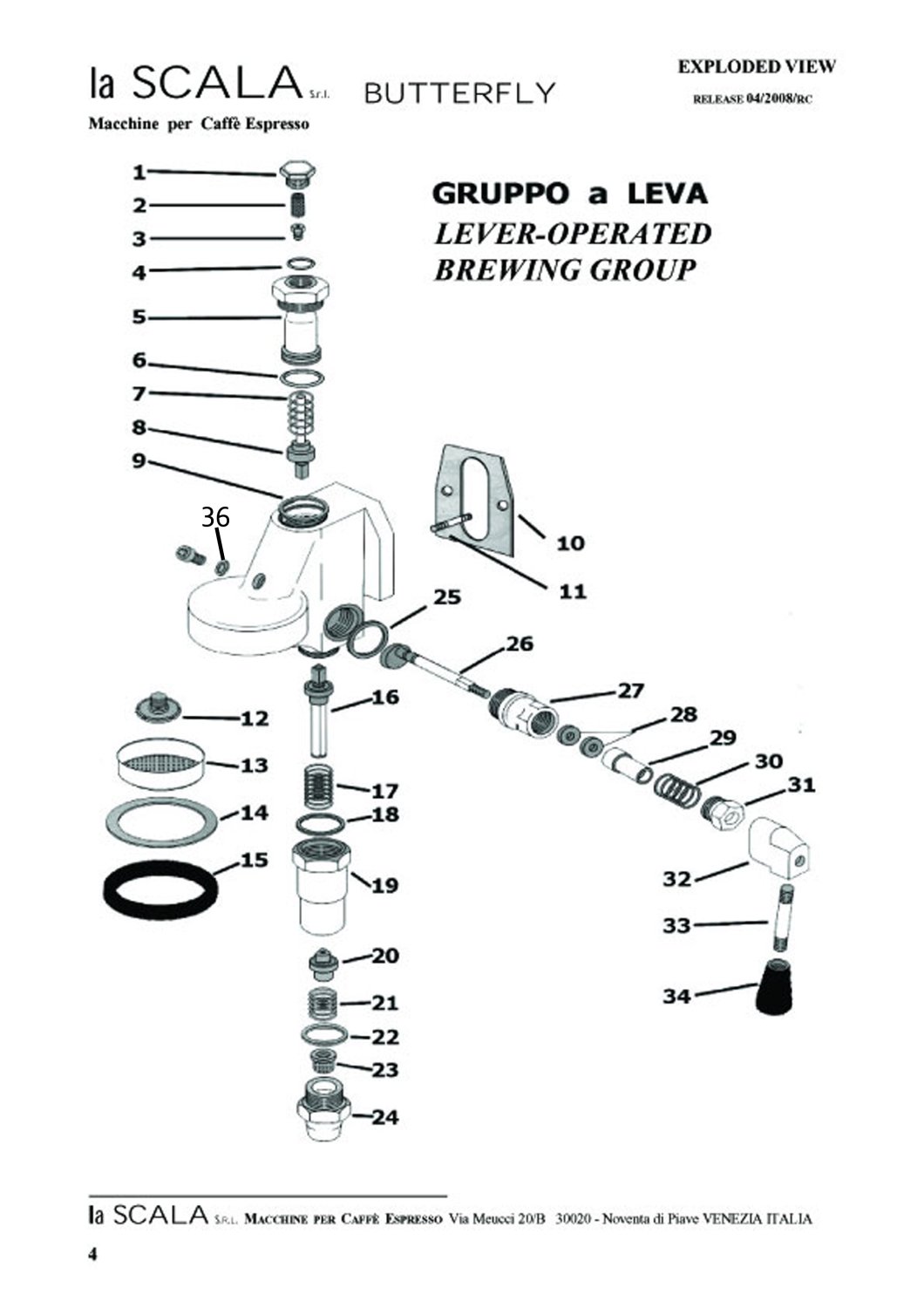

Drawing number 8062394

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
0e61 bruehgruppe revisionsset kit ecm bfc sab u v m8079664
E61 Brühgruppe Revisionsset Kit ECM - BFC - SAB - u.v.m.
44,49 €

excl. Shipping costs
Delivery time
is determined
1deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 15 available
2water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
3nozzle m6x0 75 hole8006989
NOZZLE M6x0,75 HOLE
3,12 €

excl. Shipping costs
immediately available
4ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available
5e61 gruppenpilz kollektor oben verchromt grosse nut8073648
E61 Gruppenpilz Kollektor oben verchromt (große Nut)
29,90 €

excl. Shipping costs
immediately available, 13 available
6o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
7spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
8complete spout valve8007123
COMPLETE SPOUT VALVE
8,40 €

excl. Shipping costs
immediately available
8complete spout valve8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs
Delivery time 4-6 weeks
9ptfe flat gasket 36x30x2 mm8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs
immediately available

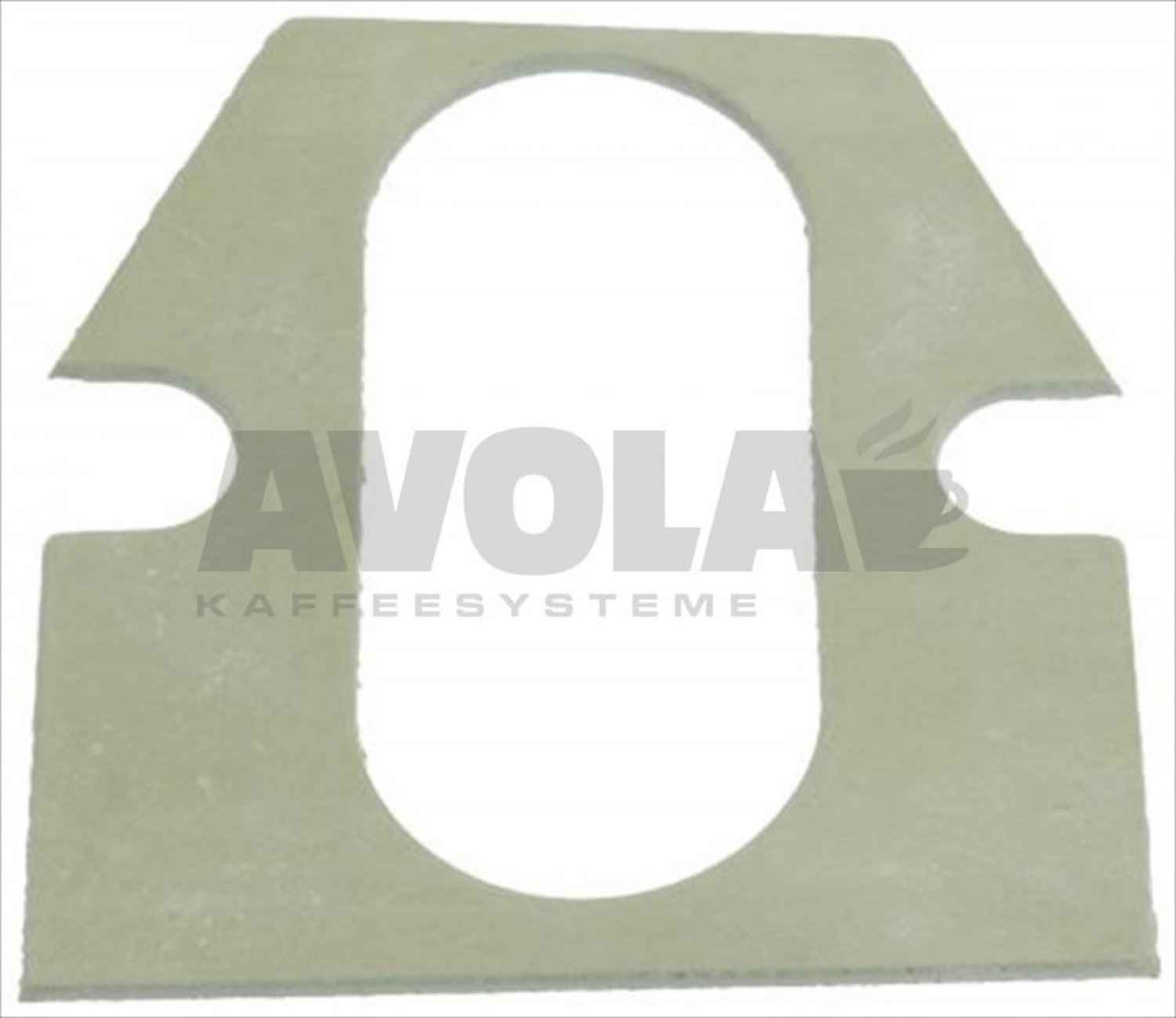

10coffee group gasket 75x68x2 mm8001753
COFFEE GROUP GASKET 75x68x2 mm
5,89 €

excl. Shipping costs
immediately available, 8 available

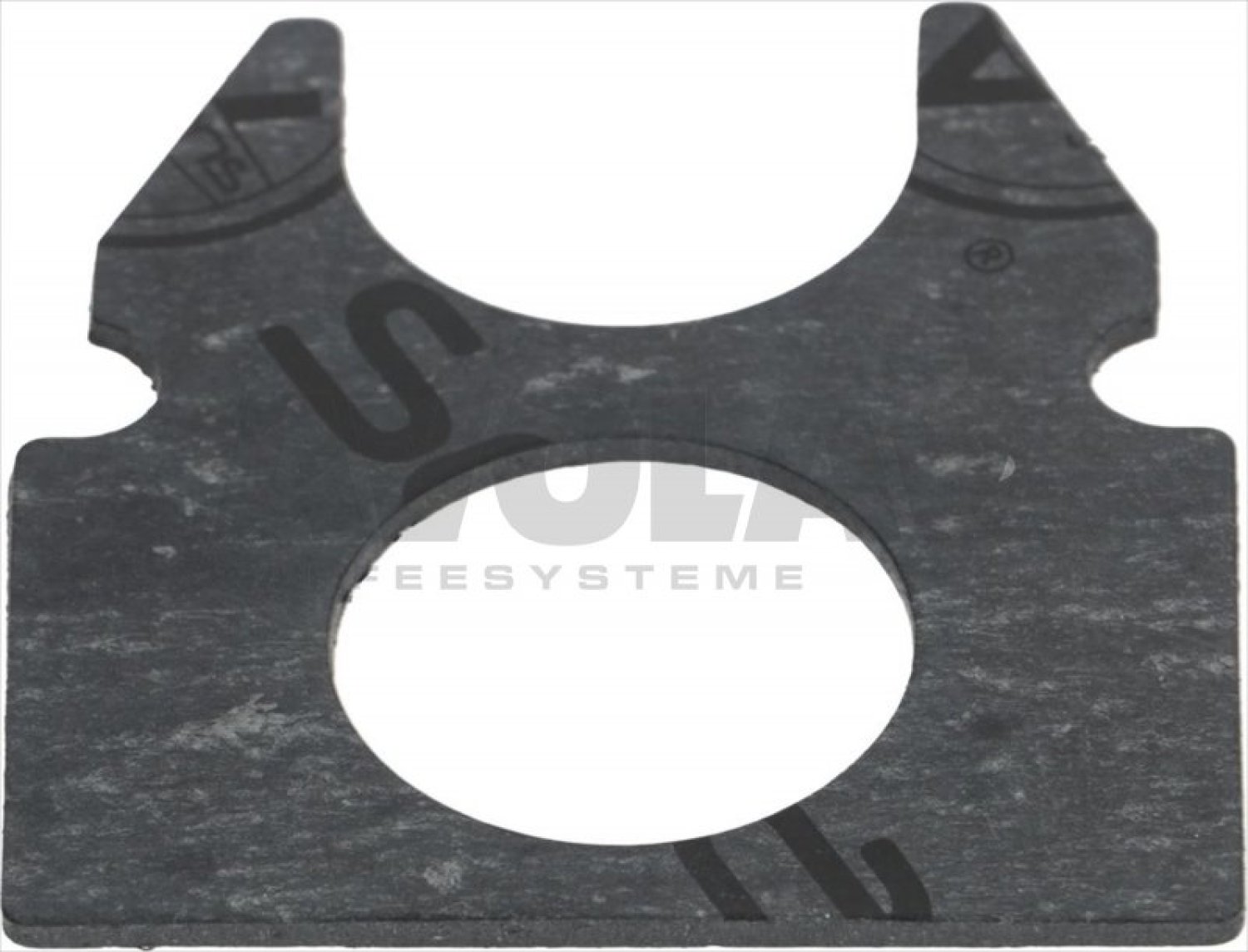

10rocket gruppendichtung8069008
Rocket Gruppendichtung
4,64 €

excl. Shipping costs
immediately available, 7 available
12group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
13shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
13ims matrix dusche e61 duschsieb8280721
IMS Matrix Dusche E61 Duschsieb
27,95 €

excl. Shipping costs
immediately available, 10 available
14paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
15cafelat e61 portafilter gasket 73x57x8 mm red8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs
immediately available, 11 available
15gasket 73x57x8 mm for e61 brew unit8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs
immediately available
16complete drain valve8007124
COMPLETE DRAIN VALVE
10,50 €
10,50 €

excl. Shipping costs
immediately available
17spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
18ptfe flat gasket 36x30x2 mm8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs
immediately available
19outlet chromium plated sleeve8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs
immediately available, 1 available
20e61 drain valve with gasket8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs
immediately available
21feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available
22flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
23drain jet swirl8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs
immediately available, 18 available
24drain chromium plated fitting8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs
immediately available, 5 available
25ptfe flat gasket 36x30x2 mm8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs
immediately available
26cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available
27ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 5 available
28epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
29cam guide bushing8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs
immediately available, 13 available
30spring o 14 6x21 mm8003547
SPRING ø 14,6x21 mm
3,55 €

excl. Shipping costs
immediately available
31stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 5 available
36ptfe flat gasket o10x6x1 mm8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs
immediately available, 14 available
100lever brew group e618002190
LEVER BREW GROUP E61
169,90 €

excl. Shipping costs
immediately available, 1 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
