La Marzocco

KB90 Kaffeegruppe

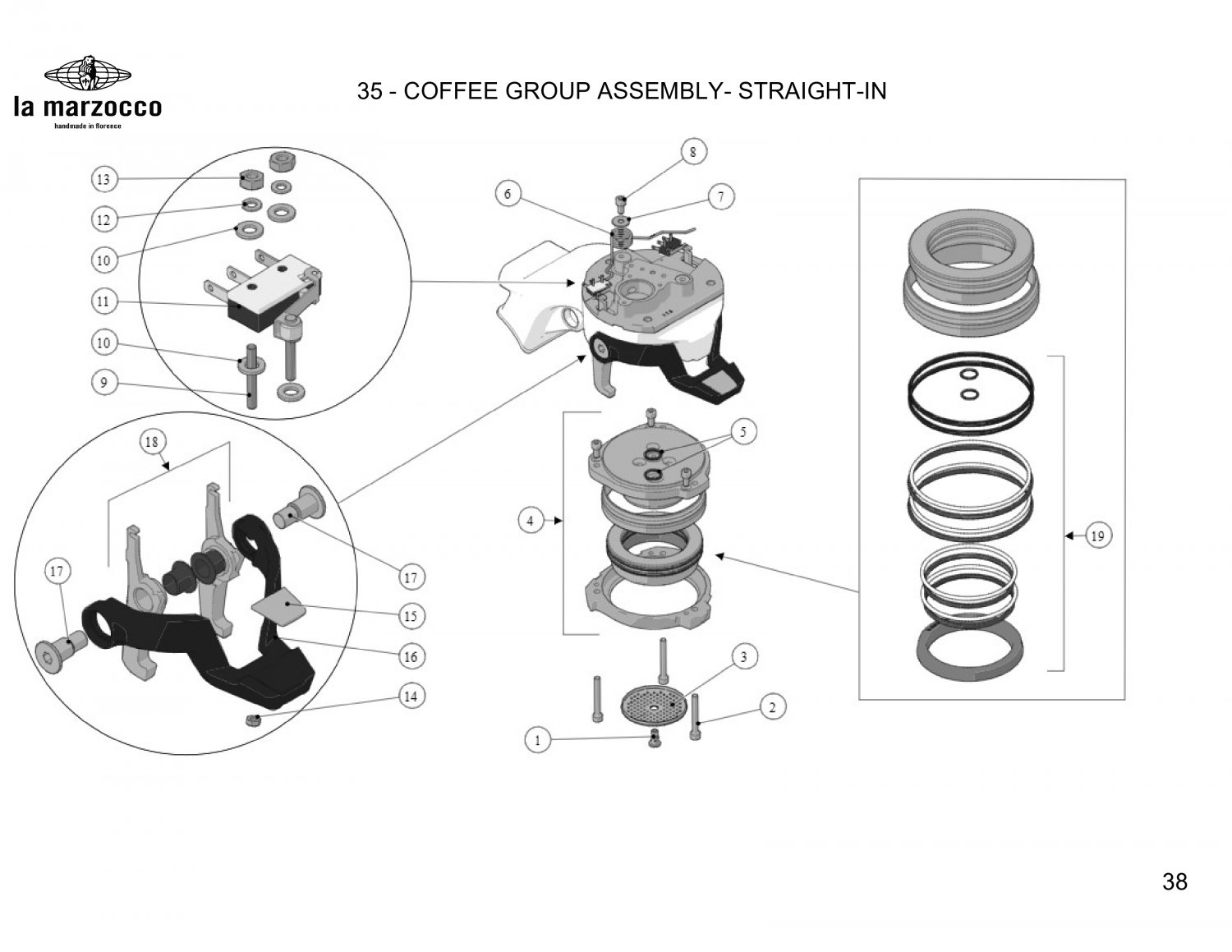

Drawing number 8358282

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1original la marzocco diffuser screw m6 o10 s s8353643

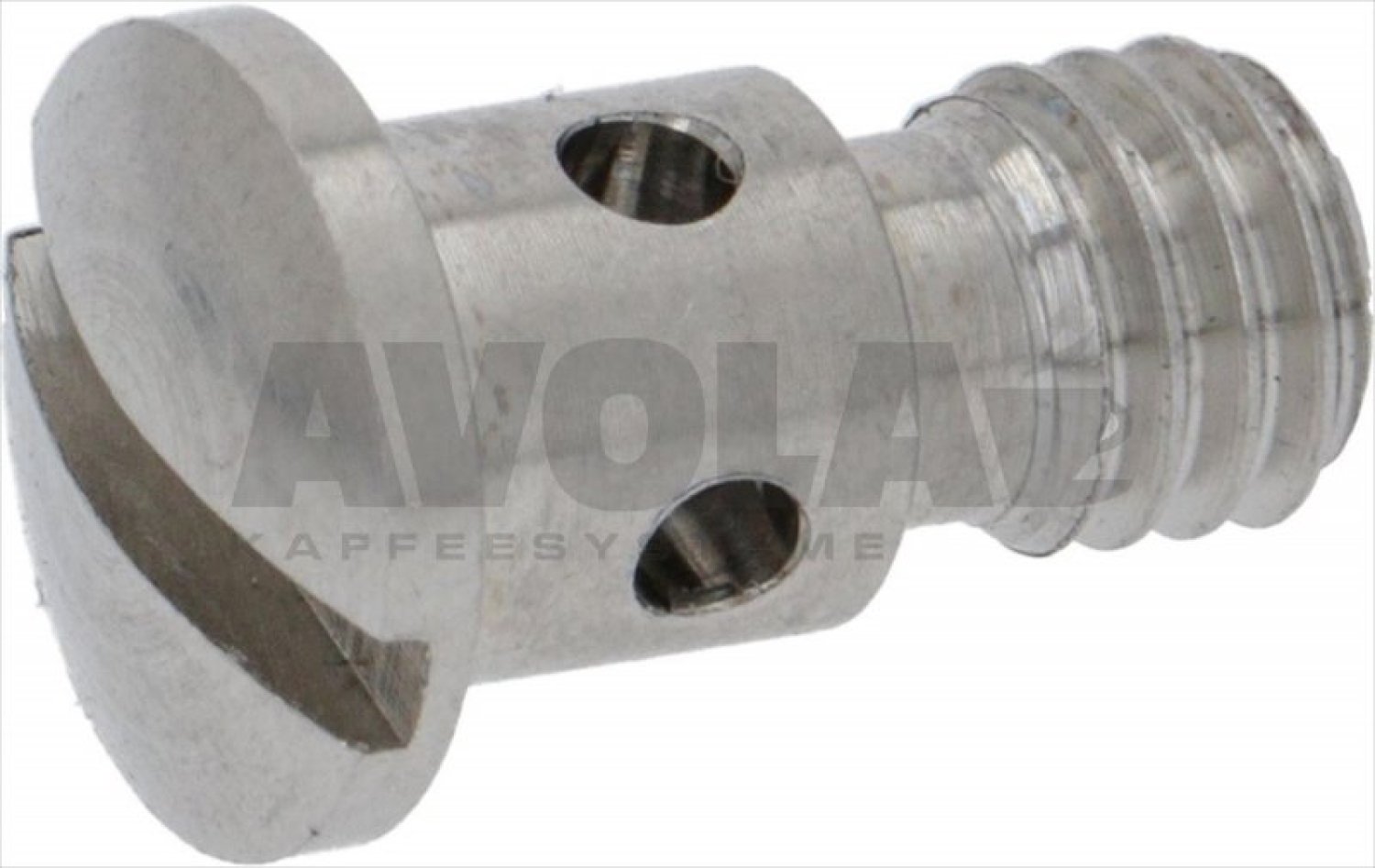

Original - La Marzocco DIFFUSER SCREW M6 Ø10 S/S
12,00 €

excl. Shipping costs
immediately available, 20 available
28352954
Original - La Marzocco SCREW M5X40 SOCKET CAP S/S A2
1,73 €

excl. Shipping costs
Delivery time
is determined
38353791
Original - La Marzocco COFFEE SHOWER SCREEN W/LOGO H3.8
16,16 €

excl. Shipping costs
immediately available, 10 available
48357287
Original - La Marzocco PISTON ASSEMBLY KB90
747,80 €

excl. Shipping costs
Delivery time
is determined
58353112
Original - La Marzocco O-RING 1,78X12,42 EPDM 70 SH
5,24 €

excl. Shipping costs
immediately available, 19 available
68353129
Original - La Marzocco SPRING TORSIONAL FOR ARMS
5,71 €

excl. Shipping costs
Delivery time
is determined
7original la marzocco washer 6 5x18x1 5 galvanized8352933

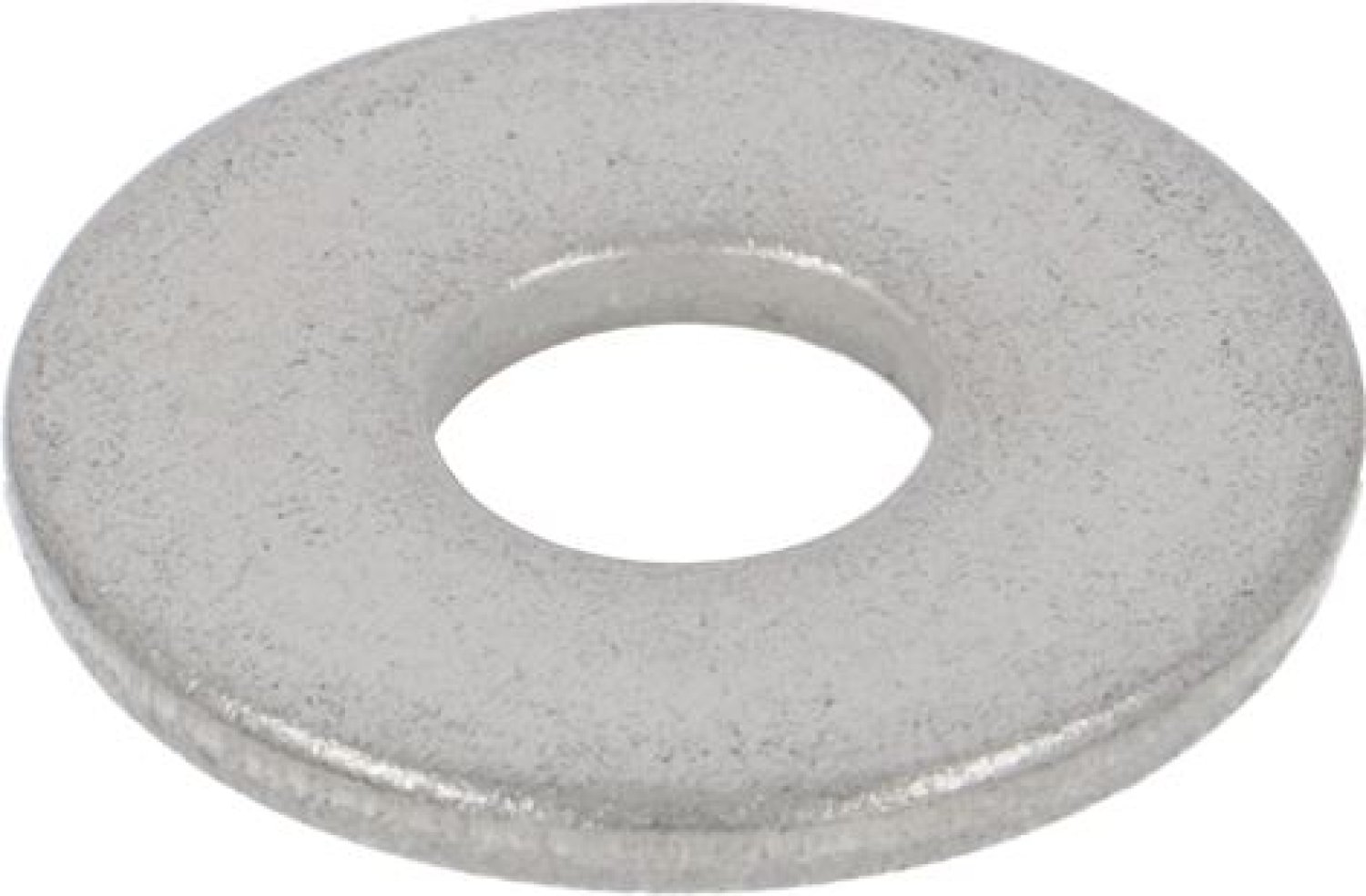

Original - La Marzocco WASHER 6,5X18X1,5 GALVANIZED
1,90 €

excl. Shipping costs
Delivery time
is determined
8original la marzocco screw m5x10 socket cap s s a28352892

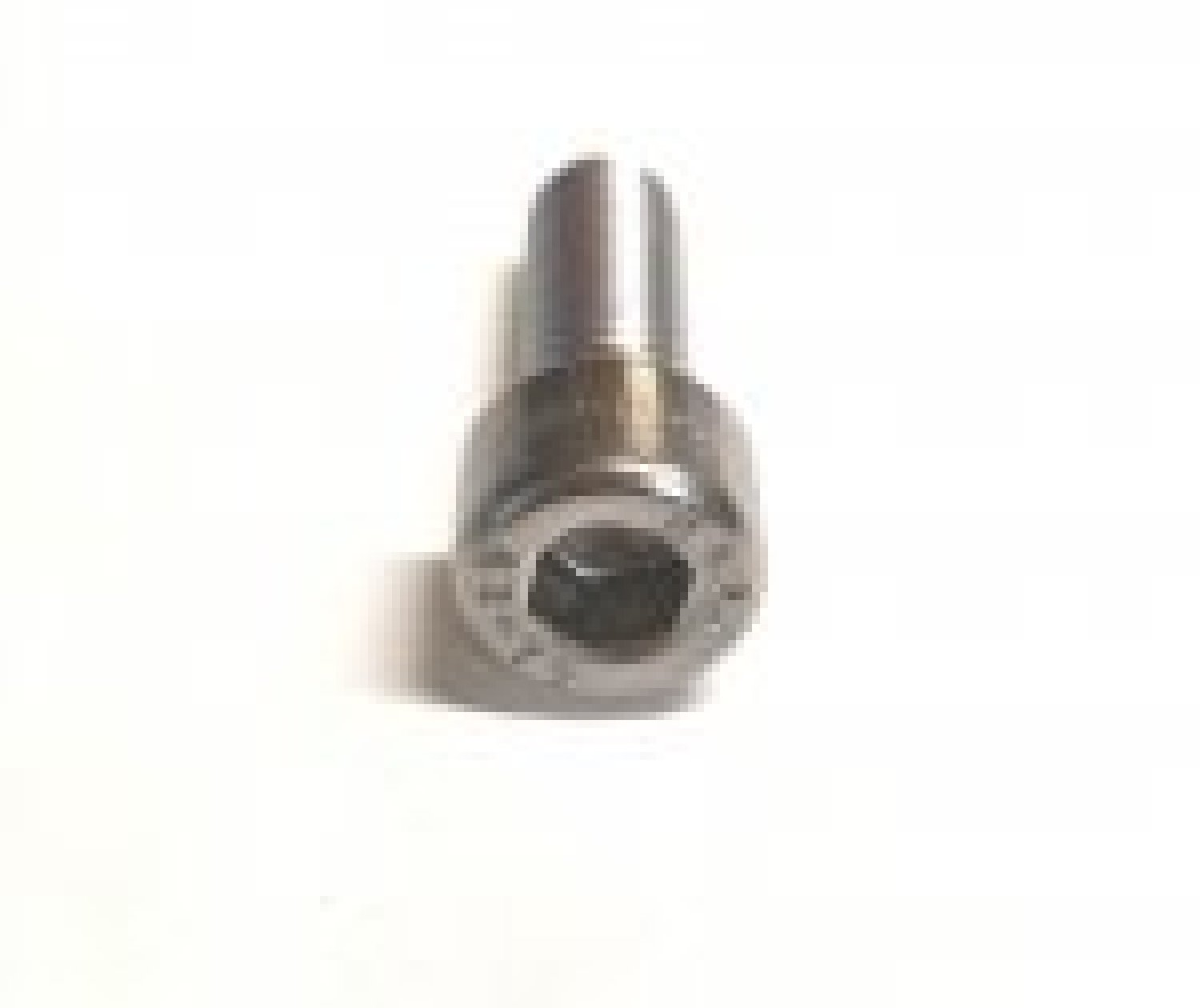

Original - La Marzocco SCREW M5X10 SOCKET CAP S/S A2
1,43 €

excl. Shipping costs
immediately available, 8 available
98353275
Original - La Marzocco PIN FOR MICROSWITCH STRAIGHT-IN
10,47 €

excl. Shipping costs
Delivery time
is determined
108352812
Original - La Marzocco WASHER 3X6X0,5 S/S A2
0,48 €

excl. Shipping costs
immediately available, 7 available
118353707
Original - La Marzocco MICROSWITCH STRAIGHT-IN 150°C
13,90 €

excl. Shipping costs
Delivery time
is determined
128352850
Original - La Marzocco SPLIT WASHER M2 S/S A2
0,95 €

excl. Shipping costs
Delivery time
is determined
138352929
Original - La Marzocco NUT M2 H1,6 WR4 S/S
1,90 €

excl. Shipping costs
Delivery time
is determined
148352798
Original - La Marzocco NUT M3 H2 WR5,5 S/S A2
0,48 €

excl. Shipping costs
Delivery time
is determined
158354887
Original - La Marzocco COVER BRACKET STRAIGHT-IN LINEA
48,55 €

excl. Shipping costs
Delivery time
is determined
168353595
Original - La Marzocco BRACKET LOCK STRAIGHT-IN
10,85 €

excl. Shipping costs
Delivery time
is determined
178354289
Original - La Marzocco SCREW PIN M10x13 H28,5 S/S
27,80 €

excl. Shipping costs
Delivery time
is determined
188356483
Original - La Marzocco KIT FOR ARM CLICKER STRAIGHT-IN
301,07 €

excl. Shipping costs
Delivery time
is determined
198355719
Original - La Marzocco REBUILD KIT FOR STRAIGHT-IN SEALING
124,95 €

excl. Shipping costs
immediately available, 5 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
