La Marzocco

GS3 Kaffeegruppe Deckeldichtung

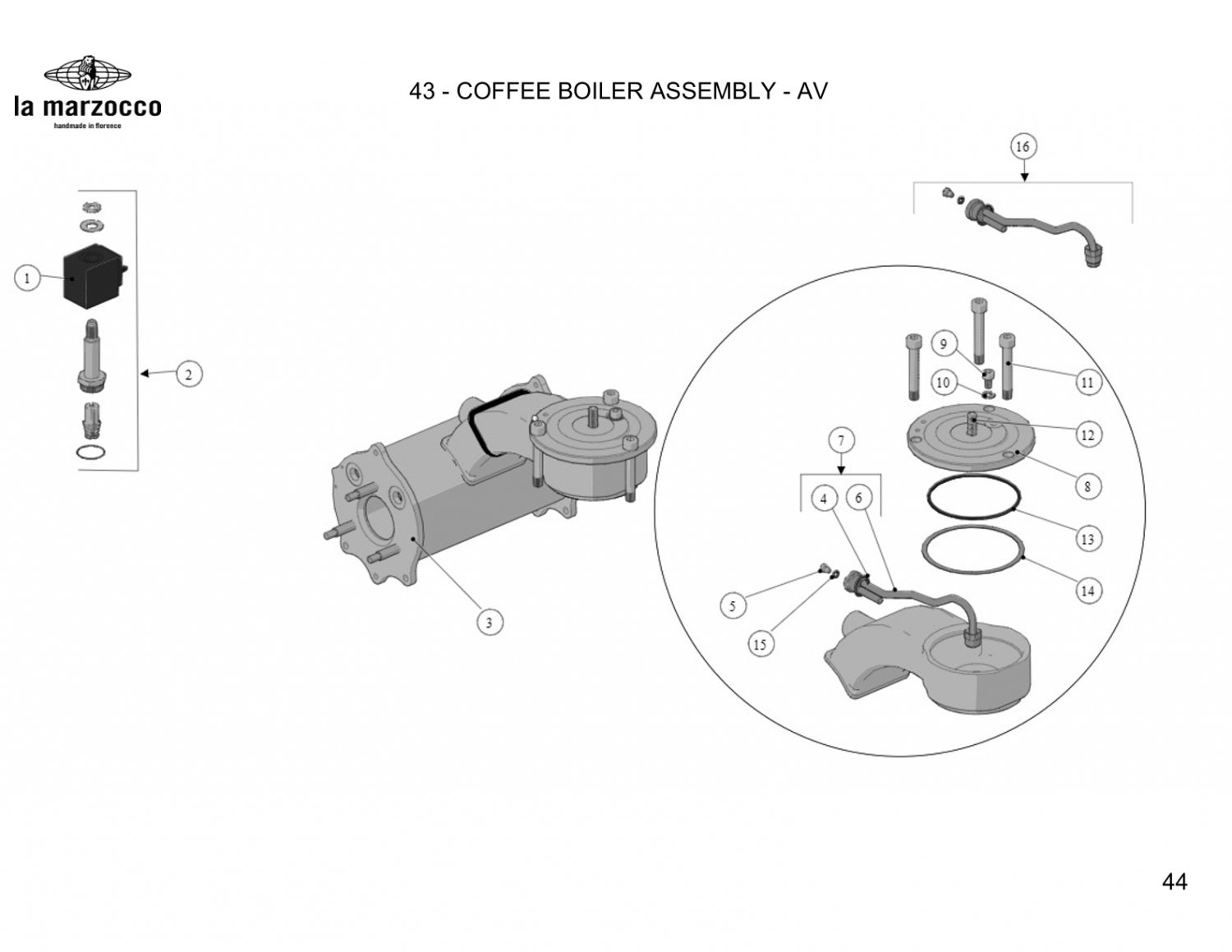

Drawing number 8357735

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1original la marzocco sv coil 220 240v 8w ul csa vde8354643
Original - La Marzocco SV COIL 220-240V 8W UL CSA VDE
38,79 €

excl. Shipping costs
immediately available, 3 available
18354644
Original - La Marzocco SOLENOID COIL 110V
38,79 €

excl. Shipping costs
Delivery time
is determined
18354645
Original - La Marzocco SOLENOID COIL 200V
38,79 €

excl. Shipping costs
Delivery time
is determined
28355661
Original - La Marzocco SOLENOID VALVE 3 WAY 110V NO MANIFOLD
118,41 €

excl. Shipping costs
Delivery time
is determined
2original la marzocco solenoid valve 3 way no coil8355193
Original - La Marzocco SOLENOID VALVE 3 WAY NO COIL
69,62 €

excl. Shipping costs
immediately available, 5 available
38357483
Original - La Marzocco COFFEE BOILER FLAT SIDE 1GR
1.094,80 €

excl. Shipping costs
Delivery time
is determined
4original la marzocco o ring 1 78x15 6 fkm 70 sha8137220

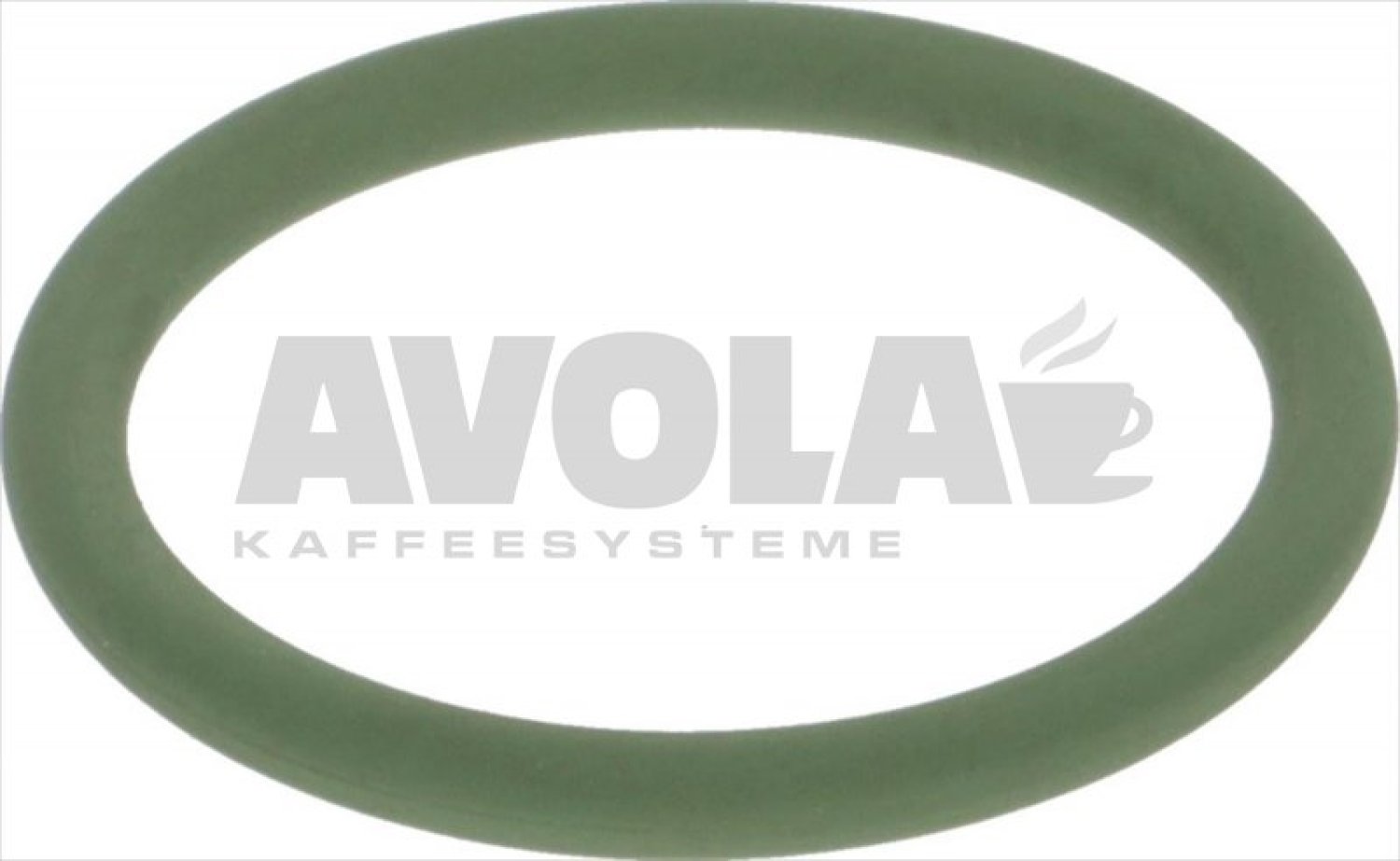

Original - La Marzocco O-RING 1,78x15,6 FKM 70 ShA
4,28 €

excl. Shipping costs
immediately available, 10 available
58354985
Original - La Marzocco EXTRACTABLE GICLEUR Ø0,6 W/ ORING
53,55 €

excl. Shipping costs
Delivery time
is determined
58354941
Original - La Marzocco GICLEUR REMOVABLE 0,7 W/ ORING
51,17 €

excl. Shipping costs
Delivery time
is determined
58354942
Original - La Marzocco GICLEUR REMOVABLE 0,8 W/ ORING
51,17 €

excl. Shipping costs
Delivery time
is determined
78354921
Original - La Marzocco INTERNAL TUBE FOR REMOVALBE GICLER W/OR
49,98 €

excl. Shipping costs
Delivery time
is determined
88355877
Original - La Marzocco GROUP CAP S/S GS3 AV
147,56 €

excl. Shipping costs
Delivery time
is determined
98352940
Original - La Marzocco SCREW M6X10 SOCKET CAP S/S A2
2,28 €

excl. Shipping costs
immediately available, 19 available
10original la marzocco washer 6 3x12x1 copper8352855
Original - La Marzocco WASHER 6,3X12X1 COPPER
0,95 €

excl. Shipping costs
immediately available
118353220
Original - La Marzocco SCREW M8X52 SOCKET CAP S/S A2 70
8,33 €

excl. Shipping costs
immediately available, 17 available
128353497
Original - La Marzocco SOCKET GRUB SCREW M8X18 S/S A2
8,57 €

excl. Shipping costs
Delivery time
is determined
13original la marzocco fiber gasket 87x81x0 58353242
Original - La Marzocco FIBER GASKET 87X81X0,5
8,93 €

excl. Shipping costs
immediately available
14original la marzocco o ring 75 87x2 62 fkm 70 sha8353412
Original - La Marzocco O-RING 75,87x2,62 FKM 70 ShA
7,14 €

excl. Shipping costs
immediately available
15original la marzocco o ring 1 78x2 9 fkm 70 sha8352960
Original - La Marzocco O-RING 1,78x2,9 FKM 70 ShA
1,79 €

excl. Shipping costs
immediately available, 18 available
16original la marzocco retrofit kit gicleur 0 6 remov w o ring8355487

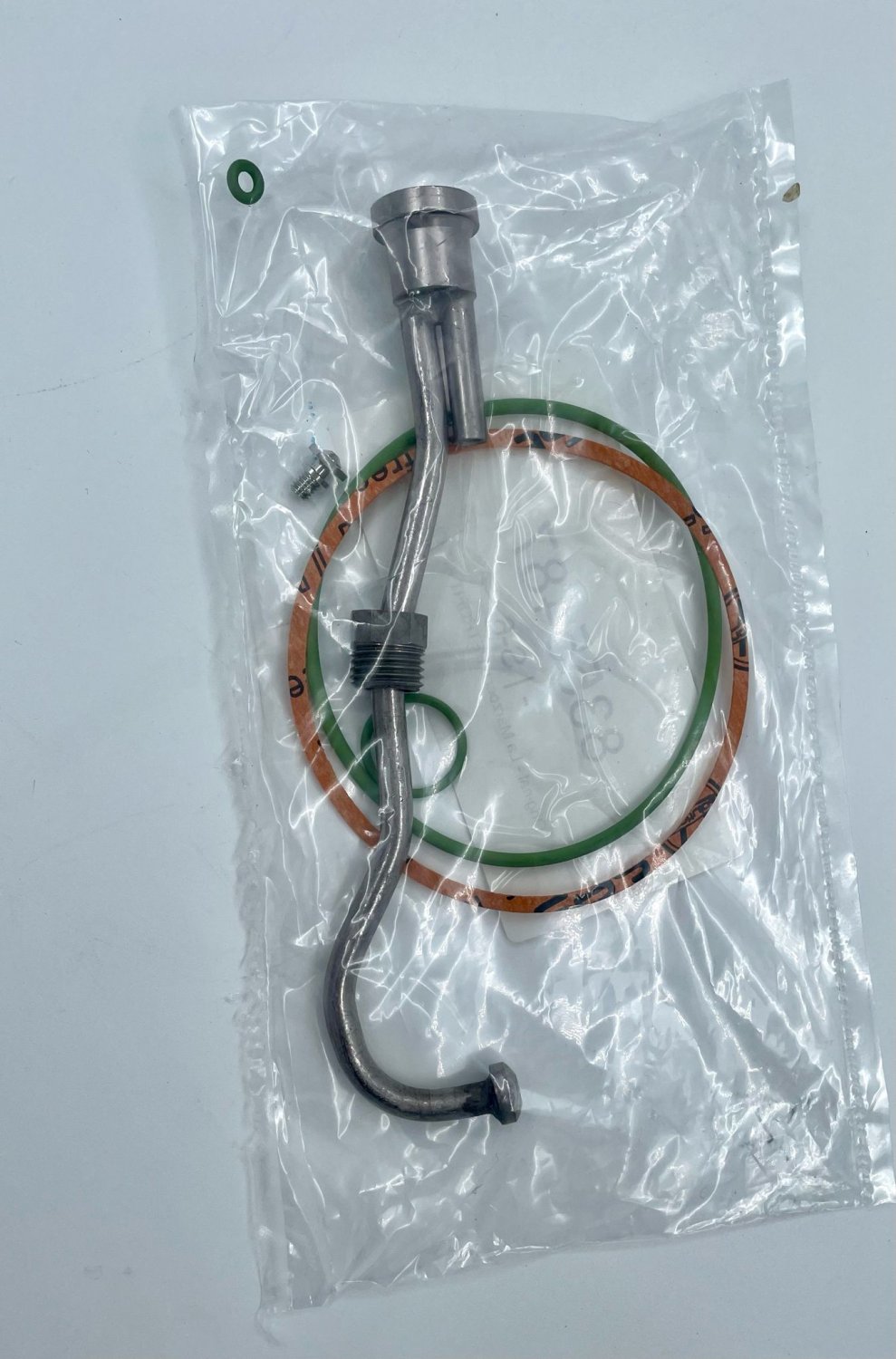

Original - La Marzocco RETROFIT KIT GICLEUR 0.6 REMOV. W/O-RING
102,34 €

excl. Shipping costs
immediately available, 3 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
