La Marzocco

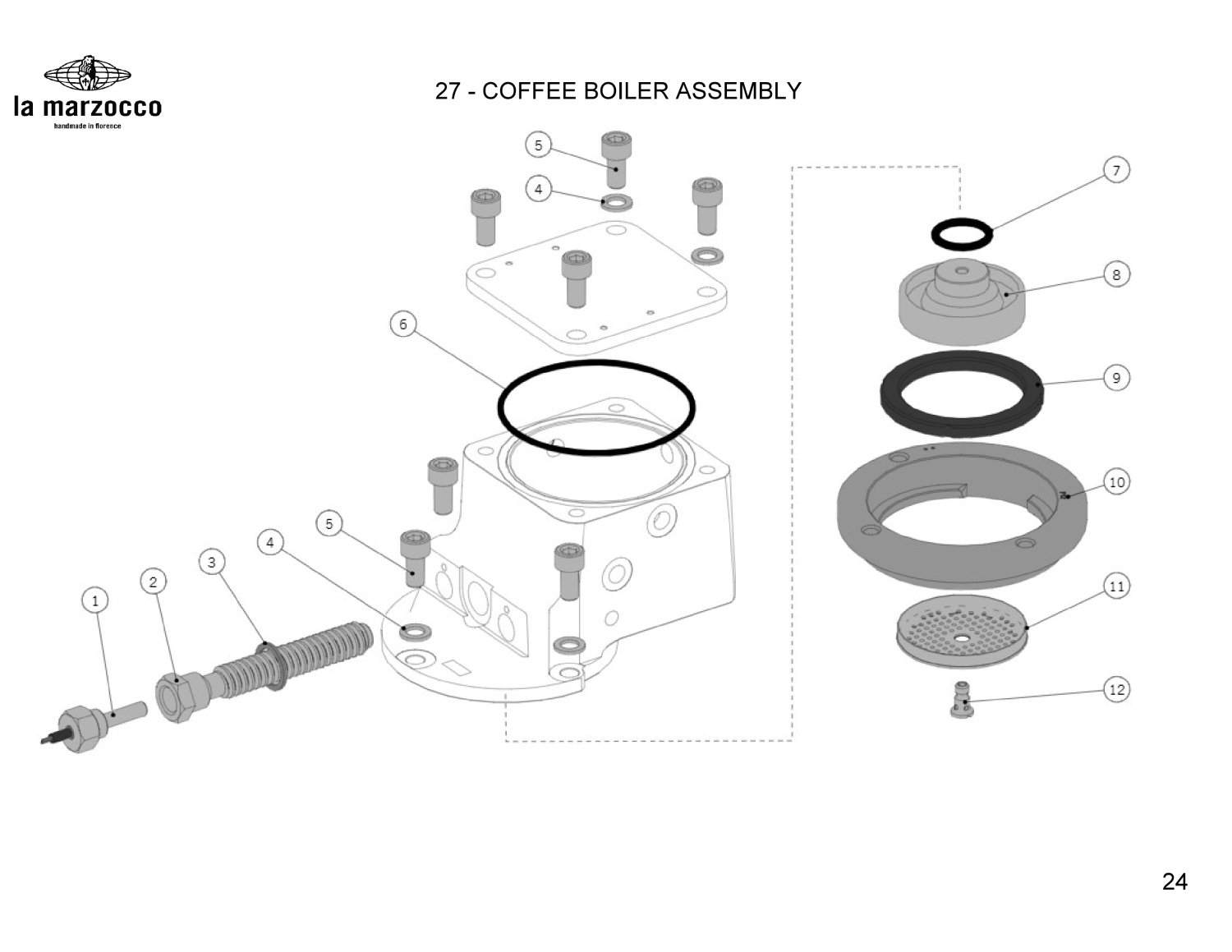

27 - COFFEE BOILER ASSEMBLY

Drawing number 8392672

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
6original la marzocco o ring 2 62x82 22 epdm 70 sha8353873
Original - La Marzocco O-RING 2,62x82,22 EPDM 70 ShA
18,42 €

excl. Shipping costs
immediately available, 7 available

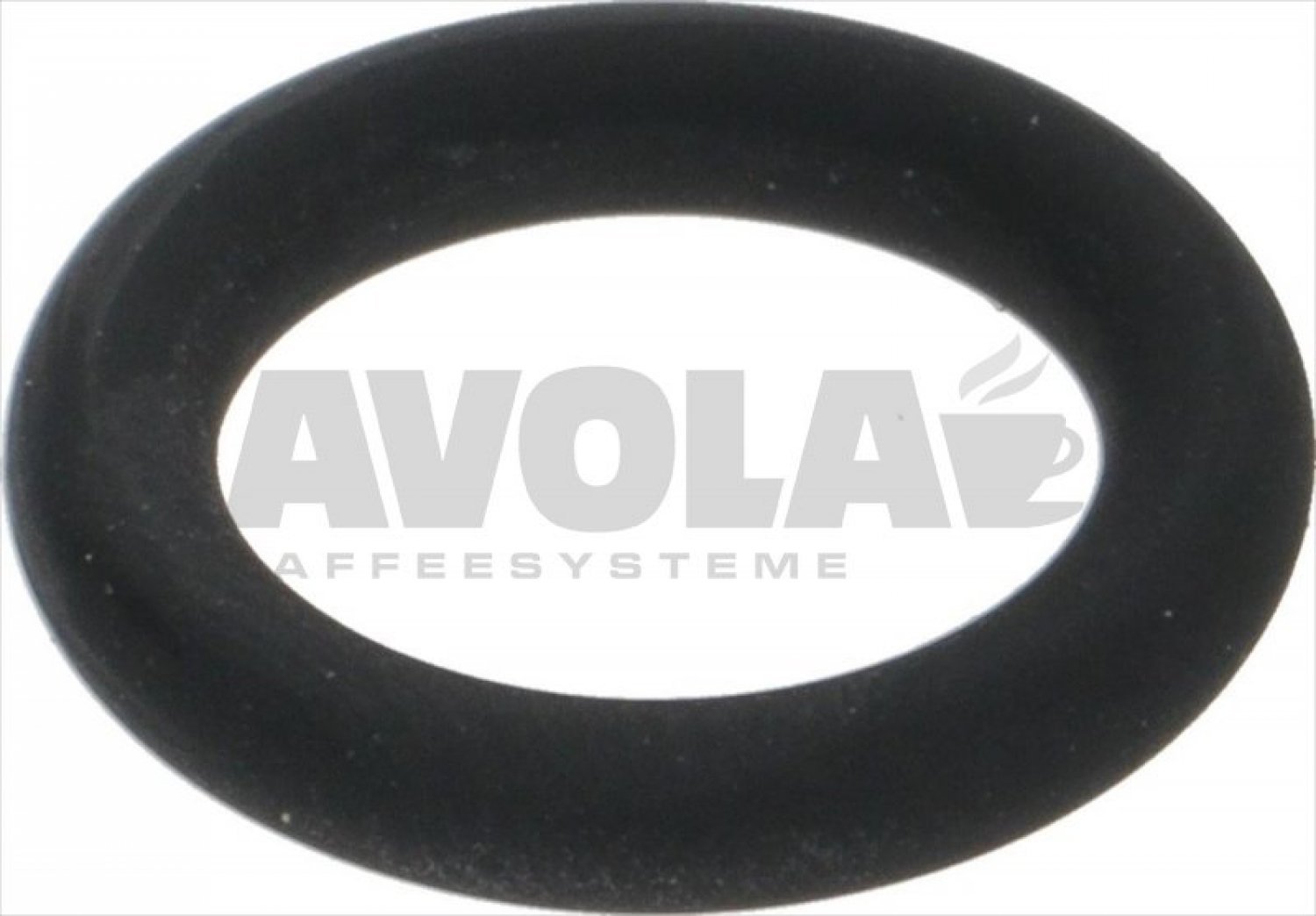

7original la marzocco o ring 20 22x3 53 fkm 70 sha8353128
Original - La Marzocco O-RING 20,22x3,53 FKM 70 ShA
5,65 €

excl. Shipping costs
immediately available
9original la marzocco group gasket reduced force8353273
Original - La Marzocco GROUP GASKET REDUCED FORCE
5,00 €

excl. Shipping costs
immediately available, 5 available
108392807
Original - La Marzocco BAYONET RING PROPELLER PITCH 6 L. LMR
142,80 €

excl. Shipping costs
Delivery time
is determined
11original la marzocco praezisionsdusche o 57 5 mm8102186
Original - La Marzocco Präzisionsdusche ø 57,5 mm
18,27 €

excl. Shipping costs
immediately available
12original la marzocco diffuser screw m6 o10 s s8353643
Original - La Marzocco DIFFUSER SCREW M6 Ø10 S/S
12,00 €

excl. Shipping costs
immediately available, 20 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
