La Marzocco

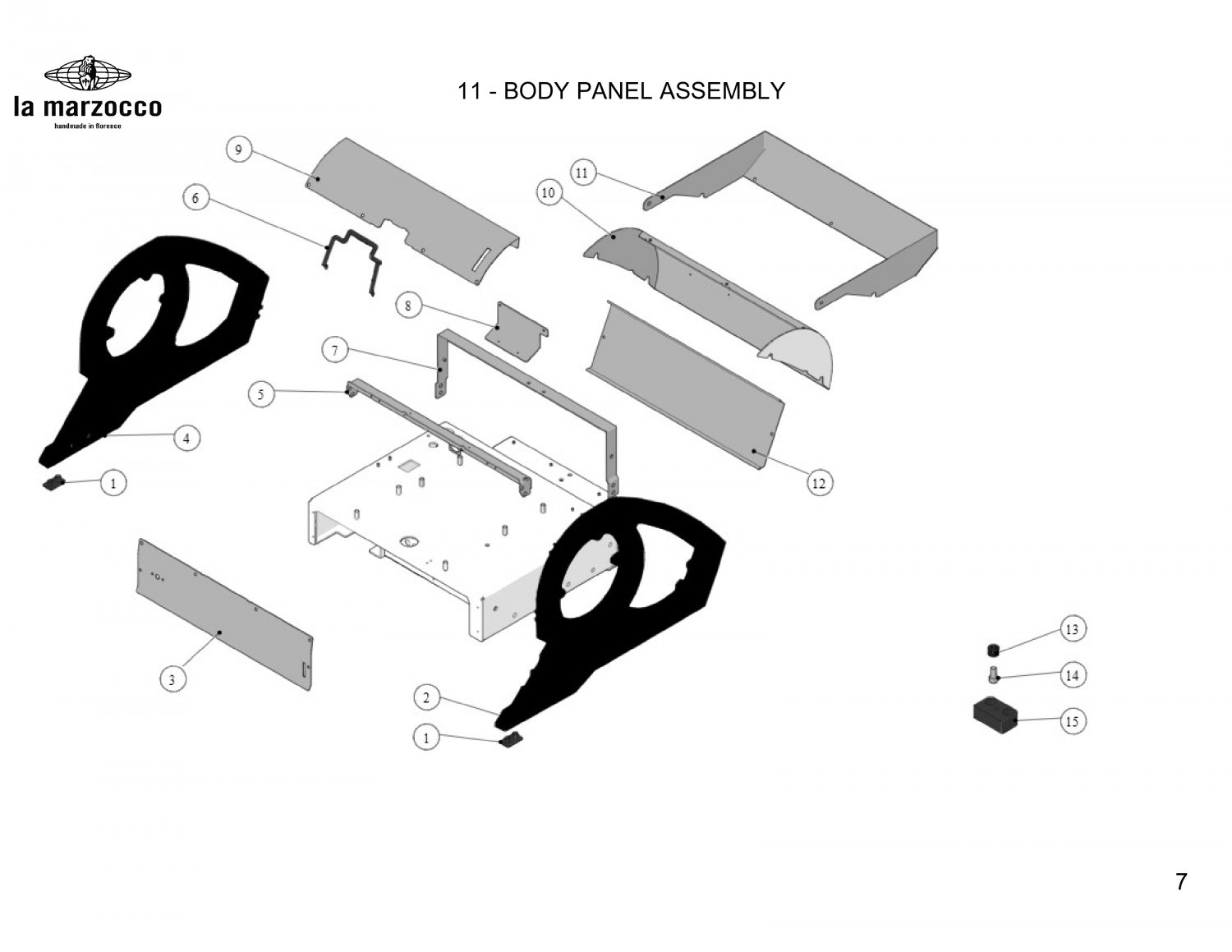

11 - BODY PANEL ASSEMBLY

Drawing number 8392632

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
18353562
Original - La Marzocco RUBBER FOOT
9,92 €

excl. Shipping costs
Delivery time
is determined
28356990
Original - La Marzocco FRAME PANEL RIGHT LEVA
511,70 €

excl. Shipping costs
Delivery time
is determined
38355238
Original - La Marzocco PANEL MAIN SWITCH LEVA 1GR
75,68 €

excl. Shipping costs
Delivery time
is determined
48356991
Original - La Marzocco FRAME PANEL LEFT LEVA
511,70 €

excl. Shipping costs
Delivery time
is determined
58355898
Original - La Marzocco TIE ROD FRONT STRADA 1GR
151,08 €

excl. Shipping costs
Delivery time
is determined
68353396
Original - La Marzocco GASKET NECK LEVER GROUP
6,85 €

excl. Shipping costs
Delivery time
is determined
88355185
Original - La Marzocco BRACKET TEMINAL BLOCK LEVA 1GR
69,12 €

excl. Shipping costs
Delivery time
is determined
98355331
Original - La Marzocco PANEL UPPER FRONT LEVA 1GR
83,54 €

excl. Shipping costs
Delivery time
is determined
108356657
Original - La Marzocco PANEL BACK LEVA 1GR
354,14 €

excl. Shipping costs
Delivery time
is determined
118356157
Original - La Marzocco PANEL BACK UPPER LEVA 1GR
214,20 €

excl. Shipping costs
Delivery time
is determined
128355194
Original - La Marzocco PANEL BACK LOWER LEVA 1GR
69,97 €

excl. Shipping costs
Delivery time
is determined
138353471
Original - La Marzocco PVC FOOT SUPPORTS DM.21 GB5
8,09 €

excl. Shipping costs
immediately available, 4 available
148353012
Original - La Marzocco SCREW M10X20 SOCKET CAP S/S A2
2,86 €

excl. Shipping costs
Delivery time
is determined
15original la marzocco rubber foot left right8353435
Original - La Marzocco RUBBER FOOT LEFT/RIGHT
7,52 €

excl. Shipping costs
immediately available, 6 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
