ISOMAC E61 KAFFEEGRUPPE MILLENNIUM

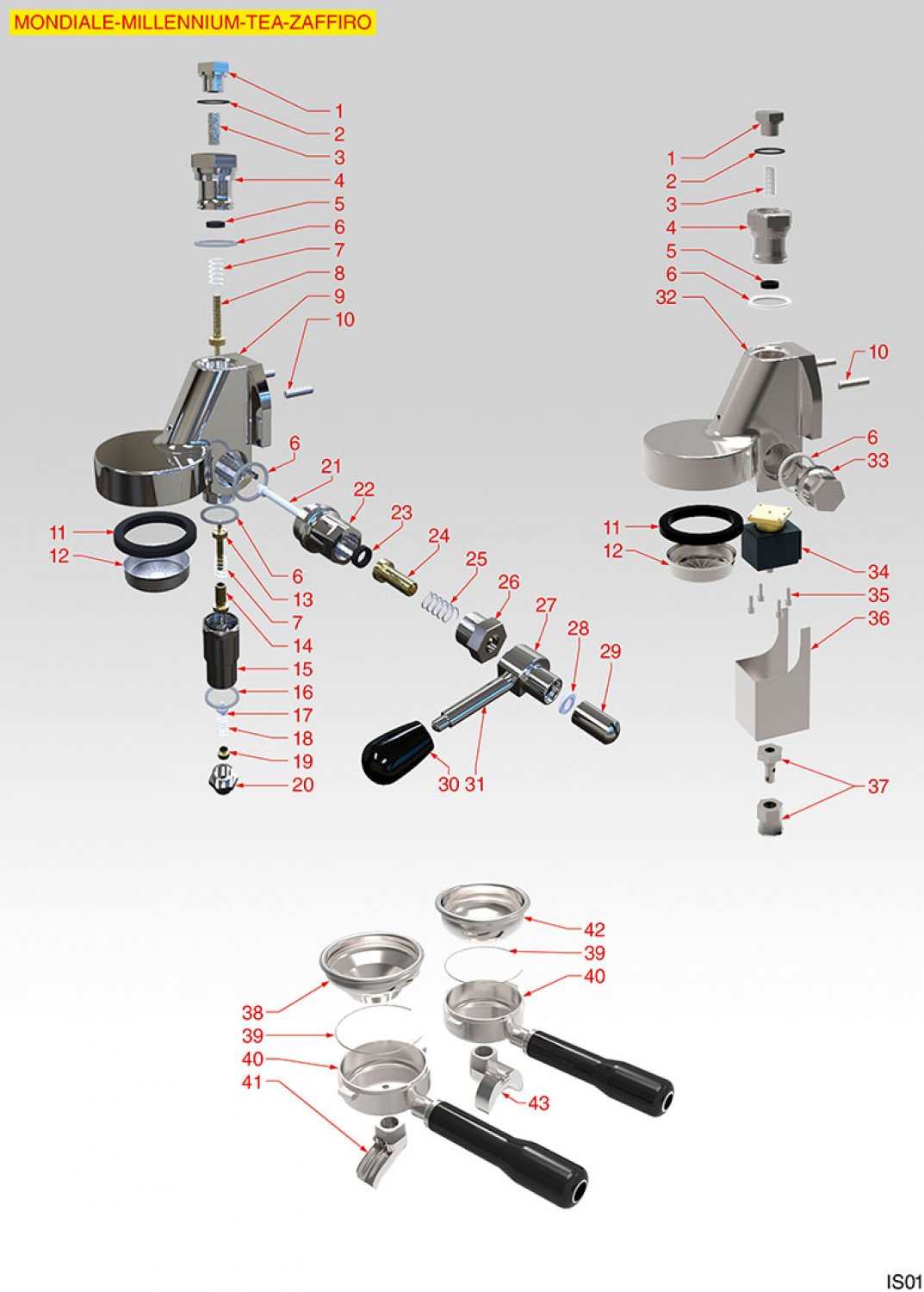

Drawing number 8079550

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
0e61 bruehgruppe revisionsset kit ecm bfc sab u v m8079664
E61 Brühgruppe Revisionsset Kit ECM - BFC - SAB - u.v.m.
44,49 €

excl. Shipping costs
Delivery time
is determined
1deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 14 available
2ptfe flat gasket o 22x17x2 mm8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs
immediately available
3water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
4chromium plated upper sleeve8063314
CHROMIUM-PLATED UPPER SLEEVE
29,00 €

excl. Shipping costs
immediately available, 3 available
5o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
6ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
7spring o 13x42 mm8003819
SPRING ø 13x42 mm
3,50 €

excl. Shipping costs
immediately available, 20 available
8complete spout valve8007123
COMPLETE SPOUT VALVE
8,40 €

excl. Shipping costs
immediately available
10stainless steel m8x25 mm stud8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs
immediately available, 9 available
11cafelat e61 portafilter gasket 73x57x8 mm red8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs
immediately available
11rubber 73x57x8 5 mm for e61 brew unit8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs
immediately available
11gasket 73x57x8 mm for e61 brew unit8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs
immediately available
12shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
12ims matrix dusche e61 duschsieb8280721
IMS Matrix Dusche E61 Duschsieb
27,95 €

excl. Shipping costs
immediately available, 9 available
13complete drain valve8007124
COMPLETE DRAIN VALVE
10,50 €
10,50 €

excl. Shipping costs
immediately available
14spring guide bushing8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs
immediately available, 4 available
15chrome plated drain sleeve8063549
CHROME-PLATED DRAIN SLEEVE
40,35 €

excl. Shipping costs
Delivery time
is determined
16flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
17e61 drain valve with gasket8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs
immediately available
18feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available
19drain jet swirl8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs
immediately available, 10 available
20drain chromium plated fitting8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs
immediately available, 4 available
21cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available
22ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 15 available
23epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
24cam guide bushing8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs
immediately available, 15 available
25spring o 14 6x21 mm8003547
SPRING ø 14,6x21 mm
3,55 €

excl. Shipping costs
immediately available
26stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 5 available
27chromium plated cam8002188
CHROMIUM-PLATED CAM
20,22 €

excl. Shipping costs
immediately available, 4 available
29chromium plated cap m68002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs
immediately available, 6 available
30knob m8x18003294
KNOB M8x1
6,56 €

excl. Shipping costs
immediately available, 3 available
31micro control spindle8002795
MICRO CONTROL SPINDLE
11,54 €

excl. Shipping costs
immediately available, 2 available
33chromium plated side cap8006380
CHROMIUM-PLATED SIDE CAP
14,96 €

excl. Shipping costs
Delivery time 4-6 weeks
343 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 5 available
35schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
37drain chromium plated fitting8005636
DRAIN CHROMIUM-PLATED FITTING
17,85 €

excl. Shipping costs
Delivery time 4-6 weeks
381 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 8 available
39filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
40coffee machine filter holder8001215
COFFEE MACHINE FILTER HOLDER
23,67 €

excl. Shipping costs
immediately available, 1 available
41single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 10 available
422 cup filter 14 grams8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs
immediately available
43lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
43double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 8 available
