Grimac Twenty Füllventil Block

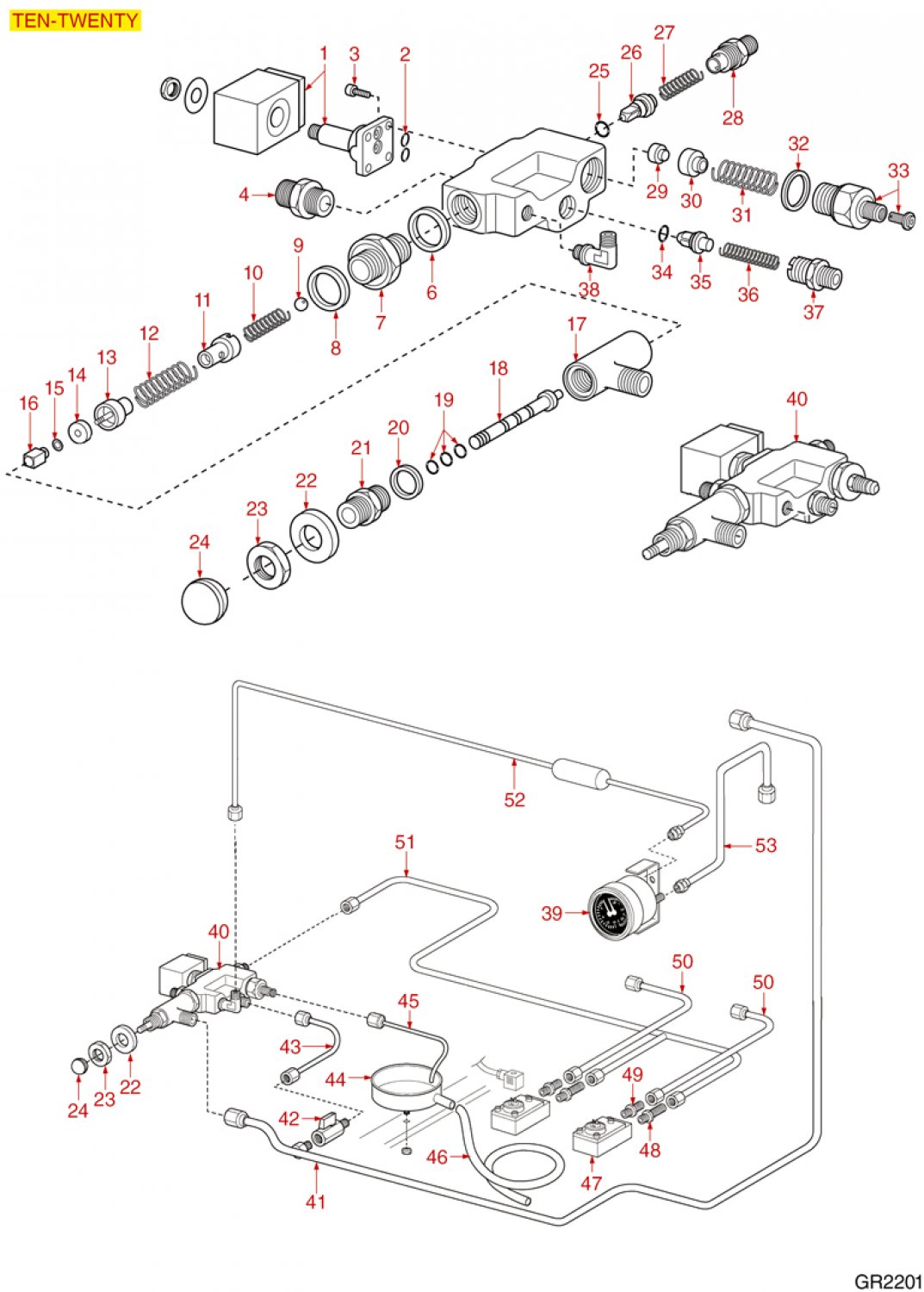

Drawing number 8280384

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1magnetventil ode 2 wege 110 120v 15va8088821
MAGNETVENTIL ODE 2-WEGE 110/120V 15VA
53,49 €

excl. Shipping costs
Delivery time
is determined
12 way solenoid valve parker 230v 50 60hz8000968
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
62,12 €

excl. Shipping costs
immediately available, 4 available
2o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
3schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
6flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
8flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
9stainless steel ball o 8 mm8005084
STAINLESS STEEL BALL ø 8 mm
2,46 €

excl. Shipping costs
immediately available, 6 available
12spring o 13x42 mm8003819
SPRING ø 13x42 mm
3,50 €

excl. Shipping costs
immediately available, 20 available
13gasket holder bushing8001568
GASKET HOLDER BUSHING
3,26 €

excl. Shipping costs
immediately available, 9 available
14nbr flat gasket o 13x4x4 mm8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs
immediately available
16square pin 10 1 mm 6x6 mm m38005194
SQUARE PIN 10.1 mm 6x6 mm M3
Price on request
18spindle for water inlet8005193
SPINDLE FOR WATER INLET
9,07 €

excl. Shipping costs
Delivery time 4-6 weeks
19o ring gasket 0106 epdm8018501
O-RING GASKET 0106 EPDM
1,44 €

excl. Shipping costs
immediately available
20ptfe flat gasket o 22x17x2 mm8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs
immediately available
24water inlet tap knob8003394
WATER INLET TAP KNOB
Price on request
25o ring m 0080 20 viton8001872
O-RING M 0080-20 VITON
1,00 €

excl. Shipping costs
immediately available
26triangular non return valve8007096
TRIANGULAR NON-RETURN VALVE
2,84 €

excl. Shipping costs
Delivery time 4-6 weeks
29flat epdm gasket8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs
immediately available
29dichtung expansionsventil fkm o 15 6x10 mm8097640
Dichtung Expansionsventil FKM ø 15/6x10 mm
2,78 €

excl. Shipping costs
immediately available, 6 available
30gasket holder for tap8001873
GASKET HOLDER FOR TAP
5,72 €

excl. Shipping costs
Delivery time
is determined
31outlet spring o 14 5x35 mm8003840
OUTLET SPRING ø 14,5x35 mm
3,71 €

excl. Shipping costs
immediately available, 9 available
32flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
33einstellschraube fuer kaffeegruppe8074017
EINSTELLSCHRAUBE FÜR KAFFEEGRUPPE
17,75 €

excl. Shipping costs
Delivery time 4-6 weeks
34o ring m 0080 20 viton8001872
O-RING M 0080-20 VITON
1,00 €

excl. Shipping costs
immediately available
35triangular non return valve8007097
TRIANGULAR NON-RETURN VALVE
5,09 €

excl. Shipping costs
Delivery time 4-6 weeks
39boiler pump pressure gauge8003488
BOILER-PUMP PRESSURE GAUGE
37,97 €

excl. Shipping costs
immediately available, 1 available
40water inlet tap8005595
WATER INLET TAP
151,86 €

excl. Shipping costs
Delivery time
is determined
42ball valve o 1 4 rime in and out8029763
ball valve ø 1/4″ in and out
12,97 €

excl. Shipping costs
immediately available, 8 available

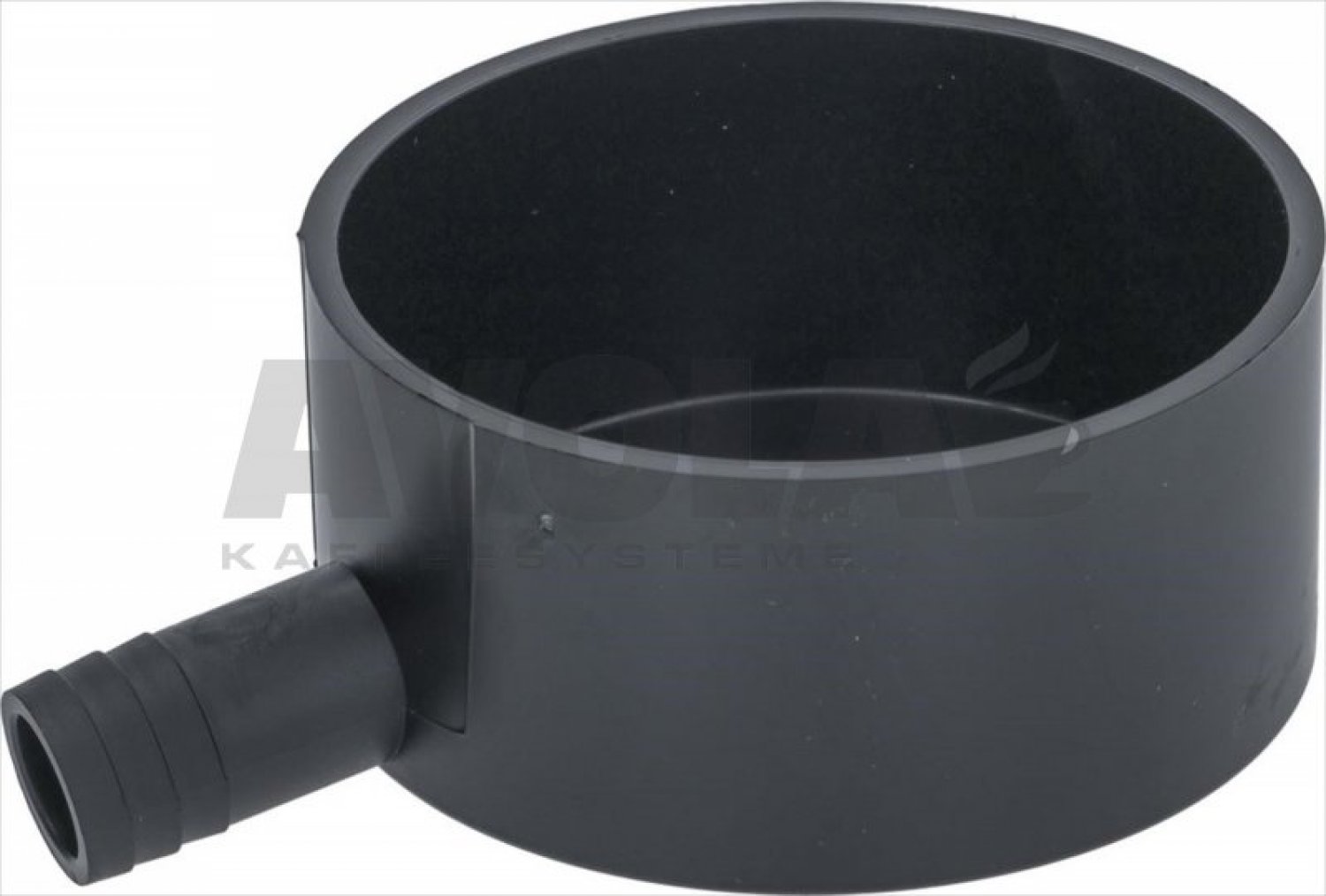

44abflusswanne8102703
ABFLUSSWANNE
11,41 €

excl. Shipping costs
Delivery time
is determined
47gicar volumetric flowmeter 1 48006953
GICAR VOLUMETRIC FLOWMETER 1/4
39,51 €

excl. Shipping costs
immediately available, 2 available
48coupling o 3 88005875
COUPLING ø 3/8
2,53 €

excl. Shipping costs
immediately available, 4 available
