GRIMAC LA UNO KAFFEEGRUPPE

Drawing number 8073591

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 14 available
2water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
3nozzle m6x1 hole8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs
immediately available
4ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available
5upper chromium plated sleeve8000148
UPPER CHROMIUM-PLATED SLEEVE
105,30 €

excl. Shipping costs
immediately available, 1 available
6o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
6o ring 04075 epdm8001699
O-RING 04075 EPDM
0,77 €

excl. Shipping costs
immediately available

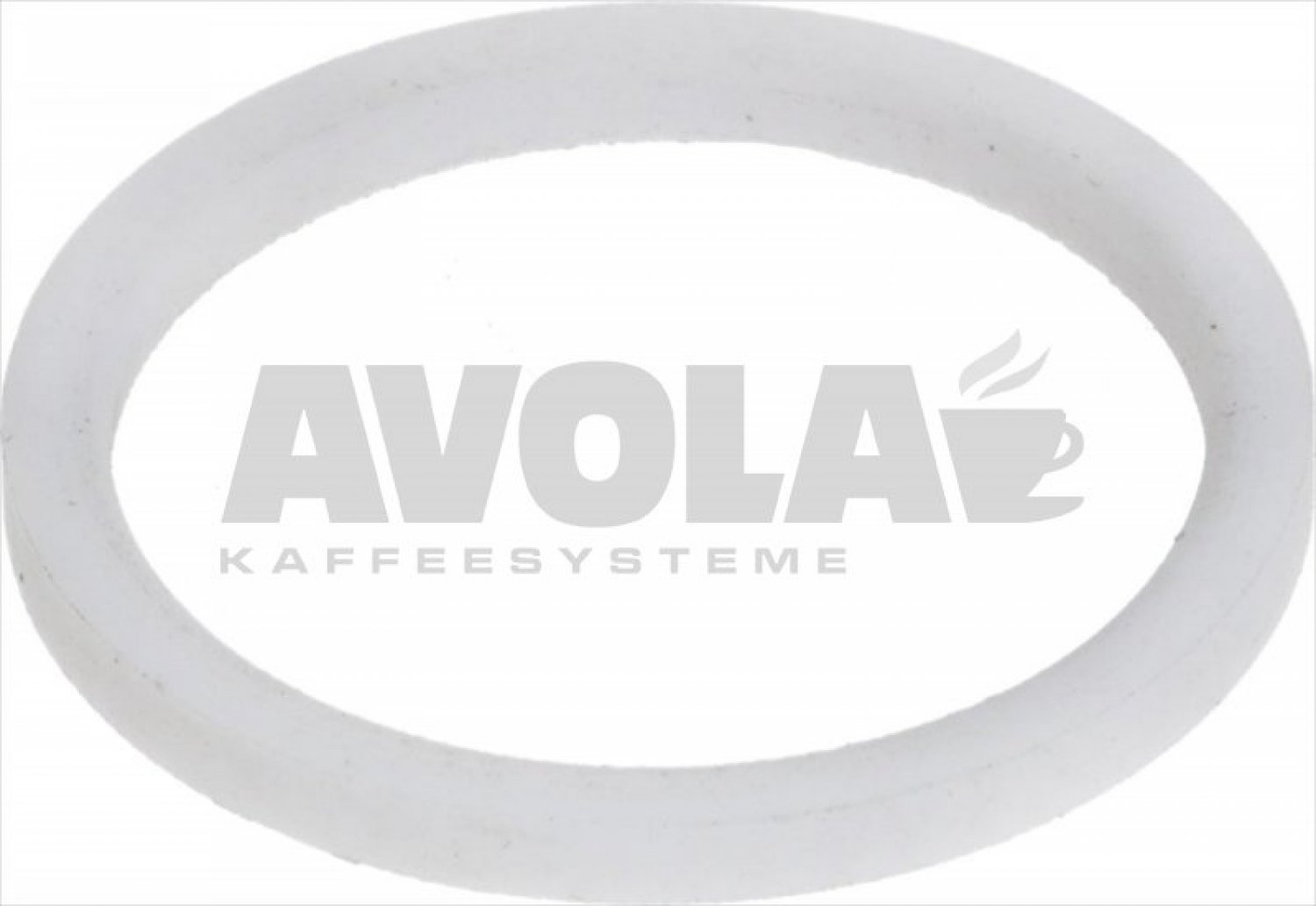

7ptfe flat gasket 36x30x2 mm8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs
immediately available
8ptfe flat gasket 36x30x2 mm8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs
immediately available
10coffee group gasket 79x71x2 mm8001723
COFFEE GROUP GASKET 79x71x2 mm
5,49 €

excl. Shipping costs
immediately available, 9 available
13flat ptfe gasket o 10x6x2 mm8064411
FLAT PTFE GASKET ø 10x6x2 mm
1,93 €

excl. Shipping costs
immediately available
13flat washer m68029809
FLAT WASHER M6
1,43 €

excl. Shipping costs
immediately available, 12 available
143 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 13 available
15coil parker zb09 9w 220 240v 50 60hz8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs
immediately available, 6 available

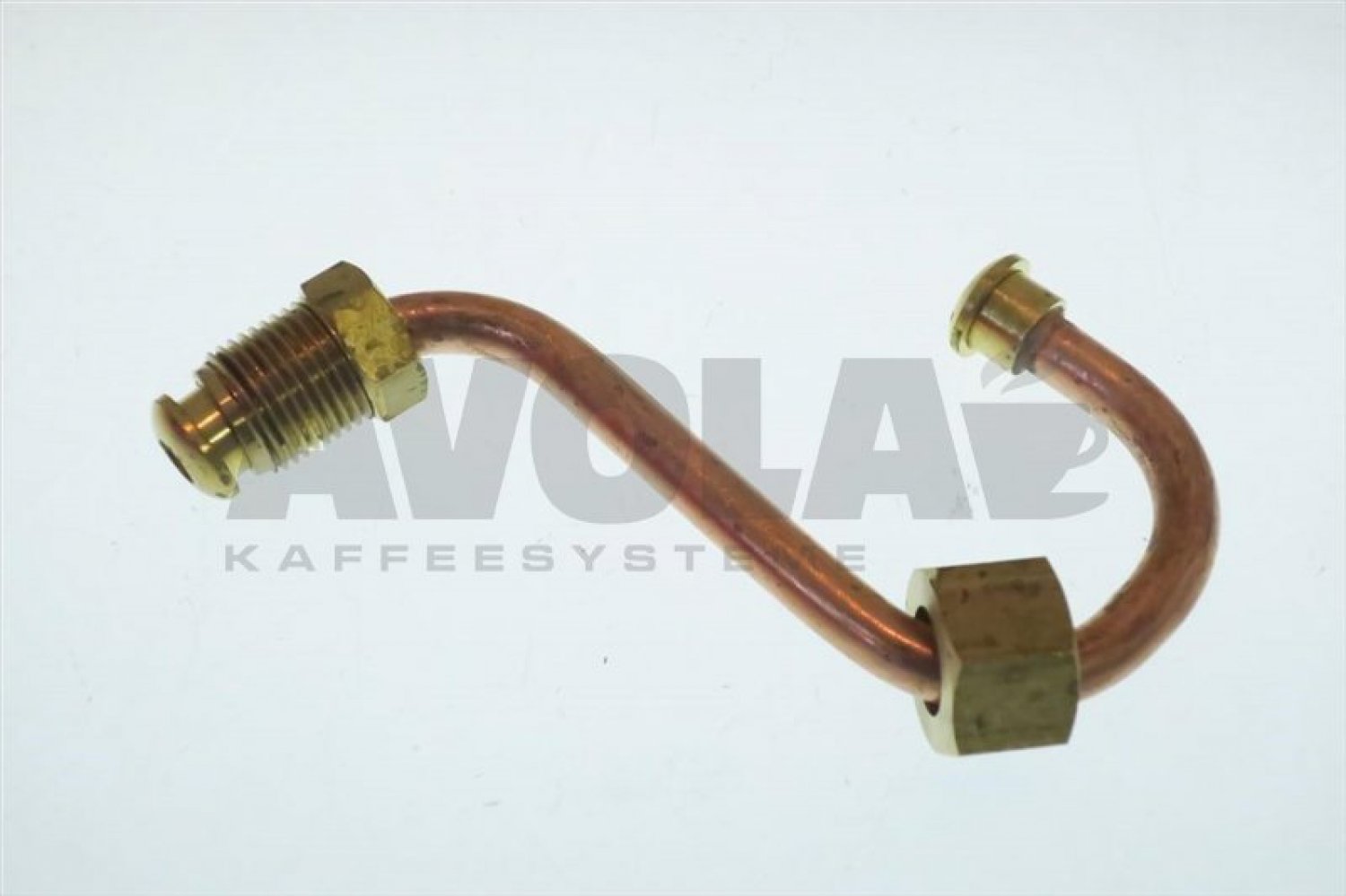

21rohr waermetauscher zur gruppe oben grimac8101567
Rohr Wärmetauscher zur Gruppe oben Grimac
37,19 €

excl. Shipping costs
immediately available, 3 available
23group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
24shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
25cafelat e61 portafilter gasket 73x57x8 mm red8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs
immediately available
25gasket 73x57x8 mm for e61 brew unit8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs
immediately available
25rubber 73x57x8 5 mm for e61 brew unit8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
