Gaggia

BRÜHGRUPPE TE 93 -TD 93 - ASSO - ASSOTRONIC

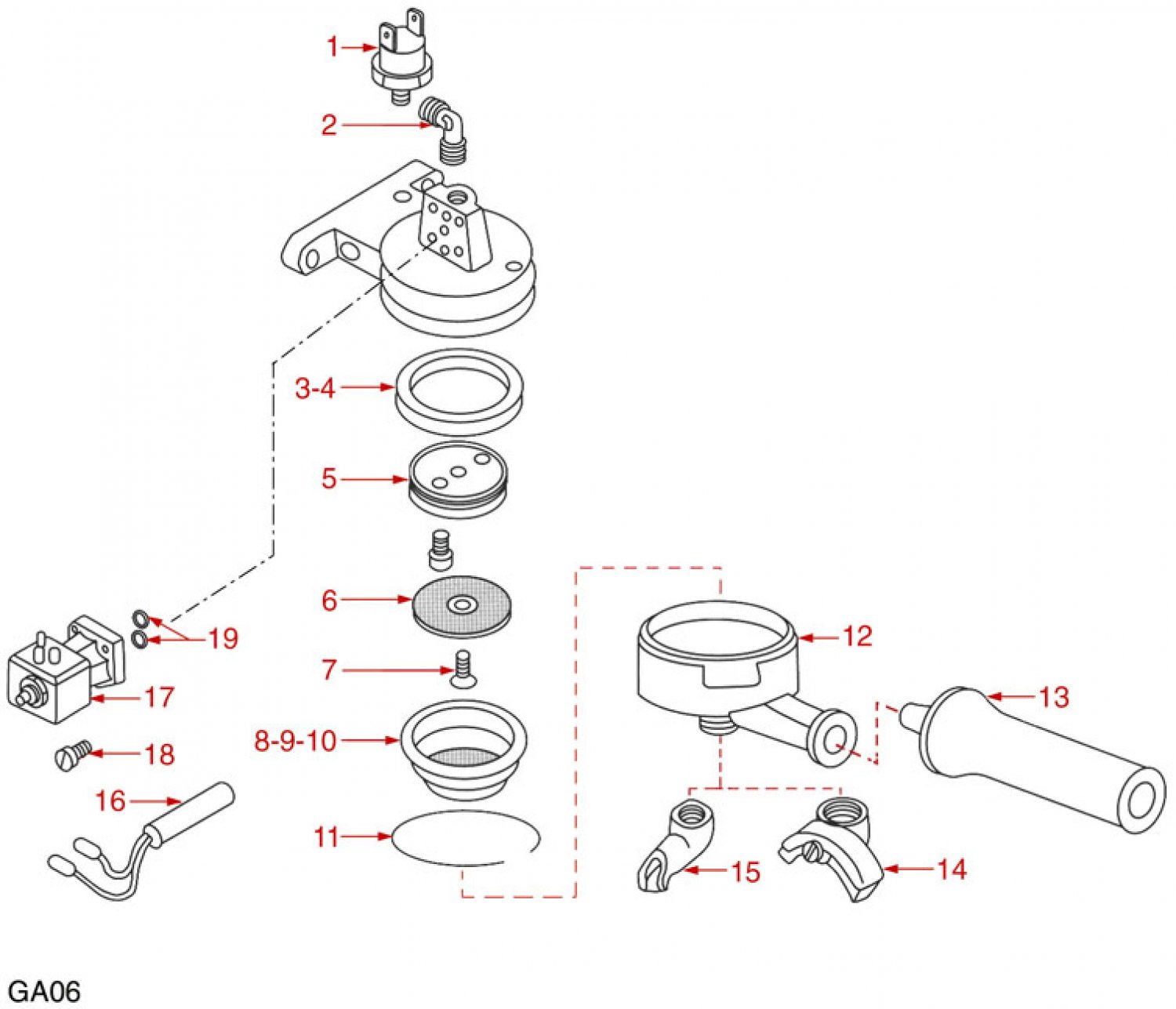

Drawing number 8057539

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

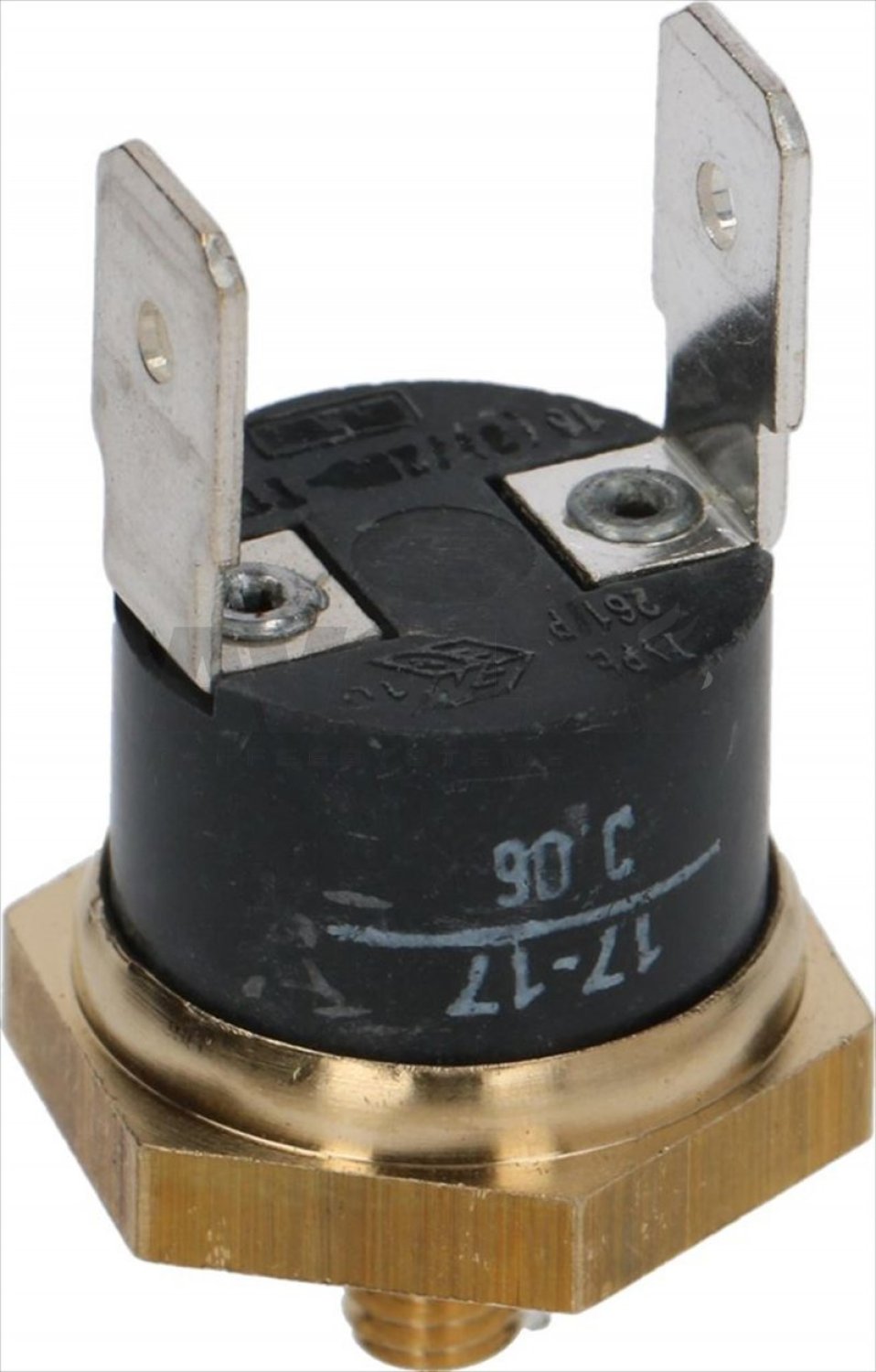

1contact thermostat 90 deg c m48006513
CONTACT THERMOSTAT 90°C M4
9,97 €

excl. Shipping costs
Delivery time
is determined
3silikondichtung dichtung fuer siebtraeger o 72x57x8 5 mm8280456
Silikondichtung Dichtung für Siebträger ø 72x57x8,5 mm
5,50 €

excl. Shipping costs
immediately available, 10 available
3filter holder gasket o 72x57x8 5 mm8001920
FILTER HOLDER GASKET ø 72x57x8,5 mm
4,65 €

excl. Shipping costs
immediately available
4filter holder gasket o 73x57x9 mm8001904
FILTER HOLDER GASKET ø 73x57x9 mm
3,99 €

excl. Shipping costs
immediately available
6shower screen o 55 mm8000563
SHOWER SCREEN ø 55 mm
5,22 €

excl. Shipping costs
immediately available, 13 available
7countersunk head screws with shell m5x128007318
COUNTERSUNK HEAD SCREWS WITH SHELL M5x12
0,62 €

excl. Shipping costs
immediately available
81 cup filter 7 gr8001080
1 CUP FILTER 7 gr
5,45 €

excl. Shipping costs
immediately available, 11 available
92 cup filter 14 grams8001081
2-CUP FILTER 14 GRAMS
5,46 €

excl. Shipping costs
immediately available, 6 available
11filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
12filter holder gaggia saeco8001187
FILTER HOLDER GAGGIA/SAECO
27,37 €

excl. Shipping costs
immediately available, 2 available
13filter holder handle m108003350
FILTER HOLDER HANDLE M10
6,55 €

excl. Shipping costs
immediately available, 3 available
14lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
14double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 6 available
15single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 15 available
16cartridge heating element 80w 240v8007645
CARTRIDGE HEATING ELEMENT 80W 240V
37,28 €

excl. Shipping costs
immediately available, 1 available
173 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 12 available
18schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
19o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
