Futurmat

FUTURMAT GRUPPE KAFFEEAUSGABE

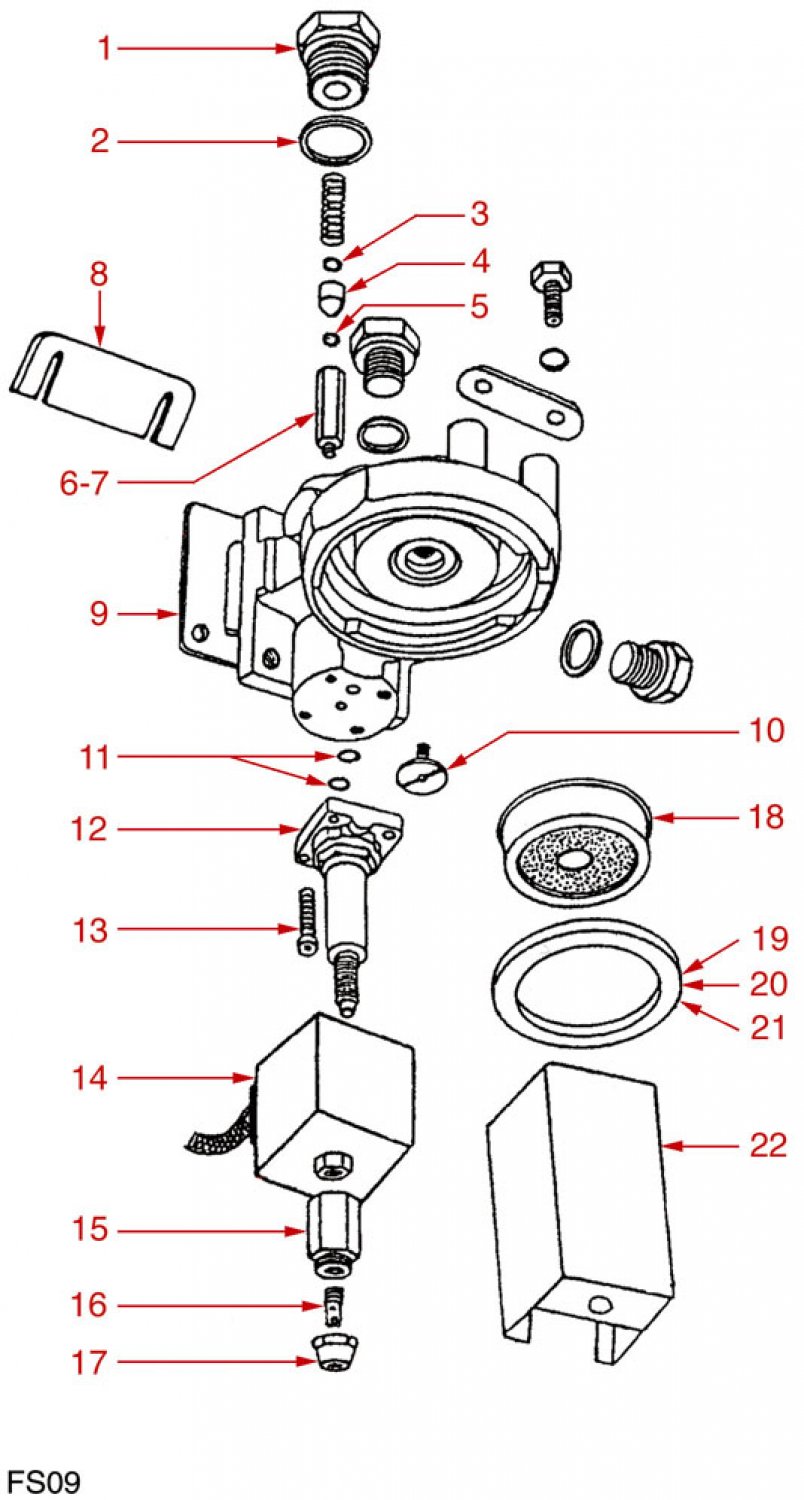

Drawing number 8057310

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1cap o 16 mm8006376
CAP ø 16 mm
3,65 €

excl. Shipping costs
Delivery time
is determined
2ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available
3water filter8001098
WATER FILTER
1,40 €

excl. Shipping costs
immediately available, 19 available
4nozzle o 8 loch o 0 7 mm8006981
NOZZLE ø 8 LOCH ø 0,7 mm
5,65 €

excl. Shipping costs
immediately available, 9 available
5o ring 0040 20 epdm8036617
O-RING 0040-20 EPDM
0,84 €

excl. Shipping costs
immediately available
6short pin m68005126
SHORT PIN M6
This article is no longer available
7short pin m88005127
SHORT PIN M8
10,10 €

excl. Shipping costs
Delivery time 4-6 weeks

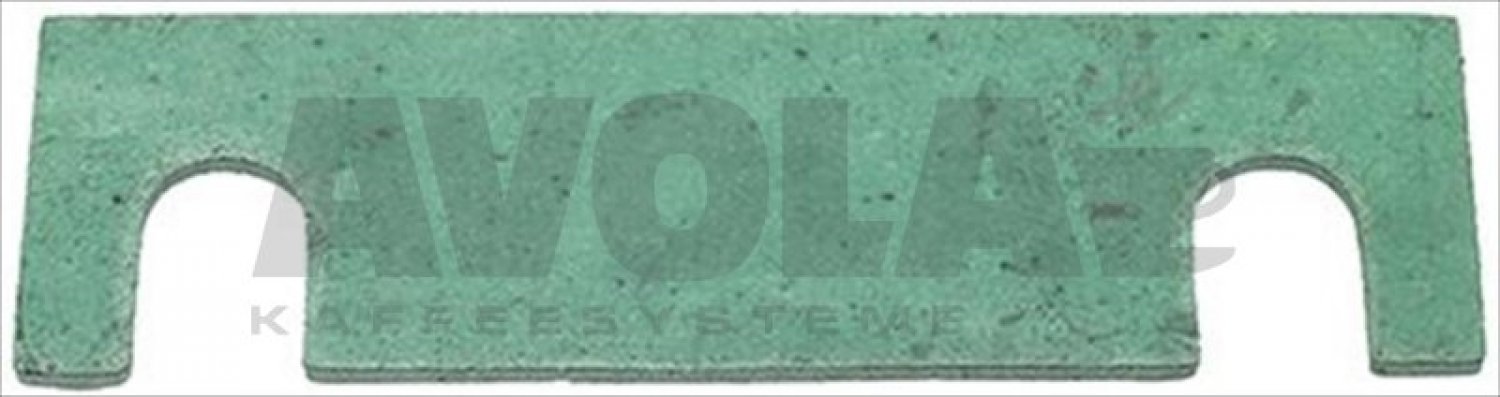

8coffee group gasket 80x21x2 mm8001745
COFFEE GROUP GASKET 80x21x2 mm
4,57 €

excl. Shipping costs
immediately available, 3 available
9coffee group gasket 80x72 mm8001461
COFFEE GROUP GASKET 80x72 mm
3,76 €

excl. Shipping costs
immediately available, 4 available
10group spray nozzle o 21 mm m5x18006988
GROUP SPRAY NOZZLE ø 21 mm M5x1
7,40 €

excl. Shipping costs
immediately available, 5 available
11o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
123 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 3 available
13schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
14coil parker yb09 220 230v 9w 50 60hz8037447
COIL PARKER YB09 220/230V 9W 50/60Hz
32,59 €

excl. Shipping costs
immediately available, 2 available
15coupling discharge8005829
COUPLING DISCHARGE
9,01 €

excl. Shipping costs
Delivery time
is determined
16drain jet swirl8005830
DRAIN JET SWIRL
9,01 €

excl. Shipping costs
Delivery time
is determined
17drain chromium plated fitting8005828
DRAIN CHROMIUM-PLATED FITTING
This article is no longer available
18shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
19filter holder gasket o 73x57x8 mm8001902
FILTER HOLDER GASKET Ø 73x57x8 mm
3,47 €

excl. Shipping costs
immediately available
20rubber 73x57x8 5 mm for e61 brew unit8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs
immediately available
21filter holder gasket o 73x57x9 mm8001904
FILTER HOLDER GASKET ø 73x57x9 mm
3,99 €

excl. Shipping costs
immediately available
22manual solenoid cover8002690
MANUAL SOLENOID COVER
19,68 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
