FUTURMAT BRÜHGRUPPE

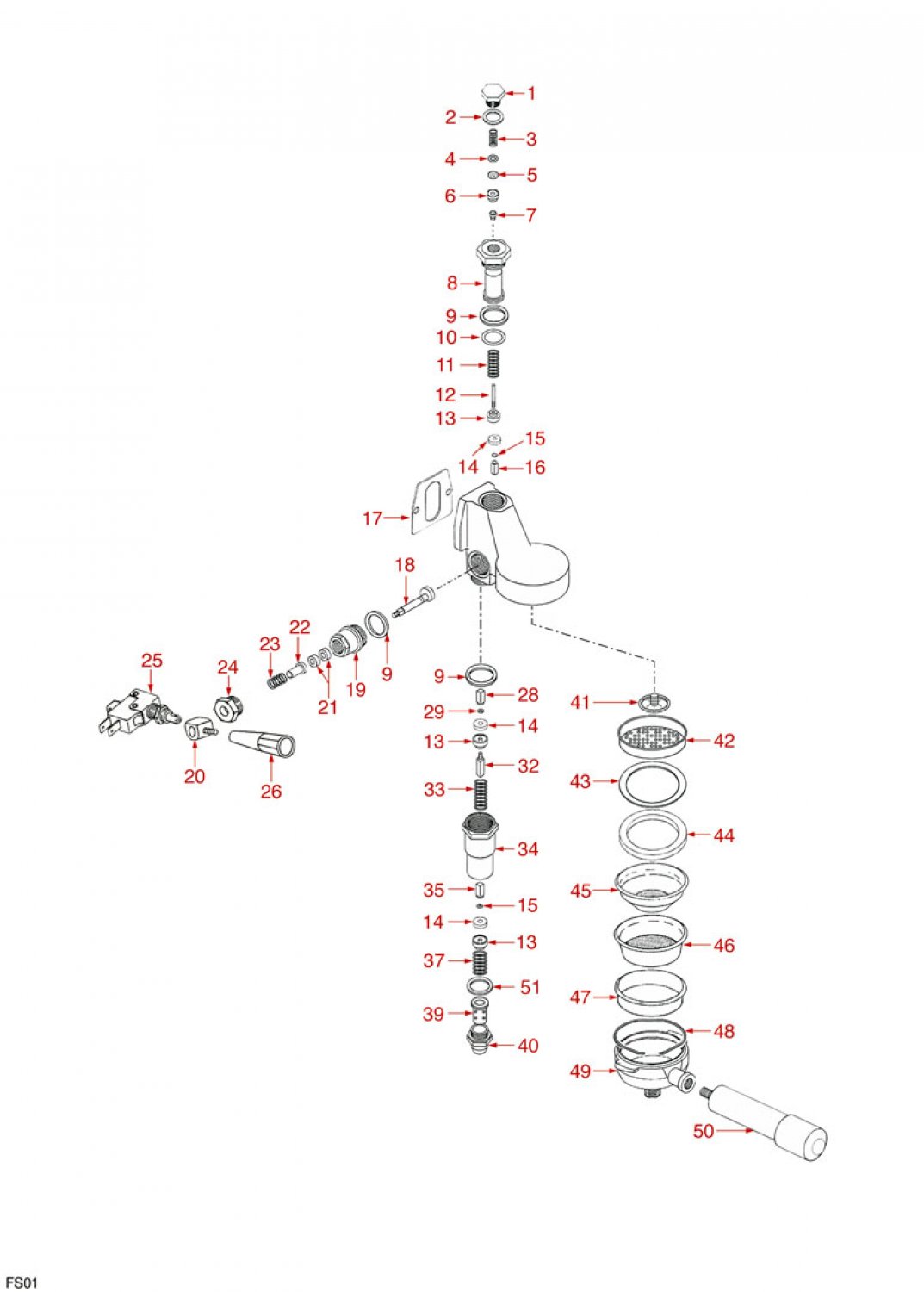

Drawing number 8057305

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 12 available
2ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available

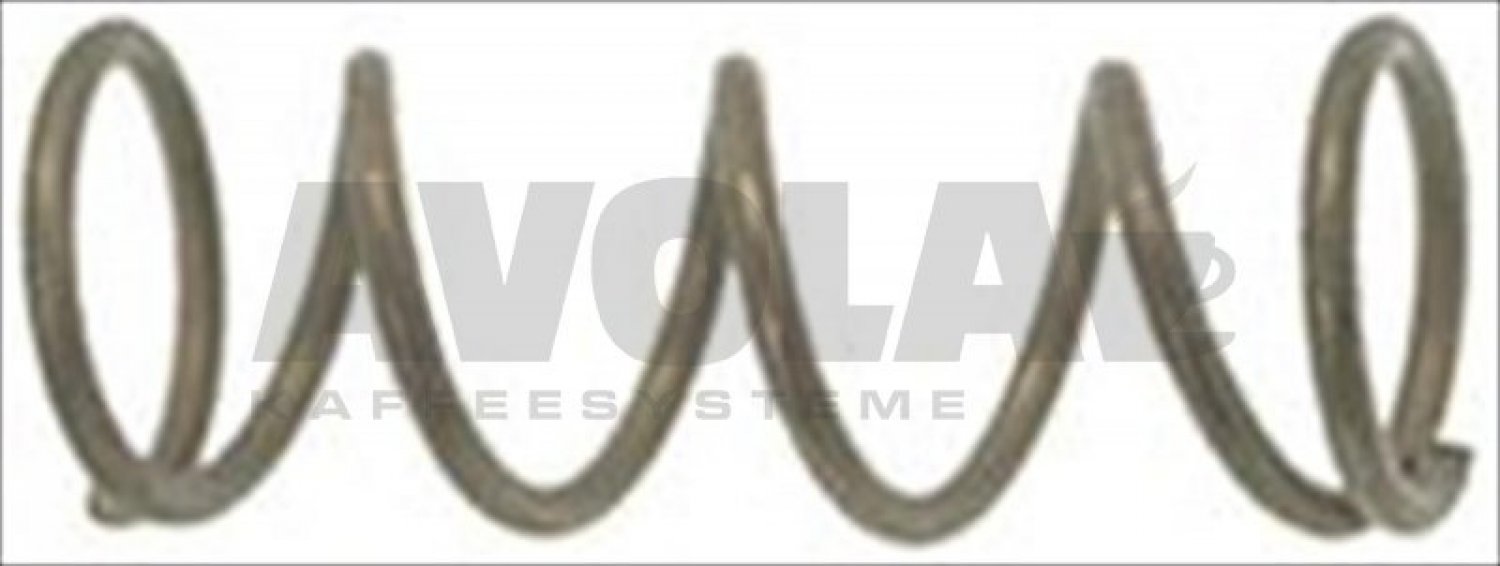

3jet spring o 8x20 mm8003810
JET SPRING ø 8x20 mm
1,49 €

excl. Shipping costs
immediately available, 14 available

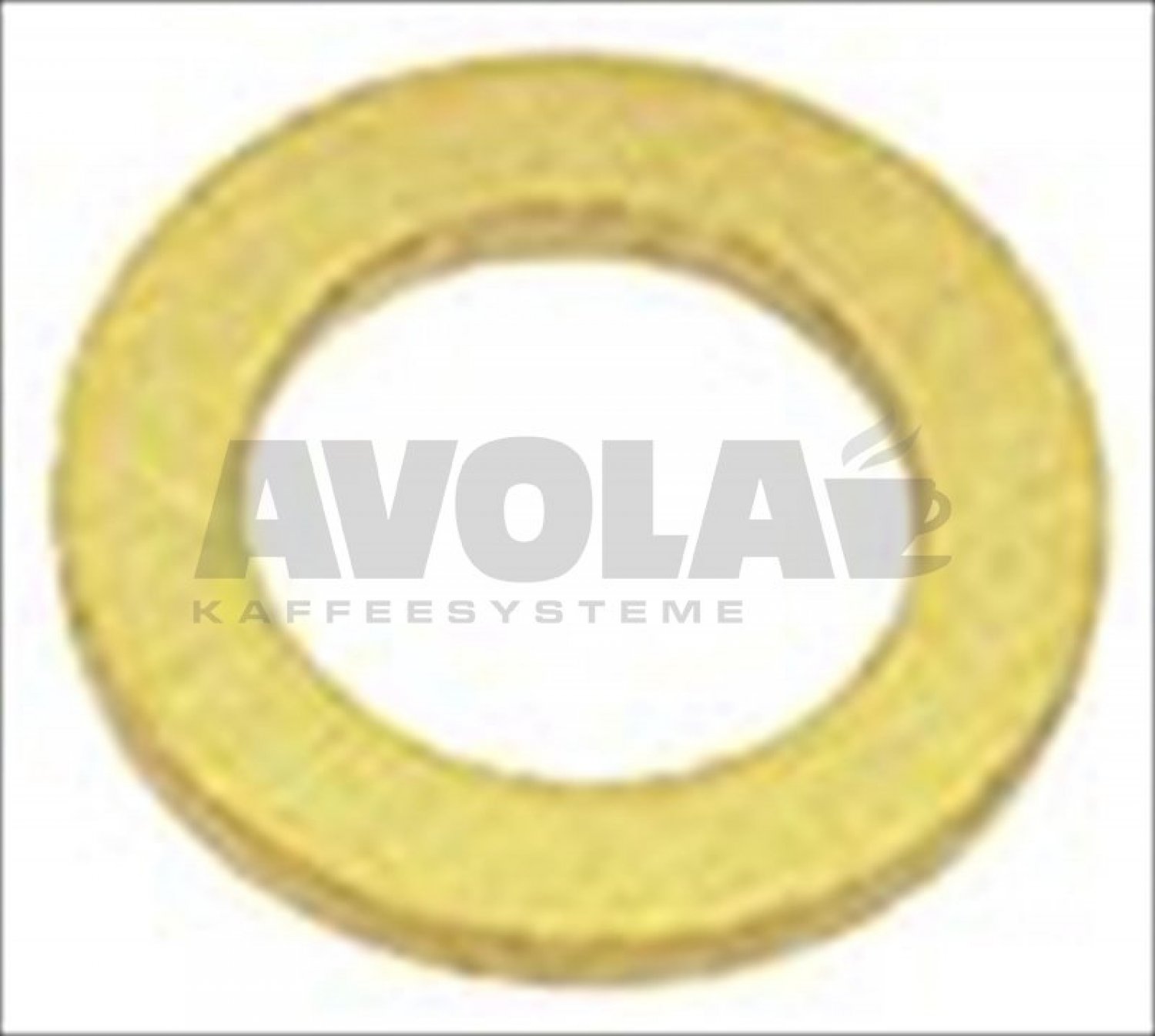

4brass washer o 10x5x1 mm8001566
BRASS WASHER ø 10x5x1 mm
1,08 €

excl. Shipping costs
immediately available, 7 available
5water filter o 11 mm8001114
WATER FILTER ø 11 mm
1,15 €

excl. Shipping costs
immediately available

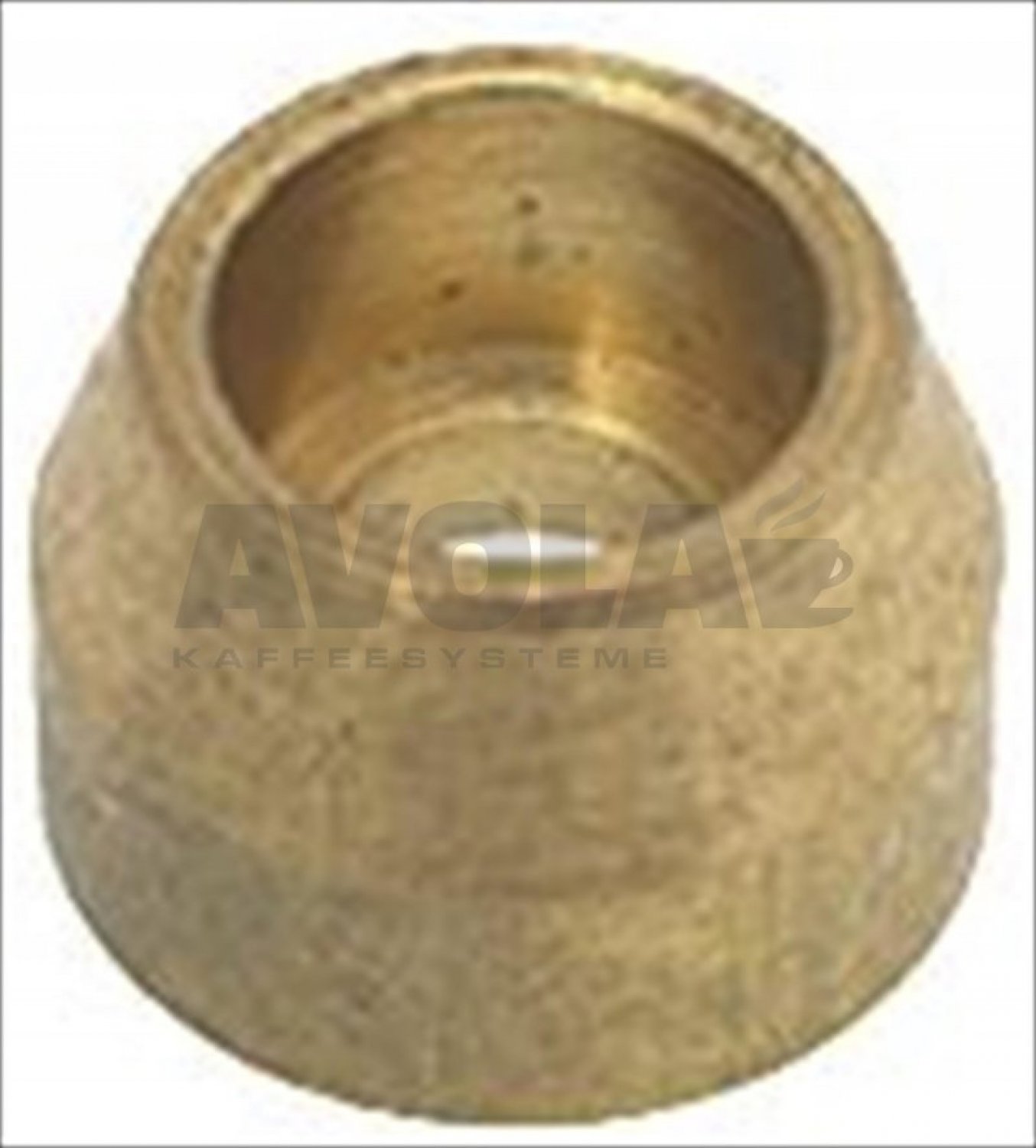

6filter holder bushing8001113
FILTER HOLDER BUSHING
2,50 €

excl. Shipping costs
immediately available, 7 available
7nozzle m6x0 75 hole8006989
NOZZLE M6x0,75 HOLE
3,12 €

excl. Shipping costs
immediately available, 12 available
9ptfe flat gasket 36x30x2 mm8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs
immediately available
10o ring 04075 epdm8001699
O-RING 04075 EPDM
0,77 €

excl. Shipping costs
immediately available
11spring o 13x42 mm8003819
SPRING ø 13x42 mm
3,50 €

excl. Shipping costs
immediately available, 16 available
12delivery valve pin8005098
DELIVERY VALVE PIN
2,71 €

excl. Shipping costs
immediately available, 13 available
13gasket holder bushing8001568
GASKET HOLDER BUSHING
3,26 €

excl. Shipping costs
immediately available, 14 available
14nbr flat gasket o 13x4x4 mm8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs
immediately available
15brass washer 6x3x0 5 mm8001584
BRASS WASHER 6x3x0,5 mm
0,68 €

excl. Shipping costs
immediately available
16square pin 11 1 mm 6x6 mm m38005092
SQUARE PIN 11.1 mm 6x6 mm M3
1,43 €

excl. Shipping costs
immediately available, 12 available
17coffee group gasket 79x71x2 mm8001723
COFFEE GROUP GASKET 79x71x2 mm
5,49 €

excl. Shipping costs
immediately available, 13 available
18cam for coffee group8001303
CAM FOR COFFEE GROUP
13,86 €

excl. Shipping costs
immediately available, 4 available
19cams chromium plated fitting8005858
CAMS CHROMIUM-PLATED FITTING
21,17 €

excl. Shipping costs
immediately available, 1 available
21epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
22cam guide bushing8001571
CAM GUIDE BUSHING
5,93 €

excl. Shipping costs
immediately available, 13 available
24stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 2 available
25microswitch 10a 250v8003091
MICROSWITCH 10A 250V
13,69 €

excl. Shipping costs
immediately available, 17 available
26brewing group handle8003296
BREWING GROUP HANDLE
4,56 €

excl. Shipping costs
Delivery time 4-6 weeks
28square pin 12 1 mm 6x6 mm m38005113
SQUARE PIN 12.1 mm 6x6 mm M3
2,96 €

excl. Shipping costs
immediately available, 11 available
29brass washer 6x3x0 5 mm8001584
BRASS WASHER 6x3x0,5 mm
0,68 €

excl. Shipping costs
immediately available
32square pin 40 mm 5x5 mm m48005095
SQUARE PIN 40 mm 5x5 mm M4
2,71 €

excl. Shipping costs
immediately available, 14 available
33spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
35square pass thr pin 6 5 mm 6x6 mm m38005096
SQUARE PASS-THR. PIN 6.5 mm 6x6 mm M3
Price on request
37feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available

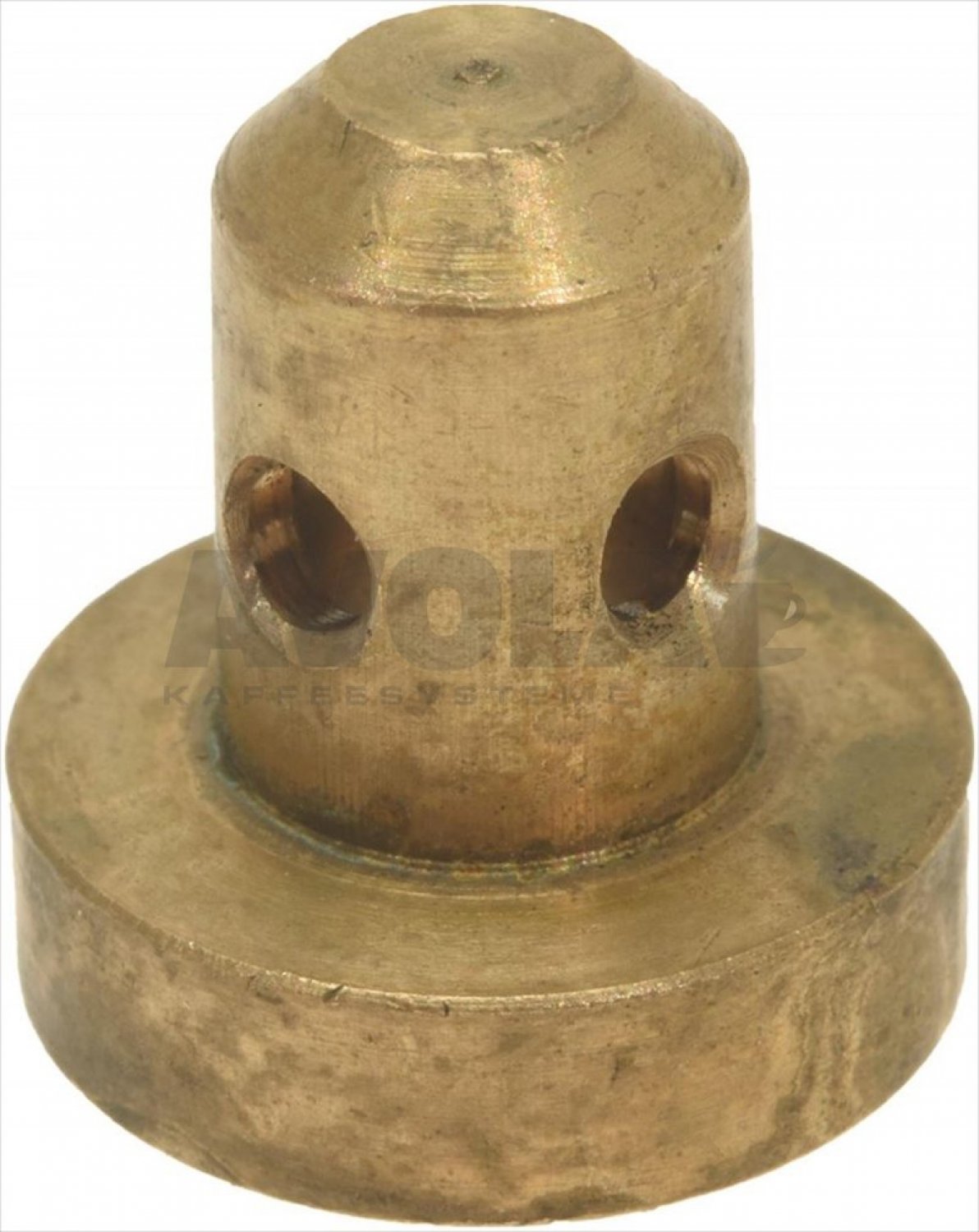

39drain jet swirl8006318
DRAIN JET SWIRL
8,14 €

excl. Shipping costs
immediately available, 6 available
40drain chromium plated fitting8105825
DRAIN CHROMIUM-PLATED FITTING
7,20 €

excl. Shipping costs
immediately available, 5 available
41group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available, 18 available
42shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
43paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
44filter holder gasket o 74x57 5x8 mm8001901
Filter holder gasket ø 74x57,5x8 mm
3,82 €

excl. Shipping costs
immediately available
44filter holder gasket o 73x57x8 mm8001902
FILTER HOLDER GASKET Ø 73x57x8 mm
3,47 €

excl. Shipping costs
immediately available
44filter holder gasket8001903
FILTER HOLDER GASKET
3,63 €

excl. Shipping costs
immediately available
44filter holder gasket o 73x57x9 mm8001904
FILTER HOLDER GASKET ø 73x57x9 mm
3,99 €

excl. Shipping costs
immediately available
451 cup filter 6 gr8001059
1 CUP FILTER 6 gr
Price on request
451 cup filter 7 gr8001061
1 CUP FILTER 7 gr
Price on request

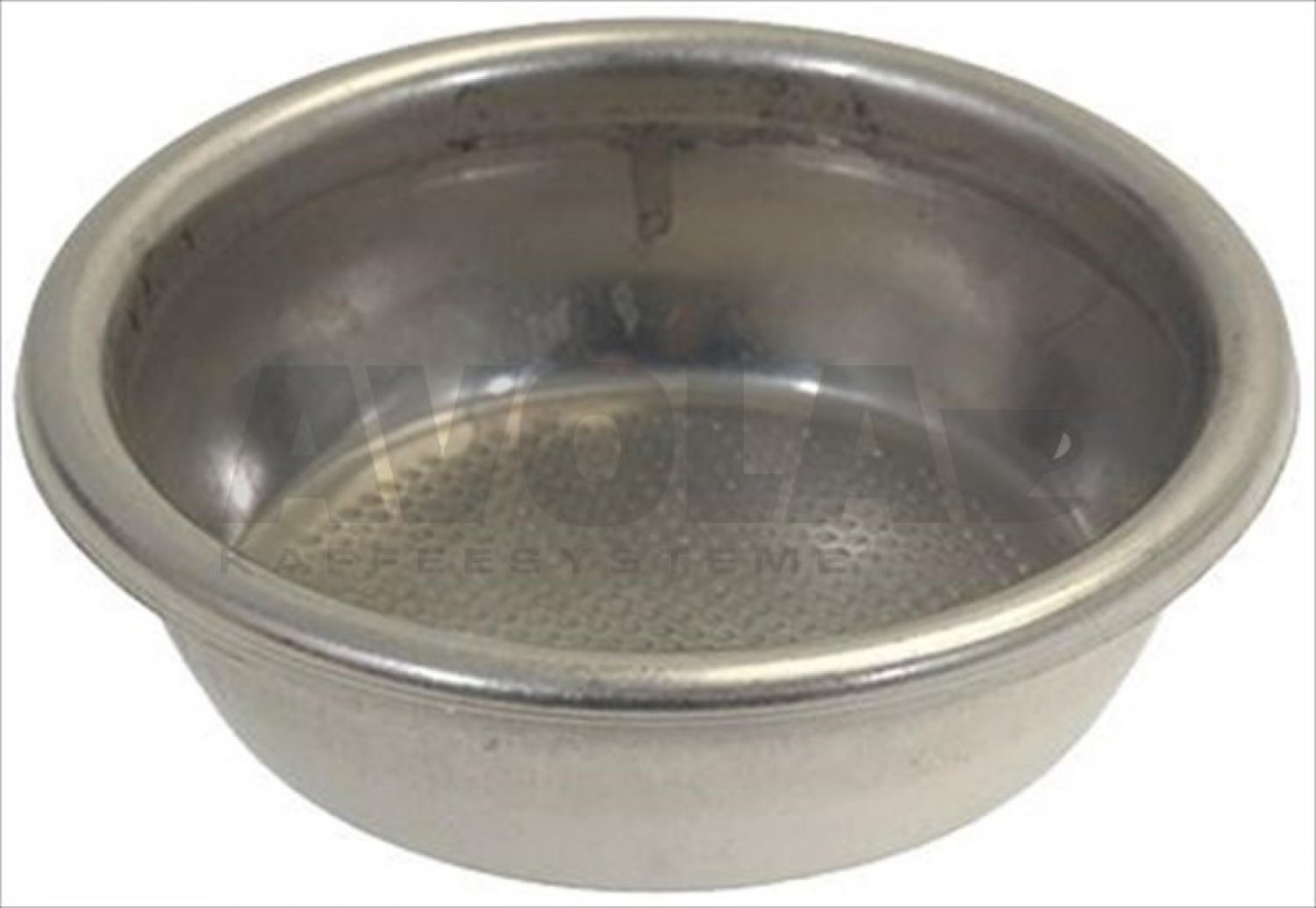

462 cups filter 12 gr8001060
2 CUPS FILTER 12 gr
5,40 €

excl. Shipping costs
immediately available, 3 available

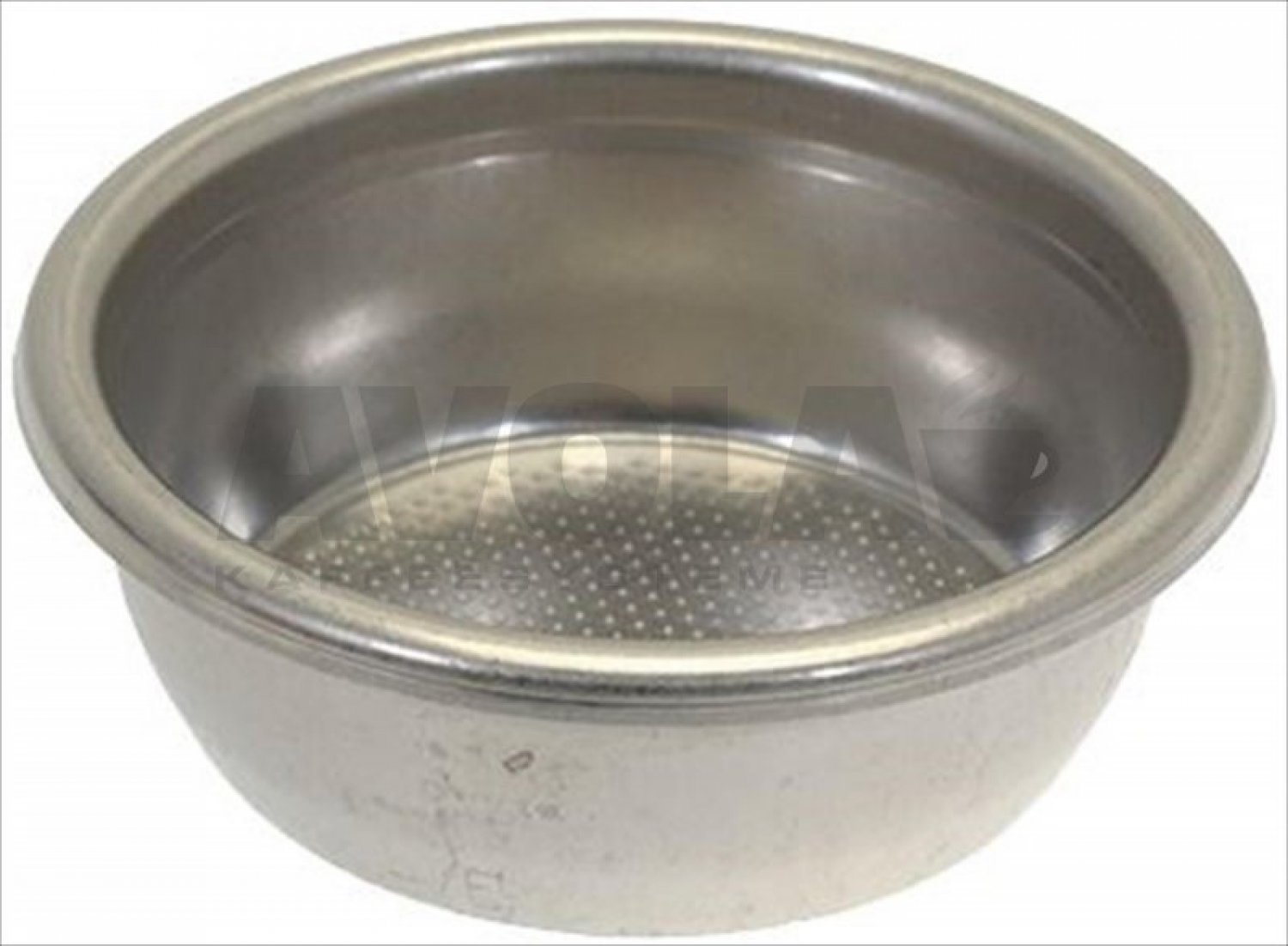

462 cups filter 14 gr8001062
2 CUPS FILTER 14 gr
Price on request
47blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
48filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
49filter holder coffee machines8001183
FILTER HOLDER COFFEE MACHINES
19,99 €

excl. Shipping costs
immediately available, 2 available
50filter holder handle m128003351
FILTER HOLDER HANDLE M12
8,51 €

excl. Shipping costs
immediately available, 3 available
51flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
