Futurmat

FS24 WASSER- DAMPFHAHN

Drawing number 8057317

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1ring nut for water steam knob8003298
RING NUT FOR WATER/STEAM KNOB
4,19 €

excl. Shipping costs
immediately available, 3 available
2water steam tap handle8003295
WATER/STEAM TAP HANDLE
11,55 €

excl. Shipping costs
Delivery time 4-6 weeks
2water steam tap knob8003316
WATER/STEAM TAP KNOB
This article is no longer available
3handle spring8003686
HANDLE SPRING
2,20 €

excl. Shipping costs
immediately available, 4 available
4ring nut for water steam knob8003337
RING NUT FOR WATER/STEAM KNOB
6,70 €

excl. Shipping costs
Delivery time 4-6 weeks
5ptfe flat gasket o 22x17x2 mm8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs
immediately available
6spring o 10 5x27 mm8003604
Spring ø 10,5x27 mm
3,57 €

excl. Shipping costs
immediately available, 7 available
7brass washer8001548
BRASS WASHER
1,33 €

excl. Shipping costs
immediately available, 3 available
8conical ptfe seal8001464
CONICAL PTFE SEAL
1,73 €

excl. Shipping costs
immediately available, 9 available
9o ring 02043 epdm8001593
O-RING 02043 EPDM
0,79 €

excl. Shipping costs
immediately available
10nut for water steam pipe8005586
NUT FOR WATER/STEAM PIPE
9,94 €

excl. Shipping costs
Delivery time
is determined
12steam nozzle 4 hole8006747
STEAM NOZZLE 4 hole
9,54 €

excl. Shipping costs
Delivery time
is determined

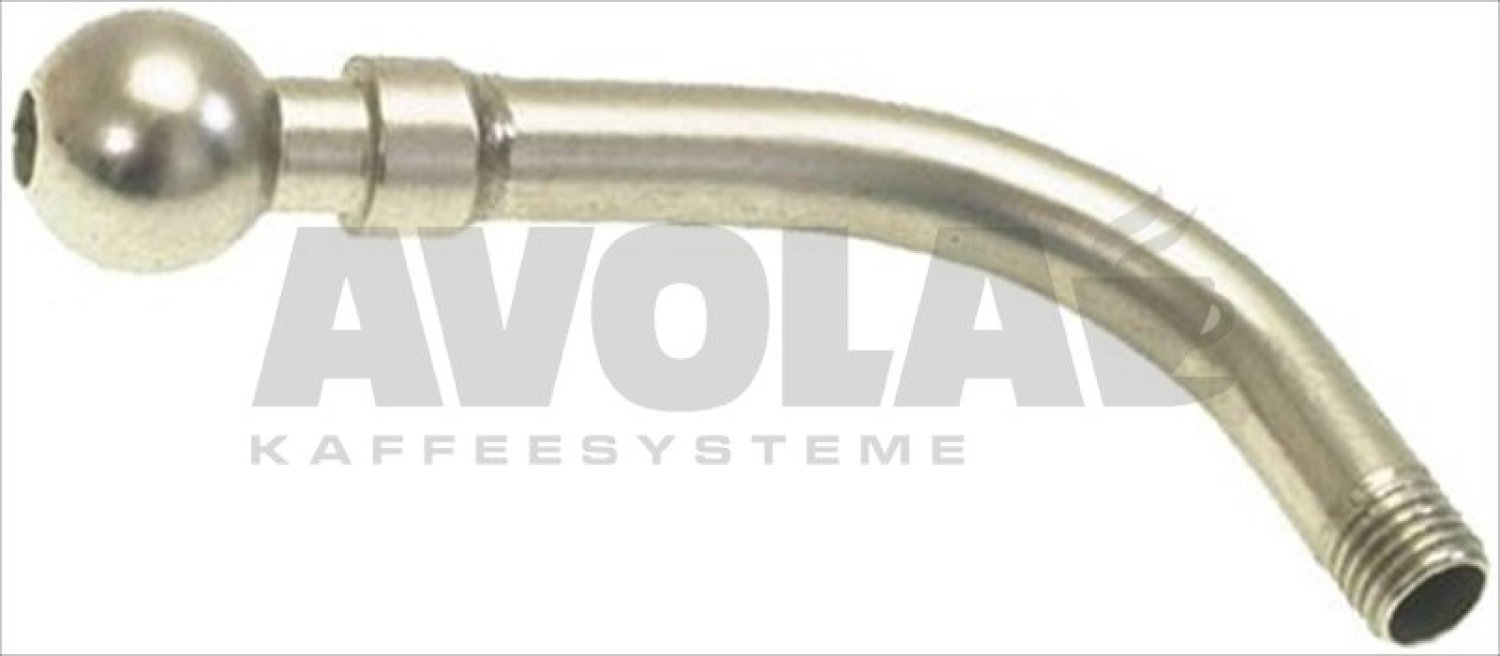

13water pipe8006888
WATER PIPE
24,42 €

excl. Shipping costs
immediately available, 1 available
14water pipe nozzle8006884
WATER PIPE NOZZLE
15,21 €

excl. Shipping costs
Delivery time 4-6 weeks
15water pipe nozzle8006887
WATER PIPE NOZZLE
This article is no longer available

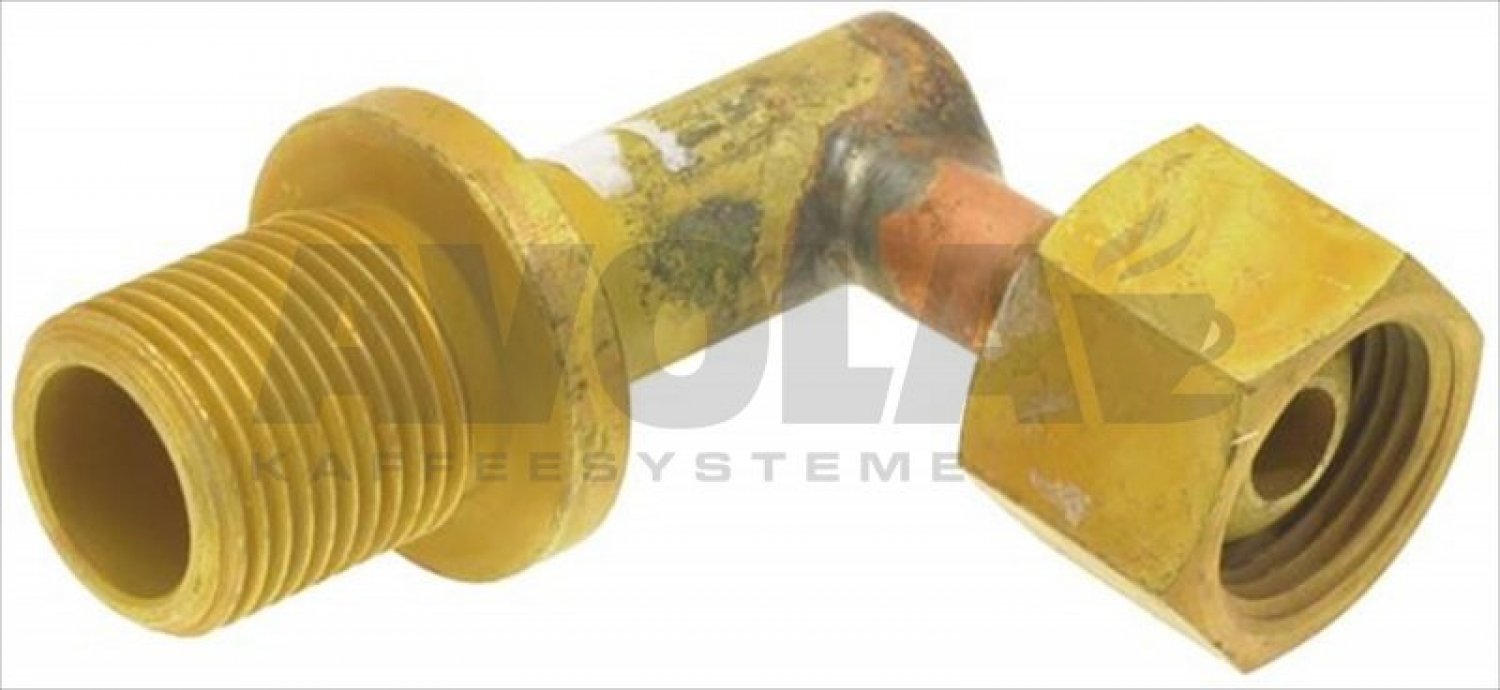

16water steam pipe coupling8005834
WATER/STEAM PIPE COUPLING
29,37 €

excl. Shipping costs
immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
