Futurmat

FS11 EXPANSIONS- UND RÜCKSCHLAGVENTILE

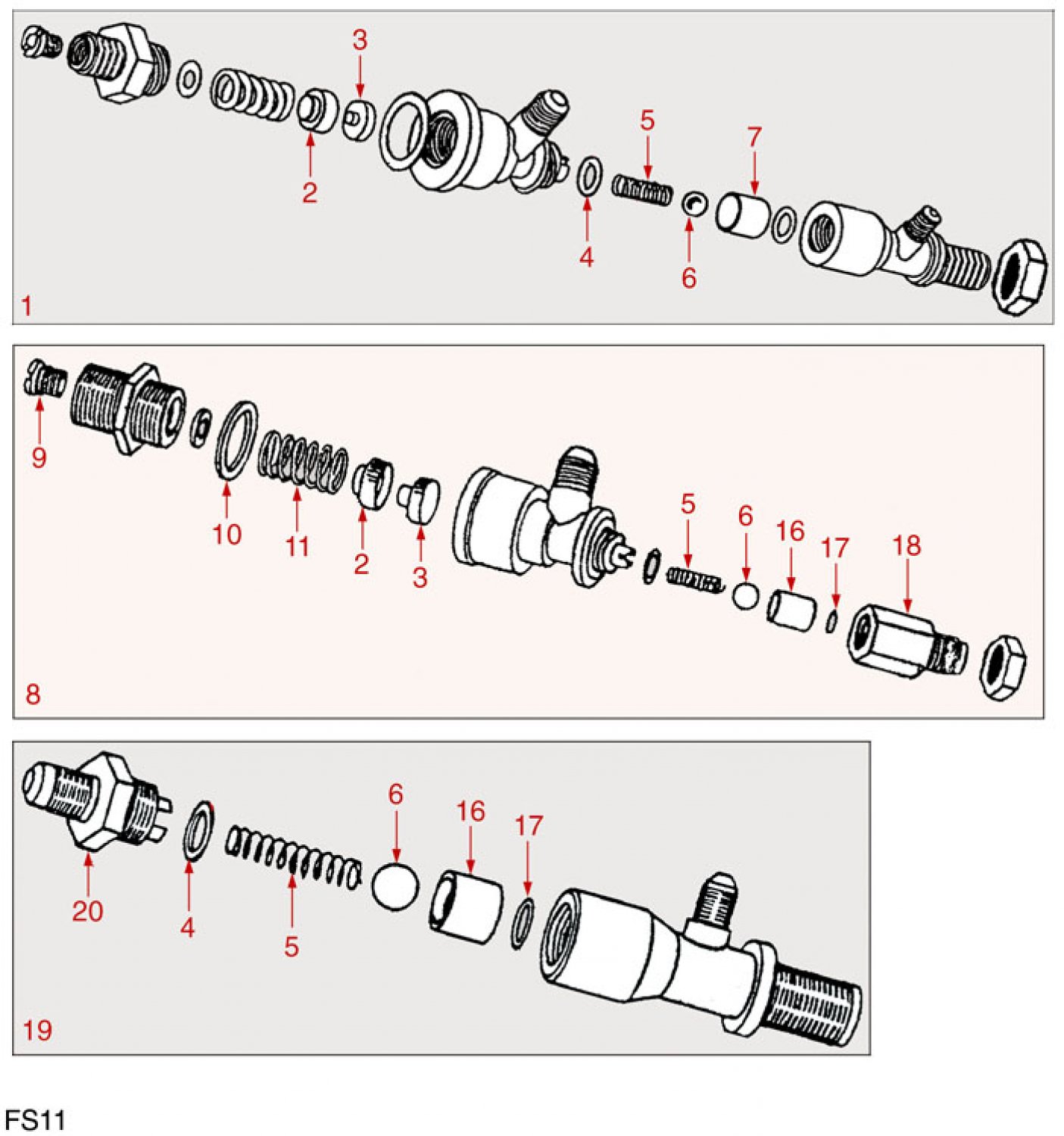

Drawing number 8057311

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1expansion and non return valve8007146
EXPANSION AND NON-RETURN VALVE
75,93 €

excl. Shipping costs
immediately available, 1 available
2gasket holder for tap8001429
GASKET HOLDER FOR TAP
1,92 €

excl. Shipping costs
Delivery time
is determined
3flat epdm gasket8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs
immediately available
4o ring 02043 epdm8001593
O-RING 02043 EPDM
0,79 €

excl. Shipping costs
immediately available
5spring 8x30 mm8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs
immediately available, 17 available
6stainless steel ball o 11 mm8005089
STAINLESS STEEL BALL ø 11 mm
2,82 €

excl. Shipping costs
immediately available, 4 available
8expansion and non return valve8007147
EXPANSION AND NON-RETURN VALVE
132,27 €

excl. Shipping costs
Delivery time 4-6 weeks
10o ring 04081 epdm8001515
O-RING 04081 EPDM
1,07 €

excl. Shipping costs
immediately available, 7 available
11spring8003814
SPRING
3,11 €

excl. Shipping costs
Delivery time
is determined
17o ring 0108 epdm8001655
O-RING 0108 EPDM
0,79 €

excl. Shipping costs
immediately available
19non return valve8007148
NON-RETURN VALVE
35,50 €

excl. Shipping costs
Delivery time 4-6 weeks

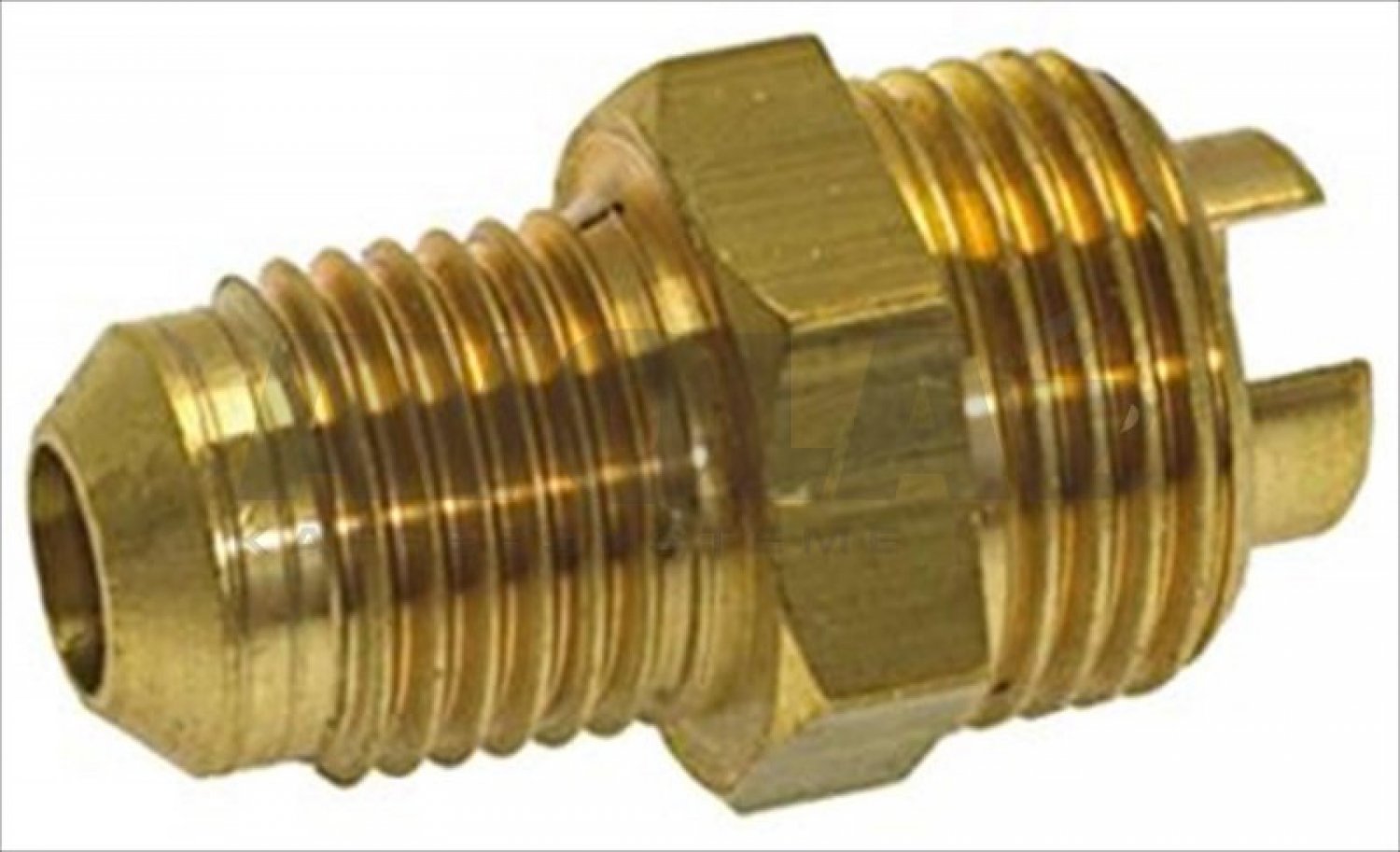

20hahnanschluss8005832
HAHNANSCHLUSS
8,03 €

excl. Shipping costs
Delivery time 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
