Futurmat Grinder

FSMC04 DOSIERMAHLWERK CT-2

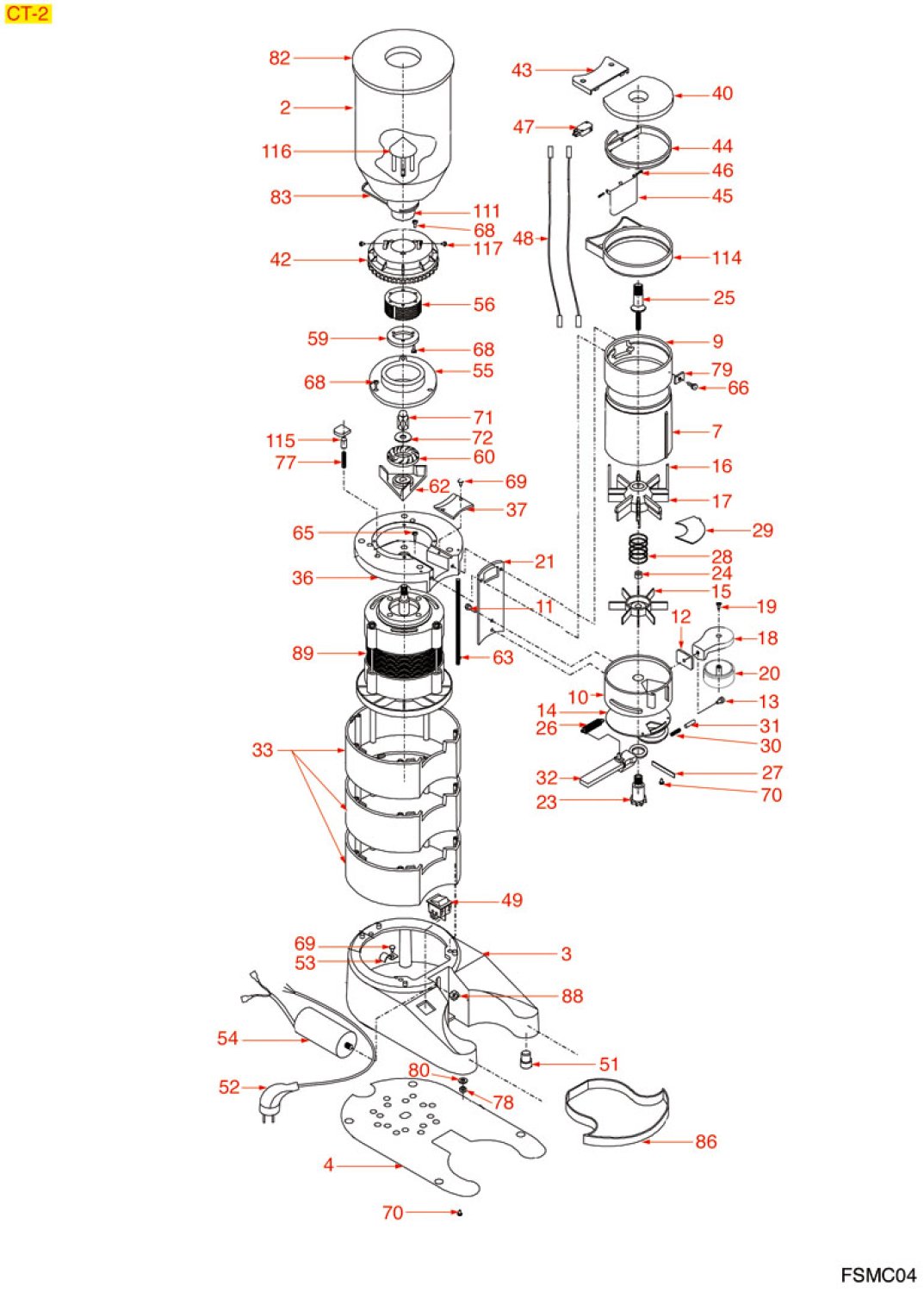

Drawing number 8057331

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
2complete coffee hopper 2 kg8000543
COMPLETE COFFEE HOPPER 2 kg
81,93 €

excl. Shipping costs
Delivery time 4-6 weeks
7doser cylinder 600 gr8004260
DOSER CYLINDER 600 gr
6,51 €

excl. Shipping costs
Delivery time 4-6 weeks
9cunill doser cylinder8004262
CUNILL DOSER CYLINDER
22,48 €

excl. Shipping costs
Delivery time 4-6 weeks
12rectangular plate m6x18004263
RECTANGULAR PLATE M6x1
2,94 €

excl. Shipping costs
Delivery time 4-6 weeks
14doser bottom lid8004264
DOSER BOTTOM LID
17,26 €

excl. Shipping costs
Delivery time
is determined
15star assembly8005351
STAR ASSEMBLY
19,55 €

excl. Shipping costs
Delivery time
is determined
16star assembly8005351
STAR ASSEMBLY
19,55 €

excl. Shipping costs
Delivery time
is determined
17star assembly8005351
STAR ASSEMBLY
19,55 €

excl. Shipping costs
Delivery time
is determined
18coffee tamper assembly8006224
COFFEE TAMPER ASSEMBLY
15,49 €

excl. Shipping costs
Delivery time
is determined
20coffee tamper8006225
COFFEE TAMPER
3,00 €

excl. Shipping costs
Delivery time
is determined
20kaffee tamper8006226
KAFFEE TAMPER
Price on request
23pawl rh8004265
PAWL RH
20,23 €

excl. Shipping costs
Delivery time
is determined
25adjustment screw8004267
ADJUSTMENT SCREW
7,54 €

excl. Shipping costs
Delivery time 4-6 weeks
26doser lever return spring8004268
DOSER LEVER RETURN SPRING
3,00 €

excl. Shipping costs
immediately available, 1 available
27doser pin8004269
DOSER PIN
3,59 €

excl. Shipping costs
immediately available, 3 available
28star spring8004270
STAR SPRING
3,50 €

excl. Shipping costs
Delivery time
is determined
30lever pin spring8003885
LEVER PIN SPRING
Price on request
31cunill lever pin8004271
CUNILL LEVER PIN
2,68 €

excl. Shipping costs
immediately available, 3 available
32doser lever8004272
DOSER LEVER
9,67 €

excl. Shipping costs
Delivery time
is determined
40doser lid8004274
DOSER LID
6,45 €

excl. Shipping costs
Delivery time 4-6 weeks
42adjustment ring8004295
ADJUSTMENT RING
14,48 €

excl. Shipping costs
Delivery time
is determined
43microswitch lid8004277
MICROSWITCH LID
6,45 €

excl. Shipping costs
Delivery time
is determined
44plastic ring with flap8004278
PLASTIC RING WITH FLAP
10,90 €

excl. Shipping costs
Delivery time
is determined
45plastic ring with flap8004278
PLASTIC RING WITH FLAP
10,90 €

excl. Shipping costs
Delivery time
is determined
47microswitch 16a 250v8016308
MICROSWITCH 16A 250V
9,54 €

excl. Shipping costs
immediately available, 3 available
49green bipolar switch 16a 250v8005054
GREEN BIPOLAR SWITCH 16A 250V
9,04 €

excl. Shipping costs
Delivery time 4-6 weeks
51rubber foot8004629
RUBBER FOOT
3,38 €

excl. Shipping costs
immediately available, 2 available
59grinding burrs cunill pair left8004070
GRINDING BURRS CUNILL (PAIR) LEFT
27,54 €

excl. Shipping costs
immediately available, 1 available
60grinding burrs cunill pair left8004070
GRINDING BURRS CUNILL (PAIR) LEFT
27,54 €

excl. Shipping costs
immediately available, 1 available
62grinding burrs bottom holder8004281
GRINDING BURRS BOTTOM HOLDER
Price on request
77control spring8003886
CONTROL SPRING
2,24 €

excl. Shipping costs
Delivery time
is determined
82coffee hopper lid o 200 mm8004282
COFFEE HOPPER LID ø 200 mm
15,78 €

excl. Shipping costs
Delivery time
is determined
86coffee collecting tray8004283
COFFEE COLLECTING TRAY
11,82 €

excl. Shipping costs
Delivery time
is determined
111coffee hopper filler8004287
COFFEE HOPPER FILLER
78,65 €

excl. Shipping costs
Delivery time 4-6 weeks
114zusatdosiergeraetszylinder8004288
ZUSATDOSIERGERÄTSZYLINDER
6,37 €

excl. Shipping costs
Delivery time
is determined
115spring adjustment pin8004289
SPRING ADJUSTMENT PIN
4,93 €

excl. Shipping costs
Delivery time 4-6 weeks
116coffee hopper inner protection8004290
COFFEE HOPPER INNER PROTECTION
6,71 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
