Fiorenzato Bricoletta Brühgruppe

Drawing number 8080765

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1brew group e618002194
BREW GROUP E61
212,90 €

excl. Shipping costs
Delivery time
is determined
2deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 8 available
3ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available
4water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available, 5 available
5nozzle m6x1 hole8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs
immediately available, 15 available
6chromium plated upper sleeve8063314
CHROMIUM-PLATED UPPER SLEEVE
29,00 €

excl. Shipping costs
immediately available, 4 available
7ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
8o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
10ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
11chromium plated side cap8006380
CHROMIUM-PLATED SIDE CAP
14,96 €

excl. Shipping costs
Delivery time
is determined
12red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
12o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
133 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 4 available
133 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 5 available
13solenoid valve ode 3 ways 230v 14 5w8000990
SOLENOID VALVE ODE 3 WAYS 230V 14,5W
39,25 €

excl. Shipping costs
Delivery time
is determined
143 way mechanical component lucifer8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs
immediately available, 4 available
143 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 15 available
15coil lucifer parker 220 240v 9w 50hz8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs
immediately available, 4 available
15coil parker zb09 9w 220 240v 50 60hz8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs
immediately available
16drain chromium plated fitting8005636
DRAIN CHROMIUM-PLATED FITTING
13,91 €

excl. Shipping costs
Delivery time 4-6 weeks
17group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
18shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
19paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
20rubber shim o 73 5x59x1 mm epdm8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available
21cafelat e61 portafilter gasket 73x57x8 mm red8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs
immediately available
21gasket 73x57x8 mm for e61 brew unit8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs
immediately available
22rubber 73x57x8 5 mm for e61 brew unit8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs
immediately available

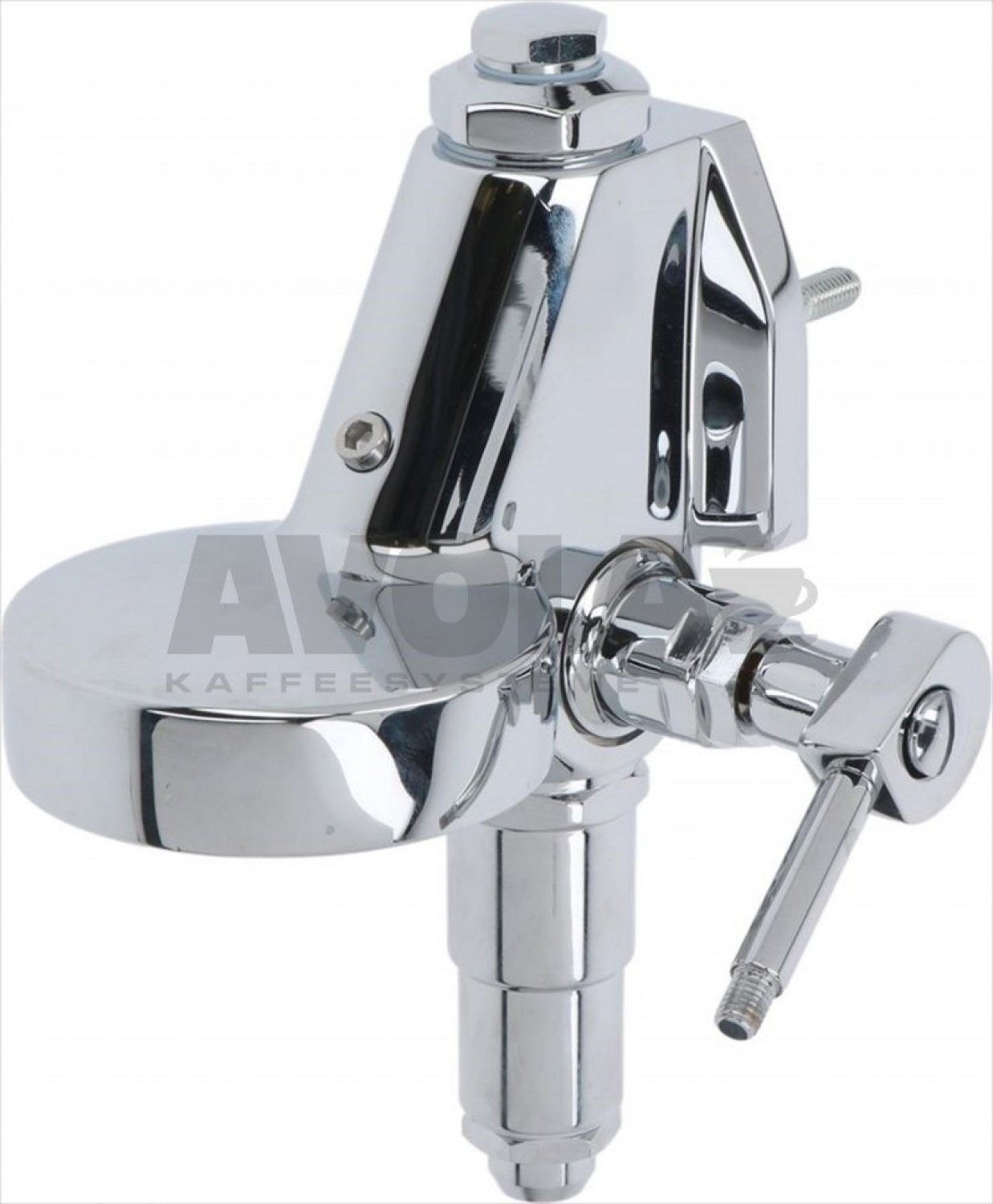

23lever brew group e618002190
LEVER BREW GROUP E61
205,00 €

excl. Shipping costs
Delivery time
is determined
24abdeckung blindstopfen e61 schwarz8060648
Abdeckung Blindstopfen E61 schwarz
4,03 €

excl. Shipping costs
Delivery time 4-6 weeks
25spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
26complete spout valve8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs
immediately available
28cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available
29ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 11 available
30epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
31cam guide bushing8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs
immediately available, 11 available
32spring o 14 6x21 mm8003547
SPRING ø 14,6x21 mm
3,55 €

excl. Shipping costs
immediately available
33stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 3 available
36chromium plated cam8002188
CHROMIUM-PLATED CAM
20,22 €

excl. Shipping costs
immediately available, 4 available
36chromium plated cap m68002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs
immediately available, 10 available
37knob m8x18003294
KNOB M8x1
6,56 €

excl. Shipping costs
immediately available, 4 available
38complete drain valve8007124
COMPLETE DRAIN VALVE
10,50 €
10,50 €

excl. Shipping costs
immediately available
40outlet chromium plated sleeve8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs
immediately available, 1 available
41e61 drain valve with gasket8007125
E61 drain valve with gasket
9,17 €

excl. Shipping costs
immediately available, 9 available
43flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
46pipette fitting 908005868
PIPETTE FITTING 90
1,50 €

excl. Shipping costs
immediately available, 7 available
47cap8006413
CAP
5,09 €

excl. Shipping costs
immediately available, 1 available
49cafelat e61 portafilter gasket 73x57x8 mm red8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs
immediately available
49gasket 73x57x8 mm for e61 brew unit8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs
immediately available
50shower holder diffuser8000648
SHOWER HOLDER DIFFUSER
17,59 €

excl. Shipping costs
immediately available, 3 available
51shower 51 50 mm8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs
immediately available
531 cup filter holder assembly fiorenzato8001199
1 CUP FILTER HOLDER ASSEMBLY FIORENZATO
39,59 €

excl. Shipping costs
immediately available, 1 available
542 cups filter holder assembly fiorenzato8001201
2 CUPS FILTER HOLDER ASSEMBLY FIORENZATO
39,20 €

excl. Shipping costs
immediately available, 1 available
55filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
56blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
571 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 6 available
582 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 8 available
591 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 16 available
602 cup filter 14 grams8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs
immediately available
611 cup filter 7 gr basic quality8001091
1-CUP FILTER 7 gr - BASIC QUALITY
5,74 €

excl. Shipping costs
immediately available, 8 available
622 cup filter 14 grams basic quality8001092
2-CUP FILTER 14 GRAMS - BASIC QUALITY
6,13 €

excl. Shipping costs
immediately available, 15 available
63filter holder coffee machines8001183
FILTER HOLDER COFFEE MACHINES
19,99 €

excl. Shipping costs
immediately available, 2 available
64filter holder handle m128003351
FILTER HOLDER HANDLE M12
8,51 €

excl. Shipping costs
immediately available, 5 available
65lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
65double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 7 available
66single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 10 available
67coffee group gasket 77x73x2 mm8001729
COFFEE GROUP GASKET 77x73x2 mm
8,44 €

excl. Shipping costs
immediately available, 10 available
68coffee group gasket 80x70x2 mm8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs
Delivery time
is determined
69brush for coffee shower8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs
immediately available
70stainless steel measuring spoon 20 ml8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs
Delivery time
is determined
71plastic measuring spoon 20 ml8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs
immediately available, 13 available
72nylon coffee tamper8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs
immediately available, 9 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
