Expobar

Expobar Einlaufhahn EB61 New Elegance Diamant G10 Markus Silver Megacrem

Drawing number 8081273

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1water inlet tap knob8003115
WATER INLET TAP KNOB
4,09 €

excl. Shipping costs
Delivery time 4-6 weeks
2epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
3nut8005455
NUT
3,38 €

excl. Shipping costs
immediately available, 15 available
4o ring r6 epdm8001771
O-RING R6 EPDM
1,13 €

excl. Shipping costs
immediately available

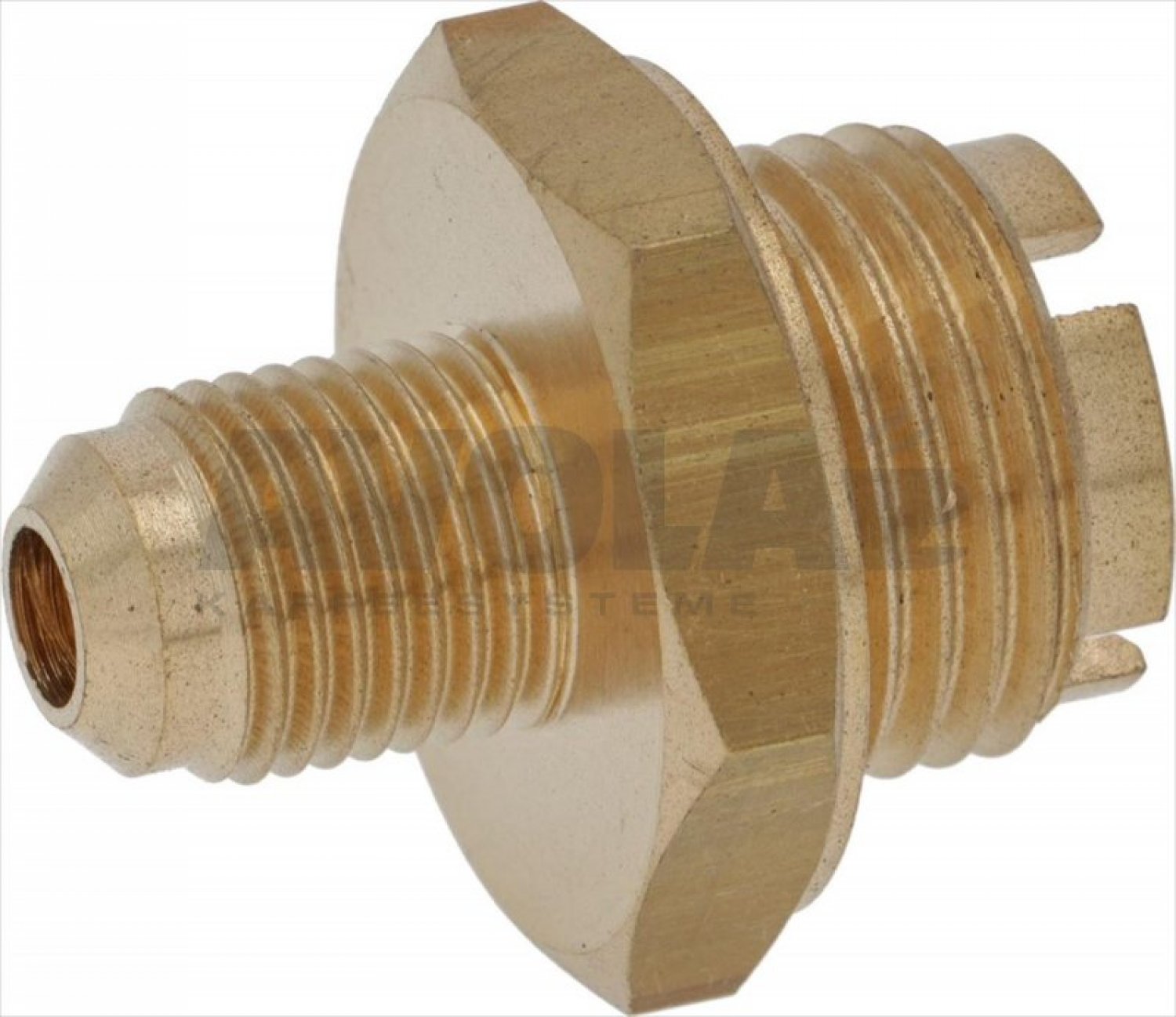

5fitting for valve pin8005633
FITTING FOR VALVE PIN
6,38 €

excl. Shipping costs
Delivery time
is determined
6inlet tap spindle8005181
INLET TAP SPINDLE
5,06 €

excl. Shipping costs
Delivery time 4-6 weeks
7low cylinder head screw m6x10 uni 93278001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs
immediately available, 11 available
8flat ptfe gasket o 26x21 5x2 mm8001754
FLAT PTFE GASKET ø 26x21,5x2 mm
6,44 €

excl. Shipping costs
immediately available, 8 available
9water inlet tap body8005432
WATER INLET TAP BODY
38,40 €

excl. Shipping costs
Delivery time 4-6 weeks
9water inlet tap body8005434
WATER INLET TAP BODY
45,01 €

excl. Shipping costs
Delivery time 4-6 weeks
10einlaufventil8073938
EINLAUFVENTIL
43,86 €

excl. Shipping costs
Delivery time
is determined
11valve spring8003677
VALVE SPRING
3,43 €

excl. Shipping costs
immediately available, 9 available
12tap springs guide8003602
TAP SPRINGS GUIDE
1,99 €

excl. Shipping costs
Delivery time 4-6 weeks
13non return valve spring o 8x328003601
NON-RETURN VALVE SPRING ø 8x32
4,20 €

excl. Shipping costs
immediately available, 3 available
14stainless steel ball o 8 mm8005084
STAINLESS STEEL BALL ø 8 mm
2,46 €

excl. Shipping costs
immediately available, 6 available
15nbr flat gasket o 13x4x4 mm8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs
immediately available
16o ring 02015 epdm8001335
O-RING 02015 EPDM
1,01 €

excl. Shipping costs
immediately available
17o ring 02050 epdm8001595
O-RING 02050 EPDM
1,13 €

excl. Shipping costs
immediately available
18schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available

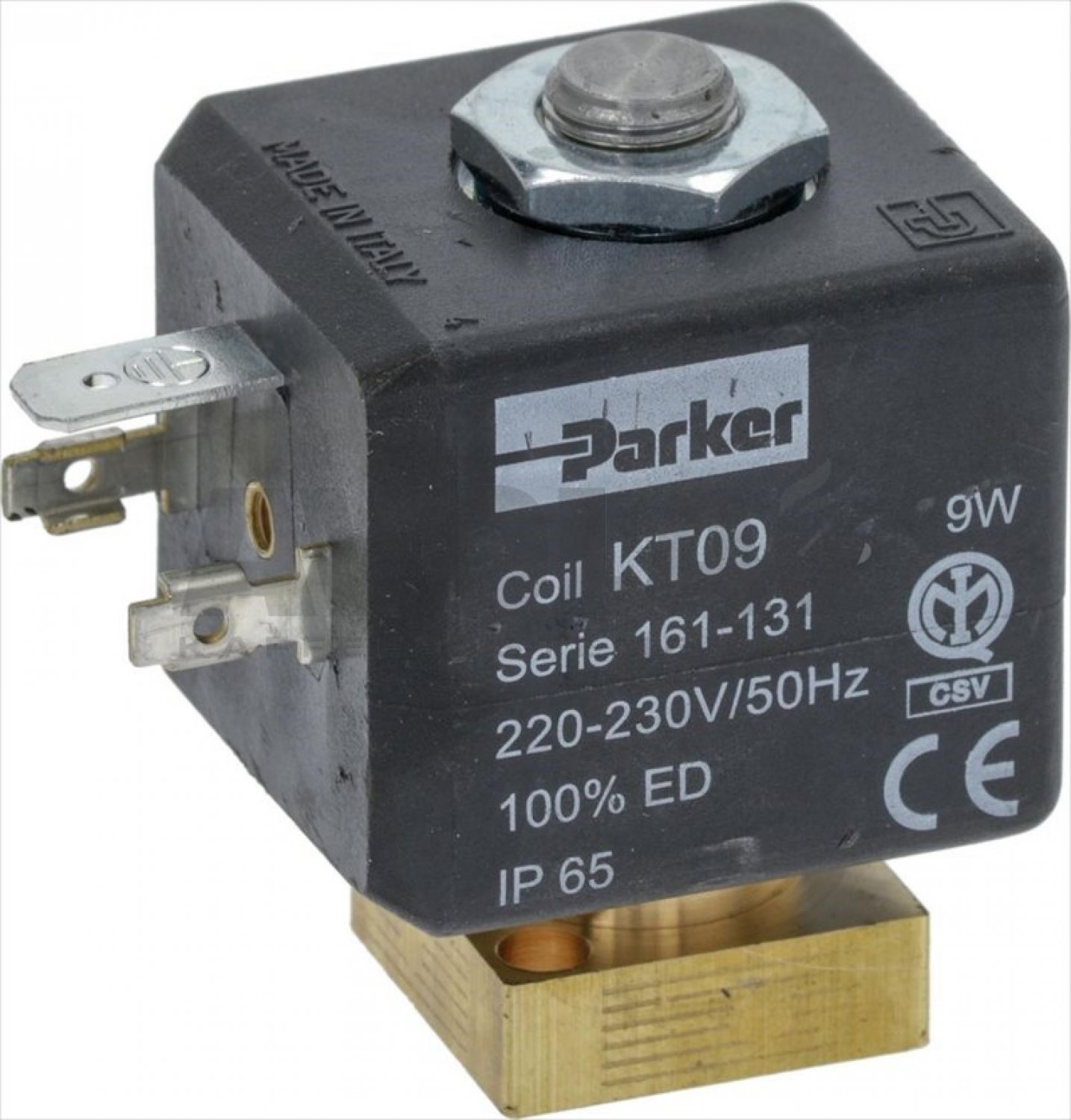

192 way solenoid valve parker 230v 50hz8000807
2-WAY SOLENOID VALVE PARKER 230V 50Hz
59,00 €

excl. Shipping costs
immediately available, 3 available
20water inlet tap body8005435
WATER INLET TAP BODY
34,43 €

excl. Shipping costs
Delivery time 4-6 weeks

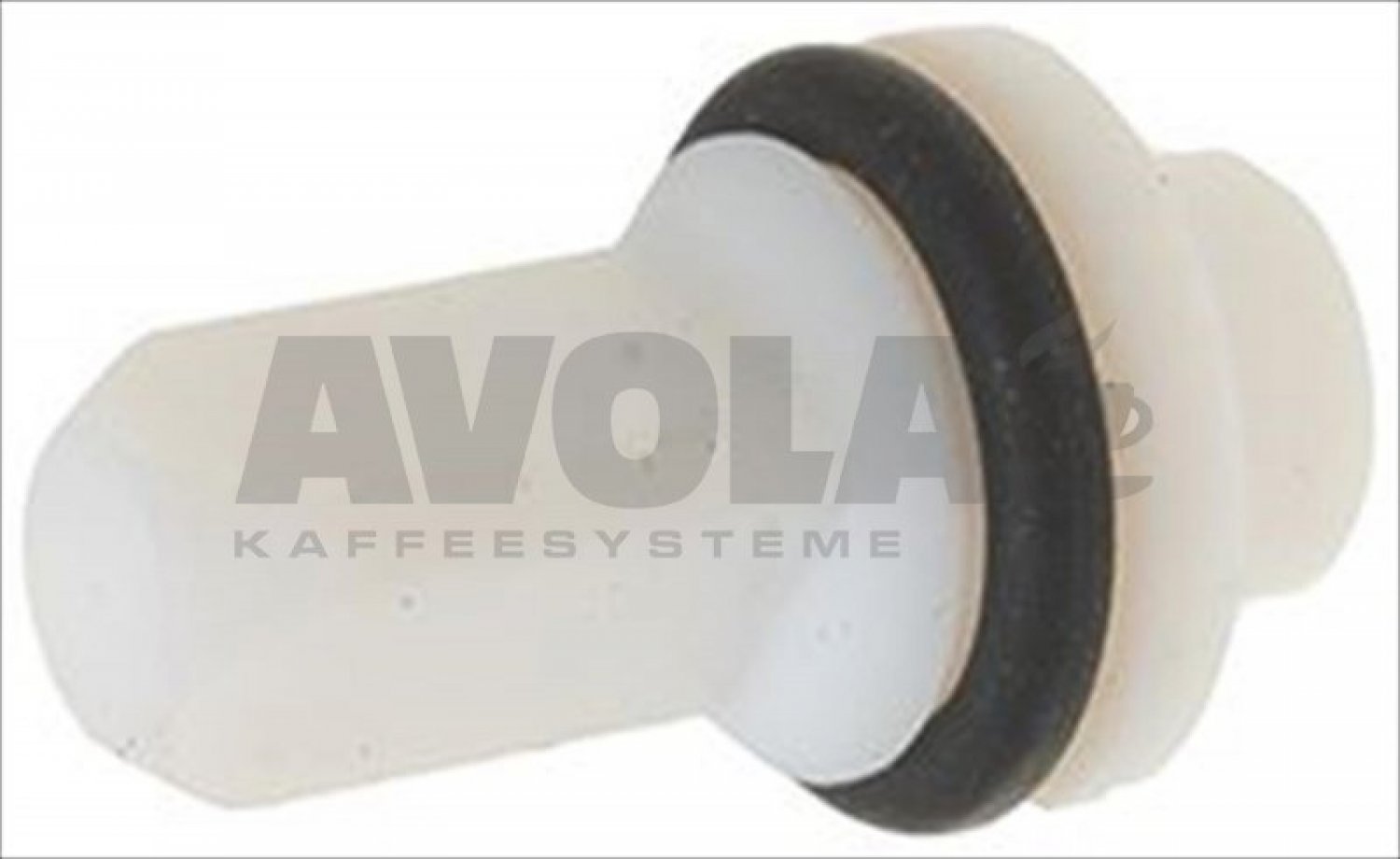

21rueckschlagventil dreieckig8074016
RÜCKSCHLAGVENTIL DREIECKIG
15,96 €

excl. Shipping costs
Delivery time
is determined
22o ring r6 epdm8001771
O-RING R6 EPDM
1,13 €

excl. Shipping costs
immediately available
23ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available
24water inlet tap body8005436
WATER INLET TAP BODY
39,63 €

excl. Shipping costs
Delivery time
is determined
25spring o 14 5x32 mm8003603
SPRING ø 14,5x32 mm
3,76 €

excl. Shipping costs
immediately available, 6 available
27square pin 12 1 mm 6x6 mm m38005113
SQUARE PIN 12.1 mm 6x6 mm M3
2,96 €

excl. Shipping costs
immediately available, 11 available
29water inlet tap8005475
WATER INLET TAP
This article is no longer available
29wassereinlaufhahn expobar8073939
Wassereinlaufhahn Expobar
190,32 €

excl. Shipping costs
Delivery time
is determined
31ball valve o 1 4 rime in and out8029763
ball valve ø 1/4″ in and out
12,97 €

excl. Shipping costs
immediately available, 8 available
32elbow fitting8005632
ELBOW FITTING
8,94 €

excl. Shipping costs
immediately available, 5 available
33nut8005431
NUT
1,98 €

excl. Shipping costs
immediately available, 9 available

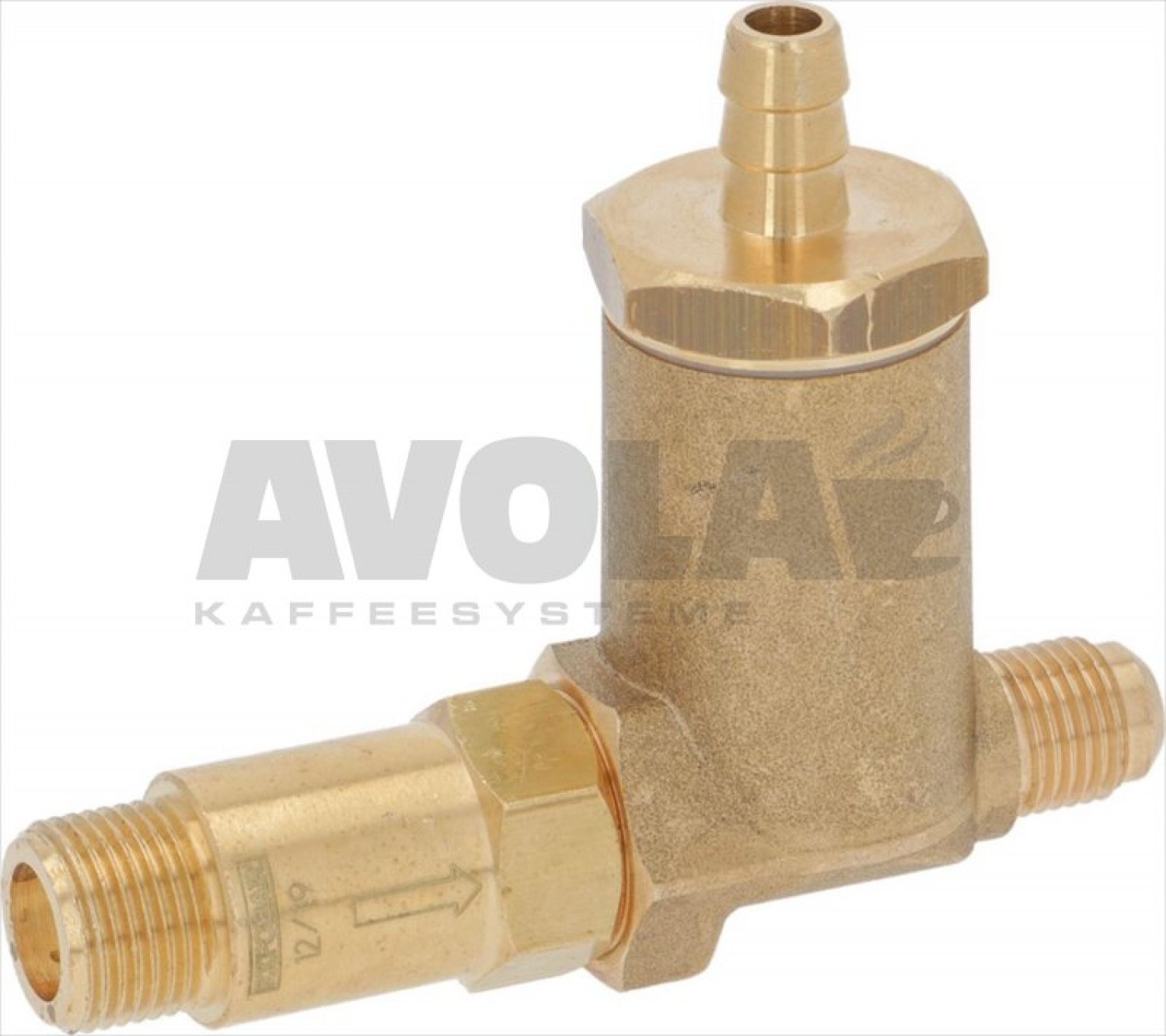

35expobar crem expansionsventil rueckschlagventil8143060
Expobar Crem Expansionsventil Rückschlagventil
Price on request
362 way solenoid valve parker 230v 50hz8000807
2-WAY SOLENOID VALVE PARKER 230V 50Hz
59,00 €

excl. Shipping costs
immediately available, 3 available
37o ring 02050 epdm8001595
O-RING 02050 EPDM
1,13 €

excl. Shipping costs
immediately available
38o ring 02015 epdm8001335
O-RING 02015 EPDM
1,01 €

excl. Shipping costs
immediately available
40non return valve8007179
NON-RETURN VALVE
13,45 €

excl. Shipping costs
immediately available, 8 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
