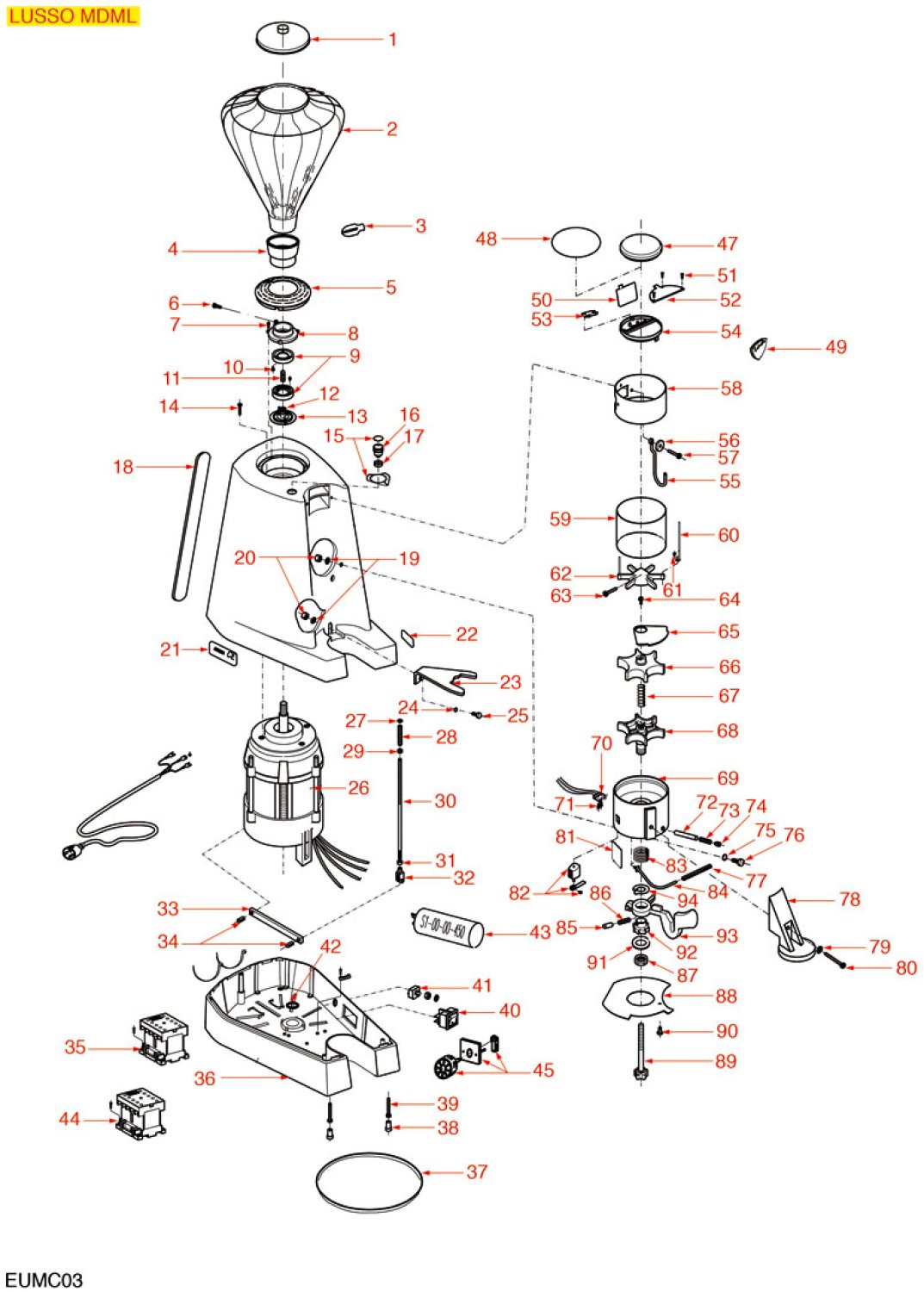

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.
Pos.: | Item No.: | Image: | Description: | Shipment: | Price (inkl. 19% VAT): | Qty.: |
---|
1 | 8000400 | | 8000400 COFFEE HOPPER LID | excl. Shipping costs immediately available, 2 available |
61,12 € | |

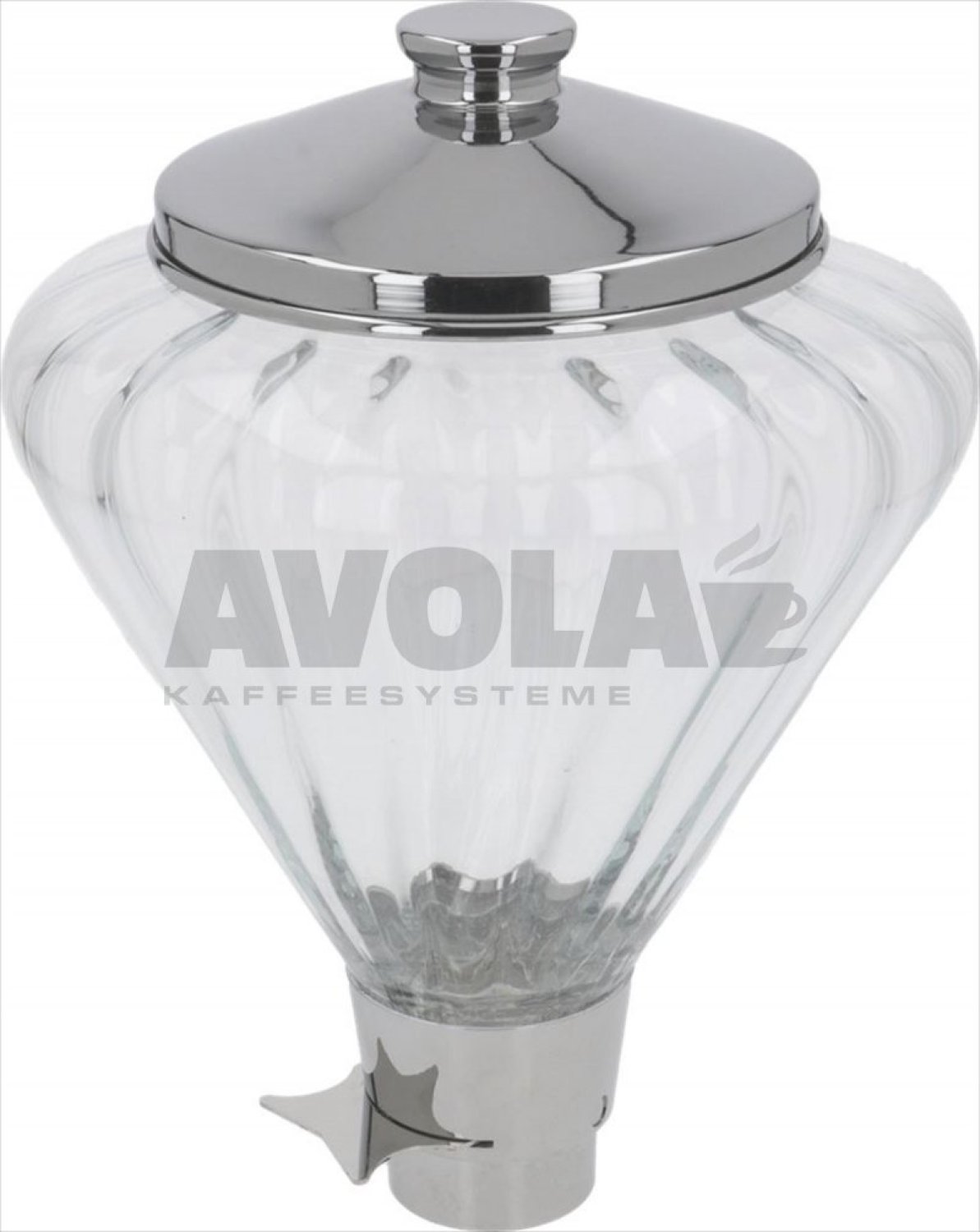

2 | 8000401 | | 8000401 GLASS COFFEE HOPPER | excl. Shipping costs immediately available, 1 available |
295,00 € 238,00 € | |
3 | 8000408 | | 8000408 COFFEE CONTAINER CLOSING SHEET | excl. Shipping costs Delivery time is determined |
6,33 € | |
5 | 8003939 | | 8003939 TOP GRINDING BURRS COVER | excl. Shipping costs Delivery time is determined |
12,42 € | |
6 | 8007317 | | 8007317 CYLINDER HEAD SCREW M4x12 Uni 7687 | excl. Shipping costs immediately available |
0,80 € | |

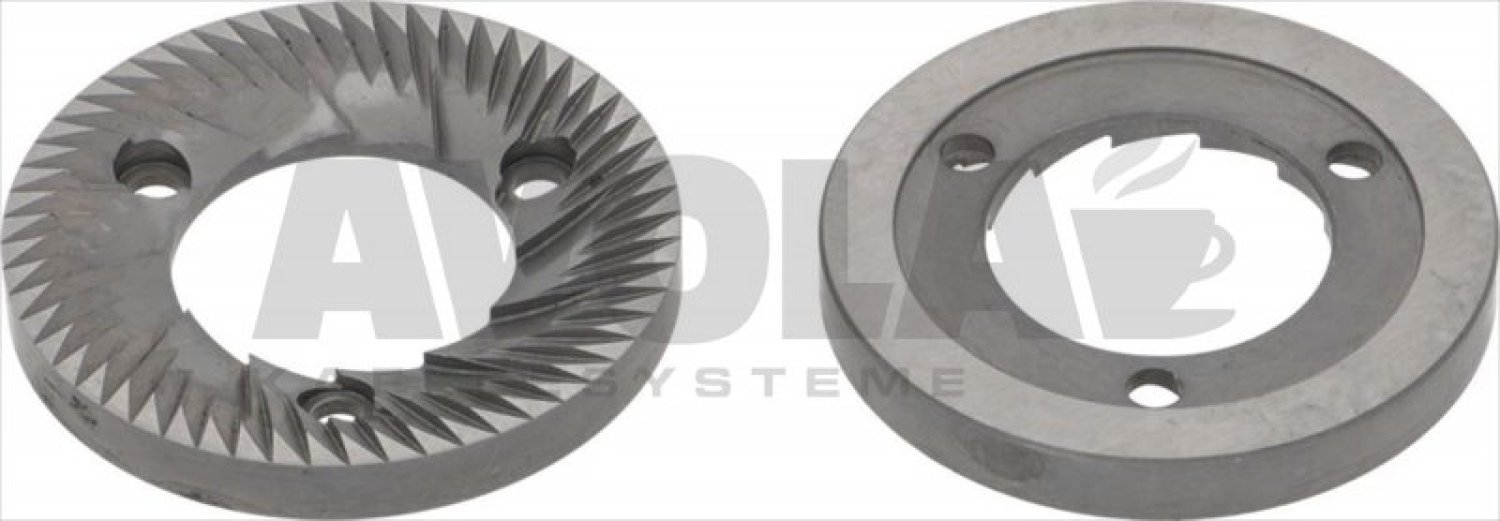

9 | 8003935 | | 8003935 GRINDING BURRS EUREKA (PAIR) RIGHT 74mm | excl. Shipping costs immediately available, 3 available |
40,66 € | |
10 | 8007244 | | 8007244 COUNTERSUNK FLAT HEAD SCREWS M4x10 | excl. Shipping costs immediately available |
1,05 € | |
11 | 8007275 | | 8007275 GRINDING BURRS HOLDER LOCKING NUT | excl. Shipping costs Delivery time is determined |
13,38 € | |
12 | 8007249 | | 8007249 SCHEIBE F.SCHRAUBE SECHS.KOPF M10UNI6592 | excl. Shipping costs immediately available, 1 available |
| |

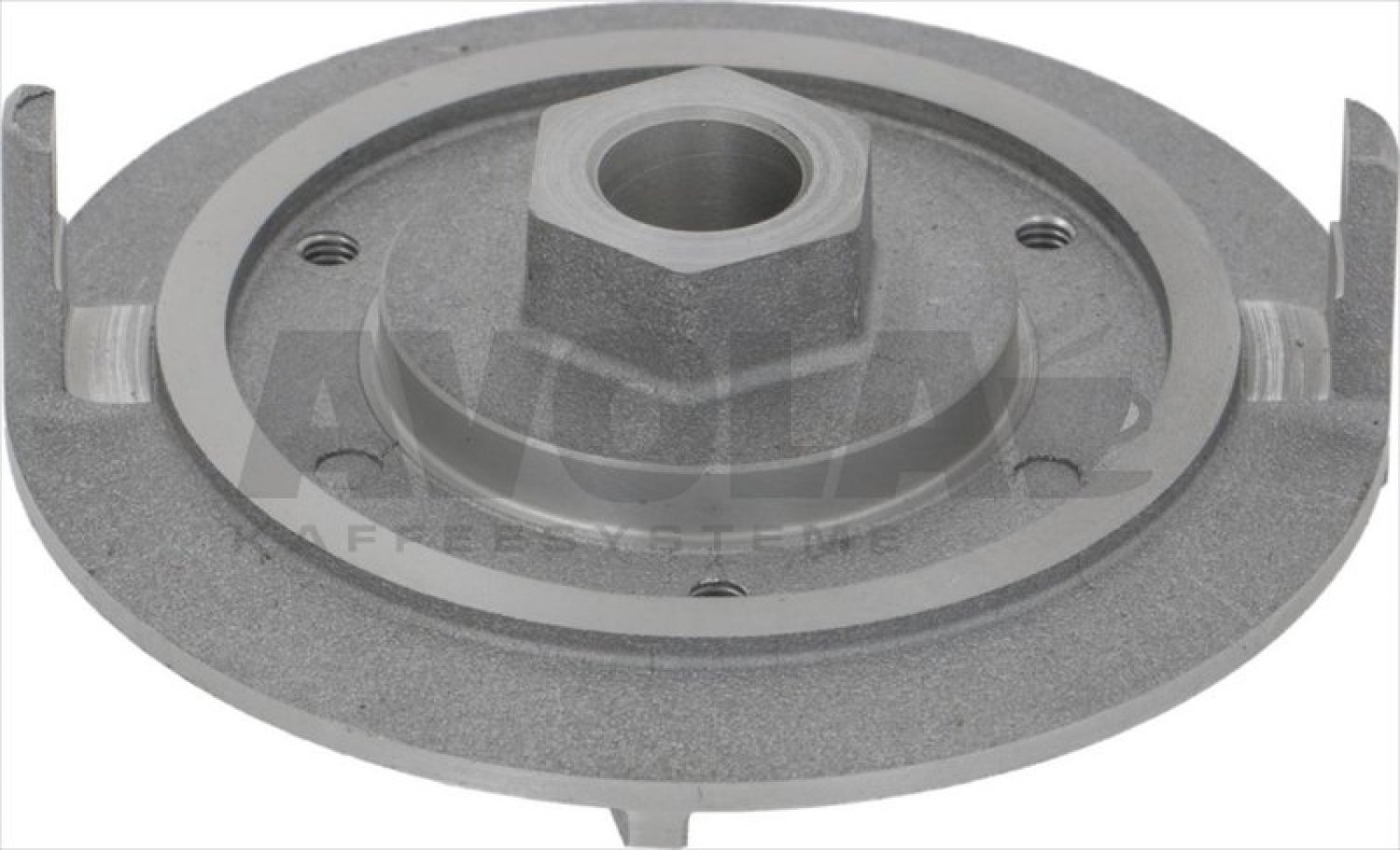

13 | 8003933 | | 8003933 GRINDING BURRS BOTTOM HOLDER | excl. Shipping costs Delivery time is determined |
45,33 € | |
16 | 8003214 | | 8003214 ADJUSTMENT KNOB | excl. Shipping costs Delivery time is determined |
21,18 € | |
20 | 8007269 | | 8007269 MID HEXAGONAL NUT M6 | excl. Shipping costs Delivery time is determined |
| |
23 | 8004405 | | 8004405 FILTER HOLDER FORK | excl. Shipping costs immediately available, 1 available |
34,30 € | |
25 | 8029903 | | 8029903 HEXAGONAL HEAD SCREW M6x16 | excl. Shipping costs immediately available |
1,44 € | |
28 | 8003648 | | 8003648 TIE ROD ADJUSTMENT SPRING | excl. Shipping costs immediately available, 10 available |
2,51 € | |
29 | 8007269 | | 8007269 MID HEXAGONAL NUT M6 | excl. Shipping costs Delivery time is determined |
| |
31 | 8007269 | | 8007269 MID HEXAGONAL NUT M6 | excl. Shipping costs Delivery time is determined |
| |
37 | 8004401 | | 8004401 COFFEE COLLECTING TRAY | excl. Shipping costs Delivery time is determined |
12,15 € | |
38 | 8004588 | | 8004588 FOOT ø 20 mm | excl. Shipping costs immediately available, 4 available |
2,92 € | |
40 | 8020540 | | 8020540 BLACK BIPOLAR SWITCH 16A 250V | excl. Shipping costs immediately available, 4 available |
5,57 € | |
41 | 8002880 | | 8002880 PUSH-BUTTON MICROSWITCH | |
| |
45 | 8000273 | | 8000273 SELECTOR SWITCH 0-1 POSITIONS | excl. Shipping costs Delivery time 4-6 weeks |
28,23 € | |
47 | 8004402 | | 8004402 DOSER LID | excl. Shipping costs Delivery time is determined |
16,87 € | |
53 | 8016308 | | 8016308 MICROSWITCH 16A 250V | excl. Shipping costs immediately available, 3 available |
9,54 € | |
59 | 8004404 | | 8004404 DOSER CYLINDER | excl. Shipping costs Delivery time is determined |
16,07 € | |
60 | 8004409 | | 8004409 DOSER SCRAPER | excl. Shipping costs Delivery time is determined |
3,81 € | |
62 | 8005364 | | 8005364 PLASTIC TOP STAR | excl. Shipping costs Delivery time is determined |
16,86 € | |
64 | 8007331 | | 8007331 CYLINDER HEAD SCREW M4x8 | excl. Shipping costs immediately available |
1,13 € | |
65 | 8004408 | | 8004408 DIVIDING SHEET | excl. Shipping costs Delivery time 4-6 weeks |
| |
66 | 8005365 | | 8005365 ALUMINUM MIDDLE STAR | excl. Shipping costs Delivery time is determined |
44,77 € | |
67 | 8003649 | | 8003649 STAR SPRING | excl. Shipping costs Delivery time 4-6 weeks |
4,00 € | |
68 | 8005366 | | 8005366 UNTERER STERN AUS ALUMINIUM | excl. Shipping costs Delivery time is determined |
| |
70 | 8002870 | | 8002870 MICROSWITCH 6A 250V | excl. Shipping costs Delivery time 4-6 weeks |
18,21 € | |
72 | 8004413 | | 8004413 DOSER GROUP PIN | excl. Shipping costs Delivery time 4-6 weeks |
2,42 € | |
73 | 8003612 | | 8003612 SPRING | excl. Shipping costs Delivery time is determined |
2,48 € | |
76 | 8029903 | | 8029903 HEXAGONAL HEAD SCREW M6x16 | excl. Shipping costs immediately available |
1,44 € | |
77 | 8003651 | | 8003651 DOSER LEVER RETURN SPRING 8x85 mm | excl. Shipping costs Delivery time is determined |
2,51 € | |
78 | 8006172 | | 8006172 COFFEE TAMPER | excl. Shipping costs Delivery time is determined |
17,67 € | |
82 | 8004406 | | 8004406 COUNTER FOR COFFEE GRINDER | excl. Shipping costs Delivery time is determined |
26,51 € | |
83 | 8003650 | | 8003650 STAR SPRING | excl. Shipping costs Delivery time is determined |
3,76 € | |
85 | 8004412 | | 8004412 DOSER GROUP PIN | excl. Shipping costs Delivery time is determined |
2,57 € | |
86 | 8003612 | | 8003612 SPRING | excl. Shipping costs Delivery time is determined |
2,48 € | |
87 | 8007276 | | 8007276 NUT FOR DOSER GROUP | excl. Shipping costs Delivery time 4-6 weeks |
9,48 € | |
92 | 8004410 | | 8004410 DOSER PAWL | excl. Shipping costs Delivery time is determined |
13,59 € | |
93 | 8002808 | | 8002808 DOSER LEVER | excl. Shipping costs Delivery time 4-6 weeks |
49,36 € | |
94 | 8004411 | | 8004411 WASHER FOR DOSER LEVER | excl. Shipping costs Delivery time is determined |
6,26 € | |
If your article is not listed, please use the following form and enter the desired numbers.
