Elektra

Belle Epoque Model 2003 - 2008 Wasserventil

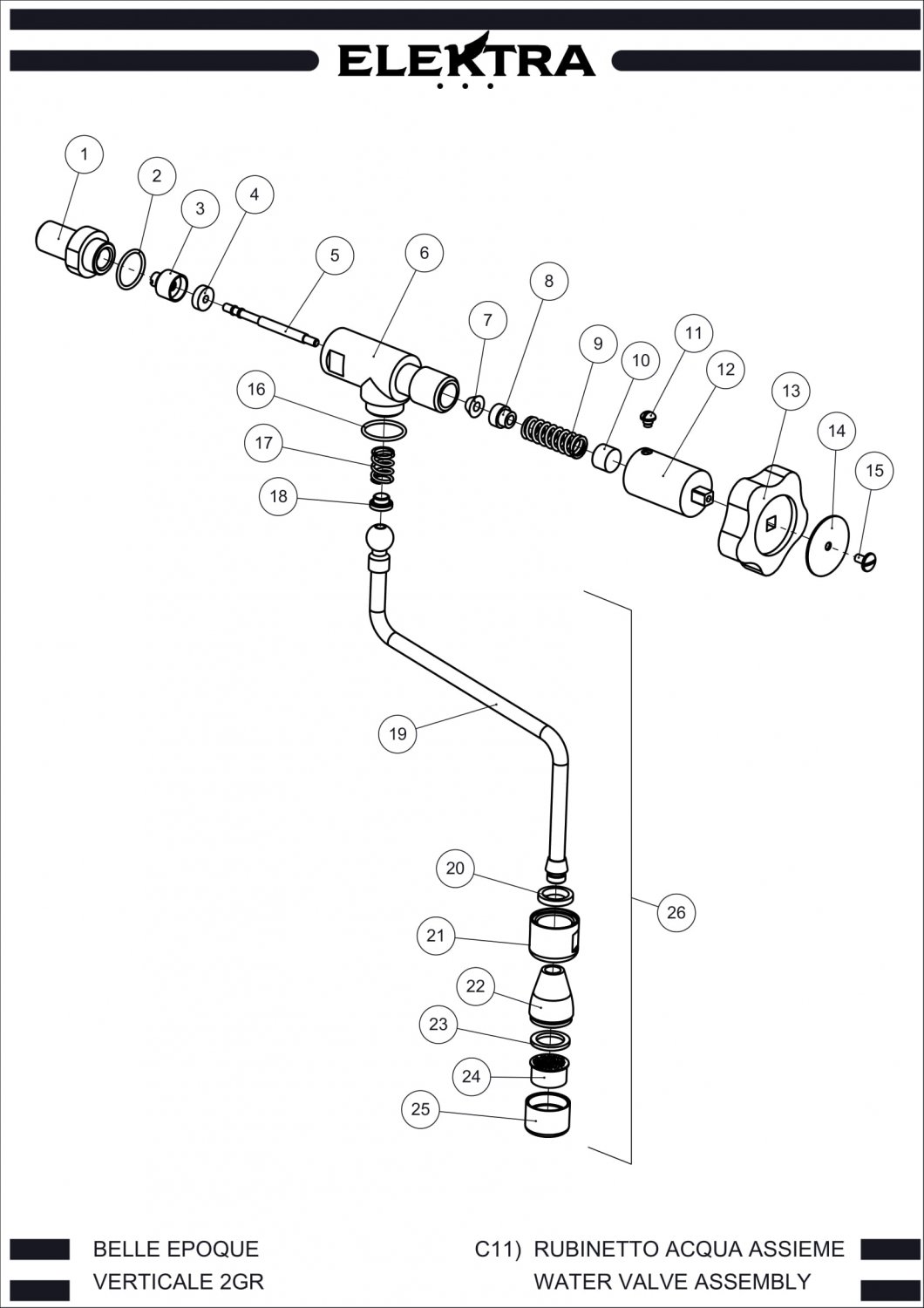

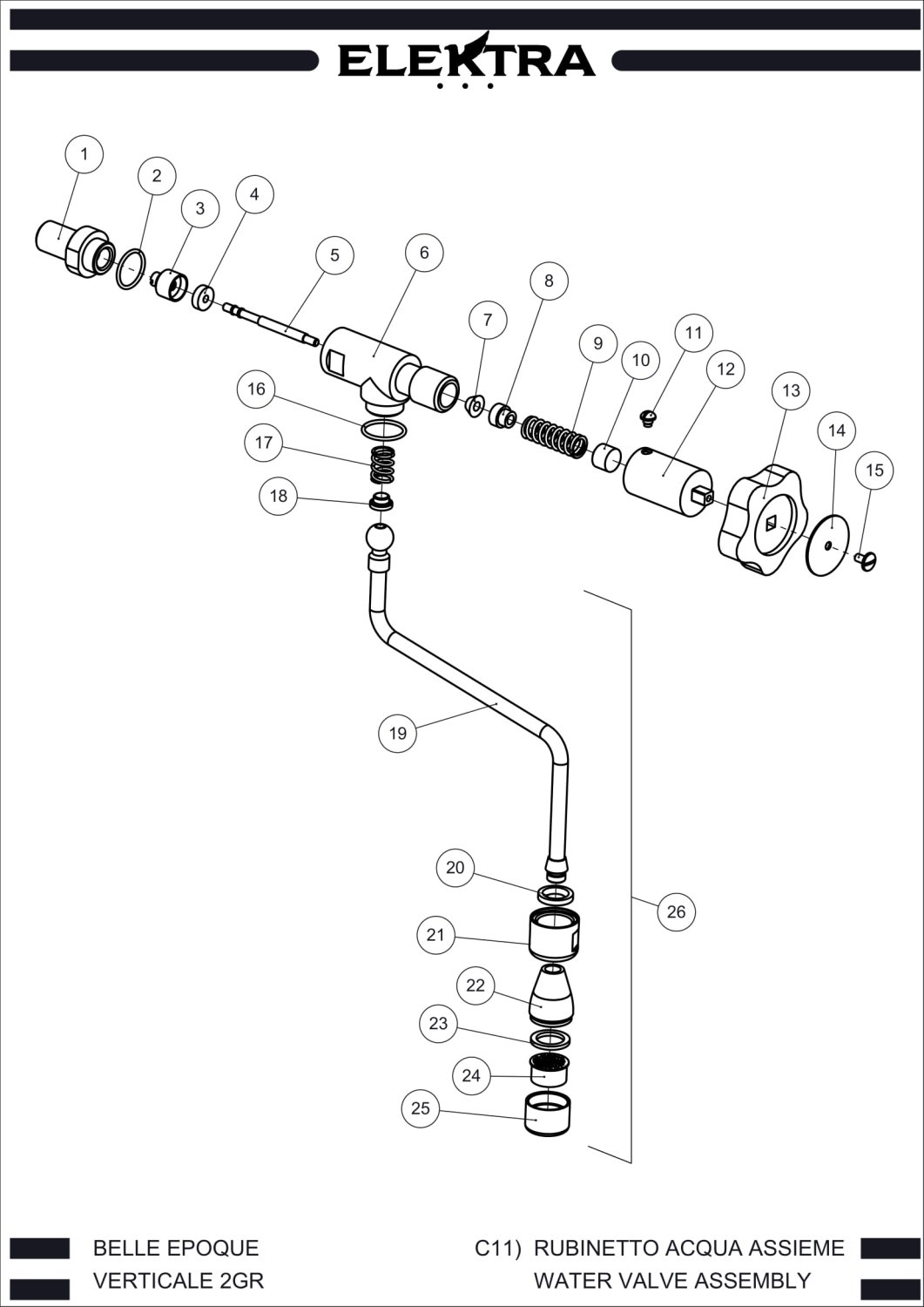

Drawing number 8279392

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
18123997
Elektra Valve Base - Polished Brass
18,18 €

excl. Shipping costs
Delivery time
is determined
18123998
Elektra VALVE BASE - CHROME
15,30 €

excl. Shipping costs
Delivery time
is determined
2o ring 02075 green viton8002092
O-RING 02075 GREEN VITON
2,50 €

excl. Shipping costs
immediately available, 8 available
3gasket holder for tap8038429
GASKET HOLDER FOR TAP
8,89 €

excl. Shipping costs
immediately available, 4 available
4flat epdm gasket o 13x4x4 mm8002094
FLAT EPDM GASKET ø 13x4x4 mm
4,69 €

excl. Shipping costs
immediately available, 16 available
5elektra shaft8123773
Elektra SHAFT
9,04 €

excl. Shipping costs
Delivery time 4-6 weeks
6elektra body polished brass8124189
Elektra BODY - POLISHED BRASS
61,13 €

excl. Shipping costs
Delivery time 4-6 weeks
6elektra wasserhahn verchromt8101237
Elektra Wasserhahn verchromt
118,17 €

excl. Shipping costs
Delivery time
is determined
7conical ptfe seal o 12x5x5 mm8038432
CONICAL PTFE SEAL ø 12x5x5 mm
3,69 €

excl. Shipping costs
immediately available, 8 available
8spring guide8038433
SPRING GUIDE
7,58 €

excl. Shipping costs
Delivery time
is determined
9internal spring o 12 2x35 mm8038434
INTERNAL SPRING ø 12,2x35 mm
5,49 €

excl. Shipping costs
immediately available, 7 available
10tie rod head8038435
TIE ROD HEAD
19,44 €

excl. Shipping costs
Delivery time
is determined
118123995
Elektra Schraube CHROME
4,80 €

excl. Shipping costs
Delivery time
is determined
128123989
Elektra HANDLE FERRULE BRASS
32,02 €

excl. Shipping costs
Delivery time
is determined
128123990
Elektra HANDLE ADAPTER CHROME
28,12 €

excl. Shipping costs
Delivery time
is determined
13water steam tap knob8003229
WATER/STEAM TAP KNOB
25,53 €

excl. Shipping costs
Delivery time 4-6 weeks
15large pan head screw m4x8 polished8007277
LARGE PAN HEAD SCREW M4x8 POLISHED
4,33 €

excl. Shipping costs
immediately available, 7 available
16o ring 02081 black silicone8001613
O-RING 02081 BLACK SILICONE
1,34 €

excl. Shipping costs
immediately available, 20 available
17elektra joint spring8124201
Elektra JOINT SPRING
3,45 €

excl. Shipping costs
immediately available, 2 available
18elektra joint seat8124202
Elektra JOINT SEAT
4,43 €

excl. Shipping costs
immediately available, 5 available
198123850
Elektra WATER WAND 2 GR. INOX
45,79 €

excl. Shipping costs
Delivery time
is determined
20elektra joint gasket o 19x11x3 mm8001627
Elektra JOINT GASKET ø 19x11x3 mm
3,08 €

excl. Shipping costs
immediately available, 8 available
218123987
Elektra JOINT NUT - POLISHED BRASS
19,66 €

excl. Shipping costs
Delivery time
is determined
21ueberwurfmutter fuer elektra dampflanze verchromt8101768
Überwurfmutter für Elektra Dampflanze verchromt
22,21 €

excl. Shipping costs
immediately available, 1 available
228123853
Elektra NOZZLE HOUSING
22,99 €

excl. Shipping costs
Delivery time
is determined
258123844
Elektra CAP
14,09 €

excl. Shipping costs
Delivery time
is determined
268124317
Elektra HOT WATER WAND - INOX - ASS.Y
111,61 €

excl. Shipping costs
Delivery time
is determined
268124318
Elektra HOT WATER WAND - INOX - ASS.Y
106,46 €

excl. Shipping costs
Delivery time
is determined
100kit for elektra steam tap hot water tap8081385
Kit for Elektra steam tap hot water tap
19,90 €

excl. Shipping costs
immediately available, 4 available
2008123908
Elektra WATER VALVE 2 GR. CHROME ASS.Y
240,24 €

excl. Shipping costs
Delivery time
is determined
3008123907
Elektra WATER VALVE 2 GR. BRASS ASS.Y
255,06 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
