ECM Heidelberg

Elektronika Profi Due Wasserkreislauf

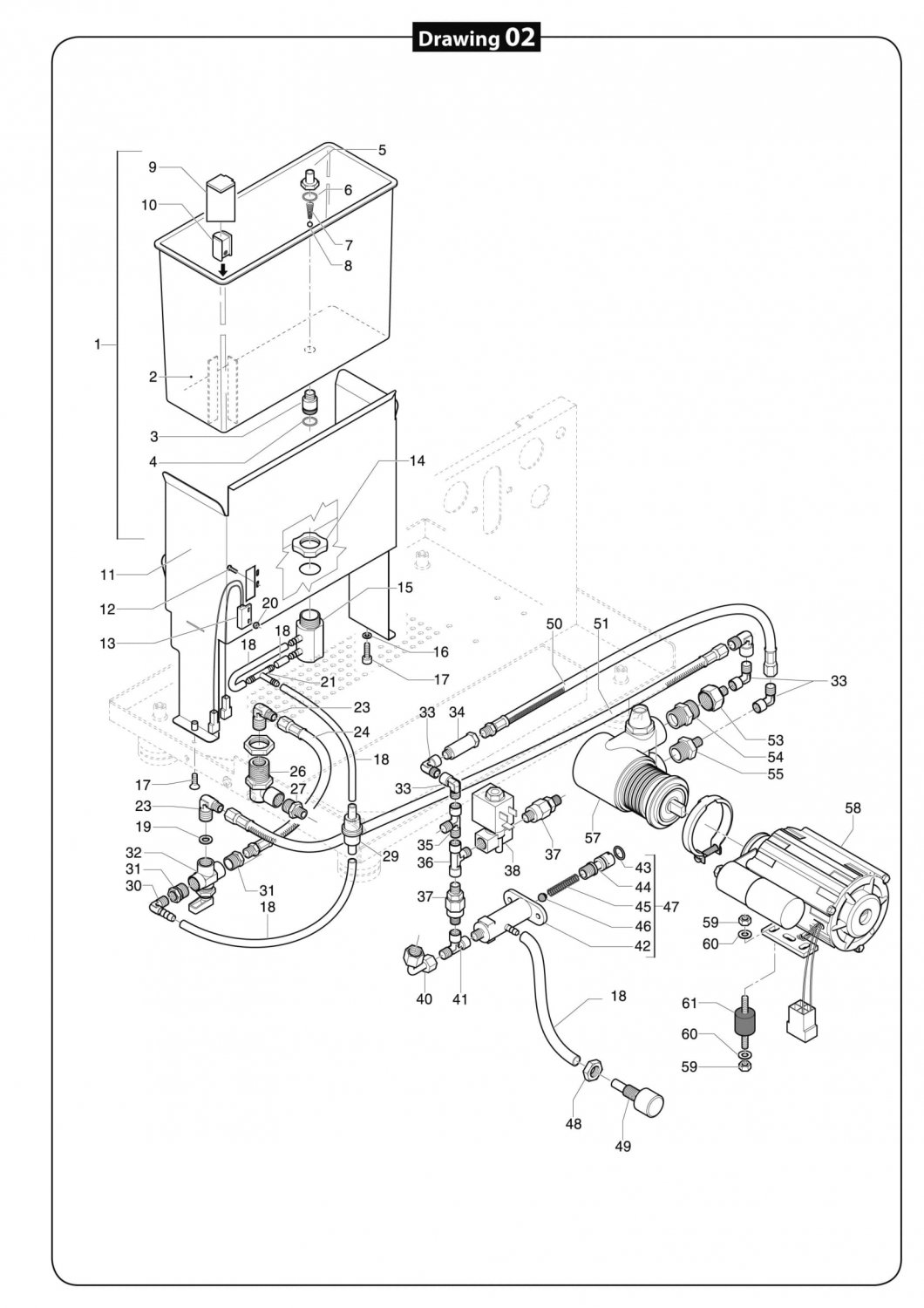

Drawing number 8144553

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1ecm wassertank komplett mechanika technika barista elektronika8069358
ECM Wassertank komplett Mechanika Technika Barista Elektronika
43,47 €

excl. Shipping costs
Delivery time
is determined
2ecm wassertank 3 0 liter ohne schwimmer und wassertankadapter8164562
ECM Wassertank 3,0 Liter ohne Schwimmer und Wassertankadapter
35,70 €

excl. Shipping costs
immediately available, 2 available
4o ring wassertankadapter unten ecm profitec8136877
O-Ring Wassertankadapter unten ECM Profitec
1,32 €

excl. Shipping costs
immediately available
58164567
Wassertankadapter Verschraubung
Price on request
6ecm profitec dichtung wassertankadapter oben8139642
ECM Profitec Dichtung Wassertankadapter oben
1,33 €

excl. Shipping costs
immediately available
7ecm feder wassertank8069352
ECM Feder Wassertank
2,68 €

excl. Shipping costs
immediately available, 8 available
8ecm bezzera kugel wassertank8069353
ECM BEZZERA Kugel Wassertank
2,26 €

excl. Shipping costs
immediately available, 17 available
9abdeckung fuer schwimmerfuehrung ecm profitec8101531
Abdeckung für Schwimmerführung ECM Profitec
3,57 €

excl. Shipping costs
immediately available, 4 available
10ecm reed schwimmer wassertank8069475
ECM Reed Schwimmer Wassertank
6,89 €

excl. Shipping costs
immediately available
11ecm technika mechanika iv tankaufnahme8080516
ECM Technika Mechanika IV Tankaufnahme
82,11 €

excl. Shipping costs
Delivery time
is determined
13ecm fuellstandsone tank reedkontakt reed sensor pic ms 324 1253a8059519
ECM Füllstandsone Tank Reedkontakt Reed Sensor PIC MS-324/1253A
11,78 €

excl. Shipping costs
immediately available, 4 available
14ecm mutter fuer wassertank tankaufnahme8073607
ECM Mutter für Wassertank Tankaufnahme
4,52 €

excl. Shipping costs
immediately available
15ecm wassertankaufnahme neue version8073606
ECM Wassertankaufnahme neue Version
7,50 €

excl. Shipping costs
immediately available
16scheibe edelstahl o 4 3 mm a2 din 1258062377
Scheibe Edelstahl Ø 4,3 mm A2 Din 125
0,64 €

excl. Shipping costs
immediately available, 10 available
17schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
18silicone hose o 5x8 shore 60 1m8006817
Silicone hose ø 5x8 SHORE 60 - 1m
3,95 €

excl. Shipping costs
immediately available
20ecm mutter m38118546
ECM Mutter M3
0,12 €

excl. Shipping costs
immediately available
218164417
T-Stück
2,49 €

excl. Shipping costs
Delivery time
is determined
22schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
23l fitting o 1 88005885
L-FITTING ø 1/8
5,46 €

excl. Shipping costs
immediately available, 10 available
24ecm flexschlauch 17 cm 1 8 quot m 1 8 quot f p80128069568
ECM Flexschlauch 17 cm 1/8"M-1/8"F - P8012
12,90 €

excl. Shipping costs
immediately available
26ecm run 1 4 1 28081183
ECM run 1/4 - 1/2
12,50 €

excl. Shipping costs
immediately available, 4 available
27fitting o 1 8 and o 1 48005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs
immediately available, 12 available
29water drawing filer8001024
WATER-DRAWING FILER
5,82 €

excl. Shipping costs
immediately available, 12 available
30wasserfilter ecm tankfilter partikelfilter8102293
Wasserfilter ECM Tankfilter Partikelfilter
5,26 €

excl. Shipping costs
immediately available, 12 available
318140727
ECM Reduzierung 1/4M 1/8F
9,52 €

excl. Shipping costs
immediately available, 1 available
32ecm 3 wege wasserventil festwasser tank 1 4 wahlventil8079483
ECM 3-Wege Wasserventil Festwasser Tank 1/4 Wahlventil
24,89 €

excl. Shipping costs
immediately available, 7 available
33l fitting o 1 88005885
L-FITTING ø 1/8
5,46 €

excl. Shipping costs
immediately available, 10 available
34ecm verlaengerung 1 8 quot m 1 8 quot f l 42mm8118550
ECM Verlängerung 1/8"M 1/8"F, l=42mm
5,83 €

excl. Shipping costs
immediately available, 2 available
35verbindung t stueck 1 8 quot mmf8079608
Verbindung T Stück 1/8 " MMF
6,90 €

excl. Shipping costs
immediately available, 6 available
36t anschluss o 1 8 i 1 8a 1 8 i vernickelt8005873
T- Anschluss ø 1/8 I-1/8a-1/8 I vernickelt
7,15 €

excl. Shipping costs
immediately available, 4 available
37rueckschlagventil o 1 8 quot m 1 8 m bsp8280846
Rückschlagventil ø 1/8 " M-1/8 M BSP
14,95 €

excl. Shipping costs
immediately available, 15 available
38magnetventil ode 2 wege 2 5 230v 1 8 quot8101492
Magnetventil ODE 2-wege 2,5 230V 1/8"
46,41 €

excl. Shipping costs
immediately available, 1 available
388164645
Magnetventil 2-Wege 1/8"FF 110V/60Hz
60,87 €

excl. Shipping costs
Delivery time
is determined
39rueckschlagventil o 1 8 quot m 1 8 m bsp8280846
Rückschlagventil ø 1/8 " M-1/8 M BSP
14,95 €

excl. Shipping costs
immediately available, 15 available
408164557
Verbindungsrohr Pressostat
10,42 €

excl. Shipping costs
Delivery time
is determined
428164577
Korpus Expansionsventil ECM Profitec
Price on request
43o ring ecm expansionsventil 1 stueck8080378
O-RING ECM Expansionsventil - 1 Stück
2,09 €

excl. Shipping costs
immediately available
448164578
Pressure adjustment expansion valve
14,34 €

excl. Shipping costs
Delivery time
is determined
45feder ecm expansionsventil neue version8080377
Feder ECM Expansionsventil (neue Version)
2,55 €

excl. Shipping costs
immediately available, 4 available
46silicone mushroom gasket8007697
SILICONE MUSHROOM GASKET
1,50 €

excl. Shipping costs
immediately available, 10 available
47expansion valve8069467
EXPANSION VALVE
39,90 €

excl. Shipping costs
immediately available, 11 available
48sechskantmutter edelstahl m10 a2 din 9348061376
Sechskantmutter Edelstahl M10 A2 Din 934
2,74 €

excl. Shipping costs
immediately available
49ecm ablaufduese8079484
ECM Ablaufdüse
16,78 €

excl. Shipping costs
immediately available, 3 available
50ecm metallschlauch flex 1 8 quot ff l 500 konisch beidseitig8118676
ECM Metallschlauch flex 1/8"FF, l=500 Konisch beidseitig
15,35 €

excl. Shipping costs
immediately available, 2 available
51ecm metallschlauch flex 1 8 quot ff l 500 konisch beidseitig8118676
ECM Metallschlauch flex 1/8"FF, l=500 Konisch beidseitig
15,35 €

excl. Shipping costs
immediately available, 2 available
53ecm reduzierung 3 8 quot f 1 8 quot m8118645
ECM Reduzierung 3/8"F 1/8"M
4,95 €

excl. Shipping costs
immediately available, 1 available
548118554
ECM Nippel 1/8"M 3/8"M
4,95 €

excl. Shipping costs
Delivery time
is determined
57rotationspumpe ecm 100l nuert prs 10az2n mgna8101393
Rotationspumpe ECM 100l Nuert PRS 10AZ2N_MGNA
144,49 €

excl. Shipping costs
immediately available, 2 available
588393433
ECM Motor Elektronika Due 230V
148,75 €

excl. Shipping costs
Delivery time
is determined
59sechskantmutter edelstahl m6 a2 din 9348061377
Sechskantmutter Edelstahl M6 A2 Din 934
0,26 €

excl. Shipping costs
immediately available
60ecm unterlegscheibe 6 4x12 0x1 68118552
ECM Unterlegscheibe 6,4x12,0x1,6
0,24 €

excl. Shipping costs
immediately available, 16 available
61ecm fuss motor rotationspumpe8118644
ECM Fuß Motor Rotationspumpe
3,57 €

excl. Shipping costs
immediately available, 11 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
