ECM Heidelberg

ECM SERIE IV Brühgruppe (nicht patentierte ECM Gruppe)

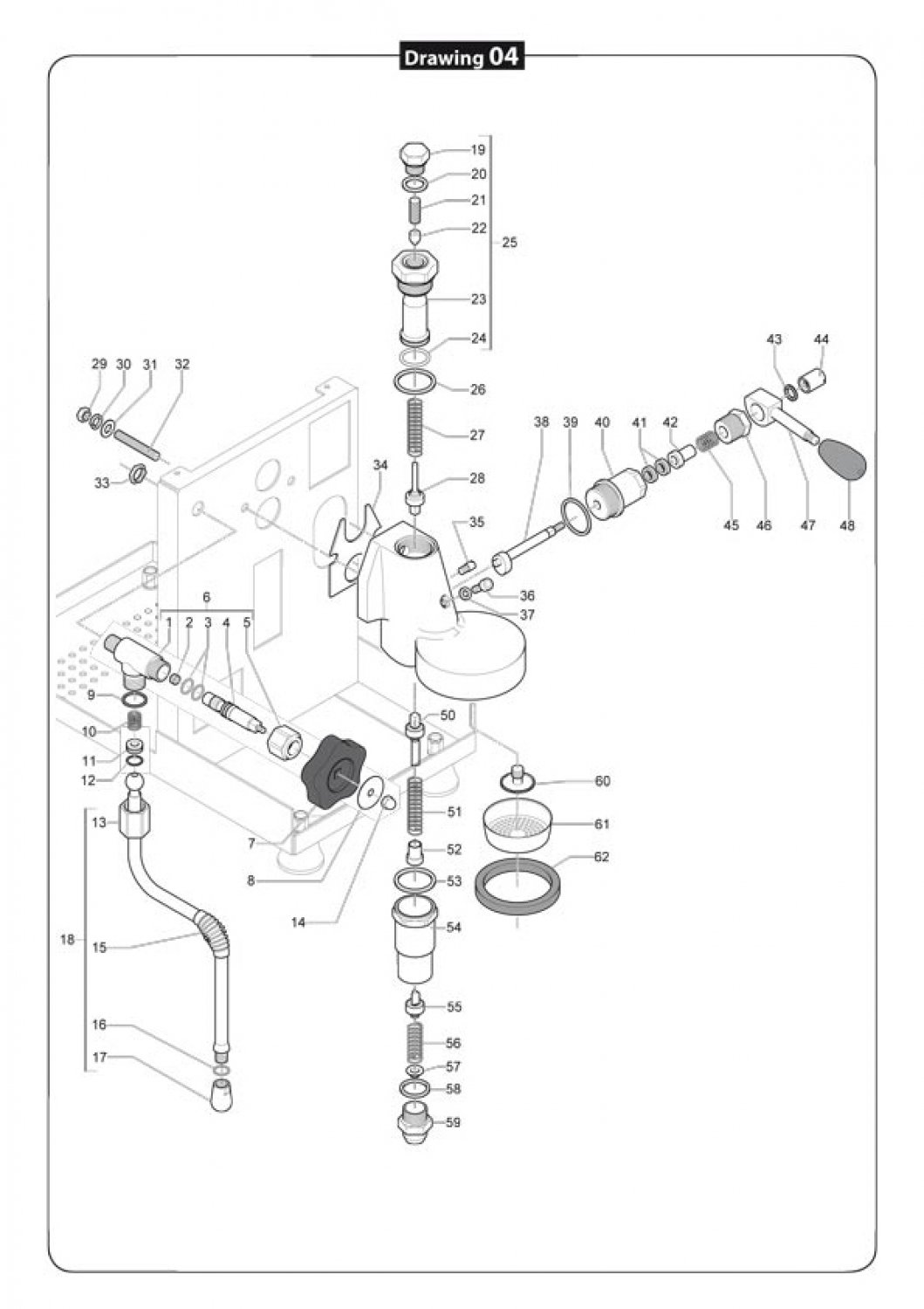

Drawing number 8069137

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
0e61 bruehgruppe revisionsset kit ecm bfc sab u v m8079664
E61 Brühgruppe Revisionsset Kit ECM - BFC - SAB - u.v.m.
44,49 €

excl. Shipping costs
immediately available
2ecm blind gasket o 9x6 5 mm8069468
ECM blind gasket ø 9x6,5 mm
1,75 €

excl. Shipping costs
immediately available
3o ring 0112 epdm8001565
O-RING 0112 EPDM
0,82 €

excl. Shipping costs
immediately available
4pin tap water steam8069446
PIN TAP WATER/STEAM
23,40 €

excl. Shipping costs
immediately available, 9 available
7handle tap water steam8069438
HANDLE TAP WATER/STEAM
12,20 €

excl. Shipping costs
Delivery time 4-6 weeks
8steam handle bar gland8079349
Steam handle bar gland
2,02 €

excl. Shipping costs
immediately available, 4 available
9teflondichtung 19x16x1 5mm8073690
Teflondichtung 19x16x1,5mm
1,96 €

excl. Shipping costs
immediately available
9o ring 0121 epdm8014882
O-RING 0121 EPDM
1,07 €

excl. Shipping costs
immediately available, 16 available
10spring o 11 5x16 mm8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs
immediately available, 2 available
11o ring 02043 epdm8001593
O-RING 02043 EPDM
0,79 €

excl. Shipping costs
immediately available
12o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available
13ecm ueberwurfmutter heisswasser dampfrohr verchromt neues modell inkl dichtung8073686
ECM Überwurfmutter Heisswasser Dampfrohr verchromt (neues Modell) inkl. Dichtung
8,39 €

excl. Shipping costs
immediately available, 16 available
16o ring dichtung orm 0060 12 epdm8140517
O-Ring Dichtung ORM 0060-12 EPDM
1,33 €

excl. Shipping costs
immediately available
18pipe steam complete satinless steel8069460
PIPE STEAM COMPLETE SATINLESS STEEL
40,61 €

excl. Shipping costs
Delivery time
is determined
20ptfe flat gasket o 22x17x2 mm8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs
immediately available
21water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
23chromium plated upper sleeve8063314
CHROMIUM-PLATED UPPER SLEEVE
29,00 €

excl. Shipping costs
immediately available, 2 available
24o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
26ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
27spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
28complete spout valve8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs
immediately available
34ecm gruppendichtung frontblech e618118518
ECM Gruppendichtung Frontblech E61
4,80 €

excl. Shipping costs
Delivery time
is determined
38cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available
39ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
41epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
42cam guide bushing8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs
immediately available, 14 available
45spring o 14 6x21 mm8003547
SPRING ø 14,6x21 mm
3,55 €

excl. Shipping costs
immediately available
47micro control lever8073574
MICRO CONTROL LEVER
41,95 €

excl. Shipping costs
immediately available, 8 available
48knebel griff m8 schwarz8081143
Knebel Griff M8 schwarz
9,52 €

excl. Shipping costs
immediately available, 4 available
50complete drain valve8007124
COMPLETE DRAIN VALVE
10,50 €
10,50 €

excl. Shipping costs
immediately available
51spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
52spring guide bushing8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs
immediately available, 9 available
53ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
55e61 drain valve with gasket8007125
E61 drain valve with gasket
9,17 €

excl. Shipping costs
immediately available
56feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available
57drain jet swirl8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs
immediately available, 14 available
58flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
60group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
61shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
62original ecm siebtraegerdichtung 8mm8079577
Original ECM Siebträgerdichtung 8mm
7,14 €

excl. Shipping costs
immediately available
62original ecm siebtraegerdichtung 8 5mm8280062
Original ECM Siebträgerdichtung 8,5mm
4,95 €

excl. Shipping costs
immediately available
200filter holder complete 1 cup profi ecm germany8069459
FILTER HOLDER COMPLETE 1 CUP PROFI ECM GERMANY
67,50 €

excl. Shipping costs
immediately available, 4 available
200filter holder complete 2 cups profi ecm german8069458
FILTER HOLDER COMPLETE 2 CUPS PROFI ECM GERMAN
64,90 €

excl. Shipping costs
immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
