ECM Heidelberg

ECM CLASSIKA BRÜHGRUPPE HAHN

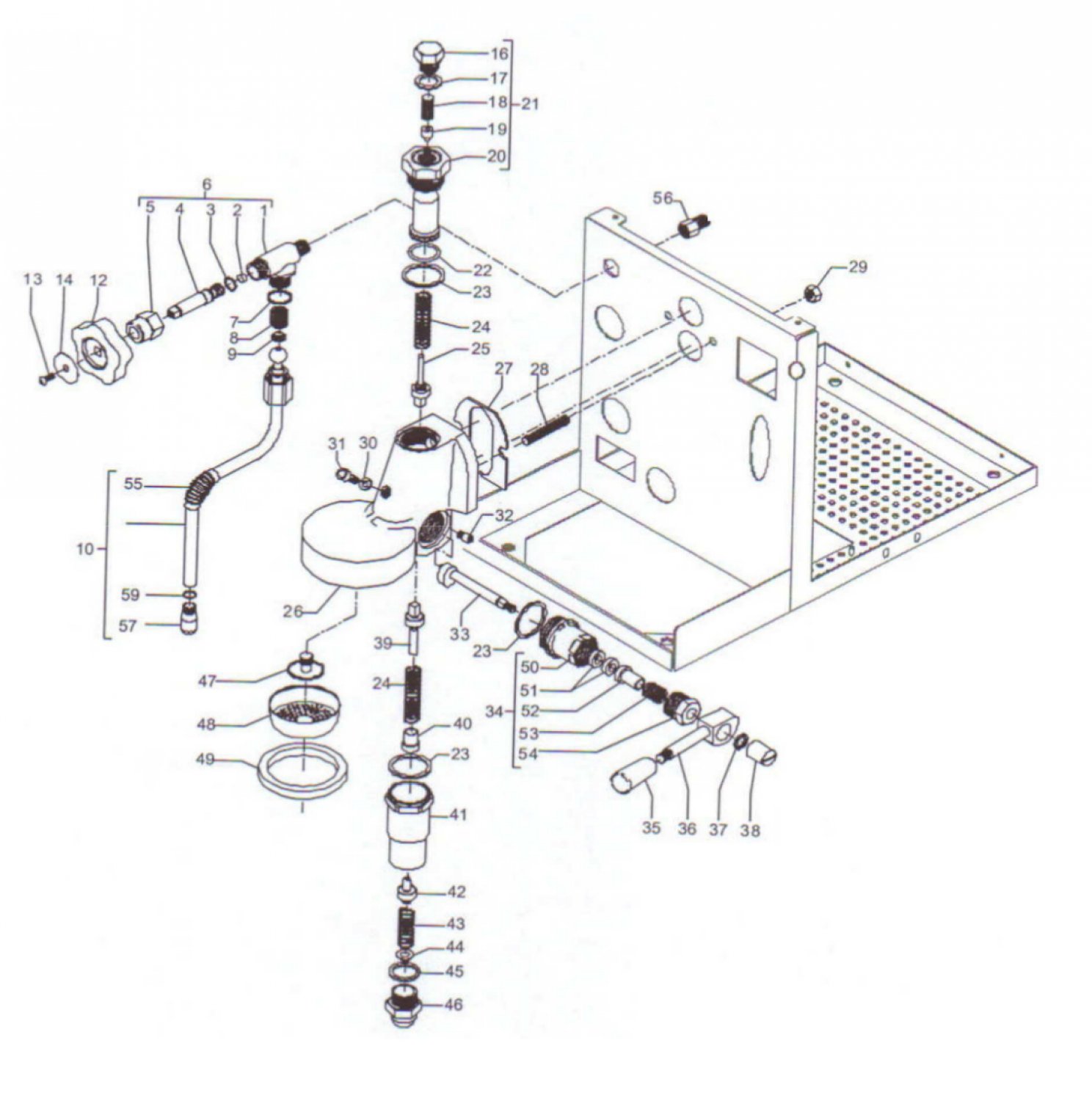

Drawing number 8080463

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
0e61 bruehgruppe revisionsset kit ecm bfc sab u v m8079664
E61 Brühgruppe Revisionsset Kit ECM - BFC - SAB - u.v.m.
44,49 €

excl. Shipping costs
immediately available
2blind gasket 8x48001449
BLIND GASKET 8x4
3,47 €

excl. Shipping costs
immediately available
3o ring 03030 epdm8001600
O-RING 03030 EPDM
0,55 €

excl. Shipping costs
immediately available

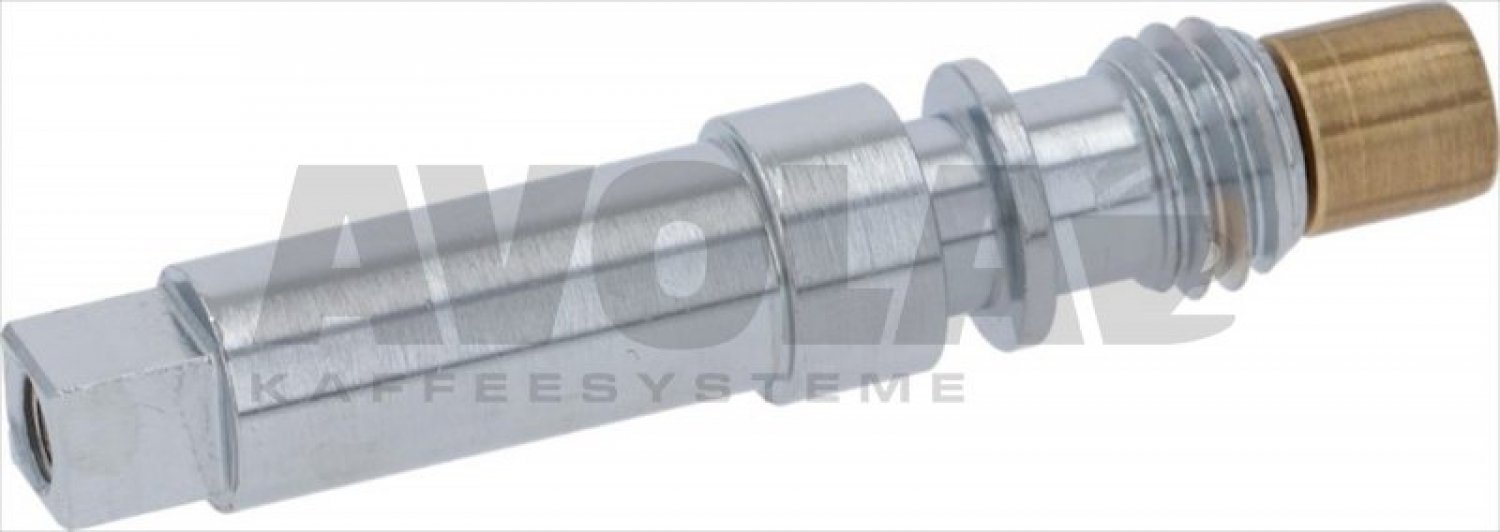

4ecm technika iii spindel dampfventil bezzera galatea domus8079643
ECM Technika III Spindel Dampfventil Bezzera Galatea Domus
17,86 €

excl. Shipping costs
immediately available, 5 available
58071411
DADO 3/8 G NICHELATO
Price on request
6bezzera drehventil m13 verwendbar auch fuer ecm baureihe iii siehe hinweis8080945
Bezzera Drehventil M13 - verwendbar auch für ECM Baureihe III (siehe Hinweis)
66,43 €

excl. Shipping costs
Delivery time 4-6 weeks
7o ring 0121 epdm8014882
O-RING 0121 EPDM
1,07 €

excl. Shipping costs
immediately available, 16 available
8spring o 11 7x16 mm8069864
SPRING ø 11,7x16 mm
2,11 €

excl. Shipping costs
Delivery time 4-6 weeks
9dichtungsscheibe fuer dampfventil heisswasserventilmutter ecm mechanika iii technika iii bezzera8071400
Dichtungsscheibe für Dampfventil- Heisswasserventilmutter ECM Mechanika III Technika III Bezzera
3,33 €

excl. Shipping costs
immediately available
10pipe steam complete satinless steel8069460
PIPE STEAM COMPLETE SATINLESS STEEL
40,61 €

excl. Shipping costs
Delivery time
is determined
12handle tap water steam8069438
HANDLE TAP WATER/STEAM
12,20 €

excl. Shipping costs
Delivery time 4-6 weeks
138073467
VITE TEB M5X10 OT LUC+CROM
2,38 €

excl. Shipping costs
Delivery time 4-6 weeks
148070527
RONDELLA D5,5X15X1 BA
Price on request
17ptfe flat gasket o 22x17x2 mm8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs
immediately available
18water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
19nozzle m6x1 hole8006984
NOZZLE M6x1 HOLE
3,27 €

excl. Shipping costs
immediately available, 10 available
20chromium plated upper sleeve8063314
CHROMIUM-PLATED UPPER SLEEVE
29,00 €

excl. Shipping costs
immediately available, 2 available
22o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
23ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
24spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
25complete spout valve8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs
immediately available
27ecm gruppendichtung frontblech e618118518
ECM Gruppendichtung Frontblech E61
4,80 €

excl. Shipping costs
Delivery time
is determined
30flat ptfe gasket o 10x6x2 mm8064411
FLAT PTFE GASKET ø 10x6x2 mm
1,93 €

excl. Shipping costs
immediately available
31schraube zylinderkopf innensechskant vollgewinde edelstahl m6x10 a2 70 din 9128061172
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M6x10 A2-70 Din 912
0,62 €

excl. Shipping costs
immediately available
32cam locking stainless steel screw m68001289
CAM LOCKING STAINLESS STEEL SCREW M6
4,03 €

excl. Shipping costs
immediately available, 17 available
33cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available
39complete drain valve8007124
COMPLETE DRAIN VALVE
10,50 €
10,50 €

excl. Shipping costs
immediately available
40spring guide bushing8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs
immediately available, 9 available
42e61 drain valve with gasket8007125
E61 drain valve with gasket
9,17 €

excl. Shipping costs
immediately available
43feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available
44drain jet swirl8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs
immediately available, 14 available
45flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
47group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
48shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
49cafelat e61 portafilter gasket 73x57x8 mm red8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs
immediately available
51epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
53spring o 14 6x21 mm8003547
SPRING ø 14,6x21 mm
3,55 €

excl. Shipping costs
immediately available
59dichtung bezzera fuer dampfduese d4 5x1 5 nbr708072908
Dichtung Bezzera für Dampfdüse D4,5X1,5 NBR70
1,20 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
