De Longhi

DELONGHI KAFFEEMASCHINE MOD. ESAM3500.S

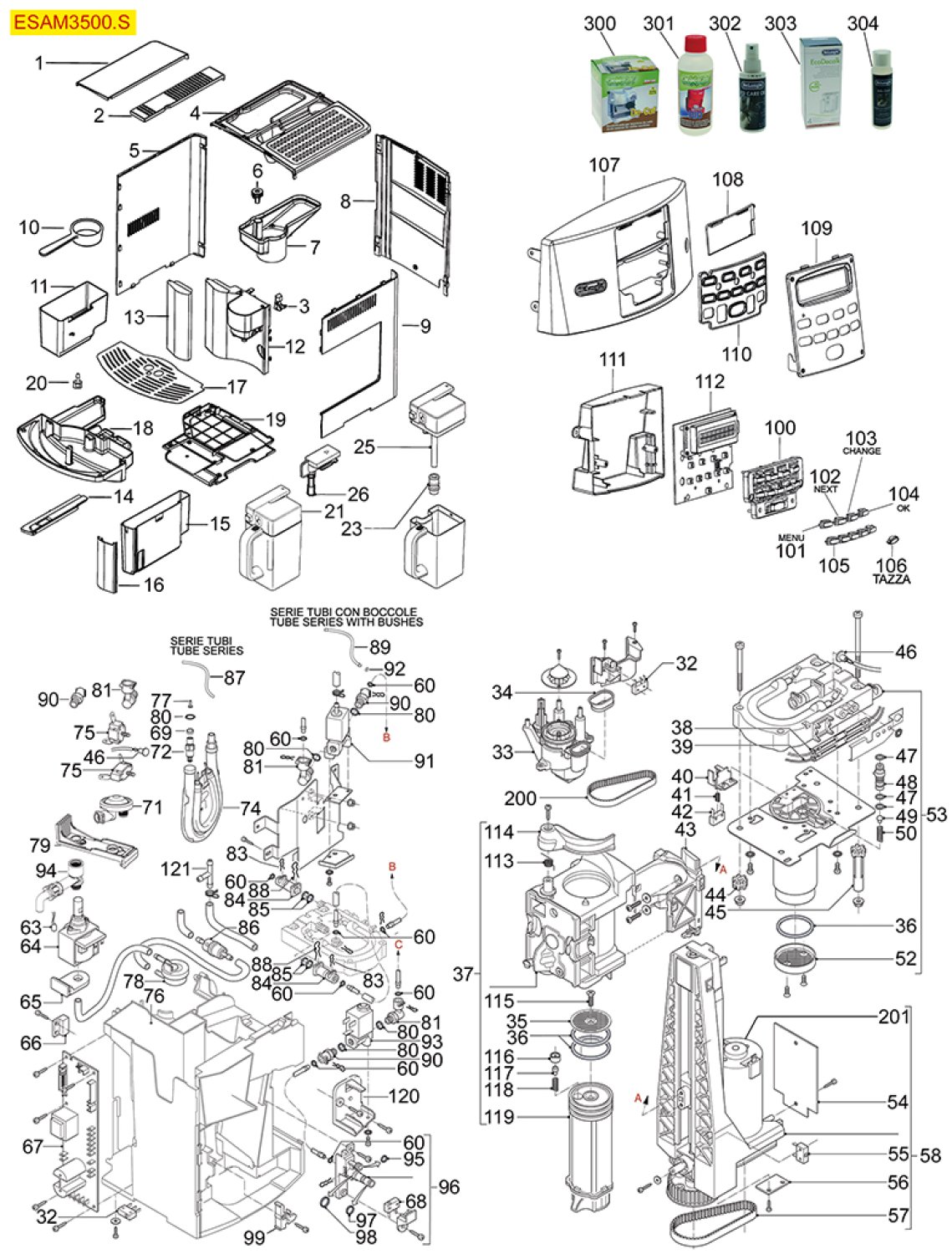

Drawing number 8144497

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
10plastic doser spoon8063332
PLASTIC DOSER SPOON
2,64 €

excl. Shipping costs
Delivery time
is determined
11kaffeesatzbehaelter schwarz8098486
KAFFEESATZBEHÄLTER SCHWARZ
16,56 €

excl. Shipping costs
Delivery time
is determined

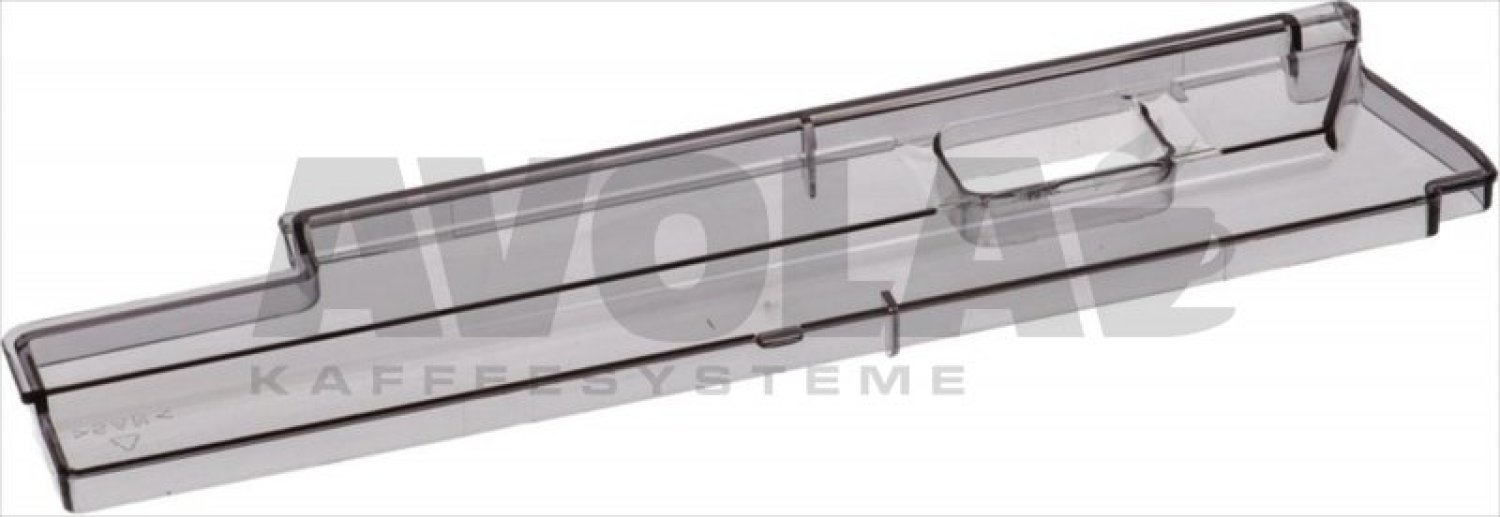

14wassertankdeckel 260x52 mm8098555
Wassertankdeckel 260x52 mm
4,37 €

excl. Shipping costs
Delivery time
is determined

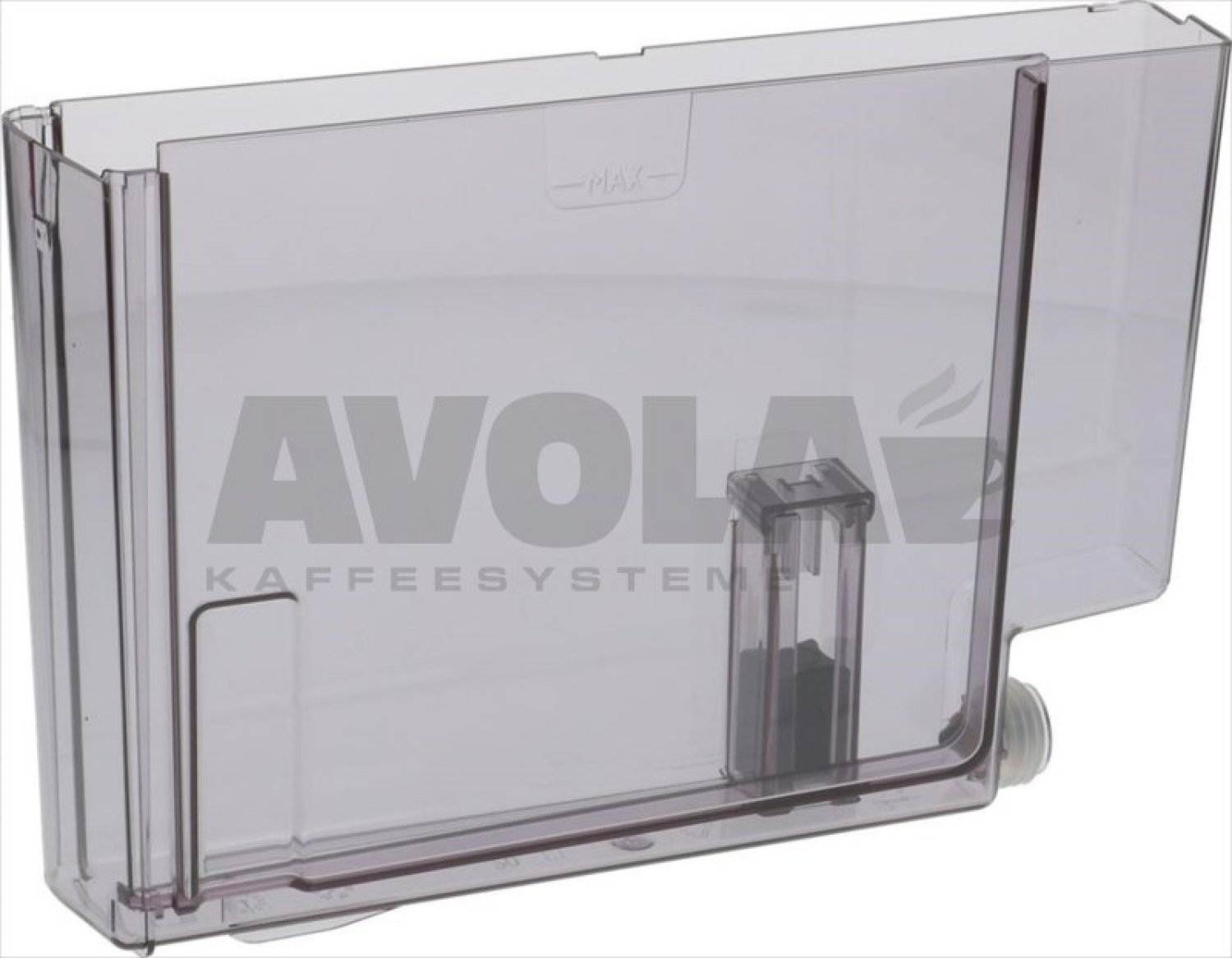

15wasserbehaelter8080306
Wasserbehälter
42,74 €

excl. Shipping costs
Delivery time
is determined
17abstellgitter aus edelstahl8098487
Abstellgitter aus Edelstahl
14,82 €

excl. Shipping costs
Delivery time
is determined
20schwimmer niveaustandanzeiger8099328
SCHWIMMER NIVEAUSTANDANZEIGER
3,57 €

excl. Shipping costs
immediately available, 10 available

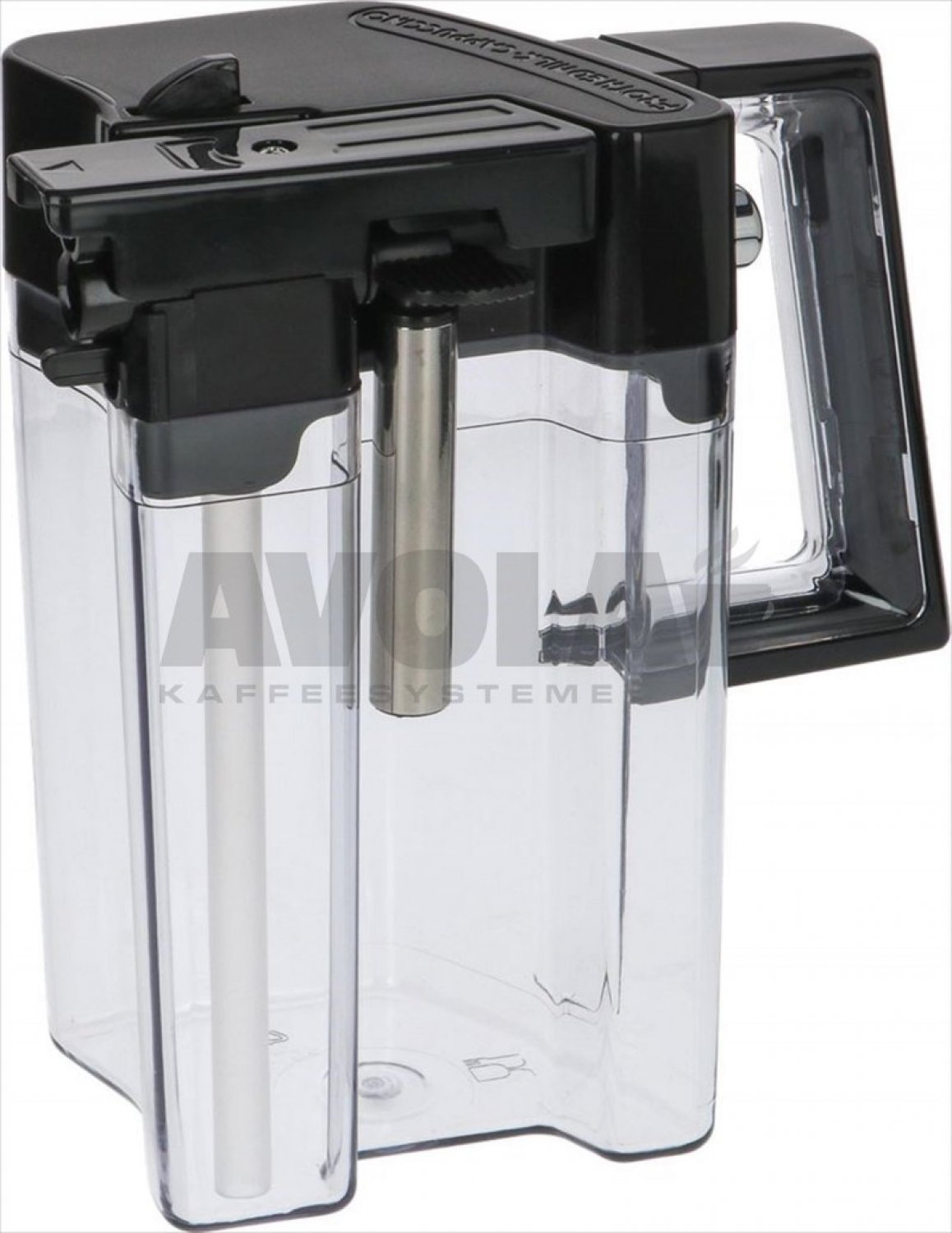

21milchkanne8097841
MILCHKANNE
48,92 €

excl. Shipping costs
Delivery time
is determined
26rohr wasser dampf duese8097608
Rohr Wasser- Dampf Düse
12,25 €

excl. Shipping costs
Delivery time
is determined

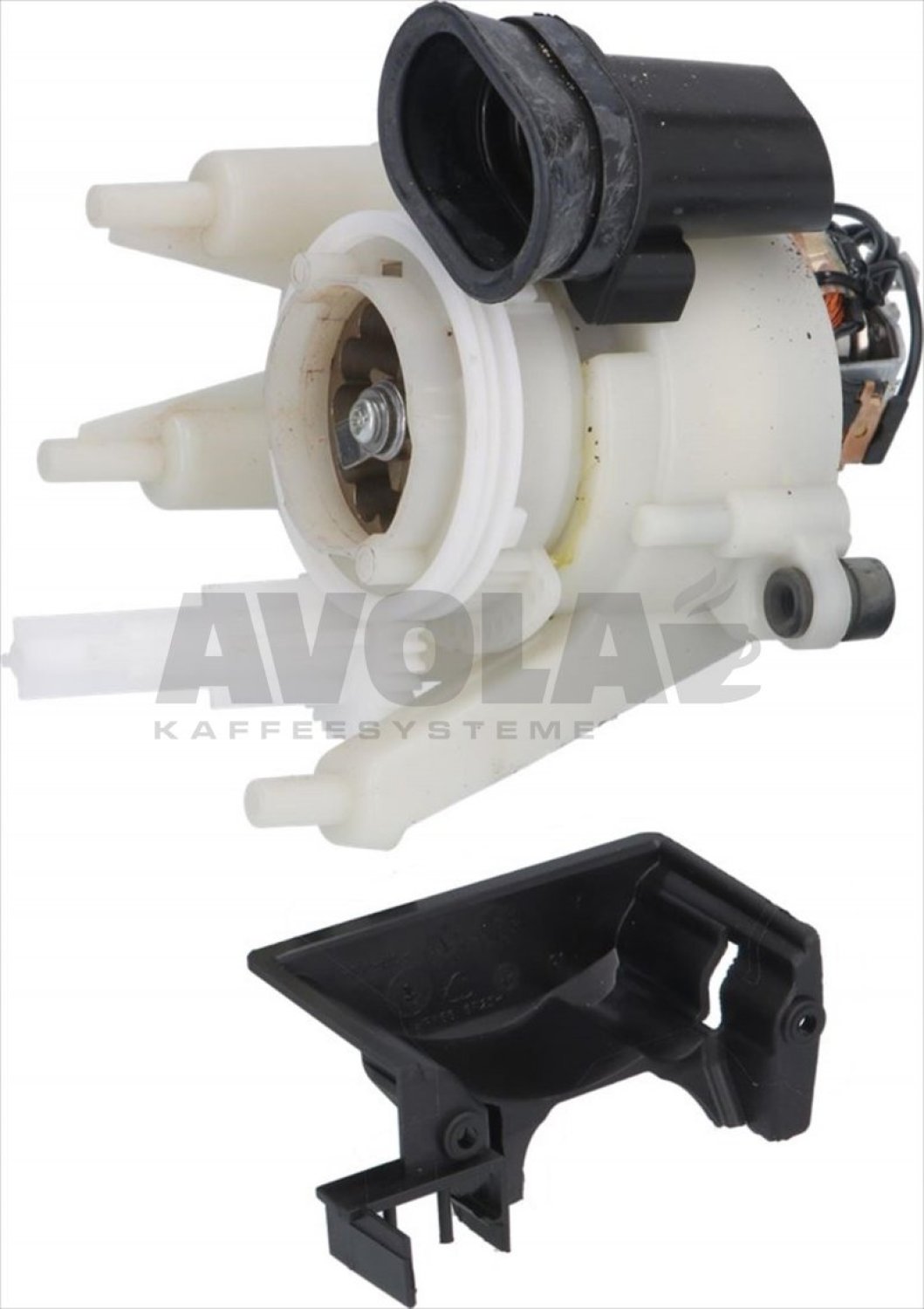

33gruppe kaffeemuehle 230vdc8080277
Gruppe Kaffeemühle 230vdc
99,50 €

excl. Shipping costs
Delivery time
is determined
35shower screen8063362
SHOWER SCREEN
6,01 €

excl. Shipping costs
Delivery time
is determined
36orm gasket 0350 41 red silicone8063250
ORM GASKET 0350-41 RED SILICONE
2,63 €

excl. Shipping costs
immediately available, 14 available
37gruppo erogazione caffandegrave8099338
GRUPPO EROGAZIONE CAFFÈ
Price on request
42mikroschalter 5 2 a 250v8080315
Mikroschalter 5(2)a 250V
7,02 €

excl. Shipping costs
Delivery time
is determined

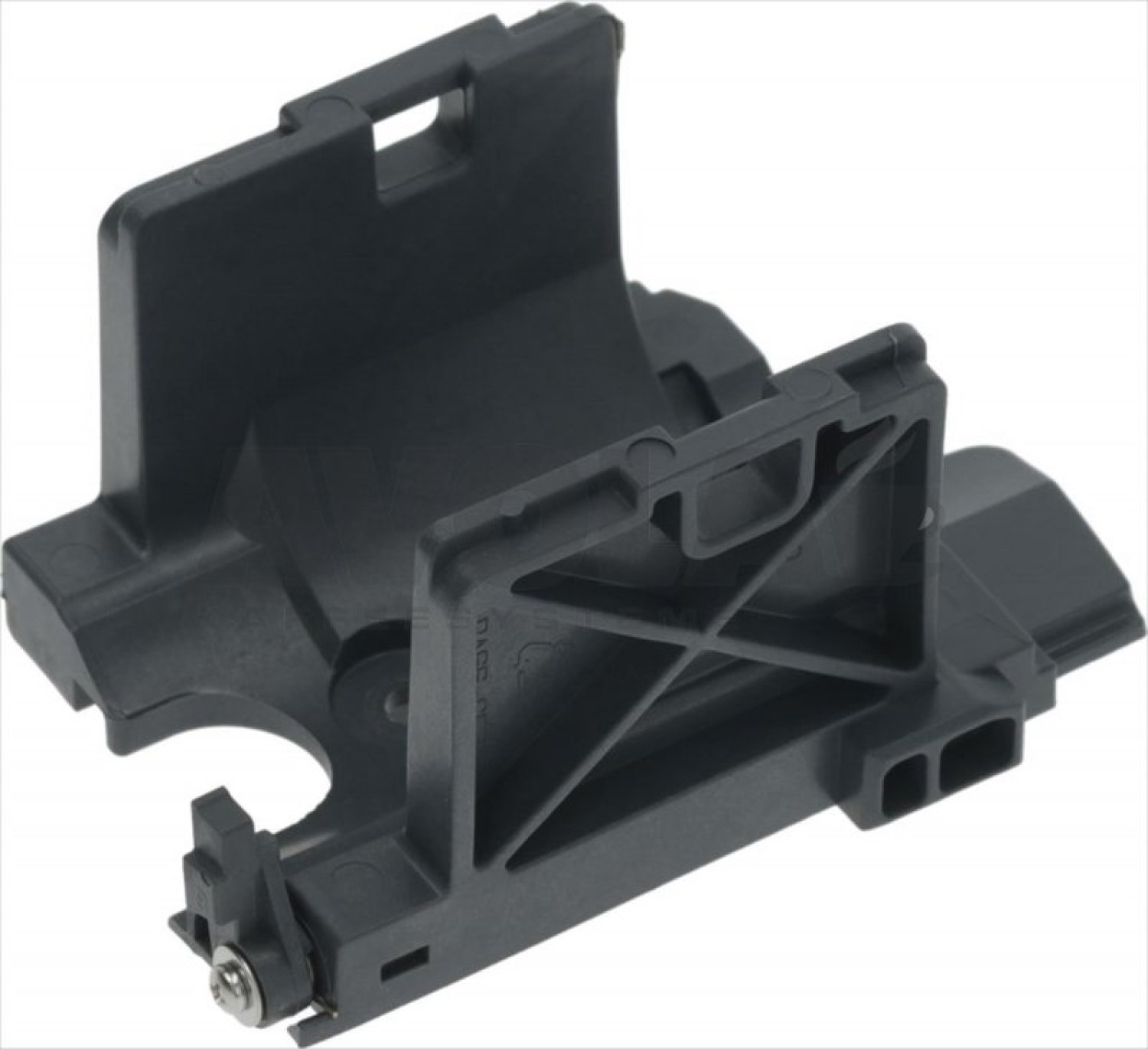

43schieber fuer bruehgruppe8097609
Schieber für Brühgruppe
14,66 €

excl. Shipping costs
Delivery time 4-6 weeks
46de longhi ntc probe8064010
De Longhi NTC probe
14,70 €

excl. Shipping costs
Delivery time
is determined
47o ring 02025 black silicone8064129
O-RING 02025 BLACK SILICONE
Price on request
48delivery valve support8063533
DELIVERY VALVE SUPPORT
3,55 €

excl. Shipping costs
Delivery time
is determined
49gasket mushroom shaped silicone8064403
GASKET MUSHROOM-SHAPED SILICONE
3,55 €

excl. Shipping costs
immediately available, 14 available
50conical spring8063671
CONICAL SPRING
3,55 €

excl. Shipping costs
Delivery time
is determined
52delonghi shower screen o 43 mm8063361
Delonghi SHOWER SCREEN ø 43 mm
4,41 €

excl. Shipping costs
Delivery time
is determined
53boiler 600w 230v8063317
BOILER 600W 230V
98,91 €

excl. Shipping costs
Delivery time
is determined
55mikroschalter saia burgess8098558
Mikroschalter Saia Burgess
6,39 €

excl. Shipping costs
Delivery time
is determined
56elektroplatine mit hall sensor8098253
ELEKTROPLATINE MIT HALL SENSOR
9,19 €

excl. Shipping costs
Delivery time
is determined
57riemen gezahnt 225rpp3 hoehe 9 mm8080327
Riemen Gezahnt 225rpp3 Höhe 9 mm
7,69 €

excl. Shipping costs
Delivery time
is determined
60orm gasket 0038 20 black silicone8064391
ORM GASKET 0038-20 BLACK SILICONE
4,02 €

excl. Shipping costs
immediately available, 16 available
63thermal protector 1208063808
THERMAL PROTECTOR 120
9,28 €

excl. Shipping costs
Delivery time
is determined
64vibratory pump ep5 48w 230v 50hz8001014
VIBRATORY PUMP EP5 48W 230V 50Hz
19,90 €

excl. Shipping costs
immediately available, 13 available
64vibrationspumpe ulka eap5 52w 120v 60hz8080297
VIBRATIONSPUMPE Ulka EAP5 52W 120V 60Hz
25,57 €

excl. Shipping costs
Delivery time
is determined
65elbow vibration isolator8063803
ELBOW VIBRATION ISOLATOR
1,49 €

excl. Shipping costs
Delivery time
is determined
66mikroschalter magnetisch no8097606
MIKROSCHALTER MAGNETISCH NO
8,79 €

excl. Shipping costs
Delivery time
is determined
71delonghi sicherheitsventil vibrationspumpe8078073
Delonghi Sicherheitsventil Vibrationspumpe
26,03 €

excl. Shipping costs
Delivery time
is determined
75delonghi anlegethermostat 318 deg c m48080521
Delonghi Anlegethermostat 318°c M4
5,60 €

excl. Shipping costs
immediately available, 12 available
78volumetric flowmeter 974 9541 a nsf8064086
VOLUMETRIC FLOWMETER 974-9541-A NSF
10,14 €

excl. Shipping costs
Delivery time
is determined
81anschluss quot l quot andoslash 1 8 quot mx4 mm8097738
ANSCHLUSS "L" ø 1/8"Mx4 mm
6,60 €

excl. Shipping costs
Delivery time
is determined
83quick connection spring for pipe8063673
QUICK CONNECTION SPRING FOR PIPE
3,47 €

excl. Shipping costs
immediately available, 13 available
84delonghi klemmenanschluss8078060
Delonghi Klemmenanschluss
4,41 €

excl. Shipping costs
Delivery time
is determined
85orm gasket 0045 20 black silicone8064392
ORM GASKET 0045-20 BLACK SILICONE
4,03 €

excl. Shipping costs
immediately available, 13 available
86inlet pass through filer8001022
INLET PASS-THROUGH FILER
4,46 €

excl. Shipping costs
immediately available, 15 available
87silicone pipe o 4x8 shore 70 270 mm8064043
SILICONE PIPE ø 4x8 SHORE 70 - 270 mm
Price on request
88quick connection spring for components8063674
QUICK CONNECTION SPRING FOR COMPONENTS
2,09 €

excl. Shipping costs
Delivery time
is determined
90klemmenanschluss o 1 8 m delonghi8077923
KLEMMENANSCHLUSS ø 1/8 M Delonghi
4,38 €

excl. Shipping costs
Delivery time
is determined
91magnetventil ceme 3 wege 230v 50 hz8097610
Magnetventil Ceme 3-WEGE 230V 50 Hz
38,87 €

excl. Shipping costs
Delivery time
is determined
95dichtung or 02021 silikon gruen8077933
DICHTUNG OR 02021 SILIKON GRÜN
1,45 €

excl. Shipping costs
immediately available, 4 available

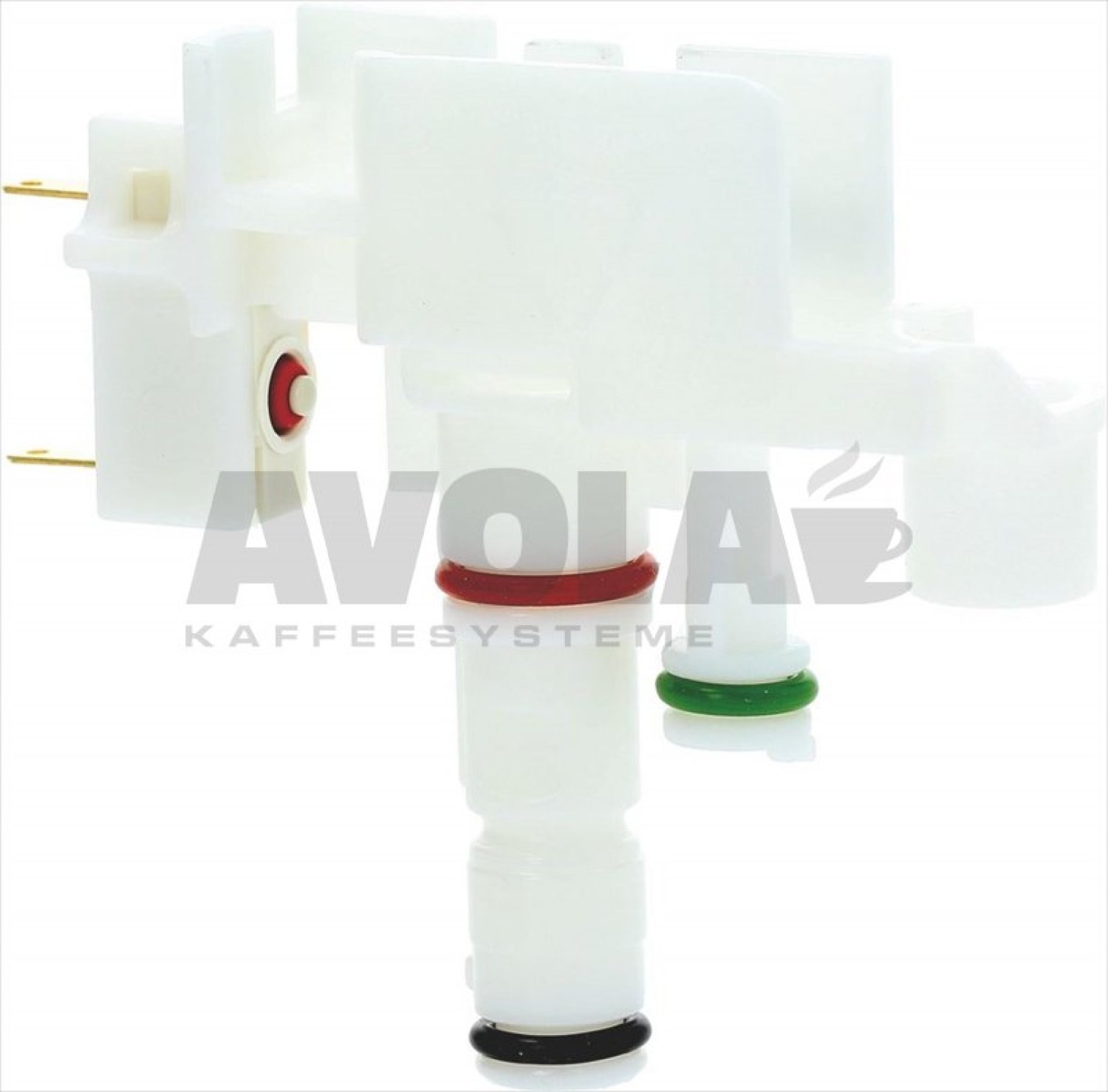

96delonghi milchkannenanschluss8080494
DELONGHI MILCHKANNENANSCHLUSS
25,56 €

excl. Shipping costs
Delivery time
is determined
98o ring 0108 red silicone8002066
O-RING 0108 - RED SILICONE
1,13 €

excl. Shipping costs
immediately available
99delonghi tuerklinke8104292
Delonghi Türklinke
3,74 €

excl. Shipping costs
Delivery time
is determined

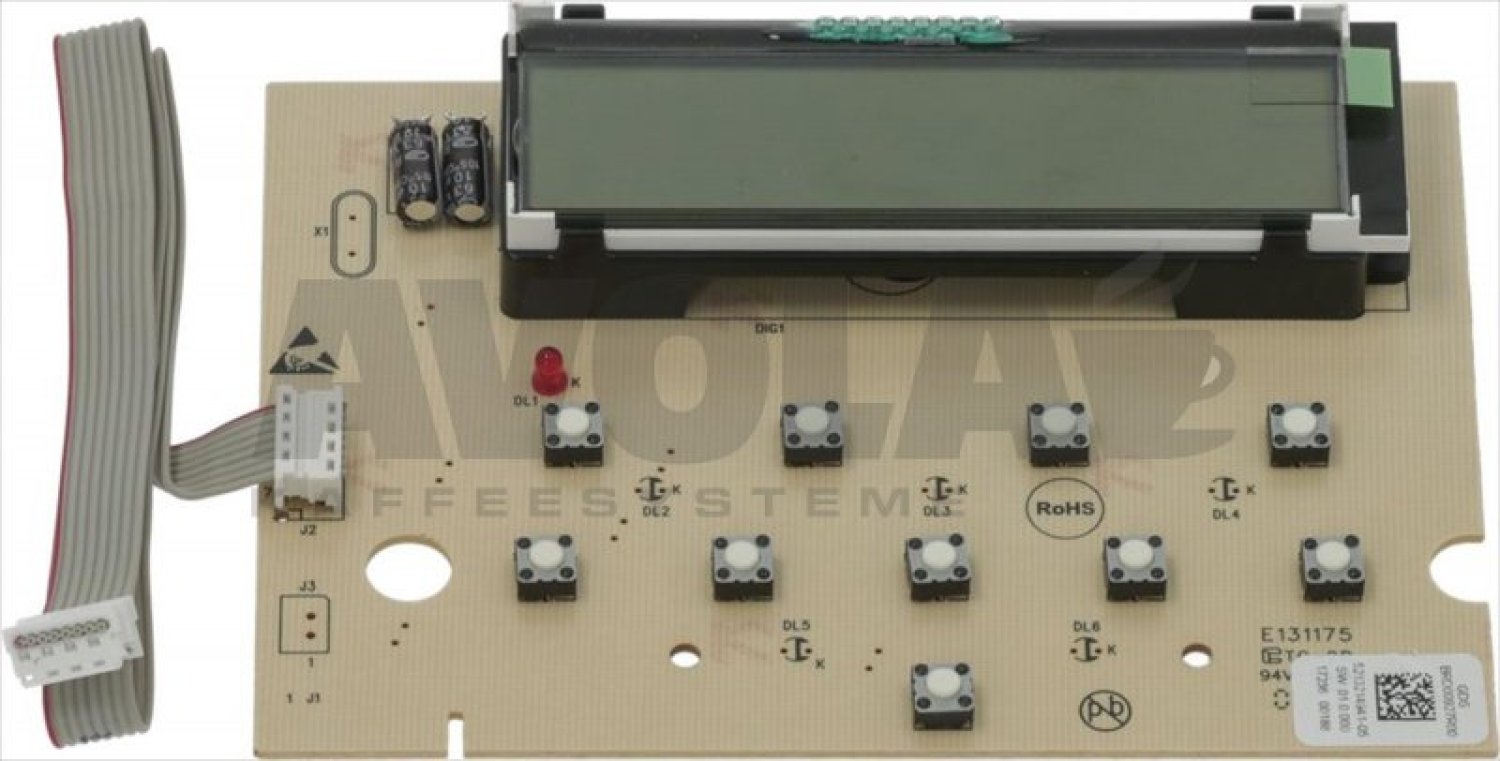

112elektronikplatine tastatur display8089160
ELEKTRONIKPLATINE TASTATUR/DISPLAY
93,22 €

excl. Shipping costs
Delivery time
is determined

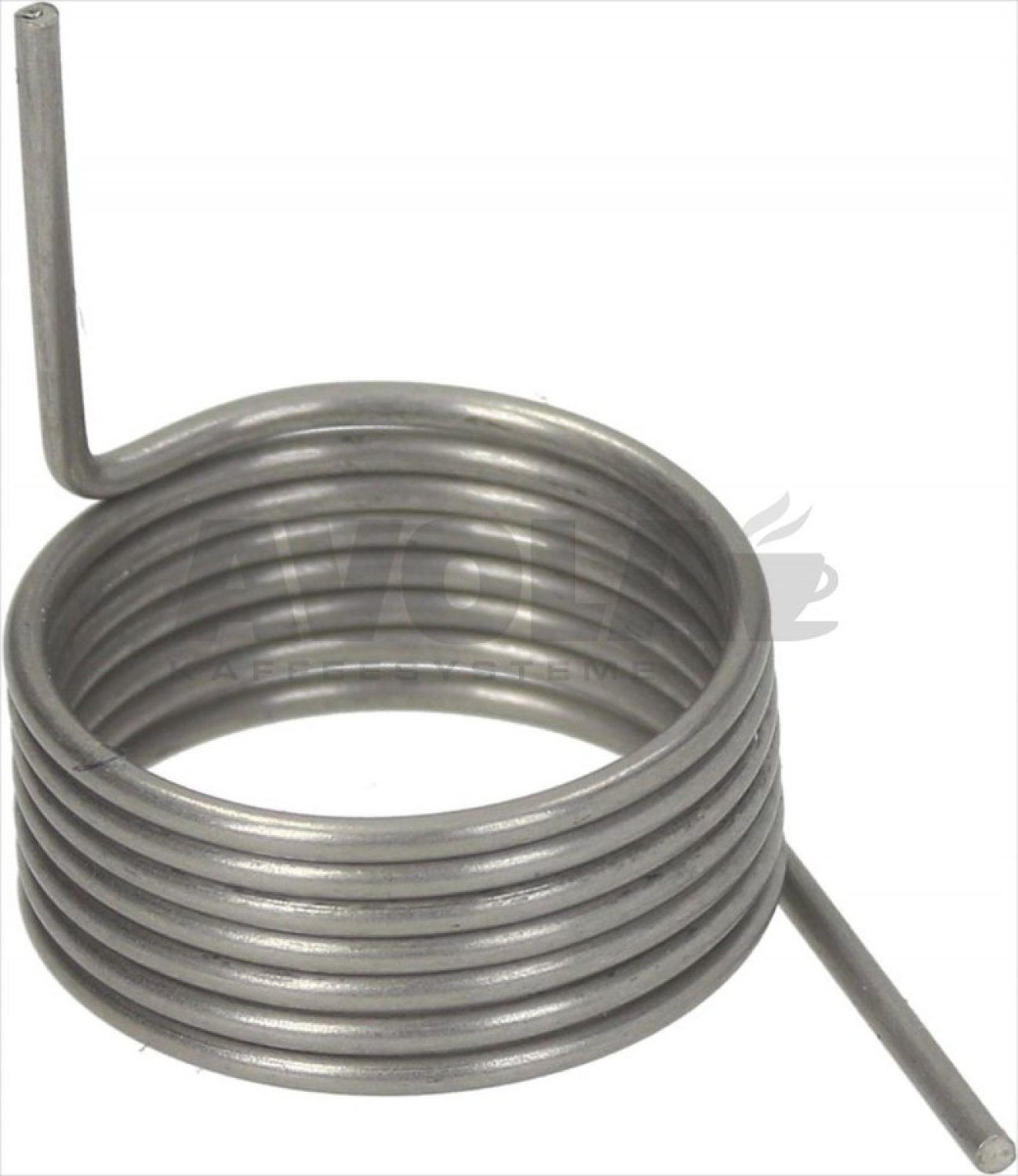

113feder o 13 7 mm fuer entfernungsachse8099234
FEDER ø 13,7 mm FÜR ENTFERNUNGSACHSE
9,40 €

excl. Shipping costs
Delivery time
is determined
114auswurfhebel kaffeesatz8099233
AUSWURFHEBEL KAFFEESATZ
Price on request
116cream frother valve cap8063532
CREAM FROTHER VALVE CAP
3,55 €

excl. Shipping costs
Delivery time
is determined
117cream frother valve8063530
CREAM FROTHER VALVE
3,55 €

excl. Shipping costs
Delivery time
is determined
118conical spring8063670
CONICAL SPRING
3,55 €

excl. Shipping costs
Delivery time
is determined
119verteiler duschtraeger andoslash 43 5 mm8088787
VERTEILER DUSCHTRÄGER ø 43,5 mm
7,06 €

excl. Shipping costs
Delivery time 4-6 weeks
121schlauchanschluss o 5 mm nicht mehr lieferbar8063245
SCHLAUCHANSCHLUSS ø 5 mm (nicht mehr lieferbar)
This article is no longer available
200riemen gezahnt 0912mxl hoehe 4 mm8098709
Riemen Gezahnt 0912mxl Höhe 4 mm
5,49 €

excl. Shipping costs
Delivery time
is determined
201motor 230v 50hz8063614
MOTOR 230V 50Hz
57,50 €

excl. Shipping costs
Delivery time
is determined
300scale remover axor de caf 10 bags8012367
SCALE REMOVER AXOR DE-CAF 10 BAGS
16,81 €

excl. Shipping costs
Delivery time 4-6 weeks
301scale remover axor rio 250 ml8012366
SCALE REMOVER AXOR RIO 250 ml
7,08 €

excl. Shipping costs
immediately available, 13 available
302glycerine spray 100 ml8064492
GLYCERINE SPRAY 100 ml
19,81 €

excl. Shipping costs
Delivery time 4-6 weeks
303scale remover ecodecalk 500 ml8064485
SCALE REMOVER ECODECALK 500 ml
14,70 €

excl. Shipping costs
immediately available, 3 available
304milk clean detergent 250 ml8064486
MILK CLEAN DETERGENT 250 ml
18,30 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
