Compak Grinder

DOSIERMAHLWERK K6-K6 TELESCOPIC

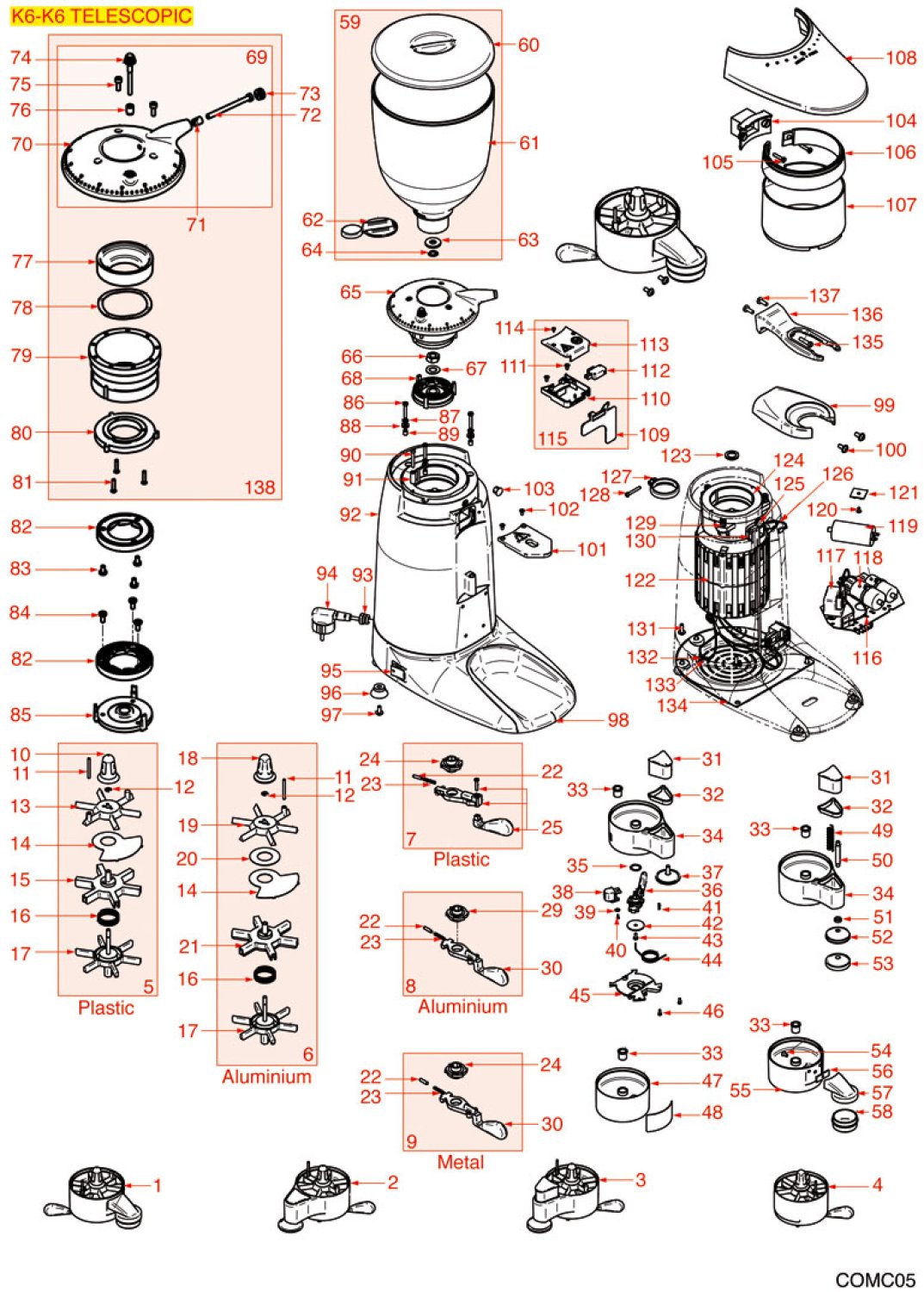

Drawing number 8057579

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
5plastic star assembly8005332
PLASTIC STAR ASSEMBLY
60,45 €

excl. Shipping costs
Delivery time 4-6 weeks
6aluminium star assembly8005333
ALUMINIUM STAR ASSEMBLY
72,97 €

excl. Shipping costs
Delivery time
is determined
10plastic adjustment knob8003189
PLASTIC ADJUSTMENT KNOB
6,24 €

excl. Shipping costs
Delivery time 4-6 weeks
11doser scraper8000672
DOSER SCRAPER
2,45 €

excl. Shipping costs
Delivery time
is determined
13plastic top star8005394
PLASTIC TOP STAR
8,08 €

excl. Shipping costs
Delivery time
is determined
14dividing sheet8005395
DIVIDING SHEET
6,00 €

excl. Shipping costs
Delivery time 4-6 weeks
15plastic middle star8005396
PLASTIC MIDDLE STAR
10,85 €

excl. Shipping costs
Delivery time
is determined
16star spring8003715
STAR SPRING
5,56 €

excl. Shipping costs
Delivery time
is determined
17aluminum bottom star8005397
ALUMINUM BOTTOM STAR
46,21 €

excl. Shipping costs
Delivery time 4-6 weeks
18aluminium adjustment knob8003202
ALUMINIUM ADJUSTMENT KNOB
35,02 €

excl. Shipping costs
Delivery time 4-6 weeks
19aluminum top star8005398
ALUMINUM TOP STAR
22,28 €

excl. Shipping costs
Delivery time 4-6 weeks
21mittlerer stern aus aluminium8005399
MITTLERER STERN AUS ALUMINIUM
18,05 €

excl. Shipping costs
Delivery time 4-6 weeks
22handle spindle8005198
HANDLE SPINDLE
2,39 €

excl. Shipping costs
Delivery time 4-6 weeks
23lever pin spring8003712
LEVER PIN SPRING
0,93 €

excl. Shipping costs
immediately available, 1 available
246 teeth pawl8002816
6-TEETH PAWL
5,96 €

excl. Shipping costs
Delivery time
is determined
25plastic doser lever8002817
PLASTIC DOSER LEVER
Price on request
296 teeth pawl8002816
6-TEETH PAWL
5,96 €

excl. Shipping costs
Delivery time
is determined
30metal doser lever8002818
METAL DOSER LEVER
34,55 €

excl. Shipping costs
Delivery time
is determined
33bushing for doser8004469
BUSHING FOR DOSER
11,35 €

excl. Shipping costs
Delivery time 4-6 weeks
35wave washer8004471
WAVE WASHER
6,94 €

excl. Shipping costs
Delivery time 4-6 weeks
37coffee tamper lower cap o 57 mm8006417
COFFEE TAMPER LOWER CAP ø 57 mm
13,34 €

excl. Shipping costs
immediately available, 1 available
38counter for coffee grinder8004472
COUNTER FOR COFFEE GRINDER
59,89 €

excl. Shipping costs
Delivery time
is determined
41rubber piece8002110
RUBBER PIECE
1,31 €

excl. Shipping costs
Delivery time
is determined
42shaft washer8002112
SHAFT WASHER
1,43 €

excl. Shipping costs
Delivery time 4-6 weeks
44doser lever return spring lefthand8003704
DOSER LEVER RETURN SPRING LEFTHAND
6,60 €

excl. Shipping costs
Delivery time 4-6 weeks
44doser lever return spring righthand8003713
DOSER LEVER RETURN SPRING RIGHTHAND
2,92 €

excl. Shipping costs
Delivery time
is determined
45doser base k6 k88000699
DOSER BASE K6/K8
6,34 €

excl. Shipping costs
Delivery time
is determined
49coffee tamper spring o 15x85 mm8003701
COFFEE TAMPER SPRING ø 15x85 mm
3,74 €

excl. Shipping costs
Delivery time
is determined
53coffee tamper cap8006418
COFFEE TAMPER CAP
17,21 €

excl. Shipping costs
Delivery time 4-6 weeks
56threaded reinforcement8000706
THREADED REINFORCEMENT
1,80 €

excl. Shipping costs
Delivery time 4-6 weeks
57standard coffee tamper8006206
STANDARD COFFEE TAMPER
12,42 €

excl. Shipping costs
Delivery time 4-6 weeks
58standard coffee tamper8006206
STANDARD COFFEE TAMPER
12,42 €

excl. Shipping costs
Delivery time 4-6 weeks
58coffee tamper cap8006416
COFFEE TAMPER CAP
Price on request
60coffee hopper lid8004383
COFFEE HOPPER LID
17,18 €

excl. Shipping costs
Delivery time
is determined
61compak coffee hopper8000442
Compak COFFEE HOPPER
43,08 €

excl. Shipping costs
Delivery time
is determined
62coffee hopper closing sheet8000443
COFFEE HOPPER CLOSING SHEET
6,52 €

excl. Shipping costs
immediately available, 1 available

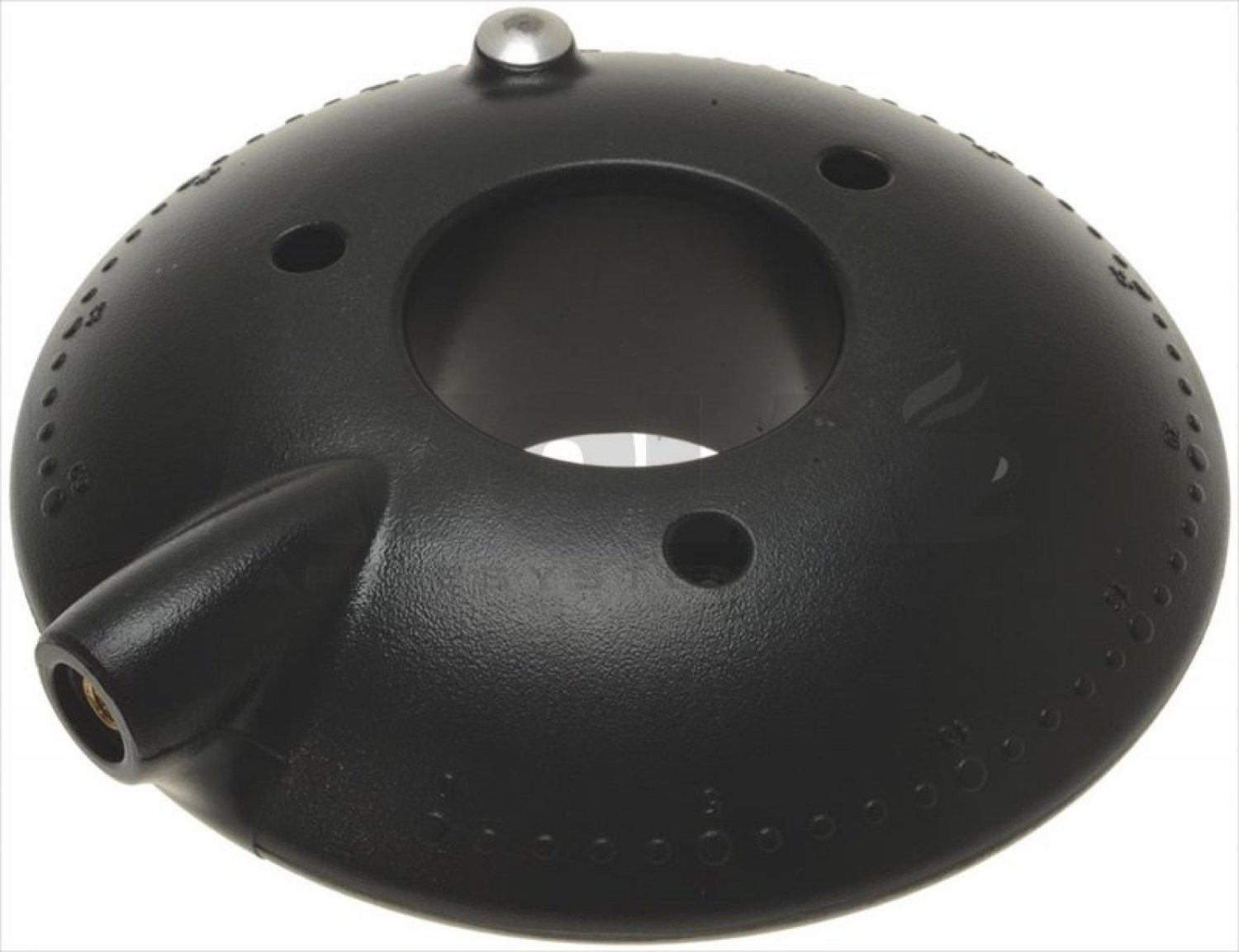

70adjustment ring nut8004474
ADJUSTMENT RING NUT
12,40 €

excl. Shipping costs
Delivery time 4-6 weeks
82grinding burrs pair compak wega rh8004059
GRINDING BURRS PAIR COMPAK-WEGA RH
23,90 €

excl. Shipping costs
Delivery time
is determined
84countersunk flat head screws m4x108007244
COUNTERSUNK FLAT HEAD SCREWS M4x10
1,05 €

excl. Shipping costs
immediately available
85grinding burrs bottom holder8004002
GRINDING BURRS BOTTOM HOLDER
52,55 €

excl. Shipping costs
Delivery time 4-6 weeks
95black bipolar switch 16a 250v8020540
BLACK BIPOLAR SWITCH 16A 250V
5,57 €

excl. Shipping costs
immediately available, 4 available
96suction foot8004618
SUCTION FOOT
3,28 €

excl. Shipping costs
immediately available, 1 available
98compak coffee collection tray8004576
Compak COFFEE COLLECTION TRAY
18,73 €

excl. Shipping costs
Delivery time
is determined
99filter holder fork8001159
FILTER HOLDER FORK
6,66 €

excl. Shipping costs
Delivery time
is determined
104gasket for coffee outlet opening8004475
GASKET FOR COFFEE OUTLET OPENING
8,28 €

excl. Shipping costs
immediately available, 1 available
106chromeplated doser ring8000012
CHROMEPLATED DOSER RING
36,28 €

excl. Shipping costs
Delivery time
is determined
106doser ring8000014
DOSER RING
9,52 €

excl. Shipping costs
Delivery time 4-6 weeks
107doser cylinder8000703
DOSER CYLINDER
20,02 €

excl. Shipping costs
Delivery time
is determined
108doser lid8000675
DOSER LID
15,60 €

excl. Shipping costs
Delivery time 4-6 weeks
109doser flap8000676
DOSER FLAP
9,92 €

excl. Shipping costs
Delivery time
is determined
112microswitch 21a 250v8002899
MICROSWITCH 21A 250V
9,51 €

excl. Shipping costs
Delivery time 4-6 weeks
115flap with microswitch box8004177
FLAP WITH MICROSWITCH BOX
22,49 €

excl. Shipping costs
Delivery time
is determined
123retaining gasket8002111
RETAINING GASKET
2,39 €

excl. Shipping costs
Delivery time
is determined
130o ring 02106 epdm8014819
O-RING 02106 EPDM
Price on request
136filter holder fork8000698
FILTER HOLDER FORK
135,12 €

excl. Shipping costs
Delivery time 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
