CIMBALI - KESSEL M24 M24SELECT

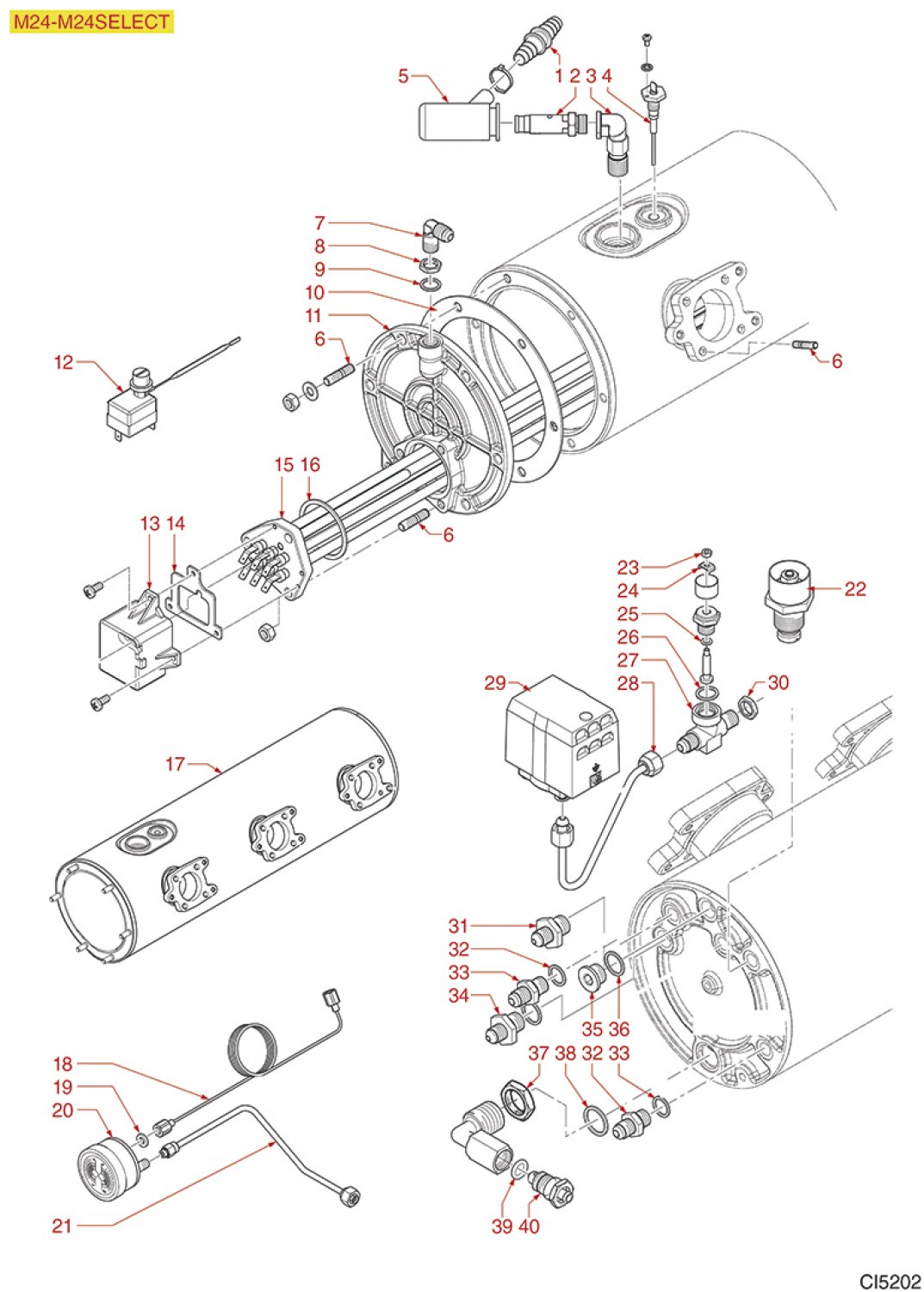

Drawing number 8080503

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
2sicherheitsventil o 3 8m 2 0bar ce ped8102700
Sicherheitsventil ø 3/8M 2.0bar CE-PED
23,72 €

excl. Shipping costs
immediately available, 8 available
4level probe o 1 8a 89 mm8063814
LEVEL PROBE ø 1/8A-89 mm
32,36 €

excl. Shipping costs
immediately available, 3 available
9copper flat gasket o 18x14x1 5 mm8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs
immediately available

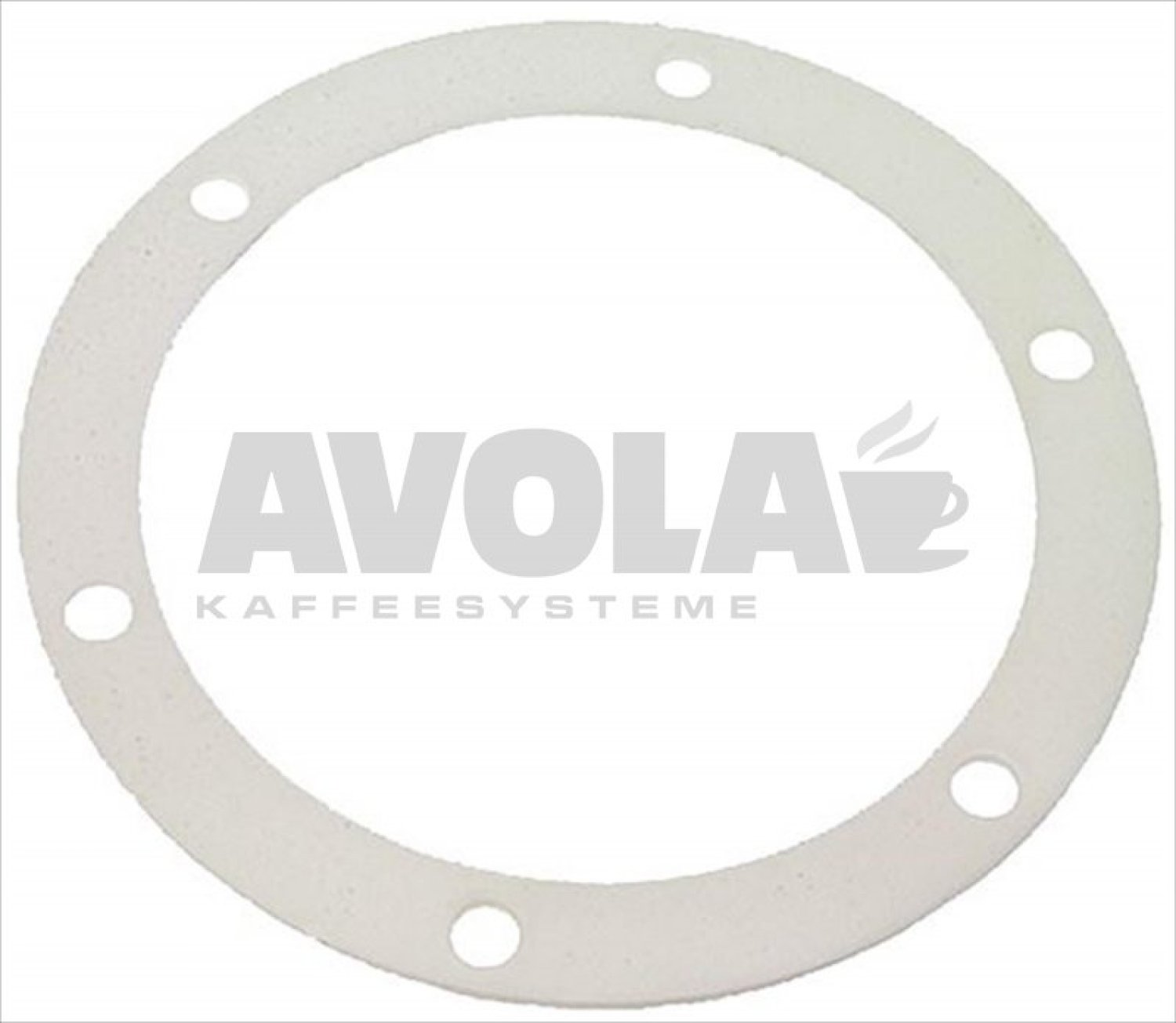

10boiler gasket o 180x140x3 mm8037462
BOILER GASKET ø 180x140x3 mm
21,05 €

excl. Shipping costs
Delivery time
is determined

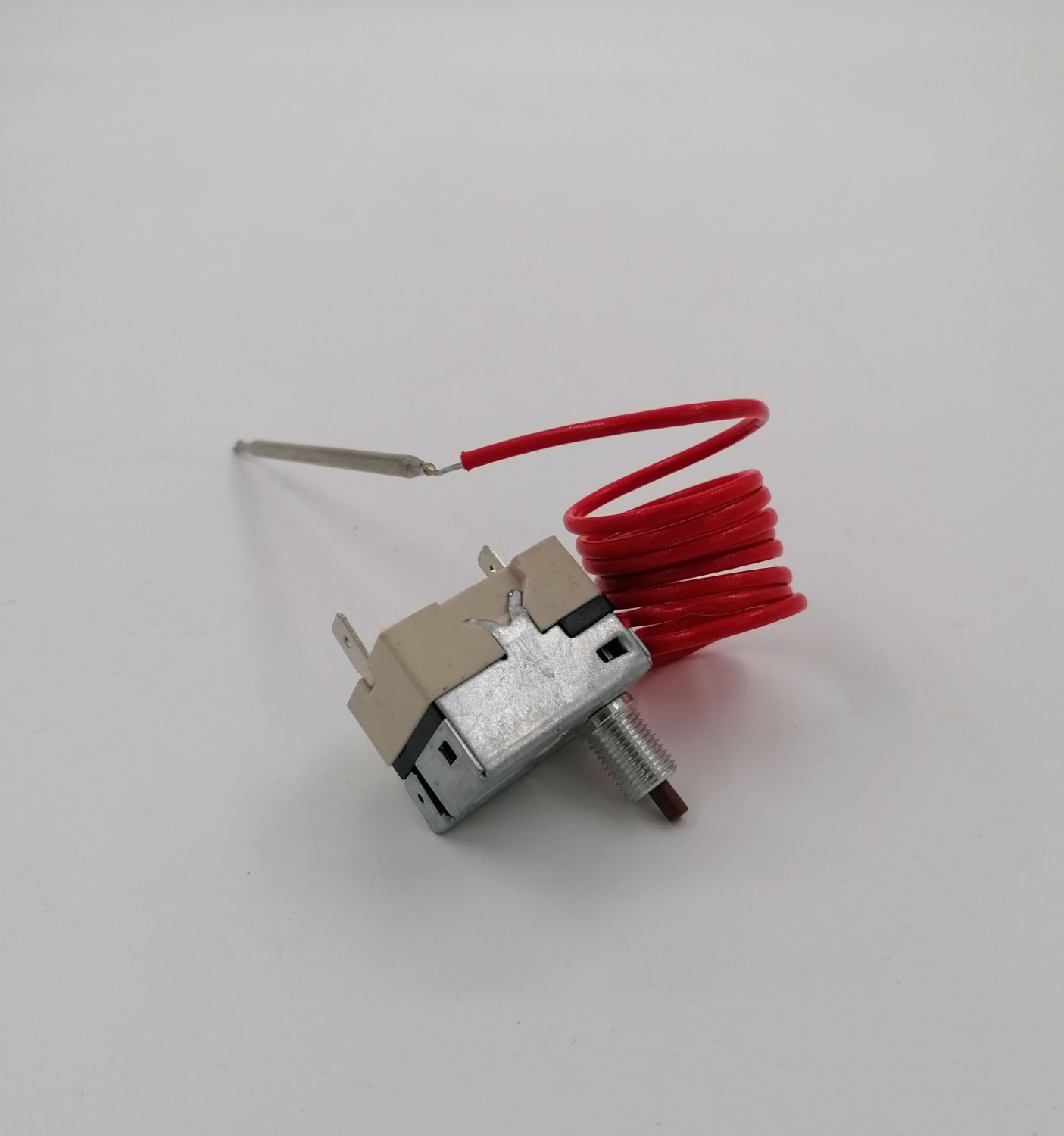

12single phase thermostat 1708064629
SINGLE-PHASE THERMOSTAT 170
62,08 €

excl. Shipping costs
immediately available, 1 available

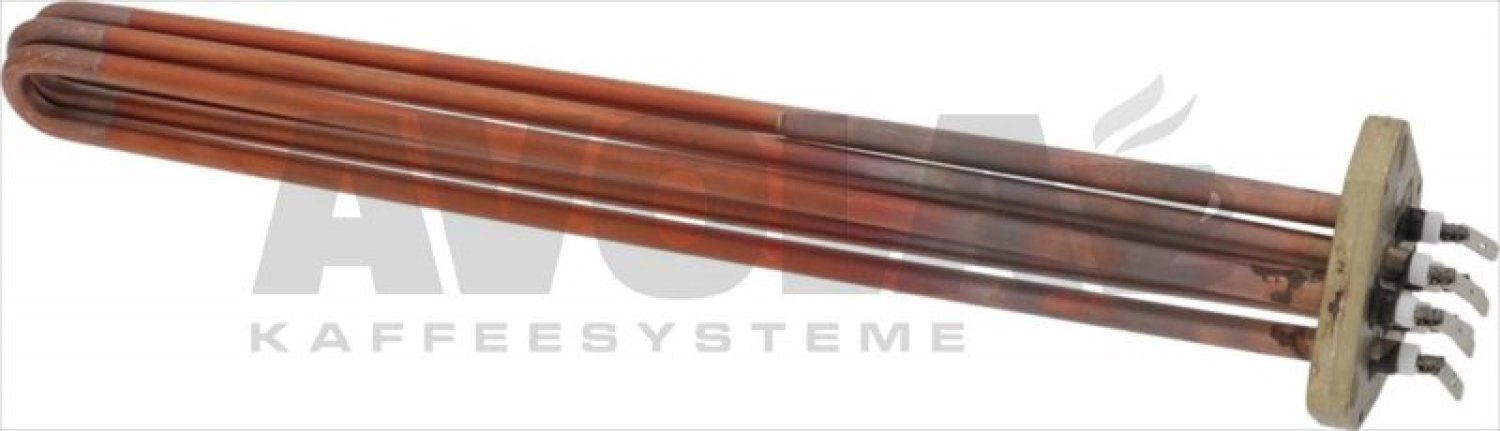

15heating element 3750 4500w 220 240v8007450
HEATING ELEMENT 3750/4500W 220/240V
73,43 €

excl. Shipping costs
immediately available, 1 available

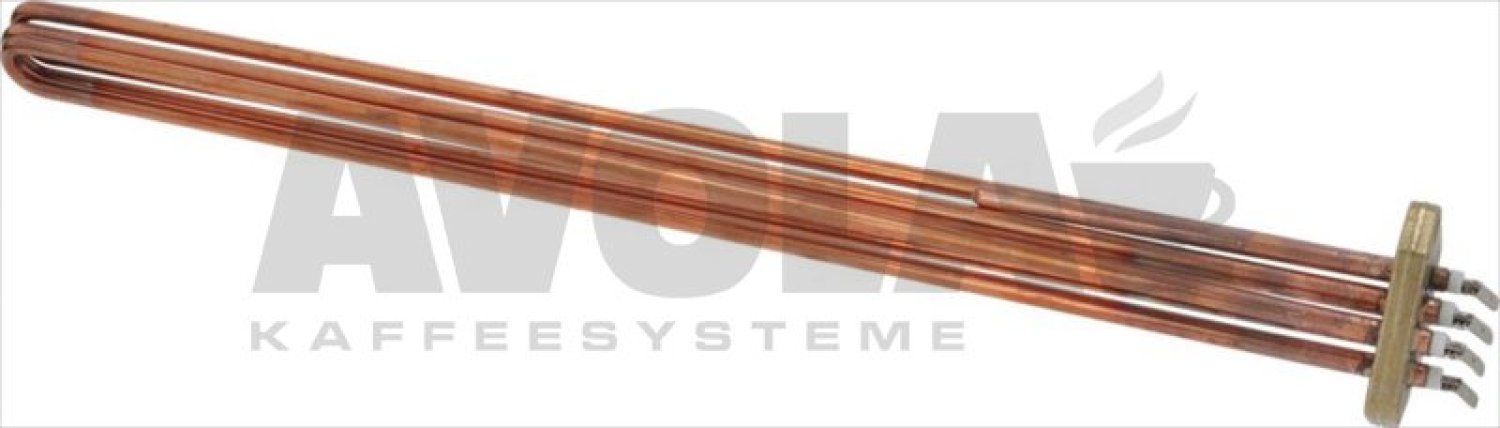

15heating element 5790w 220v8007451
HEATING ELEMENT 5790W 220V
93,01 €

excl. Shipping costs
Delivery time
is determined

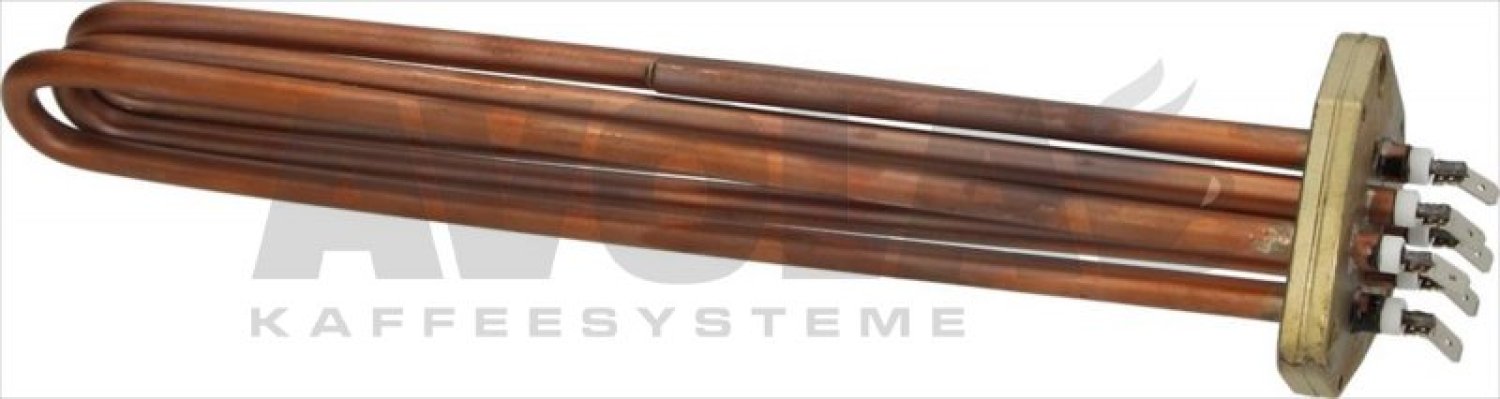

15heating element 2950 3420w 220 400v8007560
HEATING ELEMENT 2950/3420W 220/400V
74,34 €

excl. Shipping costs
immediately available, 1 available

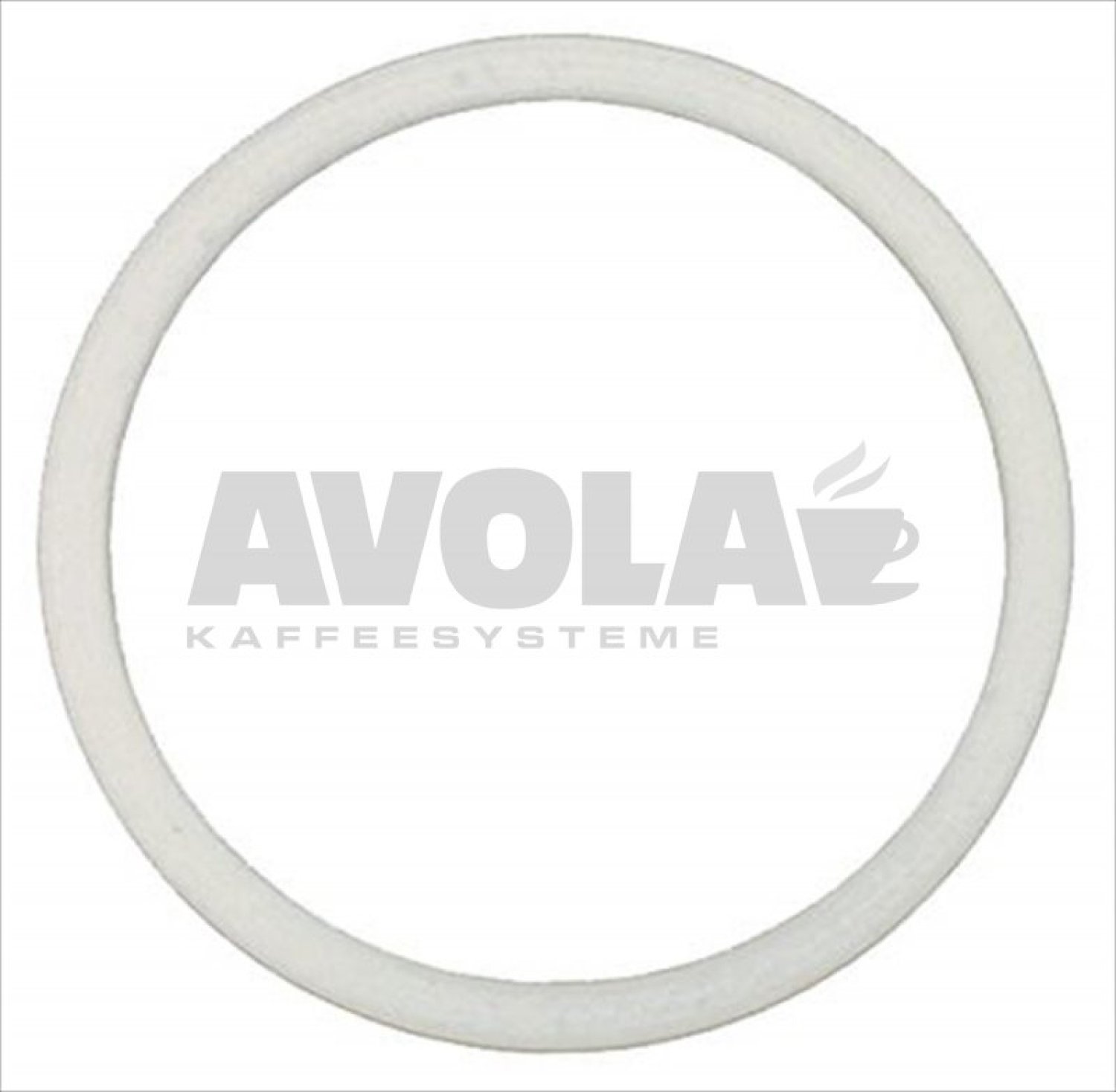

16ptfe flat gasket o 58x51x2 mm8001807
PTFE FLAT GASKET ø 58x51x2 mm
4,22 €

excl. Shipping costs
immediately available, 14 available

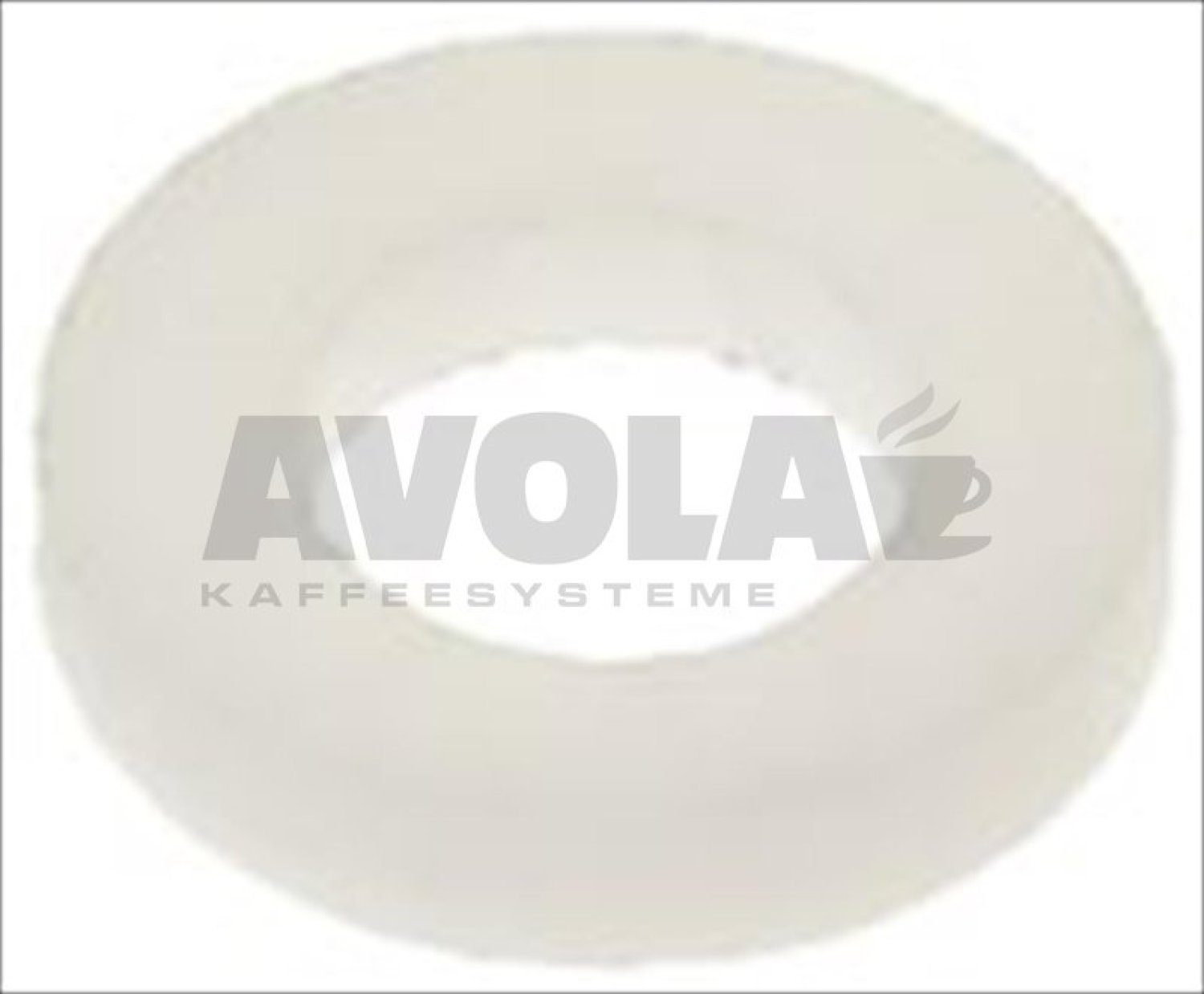

19flat ptfe gasket o 8 5x4 5x1 5mm8002131
FLAT PTFE GASKET ø 8,5x4,5x1,5mm
1,18 €

excl. Shipping costs
immediately available, 10 available

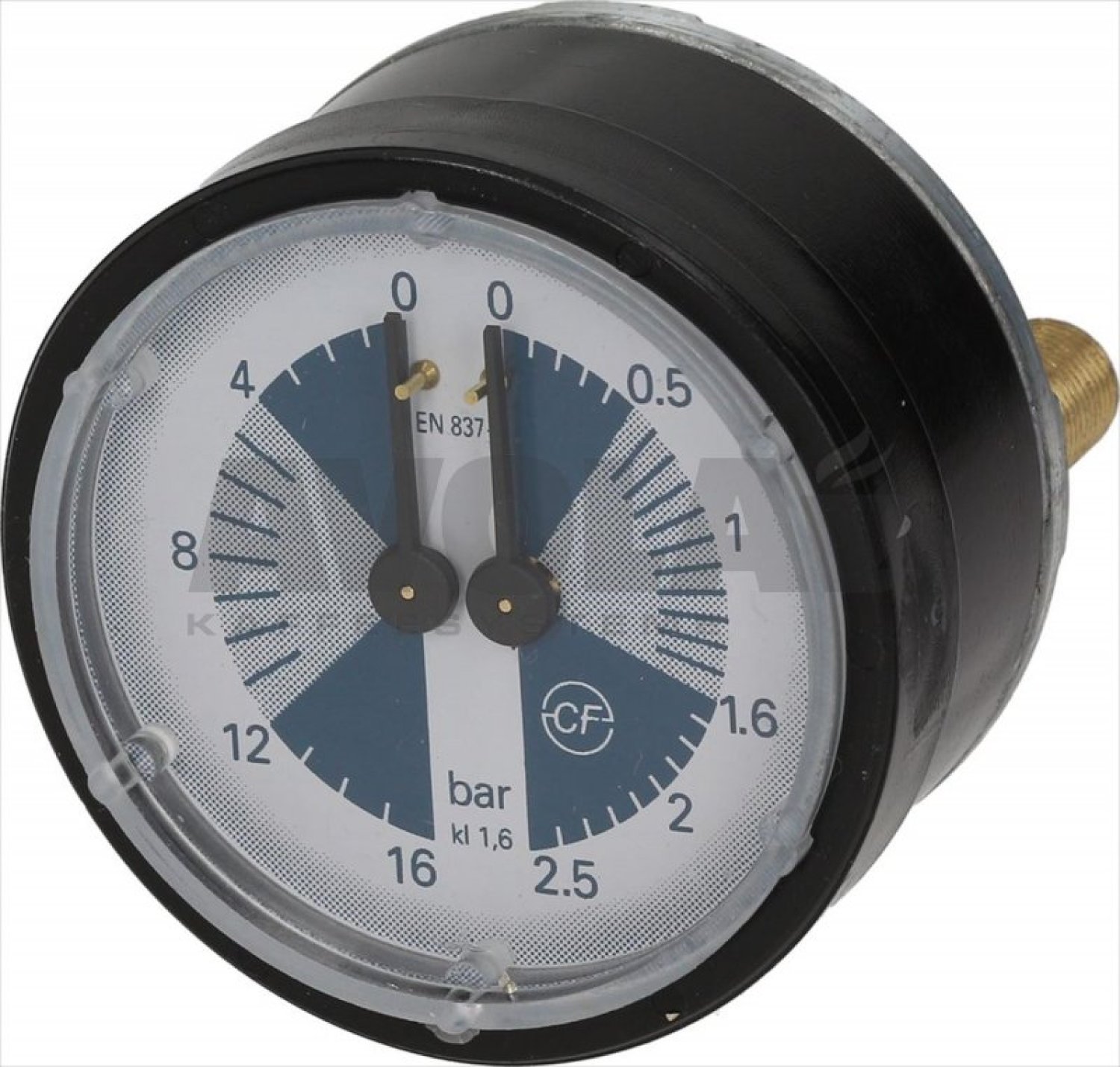

20boiler pump pressure gauge8063643
BOILER-PUMP PRESSURE GAUGE
140,66 €

excl. Shipping costs
Delivery time
is determined

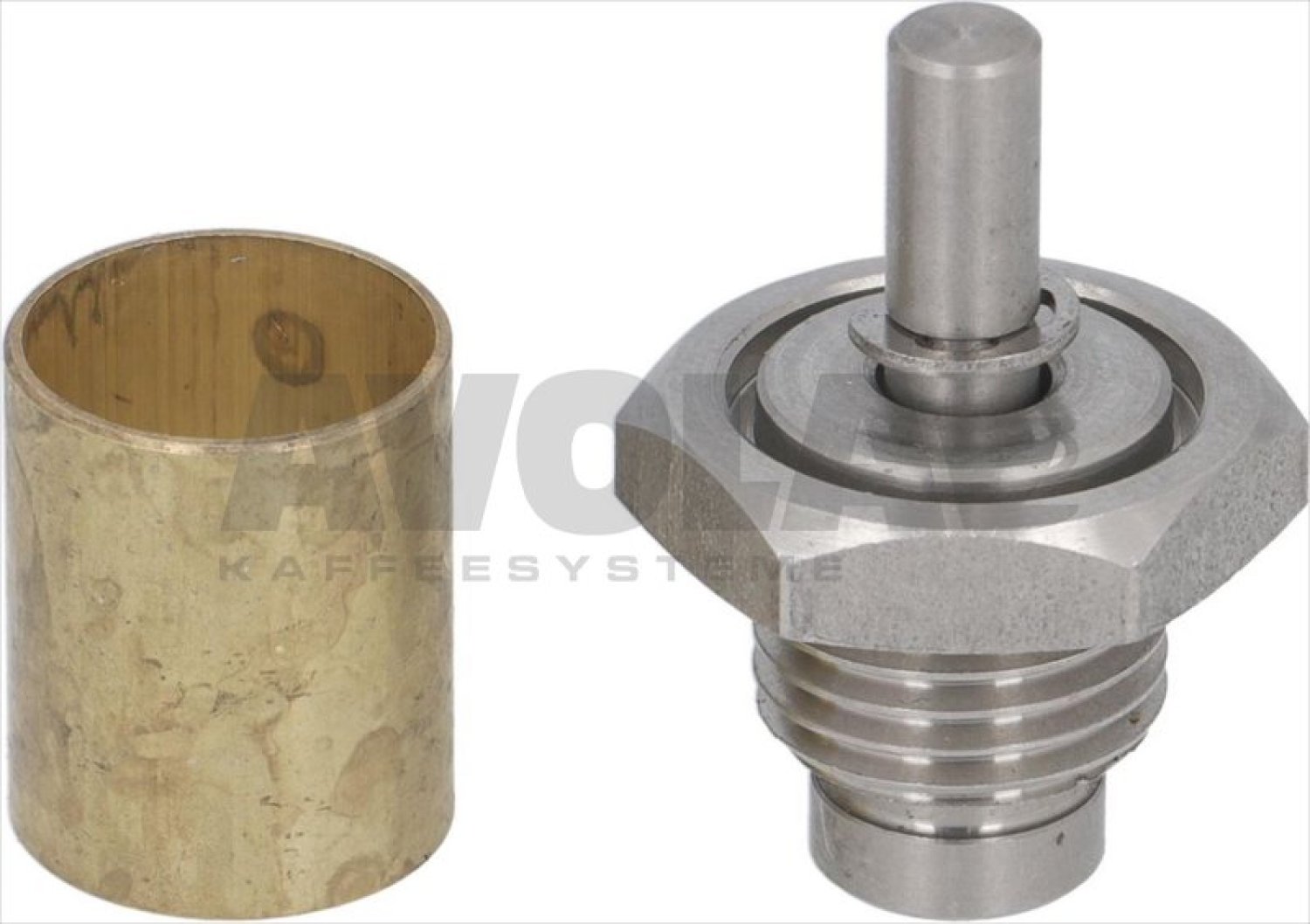

22boiler valve8064179
BOILER VALVE
19,90 €

excl. Shipping costs
Delivery time
is determined

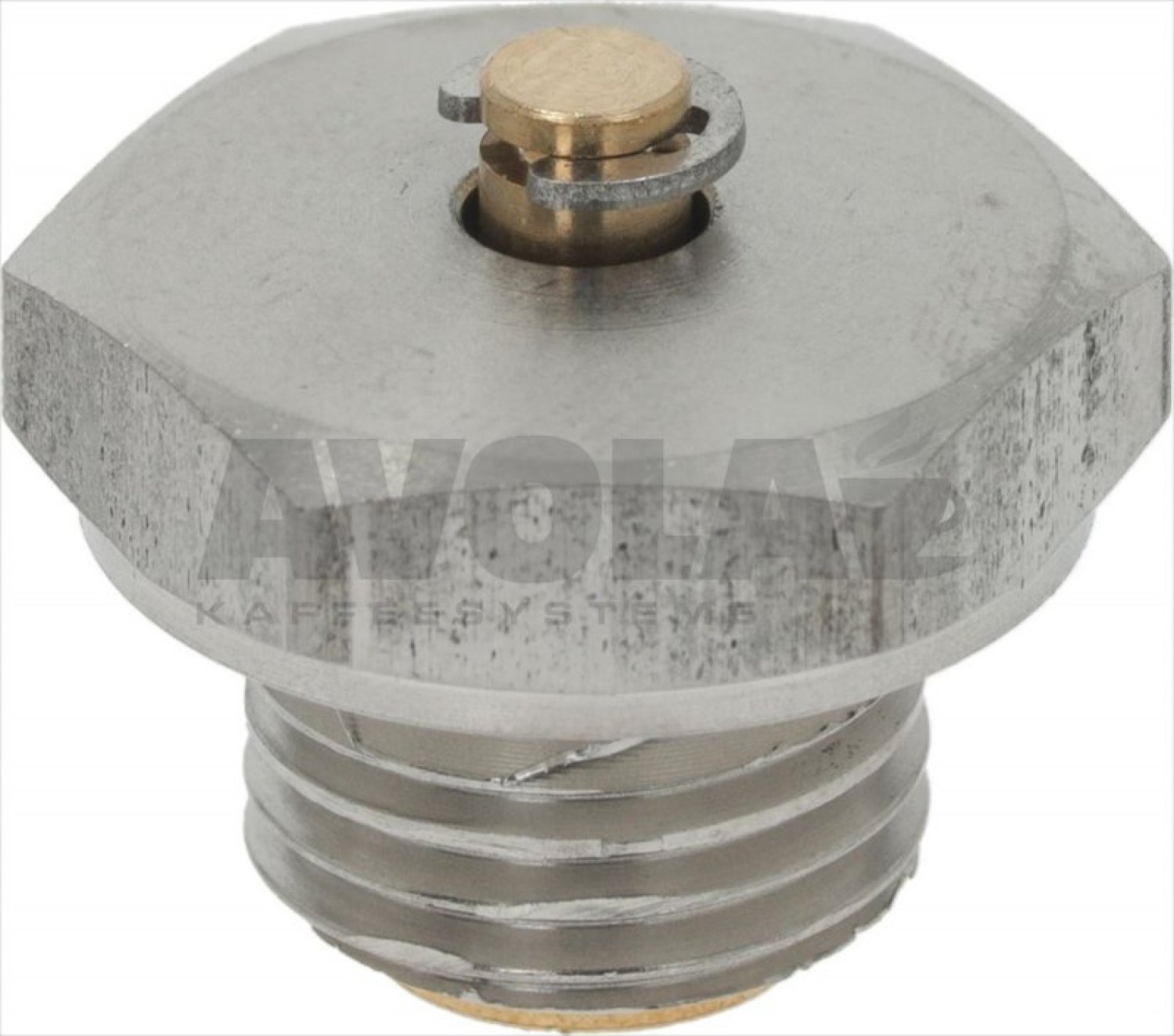

22boiler valve old model8007152
Boiler valve - old model
5,65 €

excl. Shipping costs
immediately available, 15 available

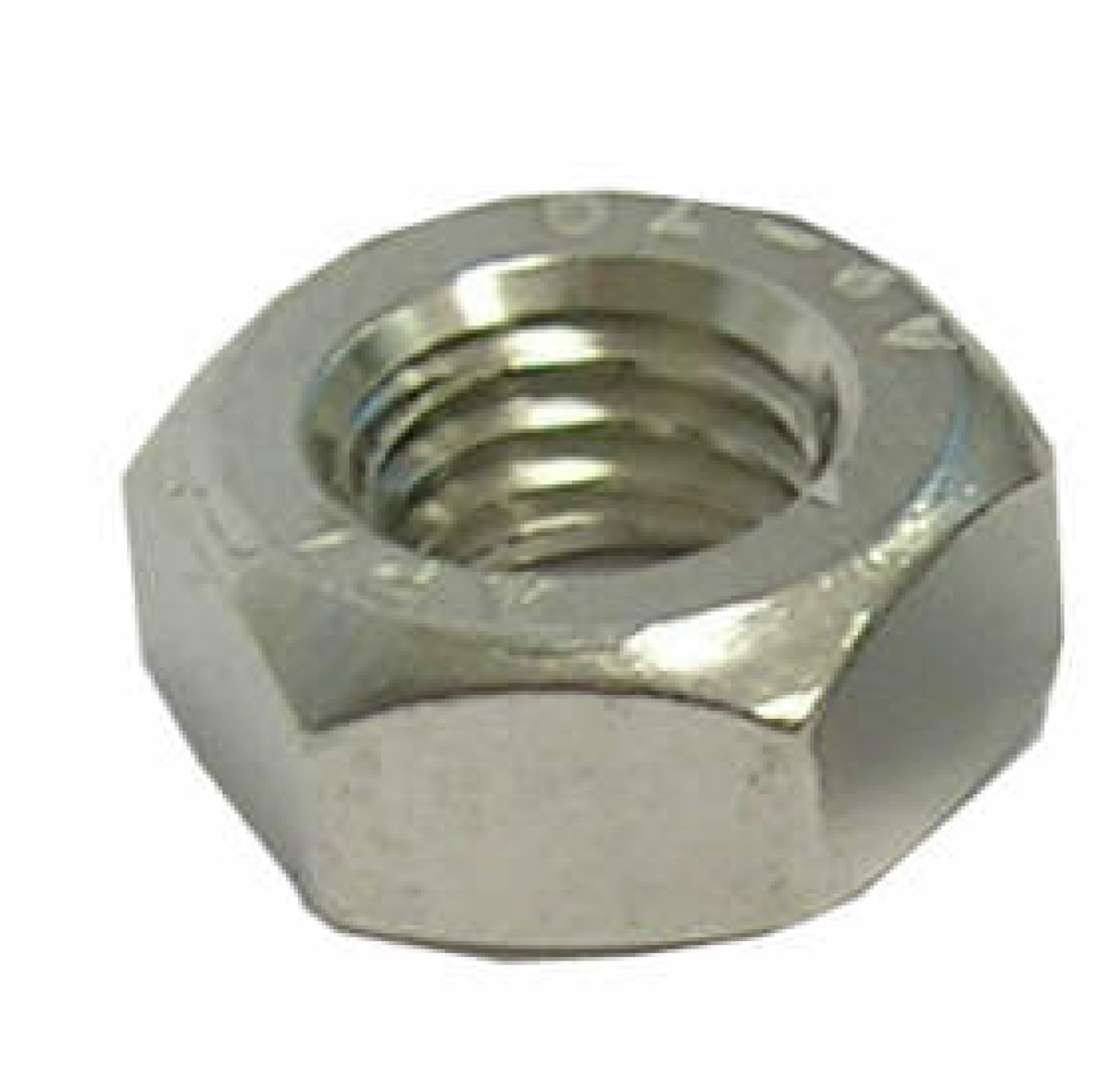

23hexagonal nut m4 medium8005615
HEXAGONAL NUT M4 MEDIUM
Price on request

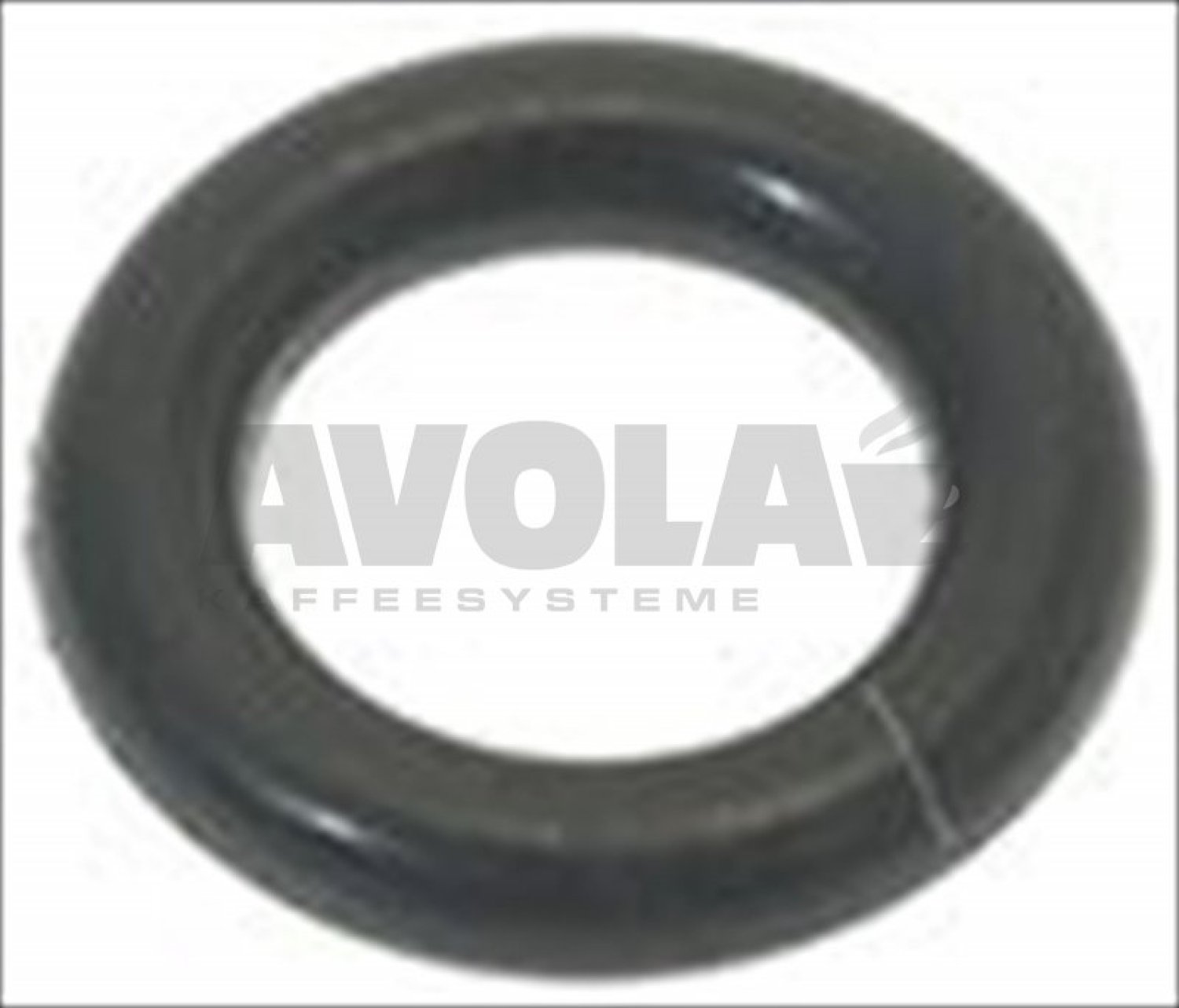

25gasket or 02021 epdm8001604
Gasket OR 02021 EPDM
1,09 €

excl. Shipping costs
immediately available

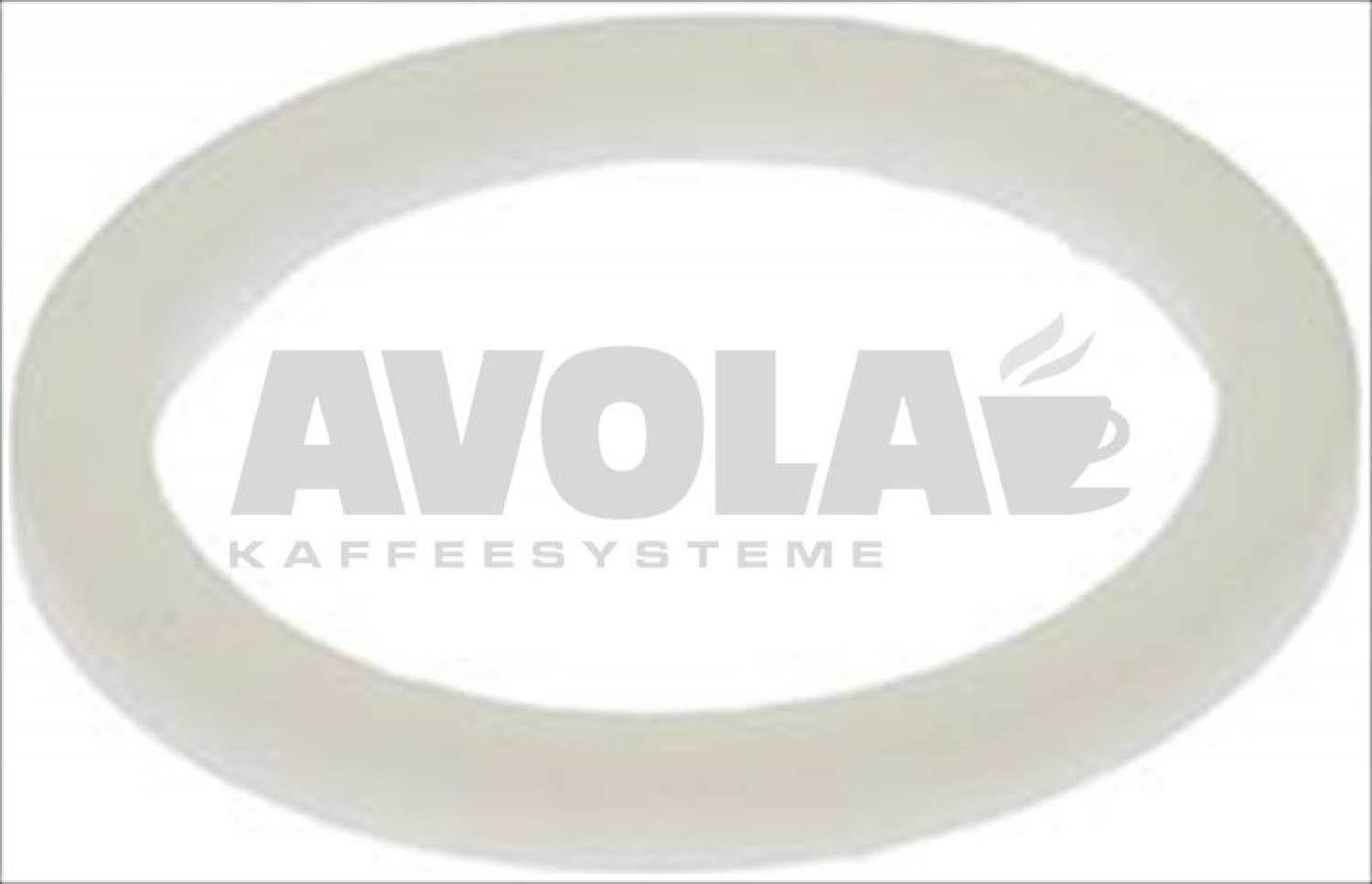

26ptfe flat gasket o 18x14x1 5 mm8061013
PTFE FLAT GASKET ø 18x14x1,5 mm
1,11 €

excl. Shipping costs
immediately available, 8 available

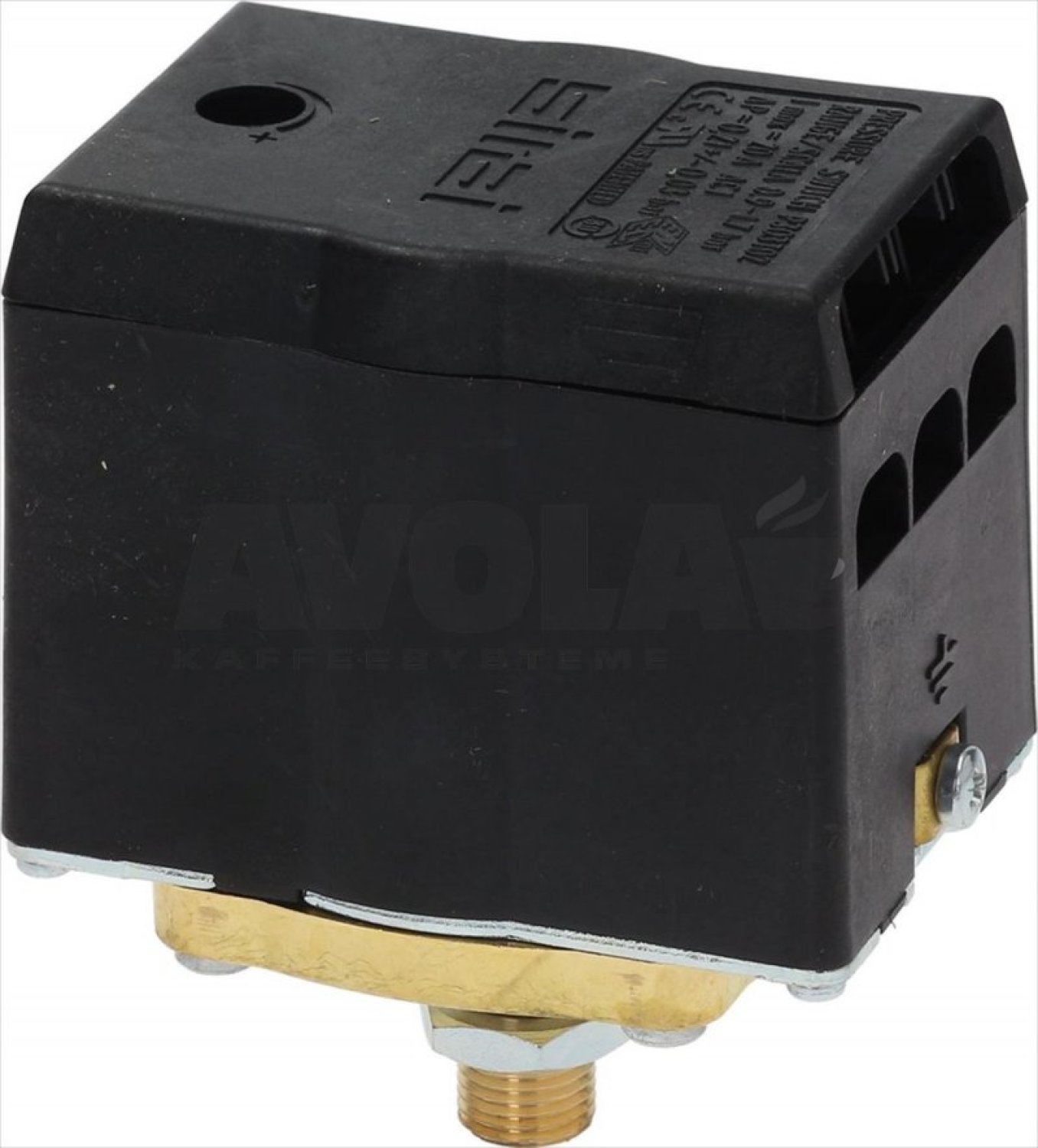

29pressure switch p303t02 3 poles 20a 1 4 rime8005078
Pressure switch P303T02 3-poles 20A 1/4″
91,88 €

excl. Shipping costs
immediately available, 10 available
32copper flat gasket o 18x14x1 5 mm8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs
immediately available

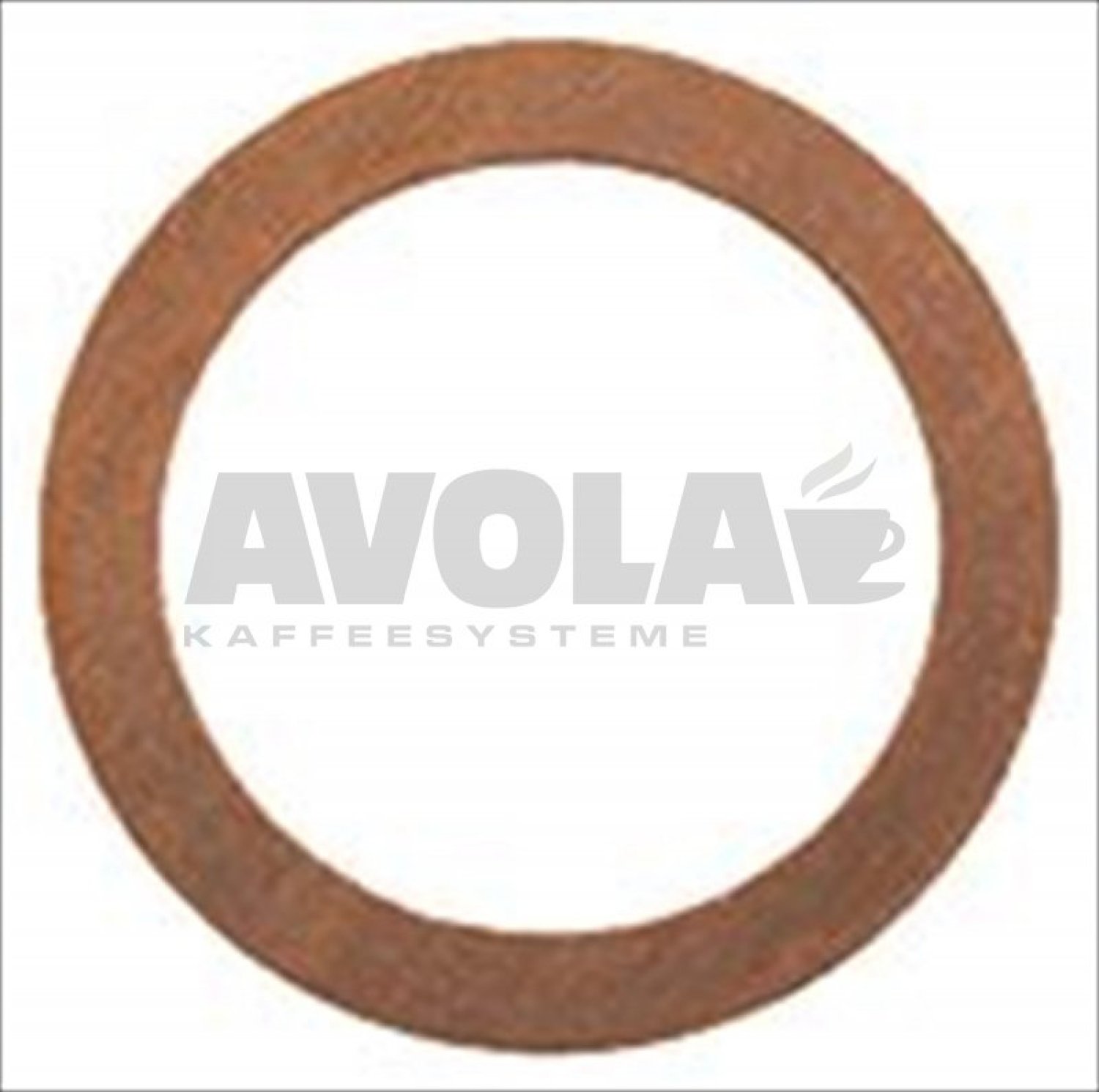

36copper flat gasket 22x17x1 5 mm8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs
immediately available

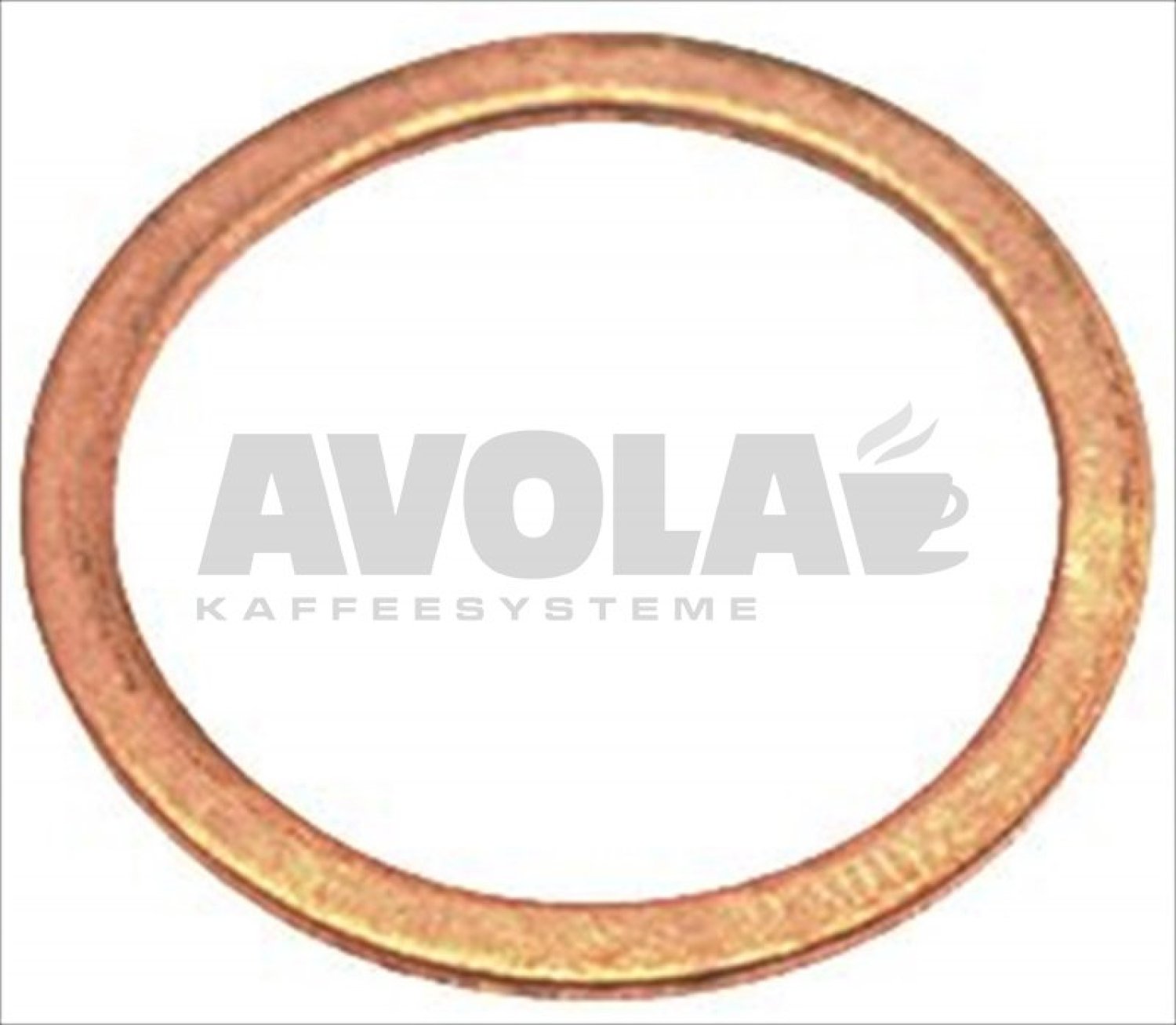

38copper flat gasket o 26x21 5x1 5 mm8001496
COPPER FLAT GASKET ø 26x21,5x1,5 mm
1,56 €

excl. Shipping costs
immediately available

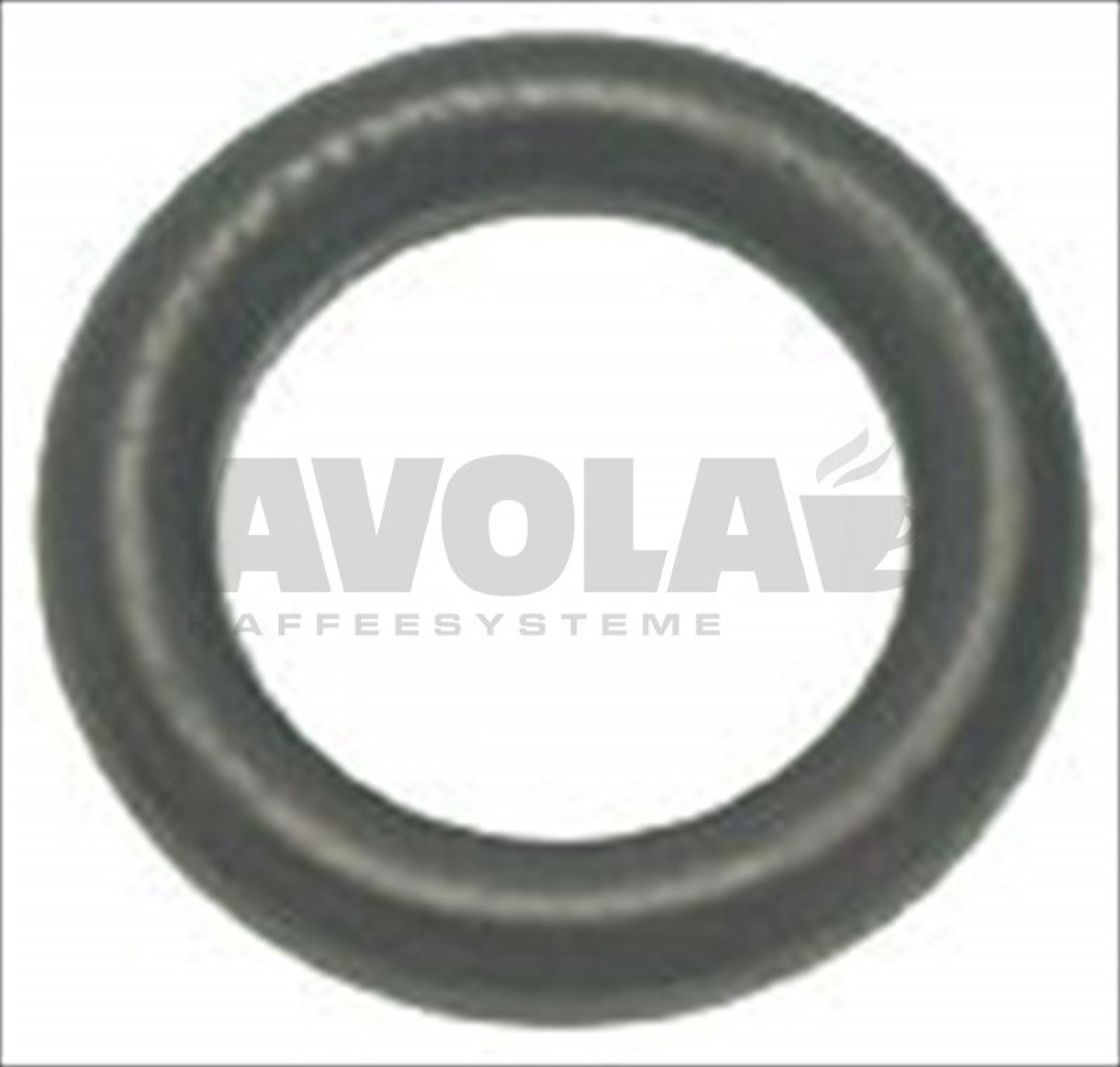

39o ring 0109 epdm8001529
O-RING 0109 EPDM
0,80 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
