Cimbali

CIMBALI HAHN M15-20-21-22-25-28-30-31-32-39

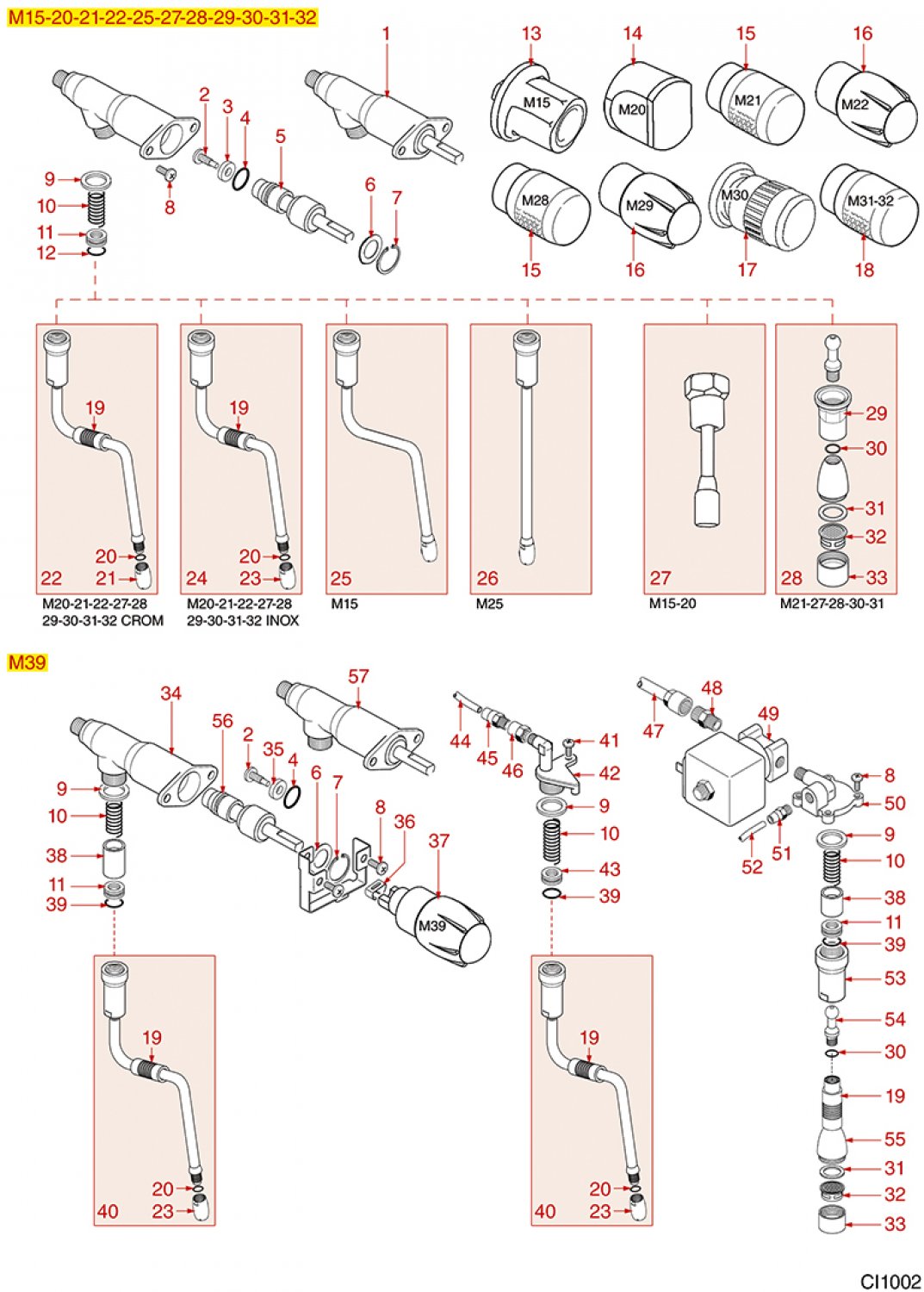

Drawing number 8038698

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1water steam tap8005540
WATER/STEAM TAP
49,33 €

excl. Shipping costs
immediately available, 4 available
1ventilkoerper dampfhahn anschluss 1 4 quot konisch cimbali casadio faema8079299
Ventilkörper Dampfhahn Anschluss 1/4" konisch Cimbali Casadio Faema
95,22 €

excl. Shipping costs
Delivery time
is determined

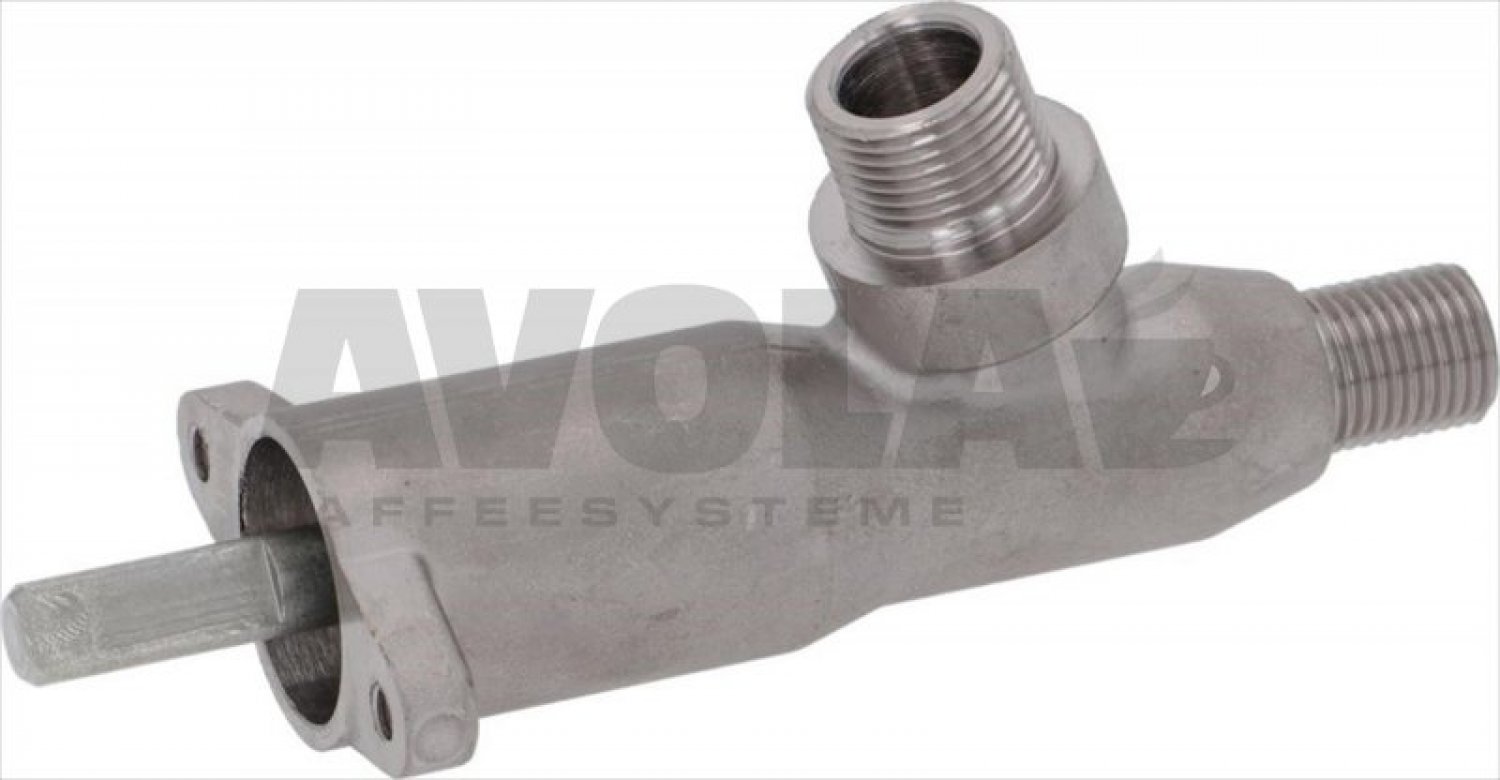

1wasser dampfhahn komplett8142597
WASSER-DAMPFHAHN KOMPLETT
125,00 €

excl. Shipping costs
Delivery time
is determined
2screw pin for water steam tap8001300
SCREW PIN FOR WATER/STEAM TAP
11,35 €

excl. Shipping costs
immediately available, 1 available
3flat gasket o 11x3x4 mm8001591
FLAT GASKET ø 11x3x4 mm
1,20 €

excl. Shipping costs
immediately available
4o ring 03043 viton8001513
O-RING 03043 VITON
1,18 €

excl. Shipping costs
immediately available
5cimbali pin tap8005541
CIMBALI PIN TAP
31,48 €

excl. Shipping costs
immediately available, 2 available
6washer o 22x16x1 mm8001561
WASHER ø 22x16x1 mm
0,82 €

excl. Shipping costs
immediately available, 12 available
7seeger ring j 198005450
SEEGER RING J-19
0,88 €

excl. Shipping costs
immediately available
8cylinder head screw m4x88007331
CYLINDER HEAD SCREW M4x8
1,13 €

excl. Shipping costs
immediately available
9flat gasket ptfe o 22x17x1 5 mm8002114
FLAT GASKET PTFE ø 22x17x1,5 mm
2,81 €

excl. Shipping costs
immediately available
10tap pipe spring o 11x248003731
TAP PIPE SPRING ø 11x24
1,51 €

excl. Shipping costs
immediately available, 13 available
11conical ptfe seal o 14 5x7 5x6 mm8001592
CONICAL PTFE SEAL ø 14,5x7,5x6 mm
1,92 €

excl. Shipping costs
immediately available, 19 available
12o ring 02043 epdm8001593
O-RING 02043 EPDM
0,79 €

excl. Shipping costs
immediately available
13water steam tap knob8003389
WATER/STEAM TAP KNOB
9,63 €

excl. Shipping costs
immediately available, 3 available
14water steam tap knob8003388
WATER/STEAM TAP KNOB
5,77 €

excl. Shipping costs
Delivery time 4-6 weeks
15cimbali drehknopf knebel dampf heisswasser8101688
Cimbali Drehknopf Knebel Dampf Heisswasser
24,95 €
24,95 €

excl. Shipping costs
Delivery time 4-6 weeks
16water steam tap knob8003127
WATER/STEAM TAP KNOB
42,42 €

excl. Shipping costs
Delivery time
is determined
17water steam tap knob8003126
WATER/STEAM TAP KNOB
44,91 €

excl. Shipping costs
Delivery time 4-6 weeks
18water steam tap knob8003252
WATER/STEAM TAP KNOB
30,90 €

excl. Shipping costs
Delivery time
is determined
19burn preventing pipe handgrip o8 10 mm8002158
BURN PREVENTING PIPE HANDGRIP ø8-10 mm
2,44 €

excl. Shipping costs
immediately available, 15 available
20o ring 02031 epdm8001647
O-RING 02031 EPDM
1,18 €

excl. Shipping costs
immediately available
21chrome plated steam nozzle 4 hole 1 88006665
CHROME-PLATED STEAM NOZZLE 4-Hole 1/8
11,27 €

excl. Shipping costs
immediately available, 1 available
22cimbali faema steam pipe8006868
CIMBALI FAEMA STEAM PIPE
26,66 €

excl. Shipping costs
Delivery time
is determined
23st steel steam diffuser 4 hole8006683
ST/STEEL STEAM DIFFUSER 4 hole
36,38 €

excl. Shipping costs
immediately available, 2 available
24s steel complete steam pipe8006666
S/STEEL COMPLETE STEAM PIPE
87,02 €

excl. Shipping costs
Delivery time
is determined
25steam pipe complete8006867
STEAM PIPE COMPLETE
20,03 €

excl. Shipping costs
immediately available, 1 available
26cimbali steam pipe8006869
CIMBALI STEAM PIPE
This article is no longer available
27water pipe8006564
WATER PIPE
56,17 €

excl. Shipping costs
Delivery time
is determined
28complete water pipe8006576
COMPLETE WATER PIPE
148,89 €

excl. Shipping costs
Delivery time
is determined
30o ring gasket 0106 epdm8018501
O-RING GASKET 0106 EPDM
1,44 €

excl. Shipping costs
immediately available
31flat epdm gasket o 20 5x15x2 mm8002115
FLAT EPDM GASKET ø 20,5x15x2 mm
3,32 €

excl. Shipping costs
immediately available, 13 available
32water sprinkler8064581
WATER SPRINKLER
4,64 €

excl. Shipping costs
immediately available, 5 available
35flat gasket viton o 12x4x4 mm8002086
FLAT GASKET VITON ø 12x4x4 mm
3,72 €

excl. Shipping costs
immediately available, 19 available
36elastic ring for knob8003390
ELASTIC RING FOR KNOB
1,79 €

excl. Shipping costs
immediately available, 12 available
39o ring 02043 viton green8002108
O-RING 02043 VITON GREEN
1,32 €

excl. Shipping costs
immediately available
40complete st steel steam pipe8064039
COMPLETE ST.STEEL STEAM PIPE
32,94 €

excl. Shipping costs
immediately available, 1 available
44teflon pipe o 4x6 mm 1 m8006801
TEFLON PIPE ø 4x6 mm - 1 M
5,50 €

excl. Shipping costs
immediately available, 5.17 available
492 way solenoid valve lucifer 240v 50hz8000975
2-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,99 €

excl. Shipping costs
immediately available, 5 available
492 wege magnetventil lucifer 24v o 1 8 quot ff 50 60hz8037618
2-WEGE Magnetventil Lucifer 24V ø 1/8 " FF 50/60hz
55,45 €

excl. Shipping costs
immediately available, 2 available
50water tap body8062617
WATER TAP BODY
81,99 €

excl. Shipping costs
Delivery time
is determined
52ptfe pipe 2x4 1mt8006800
PTFE PIPE 2X4 1MT
7,14 €

excl. Shipping costs
immediately available, 8 available
56cimbali faema casadio tap spindle8005510
Cimbali Faema Casadio TAP SPINDLE
57,19 €

excl. Shipping costs
immediately available, 1 available
57cimbali dampfhahn 90 grad8037613
CIMBALI DAMPFHAHN 90 GRAD
49,94 €

excl. Shipping costs
immediately available, 1 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
