CARIMALI BRÜHGRUPPE ECO

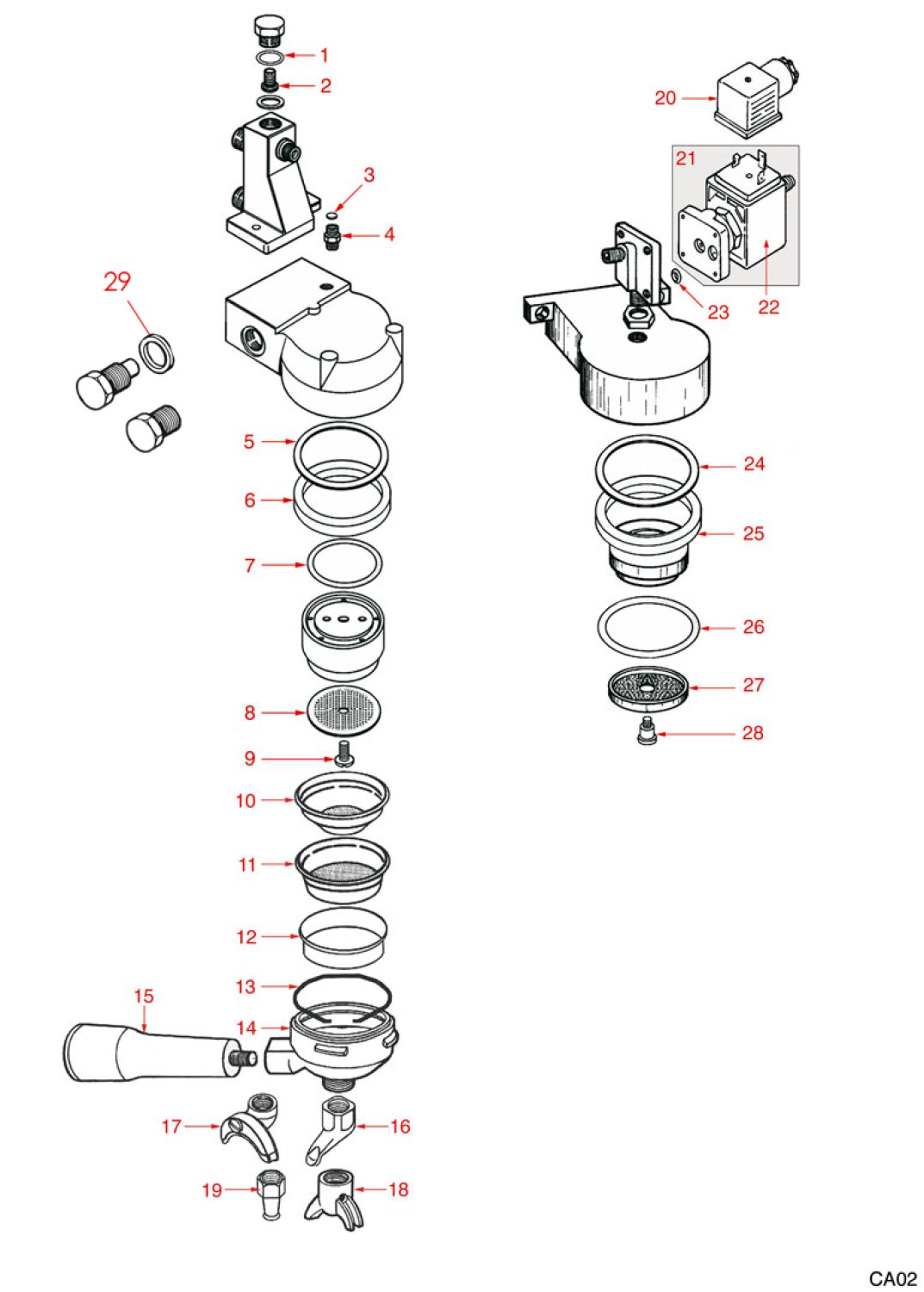

Drawing number 8038660

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1o ring 02093 epdm8001639
O-RING 02093 EPDM
1,00 €

excl. Shipping costs
immediately available, 13 available
2water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
3water filter o 5 9 mm8001118
WATER FILTER ø 5,9 mm
2,87 €

excl. Shipping costs
immediately available, 6 available
4nozzle m10x1 hole8006967
NOZZLE M10x1 HOLE
6,59 €

excl. Shipping costs
immediately available, 2 available
5paper seal o 69x57x0 8 mm8002172
PAPER SEAL ø 69x57x0,8 mm
0,50 €

excl. Shipping costs
immediately available
6filter holder gasket o 69x57x7 5 mm8001859
FILTER HOLDER GASKET ø 69x57x7,5 mm
3,65 €

excl. Shipping costs
immediately available
6original carimali siebtraegerdichtung o 69x57x7 5 mm8103899
Original Carimali Siebträgerdichtung ø 69x57x7,5 mm
6,95 €

excl. Shipping costs
immediately available, 6 available
7o ring 03193 epdm8001860
O-RING 03193 EPDM
2,21 €

excl. Shipping costs
immediately available
8shower 51 50 mm8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs
immediately available

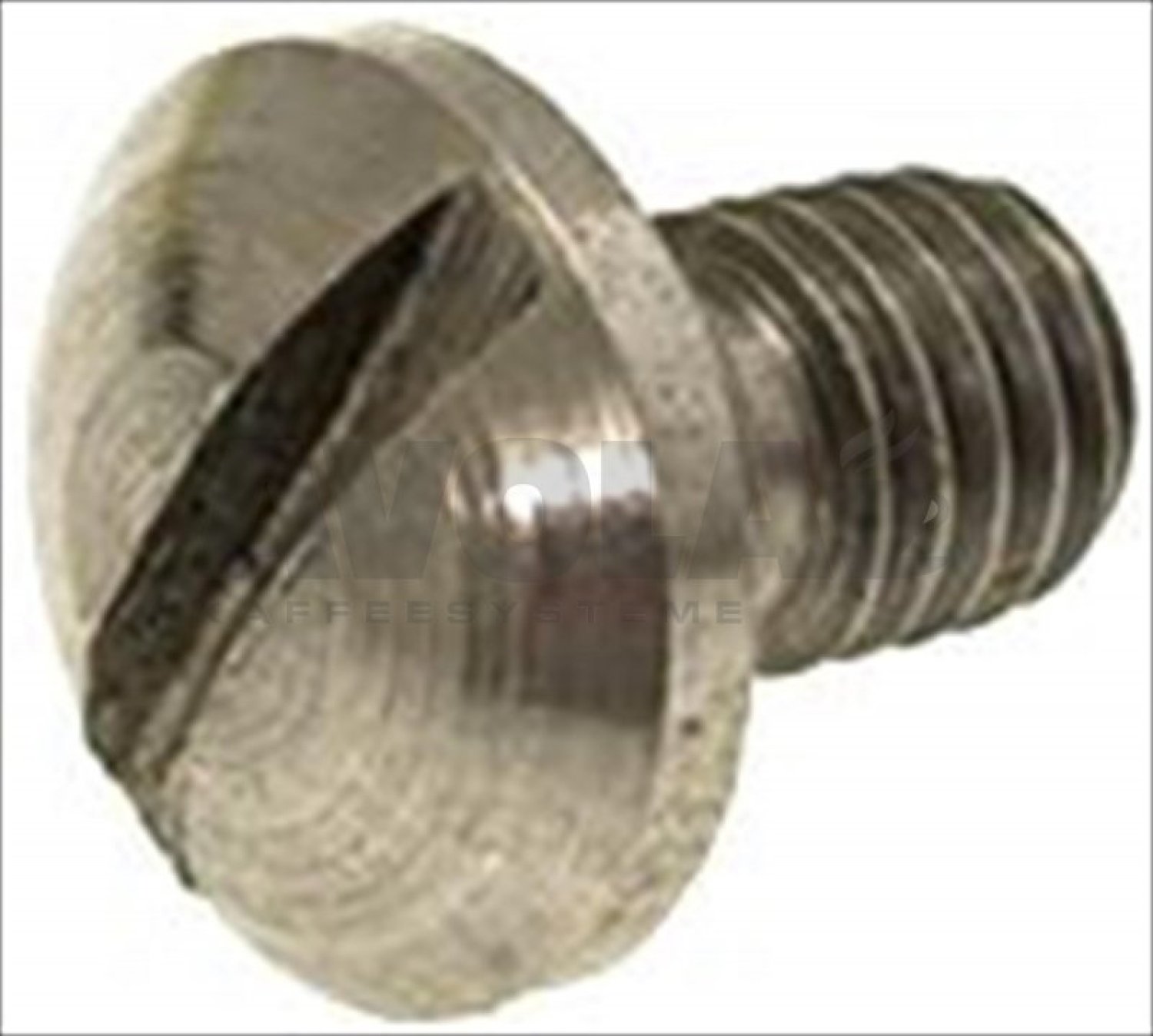

9stainless steel screw m5x12 mm8007319
STAINLESS STEEL SCREW M5x12 mm
4,22 €

excl. Shipping costs
Delivery time 4-6 weeks
101 cup filter 7 gr8001080
1 CUP FILTER 7 gr
5,45 €

excl. Shipping costs
immediately available, 11 available

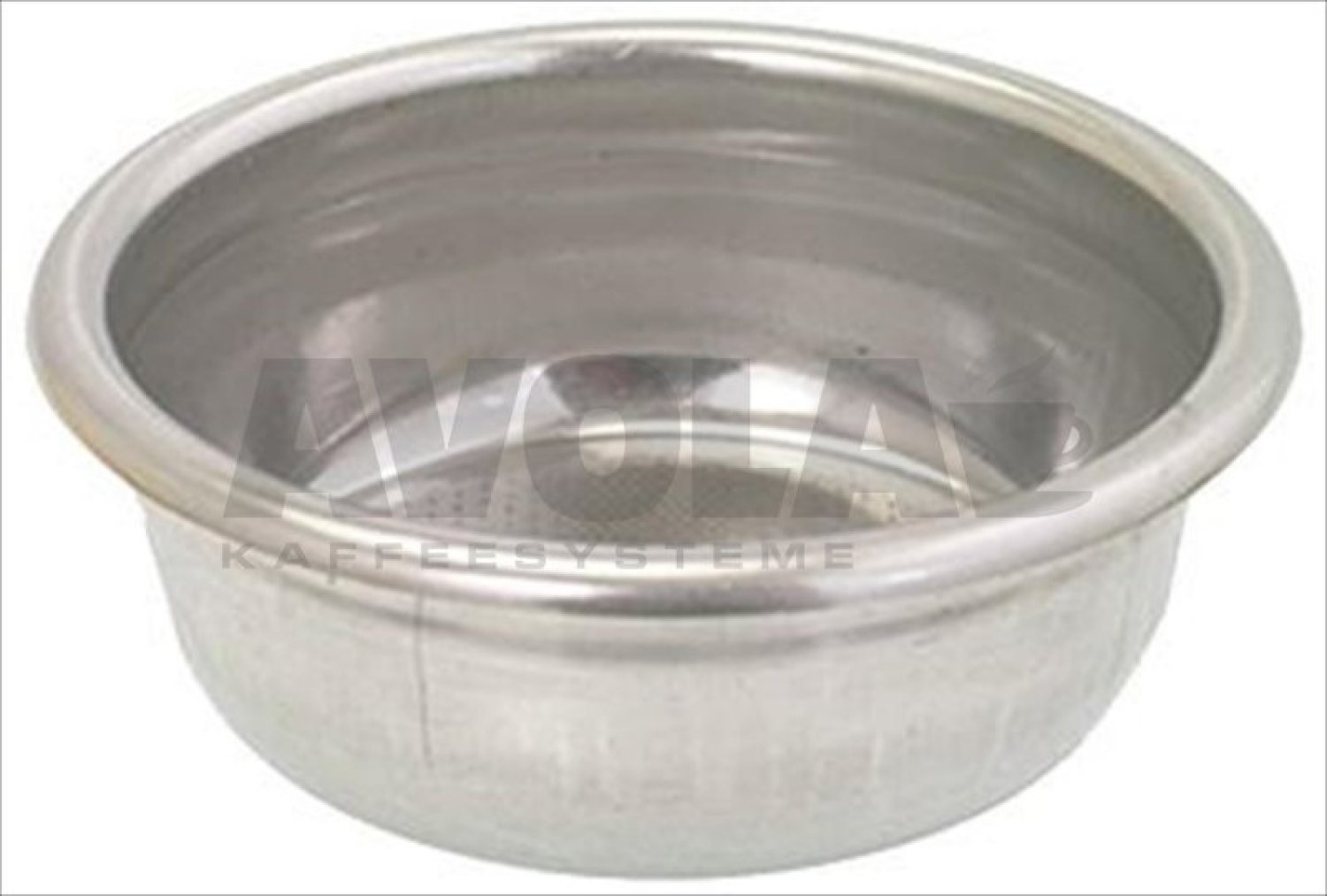

112 cup filter 14 grams8001081
2-CUP FILTER 14 GRAMS
5,46 €

excl. Shipping costs
immediately available, 6 available
13filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available, 19 available
14filter holder carimali8001172
FILTER HOLDER CARIMALI
23,79 €

excl. Shipping costs
immediately available, 1 available
15filter holder handle m108003350
FILTER HOLDER HANDLE M10
6,55 €

excl. Shipping costs
immediately available, 6 available
16single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 20 available
17lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
17double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 9 available
18double spout8000123
DOUBLE SPOUT
7,14 €

excl. Shipping costs
immediately available, 4 available
19straight single spout o 3 88000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs
immediately available, 8 available
20female large connector8012420
FEMALE LARGE CONNECTOR
2,94 €

excl. Shipping costs
immediately available, 5 available
213 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 8 available
213 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
Delivery time
is determined
22coil sirai z610a 6w 230v 50 60hz8012424
COIL SIRAI Z610A 6W 230V 50/60Hz
27,97 €

excl. Shipping costs
Delivery time
is determined
23red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
23o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
24paper seal o 69x57x0 8 mm8002172
PAPER SEAL ø 69x57x0,8 mm
0,50 €

excl. Shipping costs
immediately available
25filter holder gasket o 69x57x7 5 mm8001859
FILTER HOLDER GASKET ø 69x57x7,5 mm
3,65 €

excl. Shipping costs
immediately available
25original carimali siebtraegerdichtung o 69x57x7 5 mm8103899
Original Carimali Siebträgerdichtung ø 69x57x7,5 mm
6,95 €

excl. Shipping costs
immediately available, 6 available
26o ring gasket 06212 epdm8001861
O-RING GASKET 06212 EPDM
2,30 €

excl. Shipping costs
immediately available, 9 available
27shower o 57 5 mm8000577
SHOWER ø 57,5 mm
4,00 €

excl. Shipping costs
immediately available, 11 available
28stainless steel screw m5x12 mm8007319
STAINLESS STEEL SCREW M5x12 mm
4,22 €

excl. Shipping costs
Delivery time 4-6 weeks

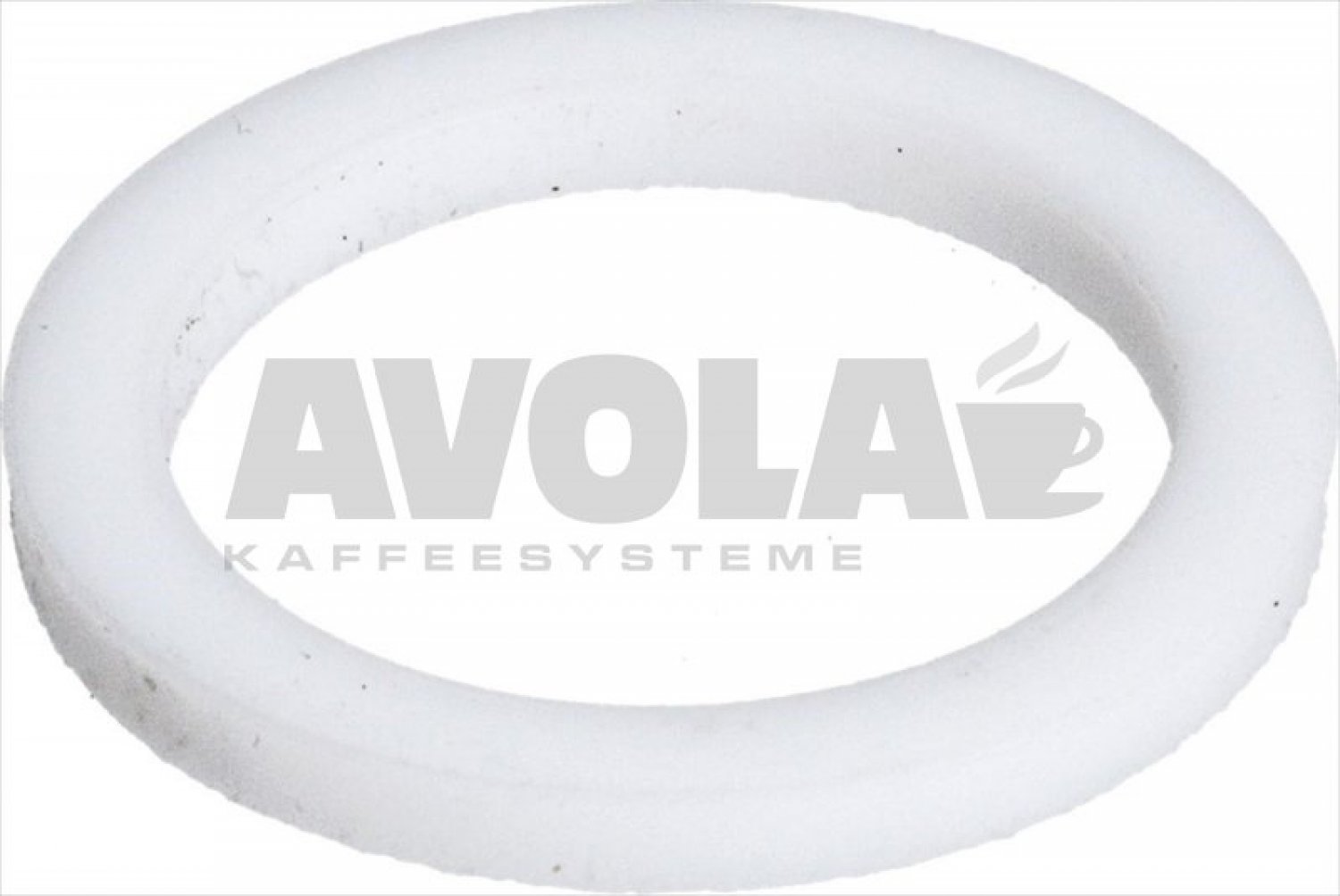

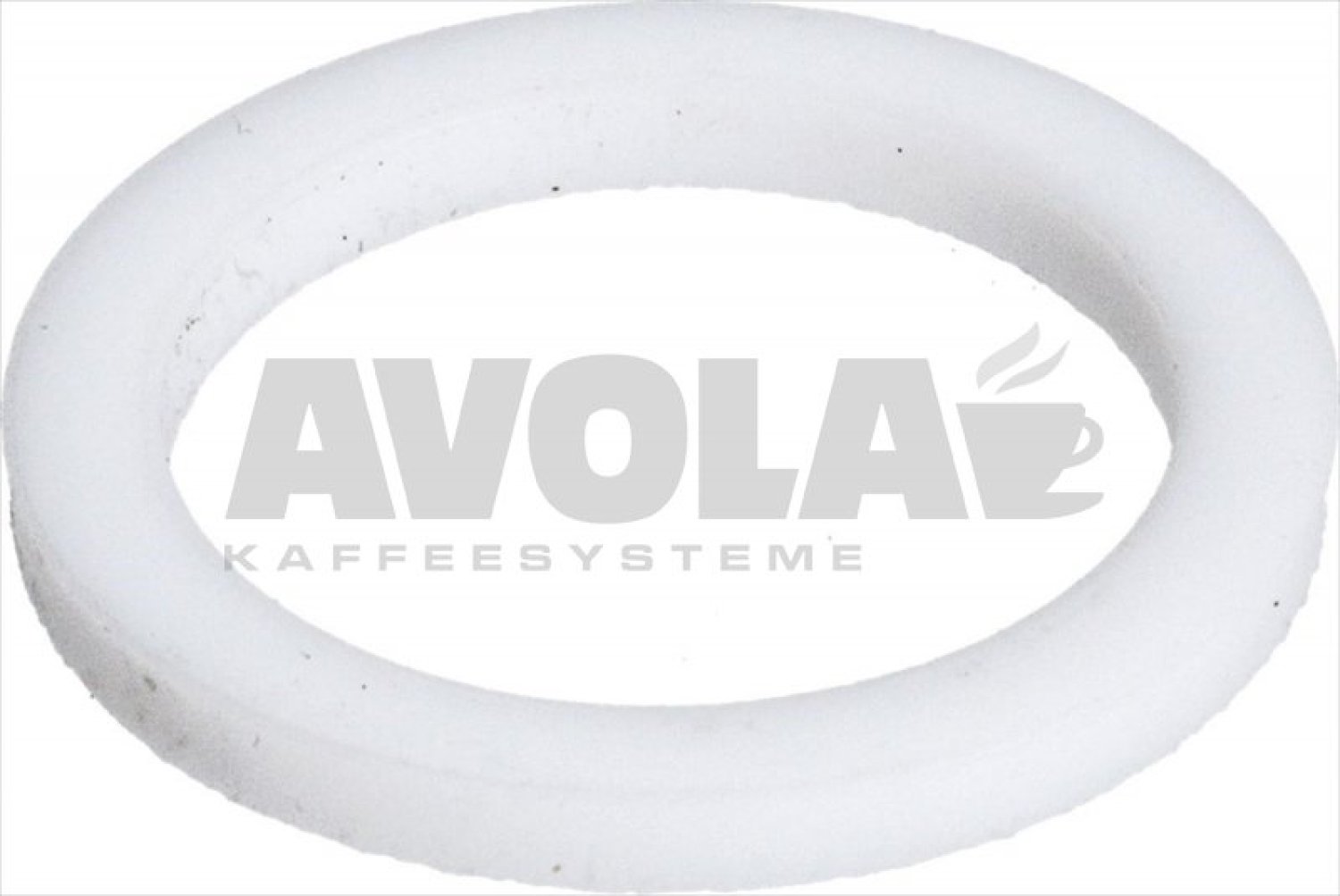

29teflon dichtung o 25 2x19x2 2mm8038401
Teflon Dichtung Ø 25,2x19x2,2mm
1,37 €

excl. Shipping costs
immediately available
