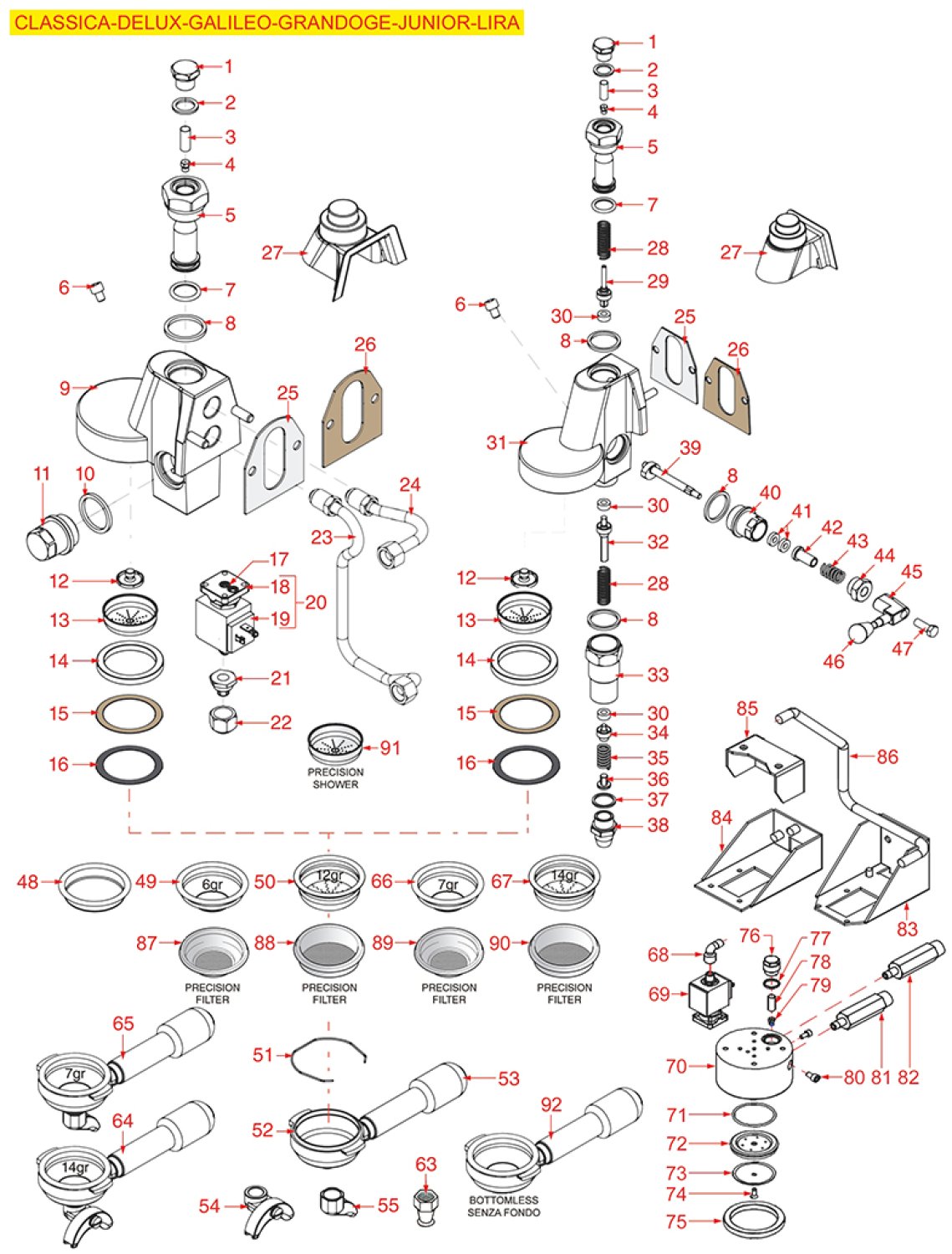

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.
Pos.: | Item No.: | Image: | Description: | Shipment: | Price (inkl. 19% VAT): | Qty.: |
---|
1 | 8006373 |  | 8006373 Deckel für Auslaufgruppe ø 16 mm | excl. Shipping costs immediately available, 6 available |
8,33 € | |
2 | 8001581 |  | 8001581 PTFE FLAT GASKET ø 16x22,5x2 mm | excl. Shipping costs immediately available |
1,65 € | |
3 | 8001115 |  | 8001115 Water filter ø 8,5x22 mm | excl. Shipping costs immediately available |
1,79 € | |
4 | 8006984 |  | 8006984 NOZZLE M6x1 HOLE | excl. Shipping costs immediately available, 11 available |
3,27 € | |
5 | 8000148 |  | 8000148 UPPER CHROMIUM-PLATED SLEEVE | excl. Shipping costs Delivery time is determined |
105,30 € | |
7 | 8001699 |  | 8001699 O-RING 04075 EPDM | excl. Shipping costs immediately available |
0,77 € | |
8 | 8001567 |  | 8001567 PTFE FLAT GASKET 36x30x2 mm | excl. Shipping costs immediately available |
1,70 € | |
10 | 8001567 |  | 8001567 PTFE FLAT GASKET 36x30x2 mm | excl. Shipping costs immediately available |
1,70 € | |
11 | 8006380 |  | 8006380 CHROMIUM-PLATED SIDE CAP | excl. Shipping costs Delivery time is determined |
14,96 € | |
12 | 8006987 |  | 8006987 Group spray nozzle ø 30 mm M10x1 - E61 | excl. Shipping costs immediately available |
6,14 € | |
13 | 8000608 |  | 8000608 Shower screen für E61 brew unit | excl. Shipping costs immediately available |
5,20 € | |
13 | 8280721 |  | 8280721 IMS Matrix Dusche E61 Duschsieb | excl. Shipping costs immediately available, 10 available |
27,95 € | |
14 | 8081202 |  | 8081202 Cafelat E61 portafilter gasket 73x57x8 mm red | excl. Shipping costs immediately available |
5,95 € | |
14 | 8060996 |  | 8060996 Gasket 73x57x8 mm - for E61 brew unit | excl. Shipping costs immediately available |
3,90 € | |
15 | 8002167 |  | 8002167 Paper shim ø 73x59x0,8 mm | excl. Shipping costs immediately available |
0,49 € | |
16 | 8002168 |  | 8002168 RUBBER SHIM ø 73,5x59x1 mm EPDM | excl. Shipping costs immediately available |
1,05 € | |
17 | 8001809 |  | 8001809 RED SILICONE O-RING R5 GASKET | excl. Shipping costs immediately available |
1,34 € | |
17 | 8001810 |  | 8001810 O-RING 02025 VITON | excl. Shipping costs immediately available |
0,87 € | |
18 | 8000959 |  | 8000959 3-WAY MECHANICAL COMPONENT LUCIFER | excl. Shipping costs immediately available, 7 available |
39,77 € | |
18 | 8000962 |  | 8000962 3-WAY MECHANICAL COMPONENT PARKER | excl. Shipping costs immediately available, 3 available |
42,72 € | |
19 | 8000957 |  | 8000957 COIL LUCIFER/PARKER 220/240V 9W 50Hz | excl. Shipping costs immediately available, 6 available |
19,92 € | |
19 | 8012418 |  | 8012418 COIL PARKER ZB09 9W 220/240V 50/60Hz | excl. Shipping costs immediately available, 17 available |
20,74 € | |
20 | 8000955 |  | 8000955 3-WAY SOLENOID VALVE LUCIFER 240V 50Hz | excl. Shipping costs immediately available, 5 available |
52,36 € | |
20 | 8000960 |  | 8000960 3-WAY SOLENOID VALVE PARKER 230V 50/60Hz | excl. Shipping costs immediately available, 7 available |
53,55 € | |

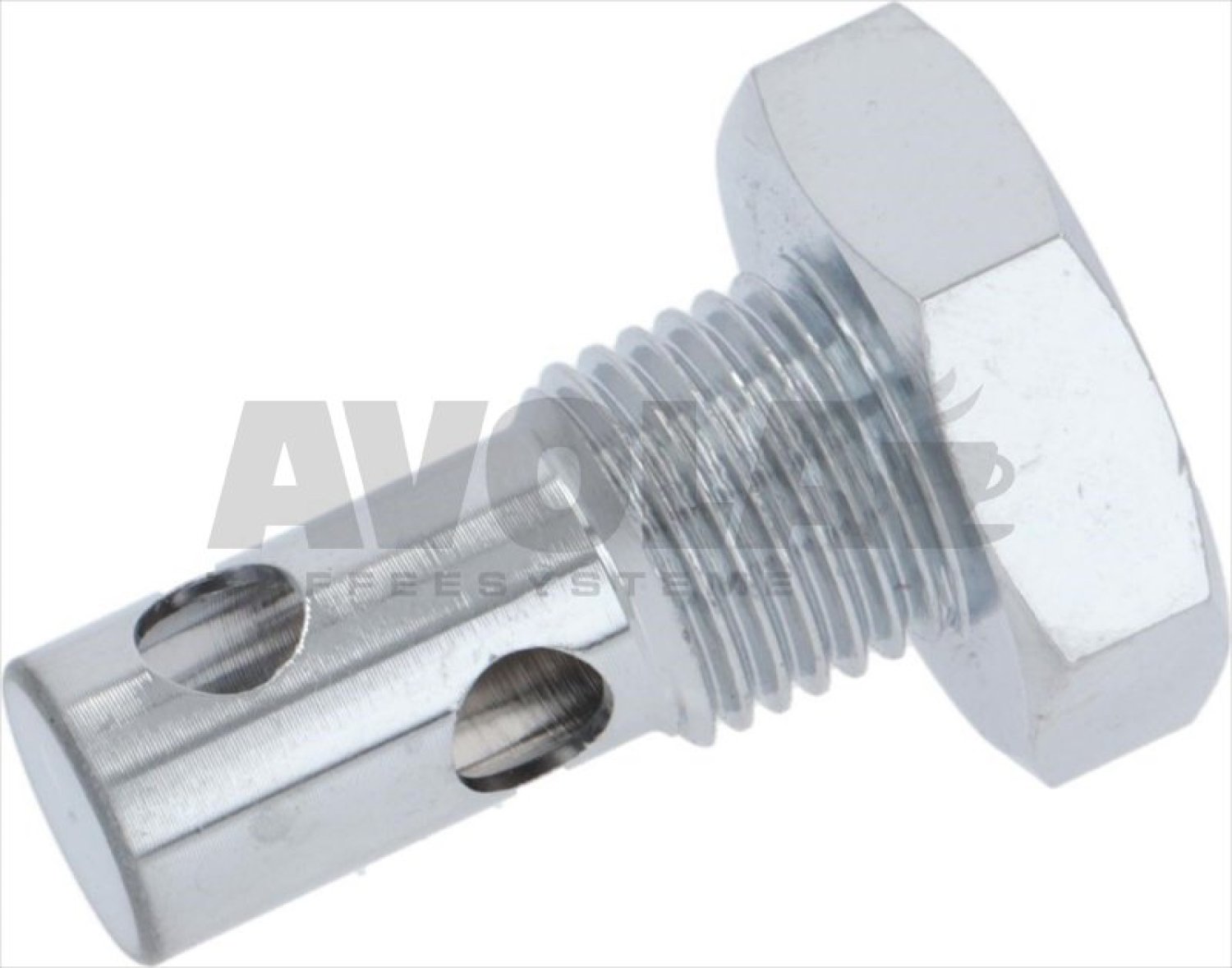

21 | 8190090 |  | 8190090 DIVISORE GETTO GRUPPO | excl. Shipping costs immediately available, 1 available |
7,77 € | |

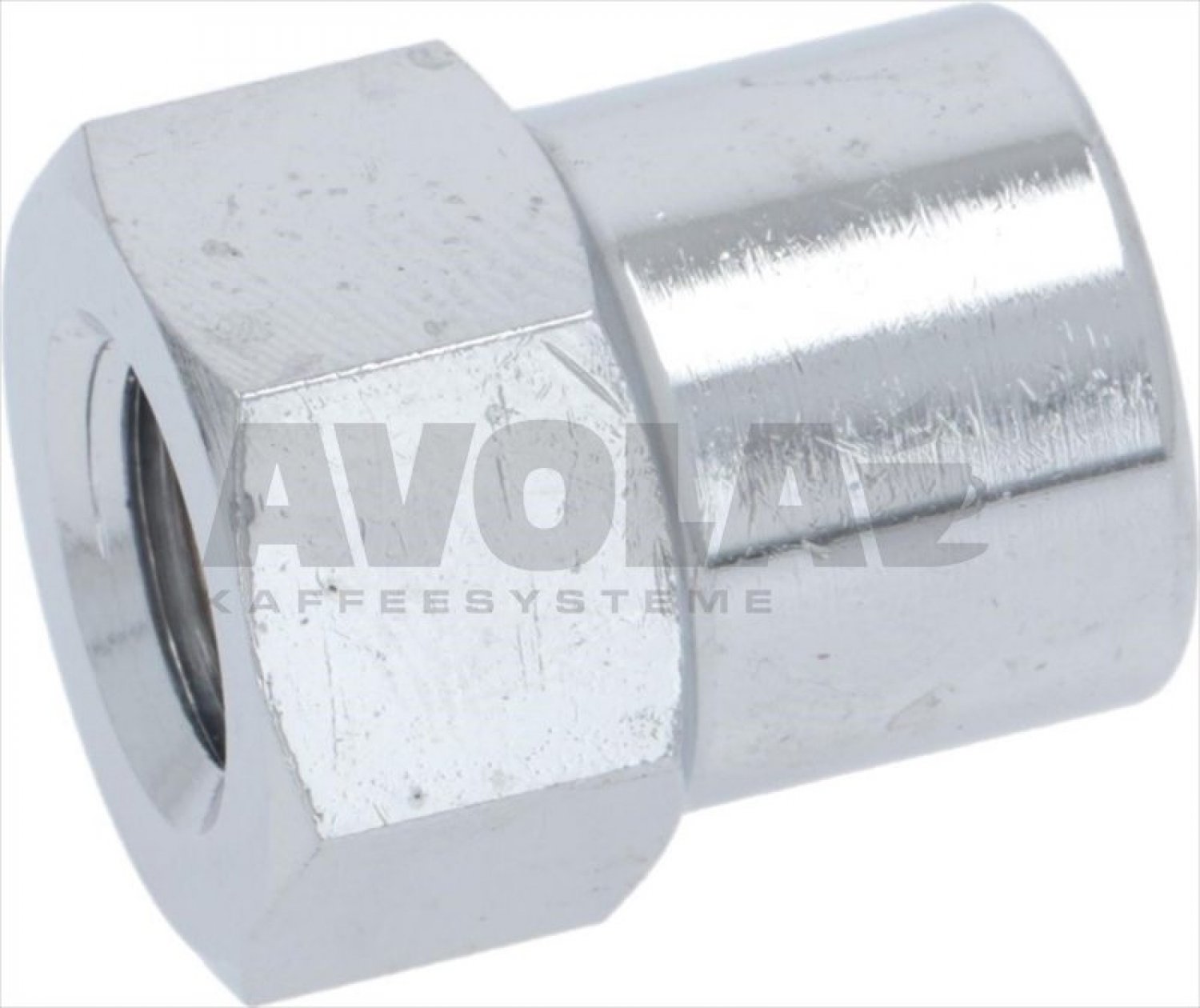

22 | 8190091 |  | 8190091 COPRIGETTO GRUPPO | excl. Shipping costs immediately available, 1 available |
10,71 € | |

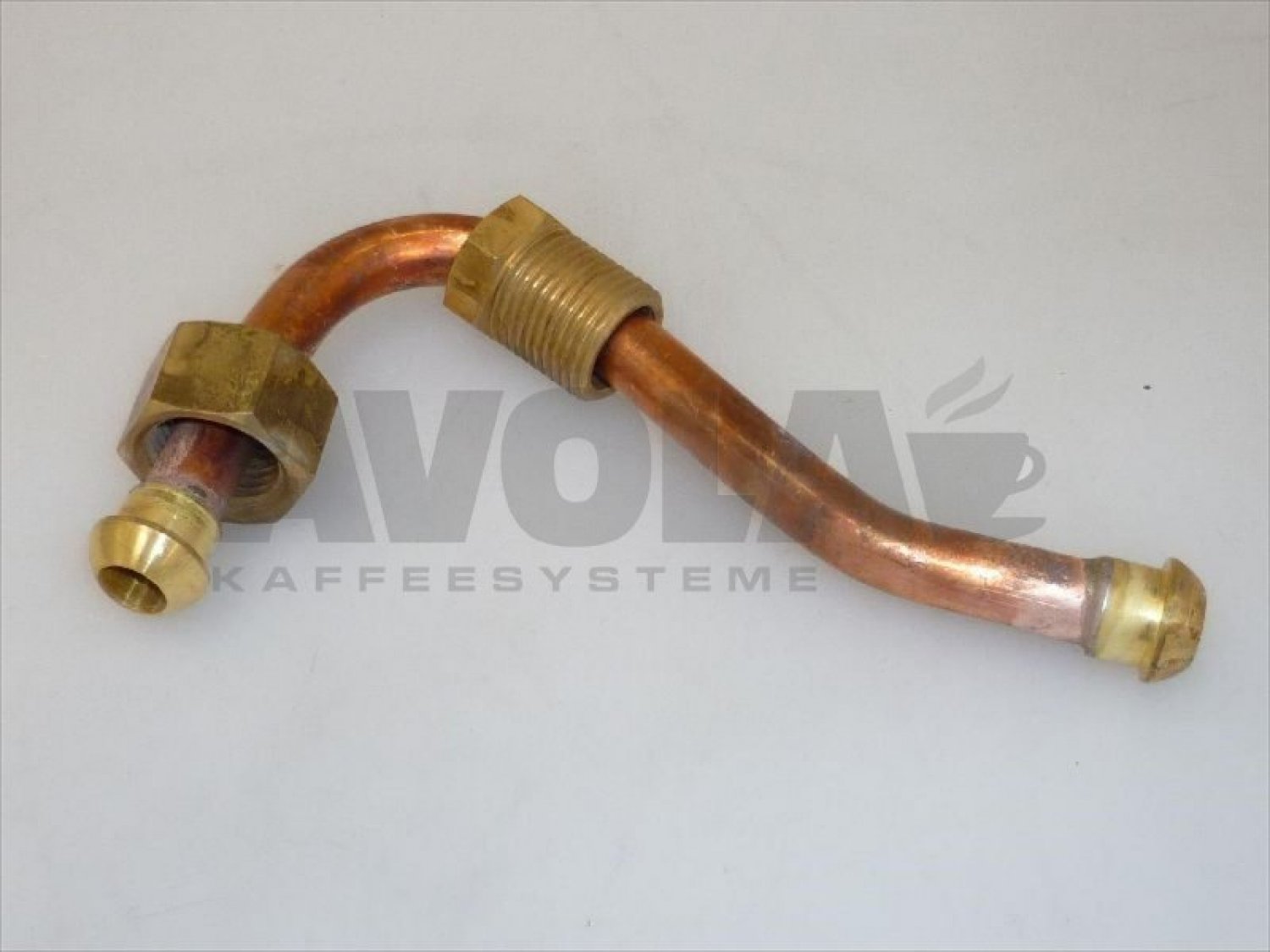

24 | 8171577 |  | 8171577 ROHR 12MM FÜR GRUPPE MITTE 2/3/4GR | excl. Shipping costs immediately available, 5 available |
35,66 € | |
25 | 8001729 |  | 8001729 COFFEE GROUP GASKET 77x73x2 mm | excl. Shipping costs immediately available, 9 available |
8,44 € | |
26 | 8001624 |  | 8001624 COFFEE GROUP GASKET 80x70x2 mm | excl. Shipping costs immediately available, 11 available |
3,51 € | |
28 | 8003820 |  | 8003820 SPRING ø 14x45 mm | excl. Shipping costs immediately available, 16 available |
1,57 € | |
29 | 8007123 |  | 8007123 COMPLETE SPOUT VALVE | excl. Shipping costs immediately available |
8,40 € | |
30 | 8001569 |  | 8001569 NBR FLAT GASKET ø 13x4x4 mm | excl. Shipping costs immediately available |
0,49 € | |
32 | 8007124 |  | 8007124 COMPLETE DRAIN VALVE | excl. Shipping costs immediately available, 19 available |
10,50 € 10,50 € | |
33 | 8000146 |  | 8000146 OUTLET CHROMIUM-PLATED SLEEVE | excl. Shipping costs immediately available, 1 available |
46,68 € | |
33 | 8001795 |  | 8001795 SPRING GUIDE BUSHING | excl. Shipping costs immediately available, 9 available |
4,64 € | |
34 | 8007125 |  | 8007125 E61 drain valve with gasket | excl. Shipping costs immediately available |
9,17 € | |
35 | 8281551 |  | 8281551 Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen | excl. Shipping costs immediately available |
2,68 € | |
36 | 8005864 |  | 8005864 DRAIN JET SWIRL | excl. Shipping costs immediately available, 14 available |
2,78 € | |
37 | 8001415 |  | 8001415 Flat gasket PTFE ø 26x21x2 mm | excl. Shipping costs immediately available |
2,32 € | |
38 | 8105825 |  | 8105825 DRAIN CHROMIUM-PLATED FITTING | excl. Shipping costs immediately available, 2 available |
7,20 € | |
39 | 8005124 |  | 8005124 Cam rod for E61 coffee group | excl. Shipping costs immediately available |
11,90 € | |

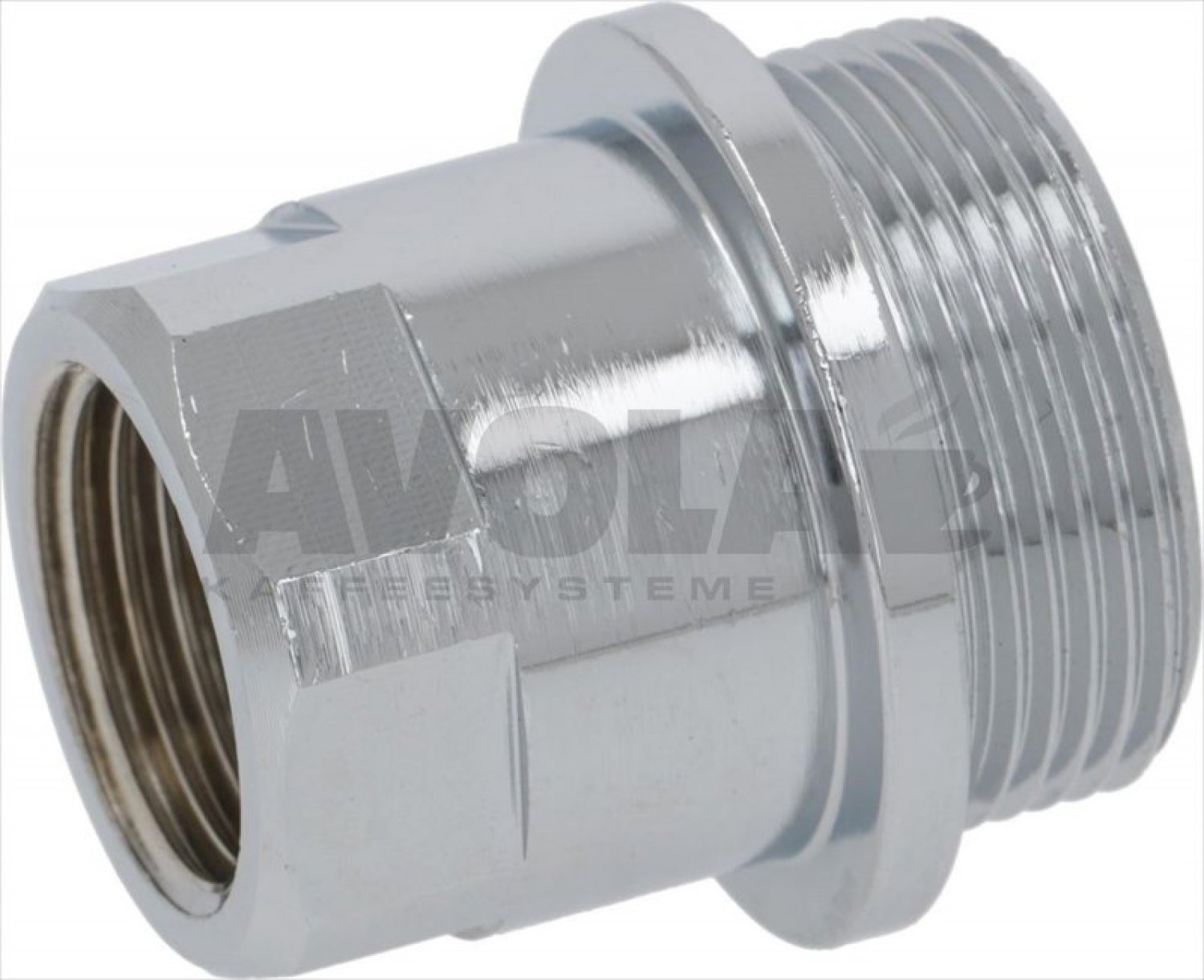

40 | 8005648 |  | 8005648 CAMS CHROMIUM-PLATED FITTING | excl. Shipping costs Delivery time is determined |
28,56 € | |
41 | 8001570 |  | 8001570 EPDM flat gasket 15,5x7,5x4 mm | excl. Shipping costs immediately available |
0,90 € | |
42 | 8001571 |  | 8001571 CAM GUIDE BUSHING | excl. Shipping costs immediately available, 15 available |
3,90 € | |
43 | 8003547 |  | 8003547 SPRING ø 14,6x21 mm | excl. Shipping costs immediately available |
3,55 € | |
44 | 8393268 | | 8393268 BFC Befestigungsmutter für Nockenwelle | excl. Shipping costs Delivery time is determined |
13,09 € | |
46 | 8003294 |  | 8003294 KNOB M8x1 | excl. Shipping costs immediately available, 4 available |
6,56 € | |
48 | 8001103 |  | 8001103 BLIND FILTER Ø58mm | excl. Shipping costs immediately available |
2,56 € | |
49 | 8001076 |  | 8001076 1 CUP FILTER 6 g | excl. Shipping costs immediately available, 13 available |
5,41 € | |
50 | 8001077 |  | 8001077 2-CUP FILTER 12 GRAMS | excl. Shipping costs immediately available, 14 available |
5,41 € | |
51 | 8003542 |  | 8003542 S/STEEL FILTER LOCKING SPRING | excl. Shipping costs immediately available |
1,62 € | |
52 | 8001218 |  | 8001218 FILTER HOLDER BFC/ROYAL/RK | excl. Shipping costs Delivery time is determined |
22,13 € | |
53 | 8003349 |  | 8003349 FILTER HOLDER HANDLE M12 | excl. Shipping costs immediately available, 2 available |
7,79 € | |
54 | 8000115 |  | 8000115 Double Spout ø 3/8″ | excl. Shipping costs immediately available, 7 available |
5,95 € | |
55 | 8000110 |  | 8000110 SINGLE SPOUT ø 3/8 | excl. Shipping costs immediately available, 8 available |
6,06 € | |
56 | 8006217 |  | 8006217 DYNAMOMETRIC MANUAL COFFEE TAMPER | excl. Shipping costs Delivery time is determined |
194,40 € | |
56 | 8006219 |  | 8006219 MANUAL DYNAMOMETRICAL TAMPER | excl. Shipping costs Delivery time 4-6 weeks |
86,98 € | |
57 | 8006191 |  | 8006191 ANODISED ALUMINUM TAMPER ø 58 mm | excl. Shipping costs Delivery time is determined |
36,85 € | |
58 | 8006165 |  | 8006165 NYLON COFFEE TAMPER | excl. Shipping costs immediately available, 9 available |
2,75 € | |
59 | 8006153 |  | 8006153 BRUSH FOR COFFEE SHOWER | excl. Shipping costs immediately available |
3,92 € | |
60 | 8006155 |  | 8006155 BLACK SHOWER CLEANING BRUSH | excl. Shipping costs immediately available, 5 available |
14,07 € | |
61 | 8000328 |  | 8000328 STAINLESS STEEL MEASURING SPOON 20 ml | excl. Shipping costs Delivery time is determined |
4,97 € | |
62 | 8000327 |  | 8000327 PLASTIC MEASURING SPOON 20 ml | excl. Shipping costs immediately available, 10 available |
1,73 € | |
63 | 8000112 |  | 8000112 STRAIGHT SINGLE SPOUT ø 3/8 | excl. Shipping costs immediately available, 6 available |
4,09 € | |
64 | 8001268 |  | 8001268 2 CUPS FILTER HOLDER ASSEMBLY BFC/ROYAL | excl. Shipping costs immediately available, 1 available |
33,53 € | |
65 | 8001267 |  | 8001267 1 CUP FILTER HOLDER ASSEMBLY BFC/ROYAL | excl. Shipping costs immediately available, 3 available |
32,74 € | |
66 | 8001120 |  | 8001120 1 CUP FILTER 7 g | excl. Shipping costs immediately available, 19 available |
6,50 € | |
67 | 8001101 |  | 8001101 2-CUP FILTER 14 GRAMS | excl. Shipping costs immediately available |
7,02 € | |
71 | 8013757 |  | 8013757 O-RING 03187 EPDM | excl. Shipping costs immediately available |
2,08 € | |
72 | 8000648 |  | 8000648 SHOWER HOLDER DIFFUSER | excl. Shipping costs immediately available, 2 available |
17,59 € | |
73 | 8000552 |  | 8000552 SHOWER 51,50 MM | excl. Shipping costs immediately available |
4,56 € | |
74 | 8123674 |  | 8123674 Schraube M5X10 - INOX | excl. Shipping costs immediately available |
1,32 € | |
75 | 8001826 |  | 8001826 FILTER HOLDER GASKET ø 73x57x8 mm | excl. Shipping costs immediately available, 13 available |
4,09 € | |
If your article is not listed, please use the following form and enter the desired numbers.
