BEZZERA MITICA BRÜHGRUPPE

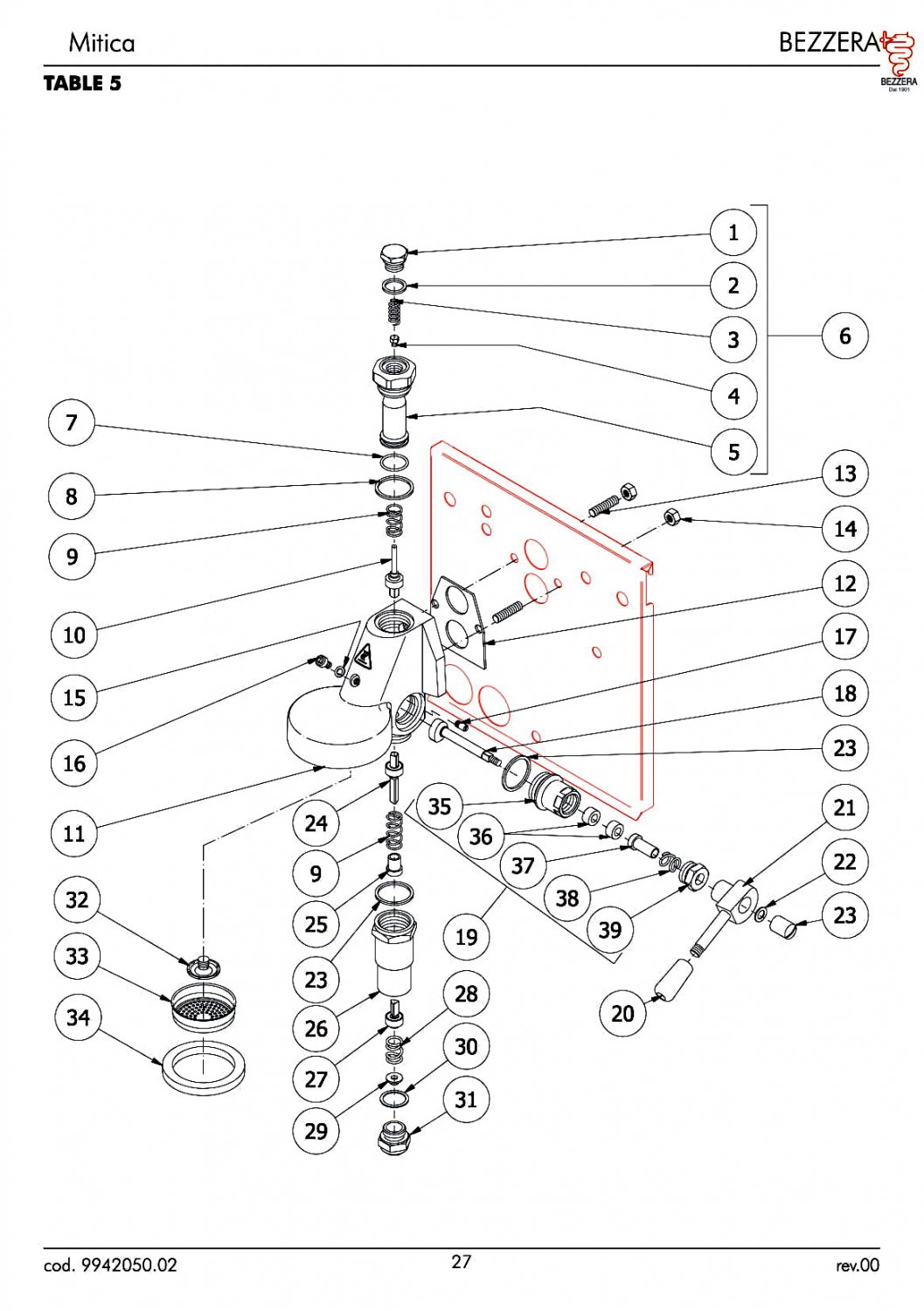

Drawing number 8073522

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 7 available
2ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available
3water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
4nozzle m6x1 hole8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs
immediately available
5chromium plated upper sleeve8063314
CHROMIUM-PLATED UPPER SLEEVE
29,00 €

excl. Shipping costs
Delivery time
is determined
6injector d 0 7 upper sleeve assy8072858
INJECTOR D.0.7 UPPER SLEEVE ASSY
72,24 €

excl. Shipping costs
Delivery time
is determined
7o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
8ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
9spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
10complete spout valve8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs
immediately available
11original bezzera e61 bruehgruppenkorpus8072859
Original Bezzera E61 Brühgruppenkorpus
205,00 €

excl. Shipping costs
Delivery time 4-6 weeks
12coffee group gasket 80x70x2 mm8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs
immediately available, 10 available
138071616
TIRANTE M8X31 ASTM A 193 B8 C/1
Price on request
14hexagonal nut m8 medium8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs
immediately available, 2 available
15flat ptfe gasket o 10x6x2 mm8064411
FLAT PTFE GASKET ø 10x6x2 mm
1,93 €

excl. Shipping costs
immediately available, 20 available
15ptfe flat gasket o10x6x1 mm8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs
immediately available, 13 available
16low cylinder head screw m6x10 uni 93278001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs
immediately available, 6 available
17cam locking stainless steel screw m68001289
CAM LOCKING STAINLESS STEEL SCREW M6
4,03 €

excl. Shipping costs
immediately available, 17 available
18cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available
19assy flangia porta camme8072861
ASSY FLANGIA PORTA CAMME
48,79 €

excl. Shipping costs
Delivery time 4-6 weeks
20knob m8x18003294
KNOB M8x1
6,56 €

excl. Shipping costs
immediately available, 4 available
21bezzera e61 bezugshebel ohne knebel8072857
Bezzera E61 Bezugshebel ohne Knebel
46,81 €

excl. Shipping costs
Delivery time 4-6 weeks
22zahnscheibe 0 8 nockenwelle e618073573
Zahnscheibe 0,8 Nockenwelle E61
1,25 €

excl. Shipping costs
immediately available
23ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
23chromium plated cap m68002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs
immediately available, 9 available
24complete drain valve8007124
COMPLETE DRAIN VALVE
10,50 €
10,50 €

excl. Shipping costs
immediately available
25spring guide bushing8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs
immediately available, 6 available
26outlet chromium plated sleeve8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs
immediately available, 1 available
27e61 drain valve with gasket8007125
E61 drain valve with gasket
9,17 €

excl. Shipping costs
immediately available
28feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
Delivery time
is determined
29drain jet swirl8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs
immediately available, 11 available
30flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
31drain chromium plated fitting8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs
immediately available, 4 available
32group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available, 12 available
33shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
34cafelat e61 siebtraegerdichtung 73x57x8 5 mm blau8081203
Cafelat E61 Siebträgerdichtung 73x57x8,5 mm blau
5,95 €

excl. Shipping costs
immediately available
34filter holder gasket o 73x57x8 mm8001902
FILTER HOLDER GASKET Ø 73x57x8 mm
3,47 €

excl. Shipping costs
immediately available
34rubber 73x57x8 5 mm for e61 brew unit8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs
immediately available
35ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 8 available
36epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
37cam guide bushing8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs
immediately available, 12 available
38spring o 14 6x21 mm8003547
SPRING ø 14,6x21 mm
3,55 €

excl. Shipping costs
immediately available
39stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
