BEZZERA HÄHNE ELLISSE-EBBIS

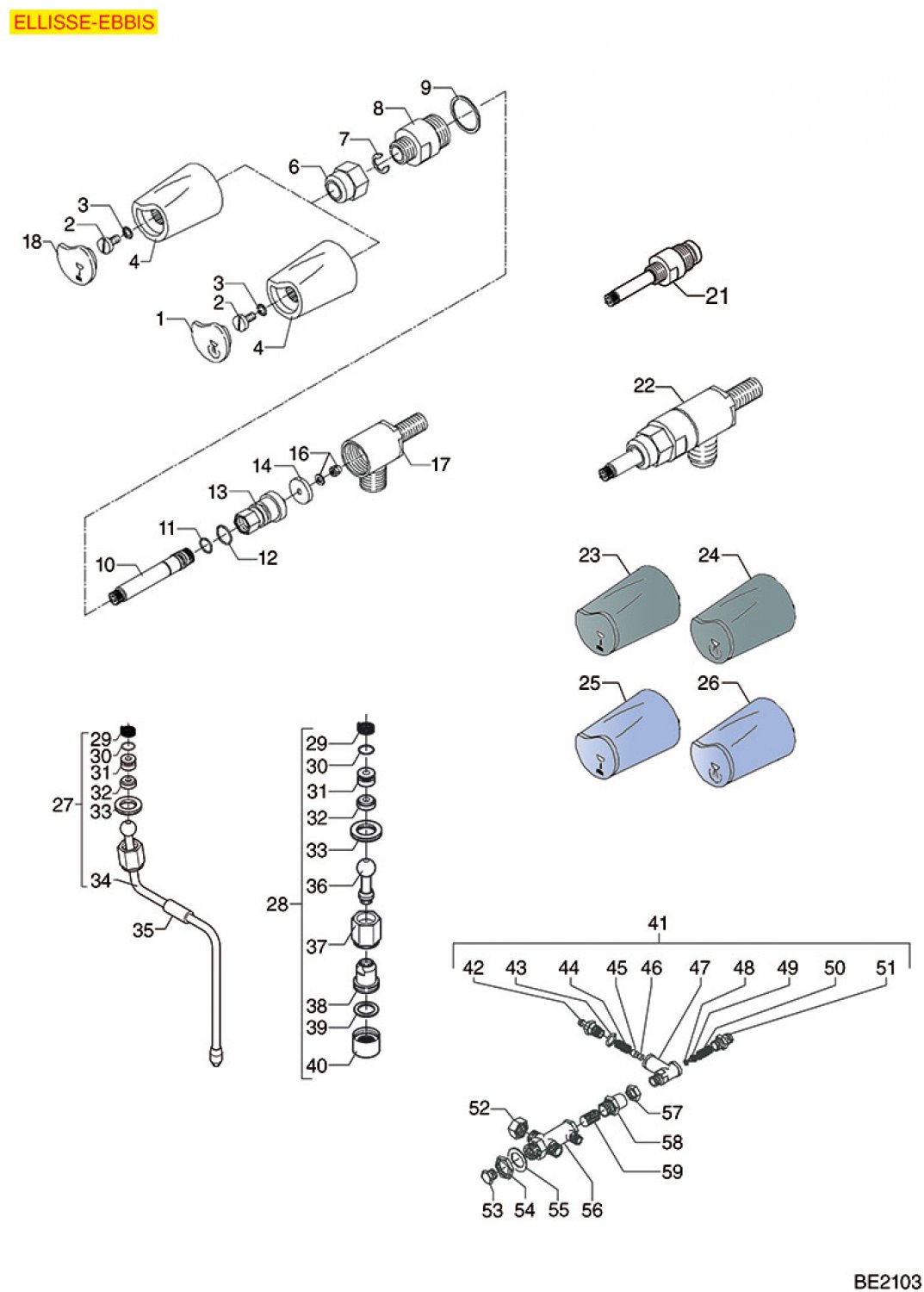

Drawing number 8080900

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

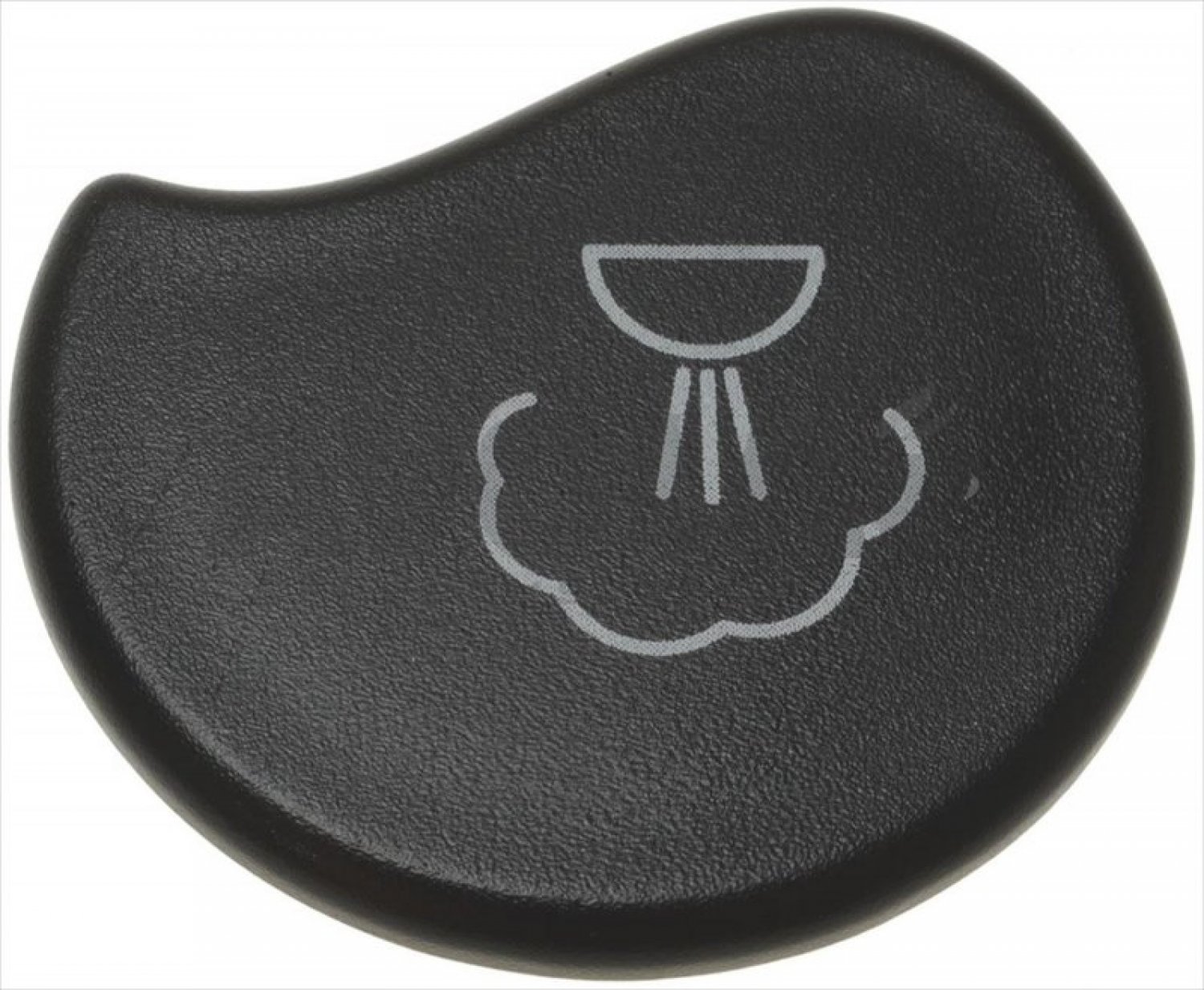

1bezzera deckel dampfgriff grau8069713
Bezzera Deckel Dampfgriff - grau
4,26 €

excl. Shipping costs
immediately available
1bezzera deckel dampfgriff blau nicht mehr lieferbar siehe 80697138069714
Bezzera Deckel Dampfgriff - blau (nicht mehr lieferbar, siehe 8069713)
This article is no longer available
2vite a testa cilindrica m5x208069666
VITE A TESTA CILINDRICA M5x20
1,43 €

excl. Shipping costs
immediately available, 9 available
3rondella dentata o 11x6x1 8 mm8069667
RONDELLA DENTATA ø 11x6x1,8 mm
Price on request
4manopola grigia o 40 mm8069802
MANOPOLA GRIGIA ø 40 mm
Price on request
6water steam tap nut8069803
WATER/STEAM TAP NUT
Price on request
7spring ring radial8005547
SPRING RING RADIAL
0,52 €

excl. Shipping costs
immediately available, 17 available
8corpo rubinetto acqua vapore8069805
CORPO RUBINETTO ACQUA/VAPORE
Price on request
9copper flat gasket8001406
COPPER FLAT GASKET
1,09 €

excl. Shipping costs
immediately available
10stift fuer hahn 67 mm8069723
STIFT FÜR HAHN 67 mm
Price on request
11o ring 0108 viton8066106
O-RING 0108 VITON
1,05 €

excl. Shipping costs
immediately available
11guarnizione or 02043 fkm nero8069677
GUARNIZIONE OR 02043 FKM NERO
Price on request
12o ring 0115 viton8001890
O-RING 0115 VITON
1,49 €

excl. Shipping costs
immediately available
13gasket holder plus8069801
GASKET HOLDER PLUS
14,88 €

excl. Shipping costs
Delivery time 4-6 weeks
14flat epdm gasket o 18 5x4 5x4 mm8001403
FLAT EPDM GASKET ø 18,5x4,5x4 mm
2,37 €

excl. Shipping costs
immediately available
16screw for gasket holder8001402
SCREW FOR GASKET HOLDER
1,71 €

excl. Shipping costs
Delivery time
is determined
17corpo rubinetto8069799
CORPO RUBINETTO
Price on request
18bezzera deckel wasser knebel grau8069804
Bezzera Deckel Wasser Knebel grau
3,69 €

excl. Shipping costs
immediately available, 3 available
21dampfhahn heisswasserhahn spaziale8080075
Dampfhahn Heisswasserhahn Spaziale
42,40 €

excl. Shipping costs
Delivery time 4-6 weeks
22water steam tap8005606
WATER/STEAM TAP
61,11 €

excl. Shipping costs
immediately available, 1 available
23water tap knob8003270
WATER TAP KNOB
4,81 €

excl. Shipping costs
Delivery time 4-6 weeks
25water tap knob8003272
WATER TAP KNOB
7,66 €

excl. Shipping costs
Delivery time 4-6 weeks
26steam tap knob8003281
STEAM TAP KNOB
12,84 €

excl. Shipping costs
Delivery time
is determined
27steam pipe complete8006770
STEAM PIPE COMPLETE
46,41 €

excl. Shipping costs
Delivery time
is determined
28complete water pipe8006772
COMPLETE WATER PIPE
54,11 €

excl. Shipping costs
Delivery time 4-6 weeks
29spring o 14x10 mm8003825
SPRING ø 14x10 mm
1,52 €

excl. Shipping costs
immediately available, 18 available
30o ring 0112 epdm8001565
O-RING 0112 EPDM
0,82 €

excl. Shipping costs
immediately available
31bushing8001585
BUSHING
1,82 €

excl. Shipping costs
immediately available, 4 available
32conical ptfe seal o 16 5x6x5 5 mm8001586
CONICAL PTFE SEAL ø 16,5x6x5,5 mm
2,81 €

excl. Shipping costs
immediately available, 7 available
33ring nut for tap8005549
RING NUT FOR TAP
3,40 €

excl. Shipping costs
Delivery time 4-6 weeks
34bezzera dampfrohr inox8069735
Bezzera Dampfrohr Inox
50,47 €

excl. Shipping costs
Delivery time
is determined
35burn preventing rubberpiece o 10 mm8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs
immediately available, 7 available
41valvola surpressione c portagomma8069881
VALVOLA SURPRESSIONE C/PORTAGOMMA
Price on request
43o ring 0114 viton8001910
O-RING 0114 VITON
1,04 €

excl. Shipping costs
immediately available
44spring8069545
SPRING
3,53 €

excl. Shipping costs
immediately available, 14 available
46blind gasket 8x48001449
BLIND GASKET 8x4
3,47 €

excl. Shipping costs
immediately available, 16 available
48o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
49bezzera dichtungshalter8069809
Bezzera Dichtungshalter
10,03 €

excl. Shipping costs
immediately available, 5 available
50spring o 7 5x22 mm8069544
SPRING ø 7,5x22 mm
3,25 €

excl. Shipping costs
immediately available, 12 available
52bezzera blindstopfen 3 8 g es22 h13 ot8069874
Bezzera Blindstopfen 3/8 G ES22 H13 OT
11,90 €

excl. Shipping costs
Delivery time 4-6 weeks
54dado m20x1 25 es26 h5 ot8069876
DADO M20X1,25 ES26 H5 OT
Price on request
55rondella d21x30x1 5 rame8069877
RONDELLA D21X30X1,5 RAME
Price on request
56bezzera 5 wege fitting8069878
Bezzera 5 Wege Fitting
31,73 €

excl. Shipping costs
immediately available, 4 available
57dado o 1 48069880
DADO ø 1/4
Price on request
58raccordo o 3 8 1 48069879
RACCORDO ø 3/8 -1/4
Price on request
59water filter o 14x10x12 mm8001107
WATER FILTER ø 14x10x12 mm
2,95 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
