Bezzera

Bezzera Giulia Brühgruppe Wasser Dampf Ventile

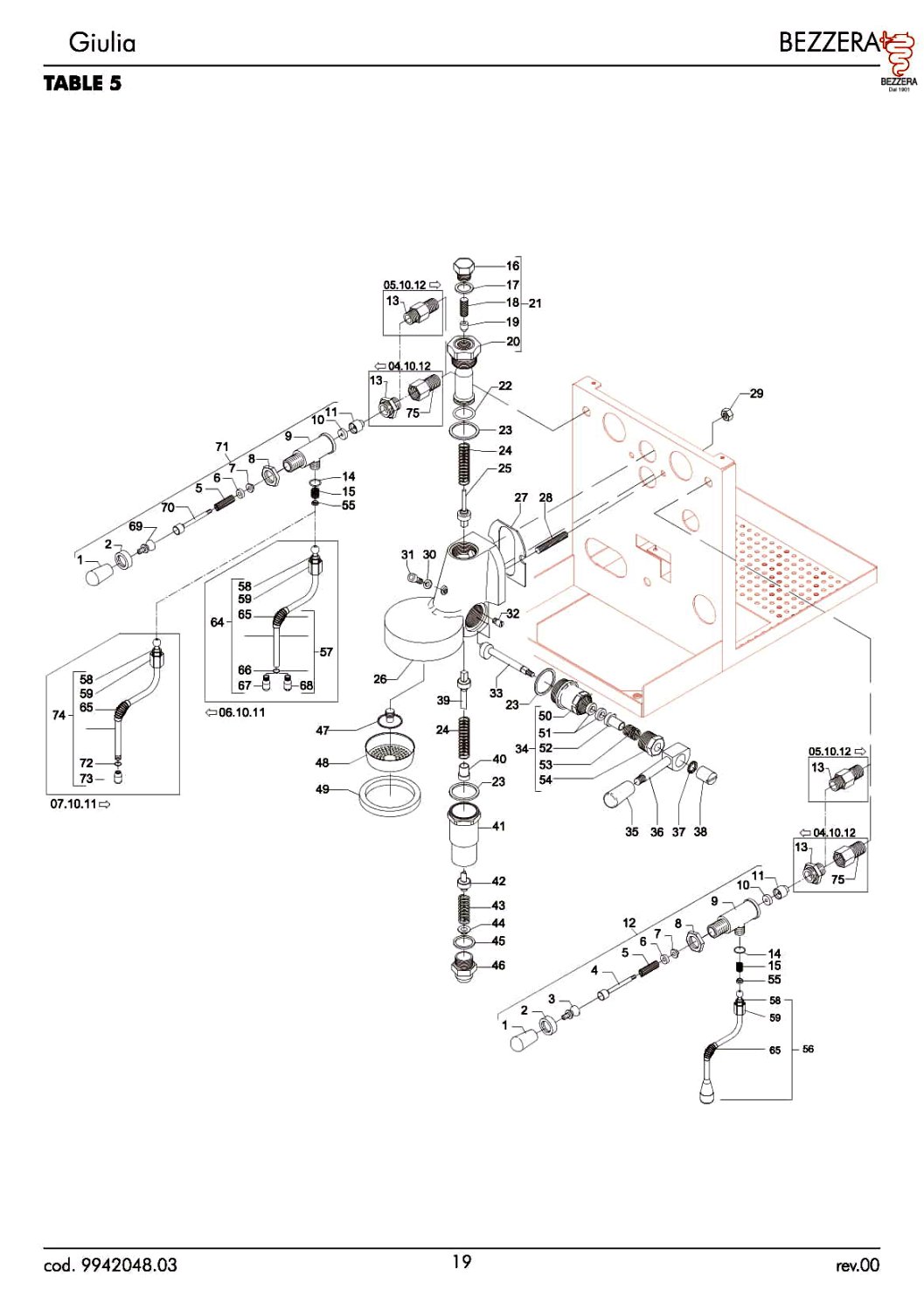

Drawing number 8279229

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1knob m8x18003294
KNOB M8x1
6,56 €

excl. Shipping costs
immediately available, 3 available
2bezzera ueberwurfmutter 3 8 quot g h178079315
Bezzera Überwurfmutter 3/8"G H17
13,72 €

excl. Shipping costs
immediately available, 4 available
3bezzera kippventilachse m8 stift fuer wasser dampfhahn bezzera inox8071554
Bezzera Kippventilachse M8 Stift für Wasser/Dampfhahn Bezzera INOX
13,90 €

excl. Shipping costs
immediately available, 3 available
5feder d8 h17 aisi3028072133
Feder D8 H17 AISI302
3,32 €

excl. Shipping costs
immediately available, 6 available
6scheibe d11 h1 5aisi3038071592
Scheibe D11 H1.5AISI303
3,72 €

excl. Shipping costs
immediately available
7conical ptfe seal o 12x5x5 5 mm8001409
CONICAL PTFE SEAL ø 12x5x5,5 mm
2,30 €

excl. Shipping costs
immediately available, 14 available
8mutter 3 8 22x5 verchromt8071423
Mutter 3/8 .22X5 verchromt
8,87 €

excl. Shipping costs
immediately available, 12 available
10epdm flat gasket 11 x 4 x 4 mm8001656
EPDM FLAT GASKET 11 x 4 x 4 mm
0,55 €

excl. Shipping costs
immediately available
11dichtungstraeger kippventil bezzera d12x12 ot8071504
Dichtungsträger Kippventil Bezzera D12X12 OT
5,88 €

excl. Shipping costs
immediately available, 4 available
13fitting m14xm13 for steam tap and hot water tap form 05 10 2012 bezzera8081420
Fitting M14xM13 for steam tap and hot water tap (form 05.10.2012) Bezzera
This article is no longer available
14o ring 0121 epdm8014882
O-RING 0121 EPDM
1,07 €

excl. Shipping costs
immediately available
15spring o 11 7x16 mm8069864
SPRING ø 11,7x16 mm
2,11 €

excl. Shipping costs
immediately available, 12 available
16deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 15 available
17ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available
18water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
19nozzle m6x1 hole8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs
immediately available
20chromium plated upper sleeve8063314
CHROMIUM-PLATED UPPER SLEEVE
29,00 €

excl. Shipping costs
immediately available, 9 available
21injector d 0 7 upper sleeve assy8072858
INJECTOR D.0.7 UPPER SLEEVE ASSY
71,40 €

excl. Shipping costs
Delivery time
is determined
22o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
23ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
24spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
25complete spout valve8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs
immediately available, 14 available

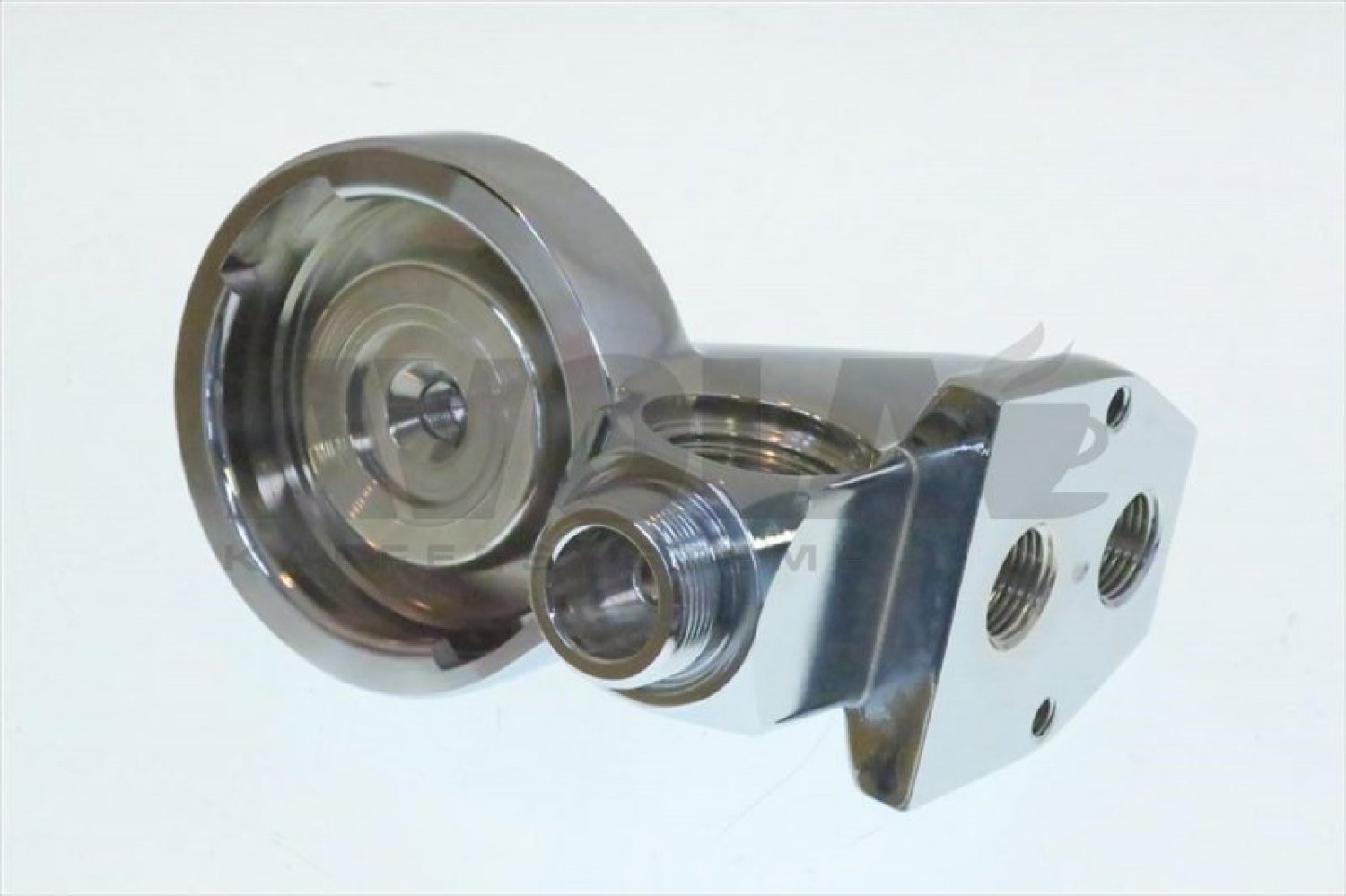

26original bezzera e61 bruehgruppenkorpus8072859
Original Bezzera E61 Brühgruppenkorpus
205,00 €

excl. Shipping costs
Delivery time 4-6 weeks
27coffee group gasket 80x70x2 mm8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs
immediately available, 9 available
288071616
TIRANTE M8X31 ASTM A 193 B8 C/1
Price on request
29hexagonal nut m8 medium8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs
immediately available
30ptfe flat gasket o10x6x1 mm8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs
immediately available, 14 available
31low cylinder head screw m6x10 uni 93278001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs
immediately available
32cam locking stainless steel screw m68001289
CAM LOCKING STAINLESS STEEL SCREW M6
4,03 €

excl. Shipping costs
immediately available, 14 available
33cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available

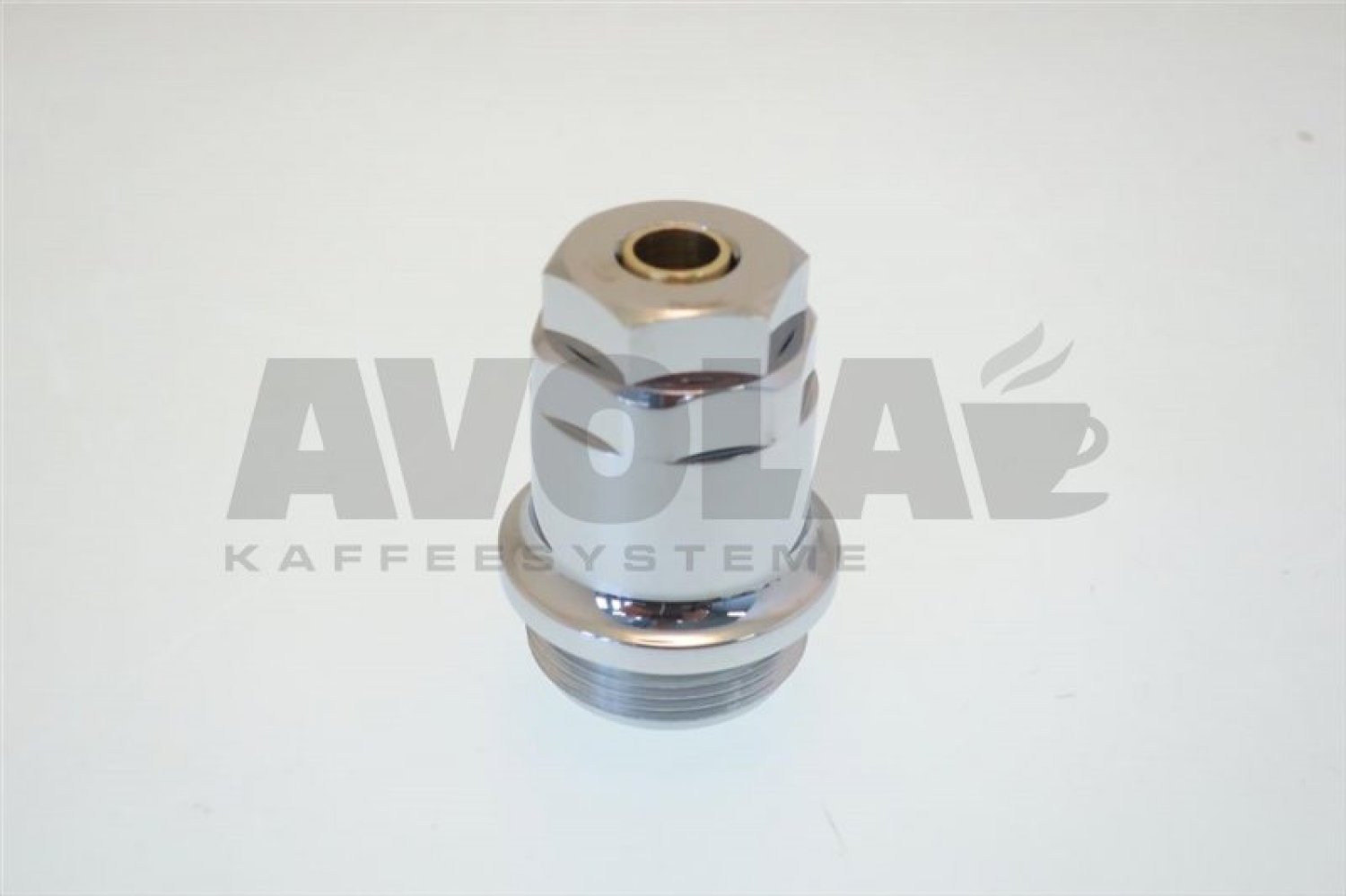

34assy flangia porta camme8072861
ASSY FLANGIA PORTA CAMME
48,79 €

excl. Shipping costs
Delivery time 4-6 weeks
35knob m8x18003294
KNOB M8x1
6,56 €

excl. Shipping costs
immediately available, 3 available

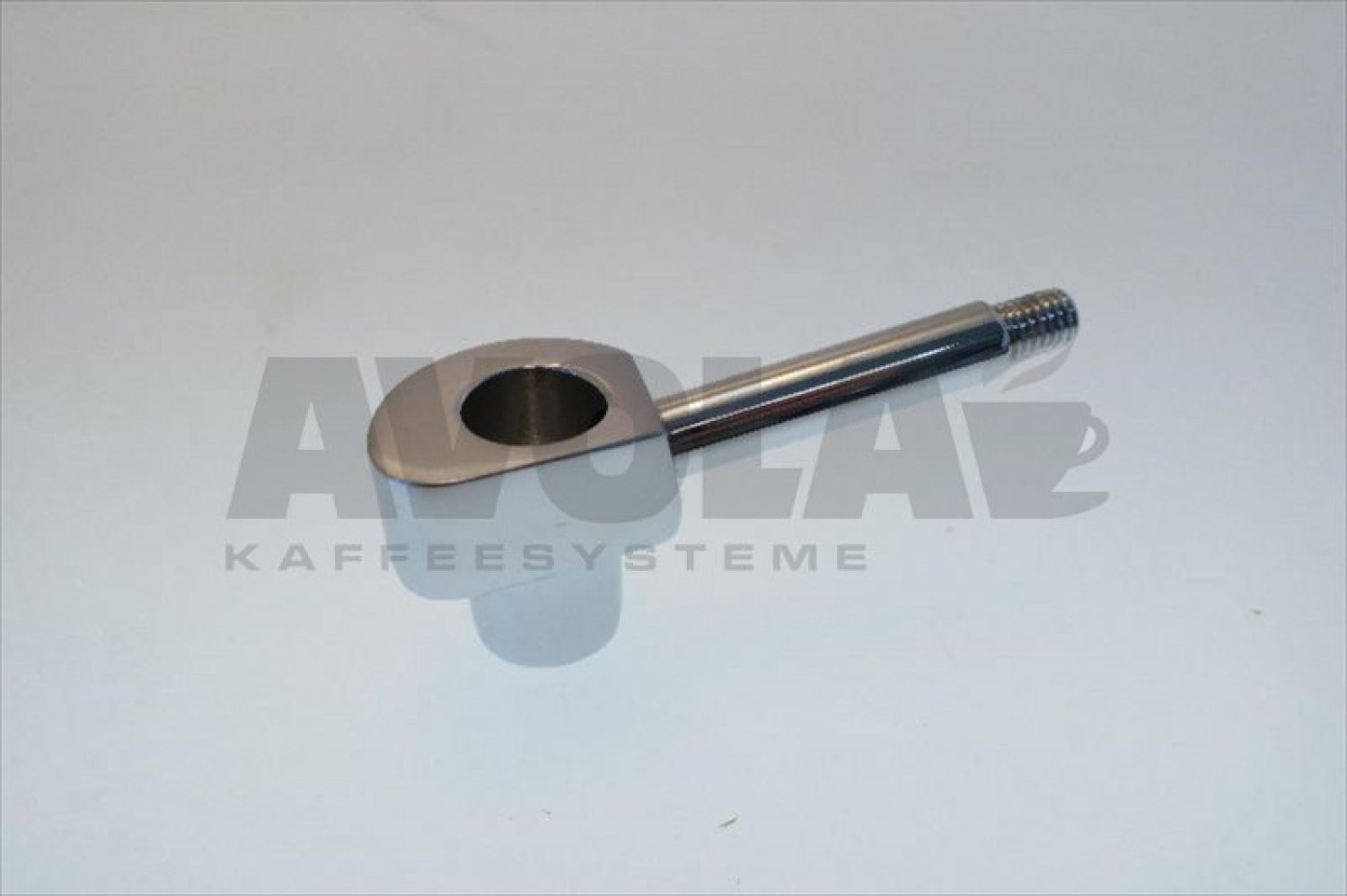

36bezzera e61 bezugshebel ohne knebel8072857
Bezzera E61 Bezugshebel ohne Knebel
46,81 €

excl. Shipping costs
Delivery time 4-6 weeks
37zahnscheibe 0 8 nockenwelle e618073573
Zahnscheibe 0,8 Nockenwelle E61
1,25 €

excl. Shipping costs
immediately available
38chromium plated cap m68002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs
immediately available, 6 available
39complete drain valve8007124
COMPLETE DRAIN VALVE
10,50 €
10,50 €

excl. Shipping costs
immediately available
40spring guide bushing8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs
immediately available, 8 available
41outlet chromium plated sleeve8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs
immediately available, 1 available
42e61 drain valve with gasket8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs
immediately available
43feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available
44drain jet swirl8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs
immediately available, 18 available
45flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
46drain chromium plated fitting8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs
immediately available, 5 available
47group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
48shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
49filter holder gasket o 73x57x8 mm8001902
FILTER HOLDER GASKET Ø 73x57x8 mm
3,47 €

excl. Shipping costs
immediately available
50ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 5 available
51epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
52cam guide bushing8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs
immediately available, 13 available
53spring o 14 6x21 mm8003547
SPRING ø 14,6x21 mm
3,55 €

excl. Shipping costs
immediately available
54stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 5 available
55teflonpfanne bezzera o 13x6x6 mm8125571
Teflonpfanne Bezzera ø 13x6x6 mm
3,80 €

excl. Shipping costs
immediately available

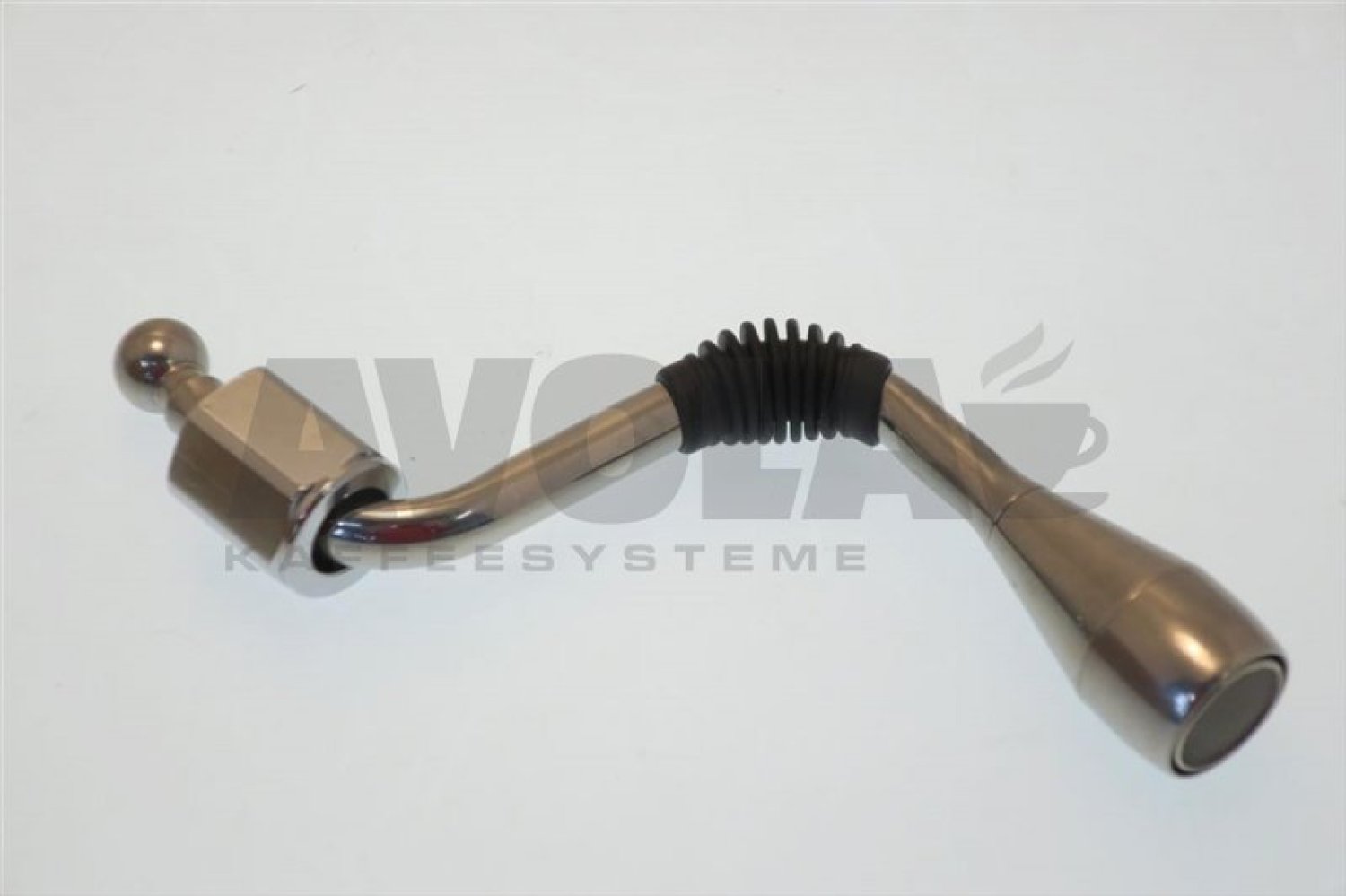

56heisswasserlanze bezzera8072870
Heisswasserlanze Bezzera
59,74 €

excl. Shipping costs
immediately available, 2 available
58o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available, 20 available
59ueberwurfmutter bezzera 3 8 fuer dampf und heisswasserlanze ersetzt durch 82812988071451
Überwurfmutter Bezzera 3/8 für Dampf- und Heisswasserlanze (ersetzt durch 8281298)
This article is no longer available
64pipe steam complete satinless steel8069460
PIPE STEAM COMPLETE SATINLESS STEEL
40,61 €

excl. Shipping costs
immediately available, 1 available
65burn preventing rubberpiece o 10 mm8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs
immediately available, 9 available

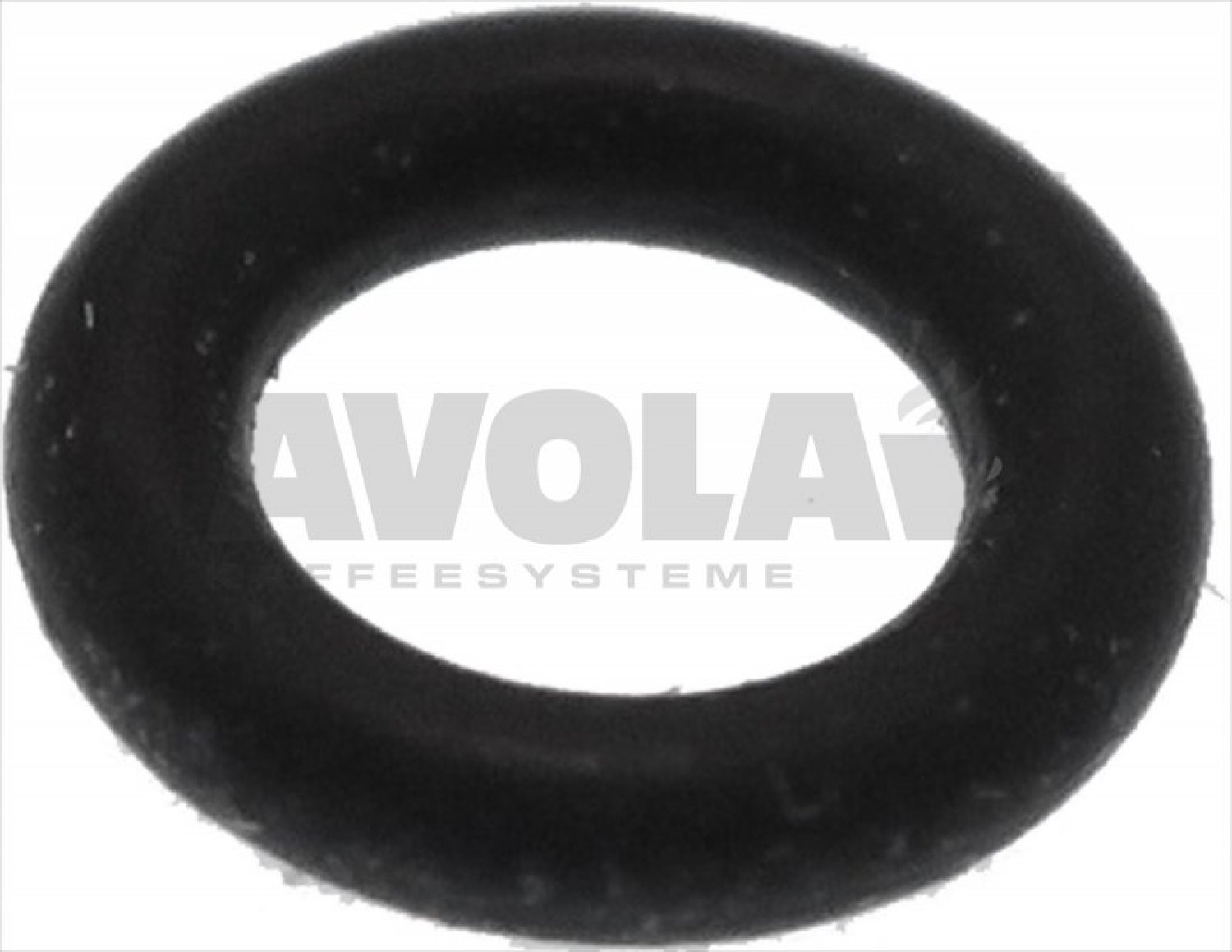

66dichtung bezzera fuer dampfduese d4 5x1 5 nbr708072908
Dichtung Bezzera für Dampfdüse D4,5X1,5 NBR70
1,20 €

excl. Shipping costs
immediately available, 16 available
67steam tip bezzera 4 holes inox8072726
Steam tip Bezzera 4 holes inox
15,26 €

excl. Shipping costs
immediately available, 6 available

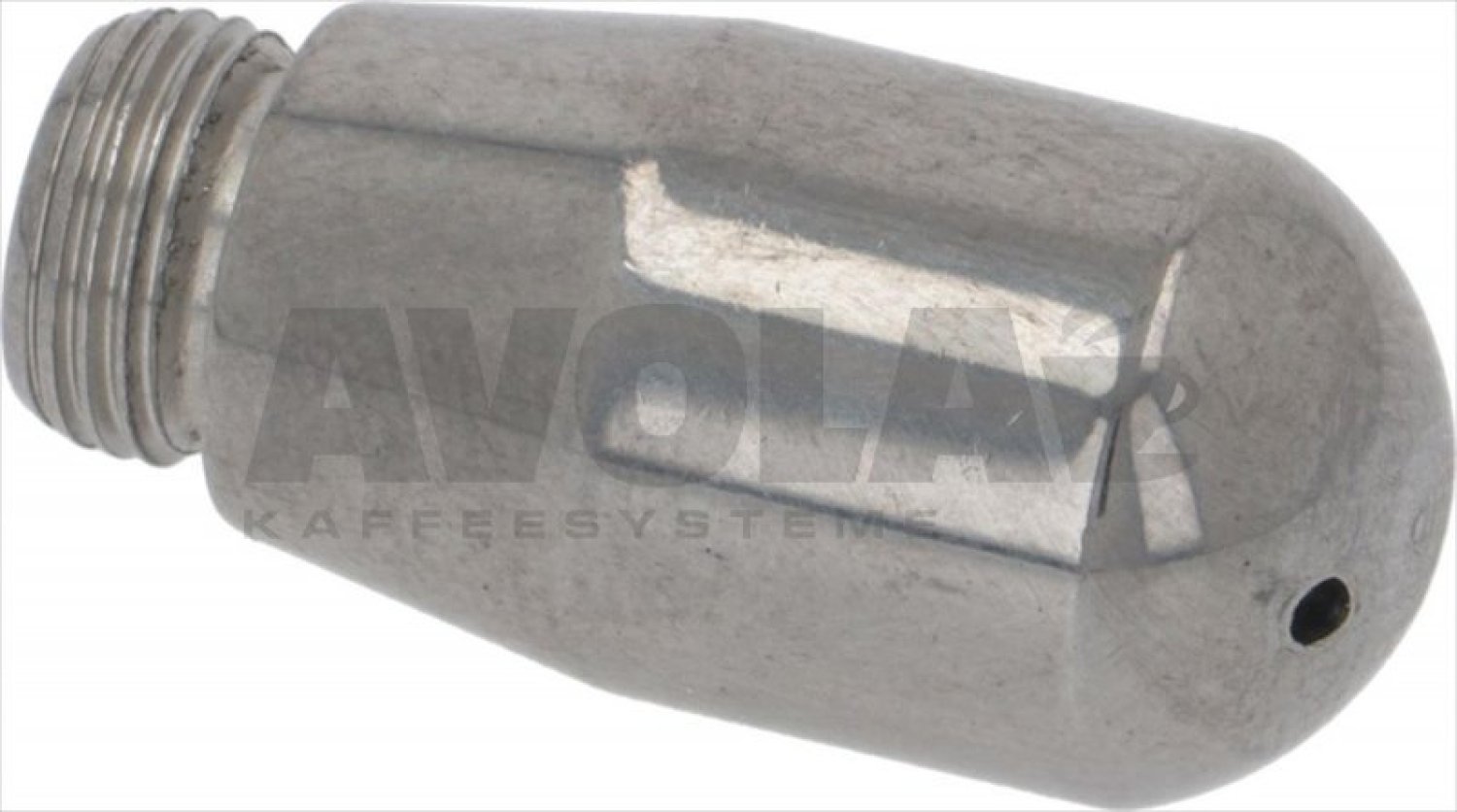

68steam tip 2 holes inox8069913
Steam Tip 2 holes inox
11,31 €

excl. Shipping costs
immediately available, 3 available
69bezzera kippventilachse m8 stift fuer wasser dampfhahn bezzera inox8071554
Bezzera Kippventilachse M8 Stift für Wasser/Dampfhahn Bezzera INOX
13,90 €

excl. Shipping costs
immediately available, 3 available
70stift fuer dampf wasserhahn d12x47 5 m48071591
Stift für Dampf- Wasserhahn D12x47,5 M4
22,46 €

excl. Shipping costs
immediately available, 4 available
71bezzera steam tap without wand8081421
Bezzera steam tap without wand
64,87 €

excl. Shipping costs
Delivery time 4-6 weeks
72dichtung bezzera d6 4x1 9 nbr708072909
Dichtung Bezzera D6,4X1,9 NBR70
1,92 €

excl. Shipping costs
immediately available, 18 available
73dampfduese bezzera 2 loch edelstahl ab 26 01 20128069914
Dampfdüse Bezzera 2-Loch Edelstahl (ab 26.01.2012)
7,98 €

excl. Shipping costs
immediately available, 5 available
74steam wand bezzera 2 holes8072872
Steam wand Bezzera 2 holes
40,47 €

excl. Shipping costs
immediately available, 5 available
75bezzera fitting m f m13x18079534
Bezzera Fitting M/F M13x1
3,67 €

excl. Shipping costs
immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
