Bezzera BZ10 Brühgruppe und Wasser Dampf Ventile

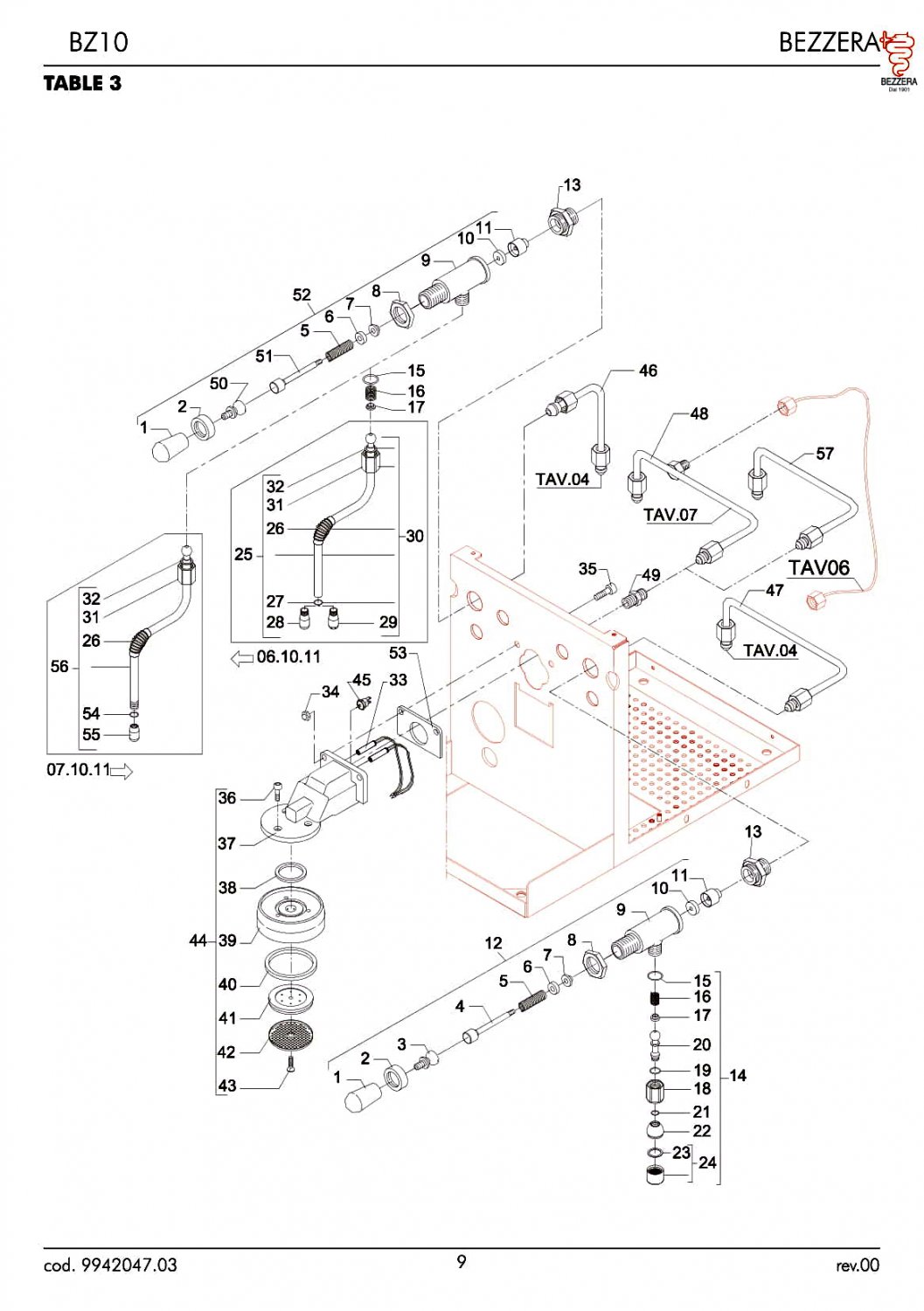

Drawing number 8279032

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1knob m8x18003294
KNOB M8x1
6,56 €

excl. Shipping costs
immediately available, 4 available
2bezzera ueberwurfmutter 3 8 quot g h178079315
Bezzera Überwurfmutter 3/8"G H17
13,72 €

excl. Shipping costs
immediately available, 4 available
3bezzera kippventilachse m8 stift fuer wasser dampfhahn bezzera inox8071554
Bezzera Kippventilachse M8 Stift für Wasser/Dampfhahn Bezzera INOX
13,90 €

excl. Shipping costs
immediately available, 6 available
5feder d8 h17 aisi3028072133
Feder D8 H17 AISI302
3,32 €

excl. Shipping costs
immediately available, 9 available
6scheibe d11 h1 5aisi3038071592
Scheibe D11 H1.5AISI303
3,72 €

excl. Shipping costs
immediately available
7conical ptfe seal o 12x5x5 5 mm8001409
CONICAL PTFE SEAL ø 12x5x5,5 mm
2,30 €

excl. Shipping costs
immediately available, 16 available
8mutter 3 8 22x5 verchromt8071423
Mutter 3/8 .22X5 verchromt
8,87 €

excl. Shipping costs
immediately available, 13 available
9bezzera ventilkoerper8281180

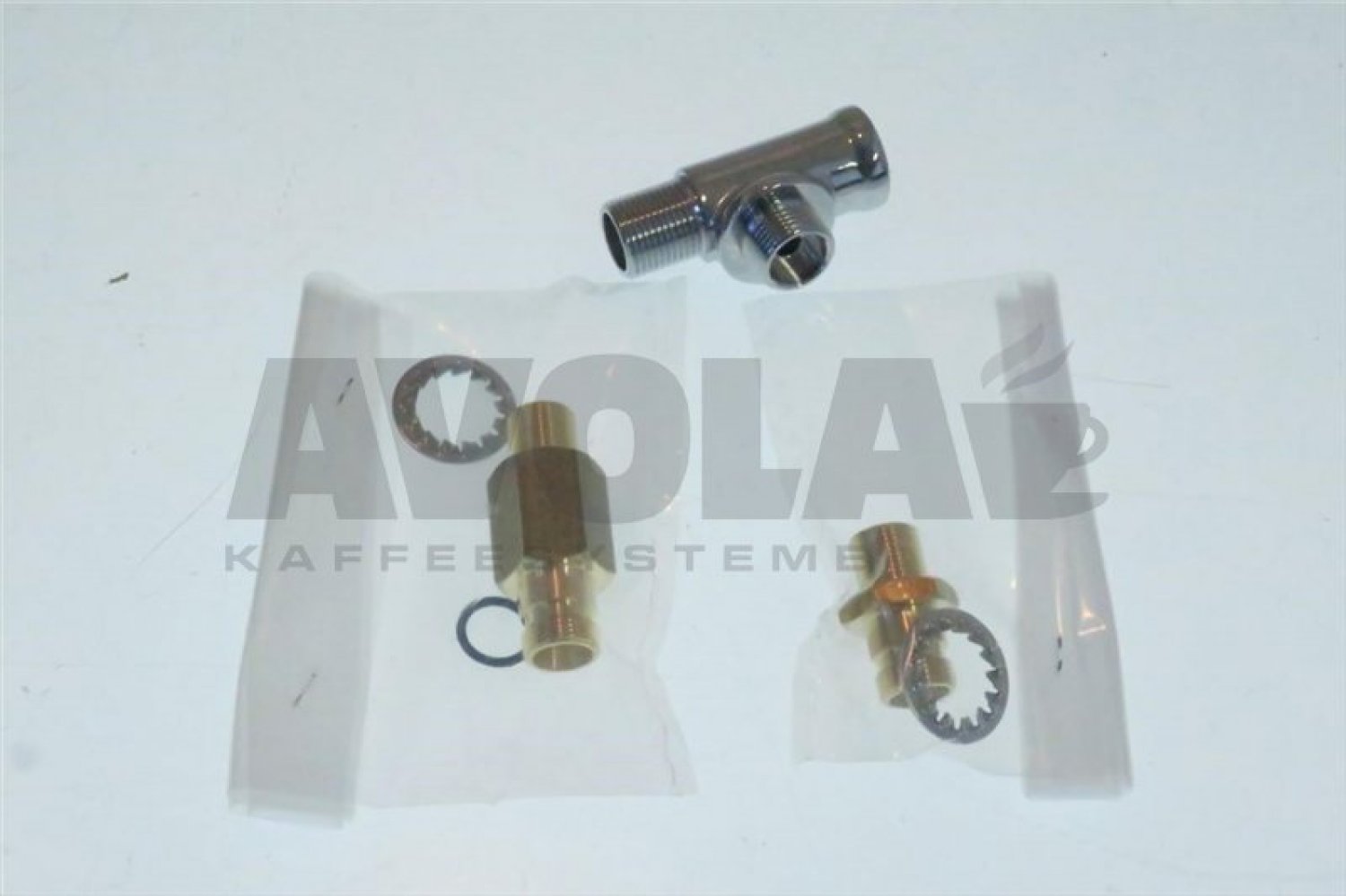

Bezzera Ventilkörper
56,47 €

excl. Shipping costs
Delivery time 4-6 weeks
10epdm flat gasket 11 x 4 x 4 mm8001656
EPDM FLAT GASKET 11 x 4 x 4 mm
0,55 €

excl. Shipping costs
immediately available
11dichtungstraeger kippventil bezzera d12x12 ot8071504
Dichtungsträger Kippventil Bezzera D12X12 OT
5,88 €

excl. Shipping costs
immediately available, 4 available
13bezzera junction m14xm138071541
Bezzera junction M14xM13
14,02 €

excl. Shipping costs
immediately available, 3 available
15o ring 0121 epdm8014882
O-RING 0121 EPDM
1,07 €

excl. Shipping costs
immediately available
16spring o 11 7x16 mm8069864
SPRING ø 11,7x16 mm
2,11 €

excl. Shipping costs
Delivery time 4-6 weeks
17teflonpfanne bezzera o 13x6x6 mm8125571
Teflonpfanne Bezzera ø 13x6x6 mm
3,80 €

excl. Shipping costs
immediately available
18ueberwurfmutter bezzera 3 8 fuer dampf und heisswasserlanze ersetzt durch 82812988071451
Überwurfmutter Bezzera 3/8 für Dampf- und Heisswasserlanze (ersetzt durch 8281298)
This article is no longer available
19o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available, 16 available
20water pipe nozzle8006554
WATER PIPE NOZZLE
6,57 €

excl. Shipping costs
immediately available, 1 available
208071552
TUBO ACQUA D14 H44 OT S/PB-NI CR
Price on request
21o ring 0108 viton8066106
O-RING 0108 VITON
1,05 €

excl. Shipping costs
immediately available
23flat epdm gasket o 20 5x15x2 mm8002115
FLAT EPDM GASKET ø 20,5x15x2 mm
3,32 €

excl. Shipping costs
immediately available, 6 available
24water pipe nozzle8006554
WATER PIPE NOZZLE
6,57 €

excl. Shipping costs
immediately available, 1 available
25pipe steam complete satinless steel8069460
PIPE STEAM COMPLETE SATINLESS STEEL
40,61 €

excl. Shipping costs
immediately available, 6 available
26burn preventing rubberpiece o 10 mm8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs
immediately available, 7 available
27dichtung bezzera fuer dampfduese d4 5x1 5 nbr708072908
Dichtung Bezzera für Dampfdüse D4,5X1,5 NBR70
1,20 €

excl. Shipping costs
immediately available
28steam tip bezzera 4 holes inox8072726
Steam tip Bezzera 4 holes inox
15,26 €

excl. Shipping costs
immediately available, 7 available
29steam tip 2 holes inox8069913
Steam Tip 2 holes inox
11,31 €

excl. Shipping costs
immediately available, 3 available
31ueberwurfmutter bezzera 3 8 fuer dampf und heisswasserlanze ersetzt durch 82812988071451
Überwurfmutter Bezzera 3/8 für Dampf- und Heisswasserlanze (ersetzt durch 8281298)
This article is no longer available
32o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available, 16 available
338072314
ASSY RESIST.CARTUCCE DOPP.110V
Price on request
33bezzera heizungspatrone 220 240v8072315
Bezzera Heizungspatrone 220/240V
75,14 €

excl. Shipping costs
immediately available, 2 available
348071438
DADO CIECO M8 CROMATO
Price on request
35schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 9128061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs
immediately available
36inox schraube t c c e i m5x14 uni 59318069639
Inox Schraube T.c.c.e.i. M5x14 Uni 5931
2,71 €

excl. Shipping costs
immediately available, 12 available
37bezzera bruehgruppe korpus ohne heizung und anbauteile8140894
Bezzera Brühgruppe Korpus ohne Heizung und Anbauteile
185,58 €

excl. Shipping costs
Delivery time 4-6 weeks
38or gasket 04131 viton8015007
OR GASKET 04131 VITON
2,75 €

excl. Shipping costs
immediately available, 16 available
39filter holder coupling bell8064416
FILTER-HOLDER COUPLING BELL
103,86 €

excl. Shipping costs
immediately available, 2 available
40bezzera siebtraegerdichtung konisch 72 x 56 x 9 3 6 3 mm 75sh8072882
Bezzera Siebträgerdichtung konisch 72 x 56 x 9,3/6,3 mm 75SH
This article is no longer available
40original bezzera siebtraegerdichtung o 73x57x7 5 mm silikon8283470
Original Bezzera Siebträgerdichtung ø 73x57x7,5 mm Silikon
7,44 €

excl. Shipping costs
immediately available
41shower holder diffuser8000640
SHOWER HOLDER DIFFUSER
21,84 €

excl. Shipping costs
immediately available, 1 available
42shower o 57 5 mm8000577
SHOWER ø 57,5 mm
4,00 €

excl. Shipping costs
immediately available, 7 available
43countersunk flat head screws m5x168007262
COUNTERSUNK FLAT HEAD SCREWS M5x16
0,50 €

excl. Shipping costs
immediately available
448072340
ASSY GRUPPO BZ07 NEW GUARNIZ.ALIM.
238,40 €

excl. Shipping costs
Delivery time 4-6 weeks
45contact thermostat 958064032
CONTACT THERMOSTAT 95
17,05 €

excl. Shipping costs
immediately available, 4 available
46pipe to steam tap bezzera8071058
pipe to steam tap Bezzera
27,55 €

excl. Shipping costs
immediately available, 7 available
47pipe to water tap bezzera ll0088071067
pipe to water tap Bezzera LL008
26,74 €

excl. Shipping costs
immediately available, 3 available
48copper pipe solenoid valve to group bezzera with connection for manometer capillary8071066
copper pipe solenoid valve to group Bezzera with connection for manometer capillary
23,26 €

excl. Shipping costs
immediately available, 2 available
50bezzera kippventilachse m8 stift fuer wasser dampfhahn bezzera inox8071554
Bezzera Kippventilachse M8 Stift für Wasser/Dampfhahn Bezzera INOX
13,90 €

excl. Shipping costs
immediately available, 6 available
51stift fuer dampf wasserhahn d12x47 5 m48071591
Stift für Dampf- Wasserhahn D12x47,5 M4
22,46 €

excl. Shipping costs
immediately available, 5 available
52bezzera steam tap without wand8081421
Bezzera steam tap without wand
64,87 €

excl. Shipping costs
immediately available, 2 available
53dichtung gruppe bezzera bz078072879
Dichtung Gruppe Bezzera BZ07
6,41 €

excl. Shipping costs
immediately available, 5 available
54dichtung bezzera d6 4x1 9 nbr708072909
Dichtung Bezzera D6,4X1,9 NBR70
1,92 €

excl. Shipping costs
immediately available, 10 available
55dampfduese bezzera 2 loch edelstahl ab 26 01 20128069914
Dampfdüse Bezzera 2-Loch Edelstahl (ab 26.01.2012)
7,98 €

excl. Shipping costs
Delivery time
is determined
56steam wand bezzera 2 holes8072872
Steam wand Bezzera 2 holes
40,47 €

excl. Shipping costs
Delivery time 4-6 weeks
57copper pipe solenoid valve to group bezzera bz078071063
copper pipe solenoid valve to group Bezzera BZ07
25,43 €

excl. Shipping costs
immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
